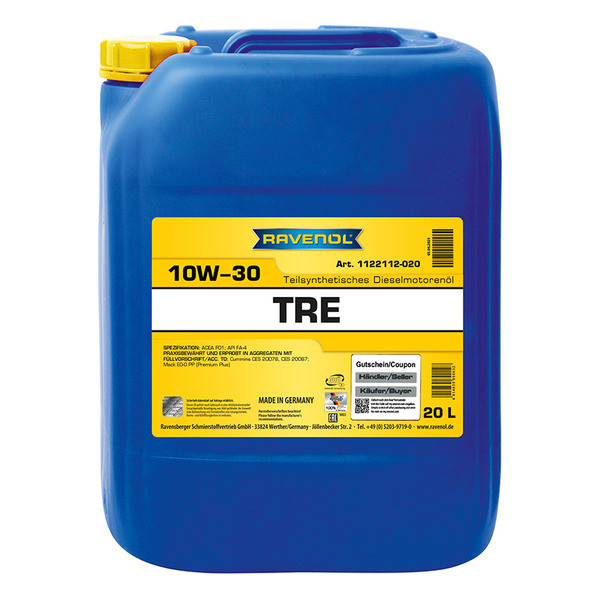

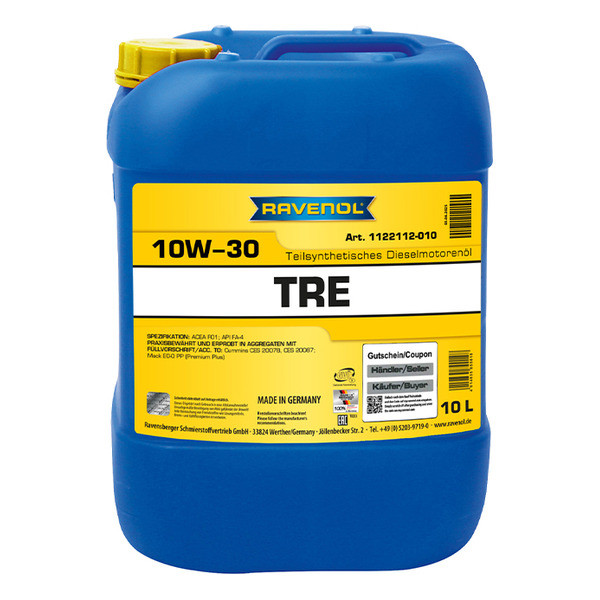

RAVENOL TRE Truck Resource Conserving SAE 10W-30 with API specification FA-4 fulfils the requirements of the On-Highway Greenhouse Gas (GHG) standards for the reduction of greenhouse gas emissions from model year 2017 onwards.
Compliance with the requirements:
Cummins CES 20078, Mack EO-O Premium Plus
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1122112-010
Volume:
20 L
vendor code:
1122112-020
Volume:
20 L, ecobox
vendor code:
1122112-B20
Volume:
60 L
vendor code:
1122112-060
Volume:
60 L, print
vendor code:
1122112-D60
Volume:
208 L
vendor code:
1122112-208
Volume:
208 L, print
vendor code:
1122112-D28
RAVENOL TRE Truck Resource Conserving SAE 10W-30 with API specification FA-4 fulfils the requirements of the On-Highway Greenhouse Gas (GHG) standards for the reduction of greenhouse gas emissions from model year 2017 onwards.
RAVENOL TRE Truck Resource Conserving SAE 10W-30 is suitable for diesel fuel with a sulphur content of up to 15ppm and can be used in the latest exhaust gas- optimized engines with exhaust gas treatment such as DPF diesel particulate filters and other systems.
RAVENOL TRE Truck Resource Conserving SAE 10W-30 contains shear-stable ingredients and improves engine performance, reliability and cleanliness. It delivers significant improvements to oxidation resistance, shear stability, wear and tear, deposits and a reduction in fuel consumption.
Application Note
RAVENOL TRE Truck Resource Conserving SAE 10W-30 is used by engine manufacturers as a year-round multigrade engine oil for engines with exhaust treatment systems with viscosity grade SAE 10W-30 in diesel commercial vehicle engines which are subject to heavy strain.
RAVENOL TRE Truck Resource Conserving SAE 10W-30 with category FA-4 is neither interchangeable nor backward-compatible with API CK-4, CJ-4, CI-4 with CI-4 PLUS, CI-4 or CH-4 oils.
Note the manufacturer recommendations in order to establish whether
RAVENOL TRE Truck Resource Conserving SAE 10W-30 with API FA-4 is suitable for use.
RAVENOL TRE Truck Resource Conserving SAE 10W-30 with API FA-4 is not recommended for use with fuels with more than 15 ppm of sulphur.
Characteristics
- Very stable, extremely high-level viscosity performance and high shear stability
- Fuel savings under all operating conditions
- Maintains the effectiveness of the waste gas purification systems over a very long operating period
- Loss of performance due to blocked diesel particulate filters is inhibited and a higher degree of effectiveness is achieved
- Low volatility, resulting in lower oil consumption
- Extended oil change intervals protect natural resources
- Very good cold start performance
- Low SAPS = low sulphate ash, phosphorus and sulphur
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | FA-4 |
FA-4
|
||
| Recomendations | Cummins CES 20078, Mack EO-O Premium Plus |
Cummins CES 20078, Mack EO-O Premium Plus
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.8 | DIN 51562-1 |
9.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 62.6 | DIN 51562-1 |
62.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 139 | DIN ISO 2909 |
139
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.1 | ASTM D5481 |
3.1
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 3930 | ASTM D5293 |
3930
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 10.700 | ASTM D4684 |
10.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 8.7 | ASTM D5800 |
8.7
% M/M
ASTM D5800
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10 | ASTM D2896 |
10
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.98 | DIN 51575 |
0.98
%wt.
DIN 51575
|
| Approvals | Cummins CES 20078, Mack EO-O Premium Plus |
Cummins CES 20078, Mack EO-O Premium Plus
|
With RAVENOL Motobike 4-T Ester SAE 10W-30 a solid and high loadable engine oil was developed. The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase.
SAE: 10W-30
API: SN
Equivalents OEM:
BRP 779464,
Honda 08C35A131L01,
Honda 08C35A131L02,
Honda 08C35A131M01,
Honda 08C35A131M02,
Honda 08C35SYN1030M,
Honda 08221888010MP,
Honda 08221888061HE,
Honda 08221888061MP,
Honda 08221888101HE,
Honda 08221888101MP,
Honda 08221888600HE,
Honda 08232M99K0BA1,
Honda 08232M99K1JHE,
Honda 08232M99K60HE,
Honda 08232M99S1LHE,
Honda 08232M99S4LHE,
Honda 08232M99S6LHE,
Honda 08232M99S60HE,
Honda 08232M99SL1HE,
Honda 08232M99SL2HE,
Honda 08232M99SL4HE,
Honda 082332MAK1LT3,
Honda 082332MAK1LT3F,
Honda 082332MAK6LT3,
Honda 082332MAK8LT1,
Honda 082332MAK8LT1F,
Honda 082332MBK6LT3,
Honda 082332MBK8LT1,
Honda 082332MBK8LT1F,
Honda 082332MBK9LT3
BRP 779464, Honda 08C35A131L01, Honda 08C35A131L02, Honda 08C35A131M01, Honda 08C35A131M02, Honda 08C35SYN1030M, Honda 08221888010MP, Honda 08221888061HE, Honda 08221888061MP, Honda 08221888101HE, Honda 08221888101MP, Honda 08221888600HE, Honda 08232M99K0BA1, Honda 08232M99K1JHE, Honda 08232M99K60HE, Honda 08232M99S1LHE, Honda 08232M99S4LHE, Honda 08232M99S6LHE, Honda 08232M99S60HE, Honda 08232M99SL1HE, Honda 08232M99SL2HE, Honda 08232M99SL4HE, Honda 082332MAK1LT3, Honda 082332MAK1LT3F, Honda 082332MAK6LT3, Honda 082332MAK8LT1, Honda 082332MAK8LT1F, Honda 082332MBK6LT3, Honda 082332MBK8LT1, Honda 082332MBK8LT1F, Honda 082332MBK9LT3, Honda 082332MBK9LT3F, Honda 082332MBK9LT3F, Honda 082342MBK8LT1, Honda 082342MBK8LT3, Honda 082342MBK8LT3F, Honda 0823499961, Honda 0823799951HA, Yamalube ACCY40103012, Yamalube LUB15W30FS12
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1172111-020
Volume:
20 L, ecobox
vendor code:
1172111-B20
Volume:
60 L
vendor code:
1172111-060
With RAVENOL Motobike 4-T Ester SAE 10W-30 a solid and high loadable engine oil was developed. The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase.
RAVENOL Motobike 4-T Ester SAE 10W-30 fulfils the high tech demands of the latest powerful engine generation.
Application Note
RAVENOL Motobike 4-T Ester SAE 10W-30 is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 10W-30 JASO MA/MA2 is requested.
Characteristics
- A quick lubrication of the engine
- A low evaporation tendency, therefore a lower oil consumption
- Safety against sludge accumulation, cokings and corrosion even under unfavourable operating conditions
- Guarantee of the function of the hydro tappets at all temperatures
- No oil limited deposits in combustion chambers, at the piston ring and valves
- Unchanged viscosity during the whole oil change interval, a high viscosity index
- Neutral against sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SN |
SN
|
||
| JASO | MA2 |
MA2
|
||
| Suitable for | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Density at 20 °C | kg/m³ | 851 | EN ISO 12185 |
851
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12 | DIN 51562-1 |
12
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 78.9 | DIN 51562-1 |
78.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 148 | DIN ISO 2909 |
148
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 5660 | ASTM D5293 |
5660
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 3.3 | ASTM D5800 |
3.3
% M/M
ASTM D5800
|
| Flashpoint | °C | 260 | DIN EN ISO 2592 |
260
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.9 | ASTM D2896 |
7.9
mgKOH/g
ASTM D2896
|
RAVENOL UDT Ultra Duty Truck SAE 10W-30 can be used in modern trucks and “Tier 4” off-road vehicles and was designed as a SHPD engine oil (Super High Performance Diesel) for use in engines with and without a particle filter and catalytic converter and with specific requirements for Low SAPS technology. The product offers low sulphur, phosphorous and ash content.
Manufacturer Approved:
DTFR 15C110, Mack EOS-4.5, Renault RLD-3, Volvo VDS-4.5
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, MB 228.51, MTU Type 3.1
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1121110-B20
Volume:
60 L
vendor code:
1121110-060
Volume:
60 L, print
vendor code:
1121110-D60
Volume:
208 L, print
vendor code:
1121110-D28
RAVENOL UDT Ultra Duty Truck SAE 10W-30 can be used in modern trucks and “Tier 4” off-road vehicles and was designed as a SHPD engine oil (Super High Performance Diesel) for use in engines with and without a particle filter and catalytic converter and with specific requirements for Low SAPS technology. The product offers low sulphur, phosphorous and ash content.
RAVENOL UDT Ultra Duty Truck SAE 10W-30 has particularly high oxidation and shear stability as well as improved air-release properties, allowing it to fulfil and exceed the latest requirements in accordance with API CK-4.
RAVENOL UDT Ultra Duty Truck SAE 10W-30 offers reliable cold start performance at low outdoor temperatures and full lubricity at high operating temperatures. This reduces friction loss and wear and tear.
RAVENOL UDT Ultra Duty Truck SAE 10W-30 was licensed as the first European engine oil by the API with the specifications API CK-4 and API CJ-4.
The new API CK-4 specification is suitable for both current and older vehicles. It is backward compatible and can also be used for diesel fuels which contain up to 500 ppm of sulphur.
Application Note
RAVENOL UDT Ultra Duty Truck SAE 10W-30 is a high-performance engine oil which can be used all year round and which has been designed to meet the new exhaust gas emissions guidelines. It has been created for vehicles with exhaust gas recirculation systems. Extended oil change intervals in accordance with manufacturer instructions.
RAVENOL UDT Ultra Duty Truck SAE 10W-30 is particularly suitable for use in a mixed fleet including EURO 2, EURO 3, EURO 4, EURO 5 and EURO 6 engines and therefore offers the ideal solution to reducing the range of products needed. Please follow the manufacturer’s recommendations!
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CI-4, CJ-4, CK-4, SN |
CI-4, CJ-4, CK-4, SN
|
||
| ACEA | E11, E6, E7, E8, E9 |
E11, E6, E7, E8, E9
|
||
| Manufacturer Approved | DTFR 15C110, Mack EOS-4.5, Renault RLD-3, Volvo VDS-4.5 |
DTFR 15C110, Mack EOS-4.5, Renault RLD-3, Volvo VDS-4.5
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, MB 228.51, MTU Type 3.1 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, MB 228.51, MTU Type 3.1
|
||
| Density at 20 °C | kg/m³ | 862.8 | EN ISO 12185 |
862.8
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 81.5 | DIN 51562-1 |
81.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 145 | DIN ISO 2909 |
145
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6104 | ASTM D5293 |
6104
mPa*s
ASTM D5293
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 7.1 | ASTM D5800 |
7.1
% M/M
ASTM D5800
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.6 | ASTM D2896 |
10.6
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.77 | DIN 51575 |
0.77
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110, Mack EOS-4.5, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4.5 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110, Mack EOS-4.5, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4.5
|
RAVENOL Low Emission Truck SAE 10W-30 is suitable for application in new exhaust-optimized engines with exhaust gas after treatment.
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110 (MB 228.51), Mack EO-O Premium Plus, MAN M 3677, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4
SAE: 10W-30
Equivalents OEM:
Chrysler 68438447PA, Chrysler 68440571AA, Chrysler 68440571PA, Chrysler 68475202PA, Chrysler 68492707AA, Chrysler 550019899, Chrysler 550019908, Chrysler 550039430, DAF 09600XX, DAF 09601RU, DAF 09602XX, DAF 09604RU, DAF 09605RU, DAF 09606XX, DAF 09607RU, GM 88863188, GM 88863189, GM 88863190, Mitsubishi MZ320895, Mitsubishi MZ320895, Nissan KLBFN10301, Nissan KLBFN10302
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122111-001
Volume:
5 L
vendor code:
1122111-005
Volume:
20 L
vendor code:
1122111-020
Volume:
20 L, ecobox
vendor code:
1122111-B20
Volume:
60 L
vendor code:
1122111-060
Volume:
208 L
vendor code:
1122111-208
Volume:
208 L, print
vendor code:
1122111-D28
Volume:
10 L
vendor code:
1122111-010
Volume:
1000 L
vendor code:
1122111-700
RAVENOL Low Emission Truck SAE 10W-30 is suitable for application in new exhaust-optimized engines with exhaust gas after treatment.
RAVENOL Low Emission Truck SAE 10W-30 reduces friction, wear and fuel consumption and provides for longer oil change intervals in turbo diesel engines.
RAVENOL Low Emission Truck SAE 10W-30 with shear stable additives improves performance, reliability and cleanliness of the engines.
Application Note
RAVENOL Low Emission Truck SAE 10W-3 is a year round high performance motor oil, especially designed for economic use in Euro V and Euro VI engines with after treatment systems in the viscosity class SAE 10W -40 heavy duty vehicle diesel engines.
RAVENOL Low Emission Truck SAE 10W-3 is preferred recommended by the extended oil change intervals specified by the manufacturer in turbo diesel engines.
Characteristics
- Extremely high pressure absorption capacity
- Very high oxidation stability
- Excellent aging stability
- Excellent viscosity and temperature behaviour
- High security reserves even under limited lubrication circumstances
- Suitable for extended oil change intervals
- Suitable for heavy operating conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4, CJ-4, CK-4 |
CI-4, CJ-4, CK-4
|
||
| ACEA | E11, E6, E7, E9 |
E11, E6, E7, E9
|
||
| JASO | DH-2 |
DH-2
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110 (MB 228.51), Mack EO-O Premium Plus, MAN M 3677, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110 (MB 228.51), Mack EO-O Premium Plus, MAN M 3677, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4
|
||
| Density at 20 °C | kg/m³ | 863 | EN ISO 12185 |
863
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.3 | DIN 51562-1 |
12.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 77.6 | DIN 51562-1 |
77.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 5863 | ASTM D5293 |
5863
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 246 | DIN EN ISO 2592 |
246
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.2 | ASTM D2896 |
8.2
mgKOH/g
ASTM D2896
|
| Approvals | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110 (MB 228.51), Mack EO-O Premium Plus, MAN M 3677, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C110 (MB 228.51), Mack EO-O Premium Plus, MAN M 3677, MB 228.51, MTU Type 3.1, Renault RLD-3, Volvo VDS-4
|
RAVENOL Formel Diesel Super SAE 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
SAE: 10W-30
Equivalents OEM:
Chrysler VU02101, Hyundai Motor 0520000C10, Hyundai Motor 0520000410, Hyundai Motor 0520000610, Hyundai Motor 520000610, Mitsubishi 2423610, Mitsubishi 2987401, Mitsubishi 2987610, Mitsubishi MZ102041, Mitsubishi MZ102682, Nissan KLBD010302, Nissan KLBD010302, Nissan KLBD010304, Toyota 0888083320, Toyota 0888083321, Toyota 0888301900, Toyota 0888301903, Toyota 0888301905, Toyota 0888301906
- Available packaging
- Product parameters
RAVENOL Formel Diesel Super SAE 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.
Application Note
RAVENOL Formel Diesel Super SAE 10W-30 is suitable for all kinds of passenger cars - gasoline and diesel engines - and can be ideally used the whole year, even with turbo charging.
Characteristics
- Suitable for catalyst vehicles
- Excellent detergent and dispersant characteristics
- Good cold start characteristics
- High oxidation stability
- Excellent viscosity temperature behaviour
- Best wear protection
- Reduces emissions
- High safety reserves
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, CF-4 |
CF, CF-4
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
|
||
| Density at 20 °C | kg/m³ | 859 | EN ISO 12185 |
859
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.4 | DIN 51562-1 |
12.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 82.5 | DIN 51562-1 |
82.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 147 | DIN ISO 2909 |
147
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6200 | ASTM D5293 |
6200
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 20.600 | ASTM D4684 |
20.600
mPa*s
ASTM D4684
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.9 | ASTM D2896 |
8.9
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
|
RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
Compliance with the requirements:
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
SAE: 10W-30
Equivalents OEM:
Caterpillar 3E9844, Caterpillar 143465, Hino HRLIE10W30C, Hyundai Motor 0520000100, Hyundai Motor 0520000400, Hyundai Motor 0520000600, Hyundai XTeer 1011014, Hyundai XTeer 1061002, Nissan KLB2M10302, Nissan KLBFA10301, Nissan KLBFA10302, Nissan KLBFA10302, Nissan KLBFO10301, Nissan KLBFO10302, Nissan KLBFO10304, Nissan KLBH010302
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123105-001
Volume:
5 L
vendor code:
1123105-005
Volume:

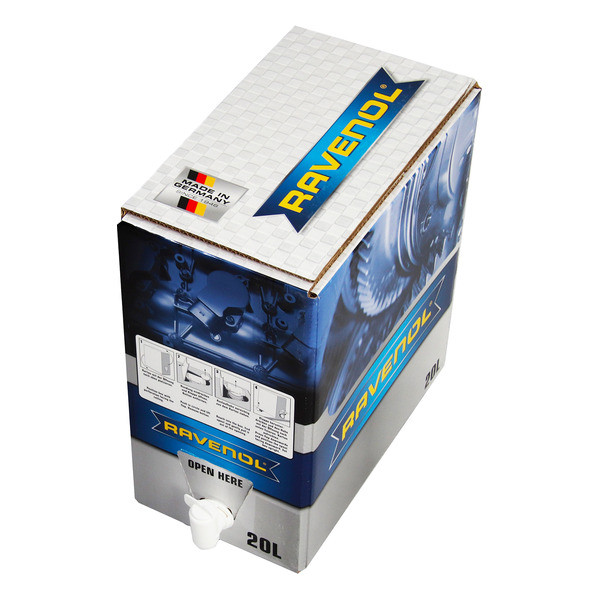

20 L, ecobox
vendor code:
1123105-B20
Volume:

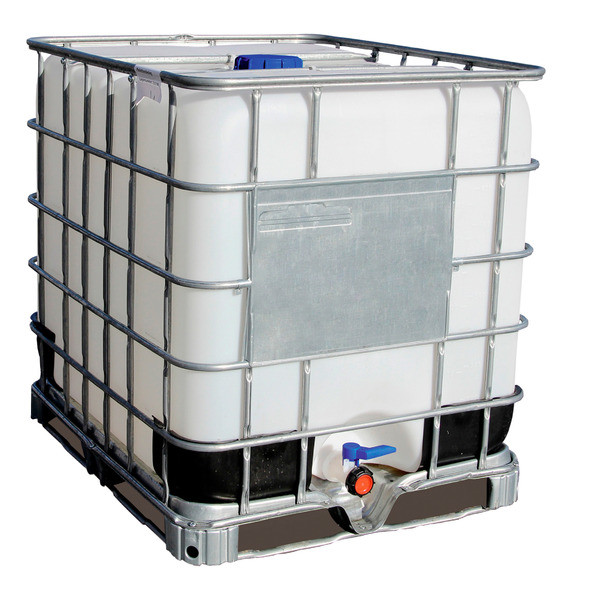

1000 L
vendor code:
1123105-700
RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
RAVENOL Turbo Plus SHPD SAE 10W-30 is particularly suitable for engines with already high performance.
Application Note
RAVENOL Turbo Plus SHPD SAE 10W-30 is approved, tried and tested for aggregates specifying:
Specifications: API CI-4/ SL, ACEA E7, E5, E3, ACEA A3/B4
Approval: YaMZ
Recommendations: Caterpillar ECF-2, TO-2; Cummins CES 20071, -72, -76, -77, -78; DAF; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-N; MAN M 3275-1; MB 228.3;MTU Type 2, MTU Type 3; Renault RLD, Renault VI RLD-2; Volvo VDS 3.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Mineral |
Mineral
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E3, E5, E7 |
A3, B4, E3, E5, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Recomendations | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
||
| Suitable for | DAF, YaMZ |
DAF, YaMZ
|
||
| Density at 20 °C | kg/m³ | 865 | EN ISO 12185 |
865
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12 | DIN 51562-1 |
12
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 74.9 | DIN 51562-1 |
74.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.2 | ASTM D2896 |
10.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.4 | DIN 51575 |
1.4
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|

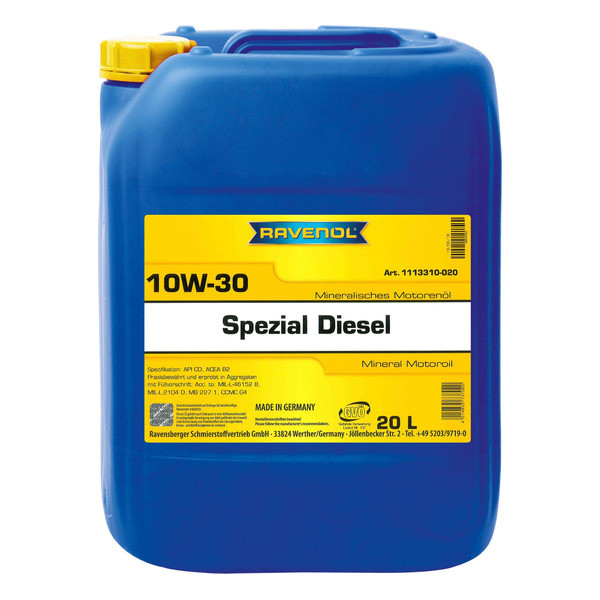

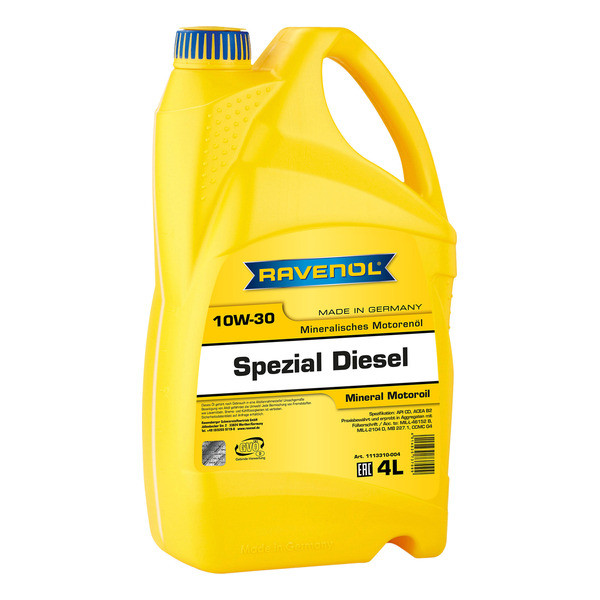

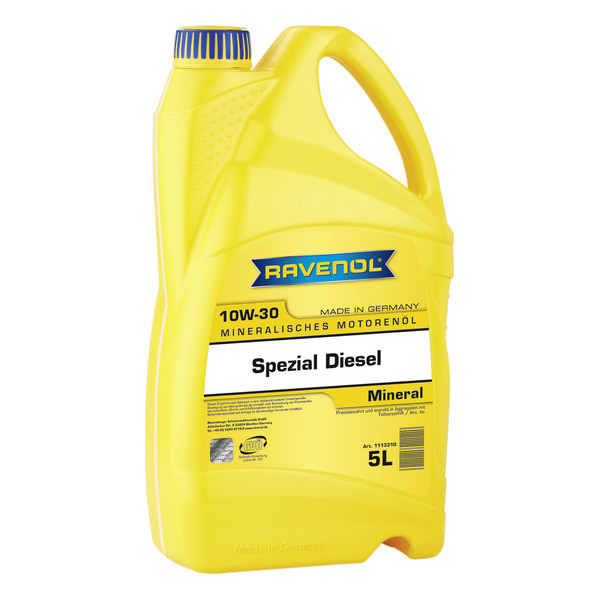

Application NoteUse RAVENOL Spezial Diesel SAE 10W-30 according to the specifications of the diesel engine manufacturer.
Compliance with the requirements:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1113310-001
Volume:
4 L
vendor code:
1113310-004
Volume:
5 L
vendor code:
1113310-005

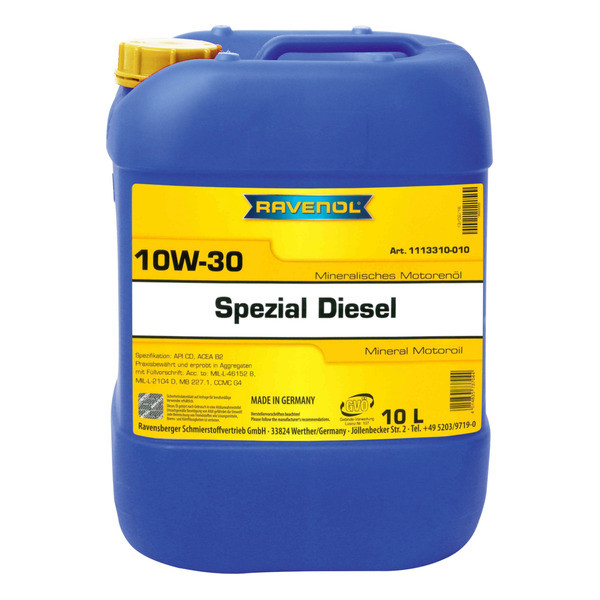

Volume:
10 L
vendor code:
1113310-010
Volume:
20 L
vendor code:
1113310-020
Volume:
20 L, ecobox
vendor code:
1113310-B20
Volume:
60 L
vendor code:
1113310-060
Volume:
208 L
vendor code:
1113310-208
Volume:
1000 L
vendor code:
1113310-700
Application Note
Use RAVENOL Spezial Diesel SAE 10W-30 according to the specifications of the diesel engine manufacturer.
Characteristics
- Corrosion protection
- Excellent shearing stability
- High oxidation stability
- Excellent viscosity-temperature attribute•Compelling detergent- and dispersant properties
- Compelling detergent- and dispersant properties
- High safety reserves even in boundary lubrication
- Neutral to sealants
- Excellent cold starting properties
- Prevents adhesion, lacquering, carbonisation and sludge (black sludge) from forming on cylinders,pistons, valves, spark plugs and turbochargers
- Suitable for use in vehicles with catalytic converters
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Mineral |
Mineral
|
||
| API | CD |
CD
|
||
| ACEA | B2 |
B2
|
||
| Recomendations | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Density at 20 °C | kg/m³ | 859 | EN ISO 12185 |
859
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.3 | DIN 51562-1 |
12.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 84.3 | DIN 51562-1 |
84.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 142 | DIN ISO 2909 |
142
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.1 | ASTM D2896 |
7.1
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|

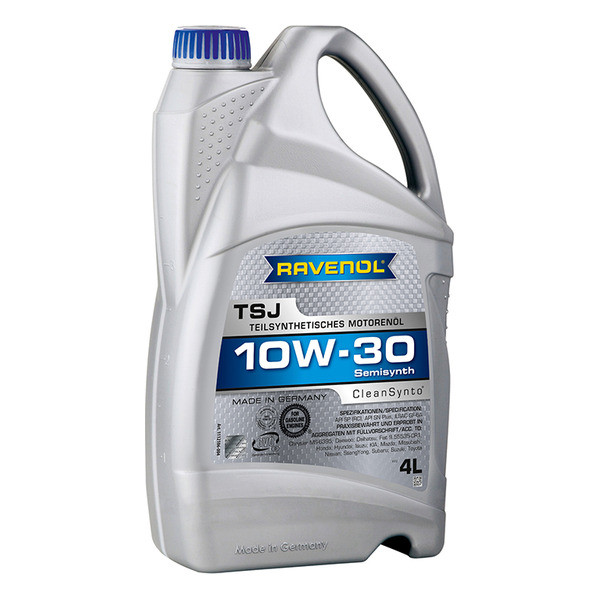

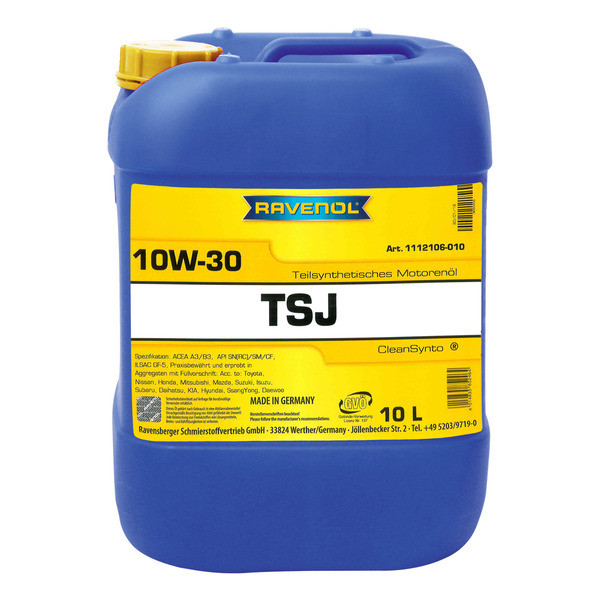

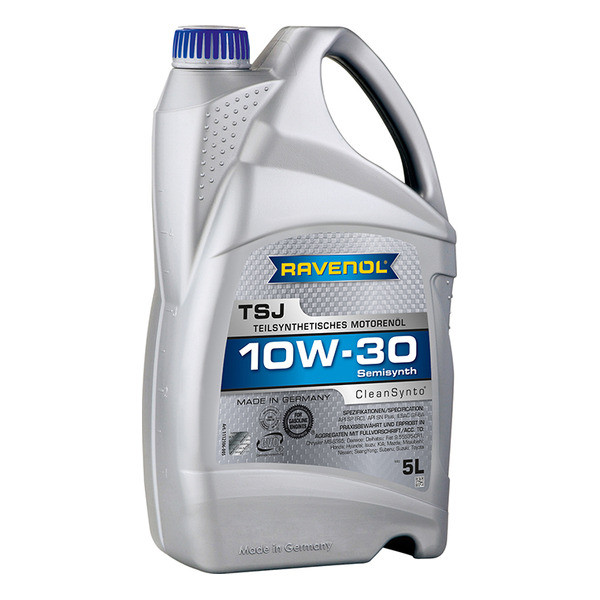

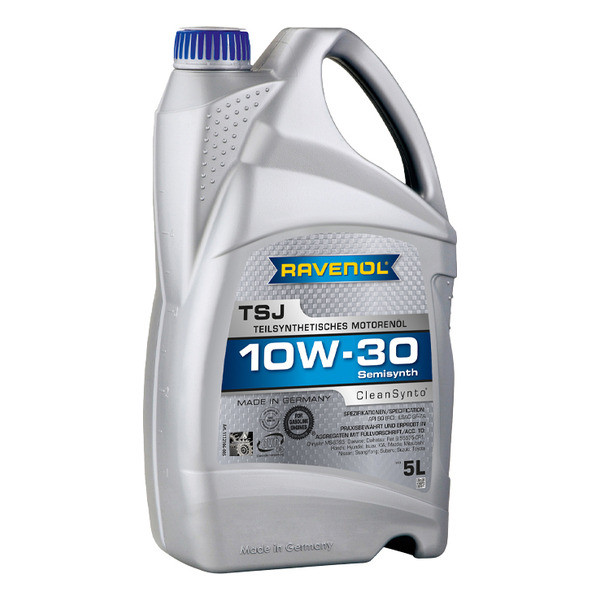

RAVENOL TSJ SAE 10W-30 is especially produced for the use in cars of Japanese and Asian manufacturers.
Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1
- Available packaging
- Product parameters
Volume:

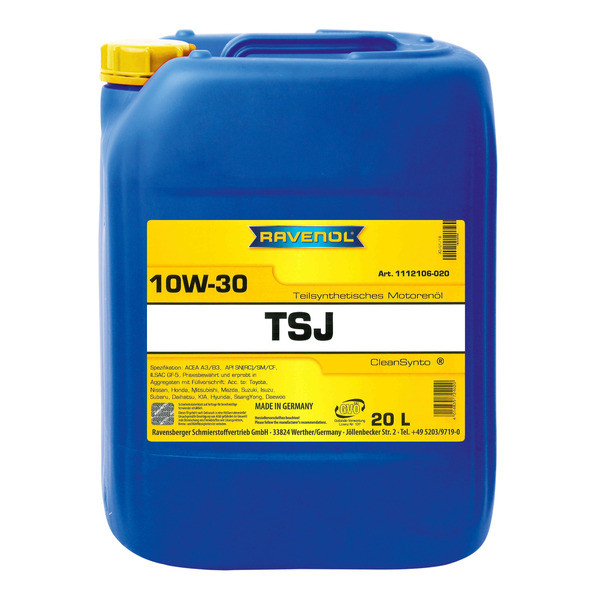

20 L
vendor code:
1112106-020
Volume:
208 L, print
vendor code:
1112106-D28
Volume:
1000 L
vendor code:
1112106-700
Volume:
60 L
vendor code:
1112106-060
Volume:
208 L
vendor code:
1112106-208
RAVENOL TSJ SAE 10W-30 is especially produced for the use in cars of Japanese and Asian manufacturers.
Application Note
RAVENOL TSJ SAE 10W-30 is suitable for the use in all modern cars of Japanese and Asian manufacturers all the year.
Characteristics
- An universal use in all modern petrol and diesel engines
- A quick lubrication of the engine even at low temperatures
- A low evaporation tendency, therefore a low oil consumption
- Safety against sludge accumulations, cokings and corrosion even under unfavourable operating conditions
- Guarantee of the function of the hydro tappets at all temperatures
- No oil limited deposits in combustion chambers, at the piston ring and valves
- Unchanged viscosity during the whole oil change interval, a high viscosity index
- Neutral behaviour against sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | SN Plus, SP (RC) |
SN Plus, SP (RC)
|
||
| ILSAC | GF-6A |
GF-6A
|
||
| Recomendations | Chrysler MS-6395, Fiat 9.55535-CR1 |
Chrysler MS-6395, Fiat 9.55535-CR1
|
||
| Suitable for | Daewoo, Daihatsu, Honda, Hyundai, Isuzu, KIA, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota |
Daewoo, Daihatsu, Honda, Hyundai, Isuzu, KIA, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota
|
||
| Density at 20 °C | kg/m³ | 858 | EN ISO 12185 |
858
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.2 | DIN 51562-1 |
10.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 64.3 | DIN 51562-1 |
64.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 145 | DIN ISO 2909 |
145
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.11 | ASTM D5481 |
3.11
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 4830 | ASTM D5293 |
4830
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 12.300 | ASTM D4684 |
12.300
mPa*s
ASTM D4684
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 9.9 | ASTM D5800 |
9.9
% M/M
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.4 | ASTM D2896 |
7.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.76 | DIN 51575 |
0.76
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Fiat 9.55535-CR1 |
Chrysler MS-6395, Fiat 9.55535-CR1
|
RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
SAE: 10W-30
ACEA: E3
Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310100-005
Volume:
20 L, ecobox
vendor code:
1310100-B20
Volume:
1000 L
vendor code:
1310100-700
RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).
Application Note
RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- Protection against wear, corrosion and foam
- High resistance to oxidation
- Excellent extreme pressure properties
- A high and stable viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Suitable for | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Density at 20 °C | kg/m³ | 867 | EN ISO 12185 |
867
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 74.7 | DIN 51562-1 |
74.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 151 | DIN ISO 2909 |
151
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 226 | DIN EN ISO 2592 |
226
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.4 | ASTM D2896 |
12.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.58 | DIN 51575 |
1.58
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
Application NoteRAVENOL Formel Standard SAE 10W-30 should be used according the manufacturer’s instructions for diesel and gasoline engines.
Compliance with the requirements:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
SAE: 10W-30
Equivalents OEM:
Ford 14A4D3, Ford 145C85, Ford 145C85, Ford 1010313, Ford 1103055, Ford 1103057, Ford 1359064, Ford 1359080, Ford 5019256, Ford 5019272, Ford 5019273, Ford 5022524, Ford 5022528, Ford 5022530, Ford A87SX19M544A, Ford A87SX19M544AAA, Ford A87SX19M544ABA, Ford A87SX19M544B, Ford A89SX19M544AA, Ford A89SX19M544EA, Ford A89SX19M544GA, Ford A95SX19M544ACA, Ford XS4J10W30A1A, Ford XS4J10W30A1L, Toyota 0888300115, Toyota 0888300116
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1113110-004
Volume:
10 L
vendor code:
1113110-010
Volume:
20 L, ecobox
vendor code:
1113110-B20
Volume:
60 L, print
vendor code:
1113110-D60

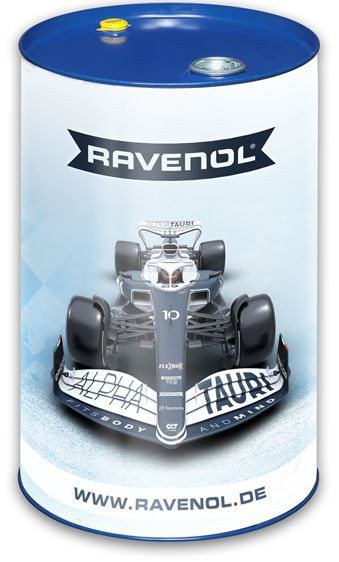

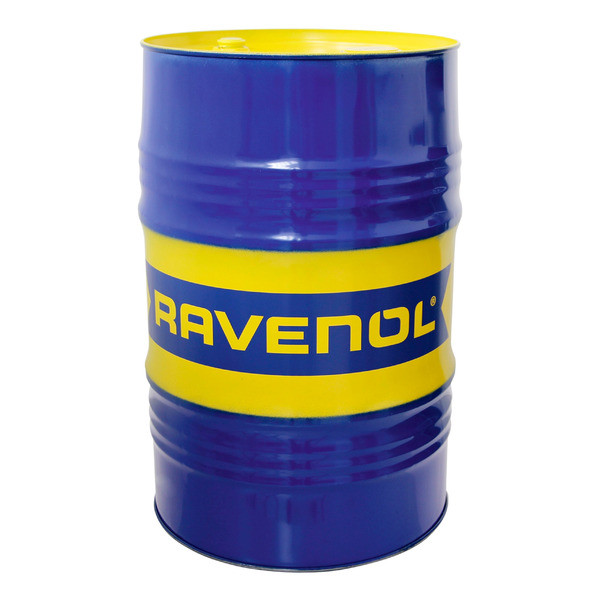

Volume:
208 L, print
vendor code:
1113110-D28
Application Note
RAVENOL Formel Standard SAE 10W-30 should be used according the manufacturer’s instructions for diesel and gasoline engines.
Characteristics
- Protection against corrosion
- A very good shear stability
- A very high oxidation stability
- An excellent viscosity temperature behaviour
- Efficient function of hydraulic shock absorbers (hydraulic valve compensation)
- Convincing detergent and dispersant attributes
- High security reserves even under limited lubrication conditions
- Neutrality against sealing materials
- Very good cold start attributes
- Avoids the formation of conglutinations, pigmenting, coking and accumulation of mud (black sludge) on cylinders, pistons, valves, sparking plugs and in turbo superchargers
- No problems with the use in catalyst vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| ACEA | A2, B2 |
A2, B2
|
||
| Recomendations | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Density at 20 °C | kg/m³ | 859 | EN ISO 12185 |
859
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.3 | DIN 51562-1 |
12.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 84.3 | DIN 51562-1 |
84.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 142 | DIN ISO 2909 |
142
DIN ISO 2909
|
|
| CCS Viscosity at -35 °C | mPa*s | 6000 | ASTM D5293 |
6000
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 21.400 | ASTM D4684 |
21.400
mPa*s
ASTM D4684
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.2 | ASTM D2896 |
7.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|

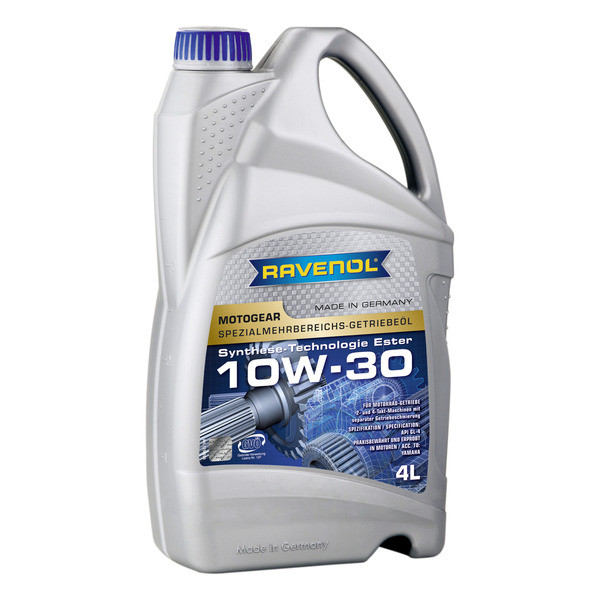

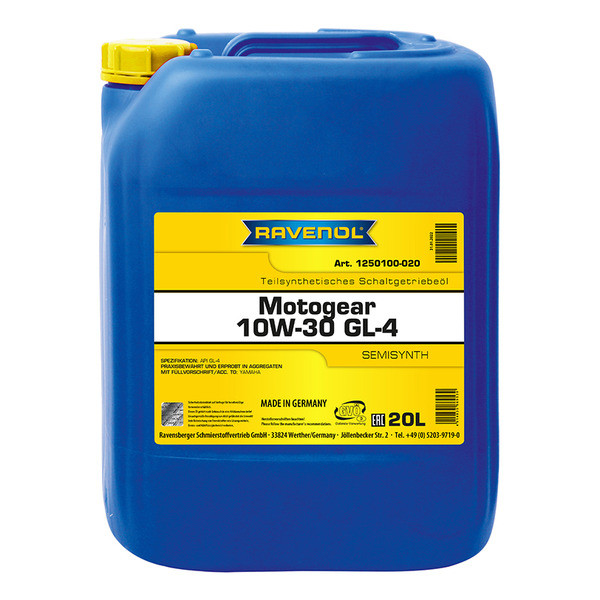

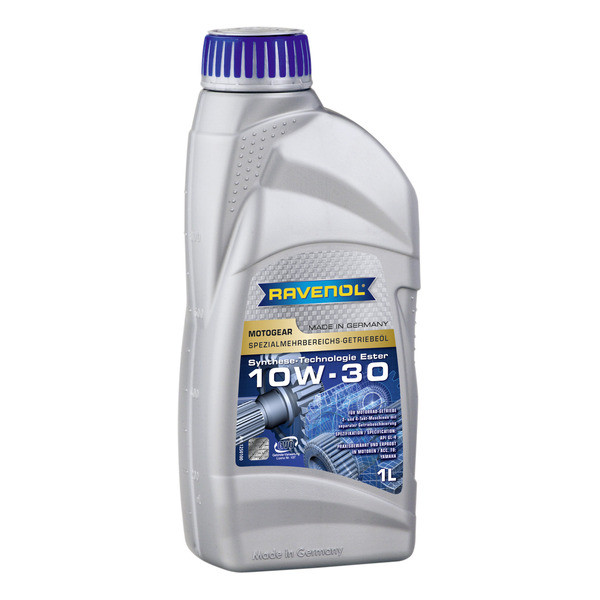

RAVENOL MOTOGEAR SAE 10W-30 GL-4 has an excellent lubricating film adhesion, excellent detergency and high resistance to aging.
- Available packaging
- Product parameters
RAVENOL MOTOGEAR SAE 10W-30 GL-4 has an excellent lubricating film adhesion, excellent detergency and high resistance to aging.
RAVENOL MOTOGEAR SAE 10W-30 GL-4 enables a precise and soft changing of gears. Prevents clutch slippage.
RAVENOL MOTOGEAR SAE 10W-30 GL-4 forms a heavy-duty lubricant film, which is effective under all operating conditions.
Application Note
RAVENOL MOTOGEAR SAE 10W-30 GL-4 is designed for year-round use in all modern motorcycles of Japanese manufacturer’s as YAMAHA.
Characteristics
- Quick lubrication of the engine at all operating temperatures.
- Heavy-duty lubricant film under all operating conditions.
- Precise, soft changing of gears, no clutch slippage.
- Reliability due to excellent lubricant film adhesion, extraordinary purification capacity and outstandingageing resistance.
- Neutral towards sealing compounds.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| HTHS Viscosity at 150 °C | mPa*s | 3.11 | ASTM D5481 |
3.11
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 4830 | ASTM D5293 |
4830
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 12.300 | ASTM D4684 |
12.300
mPa*s
ASTM D4684
|
| Noack Volatility | % M/M | 9.9 | ASTM D5800 |
9.9
% M/M
ASTM D5800
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Suitable for | Yamaha |
Yamaha
|
||
| Density at 20 °C | kg/m³ | 858 | EN ISO 12185 |
858
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.3 | DIN 51562-1 |
10.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 63.6 | DIN 51562-1 |
63.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 150 | DIN ISO 2909 |
150
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.4 | ASTM D2896 |
7.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.76 | DIN 51575 |
0.76
%wt.
DIN 51575
|

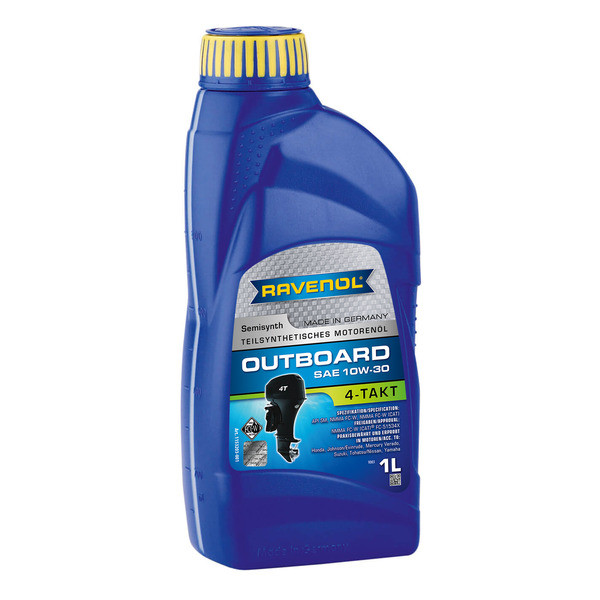

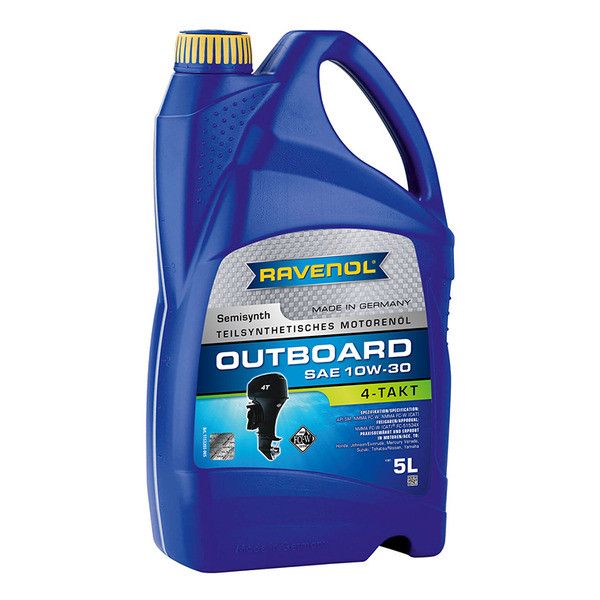

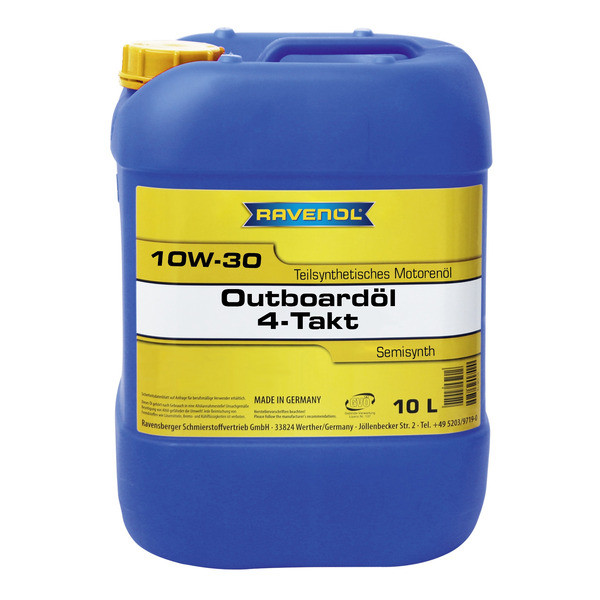

RAVENOL Outboardoel 4T SAE 10W-30 offers perfect lubrication and wear protection through special low-ash additives and excellent corr osion protection.
Manufacturer Approved:
NMMA FC-51534X, NMMA FC-W
- Available packaging
- Product parameters

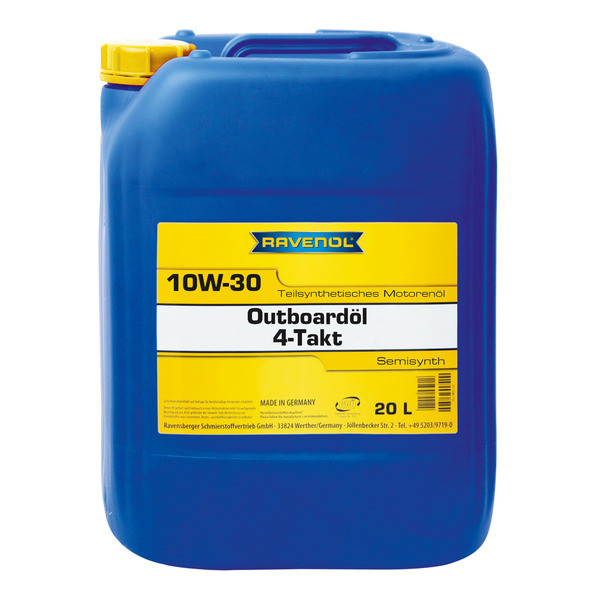

Volume:
20 L
vendor code:
1153203-020
Volume:
60 L, print
vendor code:
1153203-D60
Volume:
208 L
vendor code:
1153203-208
RAVENOL Outboardoel 4T SAE 10W-30 offers perfect lubrication and wear protection through special low-ash additives and excellent corr osion protection.
RAVENOL Outboardoel 4T SAE 10W-30 is blue colored high performance 4-stroke motor oil.
RAVENOL Outboardoel 4T SAE 10W-30 is released and thus meets the requirements of the National Marine Manufacturers Association NMMA F C-W (CAT) for use in engines with catalysts.
Application Note:
RAVENOL Outboardoel 4T SAE 10W-30 can be used in all outboard motors according to the engine manufacturer's specifications, for which oil is recommended according to FC-W and FC-W (CAT).
RAVENOL Outboardoel 4T SAE 10W-30 can also be used for engines operating in seawater.
RAVENOL Outboardoel 4T SAE 10W-30 is particularly suitable for the lubrication of 4-stroke outboard engines subject to high speeds an d the heaviest loads.
Follow the engine manufacturer’s recommendations.
Characteristics:
- Perfect lubrication of all engine parts
- A strong cleaning effect and a residue-free combustion without deposits
- Good cold start properties
- A very high-wear, oxidation and corrosion protection
- Excellent shear stability
- Corrosion protection in all oil-wetted engine parts
- An adhesive, pressure-and temperature-resistant oil film
- Suitable for Catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| SAE | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | SM |
SM
|
||
| Manufacturer Approved | NMMA FC-W, NMMA FC-51534X |
NMMA FC-W, NMMA FC-51534X
|
||
| specification | NMMA FC-W, NMMA FC-W (CAT) |
NMMA FC-W, NMMA FC-W (CAT)
|
||
| Suitable for | Evinrude, Honda, Johnson, Mercury Verado, Nissan, Suzuki, Tohatsu, Yamaha |
Evinrude, Honda, Johnson, Mercury Verado, Nissan, Suzuki, Tohatsu, Yamaha
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Blue | visual |
Blue
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.1 | DIN 51562-1 |
12.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 80.2 | DIN 51562-1 |
80.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 146 | DIN ISO 2909 |
146
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 250 | DIN EN ISO 2592 |
250
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.5 | ASTM D2896 |
7.5
mgKOH/g
ASTM D2896
|
| Approvals | NMMA FC-W, NMMA FC-W (CAT), NMMA FC-51534X |
NMMA FC-W, NMMA FC-W (CAT), NMMA FC-51534X
|
