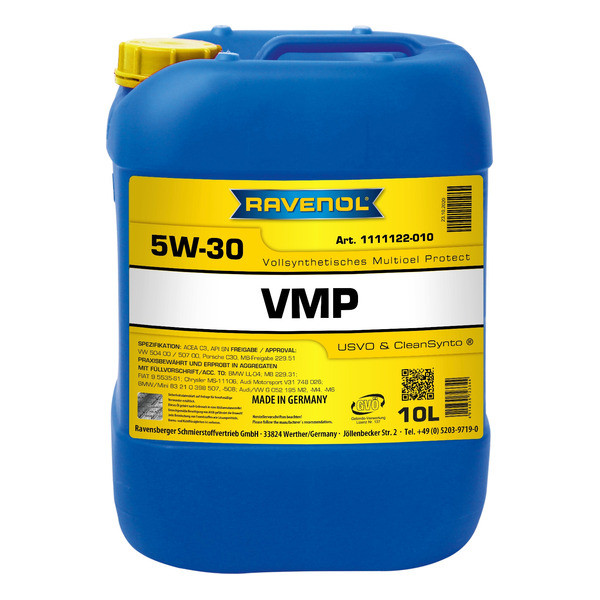

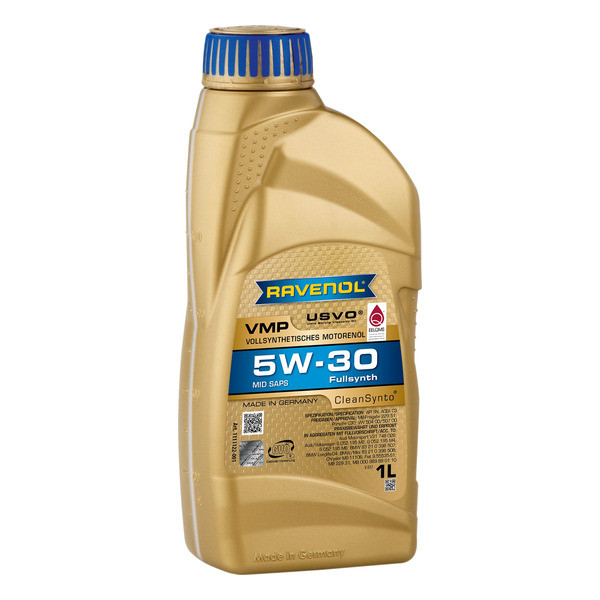

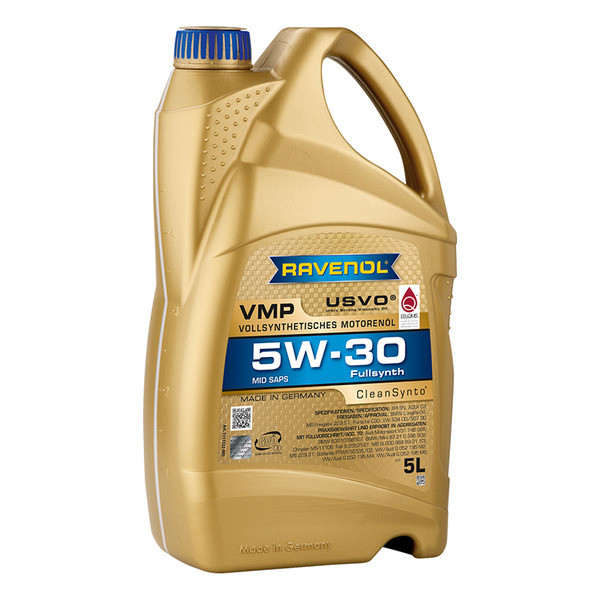

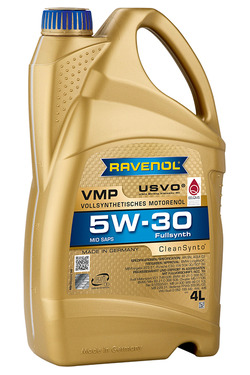

VMP 5W-30

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:
208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:

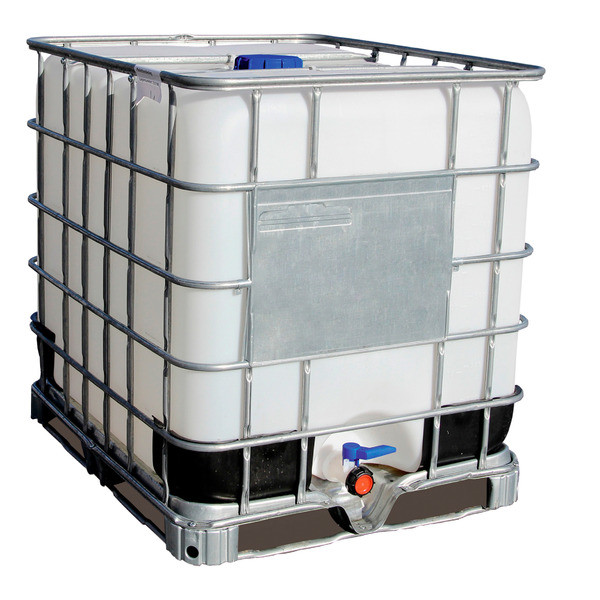

1000 L

vendor code:
1111122-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Application area		Audi Motorsport V31 748 026		Audi Motorsport V31 748 026
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.9	DIN 51562-1	11.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.3	DIN 51562-1	66.3 mm²/s DIN 51562-1
Viscosity Index VI		179	DIN ISO 2909	179 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4740	ASTM D5293	4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.000	ASTM D4684	12.000 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	6.4	ASTM D5800	6.4 % M/M ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

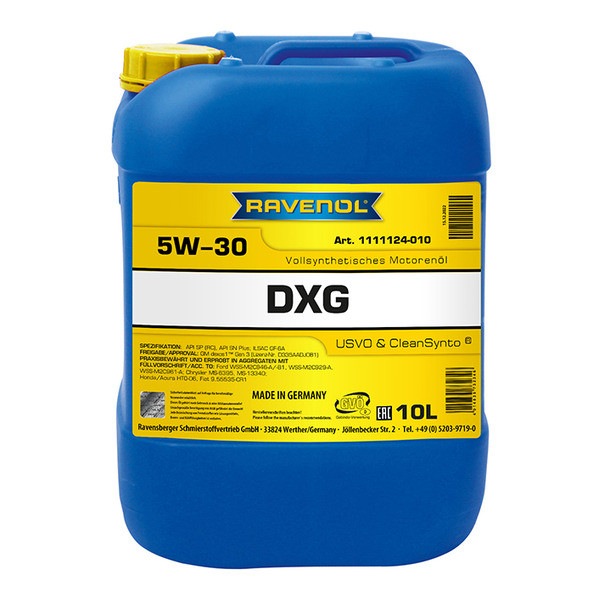

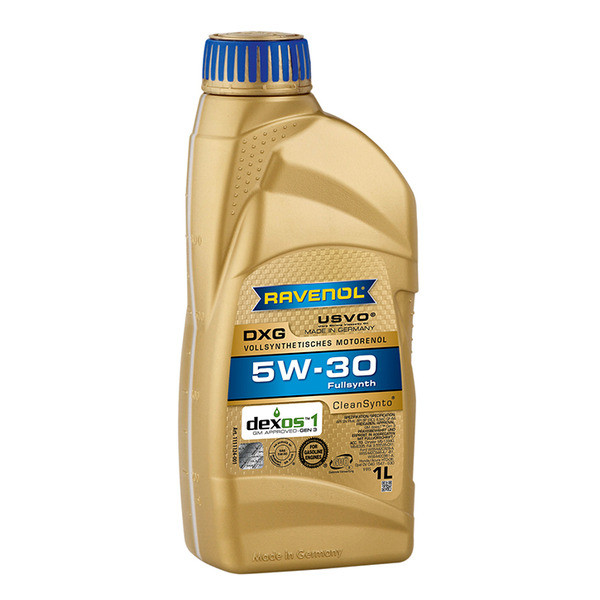

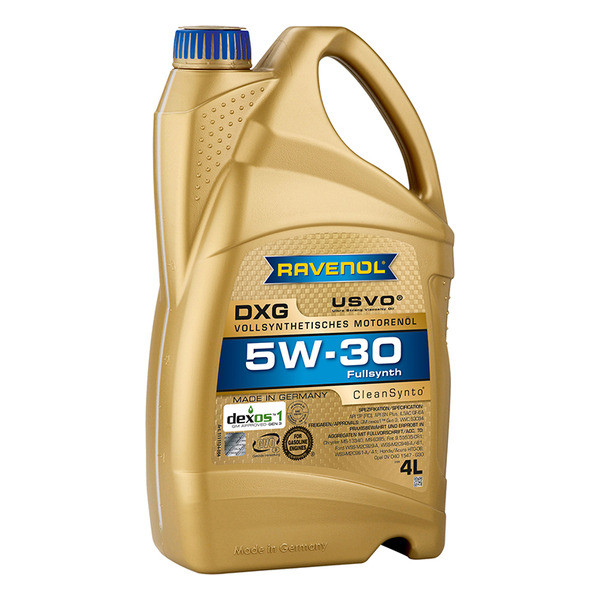

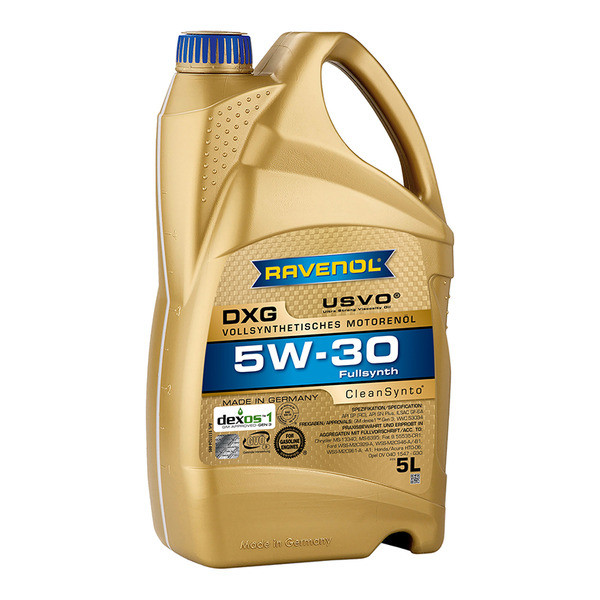

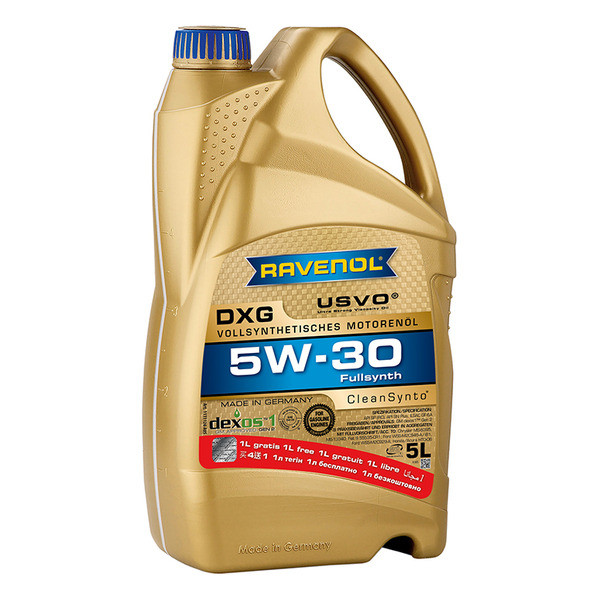

DXG 5W-30

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-6A

API: SN Plus, SP (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN Plus, SP (RC)		SN Plus, SP (RC)
ILSAC		GF-6A		GF-6A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	kg/m³	846	EN ISO 12185	846 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	% M/M	6	ASTM D5800	6 % M/M ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

FDS 5W-30

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C

show details

SAE: 5W-30

API: CF, SP

ACEA: A5, A7, B5, B7

Equivalents OEM:
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111139-001

Code:
4014835795617

Volume:
4 L

vendor code:
1111139-004

Code:
4014835795693

Volume:
5 L

vendor code:
1111139-005

Code:
4014835795655

Volume:
10 L

vendor code:
1111139-010

Code:
4014835795648

Volume:
20 L

vendor code:
1111139-020

Code:
4014835795624

Volume:
20 L, ecobox

vendor code:
1111139-B20

Code:
4014835797925

Volume:
60 L

vendor code:
1111139-060

Code:
4014835795662

Volume:
60 L, print

vendor code:
1111139-D60

Volume:
208 L

vendor code:
1111139-208

Code:
4014835795686

Volume:
208 L, print

vendor code:
1111139-D28

Volume:
1000 L

vendor code:
1111139-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.

Characteristics

Excellent cold starting properties even at low temperatures of below -30 ° C
A very stable and excellent viscosity characteristics, shear stability
Fuel efficiency under all operating conditions
Excellent detergency and dispersing properties
Neutrality towards sealing materials
Low evaporation loss, thereby lower oil consumption
An extensive protection against wear, corrosion and foaming
Catalyst suitability
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		A5, A7, B5, B7		A5, A7, B5, B7
Manufacturer Approved		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-C		Fiat 9.55535-G1, Ford WSS-M2C 913-C
Density at 20 °C	kg/m³	843	EN ISO 12185	843 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.35	DIN 51562-1	58.35 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3880	ASTM D5293	3880 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	10.400	ASTM D4684	10.400 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	% M/M	8.9	ASTM D5800	8.9 % M/M ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700

SMP 5W-30

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Equivalents OEM:
Alpine 0100271, Alpine 0100272, Alpine 0100273, Alpine 0100274, Alpine 0100275, Alpine 0100279, Alpine 100271, Alpine 100272, Alpine 100273, Alpine 100274, Alpine 100274, Alpine 100279, BMW 83212465851, FEBI 32945, FEBI 32946, FEBI 32947, FEBI 32948, FEBI 39337, MB A000989780110, MB A000989890110, MB A0009899301, SWAG 15932945, SWAG 15932946, SWAG 15932947, SWAG 15932948, SWAG 99939337

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111126-001

Code:
4014835856981

Volume:
4 L

vendor code:
1111126-004

Code:
4014835857018

Volume:
5 L

vendor code:
1111126-005

Code:
4014835857049

Volume:
10 L

vendor code:
1111126-010

Code:
4014835857070

Volume:
20 L

vendor code:
1111126-020

Code:
4014835857117

Volume:
20 L, ecobox

vendor code:
1111126-B20

Code:
4014835857094

Volume:
60 L

vendor code:
1111126-060

Code:
4014835857155

Volume:
60 L, print

vendor code:
1111126-D60

Code:
4014835857131

Volume:
208 L

vendor code:
1111126-208

Code:
4014835857193

Volume:
208 L, print

vendor code:
1111126-D28

Volume:
1000 L

vendor code:
1111126-700

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL SMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures an optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL SMP SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL SMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL SMP SAE 5W-30 is universal fuel economy, especially formulated engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter.

Due to the specific composition is RAVENOL SMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valvesbecause of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	kg/m³	844	EN ISO 12185	844 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.95	DIN 51562-1	11.95 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.4	DIN 51562-1	70.4 mm²/s DIN 51562-1
Viscosity Index VI		167	DIN ISO 2909	167 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.63	ASTM D5481	3.63 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5000	ASTM D5293	5000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	19200	ASTM D4684	19200 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	9.8	ASTM D5800	9.8 % M/M ASTM D5800
Flashpoint	°C	233	DIN EN ISO 2592	233 °C DIN EN ISO 2592
tbn	mgKOH/g	8.4	ASTM D2896	8.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

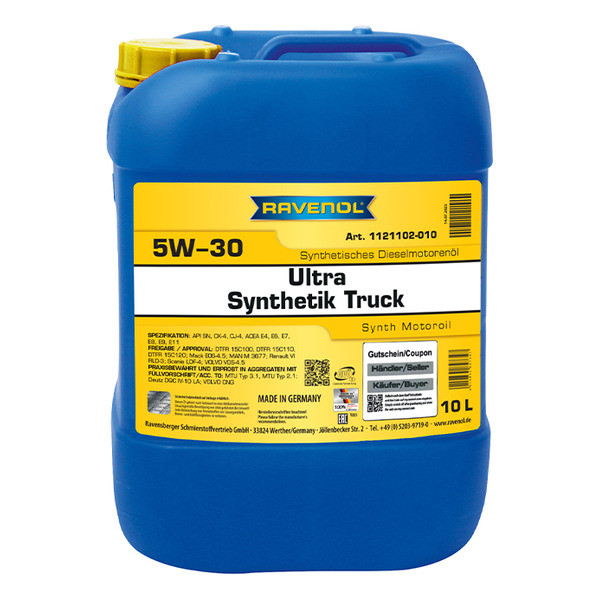

Ultra Synthetik Truck 5W-30

Manufacturer Approved:
Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3677, MB-Approval 228.31, MB-Approval 228.51, Renault RLD-3, Scania LDF-4, Volvo VDS-4

Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, MAN M 3297-1, MAN M 3691, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania LDF-4, Voith Retarder B, Volvo CNG

show details

SAE: 5W-30

API: CJ-4

ACEA: E4, E6, E7, E9

Available packaging
Full description
Product parameters

Volume:
208 L

vendor code:
1121103-208

Volume:
1000 L

vendor code:
1121103-700

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CJ-4		CJ-4
ACEA		E4, E6, E7, E9		E4, E6, E7, E9
JASO		DH-2		DH-2
Manufacturer Approved		Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3677, MB-Approval 228.31, MB-Approval 228.51, Renault RLD-3, Scania LDF-4, Volvo VDS-4		Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3677, MB-Approval 228.31, MB-Approval 228.51, Renault RLD-3, Scania LDF-4, Volvo VDS-4
Recomendations		Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, MAN M 3297-1, MAN M 3691, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania LDF-4, Voith Retarder B, Volvo CNG		Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, MAN M 3297-1, MAN M 3691, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania LDF-4, Voith Retarder B, Volvo CNG
Suitable for		DAF		DAF
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.9	DIN 51562-1	11.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	69.5	DIN 51562-1	69.5 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	5590	ASTM D5293	5590 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	17.400	ASTM D4684	17.400 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	10.7	ASTM D5800	10.7 % M/M ASTM D5800
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	13.3	ASTM D2896	13.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.9	DIN 51575	0.9 %wt. DIN 51575
Approvals		Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4		Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4

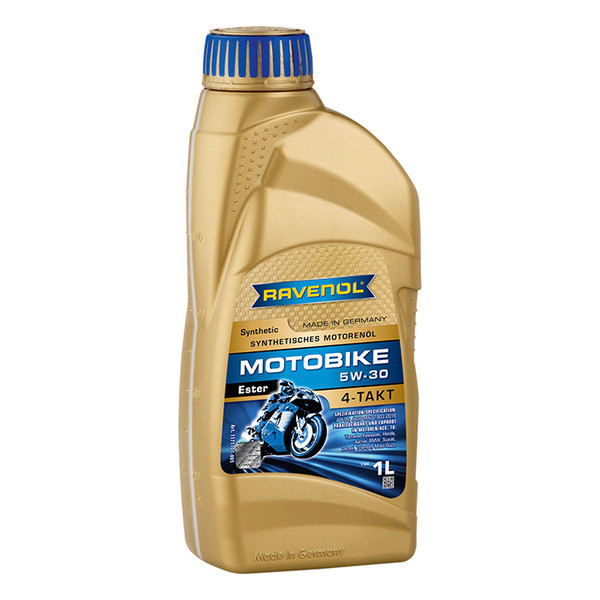

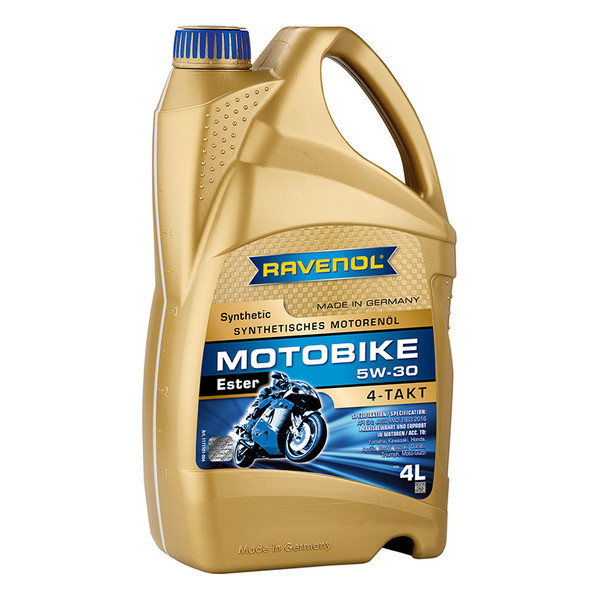

Motobike 4-T Ester 5W-30

The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase. Because of a considerable fuel saving RAVENOL Motobike 4-T Ester SAE 5W-30 contributes to protect theenvironment by reducing the emissions.

show details

SAE: 5W-30

API: SN

Equivalents OEM:
Honda 08221777060HE, Honda 08221777060MP, Honda 08221777100HE, Honda 08221777100MP, Honda 08221777400HE, Honda 08221777400MP, Honda 0823299971, Honda 0823299971, Yamaha LUB05W30AP12

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1171101-001

Code:
4014835730618

Volume:
4 L

vendor code:
1171101-004

Code:
4014835730694

Volume:
20 L

vendor code:
1171101-020

Volume:
20 L, ecobox

vendor code:
1171101-B20

Volume:
60 L

vendor code:
1171101-060

Volume:
208 L

vendor code:
1171101-208

The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase. Because of a considerable fuel saving RAVENOL Motobike 4-T Ester SAE 5W-30 contributes to protect theenvironment by reducing the emissions.

Application Note

RAVENOL Motobike 4-T Ester SAE 5W-30 is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 5W-30 is requested.

Characteristics

a very stable and excellent viscosity behaviour
an excellent shear stability
very good cold start characteristics
a safe lubrication film at very high operating temperatures
a considerable lower evaporation tendency, therefore a lower oil consumption
very good detergent and dispersant characteristics
a very good corrosion protection
protection against foam formation
suitable for catalysts

Parameter	Unit	Value	Audit
Engine cycle		4T		4T
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN		SN
JASO		MA2		MA2
Suitable for		Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha		Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	69	DIN 51562-1	69 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	5683	ASTM D5293	5683 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23.000	ASTM D4684	23.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	5.6	ASTM D5800	5.6 % M/M ASTM D5800
Flashpoint	°C	250	DIN EN ISO 2592	250 °C DIN EN ISO 2592
tbn	mgKOH/g	7.9	ASTM D2896	7.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.86	DIN 51575	0.86 %wt. DIN 51575

FEL 5W-30

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Compliance with the requirements:
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

show details

SAE: 5W-30

API: CF, SN

ACEA: C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111123-001

Code:
4014835723412

Volume:
4 L

vendor code:
1111123-004

Code:
4014835723498

Volume:
10 L

vendor code:
1111123-010

Code:
4014835723443

Volume:
20 L

vendor code:
1111123-020

Volume:
20 L, ecobox

vendor code:
1111123-B20

Code:
4014835773721

Volume:
60 L

vendor code:
1111123-060

Volume:
60 L, print

vendor code:
1111123-D60

Code:
4014835723436

Volume:
208 L, print

vendor code:
1111123-D28

Code:
4014835723405

Volume:
1000 L

vendor code:
1111123-700

Volume:
5 L

vendor code:
1111123-005

Volume:
208 L

vendor code:
1111123-208

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FEL SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL FEL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FEL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FEL SAE 5W-30 is an universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL FEL SAE 5W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -25°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C2		C2
JASO		DL-1		DL-1
Recomendations		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
Suitable for		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki
Compliant products		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.7	DIN 51562-1	10.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	61.4	DIN 51562-1	61.4 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.2	ASTM D5481	3.2 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4765	ASTM D5293	4765 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.100	ASTM D4684	16.100 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	9	ASTM D5800	9 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.7	ASTM D2896	7.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.53	DIN 51575	0.53 %wt. DIN 51575
Approvals		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

FO 5W-30

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	9.4	ASTM D5800	9.4 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700

HLS 5W-30

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	6.9	ASTM D5800	6.9 % M/M ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

HCL 5W-30

RAVENOL HCL SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01 FE, VW 501.01

show details

SAE: 5W-30

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111118-001

Code:
4014835722910

Volume:
4 L

vendor code:
1111118-004

Code:
4014835722996

Volume:
5 L

vendor code:
1111118-005

Code:
4014835722958

Volume:
10 L

vendor code:
1111118-010

Code:
4014835722941

Volume:
20 L

vendor code:
1111118-020

Code:
4014835722927

Volume:
20 L, ecobox

vendor code:
1111118-B20

Code:
4014835773226

Volume:
60 L

vendor code:
1111118-060

Code:
4014835722965

Volume:
60 L, print

vendor code:
1111118-D60

Code:
4014835722934

Volume:
208 L

vendor code:
1111118-208

Code:
4014835722989

Volume:
208 L, print

vendor code:
1111118-D28

Code:
4014835722903

Volume:
1000 L

vendor code:
1111118-700

RAVENOL HCL SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HCL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HCL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HCL SAE 5W-30 is an universal fuel-efficient engine oil, a top-quality product for petrol and passenger car diesel engines with or without turbochargers in passenger cars and vans.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold start characteristics.
A safe lubricant film at high operating temperatures.
Excellent detergency and dispersing properties.
High wear and corrosion protection, high oxidation stability.
Protection against foaming.
Excellent detergent- and dispersant characteristics.
Longlife characteristics through high oxidation stability.
Catalyst suitability.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01 FE, VW 501.01		BMW Longlife-01 FE, VW 501.01
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.3	DIN 51562-1	72.3 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5591	ASTM D5293	5591 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	24.100	ASTM D4684	24.100 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	8.6	ASTM D5800	8.6 % M/M ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	10.2	ASTM D2896	10.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.31	DIN 51575	1.31 %wt. DIN 51575
Approvals		BMW Longlife-01, BMW Longlife-01 FE, MB 229.5, VW 501.01, VW 502.00, VW 505.00		BMW Longlife-01, BMW Longlife-01 FE, MB 229.5, VW 501.01, VW 502.00, VW 505.00

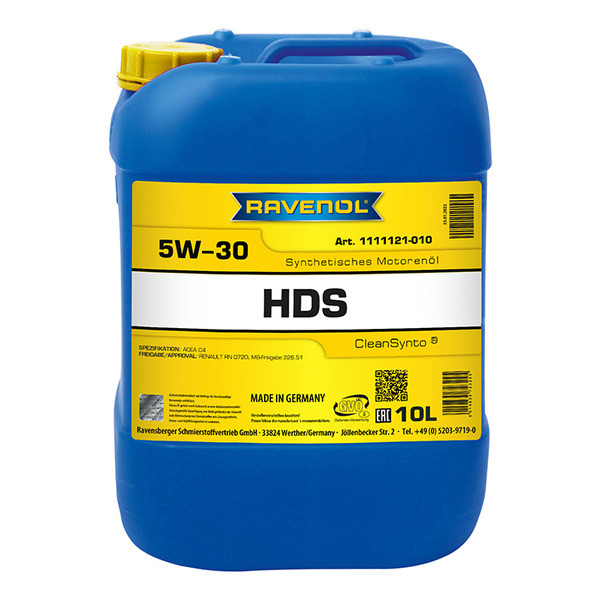

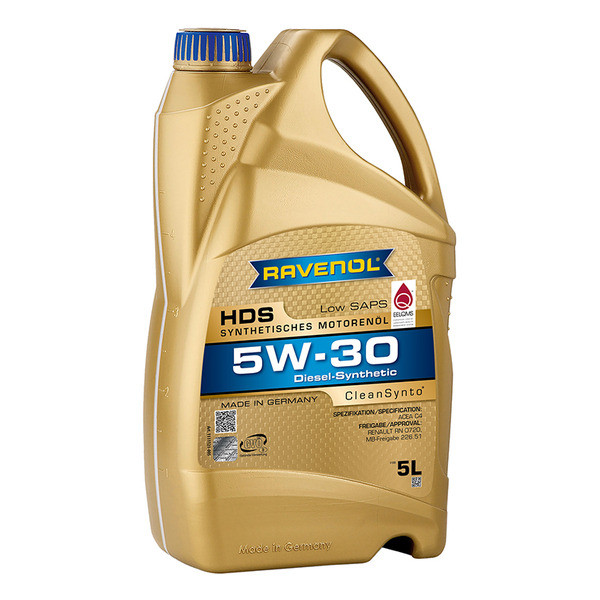

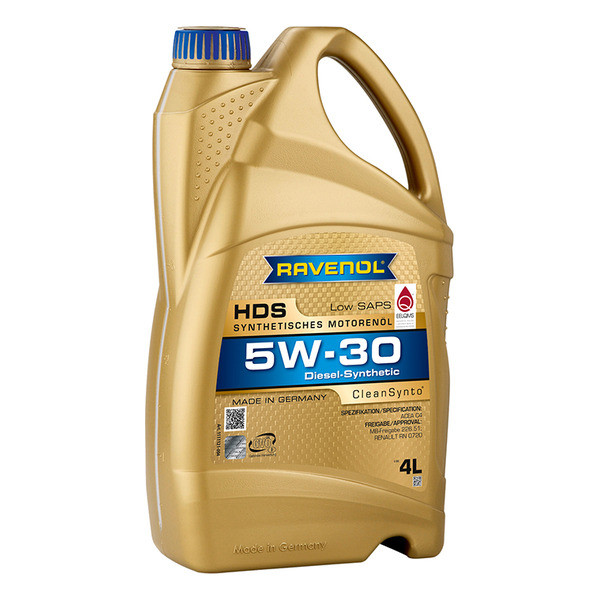

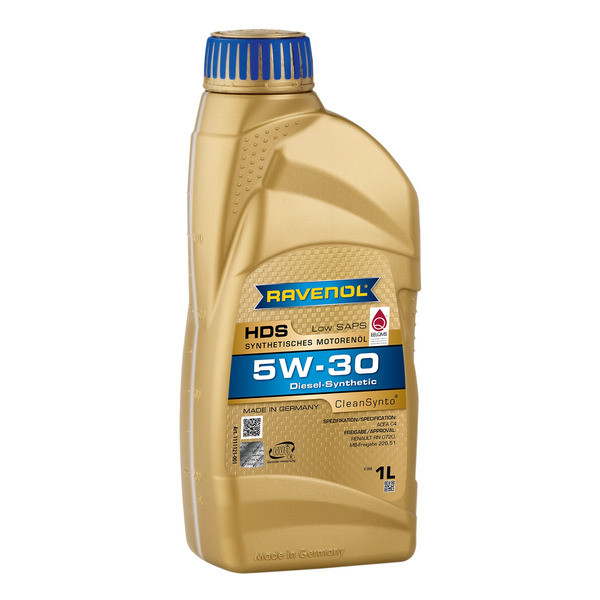

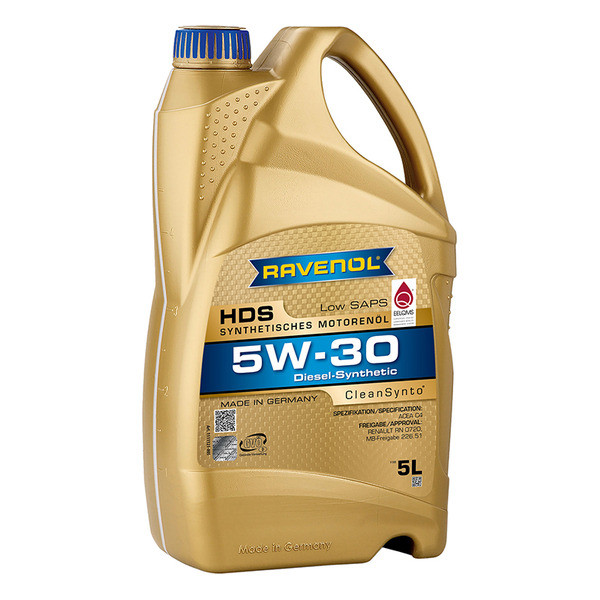

HDS Hydrocrack Diesel Specific 5W-30

RAVENOL HDS Hydrocrack Diesel Specific 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS- Viscosity >3.5 mPa*s (cP). Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
MB-Approval 226.51, Renault RN 0720

Compliance with the requirements:
Fiat 9.55535-S4

show details

SAE: 5W-30

ACEA: C4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111121-001

Code:
4014835723214

Volume:
4 L

vendor code:
1111121-004

Volume:
5 L

vendor code:
1111121-005

Code:
4014835723252

Volume:
10 L

vendor code:
1111121-010

Code:
4014835723245

Volume:
20 L

vendor code:
1111121-020

Volume:
20 L, ecobox

vendor code:
1111121-B20

Code:
4014835773523

Volume:
60 L

vendor code:
1111121-060

Volume:
60 L, print

vendor code:
1111121-D60

Code:
4014835723238

Volume:
208 L

vendor code:
1111121-208

Volume:
208 L, print

vendor code:
1111121-D28

Code:
4014835723207

Volume:
1000 L

vendor code:
1111121-700

RAVENOL HDS Hydrocrack Diesel Specific 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS- Viscosity >3.5 mPa*s (cP). Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL HDS Hydrocrack Diesel Specific 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDS Hydrocrack Diesel Specific 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDS Hydrocrack Diesel Specific 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDS Hydrocrack Diesel Specific 5W-30 is an universal fuel economy engine oil for modern diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter.

Due to the specific composition is RAVENOL HDS Hydrocrack Diesel Specific 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -30°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
ACEA		C4		C4
Manufacturer Approved		MB-Approval 226.51, Renault RN 0720		MB-Approval 226.51, Renault RN 0720
Recomendations		Fiat 9.55535-S4		Fiat 9.55535-S4
Density at 20 °C	kg/m³	843	EN ISO 12185	843 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72	DIN 51562-1	72 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.6	ASTM D5481	3.6 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5500	ASTM D5293	5500 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	19.100	ASTM D4684	19.100 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	7.6	ASTM D5800	7.6 % M/M ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	7.9	ASTM D2896	7.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.49	DIN 51575	0.49 %wt. DIN 51575
Approvals		Fiat 9.55535-S4, MB 226.51, Renault RN0720		Fiat 9.55535-S4, MB 226.51, Renault RN0720

SVE Standard Viscosity Ester Oil 5W-30

The extremely conditioning and cleaning additives in RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 revitalise critical engine parts and particularly protect gaskets. This can extend the life, particularly in older vehicles with high mileage.

Compliance with the requirements:
BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00

show details

SAE: 5W-30

API: CF, SN

ACEA: A3, B4

Equivalents OEM:
Chrysler 68349315AA, Chrysler 68349315AA, Chrysler 68523017AA, Chrysler 68523018AA

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1116101-001

Code:
4014835802704

Volume:
5 L

vendor code:
1116101-005

Code:
4014835802810

Volume:
20 L

vendor code:
1116101-020

Volume:
20 L, ecobox

vendor code:
1116101-B20

Volume:
60 L

vendor code:
1116101-060

Volume:
208 L

vendor code:
1116101-208

Volume:
10 L

vendor code:
1116101-010

The extremely conditioning and cleaning additives in RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 revitalise critical engine parts and particularly protect gaskets. This can extend the life, particularly in older vehicles with high mileage.

RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 features outstanding lubrication and excellent shear stability, and the added conditioners simultaneously reduce oil consumption and protect from sludge and wear.

Application Note

RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 is perfectly suited for year-round use in high mileage petrol and diesel engines with 100,000 km and more, and promotes low oil consumption. A very clean engine is guaranteed.

RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 extends the life of the engine in older vehicles by reducing oil consumption and protecting from sludge and wear. A very clean engine is guaranteed.

Characteristics

High wear protection
Fuel saving because of easy running characteristics
Outstanding detergent and dispersant properties prevent sludge
High oxidation stability for a long life
Brilliant cold cranking behaviour through special additives
Excellent viscosity-temperature behaviour
Low vaporisation characteristics, therefore reduced oil consumption
Suitable for catalytic converters

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Semi-synthetic		Semi-synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Recomendations		BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00		BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.35	DIN 51562-1	12.35 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.33	DIN 51562-1	72.33 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5590	ASTM D5293	5590 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	24.100	ASTM D4684	24.100 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	% M/M	9.3	ASTM D5800	9.3 % M/M ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	9.8	ASTM D2896	9.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.31	DIN 51575	1.31 %wt. DIN 51575
Approvals		BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00		BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00

HPS 5W-30

RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00

show details

SAE: 5W-30

API: CF, SL

ACEA: A3, B4

Equivalents OEM:
Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036 Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036, Toyota 0888007705, Toyota 0888007706, Toyota 0888009105, Toyota 0888009106, Toyota 0888081015, Toyota 0888381013

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111117-001

Code:
4014835722811

Volume:
4 L

vendor code:
1111117-004

Code:
4014835722897

Volume:
5 L

vendor code:
1111117-005

Code:
4014835722859

Volume:
10 L

vendor code:
1111117-010

Code:
4014835722842

Volume:
20 L

vendor code:
1111117-020

Volume:
20 L, ecobox

vendor code:
1111117-B20

Code:
4014835773127

Volume:
60 L

vendor code:
1111117-060

Code:
4014835722866

Volume:
60 L, print

vendor code:
1111117-D60

Code:
4014835722835

Volume:
208 L

vendor code:
1111117-208

Code:
4014835722880

Volume:
208 L, print

vendor code:
1111117-D28

Code:
4014835722804

Volume:
1000 L

vendor code:
1111117-700

RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HPS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HPS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HPS SAE 5W-30 is low friction motor oil, which is suitable for performance motors. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
Excellent detergent- and dispersant characteristics.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Extended lifetime because of oxidation stability.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Semi-synthetic		Semi-synthetic
API		CF, SL		CF, SL
ACEA		A3, B4		A3, B4
Recomendations		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.15	DIN 51562-1	12.15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.9	DIN 51562-1	70.9 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.71	ASTM D5481	3.71 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6140	ASTM D5293	6140 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	20.800	ASTM D4684	20.800 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	8.9	ASTM D5800	8.9 % M/M ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	11	ASTM D2896	11 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.18	DIN 51575	1.18 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00

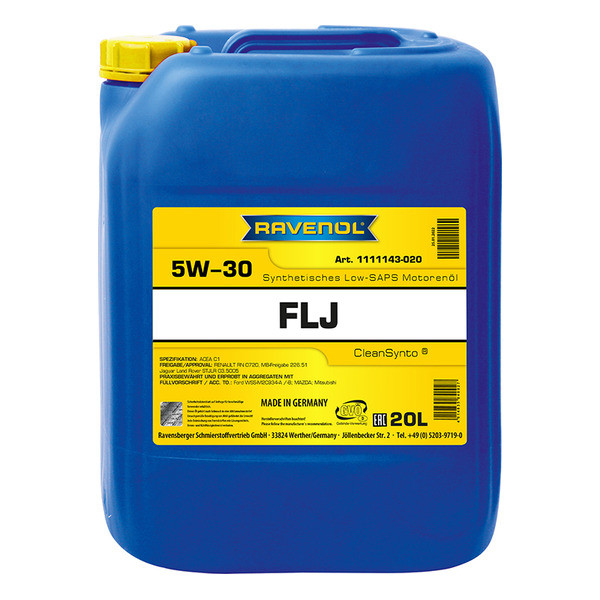

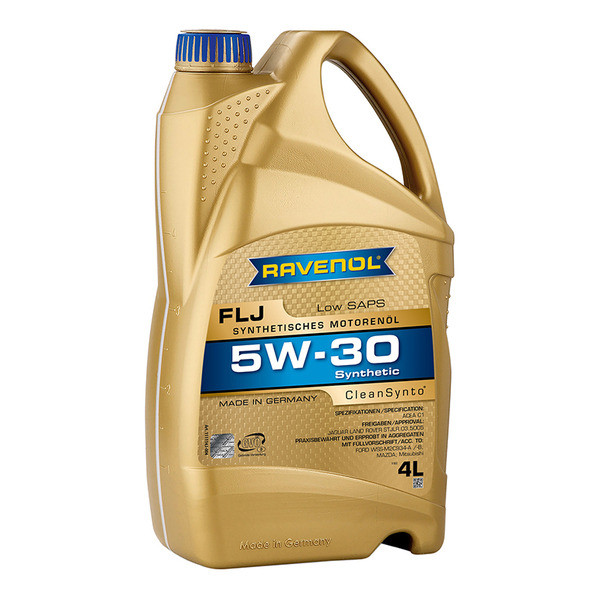

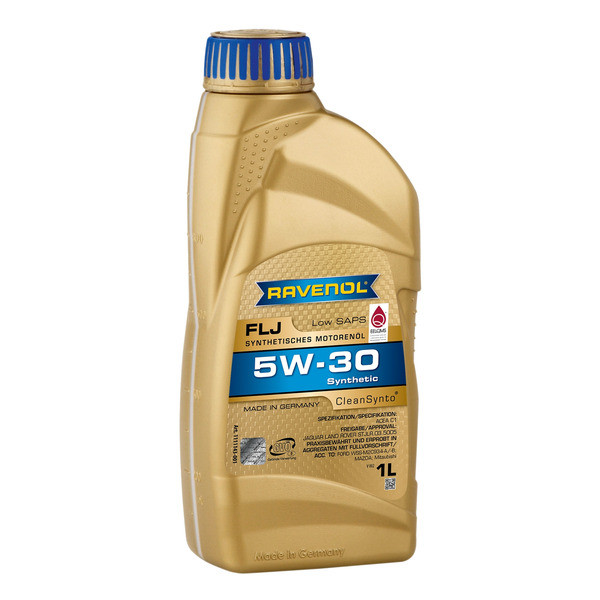

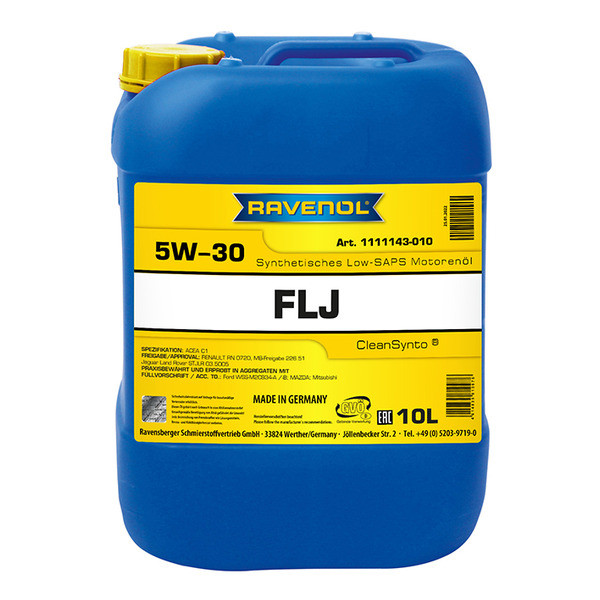

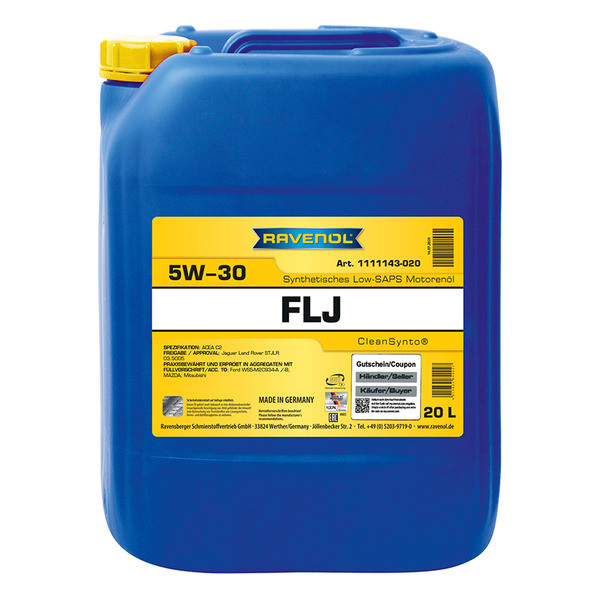

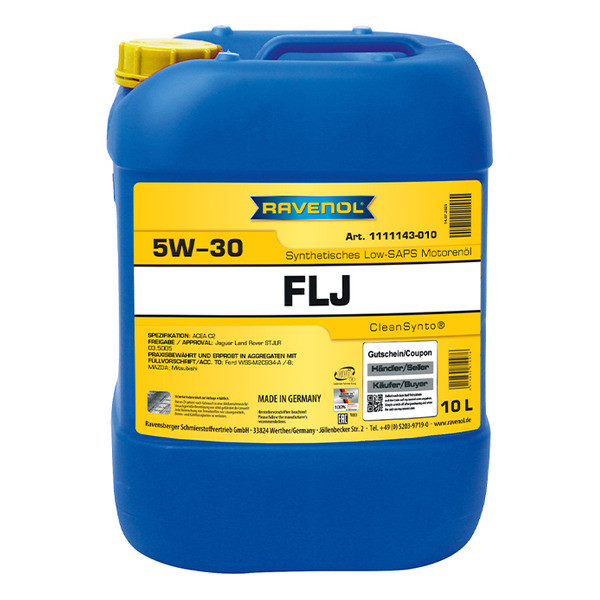

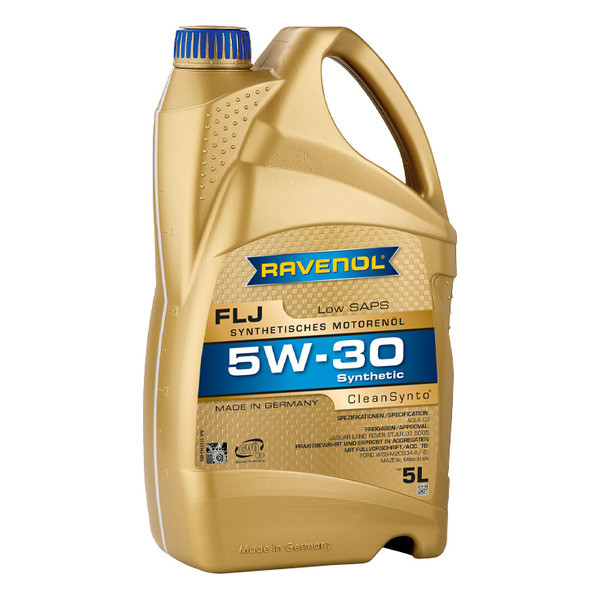

FLJ 5W-30

RAVENOL FLJ SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2.9mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
Jaguar/Land Rover STJLR.03.5005

Compliance with the requirements:
Ford WSS-M2C 934-A, Ford WSS-M2C 934-B

show details

SAE: 5W-30

ACEA: C1

Equivalents OEM:
Mazda 053001DPF, Mazda 053001DPF

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111143-001

Code:
4014835807150

Volume:
4 L

vendor code:
1111143-004

Code:
4014835808201

Volume:
5 L

vendor code:
1111143-005

Volume:
10 L

vendor code:
1111143-010

Code:
4014835810976

Volume:
20 L

vendor code:
1111143-020

Volume:
20 L, ecobox

vendor code:
1111143-B20

Code:
4014835811119

Volume:
60 L

vendor code:
1111143-060

Code:
4014835812031

Volume:
60 L, print

vendor code:
1111143-D60

Code:
4014835811928

Volume:
208 L

vendor code:
1111143-208

Volume:
208 L, print

vendor code:
1111143-D28

Code:
4014835812161

Volume:
1000 L

vendor code:
1111143-700

RAVENOL FLJ SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2.9mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FLJ SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase. Because of a considerable fuel saving RAVENOL FLJ SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FLJ SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FLJ SAE 5W-30 is a universal, fuel-saving, specially-composed motor oil for modern gasoline and diesel engines with and without turbocharging, for use in passenger cars and vans with extended oil change intervals. It extends the service life of particle filters.

Due to its special formulation, RAVENOL FLJ SAE 5W-30 is ideally suited for use in accordance with the indicated OEM specifications.

Characteristics

Fuel saving in partial and full load operation.
Low SAPS = reduced Sulphated ash, Phosphorous and Sulfur.
Excellent wear protection and a high viscosity index ensure the long service life of the engine even under high speed driving conditions.
Excellent cold start properties even at low temperatures of below -30°C.
A reliable lubrication film even at high operating temperatures.
Low volatility, resulting in low oil consumption.
No oil-related deposits in combustion chambers, in the piston ring zone and on valves.
Compatible with sealing materials.
Extended oil change intervals protect natural resources.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
ACEA		C1		C1
Manufacturer Approved		Jaguar/Land Rover STJLR.03.5005		Jaguar/Land Rover STJLR.03.5005
Recomendations		Ford WSS-M2C 934-A, Ford WSS-M2C 934-B		Ford WSS-M2C 934-A, Ford WSS-M2C 934-B
Suitable for		Mazda, Mitsubishi		Mazda, Mitsubishi
Density at 20 °C	kg/m³	841	EN ISO 12185	841 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	54.4	DIN 51562-1	54.4 mm²/s DIN 51562-1
Viscosity Index VI		175	DIN ISO 2909	175 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.1	ASTM D5481	3.1 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3848	ASTM D5293	3848 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.215	ASTM D4684	12.215 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	% M/M	11.1	ASTM D5800	11.1 % M/M ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	6.8	ASTM D2896	6.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.49	DIN 51575	0.49 %wt. DIN 51575
Approvals		Ford WSS-M2C 934-A, Ford WSS-M2C 934-B, Jaguar/Land Rover STJLR.03.5005		Ford WSS-M2C 934-A, Ford WSS-M2C 934-B, Jaguar/Land Rover STJLR.03.5005

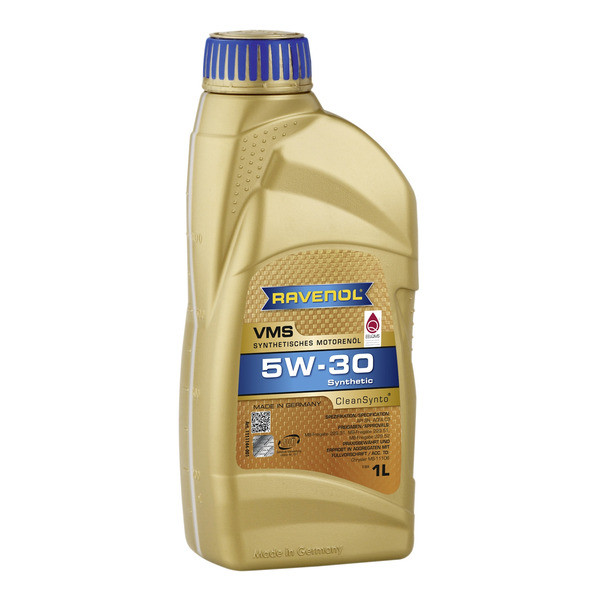

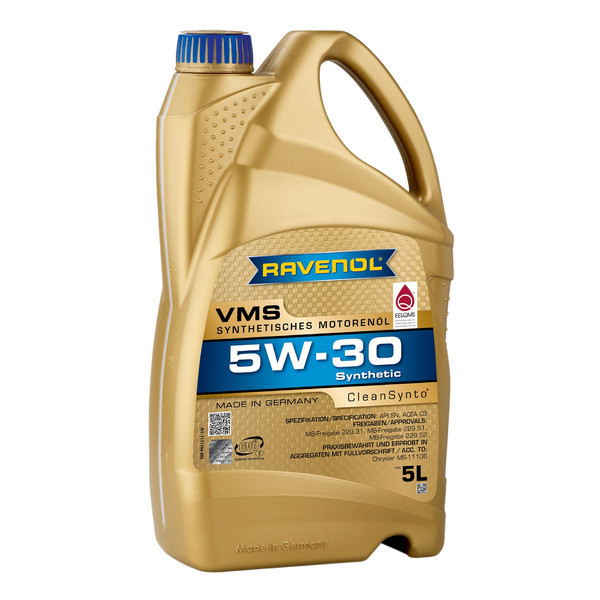

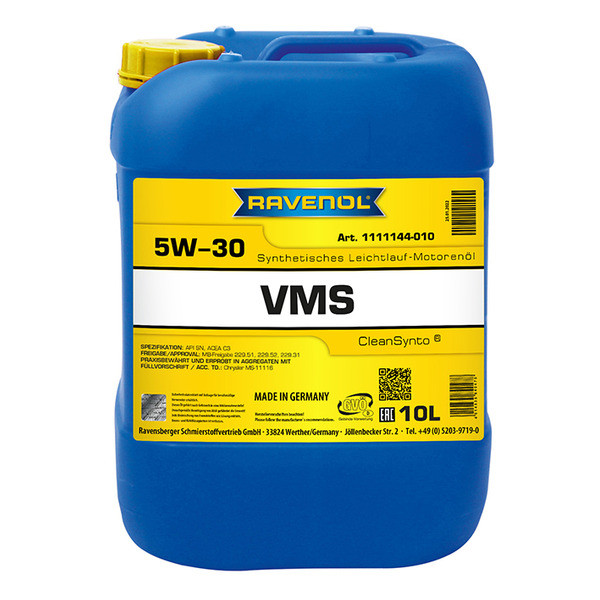

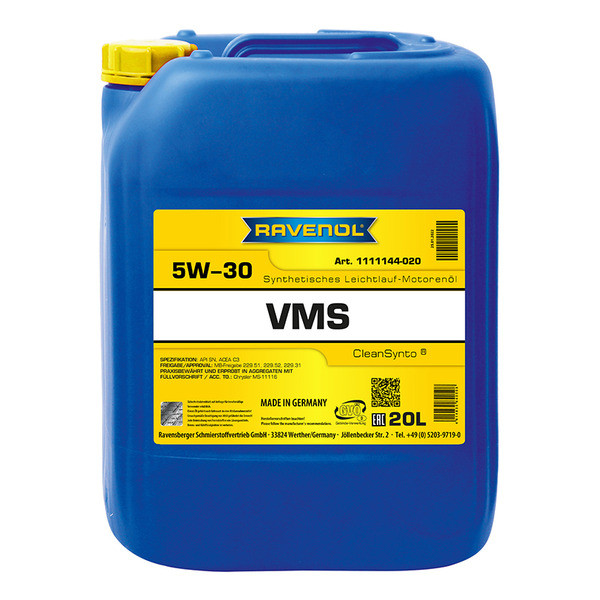

VMS 5W-30

RAVENOL VMS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52

Compliance with the requirements:
Chrysler MS-11106

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111144-001

Code:
4014835840416

Volume:
4 L

vendor code:
1111144-004

Code:
4014835840447

Volume:
5 L

vendor code:
1111144-005

Code:
4014835840805

Volume:
10 L

vendor code:
1111144-010

Volume:
20 L

vendor code:
1111144-020

Volume:
20 L, ecobox

vendor code:
1111144-B20

Volume:
60 L

vendor code:
1111144-060

Volume:
60 L, print

vendor code:
1111144-D60

Volume:
208 L

vendor code:
1111144-208

Volume:
208 L, print

vendor code:
1111144-D28

Volume:
1000 L

vendor code:
1111144-700

RAVENOL VMS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL VMS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL VMS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VMS SAE 5W-30 is Oil which prevents effectively the clogging of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMS SAE 5W-30 is suitable for demanding engines as high performance low friction engine oil. It is recommended for modern passenger car gasoline and diesel engines, including turbo versions and direct injection engines, for all operation conditions.

RAVENOL VMS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters. It is especially formulated according to the Daimler Low SPAsh multigrade service engine oil specification MB 229.52 and suitable for BlueTEC OM642.

Characteristics

Fuel savings in partial and full load
Excellent wear protection and high viscosity index secure evenunder high speed driving conditions engine longevity
Excellent cold starting properties even at low temperatures below -30°C
A safe lubrication film at high operating temperatures.
Low volatilization tendency, thereby lower oil consumption
No oil-related deposits in combustion chambers in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52		MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52
Recomendations		Chrysler MS-11106		Chrysler MS-11106
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.8	DIN 51562-1	72.8 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5258	ASTM D5293	5258 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	22500	ASTM D4684	22500 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	7	ASTM D5800	7 % M/M ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	8.6	ASTM D2896	8.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52		Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52

Super Performance Truck 5W-30

Application NoteRAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).

Manufacturer Approved:
Renault RXD

Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3

show details

SAE: 5W-30

API: CF, CI-4

ACEA: E4, E7

Equivalents OEM:
Isuzu 1884059300, Isuzu 1884059300

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1122102-005

Code:
4014835725751

Volume:
10 L

vendor code:
1122102-010

Code:
4014835725744

Volume:
20 L

vendor code:
1122102-020

Code:
4014835725720

Volume:
20 L, ecobox

vendor code:
1122102-B20

Volume:
60 L, print

vendor code:
1122102-D60

Code:
4014835725737

Volume:
208 L

vendor code:
1122102-208

Code:
4014835725782

Volume:
208 L, print

vendor code:
1122102-D28

Code:
4014835725706

Volume:
1000 L

vendor code:
1122102-700

Volume:
1 L

vendor code:
1122102-001

Volume:
60 L

vendor code:
1122102-060

Application Note

RAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).

RAVENOL Super Performance Truck SAE 5W-3 is suitable for oil change intervals up to more than 100.000 km according to the manufacturer’s specifications.

Characteristics

Protection against corrosion
An excellent oxidation stability
An excellent high temperature stability
Excellent detergent and dispersant attributes
Profitability because of a low fuel consumption
Long endurance because of a high oxidation stability
Excellent cold start attributes
A very good viscosity temperature behaviour
Low evaporation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Semi-synthetic		Semi-synthetic
API		CF, CI-4		CF, CI-4
ACEA		E4, E7		E4, E7
JASO		DH-1		DH-1
Manufacturer Approved		Renault RXD		Renault RXD
Recomendations		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3
Suitable for		IVECO		IVECO
Density at 20 °C	kg/m³	854	EN ISO 12185	854 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.5	DIN 51562-1	11.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	69.3	DIN 51562-1	69.3 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	6000	ASTM D5293	6000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.200	ASTM D4684	16.200 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	% M/M	10.1	ASTM D5800	10.1 % M/M ASTM D5800
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1	DIN 51575	1 %wt. DIN 51575
Approvals		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3

Super Synthetic Truck 5W-30

The cold viscosity SAE 5W ensures reliable cold starting in extreme temperatures (low cold-starting wear) and the quickest possible supply to all lubricating points. The high-temperature viscosity SAE 30 safely masters extreme stress. Friction loss and wear are reduced.

Manufacturer Approved:
DTFR 15C110, DTFR 15C120, MAN M 3677

Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4

show details

SAE: 5W-30

API: CK-4, SN

ACEA: E6, E7, E8, E9, E11

Equivalents OEM:
DAF 09354RU, DAF 09354XX, DAF 09375PL, DAF 09375PL, FEBI 48416, Nissan KLBF205302, Nissan KLBF305302

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1121101-005

Code:
4014835767959

Volume:
10 L

vendor code:
1121101-010

Code:
4014835767942

Volume:
20 L

vendor code:
1121101-020

Code:
4014835767928

Volume:
20 L, ecobox

vendor code:
1121101-B20

Volume:
60 L

vendor code:
1121101-060

Volume:
60 L, print

vendor code:
1121101-D60

Code:
4014835767966

Volume:
208 L

vendor code:
1121101-208

Code:
4014835767980

Volume:
208 L, print

vendor code:
1121101-D28

Code:
4014835767904

Volume:
1000 L

vendor code:
1121101-700

The cold viscosity SAE 5W ensures reliable cold starting in extreme temperatures (low cold-starting wear) and the quickest possible supply to all lubricating points. The high-temperature viscosity SAE 30 safely masters extreme stress. Friction loss and wear are reduced.

Application Note

RAVENOL Super Synthetic Truck SAE 5W-30 is an all-season Low SAPS high performance commercial vehicle motor oil fine tuned for the new exhaust emission directives. All-season use in EURO IV, EURO V and EURO VI engines.

RAVENOL Super Synthetic Truck SAE 5W-30 is suitable for oil change intervals according to manufacturer specifications to over 100,000 km.

Characteristics

Outstanding detergent properties, no residues in the engine
Outstanding dispersing properties – prevents cold sludge and residue formation
Extends the life of the particle filter by reducing the tendency to form particles
Low sulphate ash-, phosphorus- and sulphur content “Low SAPS
Outstanding wear protection
Outstanding oxidation stability
Outstanding high temperature stability, high viscosity index
Low fuel consumption for cost effectiveness
Outstanding cold starting properties

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CK-4, SN		CK-4, SN
ACEA		E11, E6, E7, E8, E9		E11, E6, E7, E8, E9
JASO		DH-2		DH-2
Manufacturer Approved		DTFR 15C110, DTFR 15C120, MAN M 3677		DTFR 15C110, DTFR 15C120, MAN M 3677
Recomendations		Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4		Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.15	DIN 51562-1	12.15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.8	DIN 51562-1	70.8 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5530	ASTM D5293	5530 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	22.500	ASTM D4684	22.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	9.1	ASTM D5800	9.1 % M/M ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.8	ASTM D2896	10.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.96	DIN 51575	0.96 %wt. DIN 51575
Approvals		Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MAN M 3677, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4		Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MAN M 3677, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4

Ultra Synthetik Truck 5W-30

is a top quality synthetic fuel economy “Low SAPS” year-round multigrade diesel engine oil based on the latest additive technology combined with very special base oils.

Manufacturer Approved:
DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3677, Renault RLD-3, Scania LDF-4, Volvo VDS-4

Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Voith Retarder B, Volvo CNG

show details

SAE: 5W-30

API: CJ-4, CK-4, SN

ACEA: E4, E6, E7, E8, E9, E11

Available packaging
Full description
Product parameters

Volume:
10 L

vendor code:
1121102-010

Code:
4014835847347

Volume:
20 L

vendor code:
1121102-020

Volume:
20 L, ecobox

vendor code:
1121102-B20

Volume:
60 L

vendor code:
1121102-060

Volume:
208 L

vendor code:
1121102-208

Code:
4014835847408

Volume:
208 L, print

vendor code:
1121102-D28

Volume:
1000 L

vendor code:
1121102-700

is a top quality synthetic fuel economy “Low SAPS” year-round multigrade diesel engine oil based on the latest additive technology combined with very special base oils.

This fuel saving lubricant has mainly been developed for heavy diesel engines even under the toughest operation conditions and all the year round. This product is very suitable for EURO 4, EURO 5 and EURO 6 engines in combination with diesel fuel with a low sulphur content.

RAVENOL Ultra Synthetik Truck SAE 5W-30 is suitable for application in engines with or without particle filters and exhaust catalysts. The SAE 5W-30 viscosity range ensures reliable cold starting at low ambient temperatures and full lubricity at high operating temperatures. The use of shearstable additives guarantees that the SAE grade 5W-30 is maintained throughout the entire oil change interval.

RAVENOL Ultra Synthetik Truck SAE 5W-30 is developed as SHPD Motoroil (Super High Performance Diesel) and is suitable for use in engines with or without particle filter and catalytic converter and the special requirements for Low SAPS Technology. Low sulphur-, phosphor- and ash-content.

Application Note

RAVENOL Ultra Synthetik Truck SAE 5W-30 is a year round high performance motor oil, especially designed for economic use in exhaust-optimized engines with exhaust aftertreatment systems.

RAVENOL Ultra Synthetik Truck SAE 5W-30 is for universal use in all Diesel-engines with or without turbo-charging and for use in EURO 4, EURO 5 and EURO 6 engines.

Characteristics

High wear protection
Outstanding oxidation stability
Excellent high temperature stability
Outstanding detergent and dispersant properties
Efficiency through low fuel consumption
Long service life due to high oxidation stability
Outstanding cold start behaviour, rapid engine oiling even at low temperatures
Very good viscosity-temperature behavior
Neutrality towards seals
Low oil consumption due to the low evaporation loss through PAO and HC base oils

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CJ-4, CK-4, SN		CJ-4, CK-4, SN
ACEA		E11, E4, E6, E7, E8, E9		E11, E4, E6, E7, E8, E9
JASO		DH-2		DH-2
Manufacturer Approved		DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3677, Renault RLD-3, Scania LDF-4, Volvo VDS-4		DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3677, Renault RLD-3, Scania LDF-4, Volvo VDS-4
Recomendations		Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Voith Retarder B, Volvo CNG		Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Voith Retarder B, Volvo CNG
Density at 20 °C	kg/m³	852	EN ISO 12185	852 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	73.6	DIN 51562-1	73.6 mm²/s DIN 51562-1
Viscosity Index VI		164	DIN ISO 2909	164 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	5900	ASTM D5293	5900 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23.200	ASTM D4684	23.200 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	% M/M	9.2	ASTM D5800	9.2 % M/M ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.2	ASTM D2896	10.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.97	DIN 51575	0.97 %wt. DIN 51575
Approvals		Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4		Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4

REP Racing Extra Performance 5W-30

RAVENOL REP Racing Extra Performance SAE 5W-30 is a modern, PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with USVO® Technology.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 226.5, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, Renault RN 0710

Compliance with the requirements:
Renault RN 0700

show details

SAE: 5W-30

API: SN

ACEA: C3

Equivalents OEM:
MB A0019893701BGA0, MB A0019893701BGA0, MB A0019893701BGA4, MB A0019893701BGA6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1141088-001

Code:
4014835852242

Volume:
4 L

vendor code:
1141088-004

Code:
4014835852273

Volume:
5 L

vendor code:
1141088-005

Volume:
10 L

vendor code:
1141088-010

Code:
4014835852303

Volume:
20 L

vendor code:
1141088-020

Code:
4014835852341

Volume:
20 L, ecobox

vendor code:
1141088-B20

Volume:
60 L

vendor code:
1141088-060

Volume:
60 L, print

vendor code:
1141088-D60

Volume:
208 L

vendor code:
1141088-208

Volume:
208 L, print

vendor code:
1141088-D28

Volume:
1000 L

vendor code:
1141088-700

RAVENOL REP Racing Extra Performance SAE 5W-30 is a modern, PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with USVO® Technology.

RAVENOL REP Racing Extra Performance SAE 5W-30 is ideally suited for gasoline engines for car racing, even when subject to the highest levels of strain.

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Due to its high viscosity index, extreme shear stability and a highly effective special novel additivation RAVENOL REP Racing Extra Performance SAE 5W-30 is also suitable for an extremely sporty driving style.

RAVENOL REP Racing Extra Performance SAE 5W-30 achieves a secure lubrication layer thanks to its unique formulation even at very high operating temperatures, protection from corrosion (oxidation) and foaming.

Application Note

RAVENOL REP Racing Extra Performance SAE 5W-30 can be used as special oil for car race even under most difficult conditions.

Characteristics

Ultra-modern full synthetic engine oil for car race
Safe lubricating layer at very high operating temperatures
Very stable and excellent viscosity behaviour
Very low evaporation tendency
Very good cold start characteristics
Very good detergent and dispersant characteristics
Good protection against corrosion and foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 226.5, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, Renault RN 0710		BMW Longlife-04, GM dexos2®, MB-Approval 226.5, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, Renault RN 0710
Recomendations		Renault RN 0700		Renault RN 0700
Rennstrecken-Partnerschaft		Nürburgring		Nürburgring
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	73.4	DIN 51562-1	73.4 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4301	ASTM D5293	4301 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.870	ASTM D4684	14.870 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	6.2	ASTM D5800	6.2 % M/M ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	8.1	ASTM D2896	8.1 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, GM dexos2®, MB 226.5, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Renault RN0700, Renault RN0710		BMW Longlife-04, GM dexos2®, MB 226.5, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Renault RN0700, Renault RN0710

HDX 5W-30

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-6A

API: SN Plus, SP (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111125-001

Code:
4014835858541

Volume:
4 L

vendor code:
1111125-004

Code:
4014835858572

Volume:
5 L

vendor code:
1111125-005

Code:
4014835858602

Volume:
10 L

vendor code:
1111125-010

Code:
4014835858633

Volume:
20 L, ecobox

vendor code:
1111125-B20

Code:
4014835858657

Volume:
60 L

vendor code:
1111125-060

Code:
4014835858718

Volume:
60 L, print

vendor code:
1111125-D60

Volume:
208 L

vendor code:
1111125-208

Code:
4014835858756

Volume:
208 L, print

vendor code:
1111125-D28

Volume:
1000 L

vendor code:
1111125-700

Volume:
20 L

vendor code:
1111125-020

Code:
4014835858671

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.

RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.

Characteristics

Fuel savings in partial and full load operation
Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
Excellent cold-start properties even at low temperatures below -25°C
A safe lubricating film at high operating temperatures
Low evaporation tendency, thus low oil consumption
No oil-based deposits in combustion chambers, in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN Plus, SP (RC)		SN Plus, SP (RC)
ILSAC		GF-6A		GF-6A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	kg/m³	844	EN ISO 12185	844 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.8	DIN 51562-1	10.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	59.8	DIN 51562-1	59.8 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.4	ASTM D5481	3.4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3630	ASTM D5293	3630 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.500	ASTM D4684	13.500 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	% M/M	8.1	ASTM D5800	8.1 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.86	DIN 51575	0.86 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30

RSP Racing Super Performance 5W-30

RAVENOL RSP Racing Super Performance SAE 5W-30 is a modern, PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with USVO® Technology for petrol and diesel engines.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

show details

SAE: 5W-30

API: CF, SN

ACEA: A3, B4

Equivalents OEM:
Alpine 0101621, Alpine 0101622, Alpine 0101623, Alpine 0101624, Alpine 0101625, Alpine 0101626, Alpine 0101626, Alpine 101621, Alpine 101622, Alpine 101623, Alpine 101624, Alpine 101625, VAG GE60167C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1141089-001

Code:
4014835852754

Volume:
4 L

vendor code:
1141089-004

Code:
4014835852785

Volume:
5 L

vendor code:
1141089-005

Volume:
10 L

vendor code:
1141089-010

Volume:
20 L

vendor code:
1141089-020

Code:
4014835852860

Volume:
20 L, ecobox

vendor code:
1141089-B20

Volume:
60 L

vendor code:
1141089-060

Volume:
60 L, print

vendor code:
1141089-D60

Volume:
208 L

vendor code:
1141089-208

Volume:
208 L, print

vendor code:
1141089-D28

RAVENOL RSP Racing Super Performance SAE 5W-30 is a modern, PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with USVO® Technology for petrol and diesel engines.

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Due to its high viscosity index, good shear stability and a highly effective special novel additivation, RAVENOL RSP Racing Super Performance SAE 5W-30 is also suitable for extremely sporty driving styles.

RAVENOL RSP Racing Super Performance SAE 5W-30 provides a safe layer of lubrication, even at very high operating temperatures. Extensive protection against corrosion (oxidation) and foaming.

Application Note

RAVENOL RSP Racing Super Performance SAE 5W-30 is ideally suited for car racing, even when subject to the highest levels of strain.

Characteristics

Ultra-modern full synthetic engine oil for car race with special additivation
Safe lubricating layer at very high operating temperatures
High HTHS value, very good shear stability
Very stable and excellent viscosity behaviour
Very low evaporation tendency
Very good cold start characteristics
Very good detergent and dispersant characteristics
Good protection against corrosion and foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Rennstrecken-Partnerschaft		Nürburgring		Nürburgring
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71.9	DIN 51562-1	71.9 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4250	ASTM D5293	4250 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.200	ASTM D4684	12.200 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	5.5	ASTM D5800	5.5 % M/M ASTM D5800
Flashpoint	°C	250	DIN EN ISO 2592	250 °C DIN EN ISO 2592
tbn	mgKOH/g	10.3	ASTM D2896	10.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.24	DIN 51575	1.24 %wt. DIN 51575
Approvals		BMW Longlife-01, MB 229.5, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, MB 229.5, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

EDT EXTRA DUTY TRUCK 5W-30

RAVENOL Extra Duty Truck SAE 5W-30 is suitable for use in engines with and without particle filters and catalytic converters and is designed for the special requirements of the Low SAPS technology. The product offers low sulphur, phosphorous and ash content.

Manufacturer Approved:
DTFR 15C110, DTFR 15C120, Mack EOS-4.5, MAN M 3677, MAN M 3691, MAN M 3775, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5

Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20086, DDC 93K222, Deutz DQC IV-18 LA, Ford WSS-M2C 213-A, MAN M 3271-1, MAN M 3477, MB 228.51, MB 228.52, MTU Type 3.1, VOLVO VDS-5

show details

SAE: 5W-30

API: CI-4 Plus, CK-4, SN

ACEA: E6, E7, E8, E9, E11

Equivalents OEM:
Alpine 0100413, Alpine 0100414, Alpine 0100415, Alpine 100413, Alpine 100414, Alpine 100414, DAF 1659972, DAF 1659972G, MAN 09110010021, MAN 09110010820, MAN ZR110010820, Scania 2574915, Scania 2628669, Volvo CHO257008GALLON, Volvo MVBV5W30DRUM, Volvo MVBV5W30PAIL

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1121106-001

Volume:
5 L

vendor code:
1121106-005

Volume:
10 L

vendor code:
1121106-010

Code:
4014835875845

Volume:
20 L

vendor code:
1121106-020

Code:
4014835875913

Volume:
20 L, ecobox

vendor code:
1121106-B20

Volume:
60 L

vendor code:
1121106-060

Volume:
60 L, print

vendor code:
1121106-D60

Volume:
208 L

vendor code:
1121106-208

Code:
4014835876026

Volume:
208 L, print

vendor code:
1121106-D28

Volume:
1000 L

vendor code:
1121106-700

RAVENOL Extra Duty Truck SAE 5W-30 is suitable for use in engines with and without particle filters and catalytic converters and is designed for the special requirements of the Low SAPS technology. The product offers low sulphur, phosphorous and ash content.

RAVENOL Extra Duty Truck SAE 5W-30 is characterized by increased oxidation and shear stability as well as improved air release characteristics to meet and exceed the latest API CK-4 requirements.

Application Note

RAVENOL Extra Duty Truck SAE 5W-30 is a high-performance engine oil which can be used all year round and which has been designed to meet the new exhaust gas emissions guidelines. It has been created for vehicles with exhaust gas recirculation systems. Extended oil change intervals in accordance with manufacturer instructions.

RAVENOL Extra Duty Truck SAE 5W-30 is particularly suitable for use in a mixed fleet including EURO IV, EURO V and EURO VI engines and therefore offers the ideal solution to reducing the range of products needed. Please follow the manufacturer’s recommendations!

Characteristics

Very stable and excellent viscosity behavior and high shear stability
Fuel saving under all operating conditions
Maintains the efficiency of the exhaust gas purification systems over a very long term
Power losses caused by diesel particulate filters are prevented and a higher efficiency is achieved
Low evaporation tendency resulting in low oil consumption
Extended oil change intervals protect natural resources
An excellent cold start behaviour
Low SAPS = Low Sulphated ash, Phosphorous and Sulfur
Can also be used in many commercial vehicles without diesel particulate filters

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CI-4 Plus, CK-4, SN		CI-4 Plus, CK-4, SN
ACEA		E11, E6, E7, E8, E9		E11, E6, E7, E8, E9
JASO		DH-2		DH-2
Manufacturer Approved		DTFR 15C110, DTFR 15C120, Mack EOS-4.5, MAN M 3677, MAN M 3691, MAN M 3775, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5		DTFR 15C110, DTFR 15C120, Mack EOS-4.5, MAN M 3677, MAN M 3691, MAN M 3775, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5
Recomendations		Caterpillar ECF-3, Cummins CES 20086, DDC 93K222, Deutz DQC IV-18 LA, Ford WSS-M2C 213-A, MAN M 3271-1, MAN M 3477, MB 228.51, MB 228.52, MTU Type 3.1, Volvo VDS-5		Caterpillar ECF-3, Cummins CES 20086, DDC 93K222, Deutz DQC IV-18 LA, Ford WSS-M2C 213-A, MAN M 3271-1, MAN M 3477, MB 228.51, MB 228.52, MTU Type 3.1, Volvo VDS-5
Density at 20 °C	kg/m³	852.6	EN ISO 12185	852.6 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	73.6	DIN 51562-1	73.6 mm²/s DIN 51562-1
Viscosity Index VI		164	DIN ISO 2909	164 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	5994	ASTM D5293	5994 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23.200	ASTM D4684	23.200 mPa*s ASTM D4684
Pourpoint	°C	-46	DIN ISO 3016	-46 °C DIN ISO 3016
Noack Volatility	% M/M	9.2	ASTM D5800	9.2 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	9.6	ASTM D2896	9.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.97	DIN 51575	0.97 %wt. DIN 51575
Approvals		Caterpillar ECF-3, Cummins CES 20086, DDC 93K222, Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, Ford WSS-M2C 213-A, Mack EOS-4.5, MAN M 3271-1, MAN M 3477, MAN M 3677, MAN M 3691, MAN M 3775, MB 228.51, MB 228.52, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5, Volvo VDS-5		Caterpillar ECF-3, Cummins CES 20086, DDC 93K222, Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, Ford WSS-M2C 213-A, Mack EOS-4.5, MAN M 3271-1, MAN M 3477, MAN M 3677, MAN M 3691, MAN M 3775, MB 228.51, MB 228.52, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5, Volvo VDS-5

SMO 5W-30

RAVENOL SMO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, GM 6094 M

show details

SAE: 5W-30

ILSAC: GF-5

API: SN (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111151-001

Code:
4014835860117

Volume:
4 L

vendor code:
1111151-004

Code:
4014835860148

Volume:
5 L

vendor code:
1111151-005

Volume:
20 L

vendor code:
1111151-020

Volume:
20 L, ecobox

vendor code:
1111151-B20

Code:
4014835862807

Volume:
60 L

vendor code:
1111151-060

Volume:
60 L, print

vendor code:
1111151-D60

Volume:
208 L

vendor code:
1111151-208

Volume:
208 L, print

vendor code:
1111151-D28

RAVENOL SMO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL SMO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL SMO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL SMO SAE 5W-30 is suitable for demanding engines as high performance low friction engine oil. The specifications API SN Resource Conserving (RC) and ILSAC GF-5 are backward compatible with the respective previous specifications.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -30°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN (RC)		SN (RC)
ILSAC		GF-5		GF-5
Recomendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, GM 6094 M		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, GM 6094 M
Suitable for		Lexus, Mazda, Nissan, Subaru, Toyota		Lexus, Mazda, Nissan, Subaru, Toyota
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.8	DIN 51562-1	9.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		159	DIN ISO 2909	159 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.07	ASTM D5481	3.07 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5700	ASTM D5293	5700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	17.200	ASTM D4684	17.200 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	9.6	ASTM D5800	9.6 % M/M ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	7.4	ASTM D2896	7.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, GM 6094M		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, GM 6094M

STS 5W-30

can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of

show details

SAE: 5W-30

API: CF, SL

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
60 L

vendor code:
1111312-060

Volume:
208 L

vendor code:
1111312-208

can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of

RAVENOL Fließverbesserer

are:complete restless burningno erosion of the flammabilityno change of the hazard categoryno r eduction of the viscosity, no illegal wastage in the pumpApplication note:Diesel fuel and fuel o il EL must have a temperature of more than 5°C when

RAVENOL Fließverbesserer

is used (this is given when the goods are stored in an underground tank!).

RAVENOL Fließverbesserer

itself must have a temperature of more than 0°C in case of use. Therefore, don’t store it outside.

RAVENOL Fließverbesserer

will become viscous below 0°C – this will not influence the product quality.Please follow!In or der to guarantee an optimum mixing the diesel fuel should have a temperature of more than 0°C and th e fuel oil EL more than 5°C. As the average temperatures are between 6°C and 9°C in case of a normal underground tank storage and diesel fuel and fuel oil EL are normally delivered with higher tempera tures than the annual average it satisfies to pour the necessary quantity of

RAVENOL Fließverbesserer

into the fixed tank or vehicle tank before the vehicle is fuelled. The “splash” during the filling of the vehicle secures the necessary stable mixing.Concerning overground positioned tanks approxim ately the half of diesel fuel or fuel oil quantity should be poured during the filling. If there is a deposit in the tank before filling a mixing with a temperature of more than 0°C can be secured. T hen the necessary quantity of

RAVENOL Fließverbesserer

has to be poured and afterwards the second half of diesel fuel or fuel oil has to be tanked.After having added

RAVENOL Fließverbesserer

(after having fuelled!) the engine of vehicles and working machines has to run approximately 10 min utes. Hereby it is secured that the

RAVENOL Fließverbesserer

reaches the fuel filter and the injection pump and can be effective there. This prevents starting p roblems.ATTENTION!Before use in common rail or pump injector vehicles be sure to read the operati ng instructions of the vehicle and follow the instructions of the vehicle manufacturer!

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A3, B4		A3, B4
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.9	DIN 51562-1	10.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	62.8	DIN 51562-1	62.8 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.54	ASTM D5481	3.54 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5975	ASTM D5293	5975 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.600	ASTM D4684	16.600 mPa*s ASTM D4684
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Noack Volatility	% M/M	11.5	ASTM D5800	11.5 % M/M ASTM D5800
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	8.5	ASTM D2896	8.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.18	DIN 51575	1.18 %wt. DIN 51575

RNV 5W-30

RAVENOL RNV SAE 5W-30 is suitable for use in petrol and diesel engines with and without a particle filter and exhaust gas catalytic converter and in engines according to the latest EURO 6d-Temp standard.

Manufacturer Approved:
MB-Approval 226.52, Renault RN17

show details

SAE: 5W-30

ACEA: C3

Equivalents OEM:
MB A000989040811BBDW, MB A000989040813BBDW, MB A000989040817BBDW, Nissan KLACN05301, Nissan KLACN05302, Nissan KLRJ005301, Nissan KLRJ005301, Renault 7711658105, Renault 7711943679, Renault 7711943681

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111114-001

Code:
4014835864733

Volume:
4 L

vendor code:
1111114-004

Code:
4014835864764

Volume:
5 L

vendor code:
1111114-005

Volume:
10 L

vendor code:
1111114-010

Code:
4014835864825

Volume:
20 L

vendor code:
1111114-020

Volume:
20 L, ecobox

vendor code:
1111114-B20

Volume:
60 L

vendor code:
1111114-060

Volume:
208 L

vendor code:
1111114-208

Volume:
1000 L

vendor code:
1111114-700

RAVENOL RNV SAE 5W-30 is suitable for use in petrol and diesel engines with and without a particle filter and exhaust gas catalytic converter and in engines according to the latest EURO 6d-Temp standard.

The viscosity range SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures. Frictional losses and wear are reduced.

By significantly reducing fuel consumption, RAVENOL RNV SAE 5W-30 helps to protect the environment by reducing emissions.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL RNV SAE 5W-30 is suitable for all petrol engines, diesel engines without DPF (Diesel Particulate Filter), diesel engines with DPF from EURO 6d-Temp by RENAULT and Dacia as well as for diesel engines with DPF, if an engine oil according to ACEA C3 is required.

RAVENOL RNV SAE 5W-30 can be used universally in all petrol and diesel engines with and without turbocharging, except RS /Alpine.

RAVENOL RNV SAE 5W-30 can also be used for the latest EURO 6d engines.

The Renault specification RN17 replaces the specification RN0700 and RN0710.

The oil change intervals according to the manufacturer's instructions must be observed.

Characteristics

Low content of ash-forming components (sulfate ash, phosphorus and sulfur).
Specific additive technology for optimal lubrication.
Extremely high aging resistance, durability and robustness.
Excellent cleaning properties
Fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
ACEA		C3		C3
Manufacturer Approved		MB-Approval 226.52, Renault RN17		MB-Approval 226.52, Renault RN17
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64	DIN 51562-1	64 mm²/s DIN 51562-1
Viscosity Index VI		187	DIN ISO 2909	187 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5576	ASTM D5293	5576 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	22.370	ASTM D4684	22.370 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	% M/M	7.6	ASTM D5800	7.6 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	8.7	ASTM D2896	8.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.76	DIN 51575	0.76 %wt. DIN 51575
Approvals		MB 226.52, Renault RN17		MB 226.52, Renault RN17

Expert SHPD 5W-30

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

Compliance with the requirements:
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

show details

SAE: 5W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
MB A000989240713FBDR, MB A000989240717FBDR, MB A000989630413BEER, MB A000989630417BEER, MB A000989730217BGEZ, MB A000989780715CDDB, MB A000989860219AEED, MB A000989890613ABDE, MB A000989890613ABDS, MB A000989890615ABDS, MB A000989890617ABDS, MB A000989890618ABDS, MB A0019890801AAA0, MB A0019890801AAA4, MB A0019890801AAA8, MB A0019890801AAA9, MB A0019890801ADA0, MB A0019890801ADA4, MB A0019890801ADA6, MB A0019890801ADA6, MB A0019890801ARU8, MB A0019890801BAA0, MB A0019890801BRD2, MB A002989370313FDDW, MB A094989210013ABDE, MB A094989210015ABDS, MB A094989210017ABDS, MB A094989210018ABDS, MB A094989260013FBDR, MB A094989260017FBDR

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1121104-001

Code:
4014835863842

Volume:
5 L

vendor code:
1121104-005

Code:
4014835863460

Volume:
7 L

vendor code:
1121104-007

Code:
4014835867949

Volume:
10 L

vendor code:
1121104-010

Code:
4014835864085

Volume:
20 L

vendor code:
1121104-020

Code:
4014835863491

Volume:
20 L, ecobox

vendor code:
1121104-B20

Code:
4014835863606

Volume:
60 L

vendor code:
1121104-060

Code:
4014835863583

Volume:
60 L, print

vendor code:
1121104-D60

Volume:
208 L

vendor code:
1121104-208

Code:
4014835863514

Volume:
208 L, print

vendor code:
1121104-D28

Volume:
1000 L

vendor code:
1121104-700

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.

Application Note

RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.

RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E3, E5, E7		A3, B4, E3, E5, E7
Recomendations		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Density at 20 °C	kg/m³	851	EN ISO 12185	851 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.2	DIN 51562-1	74.2 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6340	ASTM D5293	6340 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.890	ASTM D4684	25.890 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	8.3	ASTM D5800	8.3 % M/M ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.7	ASTM D2896	10.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.29	DIN 51575	1.29 %wt. DIN 51575
Approvals		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

FET 5W-30

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 with API specification FA-4 fulfils the requirements of the On-Highway Greenhouse Gas (GHG) standards for the reduction of greenhouse gas emissions from model year 2017 onwards.

Manufacturer Approved:
DTFR 15C130, Mack EOS-5, Renault RLD-5

Compliance with the requirements:
Cummins CES 20087, DDC 93K223, MB 228.61

show details

SAE: 5W-30

API: FA-4, SN

Equivalents OEM:
MB A000989190713FBDE, MB A000989190717FBDD, MB A000989190717FBDE, MB A000989190718FBDE, MB A000989190719FBDD, MB A000989190719FBDE, MB A000989490413FFEE, MB A000989490417FFEE, MB A000989490417FFEW, MB A000989490418FFEE, MB A000989490419FFEE, MB A000989490419FFEW, MB A000989710613ABDE, MB A000989710613ABDW, MB A000989710613AFEE, MB A000989710617ABDE, MB A000989710617AFED, MB A000989710617AFEE, MB A000989710617AFEW, MB A000989710618ABDE, MB A000989710618ABDW, MB A000989710618AFEE, MB A000989710619ABDE, MB A000989710619AFED, MB A000989710619AFEE, MB A0009898900, MB A0009898900, MB A000989890012, MB A000989890217AFED, MB A000989890217AFEE, MB A000989890217AFEW MB A000989190713FBDE, MB A000989190717FBDD, MB A000989190717FBDE, MB A000989190718FBDE, MB A000989190719FBDD, MB A000989190719FBDE, MB A000989490413FFEE, MB A000989490417FFEE, MB A000989490417FFEW, MB A000989490418FFEE, MB A000989490419FFEE, MB A000989490419FFEW, MB A000989710613ABDE, MB A000989710613ABDW, MB A000989710613AFEE, MB A000989710617ABDE, MB A000989710617AFED, MB A000989710617AFEE, MB A000989710617AFEW, MB A000989710618ABDE, MB A000989710618ABDW, MB A000989710618AFEE, MB A000989710619ABDE, MB A000989710619AFED, MB A000989710619AFEE, MB A0009898900, MB A0009898900, MB A000989890012, MB A000989890217AFED, MB A000989890217AFEE, MB A000989890217AFEW, MB A000989890218AFEE, MB A000989890219AFED, MB A000989890219AFEE, MB A094989190017FFEW, MB A094989190019FFEW, MB A094989250013FBDE, MB A094989250017FBDE, MB A094989250018FBDE, MB A094989250019FBDE

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1121105-001

Code:
4014835863873

Volume:
5 L

vendor code:
1121105-005

Code:
4014835863903

Volume:
10 L

vendor code:
1121105-010

Code:
4014835864061

Volume:
20 L

vendor code:
1121105-020

Code:
4014835863934

Volume:
20 L, ecobox

vendor code:
1121105-B20

Volume:
60 L

vendor code:
1121105-060

Volume:
60 L, print

vendor code:
1121105-D60

Volume:
208 L

vendor code:
1121105-208

Code:
4014835863972

Volume:
208 L, print

vendor code:
1121105-D28

Volume:
1000 L

vendor code:
1121105-700

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 with API specification FA-4 fulfils the requirements of the On-Highway Greenhouse Gas (GHG) standards for the reduction of greenhouse gas emissions from model year 2017 onwards.

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 is suitable for diesel fuel with a sulphur content of up to 15ppm and can be used in the latest exhaust gas- optimized engines with exhaust gas treatment such as DPF diesel particulate filters and other systems.

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 contains shear-stable ingredients and improves engine performance, reliability and cleanliness. It delivers significant improvements to oxidation resistance, air supply, shear stability, wear and tear, deposits and a reduction in fuel consumption.

Application Note

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 is used by engine manufacturers as a year-round multigrade engine oil for engines with exhaust treatment systems with viscosity grade SAE 5W-30 in diesel commercial vehicle engines which are subject to heavy strain.

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 with category FA-4 is neither interchangeable nor backward-compatible with API CK-4, CJ-4, CI-4 with CI-4 PLUS, CI-4 or CH-4 oils.

Note the manufacturer recommendations in order to establish whether RAVENOL FET Fuel Efficiency Truck SAE 5W-30 with API FA-4 is suitable for use.

RAVENOL FET Fuel Efficiency Truck SAE 5W-30 with API FA-4 is not recommended for use with fuels with more than 15 ppm of sulphur.

Characteristics

A very stable and excellent viscosity behavior and high shear stability
Fuel savings under all operating conditions
Maintains the effectiveness of emission control systems over a very long period of time
Loss of performance due to blocked diesel particle filters is prevented and a higher level of effici
Low evaporation tendency, therefore low oil consumption
Extended oil change intervals protect natural resources
Very good cold start properties
Low SAPS = Low Sulfated Ash, Phosphorus and Sulfur
Can also be used in many commercial vehicles without diesel particle filters

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		FA-4, SN		FA-4, SN
Manufacturer Approved		DTFR 15C130, Mack EOS-5, Renault RLD-5, Volvo VDS-5		DTFR 15C130, Mack EOS-5, Renault RLD-5, Volvo VDS-5
Recomendations		Cummins CES 20087, DDC 93K223, MB 228.61		Cummins CES 20087, DDC 93K223, MB 228.61
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	9.9	DIN 51562-1	9.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60	DIN 51562-1	60 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.05	ASTM D5481	3.05 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5320	ASTM D5293	5320 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	15.000	ASTM D4684	15.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	9.2	ASTM D5800	9.2 % M/M ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1	DIN 51575	1 %wt. DIN 51575
Approvals		Cummins CES 20087, DDC 93K223, DTFR 15C130, Mack EOS-5, MB 228.61, Renault RLD-5, Volvo VDS-5		Cummins CES 20087, DDC 93K223, DTFR 15C130, Mack EOS-5, MB 228.61, Renault RLD-5, Volvo VDS-5

STOU 5W-30

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 5W-30

API: CG-4, GL-4

ACEA: E2

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310108-020

Volume:
60 L

vendor code:
1310108-060

Volume:
208 L

vendor code:
1310108-208

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Application Note

RAVENOL STOU SAE 5W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 5W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
API		CG-4, GL-4		CG-4, GL-4
ACEA		E2		E2
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Density at 20 °C	kg/m³	856	EN ISO 12185	856 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.8	DIN 51562-1	70.8 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	11.8	ASTM D2896	11.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.8	DIN 51575	1.8 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Schneefrase 4-Takt 5W-30

RAVENOL Schneefräse 4-Takt SAE 5W-30 is specially designed for 4-stroke snow blowers. Excellent wear protection also by high pressure, excellent corrosion protection. Because of the noticeable fuel economy RAVENOL Schneefräse 4-Takt SAE 5W-30 contributes to the reduction of pollutant emissions and protecting the environment.

Compliance with the requirements:
White Outdoor

show details

SAE: 5W-30

API: SL, SM

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1151105-001

Code:
4014835727311

Volume:
4 L

vendor code:
1151105-004

RAVENOL Schneefräse 4-Takt SAE 5W-30 is specially designed for 4-stroke snow blowers. Excellent wear protection also by high pressure, excellent corrosion protection. Because of the noticeable fuel economy RAVENOL Schneefräse 4-Takt SAE 5W-30 contributes to the reduction of pollutant emissions and protecting the environment.

Application Note

RAVENOL Schneefräse 4-Takt SAE 5W-30 is fuel efficient engine oil special conceived for 4-stroke snow blower engines.

Characteristics

Fast oiling of the engine, also by low temperatures
Low oil consumption because of the low evaporation tendency
Excellent wear protection by high pressure
Excellent corrosion protection
Safety towards sludge, coking, leaking and corrosion also in unfavourable operational conditions
No oil caused deposits in combustion chambers, in piston ring zone and on valves
Neutrality against seal materials

Parameter	Unit	Value	Audit
Engine cycle		4T		4T
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SL, SM		SL, SM
ACEA		A5, B5		A5, B5
Recomendations		White Outdoor		White Outdoor
Suitable for		Ariens, Briggs&Stratton, Caiman, Canadiana, Craftsman, CubCadet, Honda, Husqvarna, McCulloch, MTD, Murray, Partner, Snapper, Stiga, Swisher, TORO, Yard-Man		Ariens, Briggs&Stratton, Caiman, Canadiana, Craftsman, CubCadet, Honda, Husqvarna, McCulloch, MTD, Murray, Partner, Snapper, Stiga, Swisher, TORO, Yard-Man
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	9.4	ASTM D5800	9.4 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		White Outdoor		White Outdoor

Search results for query «5W-30»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Ultra Synthetik Truck 5W-30

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

STS 5W-30

Application Note

Characteristics

Application Note

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
