Search results for Allison C-4. Selection of RAVENOL oil.

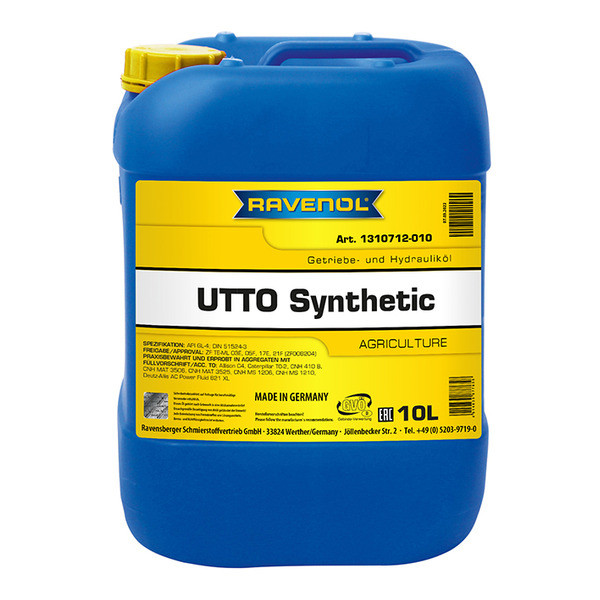

UTTO Synthetic

Application NoteRAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

Manufacturer Approved:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 86-B, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S

show details

SAE: NONE

API: GL-4

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310712-005

Volume:
10 L

vendor code:
1310712-010

Volume:
20 L

vendor code:
1310712-020

Volume:
20 L, ecobox

vendor code:
1310712-B20

Volume:
60 L

vendor code:
1310712-060

Volume:
208 L

vendor code:
1310712-208

Volume:
1000 L

vendor code:
1310712-700

Application Note

RAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

RAVENOL UTTO Synthetic is suitable for wet brakes of load change couplings and minor drives.

Characteristics

a very high stable viscosity index
a very low pour point
a high oxidation stability
a very high pressure absorption capacity
protection against corrosion and foam formation as far as possible
a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load change couplings and minor drives
high shear stability

Parameter	Unit	Value	Audit
SAE		NONE		NONE
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
API		GL-4		GL-4
Manufacturer Approved		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Recomendations		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	12.4	DIN 51562-1	12.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71	DIN 51562-1	71 mm²/s DIN 51562-1
Viscosity Index VI		175	DIN ISO 2909	175 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Approvals		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F

RAVENOL Catoel TO-4 40

Application NoteRAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

show details

SAE: 40W

API: CF, MT-1

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310614-020

Volume:
20 L, ecobox

vendor code:
1310614-B20

Volume:
208 L

vendor code:
1310614-208

Volume:
1000 L

vendor code:
1310614-700

Application Note

RAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parameter	Unit	Value	Audit
SAE		40W		40W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.6	DIN 51562-1	13.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	134	DIN 51562-1	134 mm²/s DIN 51562-1
Viscosity Index VI		96	DIN ISO 2909	96 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	270	DIN EN ISO 2592	270 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

Catoel TO-4 60

Application NoteRAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

show details

SAE: 60W

API: CF, MT-1

Available packaging
Full description
Product parameters

Volume:
208 L

vendor code:
1310616-208

Volume:
1000 L

vendor code:
1310616-700

Volume:
20 L

vendor code:
1310616-020

Application Note

RAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection.
High oxidation stability.
Excellent viscosity-temperature behavior.
Optimization of friction coefficient behavior.
Guarantees maximum life of the units.

Parameter	Unit	Value	Audit
SAE		60W		60W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	903	EN ISO 12185	903 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	23.5	DIN 51562-1	23.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	312.6	DIN 51562-1	312.6 mm²/s DIN 51562-1
Viscosity Index VI		95	DIN ISO 2909	95 DIN ISO 2909
Pourpoint	°C	-12	DIN ISO 3016	-12 °C DIN ISO 3016
Flashpoint	°C	272	DIN EN ISO 2592	272 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

STOU 10W-40

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310111-005

Volume:
10 L

vendor code:
1310111-010

Volume:
20 L

vendor code:
1310111-020

Code:
4014835739826

Volume:
20 L, ecobox

vendor code:
1310111-B20

Volume:
60 L

vendor code:
1310111-060

Volume:
1000 L

vendor code:
1310111-700

Volume:
208 L

vendor code:
1310111-208

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
SAE		10W-40		10W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	864	EN ISO 12185	864 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.7	DIN 51562-1	14.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	101.1	DIN 51562-1	101.1 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Formel Diesel Super 10W-30

RAVENOL Formel Diesel Super SAE 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

show details

SAE: 10W-30

API: CF, CF-4

ACEA: B4, E2

Equivalents OEM:
Chrysler VU02101, Hyundai Motor 0520000C10, Hyundai Motor 0520000410, Hyundai Motor 0520000610, Hyundai Motor 520000610, Mitsubishi 2423610, Mitsubishi 2987401, Mitsubishi 2987610, Mitsubishi MZ102041, Mitsubishi MZ102682, Nissan KLBD010302, Nissan KLBD010302, Nissan KLBD010304, Toyota 0888083320, Toyota 0888083321, Toyota 0888301900, Toyota 0888301903, Toyota 0888301905, Toyota 0888301906

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123205-001

Code:
4014835726215

Volume:
5 L

vendor code:
1123205-005

Code:
4014835726253

Volume:
10 L

vendor code:
1123205-010

Code:
4014835726246

Volume:
20 L

vendor code:
1123205-020

Code:
4014835726222

Volume:
20 L, ecobox

vendor code:
1123205-B20

Volume:
60 L

vendor code:
1123205-060

Code:
4014835726260

Volume:
208 L

vendor code:
1123205-208

Code:
4014835726284

Volume:
1000 L

vendor code:
1123205-700

RAVENOL Formel Diesel Super SAE 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.

Application Note

RAVENOL Formel Diesel Super SAE 10W-30 is suitable for all kinds of passenger cars - gasoline and diesel engines - and can be ideally used the whole year, even with turbo charging.

Characteristics

Suitable for catalyst vehicles
Excellent detergent and dispersant characteristics
Good cold start characteristics
High oxidation stability
Excellent viscosity temperature behaviour
Best wear protection
Reduces emissions
High safety reserves

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		10W-30		10W-30
Type		Mineral		Mineral
API		CF, CF-4		CF, CF-4
ACEA		B4, E2		B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
Density at 20 °C	kg/m³	859	EN ISO 12185	859 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.4	DIN 51562-1	12.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	82.5	DIN 51562-1	82.5 mm²/s DIN 51562-1
Viscosity Index VI		147	DIN ISO 2909	147 DIN ISO 2909
CCS Viscosity at -25 °C	mPa*s	6200	ASTM D5293	6200 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -30 °C	mPa*s	20.600	ASTM D4684	20.600 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	8.9	ASTM D2896	8.9 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

Turbo plus SHPD 15W-40

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

Manufacturer Approved:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C

show details

SAE: 15W-40

API: CI-4, SL

ACEA: A3, B4, E7

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123115-001

Volume:
4 L

vendor code:
1123115-004

Volume:
5 L

vendor code:
1123115-005

Code:
4014835726154

Volume:
7 L

vendor code:
1123115-007

Volume:
10 L

vendor code:
1123115-010

Code:
4014835726147

Volume:
20 L

vendor code:
1123115-020

Code:
4014835726123

Volume:
20 L, ecobox

vendor code:
1123115-B20

Code:
4014835776821

Volume:
60 L

vendor code:
1123115-060

Code:
4014835726161

Volume:
60 L, print

vendor code:
1123115-D60

Code:
4014835726130

Volume:
208 L

vendor code:
1123115-208

Code:
4014835726185

Volume:
208 L, print

vendor code:
1123115-D28

Code:
4014835726109

Volume:
1000 L

vendor code:
1123115-700

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

RAVENOL Turbo plus SHPD SAE 15W-40 has been especially developed for extended oil change intervals, according to manufacturer’s recommendations.

Application Note

RAVENOL Turbo-Plus SHPD SAE 15W-40 is recommended by the engine manufacturers for extended oil change intervals as SAE 15W-40 multigrade engine oil in heavy duty commercial vehicle diesel engines.

RAVENOL Turbo-Plus SHPD SAE 15W-40 is the preferred use for extended oil life in turbo charged diesel engines according to manufacturer’s recommendations.

Characteristics

Extremely high pressure absorption capacity
Very high oxidation stability
Excellent aging stability
Excellent viscosity and temperature behaviour
High security reserves even under limited lubrication circumstances
Suitable for extended oil change intervals
Suitable for heavy operating conditions

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		15W-40		15W-40
Type		Mineral		Mineral
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E7		A3, B4, E7
JASO		DH-1		DH-1
Manufacturer Approved		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Suitable for		IVECO, Steyr Motor GAZ 560, YaMZ		IVECO, Steyr Motor GAZ 560, YaMZ
Density at 20 °C	kg/m³	870	EN ISO 12185	870 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	15	DIN 51562-1	15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	115.7	DIN 51562-1	115.7 mm²/s DIN 51562-1
Viscosity Index VI		134	DIN ISO 2909	134 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	10.5	ASTM D2896	10.5 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C

Formel Diesel Super 15W-40

Application NoteRAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.

Manufacturer Approved:
Renault RLD, Renault RLD-2, TEDOM 258-2

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

show details

SAE: 15W-40

API: CF-4

ACEA: B4, E2

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1123215-005

Code:
4014835756953

Volume:
10 L

vendor code:
1123215-010

Code:
4014835756946

Volume:
20 L

vendor code:
1123215-020

Code:
4014835756922

Volume:
20 L, ecobox

vendor code:
1123215-B20

Code:
4014835777125

Volume:
60 L

vendor code:
1123215-060

Code:
4014835756960

Volume:
60 L, print

vendor code:
1123215-D60

Volume:
208 L

vendor code:
1123215-208

Code:
4014835756984

Volume:
208 L, print

vendor code:
1123215-D28

Volume:
1000 L

vendor code:
1123215-700

Volume:
1 L

vendor code:
1123215-001

Volume:
1000 L

vendor code:
-

Code:
4014835630987

Application Note

RAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.

Characteristics

Very good shear stability
Very good cold start attributes
High oxidation stability
Excellent viscosity temperature behaviour
No problems with the use in catalyst vehicles
Convincing detergent and dispersant characteristics
High safety reserves even under limited lubrication circumstances

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		15W-40		15W-40
Type		Mineral		Mineral
API		CF-4		CF-4
ACEA		B4, E2		B4, E2
Manufacturer Approved		Renault RLD, Renault RLD-2, TEDOM 258-2		Renault RLD, Renault RLD-2, TEDOM 258-2
Recomendations		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
Density at 20 °C	kg/m³	873	EN ISO 12185	873 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	8.6	ASTM D2896	8.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C

STOU 20W-40

RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 20W-40

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Yamalube ACCTRANSPLUS

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310114-020

Code:
4014835740129

Volume:
20 L, ecobox

vendor code:
1310114-B20

Volume:
60 L

vendor code:
1310114-060

Volume:
208 L

vendor code:
1310114-208

Code:
4014835740181

Volume:
1000 L

vendor code:
1310114-700

RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 20W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 20W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		20W-40		20W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
Density at 20 °C	kg/m³	883	EN ISO 12185	883 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.1	DIN 51562-1	13.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	111.8	DIN 51562-1	111.8 mm²/s DIN 51562-1
Viscosity Index VI		112	DIN ISO 2909	112 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	246	DIN EN ISO 2592	246 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
CCS Viscosity at -15 °C	mPa*s	6860	ASTM D5293	6860 mPa*s ASTM D5293
Approvals		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B

STOU 15W-30

Application NoteRAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 15W-30

API: CE, GL-4, SF

ACEA: E1, E2

Available packaging
Full description
Product parameters

Volume:
20 L, ecobox

vendor code:
1310112-B20

Volume:
60 L

vendor code:
1310112-060

Code:
4014835739963

Volume:
60 L, print

vendor code:
1310112-D60

Volume:
208 L

vendor code:
1310112-208

Volume:
1000 L

vendor code:
1310112-700

Volume:
20 L

vendor code:
1310112-020

Application Note

RAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Characteristics

Excellent viscosity-temperature behaviour
Exceptional cold starting abilities
Excellent detergent and dispersant properties
High resistance to ageing

Parameter	Unit	Value	Audit
SAE		15W-30		15W-30
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CE, GL-4, SF		CE, GL-4, SF
ACEA		E1, E2		E1, E2
Recomendations		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	861	EN ISO 12185	861 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viscosity Index VI		159	DIN ISO 2909	159 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
tbn	mgKOH/g	11.7	ASTM D2896	11.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
Approvals		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

STOU 10W-30

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310100-005

Volume:
20 L

vendor code:
1310100-020

Code:
4014835739529

Volume:
20 L, ecobox

vendor code:
1310100-B20

Volume:
60 L

vendor code:
1310100-060

Code:
4014835739567

Volume:
208 L

vendor code:
1310100-208

Code:
4014835739581

Volume:
1000 L

vendor code:
1310100-700

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Application Note

RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
Protection against wear, corrosion and foam
High resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	867	EN ISO 12185	867 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.7	DIN 51562-1	74.7 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.58	DIN 51575	1.58 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

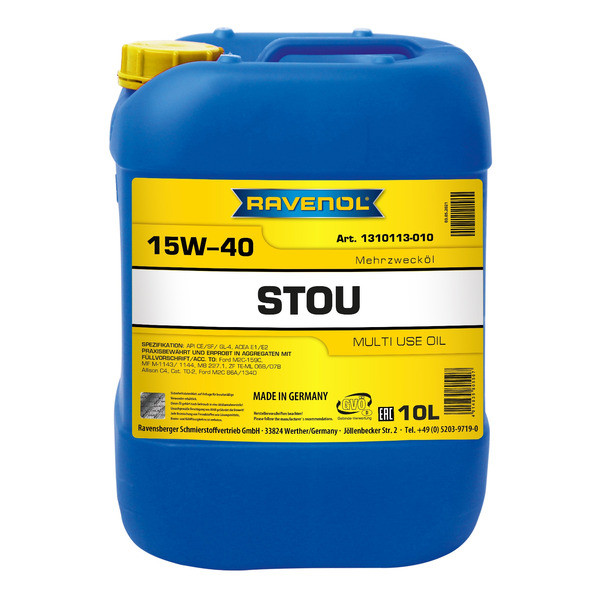

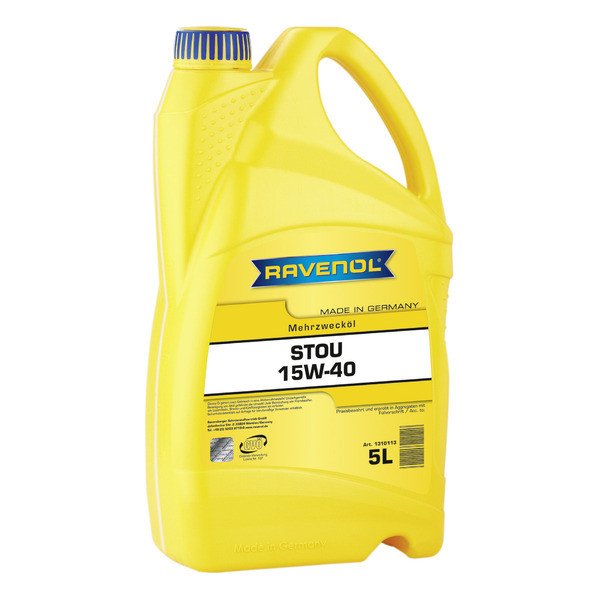

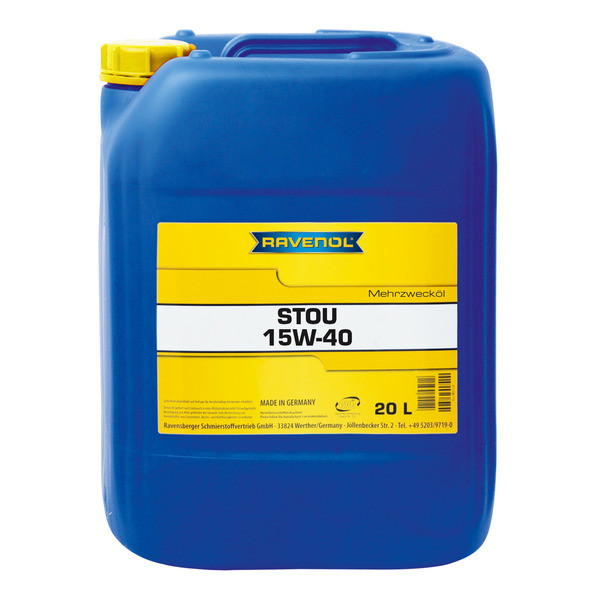

STOU 15W-40

RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 86-A, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 15W-40

API: CE, CF-4, GL-4, SF

ACEA: E1

Equivalents OEM:
Volvo 1161908, Volvo 1161908

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310113-005

Volume:
10 L

vendor code:
1310113-010

Code:
W24001055

Volume:
20 L

vendor code:
1310113-020

Code:
4014835740020

Volume:
20 L, ecobox

vendor code:
1310113-B20

Volume:
60 L

vendor code:
1310113-060

Volume:
208 L

vendor code:
1310113-208

Volume:
1000 L

vendor code:
1310113-700

RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 15W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 15W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CE, CF-4, GL-4, SF		CE, CF-4, GL-4, SF
ACEA		E1		E1
Recomendations		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
specification		CCMC D4, CCMC G2		CCMC D4, CCMC G2
Density at 20 °C	kg/m³	865	EN ISO 12185	865 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	94.2	DIN 51562-1	94.2 mm²/s DIN 51562-1
Viscosity Index VI		141	DIN ISO 2909	141 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.8	ASTM D2896	12.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B

Turbo-C HD-C 15W-40

It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.

Manufacturer Approved:
VW 501.01, VW 505.00

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C

show details

SAE: 15W-40

API: CF, CF-4, SL

ACEA: A3, B4, E2

Equivalents OEM:
GM 19375071, GM 19375072, GM 19375073, VAG G052107M2, VAG G052107M4, VAG G052107M6, VAG G052107S0, VAG G052107S0

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113103-001

Code:
4014835724518

Volume:
4 L

vendor code:
1113103-004

Volume:
5 L

vendor code:
1113103-005

Code:
4014835724556

Volume:
10 L

vendor code:
1113103-010

Code:
4014835724549

Volume:
20 L

vendor code:
1113103-020

Code:
4014835724525

Volume:
20 L, ecobox

vendor code:
1113103-B20

Volume:
60 L

vendor code:
1113103-060

Code:
4014835724563

Volume:
60 L, print

vendor code:
1113103-D60

Volume:
208 L

vendor code:
1113103-208

Code:
4014835724587

Volume:
208 L, print

vendor code:
1113103-D28

Volume:
1000 L

vendor code:
1113103-700

It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.

Application Note

RAVENOL Turbo-C HD-C SAE 15W-40 is perfectly suited as all-season motor oil for the mixed fleet. It can be uses in the commercial vehicle sector for operation and extended oil change interval (up to 45,000 kilometres are possible) according to manufacturer's specifications.

Characteristics

An excellent shear stability
Very good cold start characteristics
A very high oxidation stability
Avoids the formation of coking and accumulation of mud (black sludge)
A very stable and excellent viscosity behaviour
Suitable for catalysts
Convincing detergent and dispersant attributes
High security reserves even under limited lubrication conditions

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		15W-40		15W-40
Type		Mineral		Mineral
API		CF, CF-4, SL		CF, CF-4, SL
ACEA		A3, B4, E2		A3, B4, E2
Manufacturer Approved		VW 501.01, VW 505.00		VW 501.01, VW 505.00
Recomendations		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
Density at 20 °C	kg/m³	873	EN ISO 12185	873 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	8.5	ASTM D2896	8.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C

Turbo Plus SHPD 20W-50

RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

Compliance with the requirements:
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

show details

SAE: 20W-50

API: CF, CI-4, SL

ACEA: A3, B4, E7

Equivalents OEM:
FEBI 32921, FEBI 32922, FEBI 32923, FEBI 32924, FEBI 38408, GM 109206, GM 88865546, GM 88900131, GM 88900133, VAG G052167A9, VAG G052167A9

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123120-001

Volume:
5 L

vendor code:
1123120-005

Volume:
10 L

vendor code:
1123120-010

Volume:
20 L

vendor code:
1123120-020

Code:
4014835737921

Volume:
20 L, ecobox

vendor code:
1123120-B20

Volume:
60 L

vendor code:
1123120-060

Code:
4014835737969

Volume:
208 L

vendor code:
1123120-208

Volume:
208 L, print

vendor code:
1123120-D28

Volume:
1000 L

vendor code:
1123120-700

RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

RAVENOL Turbo Plus SHPD 20W-50 is particularly suitable for engines with already high performance.

Application Note

RAVENOL Turbo Plus SHPD 20W-50 is tried and tested for aggregates specifying:

Specifications: API CI-4, API SL/CF, ACEA E7, A3/B4

Recommendations: Allison C4; Caterpillar ECF-1a, ECF-2; Cummins CES 20071, -72, -76, -77, -78; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-M Plus; MAN M 3275-1; MB 228.3, MB 229.1; MTU Type 2, MTU Type 3; Renault VI RLD, RLD-2; Volvo VDS-3

Characteristics

Well shear stability
Very high oxidation stability
Excellent viscosity-temperature behaviour
Conclusive detergent- and dispersant properties
High security reserves also under limited lubrication circumstances
Excellent cold start properties
Prevents black sludge formation
Suitable for catalyst

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		20W-50		20W-50
Type		Mineral		Mineral
API		CF, CI-4, SL		CF, CI-4, SL
ACEA		A3, B4, E7		A3, B4, E7
JASO		DH-1		DH-1
Recomendations		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Density at 20 °C	kg/m³	878	EN ISO 12185	878 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	18.4	DIN 51562-1	18.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	162.1	DIN 51562-1	162.1 mm²/s DIN 51562-1
Viscosity Index VI		127	DIN ISO 2909	127 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
tbn	mgKOH/g	11.3	ASTM D2896	11.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

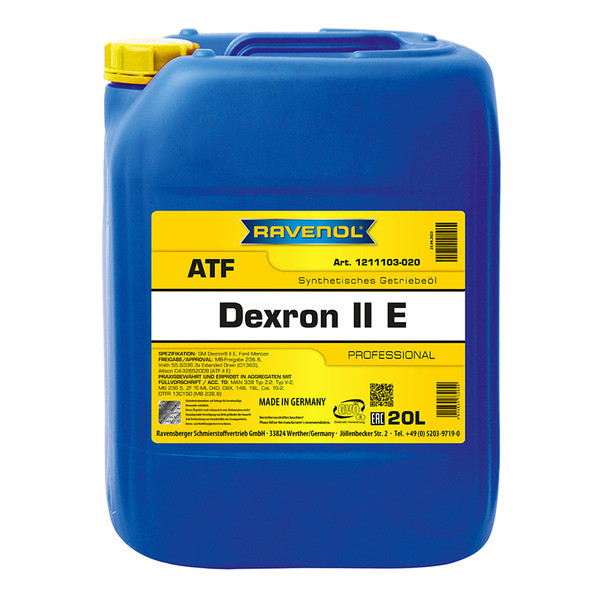

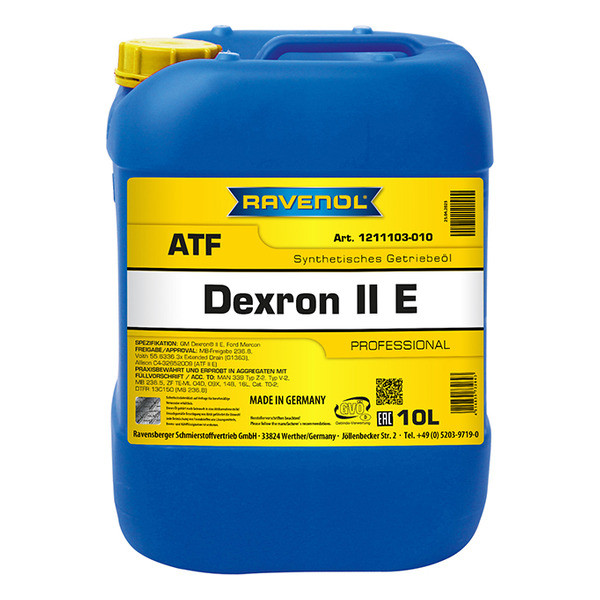

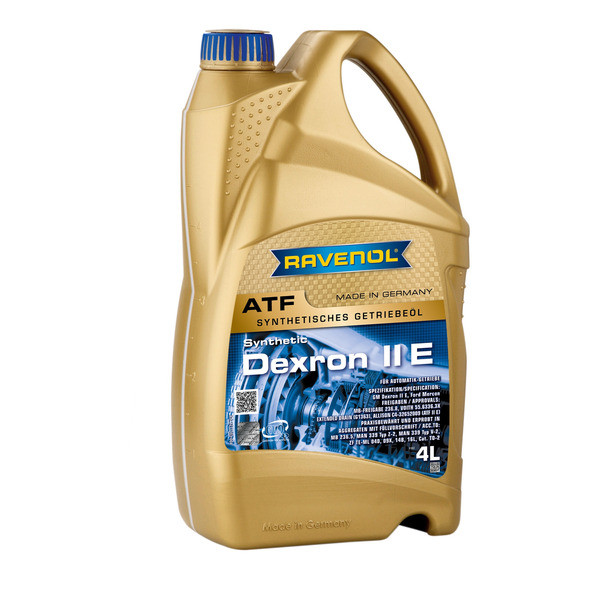

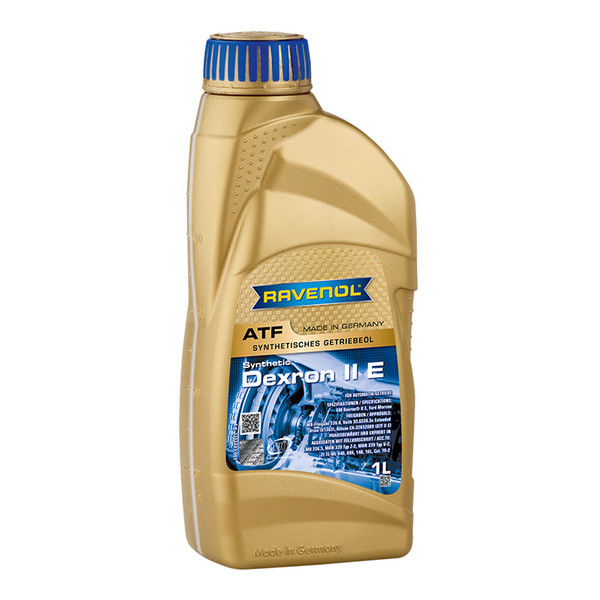

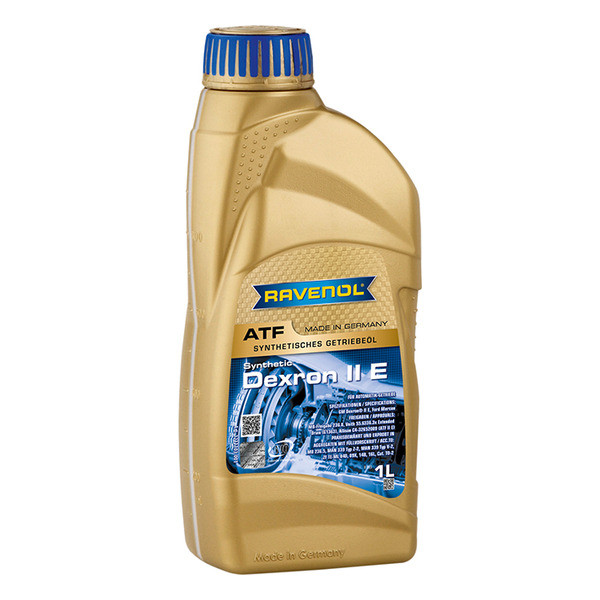

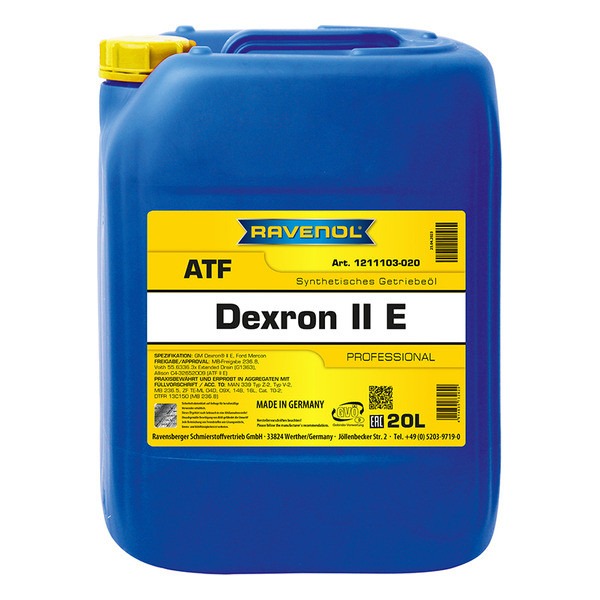

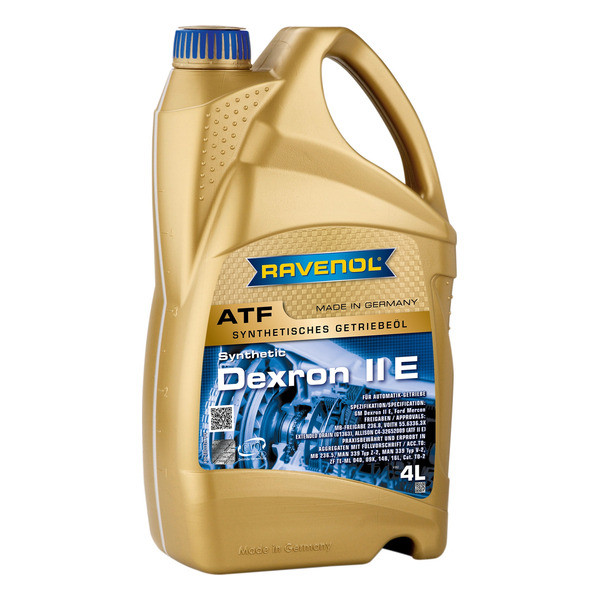

ATF Dexron II E

Application NoteRAVENOL ATF Dexron II E is developed for use in automatic transmission and torque converter transmission and power shift transmission with required specification.

Manufacturer Approved:
Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L

show details

Equivalents OEM:
Alpine 0100641, Alpine 0100642, Alpine 0100643, Alpine 0100644, Alpine 0100645, Alpine 100641, Alpine 100642, Alpine 100643, Alpine 100644, Alpine 100645, Alpine 100645, Land Rover STC8261

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211103-001

Code:
4014835732612

Volume:
4 L

vendor code:
1211103-004

Code:
4014835732698

Volume:
10 L

vendor code:
1211103-010

Volume:
20 L

vendor code:
1211103-020

Volume:
20 L, ecobox

vendor code:
1211103-B20

Volume:
60 L

vendor code:
1211103-060

Volume:
60 L, print

vendor code:
1211103-D60

Code:
4014835732636

Volume:
208 L

vendor code:
1211103-208

Volume:
208 L, print

vendor code:
1211103-D28

Volume:
1000 L

vendor code:
1211103-700

Application Note

RAVENOL ATF Dexron II E is developed for use in automatic transmission and torque converter transmission and power shift transmission with required specification.

RAVENOL ATF Dexron II E is recommended if ATF Type Dexron II E is to be used according to manufacturer’s specification.

Characteristics

reliable protection against wear, sludge, adhesion and corrosion
a very shear stable viscosity-temperature behaviour
can be used both at very low and very high temperatures
an extremely high thermal load
no foaming, even under the heaviest loads
compatibility with sealing materials

Parameter	Unit	Value	Audit
ATF		Dexron II E		Dexron II E
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)		Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)
Recomendations		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L
specification		Ford MERCON®, GM Dexron® II E		Ford MERCON®, GM Dexron® II E
Density at 20 °C	kg/m³	834	EN ISO 12185	834 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.5	DIN 51562-1	7.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32	DIN 51562-1	32 mm²/s DIN 51562-1
Viscosity at -40 °C	mPa*s	8.3	ASTM D2983	8.3 mPa*s ASTM D2983
Viscosity Index VI		191	DIN ISO 2909	191 DIN ISO 2909
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	1.7	ASTM D2896	1.7 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, DTFR 13C150 (MB 236.8), Ford MERCON®, GM Dexron® II E, MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, MB 236.8, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Allison C-4, Caterpillar TO-2, DTFR 13C150 (MB 236.8), Ford MERCON®, GM Dexron® II E, MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, MB 236.8, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L

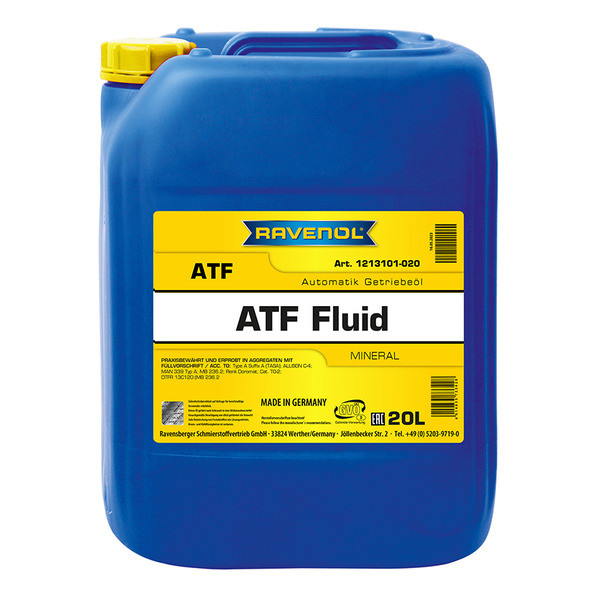

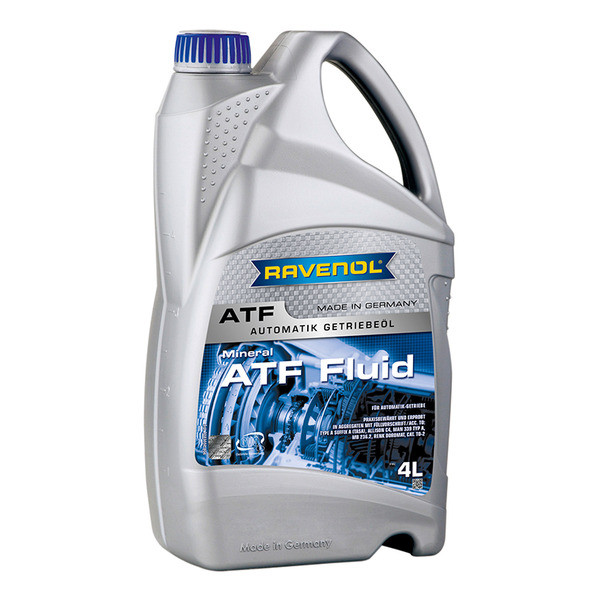

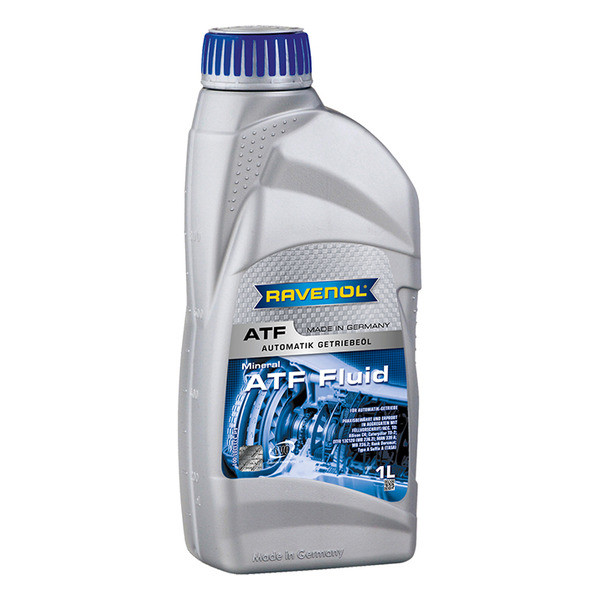

ATF Fluid

RAVENOL ATF Fluid is a very high quality mineral gear fluid for automatic fluid couplings and torque converters as well as power steering aids.

Compliance with the requirements:
Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat

show details

Equivalents OEM:
MB A0009892603, MB A000989260310, Nissan KLE2100002, Nissan KLE2100002, Nissan KLE2100004, UAZ 000000473401400, UAZ 473401400

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213101-001

Code:
4014835733411

Volume:
4 L

vendor code:
1213101-004

Code:
4014835733497

Volume:
20 L, ecobox

vendor code:
1213101-B20

Volume:
60 L

vendor code:
1213101-060

Code:
4014835733466

Volume:
208 L

vendor code:
1213101-208

Code:
4014835733480

Volume:
1000 L

vendor code:
1213101-700

Volume:
10 L

vendor code:
1213101-010

Volume:
20 L

vendor code:
1213101-020

RAVENOL ATF Fluid is a very high quality mineral gear fluid for automatic fluid couplings and torque converters as well as power steering aids.

Application Note

RAVENOL ATF Fluid should be used according to the instructions of the unit manufacturer in: Automatic transmissions, turbo couplings, servo clutches and other hydrostatic and hydrodynamic systems.

RAVENOL ATF Fluid must not be used if ATF Type DEXRON B or DEXRON D or ATF Type M2C-33 E / F / G are expressly mentioned as filling instructions.

Characteristics

Exceptionally good resistance to aging
A very good viscosity-temperature behaviour
Effective protection against wear
Very good oxidation stability and low foaming tendency
Enhanced protection against corrosion
An extremely low pour point
Compatible with all types of sealing materials
Miscibility and compatibility with all brands of ATF's with Type A Suffix A specification

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.4	DIN 51562-1	7.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.6	DIN 51562-1	34.6 mm²/s DIN 51562-1
Viscosity Index VI		187	DIN ISO 2909	187 DIN ISO 2909
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat

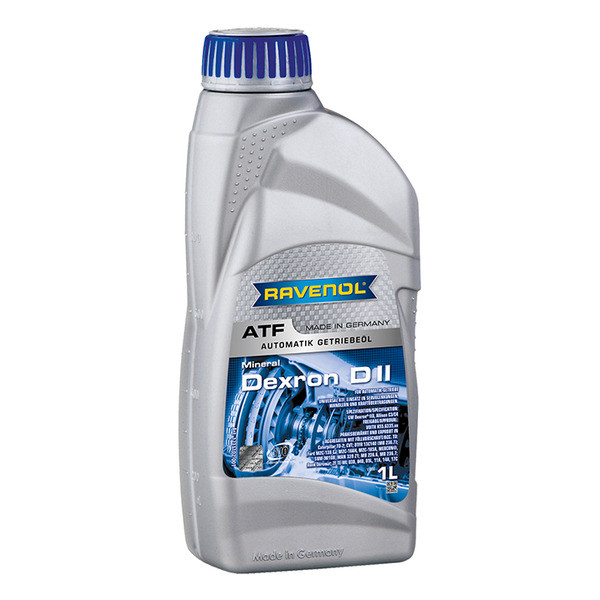

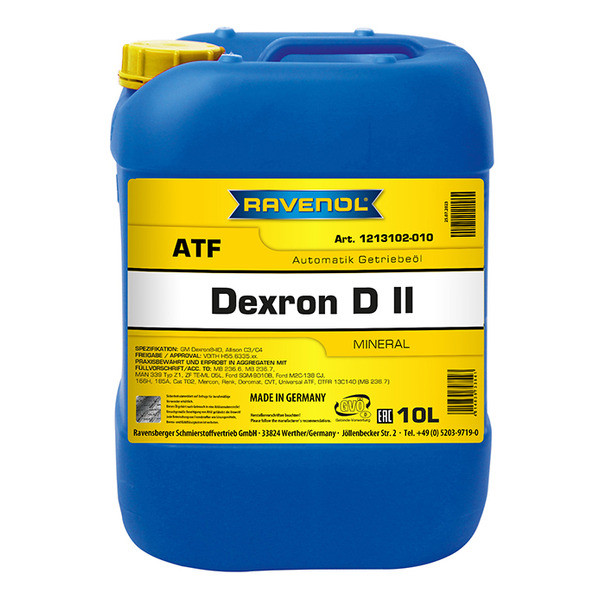

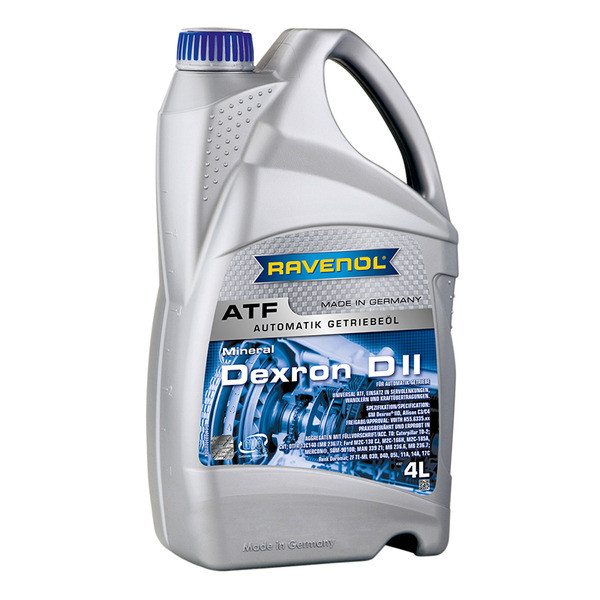

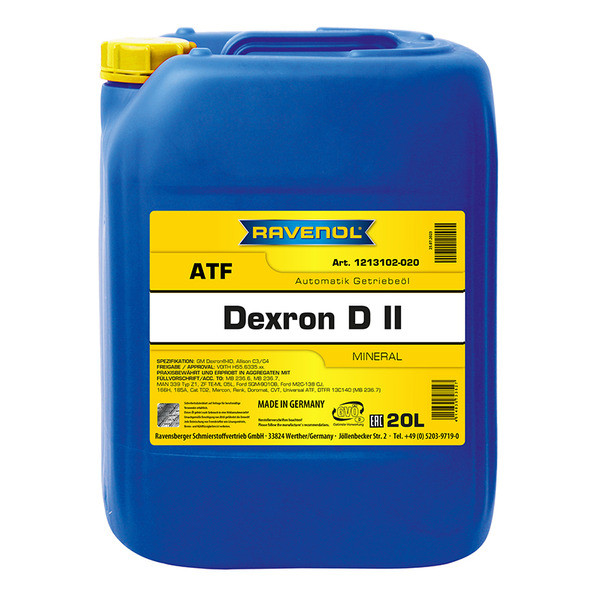

ATF Dexron D II

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

ATF Dexron III H

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:

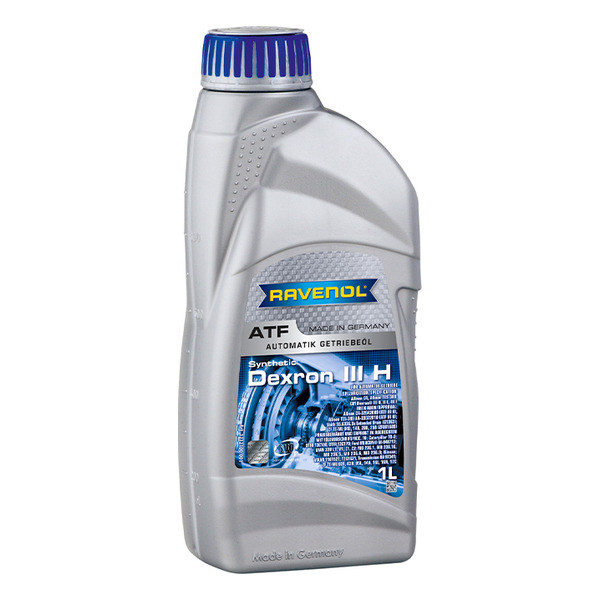

1 L

vendor code:
1212100-001

Code:
4014835732810

Volume:

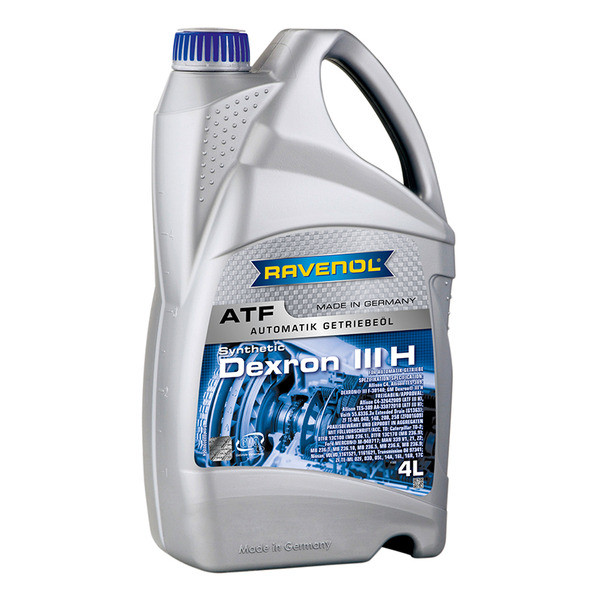

4 L

vendor code:
1212100-004

Code:
4014835732896

Volume:

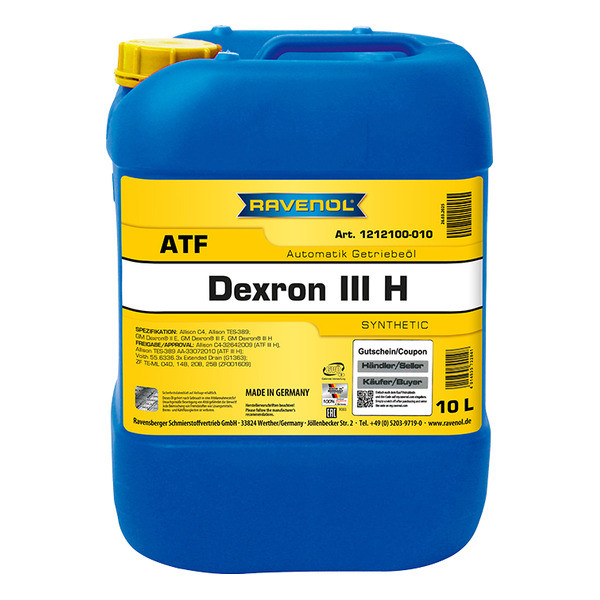

10 L

vendor code:
1212100-010

Code:
4014835732841

Volume:
20 L

vendor code:
1212100-020

Code:
4014835732827

Volume:
20 L, ecobox

vendor code:
1212100-B20

Code:
4014835787025

Volume:
60 L

vendor code:
1212100-060

Code:
4014835732865

Volume:
60 L, print

vendor code:
1212100-D60

Code:
4014835732834

Volume:

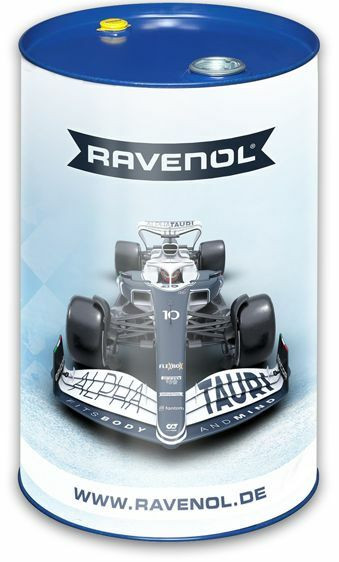

208 L

vendor code:
1212100-208

Code:
4014835732889

Volume:
208 L, print

vendor code:
1212100-D28

Code:
4014835732803

Volume:
1000 L

vendor code:
1212100-700

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application Note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

Very good lubricating properties even at low temperatures in winter
High and stable viscosity index
Very low flow point
Excellent oxidation stability
Extensive protection against wear, corrosion and foaming
Well-tuned friction properties
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition towards non-ferrous metals

Parameter	Unit	Value	Audit
ATF		Dexron III H		Dexron III H
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Recomendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
specification		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Suitable for		Nissan		Nissan
Compliant products		Volvo 1161521, Volvo 1161621		Volvo 1161521, Volvo 1161621
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	33.9	DIN 51562-1	33.9 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	14.200	ASTM D2983	14.200 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
tbn	mgKOH/g	1.8	ASTM D2896	1.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

Expert SHPD 10W-40

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00

show details

SAE: 10W-40

API: CI-4, SL

ACEA: A3, B4, E4, E7

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1122105-001

Code:
4014835725812

Volume:
5 L

vendor code:
1122105-005

Code:
4014835725850

Volume:
7 L

vendor code:
1122105-007

Code:
4014835853515

Volume:
10 L

vendor code:
1122105-010

Code:
4014835725843

Volume:
20 L

vendor code:
1122105-020

Code:
4014835725829

Volume:
20 L, ecobox

vendor code:
1122105-B20

Code:
4014835776227

Volume:
60 L

vendor code:
1122105-060

Code:
4014835725867

Volume:
60 L, print

vendor code:
1122105-D60

Code:
4014835839533

Volume:

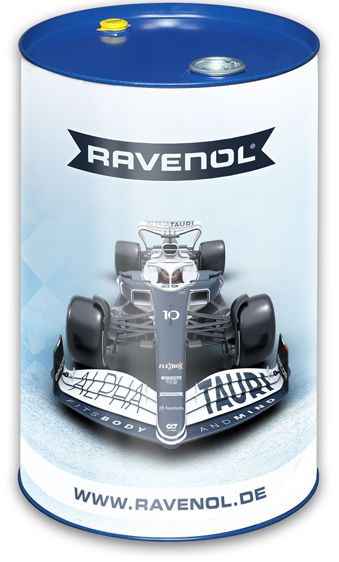

208 L

vendor code:
1122105-208

Code:
4014835725881

Volume:
208 L, print

vendor code:
1122105-D28

Code:
4014835725805

Volume:
1000 L

vendor code:
1122105-700

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Application Note

RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.

Characteristics

Excellent detergent and dispersant characteristics
Low evaporation
A high ageing stability
Protection of reflecting surface formation
Very good cold start characteristics
Reduces oil and fuel consumption

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		10W-40		10W-40
Type		Semi-synthetic		Semi-synthetic
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E4, E7		A3, B4, E4, E7
Manufacturer Approved		Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Suitable for		DAF, IVECO, YaMZ		DAF, IVECO, YaMZ
Density at 20 °C	kg/m³	866	EN ISO 12185	866 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	14.2	DIN 51562-1	14.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	93.5	DIN 51562-1	93.5 mm²/s DIN 51562-1
Viscosity Index VI		155	DIN ISO 2909	155 DIN ISO 2909
CCS Viscosity at -25 °C	mPa*s	6480	ASTM D5293	6480 mPa*s ASTM D5293
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	% M/M	7.3	ASTM D5800	7.3 % M/M ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	11	ASTM D2896	11 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00

Standard Truck 10W

Application NoteRAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

show details

SAE: 10W

API: CF, SF

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1123610-020

Volume:
20 L, ecobox

vendor code:
1123610-B20

Volume:
60 L

vendor code:
1123610-060

Volume:
208 L

vendor code:
1123610-208

Code:
4014835738188

Volume:
1000 L

vendor code:
1123610-700

Application Note

RAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Characteristics

Good shear stability
High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		10W		10W
Type		Mineral		Mineral
API		CF, SF		CF, SF
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
Density at 20 °C	kg/m³	862	EN ISO 12185	862 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	6.4	DIN 51562-1	6.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	36.9	DIN 51562-1	36.9 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	21	ASTM D2896	21 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

Formel Diesel Super 20W-50

RAVENOL Formel Diesel Super SAE 20W-50 is a high-quality product with high safety reserves.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00

show details

SAE: 20W-50

API: CF-4, CH-4

ACEA: A3, B4, E2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123220-001

Volume:
5 L

vendor code:
1123220-005

Code:
4014835726451

Volume:
10 L

vendor code:
1123220-010

Code:
4014835726444

Volume:
20 L

vendor code:
1123220-020

Code:
4014835726420

Volume:
20 L, ecobox

vendor code:
1123220-B20

Volume:
60 L

vendor code:
1123220-060

Code:
4014835726468

Volume:
60 L, print

vendor code:
1123220-D60

Volume:
208 L

vendor code:
1123220-208

Code:
4014835726482

Volume:
208 L, print

vendor code:
1123220-D28

Volume:
1000 L

vendor code:
1123220-700

RAVENOL Formel Diesel Super SAE 20W-50 is a high-quality product with high safety reserves.

RAVENOL Formel Diesel Super SAE 20W-50 is particularly suitable for high mileage engines.

Application Note

RAVENOL Formel Diesel Super SAE 20W-50 is used for truck diesel engines with and without turbocharge. Also suitable for stationary units.

Characteristics

Good shearing stability
High oxidation stability
Excellent viscosity-temperature attribute
Compelling detergent- and dispersant properties
High safety reserves even in boundary lubrication
Excellent cold starting properties
Prevents black sludge from forming
Catalytic converter safe

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		20W-50		20W-50
Type		Mineral		Mineral
API		CF-4, CH-4		CF-4, CH-4
ACEA		A3, B4, E2		A3, B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00
Density at 20 °C	kg/m³	876	EN ISO 12185	876 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	19	DIN 51562-1	19 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	161.4	DIN 51562-1	161.4 mm²/s DIN 51562-1
Viscosity Index VI		133	DIN ISO 2909	133 DIN ISO 2909
CCS Viscosity at -15 °C	mPa*s	6200	ASTM D5293	6200 mPa*s ASTM D5293
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	11.1	ASTM D2896	11.1 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00

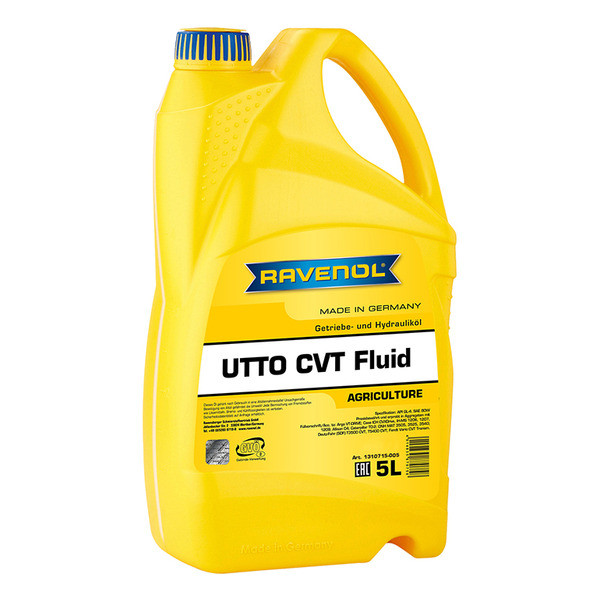

UTTO CVT Fluid

RAVENOL UTTO CVT Fluid offers a wide range of applications as it meets a large number of specifications.

Compliance with the requirements:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

show details

API: GL-4

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310715-005

Volume:

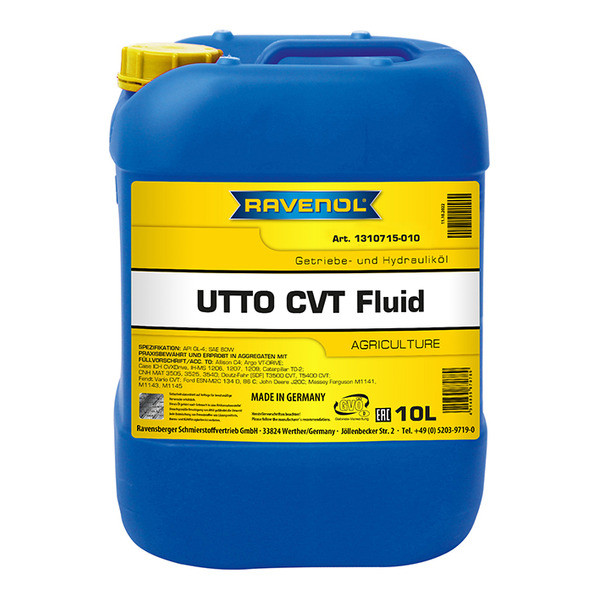

10 L

vendor code:
1310715-010

Volume:
20 L

vendor code:
1310715-020

Volume:
20 L, ecobox

vendor code:
1310715-B20

Volume:

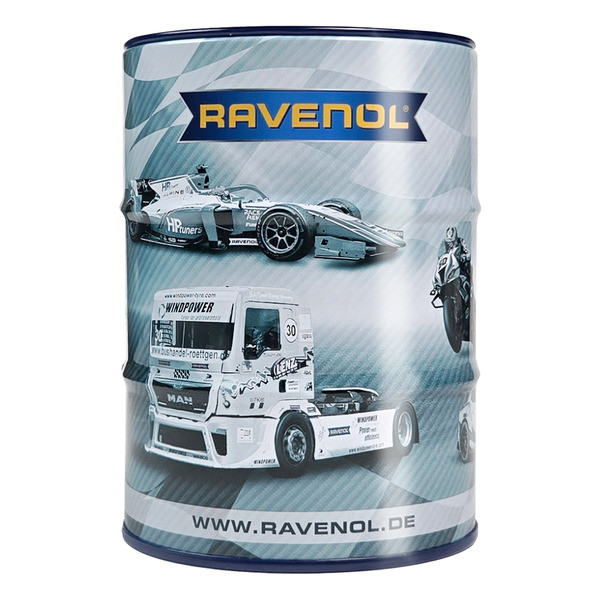

60 L

vendor code:
1310715-060

Volume:
60 L, print

vendor code:
1310715-D60

Volume:
208 L

vendor code:
1310715-208

Volume:
208 L, print

vendor code:
1310715-D28

RAVENOL UTTO CVT Fluid offers a wide range of applications as it meets a large number of specifications.

Application Note:

RAVENOL UTTO CVT Fluid was specially developed for use in CVT transmissions and therefore offers optimized friction behavior and maximum wear protection.

RAVENOL UTTO CVT Fluid is suitable for wet brakes in powershift clutches and auxiliary drives.The product is not suitable as an engine oil.

Characteristics:

a very high stable viscosity index for year-round use
a very low pour point
a high oxidation stability
protection against corrosion and wear
a convenient coefficient of friction during running brakes in oil bath
(wet brakes) of load changecouplings and minor drives
zincfree formulation
very good water tolerance in the hydraulic and transmission circuit

Parameter	Unit	Value	Audit
tbn	mgKOH/g	2.38	ASTM D2896	2.38 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.3	DIN 51575	0.3 %wt. DIN 51575
Noack Volatility	% M/M	8	ASTM D5800	8 % M/M ASTM D5800
Вязкость CCS при -35 °C	mm²/s	5730	ASTM D5293	5730 mm²/s ASTM D5293
Вязкость по Брукфильду при -26°C	mm²/s	6100	ASTM D2983	6100 mm²/s ASTM D2983
Коррозия меди		1b	ASTM D130	1b ASTM D130
API		GL-4		GL-4
Склонность к пенообразованию (Seq. I	II	---	---	--- II ---
Type		Mineral		Mineral
Brand		RAVENOL		RAVENOL
Recomendations		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F
specification		SAE 80W		SAE 80W
Suitable for		Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT		Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT
Compliant products		Sauer Sunstrand/ Danfoss (hydrostatic trans fluid)		Sauer Sunstrand/ Danfoss (hydrostatic trans fluid)
Color		Light brown	visual	Light brown visual
Seq. I at 24 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	20/0	ASTM D892	20/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Viscosity at 100 °C	mm²/s	9.3	DIN 51562-1	9.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.4	DIN 51562-1	56.4 mm²/s DIN 51562-1
Viscosity Index VI		147	DIN ISO 2909	147 DIN ISO 2909
VKA Four Ball Test (Wear)	mm	0.5	DIN EN ISO 20623	0.5 mm DIN EN ISO 20623
Density at 20 °C	kg/m³	863.3	EN ISO 12185	863.3 kg/m³ EN ISO 12185
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Approvals		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, SAE 80W, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, SAE 80W, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

Standard Truck 30

RAVENOL Standard Truck SAE 30 is mineral mono grade motor oil for trucks. It is an all-season oil for all truck diesel engine typ es.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

show details

SAE: 30W

API: CF, SF

Available packaging
Full description
Product parameters

RAVENOL Standard Truck SAE 30 offers high protection against friction and abrasion, excellent cold start characteristics. Extende d oil change intervals according to manufacturer's recommendations.

Application Note:

RAVENOL Standard Truck SAE 30 is mono grade motor oil for use in truck diesel engines. It is also suitable for stationary plants.

Characteristics:

Good shear stability
High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts

Parameter	Unit	Value	Audit
SAE		30W		30W
Type		Mineral		Mineral
API		CF, SF		CF, SF
ASTM
Manufacturer Approved
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
Rennstrecken-Partnerschaft
Rennstrecken-Partner
specification
Suitable for
Compliant products
Density at 20 °C	kg/m³	887	EN ISO 12185	887 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	102.3	DIN 51562-1	102.3 mm²/s DIN 51562-1
Viscosity Index VI		100	DIN ISO 2909	100 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	262	DIN EN ISO 2592	262 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

Super Truck 30

RAVENOL Super Truck SAE 30 is a top-quality product with high safety reserves.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F

show details

SAE: 30W

API: CF-4, SG

ACEA: B4, E2

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1123720-020

Volume:
20 L, ecobox

vendor code:
1123720-B20

Volume:
60 L

vendor code:
1123720-060

Volume:
208 L

vendor code:
1123720-208

Volume:
1000 L

vendor code:
1123720-700

RAVENOL Super Truck SAE 30 is a top-quality product with high safety reserves.

Application Note

RAVENOL Super Truck SAE 30 is mono grade motor oil for use in truck diesel engines with or without turbo charger.Please follow engine manufacturer’s recommendations.

Characteristics

High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
Good cold start characteristics
Best corrosion protection
High safety reserves even with boundary lubrication conditions
Suitable for catalysts

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		30W		30W
Type		Mineral		Mineral
API		CF-4, SG		CF-4, SG
ACEA		B4, E2		B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
Density at 20 °C	kg/m³	882.9	EN ISO 12185	882.9 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	112.8	DIN 51562-1	112.8 mm²/s DIN 51562-1
Viscosity Index VI		99	DIN ISO 2909	99 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	272	DIN EN ISO 2592	272 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F

CATOEL TO-4 30

RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Manufacturer Approved:
ZF TE-ML 03C, ZF TE-ML 07F

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)

show details

SAE: 30W

API: CF, MT-1

Equivalents OEM:
Caterpillar 7X7855, Caterpillar 143487, Volvo 1161943, Volvo 15002772, Volvo 15002772

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310613-020

Code:
4014835740327

Volume:
20 L, ecobox

vendor code:
1310613-B20

Volume:
208 L

vendor code:
1310613-208

Code:
4014835740389

Volume:
1000 L

vendor code:
1310613-700

RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Application Note

RAVENOL CATOEL TO-4 SAE 30 ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parameter	Unit	Value	Audit
SAE		30W		30W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Manufacturer Approved		ZF TE-ML 03C, ZF TE-ML 07F		ZF TE-ML 03C, ZF TE-ML 07F
Recomendations		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	880.1	EN ISO 12185	880.1 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.5	DIN 51562-1	11.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	95.7	DIN 51562-1	95.7 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	252	DIN EN ISO 2592	252 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

CATOEL TO-4 10W

RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Manufacturer Approved:
ZF TE-ML 03C

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F

show details

SAE: 10W

API: CF, MT-1

Equivalents OEM:
Caterpillar 7X7852, Caterpillar 7X7852, Caterpillar 143485

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310610-020

Code:
4014835740228

Volume:
20 L, ecobox

vendor code:
1310610-B20

Volume:
60 L

vendor code:
1310610-060

Volume:
208 L

vendor code:
1310610-208

Code:
4014835740280

Volume:
208 L, print

vendor code:
1310610-D28

Volume:
1000 L

vendor code:
1310610-700

RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Application Note

RAVENOL CATOEL TO-4 SAE 10W ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parameter	Unit	Value	Audit
SAE		10W		10W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Manufacturer Approved		ZF TE-ML 03C		ZF TE-ML 03C
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	860	EN ISO 12185	860 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	6.4	DIN 51562-1	6.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	37.2	DIN 51562-1	37.2 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

CATOEL TO-4 50

Application NoteRAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

show details

SAE: 50W

API: CF, MT-1

Available packaging
Full description
Product parameters

Volume:
208 L

vendor code:
1310615-208

Volume:
1000 L

vendor code:
1310615-700

Volume:
20 L

vendor code:
1310615-020

Application Note

RAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection.
High oxidation stability.
Excellent viscosity-temperature behavior.
Optimization of friction coefficient behavior.
Guarantees maximum life of the units.

Parameter	Unit	Value	Audit
SAE		50W		50W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	894	EN ISO 12185	894 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	16.75	DIN 51562-1	16.75 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	183.9	DIN 51562-1	183.9 mm²/s DIN 51562-1
Viscosity Index VI		96	DIN ISO 2909	96 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	265	DIN EN ISO 2592	265 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

Super Truck 40

RAVENOL Super Truck SAE 40 is a top-quality product with high safety reserves.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B

show details

SAE: 40W

API: CF-4, SG

ACEA: B4, E2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123725-001

Volume:
5 L

vendor code:
1123725-005

Volume:
10 L

vendor code:
1123725-010

Volume:
20 L

vendor code:
1123725-020

Volume:
20 L, ecobox

vendor code:
1123725-B20

Volume:
60 L

vendor code:
1123725-060

Volume:
208 L

vendor code:
1123725-208

Volume:
1000 L

vendor code:
1123725-700

RAVENOL Super Truck SAE 40 is a top-quality product with high safety reserves.

Application Note

RAVENOL Super Truck SAE 40 is mono grade motor oil for use in truck diesel engines with or without turbo charger.

Please follow engine manufacturer’s recommendations.

Characteristics

High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
Good cold start characteristics
Best corrosion protection
High safety reserves even with boundary lubrication conditions
Suitable for catalysts

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		40W		40W
Type		Mineral		Mineral
API		CF-4, SG		CF-4, SG
ACEA		B4, E2		B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B
Density at 20 °C	kg/m³	883	EN ISO 12185	883 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	131.5	DIN 51562-1	131.5 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	246	DIN EN ISO 2592	246 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B

Multi ATF HVS Fluid

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

show details

Equivalents OEM:
BMW 83220403675, BMW 83222220442, BMW 83222220442, MB A001989220309, MB A990989070009, Nissan 999MPMTW00P

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211144-001

Code:
4014835866591

Volume:
4 L

vendor code:
1211144-004

Code:
4014835866621

Volume:
10 L

vendor code:
1211144-010

Code:
4014835866652

Volume:
20 L

vendor code:
1211144-020

Volume:
20 L, ecobox

vendor code:
1211144-B20

Code:
4014835866737

Volume:
60 L

vendor code:
1211144-060

Volume:
208 L

vendor code:
1211144-208

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

Application Note

RAVENOL Multi ATF HVS Fluid is a product with a very wide manufacturer coverage and can be used in almost all conventional automatic transmissions with shift groups.

Not suitable for CVT automatic transmissions.

RAVENOL Multi ATF HVS Fluid is an automatic transmission fluid for longest oil change intervals.

RAVENOL Multi ATF HVS Fluid can be used in a wide range of applications to meet the requirements of Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi and others. It will be used if no suitable original oil or RAVENOL Professional Line oil is available. Observe the manufacturer's instructions.

Characteristics

Very good lubricity even at low temperatures in winter
A high, stable viscosity index
Very low pour point
Very good oxidation stability
Protection against wear, corrosion and foaming
Well-coordinated friction properties
Neutral behavior towards sealing materials
Neutral behavior due to inhibition against non-ferrous metals

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
Suitable for		Mopar		Mopar
Compliant products		Motorcraft XT-1-QF, ZF S671 090 170		Motorcraft XT-1-QF, ZF S671 090 170
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7	DIN 51562-1	7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	37.1	DIN 51562-1	37.1 mm²/s DIN 51562-1
Viscosity Index VI		153	DIN ISO 2909	153 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	18.930	ASTM D2983	18.930 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	230	DIN 51757	230 °C DIN 51757
Copper Strip Test at 121 °C		1 b	ASTM D130	1 b ASTM D130
Approvals		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

Hydro-Fluid

Application NoteRAVENOL Hydro-Fluid has a wide range of application in the transmission and hydraulic systems of modern tractors.

Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

show details

API: GL-4

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310101-005

Volume:
20 L

vendor code:
1310101-020

Volume:
20 L, ecobox

vendor code:
1310101-B20

Volume:
60 L

vendor code:
1310101-060

Volume:
208 L

vendor code:
1310101-208

Volume:
1000 L

vendor code:
1310101-700

Application Note

RAVENOL Hydro-Fluid has a wide range of application in the transmission and hydraulic systems of modern tractors.

RAVENOL Hydro-Fluid is excellently suitable for wet brake and clutch systems (power take-off clutches).

RAVENOL Hydro-Fluid can also be used as a compressor oil.

Characteristics

Excellent viscosity-temperature characteristics
Outstanding cold starting properties
Compelling detergent/dispersant properties
High resistance to ageing

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
API		GL-4		GL-4
Recomendations		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	861	EN ISO 12185	861 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viscosity Index VI		154	DIN ISO 2909	154 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
tbn	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

Super Truck 50

RAVENOL Super Truck SAE 50 is a top-quality product with high safety reserves.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E

show details

SAE: 50W

API: CF-4, SG

ACEA: B4, E2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123726-001

Volume:
5 L

vendor code:
1123726-005

Volume:
20 L

vendor code:
1123726-020

Volume:
20 L, ecobox

vendor code:
1123726-B20

Volume:
60 L

vendor code:
1123726-060

Volume:
208 L

vendor code:
1123726-208

Volume:
208 L, print

vendor code:
1123726-D28

Volume:
1000 L

vendor code:
1123726-700

RAVENOL Super Truck SAE 50 is a top-quality product with high safety reserves.

Application Note

RAVENOL Super Truck SAE 50 is mono grade motor oil for use in truck diesel engines. Please follow engine manufacturer’s recommendations.

Characteristics

High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
Good cold start characteristics
Best corrosion protection
High safety reserves even with boundary lubrication conditions
Suitable for catalysts

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		50W		50W
Type		Mineral		Mineral
API		CF-4, SG		CF-4, SG
ACEA		B4, E2		B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
Density at 20 °C	kg/m³	890	EN ISO 12185	890 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	18.3	DIN 51562-1	18.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	198.7	DIN 51562-1	198.7 mm²/s DIN 51562-1
Viscosity Index VI		101	DIN ISO 2909	101 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	258	DIN EN ISO 2592	258 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E

Standard Truck 40

Application NoteRAVENOL Standard Truck SAE 40 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A

show details

SAE: 40W

API: CF, SF

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1123625-020

Volume:
208 L

vendor code:
1123625-208

Volume:
1000 L

vendor code:
1123625-700

Application Note

RAVENOL Standard Truck SAE 40 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Characteristics

High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts
Reduced emissions

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		40W		40W
Type		Mineral		Mineral
API		CF, SF		CF, SF
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A
Density at 20 °C	kg/m³	896	EN ISO 12185	896 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	165.8	DIN 51562-1	165.8 mm²/s DIN 51562-1
Viscosity Index VI		97	DIN ISO 2909	97 DIN ISO 2909
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	254	DIN EN ISO 2592	254 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A

STOU 5W-30

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 5W-30

API: CG-4, GL-4

ACEA: E2

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310108-020

Volume:
60 L

vendor code:
1310108-060

Volume:
208 L

vendor code:
1310108-208

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Application Note

RAVENOL STOU SAE 5W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 5W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
API		CG-4, GL-4		CG-4, GL-4
ACEA		E2		E2
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Density at 20 °C	kg/m³	856	EN ISO 12185	856 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.8	DIN 51562-1	70.8 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	11.8	ASTM D2896	11.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.8	DIN 51575	1.8 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Getriebeoel UTTO

Application NoteRAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

Manufacturer Approved:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F

Compliance with the requirements:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K

show details

API: GL-4

Equivalents OEM:
Alpine 0100803, Alpine 0100804, Alpine 0100805, Honda 0820899903HE, Volvo 11706212, Volvo 11998770, Volvo VOE11706212, Volvo VOE11998770, ZF 0671090535, ZF 0671090536, ZF 0671090537, ZF 0681200752, ZF 0681200752, ZF 0769126671

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310700-005

Volume:
10 L

vendor code:
1310700-010

Code:
4014835740648

Volume:
20 L

vendor code:
1310700-020

Code:
4014835740624

Volume:
20 L, ecobox

vendor code:
1310700-B20

Volume:
60 L

vendor code:
1310700-060

Code:
4014835740662

Volume:
60 L, print

vendor code:
1310700-D60

Volume:
208 L

vendor code:
1310700-208

Code:
4014835740686

Volume:
1000 L

vendor code:
1310700-700

Application Note

RAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

RAVENOL Getriebeöl UTTO is suitable for wet brakes of load change couplings and minor drives.

Characteristics

a very high stable viscosity index
a very low pour point
a high oxidation stability
a very high pressure absorption capacity
protection against corrosion and foam formation as far as possible
a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load changecouplings and minor drives

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		GL-4		GL-4
Manufacturer Approved		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Recomendations		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K
Density at 20 °C	kg/m³	856	EN ISO 12185	856 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.7	DIN 51562-1	9.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	57.6	DIN 51562-1	57.6 mm²/s DIN 51562-1
Viscosity Index VI		152	DIN ISO 2909	152 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	9.7	ASTM D2896	9.7 mgKOH/g ASTM D2896
Noack Volatility	% M/M	10.1	ASTM D5800	10.1 % M/M ASTM D5800
Approvals		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

Search results for query «Allison C-4»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note:

Characteristics:

Standard Truck 30

Application Note:

Characteristics:

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
