Application NoteRAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
Manufacturer Approved:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 86-B, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310712-005
Volume:
10 L
vendor code:
1310712-010
Volume:
20 L
vendor code:
1310712-020
Volume:
20 L, ecobox
vendor code:
1310712-B20
Volume:
60 L
vendor code:
1310712-060
Volume:
208 L
vendor code:
1310712-208
Volume:
1000 L
vendor code:
1310712-700
Application Note
RAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
RAVENOL UTTO Synthetic is suitable for wet brakes of load change couplings and minor drives.
Characteristics
- a very high stable viscosity index
- a very low pour point
- a high oxidation stability
- a very high pressure absorption capacity
- protection against corrosion and foam formation as far as possible
- a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load change couplings and minor drives
- high shear stability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | NONE |
NONE
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F |
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S |
Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S
|
||
| specification | DIN 51524-3 |
DIN 51524-3
|
||
| Density at 20 °C | kg/m³ | 848 | EN ISO 12185 |
848
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.4 | DIN 51562-1 |
12.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 71 | DIN 51562-1 |
71
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 175 | DIN ISO 2909 |
175
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Approvals | Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F |
Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F
|
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.
Manufacturer Approved:
MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Compliance with the requirements:
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221123-001
Volume:
4 L
vendor code:
1221123-004
Volume:
20 L
vendor code:
1221123-020
Volume:
20 L, ecobox
vendor code:
1221123-B20
Volume:
60 L
vendor code:
1221123-060
Volume:
60 L, print
vendor code:
1221123-D60
Volume:
208 L, print
vendor code:
1221123-D28
Volume:
1000 L
vendor code:
1221123-700
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.
Application Note
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer instructions
- excellent cold flow properties
- good wear protection protects the gearbox
- Fuel savings even with short distances in low outside temperatures
- stable lubricating film even under high stress
- extreme low pour point
- Can be used at changing temperatures due to the high viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
||
| Recomendations | Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312 |
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312
|
||
| specification | MIL-PRF 2105 E, SAE J 2360 |
MIL-PRF 2105 E, SAE J 2360
|
||
| Suitable for | DAF |
DAF
|
||
| Density at 20 °C | 873,0 | EN ISO 12185 |
873,0
EN ISO 12185
|
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.82 | DIN 51562-1 |
14.82
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 141 | DIN ISO 2909 |
141
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 97.000 | ASTM D2983 |
97.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Flashpoint | °C | 186 | DIN EN ISO 2592 |
186
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.
Manufacturer Approved:
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Compliance with the requirements:
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221122-001
Volume:
4 L
vendor code:
1221122-004
Volume:
20 L
vendor code:
1221122-020
Volume:
20 L, ecobox
vendor code:
1221122-B20
Volume:
60 L
vendor code:
1221122-060
Volume:
60 L, print
vendor code:
1221122-D60
Volume:
208 L, print
vendor code:
1221122-D28
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.
Application Note
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer instructions
- excellent cold flow properties
- good wear protection protects the gearbox
- Fuel savings even with short distances in low outside temperatures
- stable lubricating film even under high stress
- extreme low pour point
- Can be used at changing temperatures due to the high viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
||
| Recomendations | Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13 |
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
|
||
| specification | MIL-PRF 2105 E, SAE J 2360 |
MIL-PRF 2105 E, SAE J 2360
|
||
| Suitable for | DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault |
DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
|
||
| Compliant products | Isuzu Axle Oil, Isuzu LCV Front Axle Oil |
Isuzu Axle Oil, Isuzu LCV Front Axle Oil
|
||
| Density at 20 °C | 868,0 | EN ISO 12185 |
868,0
EN ISO 12185
|
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.8 | DIN 51562-1 |
15.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 106.8 | DIN 51562-1 |
106.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 63,400 | ASTM D2983 |
63,400
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 190 | DIN EN ISO 2592 |
190
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion (24h/120 °C) | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Manufacturer Approved:
DTFR 12B130, MAN 342 Type M2, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 2B, ZF TE-ML 16B, ZF TE-ML 16D
SAE: 80W-90
Equivalents OEM:
DAF 09227RU,
DAF 1659975,
FEBI 170166,
FEBI 170167,
FEBI 170168,
Ford 173576,
Ford 5016429,
Ford 5016429,
Ford XY80W90KL,
Ford XY80W90Q,
Ford XY80W90QL,
GM 1942008,
GM 88900144,
GM 93165588,
Scania 1892391,
Scania 1892392,
Scania 1892393,
Scania 1892394,
Scania 1892395,
Scania 1905038,
Volvo 11706213,
Volvo 11706214,
Volvo 11706786,
Volvo VOE11706213,
Volvo VOE11706214,
Volvo VOE11706786,
ZF 0681000410,
ZF 0681000411,
ZF 0681000412,
ZF 681000410,
ZF 681000411
DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411, ZF 681000412
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223305-001
Volume:
4 L
vendor code:
1223305-004
Volume:
20 L, ecobox
vendor code:
1223305-B20
Volume:
1000 L
vendor code:
1223305-700

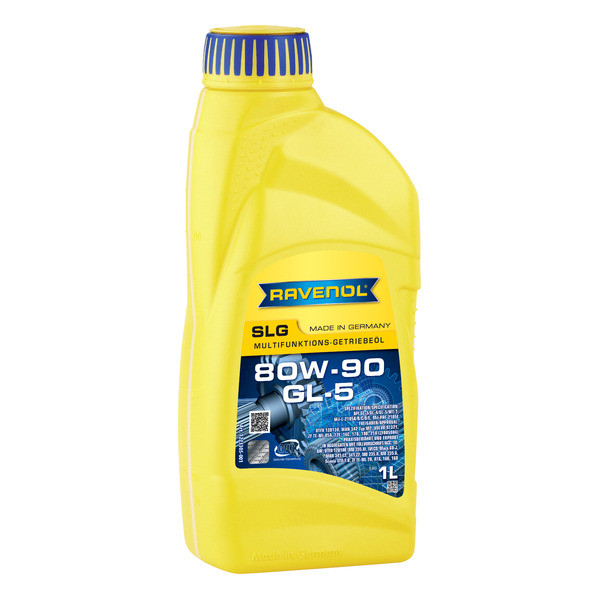

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Application Note
RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Characteristics
- An excellent thermal stability
- Excellent extreme pressure properties
- A good circuit behavior at low temperatures
- An extended service life
- Neutral behavior towards sealing materials
- Reliable protection against wear, sludge, adhesion and corrosion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-3, GL-4, GL-5, MT-1 |
GL-3, GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B |
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
|
||
| specification | MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E |
MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E
|
||
| Suitable for | DAF, IVECO |
DAF, IVECO
|
||
| Density at 20 °C | kg/m³ | 889 | EN ISO 12185 |
889
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.2 | DIN 51562-1 |
15.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 146.4 | DIN 51562-1 |
146.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 105 | DIN ISO 2909 |
105
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 161.000 | ASTM D2983 |
161.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 200 | DIN EN ISO 2592 |
200
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B |
DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B
|
RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.
Compliance with the requirements:
PSA B71 2315
SAE: 75W-80
API: GL-4
Equivalents OEM:
GM 1940711, GM 9163335, Nissan 999MPMTF20P, Nissan KE91600Q40, Nissan KE91699012, Nissan KE91699012, Nissan KE91699033, Nissan KE91699071R, Nissan KE9169903301, Nissan KLD9275801, Peugeot 9730AG, Peugeot 1615100080, Peugeot 1618078480, Peugeot 1635055880, PSA 9730A2, PSA 9730AA, PSA 973641, Renault 7711143534
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1222100-010
Volume:
20 L
vendor code:
1222100-020
Volume:
20 L, ecobox
vendor code:
1222100-B20
Volume:
60 L
vendor code:
1222100-060
Volume:
60 L, print
vendor code:
1222100-D60
Volume:
208 L
vendor code:
1222100-208
Volume:
208 L, print
vendor code:
1222100-D28
Volume:
1000 L
vendor code:
1222100-700
RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.
Application Note
RAVENOL Getriebeoel PSA SAE 75W-80 is used in manual shift transmissions requiring trouble-free lubrication.
RAVENOL Getriebeoel PSA SAE 75W-80 can be used in manual transmissions where the manufacturer specifies a low-viscosity oil.
Characteristics
- Outstanding oxidation protection.
- Low viscosity in low temperatures.
- Excellent wear protection.
- Enhanced EP properties.
- Good foaming properties.
- Neutral to sealants.
- Outstanding protection from rust and corrosion.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-80 |
75W-80
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | PSA B71 2315 |
PSA B71 2315
|
||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 43.1 | DIN 51562-1 |
43.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 178 | DIN ISO 2909 |
178
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 52.500 | ASTM D2983 |
52.500
mPa*s
ASTM D2983
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | PSA B71 2315 |
PSA B71 2315
|
Application NoteRAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.
Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1310112-B20
Volume:
60 L, print
vendor code:
1310112-D60
Volume:
208 L
vendor code:
1310112-208
Volume:
1000 L
vendor code:
1310112-700
Volume:
20 L
vendor code:
1310112-020
Application Note
RAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.
Characteristics
- Excellent viscosity-temperature behaviour
- Exceptional cold starting abilities
- Excellent detergent and dispersant properties
- High resistance to ageing
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 15W-30 |
15W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CE, GL-4, SF |
CE, GL-4, SF
|
||
| ACEA | E1, E2 |
E1, E2
|
||
| Recomendations | Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| Suitable for | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Density at 20 °C | kg/m³ | 861 | EN ISO 12185 |
861
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.8 | DIN 51562-1 |
11.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 71.7 | DIN 51562-1 |
71.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 159 | DIN ISO 2909 |
159
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.7 | ASTM D2896 |
11.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.5 | DIN 51575 |
1.5
%wt.
DIN 51575
|
| Approvals | Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
|
RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
SAE: 10W-30
ACEA: E3
Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310100-005
Volume:
20 L, ecobox
vendor code:
1310100-B20
Volume:
1000 L
vendor code:
1310100-700
RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).
Application Note
RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- Protection against wear, corrosion and foam
- High resistance to oxidation
- Excellent extreme pressure properties
- A high and stable viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Suitable for | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Density at 20 °C | kg/m³ | 867 | EN ISO 12185 |
867
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 74.7 | DIN 51562-1 |
74.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 151 | DIN ISO 2909 |
151
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 226 | DIN EN ISO 2592 |
226
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.4 | ASTM D2896 |
12.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.58 | DIN 51575 |
1.58
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 86-A, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310113-005
Volume:
20 L, ecobox
vendor code:
1310113-B20
Volume:
60 L
vendor code:
1310113-060
Volume:
208 L
vendor code:
1310113-208
Volume:
1000 L
vendor code:
1310113-700
RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.
Application Note
RAVENOL STOU SAE 15W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 15W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- A high activity against wear, corrosion and foam
- A very strong resistance to oxidation
- Excellent extreme pressure properties
- A high and stable viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CE, CF-4, GL-4, SF |
CE, CF-4, GL-4, SF
|
||
| ACEA | E1 |
E1
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| specification | CCMC D4, CCMC G2 |
CCMC D4, CCMC G2
|
||
| Density at 20 °C | kg/m³ | 865 | EN ISO 12185 |
865
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.3 | DIN 51562-1 |
13.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 94.2 | DIN 51562-1 |
94.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 141 | DIN ISO 2909 |
141
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.8 | ASTM D2896 |
12.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
|
RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.
Compliance with the requirements:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310111-005
Volume:
10 L
vendor code:
1310111-010
Volume:
20 L, ecobox
vendor code:
1310111-B20
Volume:
60 L
vendor code:
1310111-060
Volume:
1000 L
vendor code:
1310111-700
Volume:
208 L
vendor code:
1310111-208
RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.
Application Note
RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- A high activity against wear, corrosion and foam
- A very strong resistance to oxidation
- A high and stable viscosity index
- An excellent extreme pressure properties
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Recomendations | Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Suitable for | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Density at 20 °C | kg/m³ | 864 | EN ISO 12185 |
864
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.7 | DIN 51562-1 |
14.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 101.1 | DIN 51562-1 |
101.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 151 | DIN ISO 2909 |
151
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.4 | ASTM D2896 |
12.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.45 | DIN 51575 |
1.45
%wt.
DIN 51575
|
| Approvals | Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Compliance with the requirements:
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
SAE: 75W-90
API: GL-4
Equivalents OEM:
Ford 97SXM2C200AA, Ford 97SXM2C200BA, Ford 1045737, Ford 1045738, Ford 5012119, Ford 5012119, Ford 5015547, Ford 5015548, Ford A86SX2C175AA, Ford A86SX2C175BA, Ford XT4QGL, Geely SH550027967, Hyundai Motor 043005L1A0, Hyundai Motor 043005L1A00001, Hyundai Motor 043005L1AO, Hyundai Motor 043005L6A0, Hyundai XTeer 1011435, Hyundai XTeer 1041435, Hyundai XTeer 1120435, Toyota 0888501513, Toyota 0888581023, Toyota 0888581026, UAZ 000000473400800, UAZ 473400800, UAZ 473401200, VAG G052178A2, VAG G052178S0, Volvo 1161647, Volvo 1161723, Volvo 1161724
- Available packaging
- Product parameters
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.
Characteristics
- excellent ageing resistance
- extra high pressure absorption properties
- optimal viscosity-temperature properties
- excellent low temperature properties
- shearing stability
- stable lubricating film even under high stress
- extremely low pour point
- good elastomer compatibility to prevent leaks
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726 |
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
|
||
| Compliant products | VW G 052 911, VW G 060 726 |
VW G 052 911, VW G 060 726
|
||
| Density at 20 °C | kg/m³ | 837.5 | EN ISO 12185 |
837.5
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 95.7 | DIN 51562-1 |
95.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 176 | DIN ISO 2909 |
176
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 88.700 | ASTM D2983 |
88.700
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726 |
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
|
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1221104-010
Volume:
20 L
vendor code:
1221104-020
Volume:
60 L, print
vendor code:
1221104-D60
Volume:
208 L
vendor code:
1221104-208
Volume:
208 L, print
vendor code:
1221104-D28
Volume:
1000 L
vendor code:
1221104-700
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
- A stable lubricating film even at high oil temperatures and under high stress.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W |
75W
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
||
| Compliant products | AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726 |
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 35.1 | DIN 51562-1 |
35.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 184 | DIN ISO 2909 |
184
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 8.800 | ASTM D2983 |
8.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
Application NoteRAVENOL Getriebeoel MZG SAE 80W GL-4 can be used for the transmission oils API-GL-3 / GL-4 of the SAE class 80W.
Manufacturer Approved:
DTFR 13B100
Compliance with the requirements:
Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A
SAE: 80W
API: GL-4
Equivalents OEM:
BMW 81229407052, BMW 81229407053, BMW 81229407053, Chrysler 23091616, Hyundai Motor 0430000440, Volvo 1161969
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1223101-B20
Volume:
208 L
vendor code:
1223101-208
Volume:
1000 L
vendor code:
1223101-700
Volume:
10 L
vendor code:
1223101-010
Volume:
20 L
vendor code:
1223101-020
Volume:
60 L
vendor code:
1223101-060
Application Note
RAVENOL Getriebeoel MZG SAE 80W GL-4 can be used for the transmission oils API-GL-3 / GL-4 of the SAE class 80W.
RAVENOL Getriebeoel MZG SAE 80W GL-4 offers a quickest possible full fluid film lubrication when starting also in case of very low outside temperatures, excellent transmission efficiency and thereby low power loss.
RAVENOL Getriebeoel MZG SAE 80W GL-4 is compatible for the lubrication of manucal transmissions, differential gears and steering transmissions in vehicles for which EP transmission oils are instructed by the manufacturer.
Characteristics
- a very good adhesive and extreme pressure durable lubricant film even under high loads
- an excellent cold flow capacity even under extreme conditions
- a complete compatibility of elastomers
- an excellent corrosion protection of all general metals of the transmission engineering
- a high oxidation stability
- an optimum corrosion protection
- no foam also at high engine speed
- Support of the faultless function of synchronous transmissions
- miscible and compatible with all brand name transmission oils
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W |
80W
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | DTFR 13B100 |
DTFR 13B100
|
||
| Recomendations | Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A |
Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | kg/m³ | 872 | EN ISO 12185 |
872
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.2 | DIN 51562-1 |
10.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 84.4 | DIN 51562-1 |
84.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 102 | DIN ISO 2909 |
102
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B100, Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02A, ZF TE-ML 17A |
DTFR 13B100, Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02A, ZF TE-ML 17A
|
RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1310114-B20
Volume:
60 L
vendor code:
1310114-060
Volume:
1000 L
vendor code:
1310114-700
RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.
Application Note
RAVENOL STOU SAE 20W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 20W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- A high activity against wear, corrosion and foam
- A very strong resistance to oxidation
- Excellent extreme pressure properties
- A high and stable viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 20W-40 |
20W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| Density at 20 °C | kg/m³ | 883 | EN ISO 12185 |
883
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.1 | DIN 51562-1 |
13.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 111.8 | DIN 51562-1 |
111.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 112 | DIN ISO 2909 |
112
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 246 | DIN EN ISO 2592 |
246
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13 | ASTM D2896 |
13
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.5 | DIN 51575 |
1.5
%wt.
DIN 51575
|
| CCS Viscosity at -15 °C | mPa*s | 6860 | ASTM D5293 |
6860
mPa*s
ASTM D5293
|
| Approvals | Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
|
RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1221103-010
Volume:
20 L
vendor code:
1221103-020
Volume:
60 L, print
vendor code:
1221103-D60
Volume:
208 L
vendor code:
1221103-208
Volume:
208 L, print
vendor code:
1221103-D28
Volume:
1000 L
vendor code:
1221103-700
RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high-pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming property even at high speeds
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-80 |
75W-80
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, MT-1 |
GL-4, MT-1
|
||
| Recomendations | BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538 |
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
|
||
| Compliant products | AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538 |
AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
|
||
| Density at 20 °C | kg/m³ | 847.5 | EN ISO 12185 |
847.5
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.1 | DIN 51562-1 |
9.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 50.8 | DIN 51562-1 |
50.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 21.900 | ASTM D2983 |
21.900
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538 |
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
|
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-85 |
75W-85
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
RAVENOL MOTOGEAR SAE 80W-90 GL-4 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1250055-004
Volume:
20 L, ecobox
vendor code:
1250055-B20
Volume:
208 L
vendor code:
1250055-208
RAVENOL MOTOGEAR SAE 80W-90 GL-4 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.
RAVENOL MOTOGEAR SAE 80W-90 GL-4 reduces friction, prevents wear and corrosion.
Application Note
RAVENOL MOTOGEAR SAE 80W-90 GL-4 is suitable for use in manual transmissions for 2- and 4-stroke motorcycles if oil according to SAE 80W-90 API GL-4 is specified.
Characteristics
- Highly adhesive and pressure resistant lubricant films
- Excellent oxidation stability
- Above-average viscosity-temperature characteristics
- Wear-preventing effect
- A good air release property, no foaming
- Neutral behaviour towards metal and sealing compounds
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4 |
GL-4
|
||
| Density at 20 °C | kg/m³ | 879 | EN ISO 12185 |
879
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14 | DIN 51562-1 |
14
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 126.9 | DIN 51562-1 |
126.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 45.600 | ASTM D2983 |
45.600
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
- Available packaging
- Product parameters
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Application Note
RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.
RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.
RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer specifications
- excellent cold flow properties
- best wear protection and best transmission efficiency
- Fuel savings even with short distances in low outdoor temperatures
- stable lubricating film even under high stress
- extraordinary corrosion protection and good compatibility with non-ferrous metal
- high oxidation resistance prevents oil thickening and deposits
- outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
- excellent elastomer compatibility to prevent leaks
- extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
- very high protection from rust, corrosion and foaming
- extreme low pour point
- excellent EP properties
- fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Suitable for | IVECO |
IVECO
|
||
| Compliant products | BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, VW G 052 145, VW G 052 539, VW G 052 911 |
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, VW G 052 145, VW G 052 539, VW G 052 911
|
||
| Density at 20 °C | kg/m³ | 839.8 | EN ISO 12185 |
839.8
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.8 | DIN 51562-1 |
16.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
47.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
Application NoteRAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223210-001
Volume:
4 L
vendor code:
1223210-004
Volume:
10 L
vendor code:
1223210-010
Volume:
20 L
vendor code:
1223210-020
Volume:
20 L, ecobox
vendor code:
1223210-B20
Volume:
60 L
vendor code:
1223210-060
Volume:
208 L
vendor code:
1223210-208
Volume:
1000 L
vendor code:
1223210-700
Application Note
RAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Characteristics
- good adhesion and pressure resistant lubricating film
- excellent oxidation stability
- exceptional viscosity-temperature behavior
- a low pour point
- excellent protection against rust and corrosion
- enhanced wear-inhibiting effect
- a good foam-resistant composition
- compatible with all types of metals and sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 140W |
140W
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B |
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | kg/m³ | 894 | EN ISO 12185 |
894
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 26 | DIN 51562-1 |
26
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 352 | DIN 51562-1 |
352
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 97 | DIN ISO 2909 |
97
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 55.000 | ASTM D2983 |
55.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B |
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
|

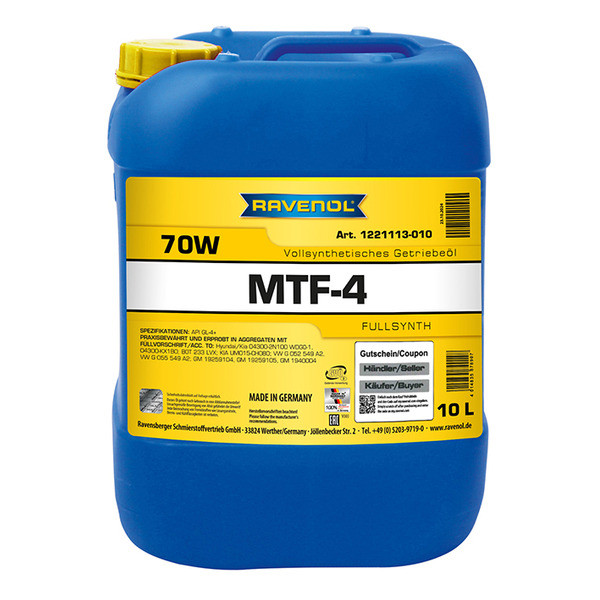

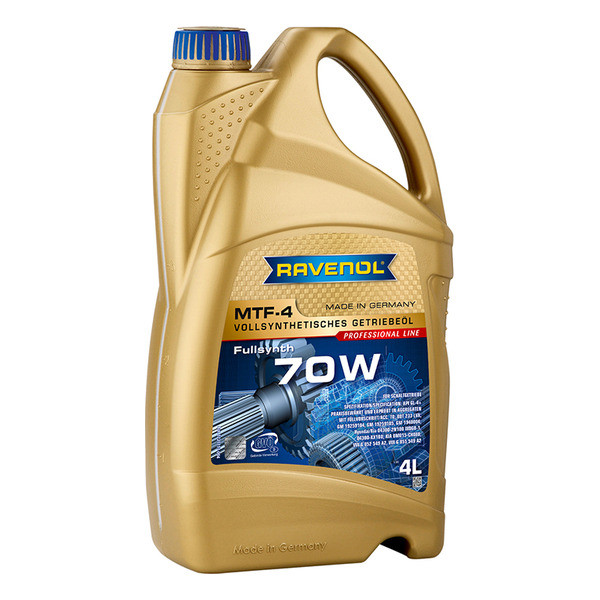

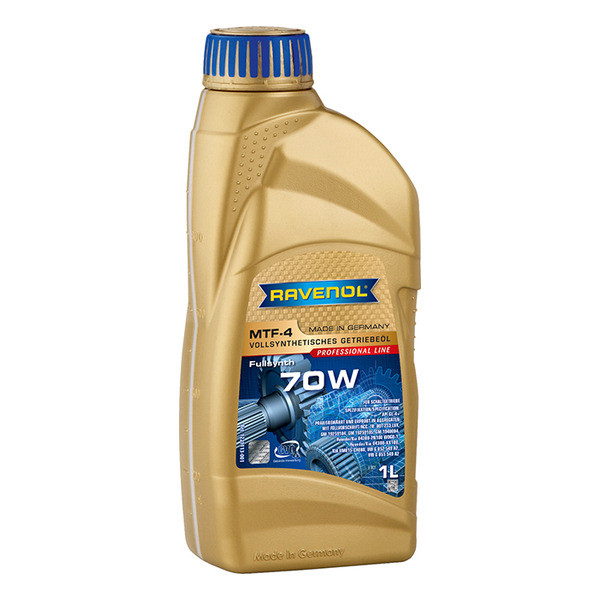

RAVENOL MTF-4 SAE 70W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BOT 233 LVX, VW G 052 549 A2, VW G 055 549 A2
SAE: 70W
API: GL-4+
Equivalents OEM:
Hyundai Motor 04300KX1B0, Hyundai Motor 04300KX1BA, Hyundai Motor 04300KX1BA, Hyundai Motor 043002N100, VAG G052549A2, VAG G055549A2
- Available packaging
- Product parameters

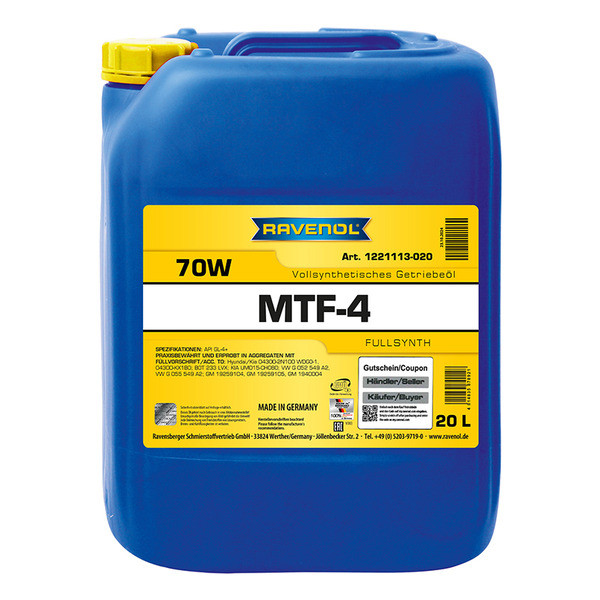

Volume:
20 L
vendor code:
1221113-020
Volume:
20 L, ecobox
vendor code:
1221113-B20
Volume:
60 L
vendor code:
1221113-060
Volume:
208 L
vendor code:
1221113-208
RAVENOL MTF-4 SAE 70W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-4 SAE 70W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
RAVENOL MTF-4 SAE 70W enables practically slip-free operation and thus minimal torque losses.
Application Note
RAVENOL MTF-4 SAE 70W is a high-performance gear oil for manual transmissions. It was developed for VW, Audi, Seat and Skoda gearboxes.
RAVENOL MTF-4 SAE 70W is also suitable for HMC gearboxes D7GF1, D7UF1, M6CF1, M6CF4, M6CF3-1, M6GF2.
Characteristics
- Excellent thermal stability
- High protection from rust, corrosion and foaming
- Low pour point
- Neutral behavior towards sealing materials
- Good lubricating and shifting behavior at low temperatures
- Stable lubricating film even under extreme loads in midsummer
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brookfield Viscosity at -55 °C | mPa*s | 19300 | ASTM D2983 |
19300
mPa*s
ASTM D2983
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 70W |
70W
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4+ |
GL-4+
|
||
| Recomendations | BOT 233 LVX, VW G 052 549 A2, VW G 055 549 A2 |
BOT 233 LVX, VW G 052 549 A2, VW G 055 549 A2
|
||
| Compliant products | GM 19259104, GM 19259105, GM 1940004, Hyundai/Kia 04300-2N100 WDGO-1, Hyundai/Kia 04300-KX1B0, KIA UM015-CH080 |
GM 19259104, GM 19259105, GM 1940004, Hyundai/Kia 04300-2N100 WDGO-1, Hyundai/Kia 04300-KX1B0, KIA UM015-CH080
|
||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.59 | DIN 51562-1 |
5.59
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 23.04 | DIN 51562-1 |
23.04
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 198 | DIN ISO 2909 |
198
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 2650 | ASTM D2983 |
2650
mPa*s
ASTM D2983
|
| Pourpoint | °C | -72 | DIN ISO 3016 |
-72
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | BOT 233 LVX, VW G 052 549 A2, VW G 055 549 A2 |
BOT 233 LVX, VW G 052 549 A2, VW G 055 549 A2
|
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Manufacturer Approved:
MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K
Compliance with the requirements:
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P
SAE: 75W-80
API: GL-4
Equivalents OEM:
Alpine 0101683,
Alpine 0101684,
Alpine 0101685,
DAF 09052IT,
DAF 09069EU,
DAF 09069IT,
DAF 09069RU,
DAF 09225RU,
DAF 09226BN,
DAF 1659981,
DAF 1659982,
DAF 1659982G,
DAF 1659988,
DAF 1659988G,
DAF 1659989,
FEBI 170126,
FEBI 170127,
FEBI 170134,
Hyundai Motor 0450000440,
MAN 09110700672,
Pentosin 1027107,
Porsche 00004330300,
Porsche 00004330540,
Volvo 1161950,
Volvo 85108170,
Volvo 85108171,
Volvo 85113903,
Volvo 85113904,
Volvo 85123561,
Volvo 85123562,
Volvo 85136277
Alpine 0101683, Alpine 0101684, Alpine 0101685, DAF 09052IT, DAF 09069EU, DAF 09069IT, DAF 09069RU, DAF 09225RU, DAF 09226BN, DAF 1659981, DAF 1659982, DAF 1659982G, DAF 1659988, DAF 1659988G, DAF 1659989, FEBI 170126, FEBI 170127, FEBI 170134, Hyundai Motor 0450000440, MAN 09110700672, Pentosin 1027107, Porsche 00004330300, Porsche 00004330540, Volvo 1161950, Volvo 85108170, Volvo 85108171, Volvo 85113903, Volvo 85113904, Volvo 85123561, Volvo 85123562, Volvo 85136277, Volvo 85136278, Volvo MVBVISHIFT75W80JUG, Volvo VPO120548, Volvo VPO120548, Volvo VPO120549, ZF 0671090383, ZF 0671090384, ZF 0671090385, ZF 0671090386, ZF 671090383, ZF 671090384, ZF 671090385, ZF 671090386, ZF S0671090383, ZF S0671090384, ZF S0671090385, ZF S0671090386, ZF S671090385
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221100-001
Volume:
4 L
vendor code:
1221100-004
Volume:
20 L, ecobox
vendor code:
1221100-B20
Volume:
60 L
vendor code:
1221100-060
Volume:
60 L, print
vendor code:
1221100-D60
Volume:
208 L
vendor code:
1221100-208
Volume:
1000 L
vendor code:
1221100-700
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is a heavy duty transmission oil to care for synchronised manual transmissions in commercial vehicles with intarder or retarder. Shift comfort isnoticeably increased. Extreme oil change intervals according as specified by the manufacturer at up to 500,000 km reduce maintenance costs and increase cost-effectiveness.
Characteristics
- Excellent thermal stability
- High protection from rust, corrosion, foaming
- Low solidification point
- Excellent EP properties
- Good shifting behaviour in low temperatures
- Extended life
- Fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-80 |
75W-80
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K |
MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K
|
||
| Recomendations | DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P |
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P
|
||
| specification | MIL-L-2105 |
MIL-L-2105
|
||
| Suitable for | IVECO, Renault |
IVECO, Renault
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.29 | DIN 51562-1 |
9.29
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 51.97 | DIN 51562-1 |
51.97
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z4, MAN 341 Type Z5, MIL-L-2105, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 01L, ZF TE-ML 02E, ZF TE-ML 02L, ZF TE-ML 16K, ZF TE-ML 16P |
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z4, MAN 341 Type Z5, MIL-L-2105, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 01L, ZF TE-ML 02E, ZF TE-ML 02L, ZF TE-ML 16K, ZF TE-ML 16P
|
RAVENOL Motogear SAE 75W-90 GL-4 is designed on the basis of high-quality synthetic base oils with a special additivation and inhibition to ensure the proper operation of the transmission and the rear axle.
SAE: 75W-90
API: GL-4
Equivalents OEM:
Honda 08268M99K0ZT1, Honda 08268M99K0ZT3, Honda 08294M99K8LT1, Honda 08294M99K8LT1
- Available packaging
- Product parameters
RAVENOL Motogear SAE 75W-90 GL-4 is designed on the basis of high-quality synthetic base oils with a special additivation and inhibition to ensure the proper operation of the transmission and the rear axle.
RAVENOL Motogear SAE 75W-90 GL-4 has good high temperature stability with a high load carrying capacity and reduces friction even under extreme operating conditions.
RAVENOL Motogear SAE 75W-90 GL-4 for comfortable operation even at low temperatures.
Application Note
RAVENOL Motogear SAE 75W-90 GL-4 is best for use in highly loaded gearboxes and rear axle - final drive, for which SAE 75W-90 API GL-4 oil is required.
Characteristics
- High load carrying capacity by a stable lubricating film even at high loads
- Reduction of friction and wear by special additives
- A very good corrosion protection and good tolerability to non-ferrous metal
- A high oxidative stability to prevent oil thickening and deposits
- Excellent cold flow properties
- a very good compatibility with elastomers to prevent leaks
- A very strong protection against rust, corrosion and foaming
- Excellent EP properties
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.8 | DIN 51562-1 |
16.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
47.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Manufacturer Approved:
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1221109-010
Volume:
20 L
vendor code:
1221109-020
Volume:
60 L
vendor code:
1221109-060
Volume:
60 L, print
vendor code:
1221109-D60
Volume:
208 L
vendor code:
1221109-208
Volume:
208 L, print
vendor code:
1221109-D28
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Application Note
RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behaviour in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-110 |
75W-110
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A |
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
|
||
| Recomendations | Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B |
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
|
||
| Suitable for | DAF, IVECO |
DAF, IVECO
|
||
| Density at 20 °C | kg/m³ | 874 | EN ISO 12185 |
874
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 21.4 | DIN 51562-1 |
21.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 163.5 | DIN 51562-1 |
163.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 98.700 | ASTM D2983 |
98.700
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B |
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B
|
Application NoteRAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.
Manufacturer Approved:
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
Compliance with the requirements:
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
SAE: 80W-90
API: GL-4
Equivalents OEM:
Alpine 0100681,
Alpine 0100682,
Alpine 0100683,
Alpine 0100684,
Alpine 0100685,
Alpine 100681,
Alpine 100682,
Alpine 100683,
Alpine 100684,
Alpine 100685,
DAF 1660082,
DAF 1660083,
DAF 1660084,
DAF 1678853,
DAF 1731974,
DAF 1739298,
FEBI 170153,
FEBI 170154,
FEBI 170154,
Hyundai Motor 0430000460,
Hyundai Motor 430000460,
Hyundai XTeer 1011018,
Hyundai XTeer 1041421,
Hyundai XTeer 1120007,
SsangYong 0000000801,
Volvo 1161280,
Volvo 1161932,
Volvo 1161933,
ZF 0671090498,
ZF 0671090503,
ZF 0671090504
Alpine 0100681, Alpine 0100682, Alpine 0100683, Alpine 0100684, Alpine 0100685, Alpine 100681, Alpine 100682, Alpine 100683, Alpine 100684, Alpine 100685, DAF 1660082, DAF 1660083, DAF 1660084, DAF 1678853, DAF 1731974, DAF 1739298, FEBI 170153, FEBI 170154, FEBI 170154, Hyundai Motor 0430000460, Hyundai Motor 430000460, Hyundai XTeer 1011018, Hyundai XTeer 1041421, Hyundai XTeer 1120007, SsangYong 0000000801, Volvo 1161280, Volvo 1161932, Volvo 1161933, ZF 0671090498, ZF 0671090503, ZF 0671090504
- Available packaging
- Product parameters
Application Note
RAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.
Characteristics
- well adhering, pressure resistant lubricating films
- excellent oxidation stability
- above-average viscosity-temperature properties
- anti-wear effect
- good air release characteristics, no foaming
- neutral to metal and sealants
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A |
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
|
||
| Recomendations | DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B |
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | kg/m³ | 879 | EN ISO 12185 |
879
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14 | DIN 51562-1 |
14
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 126.9 | DIN 51562-1 |
126.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 45.600 | ASTM D2983 |
45.600
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A |
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
|
Application NoteRAVENOL Hydro-Fluid has a wide range of application in the transmission and hydraulic systems of modern tractors.
Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
API: GL-4
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310101-005
Volume:
20 L
vendor code:
1310101-020
Volume:
20 L, ecobox
vendor code:
1310101-B20
Volume:
60 L
vendor code:
1310101-060
Volume:
208 L
vendor code:
1310101-208
Volume:
1000 L
vendor code:
1310101-700
Application Note
RAVENOL Hydro-Fluid has a wide range of application in the transmission and hydraulic systems of modern tractors.
RAVENOL Hydro-Fluid is excellently suitable for wet brake and clutch systems (power take-off clutches).
RAVENOL Hydro-Fluid can also be used as a compressor oil.
Characteristics
- Excellent viscosity-temperature characteristics
- Outstanding cold starting properties
- Compelling detergent/dispersant properties
- High resistance to ageing
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| Suitable for | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Density at 20 °C | kg/m³ | 861 | EN ISO 12185 |
861
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.8 | DIN 51562-1 |
11.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 71.7 | DIN 51562-1 |
71.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 154 | DIN ISO 2909 |
154
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.9 | ASTM D2896 |
11.9
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.45 | DIN 51575 |
1.45
%wt.
DIN 51575
|
| Approvals | Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
|
RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1310108-020
Volume:
60 L
vendor code:
1310108-060
Volume:
208 L
vendor code:
1310108-208
RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).
Application Note
RAVENOL STOU SAE 5W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 5W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- A high activity against wear, corrosion and foam
- A very strong resistance to oxidation
- A high and stable viscosity index
- An excellent extreme pressure properties
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| API | CG-4, GL-4 |
CG-4, GL-4
|
||
| ACEA | E2 |
E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Density at 20 °C | kg/m³ | 856 | EN ISO 12185 |
856
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 70.8 | DIN 51562-1 |
70.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.8 | ASTM D2896 |
11.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.8 | DIN 51575 |
1.8
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
RAVENOL UTTO CVT Fluid offers a wide range of applications as it meets a large number of specifications.
Compliance with the requirements:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F
API: GL-4
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310715-005
Volume:
10 L
vendor code:
1310715-010
Volume:
20 L
vendor code:
1310715-020
Volume:
20 L, ecobox
vendor code:
1310715-B20
Volume:
60 L
vendor code:
1310715-060
Volume:
60 L, print
vendor code:
1310715-D60
Volume:
208 L
vendor code:
1310715-208
Volume:
208 L, print
vendor code:
1310715-D28
RAVENOL UTTO CVT Fluid offers a wide range of applications as it meets a large number of specifications.
Application Note:
RAVENOL UTTO CVT Fluid was specially developed for use in CVT transmissions and therefore offers optimized friction behavior and maximum wear protection.
RAVENOL UTTO CVT Fluid is suitable for wet brakes in powershift clutches and auxiliary drives.The product is not suitable as an engine oil.
Characteristics:
- a very high stable viscosity index for year-round use
- a very low pour point
- a high oxidation stability
- protection against corrosion and wear
- a convenient coefficient of friction during running brakes in oil bath
- (wet brakes) of load changecouplings and minor drives
- zincfree formulation
- very good water tolerance in the hydraulic and transmission circuit
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| tbn | mgKOH/g | 2.38 | ASTM D2896 |
2.38
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.3 | DIN 51575 |
0.3
%wt.
DIN 51575
|
| Noack Volatility | % M/M | 8 | ASTM D5800 |
8
% M/M
ASTM D5800
|
| Вязкость CCS при -35 °C | mm²/s | 5730 | ASTM D5293 |
5730
mm²/s
ASTM D5293
|
| Вязкость по Брукфильду при -26°C | mm²/s | 6100 | ASTM D2983 |
6100
mm²/s
ASTM D2983
|
| Коррозия меди | 1b | ASTM D130 |
1b
ASTM D130
|
|
| API | GL-4 |
GL-4
|
||
| Склонность к пенообразованию (Seq. I | II | --- | --- |
---
II
---
|
| Type | Mineral |
Mineral
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F |
Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F
|
||
| specification | SAE 80W |
SAE 80W
|
||
| Suitable for | Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT |
Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT
|
||
| Compliant products | Sauer Sunstrand/ Danfoss (hydrostatic trans fluid) |
Sauer Sunstrand/ Danfoss (hydrostatic trans fluid)
|
||
| Color | Light brown | visual |
Light brown
visual
|
|
| Seq. I at 24 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 20/0 | ASTM D892 |
20/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Viscosity at 100 °C | mm²/s | 9.3 | DIN 51562-1 |
9.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 56.4 | DIN 51562-1 |
56.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 147 | DIN ISO 2909 |
147
DIN ISO 2909
|
|
| VKA Four Ball Test (Wear) | mm | 0.5 | DIN EN ISO 20623 |
0.5
mm
DIN EN ISO 20623
|
| Density at 20 °C | kg/m³ | 863.3 | EN ISO 12185 |
863.3
kg/m³
EN ISO 12185
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Approvals | Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, SAE 80W, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F |
Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, SAE 80W, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F
|
RAVENOL MOTOGEAR SAE 10W-30 GL-4 has an excellent lubricating film adhesion, excellent detergency and high resistance to aging.
- Available packaging
- Product parameters
RAVENOL MOTOGEAR SAE 10W-30 GL-4 has an excellent lubricating film adhesion, excellent detergency and high resistance to aging.
RAVENOL MOTOGEAR SAE 10W-30 GL-4 enables a precise and soft changing of gears. Prevents clutch slippage.
RAVENOL MOTOGEAR SAE 10W-30 GL-4 forms a heavy-duty lubricant film, which is effective under all operating conditions.
Application Note
RAVENOL MOTOGEAR SAE 10W-30 GL-4 is designed for year-round use in all modern motorcycles of Japanese manufacturer’s as YAMAHA.
Characteristics
- Quick lubrication of the engine at all operating temperatures.
- Heavy-duty lubricant film under all operating conditions.
- Precise, soft changing of gears, no clutch slippage.
- Reliability due to excellent lubricant film adhesion, extraordinary purification capacity and outstandingageing resistance.
- Neutral towards sealing compounds.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| HTHS Viscosity at 150 °C | mPa*s | 3.11 | ASTM D5481 |
3.11
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 4830 | ASTM D5293 |
4830
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 12.300 | ASTM D4684 |
12.300
mPa*s
ASTM D4684
|
| Noack Volatility | % M/M | 9.9 | ASTM D5800 |
9.9
% M/M
ASTM D5800
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Suitable for | Yamaha |
Yamaha
|
||
| Density at 20 °C | kg/m³ | 858 | EN ISO 12185 |
858
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.3 | DIN 51562-1 |
10.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 63.6 | DIN 51562-1 |
63.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 150 | DIN ISO 2909 |
150
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.4 | ASTM D2896 |
7.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.76 | DIN 51575 |
0.76
%wt.
DIN 51575
|
RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is designed on a special formulation ensuring trouble-free transmission function, even under wide extremes of temperature and severe operating conditions.
Compliance with the requirements:
Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1231100-004
Volume:
10 L
vendor code:
1231100-010
Volume:
20 L
vendor code:
1231100-020
Volume:
20 L, ecobox
vendor code:
1231100-B20
Volume:
60 L
vendor code:
1231100-060
RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is designed on a special formulation ensuring trouble-free transmission function, even under wide extremes of temperature and severe operating conditions.
This allows the use of RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 under different operating conditions.
Application Note
RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is a gear oil for lubricating boat and ship transmissions (in- and outboard) for stern- and revengedrive units as well as for Z-drives when a synthetic GL-5/ GL-4 transmission oil is required.
Follow the manufacturers’ recommendations!
Characteristics
- excellent oxidation stability
- very good viscosity-temperature behaviour, high temperature resistance
- high wear protection effect, even under extreme conditions
- extraordinary good ageing stability
- a very good resistance towards high pressures and shock loads
- Neutral to metal and sealants
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 75W-90 |
75W-90
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Suitable for | Honda, Mercruiser, Mercury, Suzuki, Yamaha, Yanmar |
Honda, Mercruiser, Mercury, Suzuki, Yamaha, Yanmar
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Blue | visual |
Blue
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.8 | DIN 51562-1 |
16.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 226 | DIN EN ISO 2592 |
226
°C
DIN EN ISO 2592
|
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
47.000
mPa*s
ASTM D2983
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
RAVENOL MOTOGEAR SAE 10W-40 GL-4 is used in 2- and 4-stroke engines with separate gear lubrication and wet clutch systems.
- Available packaging
- Product parameters
RAVENOL MOTOGEAR SAE 10W-40 GL-4 is used in 2- and 4-stroke engines with separate gear lubrication and wet clutch systems.
RAVENOL MOTOGEAR SAE 10W-40 GL-4 enables a precise and soft changing of gears. Prevents clutch slippage. Forms a heavy-duty lubricant film, which is effective under all operating conditions.
RAVENOL MOTOGEAR SAE 10W-40 GL-4 is used in motorcycles from Japanese and European manufacturers.
Application Note
RAVENOL MOTOGEAR SAE 10W-40 GL-4 is used in 2- and 4-stroke engines with separate gear lubrication and wet clutch systems.
RAVENOL MOTOGEAR SAE 10W-40 GL-4 enables a precise and soft changing of gears. Prevents clutch slippage. Forms a heavy-duty lubricant film, which is effective under all operating conditions.
Characteristics
- Quick lubrication of the engine at all operating temperatures.
- Heavy-duty lubricant film under all operating conditions.
- Precise, soft changing of gears, no clutch slippage.
- Reliability due toexcellent lubricant film adhesion, extraordinary purification capacity and outstandingageing resistance.
- Neutral towards sealing compounds.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Density at 20 °C | kg/m³ | 857.4 | EN ISO 12185 |
857.4
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14 | DIN 51562-1 |
14
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 91.3 | DIN 51562-1 |
91.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 157 | DIN ISO 2909 |
157
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.9 | ASTM D2896 |
10.9
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.5 | DIN 51575 |
1.5
%wt.
DIN 51575
|
Application NoteRAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
Manufacturer Approved:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Compliance with the requirements:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310700-005
Volume:
20 L, ecobox
vendor code:
1310700-B20
Volume:
60 L, print
vendor code:
1310700-D60
Volume:
1000 L
vendor code:
1310700-700
Application Note
RAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
RAVENOL Getriebeöl UTTO is suitable for wet brakes of load change couplings and minor drives.
Characteristics
- a very high stable viscosity index
- a very low pour point
- a high oxidation stability
- a very high pressure absorption capacity
- protection against corrosion and foam formation as far as possible
- a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load changecouplings and minor drives
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F |
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
|
||
| Recomendations | Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K |
Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K
|
||
| Density at 20 °C | kg/m³ | 856 | EN ISO 12185 |
856
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.7 | DIN 51562-1 |
9.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 57.6 | DIN 51562-1 |
57.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.7 | ASTM D2896 |
9.7
mgKOH/g
ASTM D2896
|
| Noack Volatility | % M/M | 10.1 | ASTM D5800 |
10.1
% M/M
ASTM D5800
|
| Approvals | Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F |
Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F
|
