RAVENOL Gear Super Synth GSS 75W-90

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.

Manufacturer Approved:
MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

Compliance with the requirements:
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312

show details

SAE: 75W-90

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221123-001

Volume:
4 L

vendor code:
1221123-004

Volume:
10 L

vendor code:
1221123-010

Code:
4014835872745

Volume:
20 L

vendor code:
1221123-020

Volume:
20 L, ecobox

vendor code:
1221123-B20

Volume:
60 L

vendor code:
1221123-060

Volume:
60 L, print

vendor code:
1221123-D60

Volume:
208 L

vendor code:
1221123-208

Code:
4014835872806

Volume:
208 L, print

vendor code:
1221123-D28

Volume:
1000 L

vendor code:
1221123-700

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.

Application Note

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer instructions
excellent cold flow properties
good wear protection protects the gearbox
Fuel savings even with short distances in low outside temperatures
stable lubricating film even under high stress
extreme low pour point
Can be used at changing temperatures due to the high viscosity index

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Recomendations		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312
specification		MIL-PRF 2105 E, SAE J 2360		MIL-PRF 2105 E, SAE J 2360
Suitable for		DAF		DAF
Density at 20 °C		873,0	EN ISO 12185	873,0 EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	14.82	DIN 51562-1	14.82 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		141	DIN ISO 2909	141 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	97.000	ASTM D2983	97.000 mPa*s ASTM D2983
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Flashpoint	°C	186	DIN EN ISO 2592	186 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

RAVENOL Gear Trans Synth GTS 75W-90

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.

Manufacturer Approved:
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

Compliance with the requirements:
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13

show details

SAE: 75W-90

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221122-001

Volume:
4 L

vendor code:
1221122-004

Volume:
10 L

vendor code:
1221122-010

Code:
4014835872561

Volume:
20 L

vendor code:
1221122-020

Volume:
20 L, ecobox

vendor code:
1221122-B20

Volume:
60 L

vendor code:
1221122-060

Volume:
60 L, print

vendor code:
1221122-D60

Volume:
208 L

vendor code:
1221122-208

Code:
4014835872622

Volume:
208 L, print

vendor code:
1221122-D28

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.

Application Note

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer instructions
excellent cold flow properties
good wear protection protects the gearbox
Fuel savings even with short distances in low outside temperatures
stable lubricating film even under high stress
extreme low pour point
Can be used at changing temperatures due to the high viscosity index

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Recomendations		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
specification		MIL-PRF 2105 E, SAE J 2360		MIL-PRF 2105 E, SAE J 2360
Suitable for		DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault		DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
Compliant products		Isuzu Axle Oil, Isuzu LCV Front Axle Oil		Isuzu Axle Oil, Isuzu LCV Front Axle Oil
Density at 20 °C		868,0	EN ISO 12185	868,0 EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	15.8	DIN 51562-1	15.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	106.8	DIN 51562-1	106.8 mm²/s DIN 51562-1
Viscosity Index VI		158	DIN ISO 2909	158 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	63,400	ASTM D2983	63,400 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	190	DIN EN ISO 2592	190 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C)		1a	ASTM D130	1a ASTM D130
Approvals		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

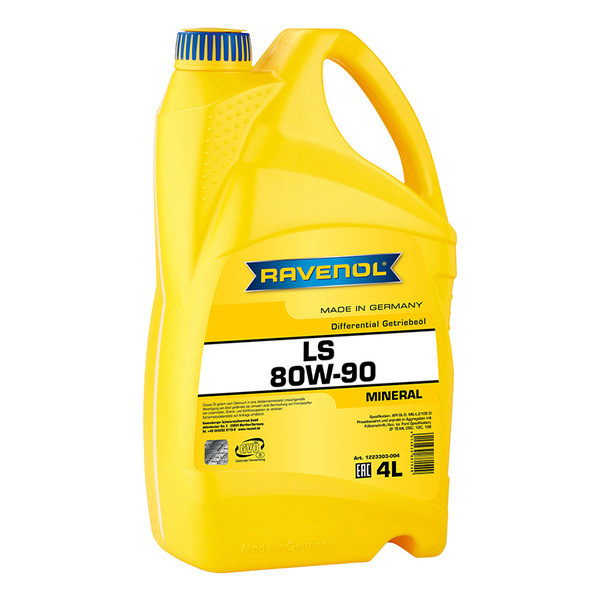

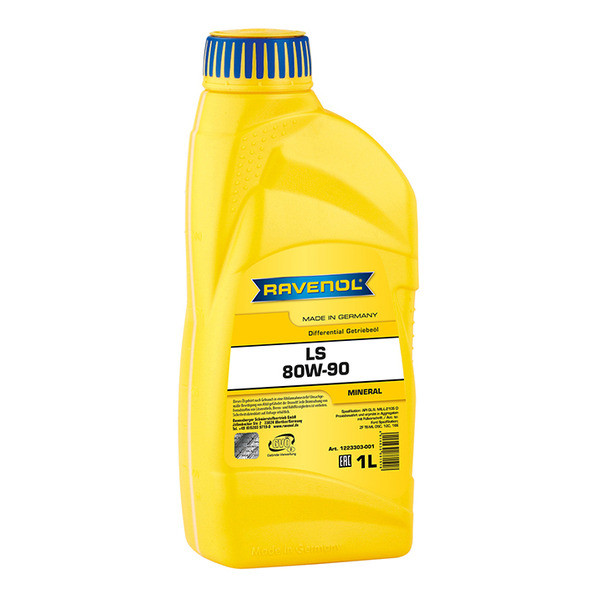

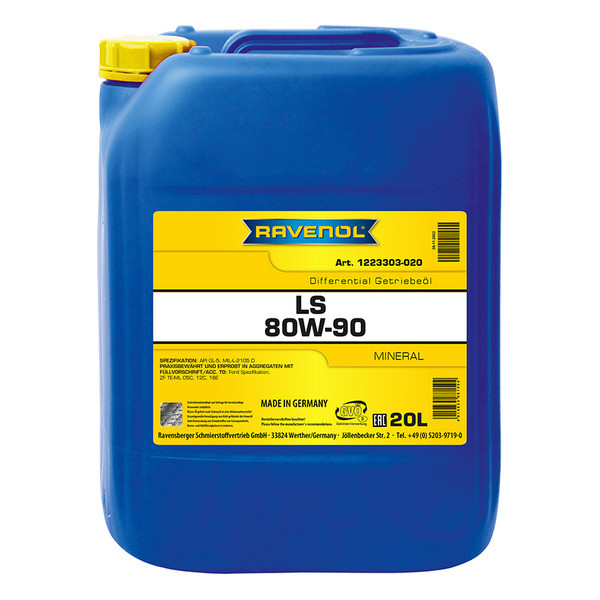

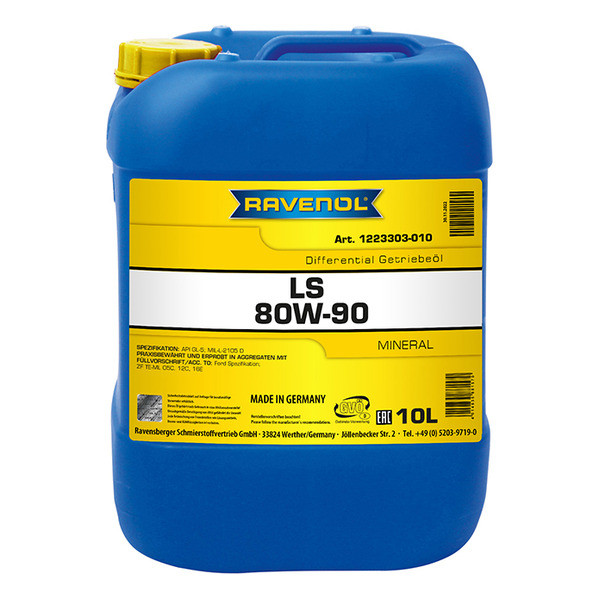

RAVENOL Sperrdiff. Hyp. Getr.öl LS 80W-90 GL-5

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223303-001

Volume:
20 L, ecobox

vendor code:
1223303-B20

Volume:
4 L

vendor code:
1223303-004

Volume:
10 L

vendor code:
1223303-010

Volume:
20 L

vendor code:
1223303-020

Volume:
60 L

vendor code:
1223303-060

Volume:
208 L

vendor code:
1223303-208

Volume:
1000 L

vendor code:
1223303-700

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Application Note

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.

Characteristics

Extremely high load carrying capacity
Excellent wear protection by EP agents
Excellent resistance to aging
High oxidation resistance even under high thermal stress
Good foam / air separation and behave well at high speeds
Neutrality towards non-ferrous metals and seals
Excellent viscosity-temperature behavior

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	17.6	DIN 51562-1	17.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	177.3	DIN 51562-1	177.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	114.400	ASTM D2983	114.400 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

EPX Getriebe-Oel 85W-140 GL-5

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use with maximum duty, hypoid gearing gears (axel drive, manual transmission, etc.), so far extreme pressure gear oils are required.

Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A

show details

SAE: 85W-140

API: GL-5

Equivalents OEM:
Alpine 0100781, Alpine 0100783, Alpine 0100784, Alpine 0100785, Alpine 100781, Alpine 100783, Alpine 100784, Alpine 100784, DAF 1660042, DAF 1660043, DAF 1660044, DAF 1678855, DAF 1697549, DAF 1699595, DAF 1699595G, DAF 1732360, GM 89021799, Hyundai Motor 0220000420, Hyundai XTeer 1041432, Scania 1892412, Scania 1892413, Scania 1892414, Scania 1892415, Scania 1892416, Volvo 1161279, Volvo 1161936, Volvo 1161937

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223211-001

Volume:
4 L

vendor code:
1223211-004

Code:
4014835738393

Volume:
10 L

vendor code:
1223211-010

Volume:
20 L

vendor code:
1223211-020

Code:
4014835738324

Volume:
20 L, ecobox

vendor code:
1223211-B20

Volume:
60 L

vendor code:
1223211-060

Code:
4014835738362

Volume:
208 L

vendor code:
1223211-208

Code:
4014835738386

Volume:
208 L, print

vendor code:
1223211-D28

Volume:
1000 L

vendor code:
1223211-700

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use with maximum duty, hypoid gearing gears (axel drive, manual transmission, etc.), so far extreme pressure gear oils are required.

Application Note

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

a very good oxidation stability
widest possible protection against rust and corrosion
no foam formation
excellent extreme pressure properties
low pour point
neutral behaviour towards metals and sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		85W-140		85W-140
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		GM		GM
Density at 20 °C	kg/m³	894	EN ISO 12185	894 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	26.4	DIN 51562-1	26.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	355	DIN 51562-1	355 mm²/s DIN 51562-1
Viscosity Index VI		99	DIN ISO 2909	99 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	55.000	ASTM D2983	55.000 mPa*s ASTM D2983
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A

VSG 75W-90

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	kg/m³	839.8	EN ISO 12185	839.8 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

TGO 75W-90 API GL 5

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

show details

SAE: 75W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222105-001

Code:
4014835734418

Volume:
4 L

vendor code:
1222105-004

Code:
4014835734494

Volume:
10 L

vendor code:
1222105-010

Volume:
20 L

vendor code:
1222105-020

Volume:
20 L, ecobox

vendor code:
1222105-B20

Code:
4014835789128

Volume:
60 L, print

vendor code:
1222105-D60

Code:
4014835734432

Volume:
208 L

vendor code:
1222105-208

Code:
4014835734487

Volume:
208 L, print

vendor code:
1222105-D28

Code:
4014835734401

Volume:
1000 L

vendor code:
1222105-700

Volume:
60 L

vendor code:
1222105-060

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Application Note

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.

Characteristics

Excellent oxidation stability
Greatest possible protection from rust, corrosion, foaming
Low solidification point
Excellent extreme pressure (EP) properties
High viscosity index
Fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Semi-synthetic		Semi-synthetic
API		GL-5		GL-5
Recomendations		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		GM		GM
Density at 20 °C	kg/m³	842	EN ISO 12185	842 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	97.3	DIN 51562-1	97.3 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	70.000	ASTM D2983	70.000 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

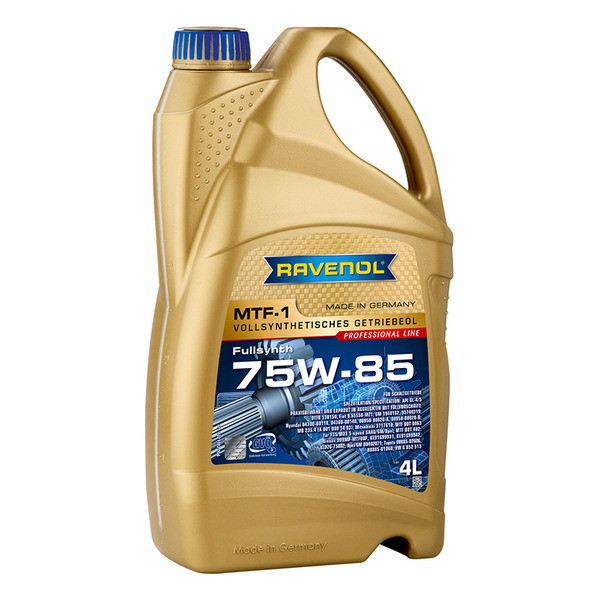

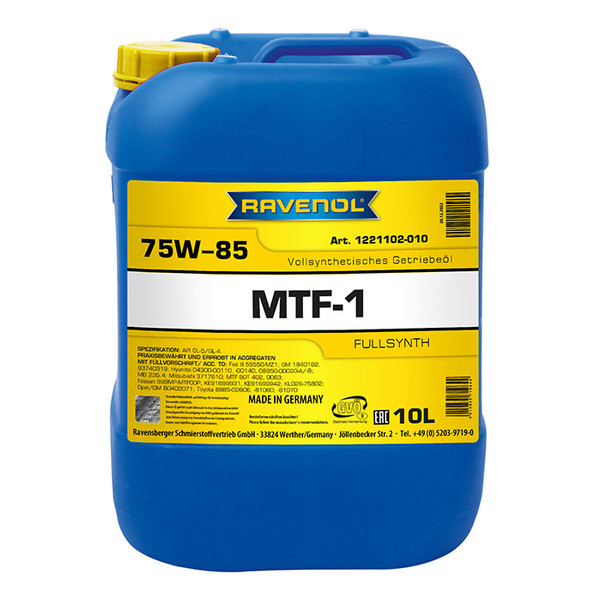

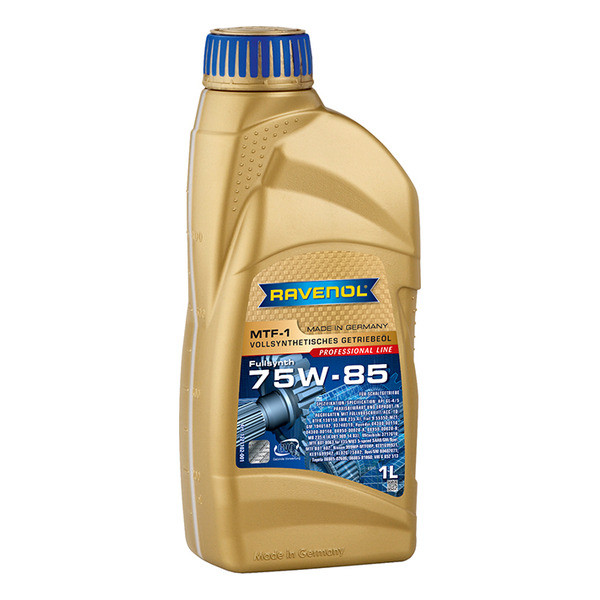

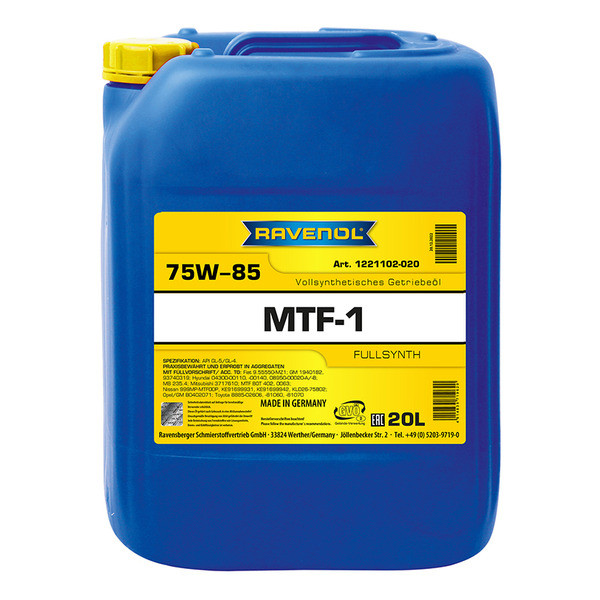

MTF-1 75W-85

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-85		75W-85
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

Getriebeoel EPX 90 GL 5

RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

show details

SAE: 90

API: GL-5

Equivalents OEM:
Chrysler 05136033AB

Available packaging
Full description
Product parameters

Volume:
4 L

vendor code:
1223202-004

Volume:
20 L

vendor code:
1223202-020

Code:
4014835738027

Volume:
20 L, ecobox

vendor code:
1223202-B20

Volume:
60 L

vendor code:
1223202-060

Volume:
208 L

vendor code:
1223202-208

Code:
4014835738089

Volume:
1000 L

vendor code:
1223202-700

Volume:
1 L

vendor code:
1223202-001

Code:
4014835738010

Volume:
10 L

vendor code:
1223202-010

RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 90 GL-5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		90		90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Getriebeoel SLG 80W-90

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.

Manufacturer Approved:
DTFR 12B130, MAN 342 Type M2, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 2B, ZF TE-ML 16B, ZF TE-ML 16D

show details

SAE: 80W-90

API: GL-3, GL-4, GL-5, MT-1

Equivalents OEM:
DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411 DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411, ZF 681000412

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223305-001

Volume:
4 L

vendor code:
1223305-004

Volume:
10 L

vendor code:
1223305-010

Code:
4014835738546

Volume:
20 L

vendor code:
1223305-020

Code:
4014835738522

Volume:
20 L, ecobox

vendor code:
1223305-B20

Volume:
60 L

vendor code:
1223305-060

Code:
4014835738560

Volume:
208 L

vendor code:
1223305-208

Code:
4014835738584

Volume:
1000 L

vendor code:
1223305-700

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.

Application Note

RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.

Characteristics

An excellent thermal stability
Excellent extreme pressure properties
A good circuit behavior at low temperatures
An extended service life
Neutral behavior towards sealing materials
Reliable protection against wear, sludge, adhesion and corrosion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-3, GL-4, GL-5, MT-1		GL-3, GL-4, GL-5, MT-1
Manufacturer Approved		DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B		DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
specification		MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E		MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E
Suitable for		DAF, IVECO		DAF, IVECO
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	15.2	DIN 51562-1	15.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	146.4	DIN 51562-1	146.4 mm²/s DIN 51562-1
Viscosity Index VI		105	DIN ISO 2909	105 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	161.000	ASTM D2983	161.000 mPa*s ASTM D2983
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	200	DIN EN ISO 2592	200 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B		DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B

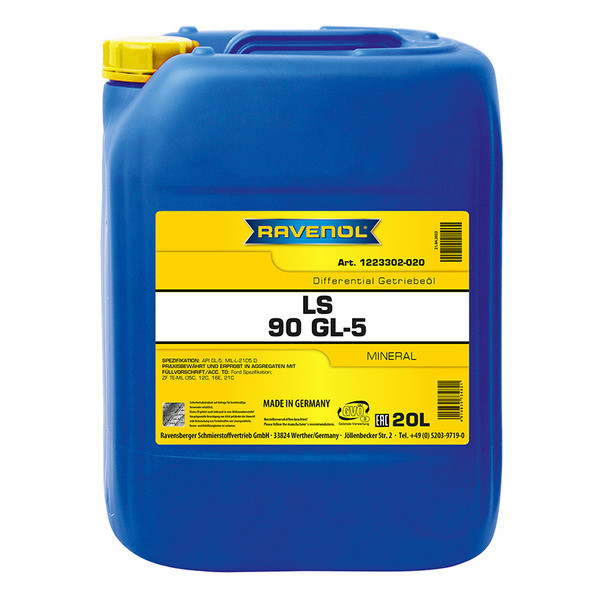

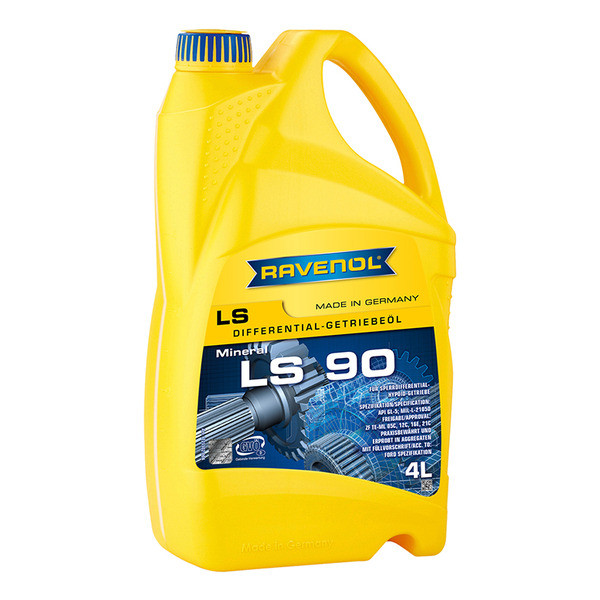

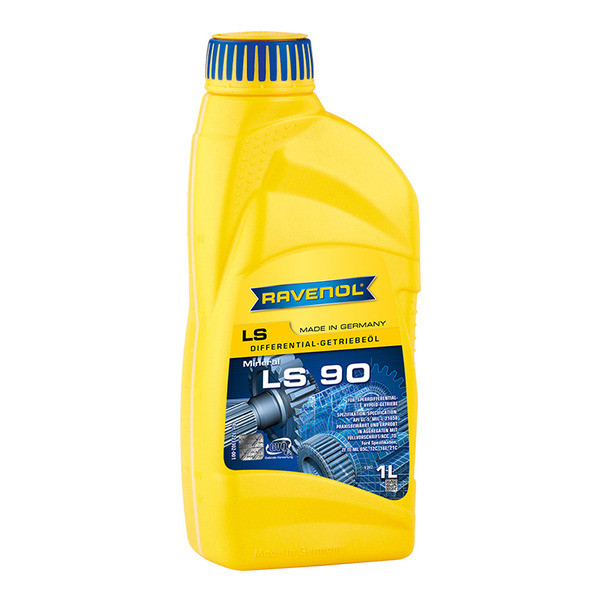

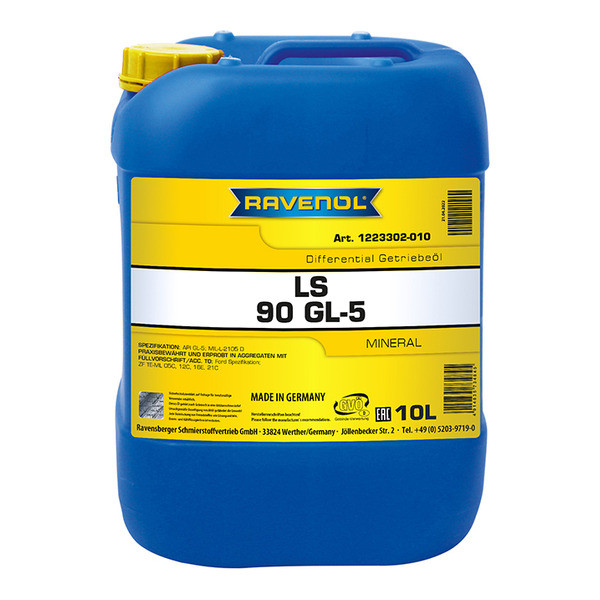

Sperrdifferential-Hypoid-Getriebeoel LS 90

RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C

show details

SAE: 90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
4 L

vendor code:
1223302-004

Volume:
10 L

vendor code:
1223302-010

Volume:
20 L, ecobox

vendor code:
1223302-B20

Volume:
1000 L

vendor code:
1223302-700

Volume:
1 L

vendor code:
1223302-001

Volume:
20 L

vendor code:
1223302-020

Volume:
60 L

vendor code:
1223302-060

Volume:
208 L

vendor code:
1223302-208

RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Application Note

RAVENOL Sperrdiff.-Getr.-Oel LS 90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.

Characteristics

Extremely high load carrying capacity
Excellent wear protection by EP agents
Excellent "limited slip" – Features
Excellent resistance to aging
High oxidation resistance even under high thermal stress
Good foam / air separation and behave well at high speeds
Neutrality towards non-ferrous metals and seals
Excellent viscosity-temperature behavior

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		90		90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	17.6	DIN 51562-1	17.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	177.3	DIN 51562-1	177.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	12.400	ASTM D2983	12.400 mPa*s ASTM D2983
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C

Getriebeoel EPX 80 GL 5

RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, VOLVO 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B

show details

SAE: 80W

API: GL-5

Available packaging
Full description
Product parameters

Volume:
4 L

vendor code:
1223201-004

Volume:
20 L, ecobox

vendor code:
1223201-B20

Volume:
60 L

vendor code:
1223201-060

Volume:
208 L

vendor code:
1223201-208

Volume:
1000 L

vendor code:
1223201-700

Volume:
1 L

vendor code:
1223201-001

Volume:
10 L

vendor code:
1223201-010

Volume:
20 L

vendor code:
1223201-020

RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80 GL 5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80 GL 5

Use RAVENOL Getriebeoel EPX SAE 80 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
SAE		80W		80W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B

Getriebeoel EPX 85W-90 GL 5

RAVENOL Getriebeoel EPX SAE 85W-90 GL5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B

show details

SAE: 85W-90

API: GL-5

Equivalents OEM:
Ford 5000166, Ford 5000167, Ford 5009922, Ford A72SX19K261CA, Ford A72SX19K261DA, Ford A82SX19K261AA, Toyota 0888500500, Toyota 0888500500, Toyota 0888500503

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223206-001

Volume:
4 L

vendor code:
1223206-004

Volume:
20 L

vendor code:
1223206-020

Volume:
20 L, ecobox

vendor code:
1223206-B20

Volume:
60 L

vendor code:
1223206-060

Volume:
208 L

vendor code:
1223206-208

RAVENOL Getriebeoel EPX SAE 85W-90 GL5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 85W-90 GL 5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 85W-90 GL 5.

Use RAVENOL Getriebeoel EPX SAE 85W-90 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil.
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		85W-90		85W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B

Getriebeoel EPX 140 GL4/GL5

Application NoteRAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B

show details

SAE: 140W

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223210-001

Volume:
4 L

vendor code:
1223210-004

Volume:
10 L

vendor code:
1223210-010

Volume:
20 L

vendor code:
1223210-020

Volume:
20 L, ecobox

vendor code:
1223210-B20

Volume:
60 L

vendor code:
1223210-060

Volume:
208 L

vendor code:
1223210-208

Volume:
1000 L

vendor code:
1223210-700

Application Note

RAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

good adhesion and pressure resistant lubricating film
excellent oxidation stability
exceptional viscosity-temperature behavior
a low pour point
excellent protection against rust and corrosion
enhanced wear-inhibiting effect
a good foam-resistant composition
compatible with all types of metals and sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		140W		140W
Type		Mineral		Mineral
API		GL-4, GL-5		GL-4, GL-5
Recomendations		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
Suitable for		GM		GM
Density at 20 °C	kg/m³	894	EN ISO 12185	894 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	26	DIN 51562-1	26 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	352	DIN 51562-1	352 mm²/s DIN 51562-1
Viscosity Index VI		97	DIN ISO 2909	97 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	55.000	ASTM D2983	55.000 mPa*s ASTM D2983
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B

SGO 80W-140 GL-5

Application NoteRAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A

show details

SAE: 80W-140

API: GL-5, MT-1

Equivalents OEM:
BRP 779478, GM 1940770, GM 9163336, GM 9163336, Scania 1892407, Scania 1892408, Scania 1892409, Scania 1892410, Scania 1892411, Scania 2003096

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222201-001

Volume:
4 L

vendor code:
1222201-004

Volume:
20 L

vendor code:
1222201-020

Code:
4014835849853

Volume:
20 L, ecobox

vendor code:
1222201-B20

Volume:
60 L

vendor code:
1222201-060

Volume:
208 L

vendor code:
1222201-208

Code:
4014835849679

Volume:
1000 L

vendor code:
1222201-700

Application Note

RAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

A pressure-resistant lubricating film, excellent high-pressure (EP) properties
High viscosity index
Excellent oxidation stability
An exceptional viscosity-temperature behavior
A low pour point
Excellent protection against rust and corrosion
Wear-resistant effect
Good air separation capacity, no foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-140		80W-140
Type		Synthetic		Synthetic
API		GL-5, MT-1		GL-5, MT-1
Recomendations		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
Suitable for		Dana		Dana
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	27.5	DIN 51562-1	27.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	205.1	DIN 51562-1	205.1 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	32.000	ASTM D2983	32.000 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	202	DIN EN ISO 2592	202 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A

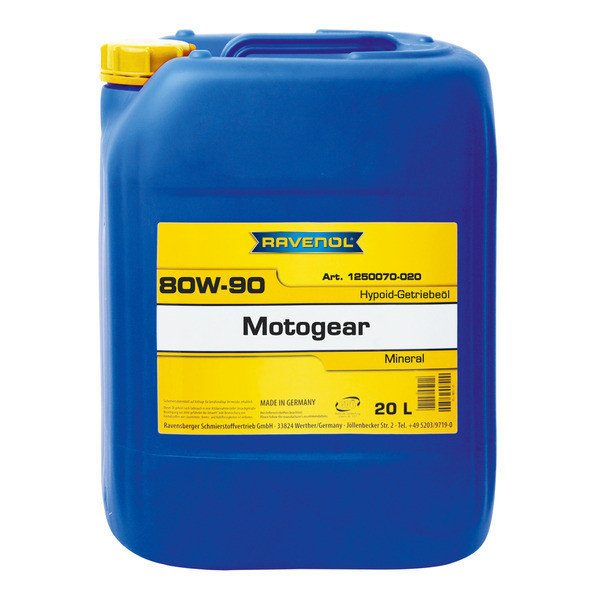

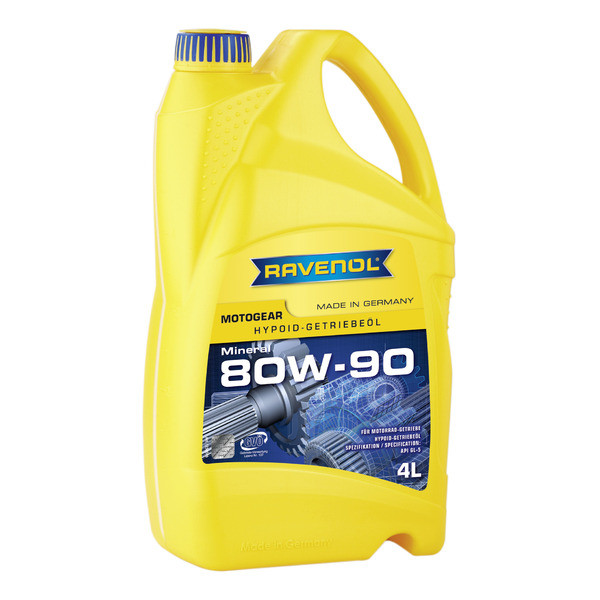

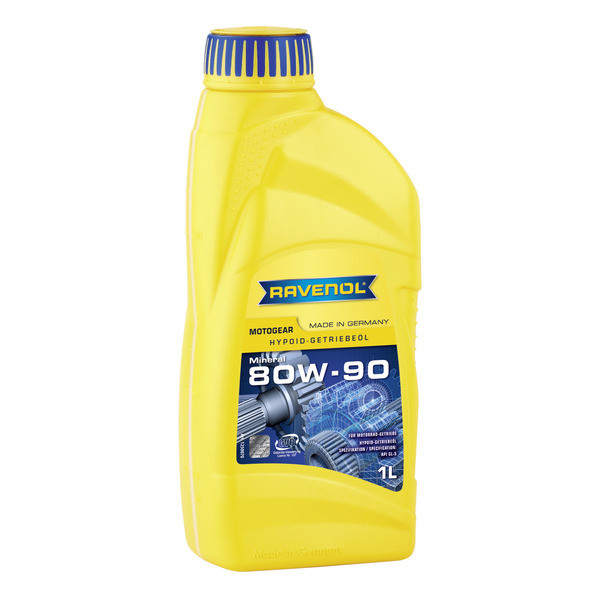

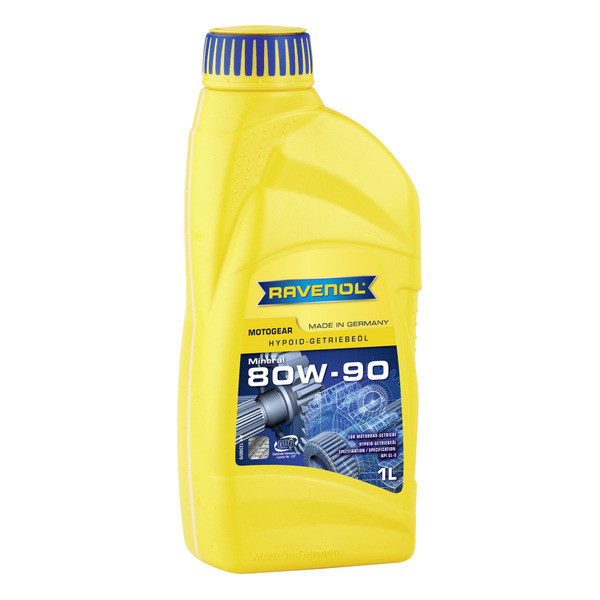

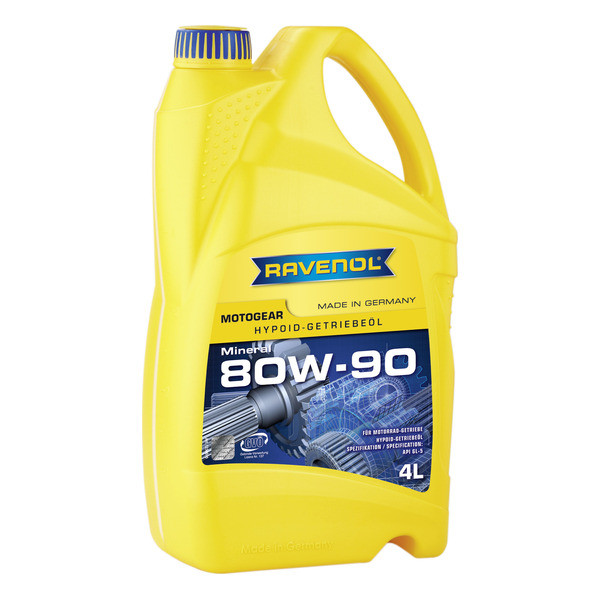

Motogear 80W-90 GL-5

RAVENOL MOTOGEAR SAE 80W-90 GL-5 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.

show details

SAE: 80W-90

API: GL-5

Equivalents OEM:
Suzuki 990F022930046, Suzuki 990F022930046

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1250070-001

Code:
4014835735415

Volume:
4 L

vendor code:
1250070-004

Volume:
20 L

vendor code:
1250070-020

Volume:
20 L, ecobox

vendor code:
1250070-B20

RAVENOL MOTOGEAR SAE 80W-90 GL-5 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.

RAVENOL MOTOGEAR SAE 80W-90 GL-5 reduces friction, prevents wear and corrosion.

Application Note

RAVENOL MOTOGEAR SAE 80W-90 GL-5 is suitable for use in manual transmissions for 2- and 4-stroke motorcycles if oil according to SAE 80W-90 API GL-5 is specified.

Characteristics

High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592

TDG 75W-110

RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Manufacturer Approved:
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A

Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B

show details

SAE: 75W-110

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221109-001

Code:
4014835772113

Volume:
4 L

vendor code:
1221109-004

Code:
4014835772199

Volume:
10 L

vendor code:
1221109-010

Volume:
20 L

vendor code:
1221109-020

Volume:
60 L

vendor code:
1221109-060

Volume:
60 L, print

vendor code:
1221109-D60

Volume:
208 L

vendor code:
1221109-208

Volume:
208 L, print

vendor code:
1221109-D28

RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.

Application Note

RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behaviour in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-110		75W-110
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A		ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
Recomendations		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
Suitable for		DAF, IVECO		DAF, IVECO
Density at 20 °C	kg/m³	874	EN ISO 12185	874 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	21.4	DIN 51562-1	21.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	163.5	DIN 51562-1	163.5 mm²/s DIN 51562-1
Viscosity Index VI		155	DIN ISO 2909	155 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	98.700	ASTM D2983	98.700 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	216	DIN EN ISO 2592	216 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B

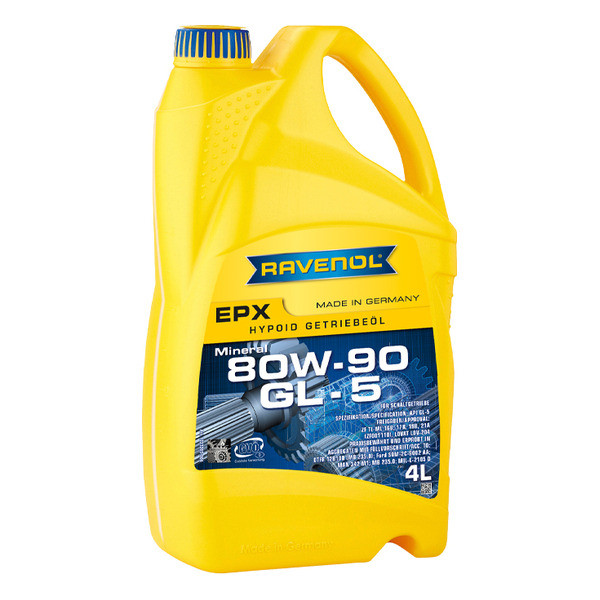

Getriebeoel EPX 80W-90 GL 5

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Manufacturer Approved:
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223205-001

Code:
4014835734715

Volume:
4 L

vendor code:
1223205-004

Code:
4014835734791

Volume:
10 L

vendor code:
1223205-010

Code:
4014835734746

Volume:
20 L

vendor code:
1223205-020

Code:
4014835734722

Volume:
20 L, ecobox

vendor code:
1223205-B20

Code:
4014835789722

Volume:
60 L

vendor code:
1223205-060

Code:
4014835734760

Volume:
208 L

vendor code:
1223205-208

Code:
4014835734784

Volume:
208 L, print

vendor code:
1223205-D28

Volume:
1000 L

vendor code:
1223205-700

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80W-90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Manufacturer Approved		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

VPG 75W-90

RAVENOL VPG SAE 75W-90 is preferably used in the marine environment. It contains high-quality synthetic base oils that are additivated with a balanced combination of active ingredients. This ensures high load-carrying capacity, wear protection and oxidation stability.

Compliance with the requirements:
IPS-A, IPS-B, IPS-C

show details

SAE: 75W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1231101-001

Code:
4014835874848

Volume:
4 L

vendor code:
1231101-004

Volume:
20 L

vendor code:
1231101-020

Volume:
208 L

vendor code:
1231101-208

Volume:
1000 L

vendor code:
1231101-700

Volume:
10 L

vendor code:
1231101-010

Volume:
20 L, ecobox

vendor code:
1231101-B20

Volume:
60 L

vendor code:
1231101-060

RAVENOL VPG SAE 75W-90 is preferably used in the marine environment. It contains high-quality synthetic base oils that are additivated with a balanced combination of active ingredients. This ensures high load-carrying capacity, wear protection and oxidation stability.

Application Note:

RAVENOL VPG SAE 75W-90 is excellent for use in heavily loaded axle drives of VOLVO Penta.

RAVENOL VPG SAE 75W-90 is a gear oil which is equally suitable for lubrication in boat and marine gearboxes from IPS and Aquamatic. The regulations of the boat and gearbox manufacturers must be observed.

Characteristics:

high additive reserves for prolonged oil change intervals according to the manufacturer instructions
excellent cold flow properties
good wear protection protects the gearbox
Fuel savings even with short distances in low outside temperatures
stable lubricating film even under high stress
extreme low pour point
Can be used at changing temperatures due to the high viscosity index

Parameter	Unit	Value	Audit
Brookfield Viscosity at -12 °C	mPa*s	63400	DIN EN 60243-1 (20°C)	63400 mPa*s DIN EN 60243-1 (20°C)
SAE		75W-90		75W-90
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-5		GL-5
Recomendations		IPS-A, IPS-B, IPS-C		IPS-A, IPS-B, IPS-C
specification		SAE J 2360		SAE J 2360
Suitable for		Volvo DPH-A, Volvo DPH-AP, Volvo DPH-AS, Volvo DPH-B, Volvo DPH-BP, Volvo DPH-BS, Volvo DPR, Volvo DPR-A, Volvo DPR-B, Volvo DPS-A, Volvo DPX, Volvo DPX-A, Volvo DPX-C, Volvo DPX-R, Volvo DPX-S, Volvo DPX-S1, Volvo SX-A, Volvo SX-C, Volvo SX-C1AC, Volvo SX-C2, Volvo SX-C2AC, Volvo SX-C3, Volvo SX-C3AC, Volvo SX-CLT, Volvo SX-CLT1, Volvo SX-CLT2, Volvo SX-CT, Volvo SX-CT1, Volvo SX-CT2, Volvo SX-M, Volvo SX-M1, Volvo SX-MAC, Volvo SX-MACLT, Volvo SX-MBAC, Volvo SX-MDA, Volvo SX-MDB, Volvo SX-MDC, Volvo SX-MHP, Volvo SX-MHP1, Volvo SX-MHPH, Volvo SX-MLT, Volvo SX-MTD, Volvo SX-MTD3, Volvo SX-R, Volvo SX-R1, Volvo SX-R2, Volvo SX-RT1, Volvo SX-RT2, Volvo SX-S, Volvo SX-SLT, Volvo SX-ST		Volvo DPH-A, Volvo DPH-AP, Volvo DPH-AS, Volvo DPH-B, Volvo DPH-BP, Volvo DPH-BS, Volvo DPR, Volvo DPR-A, Volvo DPR-B, Volvo DPS-A, Volvo DPX, Volvo DPX-A, Volvo DPX-C, Volvo DPX-R, Volvo DPX-S, Volvo DPX-S1, Volvo SX-A, Volvo SX-C, Volvo SX-C1AC, Volvo SX-C2, Volvo SX-C2AC, Volvo SX-C3, Volvo SX-C3AC, Volvo SX-CLT, Volvo SX-CLT1, Volvo SX-CLT2, Volvo SX-CT, Volvo SX-CT1, Volvo SX-CT2, Volvo SX-M, Volvo SX-M1, Volvo SX-MAC, Volvo SX-MACLT, Volvo SX-MBAC, Volvo SX-MDA, Volvo SX-MDB, Volvo SX-MDC, Volvo SX-MHP, Volvo SX-MHP1, Volvo SX-MHPH, Volvo SX-MLT, Volvo SX-MTD, Volvo SX-MTD3, Volvo SX-R, Volvo SX-R1, Volvo SX-R2, Volvo SX-RT1, Volvo SX-RT2, Volvo SX-S, Volvo SX-SLT, Volvo SX-ST
Density at 20 °C		868,0	EN ISO 12185	868,0 EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	15.8	DIN 51562-1	15.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	106.8	DIN 51562-1	106.8 mm²/s DIN 51562-1
Viscosity Index VI		158	DIN ISO 2909	158 DIN ISO 2909
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	190	DIN EN 60243-1 (20°C)	190 °C DIN EN 60243-1 (20°C)
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C)		1a	ASTM D130	1a ASTM D130
Approvals		IPS-A, IPS-B, IPS-C, SAE J 2360		IPS-A, IPS-B, IPS-C, SAE J 2360

Marine Gear Fullsynth MGF 75W-90

RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is designed on a special formulation ensuring trouble-free transmission function, even under wide extremes of temperature and severe operating conditions.

Compliance with the requirements:
Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Equivalents OEM:
Honda 08251999100HE, Honda 08251999101HE, Honda 08251999101MP, Honda 08251999102HE, Honda 0829299908, Suzuki 9900022B61001, Suzuki 9900022B61001, Yamalube ACCSHAFTDRFS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1231100-001

Code:
4014835851191

Volume:
4 L

vendor code:
1231100-004

Volume:
10 L

vendor code:
1231100-010

Volume:
20 L

vendor code:
1231100-020

Volume:
20 L, ecobox

vendor code:
1231100-B20

Volume:
60 L

vendor code:
1231100-060

Volume:
208 L

vendor code:
1231100-208

Code:
4014835858275

RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is designed on a special formulation ensuring trouble-free transmission function, even under wide extremes of temperature and severe operating conditions.

This allows the use of RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 under different operating conditions.

Application Note

RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is a gear oil for lubricating boat and ship transmissions (in- and outboard) for stern- and revengedrive units as well as for Z-drives when a synthetic GL-5/ GL-4 transmission oil is required.

Follow the manufacturers’ recommendations!

Characteristics

excellent oxidation stability
very good viscosity-temperature behaviour, high temperature resistance
high wear protection effect, even under extreme conditions
extraordinary good ageing stability
a very good resistance towards high pressures and shock loads
Neutral to metal and sealants

Parameter	Unit	Value	Audit
SAE		75W-90		75W-90
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		Honda, Mercruiser, Mercury, Suzuki, Yamaha, Yanmar		Honda, Mercruiser, Mercury, Suzuki, Yamaha, Yanmar
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		Blue	visual	Blue visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		Volvo PENTA, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

MARINE Gear Lube

Due to its balanced formulation RAVENOL MARINE Gear Lube offers a good viscosity-temperature behavior, low pour point and no foaming.

Compliance with the requirements:
Volvo PENTA

show details

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1233100-001

Code:
4014835734913

Volume:
4 L

vendor code:
1233100-004

Volume:
10 L

vendor code:
1233100-010

Volume:
20 L

vendor code:
1233100-020

Code:
4014835734920

Volume:
20 L, ecobox

vendor code:
1233100-B20

Volume:
60 L

vendor code:
1233100-060

Volume:
60 L, print

vendor code:
1233100-D60

Volume:
208 L

vendor code:
1233100-208

Volume:
1000 L

vendor code:
1233100-700

Due to its balanced formulation RAVENOL MARINE Gear Lube offers a good viscosity-temperature behavior, low pour point and no foaming.

RAVENOL MARINE Gear Lube allows use with different operating conditions.

Application Note

RAVENOL MARINE Gear Lube is gear oil for lubricating in boat and ship transmissions, when a GL-5 transmission type is required.

Characteristics

Good adhesion and pressure-resistant lubricating film
Excellent oxidation stability
Very good viscosity-temperature behaviour
Wear-resistant effect
No foaming tendency
Extraordinary ageing stability
A neutral behaviour towards metals and sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		Volvo PENTA		Volvo PENTA
Suitable for		Mercruiser, Mercury, Yanmar		Mercruiser, Mercury, Yanmar
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		Blue	visual	Blue visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Volvo PENTA		Volvo PENTA

Search results for query «GL-5»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note:

Characteristics:

Application Note

Characteristics

Application Note

Characteristics
