Search results for query «GL-5 LS»

Racing Gear Oil Eco 75W-140

RAVENOL Racing Gear Oil Eco SAE 75W-140 is a fully synthetic multi-grade hypoid gear oil for manual transmissions in the performance class API GL-5 +LS for many common motor vehicles. It is suitable for highly stressed hypoid axle drives and multi-plate drives in vehicles and work machines, where "limited slip" properties are also required.

Compliance with the requirements:
ZF TE-ML 07A, ZF TE-ML 08

show details

SAE: 75W-140

API: GL-5 LS

Available packaging
Full description
Product parameters

RAVENOL Racing Gear Oil Eco SAE 75W-140 is a USDA certified organic product based on plant-based base oils and special additives tailored to them. This exceeds compliance with today's practical requirements.

RAVENOL Racing Gear Oil Eco SAE 75W-140 is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL Racing Gear Oil Eco SAE 75W-140 is a high-performance transmission oil for maintaining manual transmissions in many popular vehicles. Also suitable for highly stressed hypoid axle gears in vehicles and work machines. Particularly suited for applications requiring "limited slip" (LS) properties, as in multi-disc limited slip differentials. Observe manufacturer's instructions!

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
SAE		75W-140		75W-140
Type		Full synthetic		Full synthetic
API		GL-5 LS		GL-5 LS
ASTM
Manufacturer Approved		USDA Biopreferred®		USDA Biopreferred®
Recomendations		ZF TE-ML 07A, ZF TE-ML 08		ZF TE-ML 07A, ZF TE-ML 08
Rennstrecken-Partnerschaft
Rennstrecken-Partner
specification
Suitable for
Compliant products
Density at 20 °C	g/cm³	840	EN ISO 12185	840 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	28.5	DIN 51562-1	28.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	195.3	DIN 51562-1	195.3 mm²/s DIN 51562-1
Viscosity Index VI		186	DIN ISO 2909	186 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	107.100	ASTM D2983	107.100 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	202	DIN EN ISO 2592	202 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		2c	ASTM D130	2c ASTM D130
Approvals		USDA Biopreferred®, ZF TE-ML 07A, ZF TE-ML 08		USDA Biopreferred®, ZF TE-ML 07A, ZF TE-ML 08
Recommendations		ZF TE-ML 07A, ZF TE-ML 08		ZF TE-ML 07A, ZF TE-ML 08

VGL 70W-80

RAVENOL VGL SAE 70W-80 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially for BMW vehicles.

Compliance with the requirements:
BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2

show details

SAE: 70W-80

API: GL-5 LS, MT-1

Equivalents OEM:
Mazda K02001SG1, Mazda K02001SG1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221112-001

Code:
4014835883147

Volume:
4 L

vendor code:
1221112-004

Code:
4014835883178

Volume:
10 L

vendor code:
1221112-010

Volume:
20 L

vendor code:
1221112-020

Volume:
20 L, ecobox

vendor code:
1221112-B20

Code:
4014835883291

Volume:
60 L

vendor code:
1221112-060

Volume:
208 L

vendor code:
1221112-208

RAVENOL VGL SAE 70W-80 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially for BMW vehicles.

RAVENOL VGL SAE 70W-80 ensures proper functioning of the aggregates even under the most severe operating conditions. Even under large temperature fluctuations it ensures a reliable lubricating film.

Application Note

RAVENOL VGL SAE 70W-80 is excellent for use in heavily loaded axle drives of vehicles. It is particularly suitable for axle drives with hypoid gearing.

Use RAVENOL VGL SAE 70W-80 according to the manufacturer's instructions!

Characteristics

Outstanding cold flow properties
Good wear protection protects the gearbox
Excellent resistance to aging
Extremely low pour point
High viscosity stability
Reduces running noise

Parameter	Unit	Value	Audit
Recommendations		BMW 83222413512, BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2
Brookfield Viscosity at -55 °C	mPa*s	109400	ASTM D2983	109400 mPa*s ASTM D2983
Brand		RAVENOL		RAVENOL
SAE		70W-80		70W-80
Type		Full synthetic		Full synthetic
API		GL-5 LS, MT-1		GL-5 LS, MT-1
Recomendations		BMW 83222413512, BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C		848	EN ISO 12185	848 EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.27	DIN 51562-1	9.27 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.47	DIN 51562-1	50.47 mm²/s DIN 51562-1
Viscosity Index VI		169	DIN ISO 2909	169 DIN ISO 2909
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C)		1a	ASTM D130	1a ASTM D130
Approvals		BMW 83222413512, BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, MIL-L-2105 D, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, MIL-L-2105 D, VW G 060 190 A2
Tendency to foam (Seq. I	II	.	DIN EN 60243-1 (20°C)	. II DIN EN 60243-1 (20°C)

SCG Super Construction Gear 85W-90 GL-5 LS

Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.

Compliance with the requirements:
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E

show details

SAE: 85W-90

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
10 L

vendor code:
1223310-010

Volume:
20 L

vendor code:
1223310-020

Volume:
60 L

vendor code:
1223310-060

Volume:
208 L

vendor code:
1223310-208

Volume:
1000 L

vendor code:
1223310-700

Volume:
20 L, ecobox

vendor code:
1223310-B20

Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is designed for the increased stress of manual transmissions and thus ensures perfect functioning of the transmissions.

Application Note

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is compatible with all brand-name transmission oils.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is particularly suitable for lubricating differential gears with limited slip.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS can be used in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is also suitable for use in Liebherr assemblies due to its high phosphorus content.

The operating instructions of the vehicle and transmission manufacturers must be observed.

Characteristics

Increased phosphorus content
High pressure stable lubrication film, thus outstanding wear protection under all loads
Outstanding shearing stability
Excellent oxidation stability, no foaming
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Recommendations		ASTM D7450, Liebherr Cranes, MAN 342 N, MIL-L-2105 D, VOLVO 97310, ZF TE-ML 08, ZF TE-ML 16E		ASTM D7450, Liebherr Cranes, MAN 342 N, MIL-L-2105 D, VOLVO 97310, ZF TE-ML 08, ZF TE-ML 16E
Brand		RAVENOL		RAVENOL
SAE		85W-90		85W-90
Type		Mineral		Mineral
API		GL-5 LS		GL-5 LS
ASTM		D7450		D7450
Recomendations		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
Suitable for		Liebherr Cranes		Liebherr Cranes
Density at 20 °C	g/cm³	885.3	EN ISO 12185	885.3 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.9	DIN 51562-1	14.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	136	DIN 51562-1	136 mm²/s DIN 51562-1
Viscosity Index VI		110	DIN ISO 2909	110 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	194	DIN EN ISO 2592	194 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
Residues and ash		>2300	ASTM D7751	>2300 ASTM D7751

Sperrdifferential-Hypoid-Getriebeoel LS 85W-90

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

show details

SAE: 85W-90

API: GL-5 LS

Equivalents OEM:
Alpine 0100761, Alpine 0100763, Alpine 0100764, Alpine 0100765, Alpine 100761, Alpine 100763, Alpine 100764, Alpine 100764, GM 19375057, Hyundai Motor 0210000100, MB A000989280312, Toyota 0888580623, Toyota 0888580626, Toyota 0888580633, Toyota 0888580924, Toyota 0888580933, Toyota 0888581004, Volvo 11708371, Volvo 11708372, Volvo VOE11708371, Volvo VOE11708372

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223301-001

Volume:
4 L

vendor code:
1223301-004

Volume:
20 L

vendor code:
1223301-020

Volume:
20 L, ecobox

vendor code:
1223301-B20

Volume:
60 L

vendor code:
1223301-060

Volume:
208 L

vendor code:
1223301-208

Code:
4014835738485

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Application Note

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.

Characteristics

Extremely high load carrying capacity
Excellent wear protection by EP agents
Excellent "limited slip" – Features
Excellent resistance to aging
High oxidation resistance even under high thermal stress
Good foam / air separation and behave well at high speeds
Neutrality towards non-ferrous metals and seals
Excellent viscosity-temperature behavior

Parameter	Unit	Value	Audit
Recommendations		Ford Spezifikation, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		Ford Spezifikation, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
Brand		RAVENOL		RAVENOL
SAE		85W-90		85W-90
Type		Mineral		Mineral
API		GL-5 LS		GL-5 LS
Recomendations		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	g/cm³	889	EN ISO 12185	889 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	17.6	DIN 51562-1	17.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	177.3	DIN 51562-1	177.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	12.100	ASTM D2983	12.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

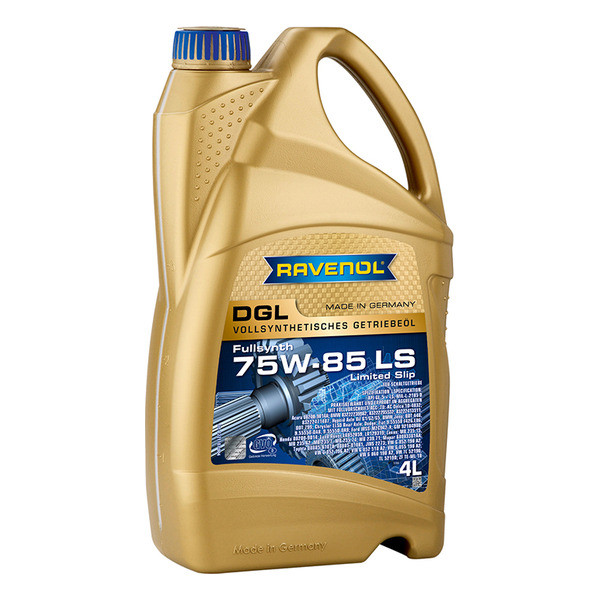

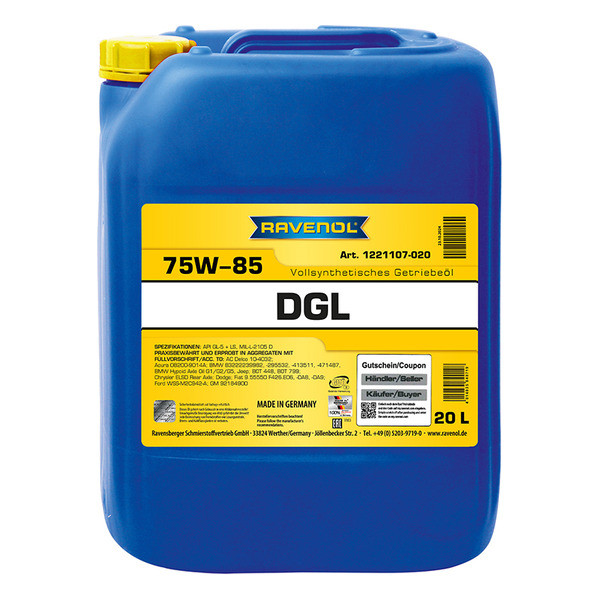

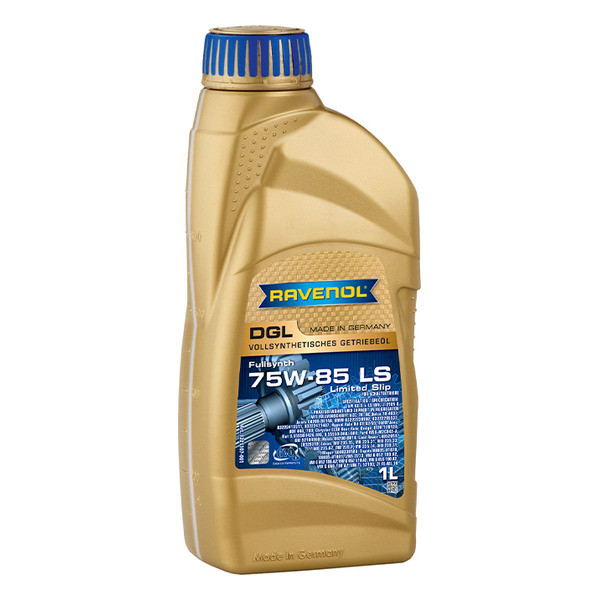

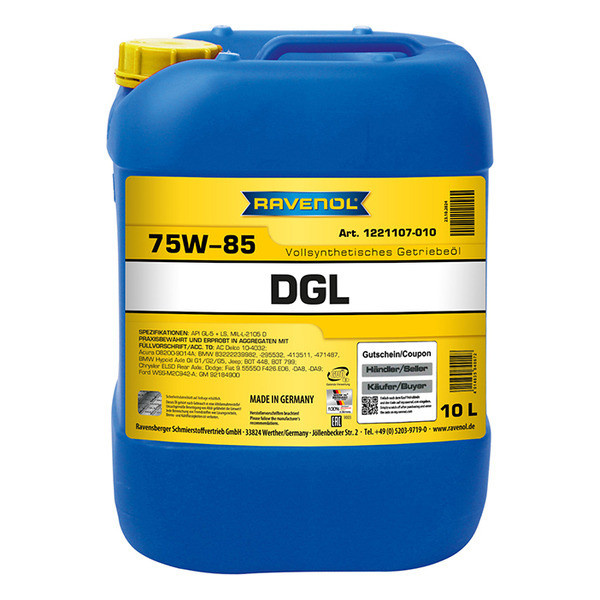

DGL 75W-85 GL-5 LS

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details

SAE: 75W-85

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
A stable lubricating film even at high oil temperatures and under high stress.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18		AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand		RAVENOL		RAVENOL
SAE		75W-85		75W-85
Type		Full synthetic		Full synthetic
API		GL-5 LS		GL-5 LS
Recomendations		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C	g/cm³	862	EN ISO 12185	862 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64.3	DIN 51562-1	64.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	26.000	ASTM D2983	26.000 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

LS 75W-90

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D

show details

SAE: 75W-90

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222102-001

Code:
4014835734319

Volume:
4 L

vendor code:
1222102-004

Code:
4014835734395

Volume:
10 L

vendor code:
1222102-010

Code:
4014835734340

Volume:
20 L

vendor code:
1222102-020

Volume:
20 L, ecobox

vendor code:
1222102-B20

Volume:
60 L, print

vendor code:
1222102-D60

Code:
4014835734333

Volume:
208 L, print

vendor code:
1222102-D28

Code:
4014835734302

Volume:
1000 L

vendor code:
1222102-700

Volume:
60 L

vendor code:
1222102-060

Volume:
208 L

vendor code:
1222102-208

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.

Characteristics

excellent oxidation stability
excellent protection against rust and corrosion
prevents foaming
outstanding extreme pressure properties
excellent limited slip properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D		GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		ZF TE-ML 05C, ZF TE-ML 05D		ZF TE-ML 05C, ZF TE-ML 05D
specification		MIL-L-2105 D		MIL-L-2105 D
Compliant products		GM 1940058, GM 88862624, GM 88862625, GM 93165388		GM 1940058, GM 88862624, GM 88862625, GM 93165388
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	17.1	DIN 51562-1	17.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	102.1	DIN 51562-1	102.1 mm²/s DIN 51562-1
Viscosity Index VI		182	DIN ISO 2909	182 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	84.300	ASTM D2983	84.300 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D

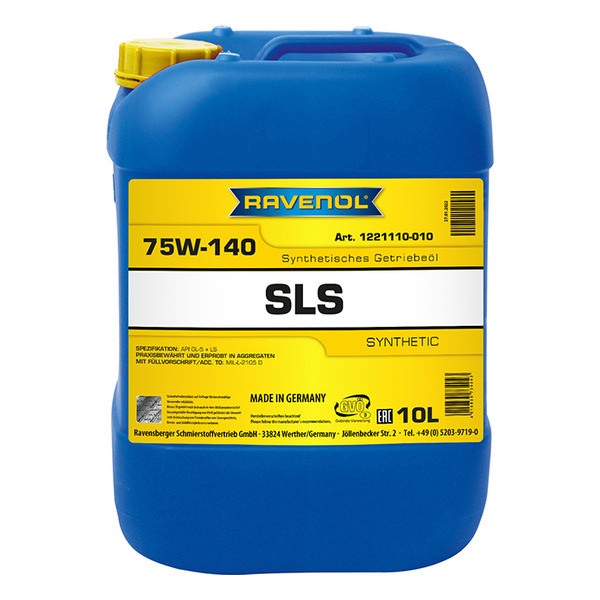

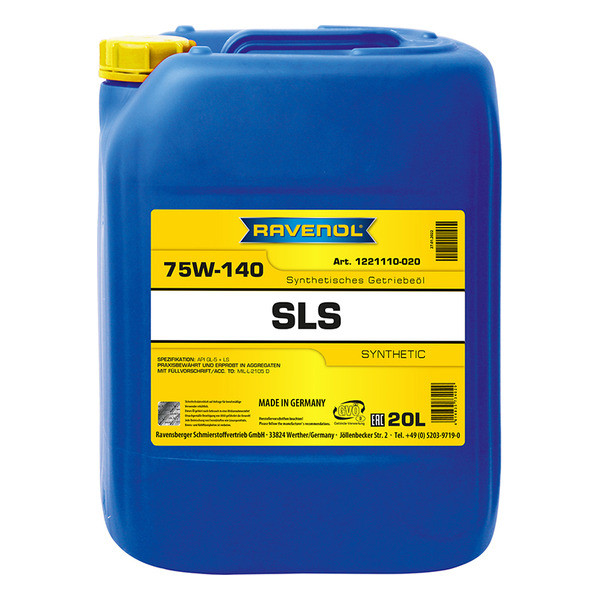

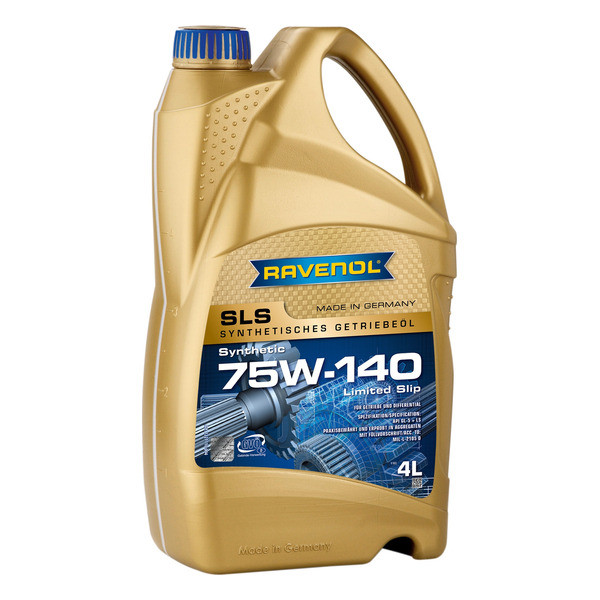

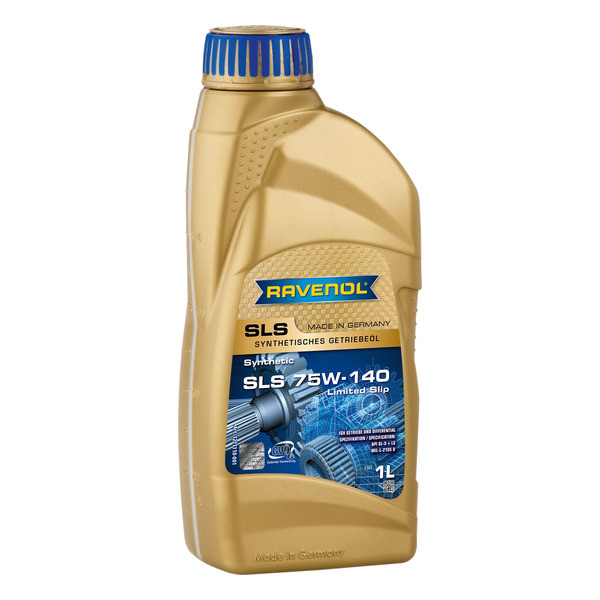

Getriebeoel SLS 75W-140 GL 5 LS

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
Ford WSL-M2C 192-A, MIL-L-2105 D

show details

SAE: 75W-140

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221110-001

Code:
4014835734012

Volume:
4 L

vendor code:
1221110-004

Code:
4014835734098

Volume:
10 L

vendor code:
1221110-010

Code:
4014835734043

Volume:
20 L

vendor code:
1221110-020

Volume:
20 L, ecobox

vendor code:
1221110-B20

Volume:
60 L

vendor code:
1221110-060

Volume:
60 L, print

vendor code:
1221110-D60

Volume:
208 L, print

vendor code:
1221110-D28

Code:
4014835734005

Volume:
1000 L

vendor code:
1221110-700

Volume:
208 L

vendor code:
1221110-208

Code:
4014835734081

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is outstanding for use as a rationalization product also with respect to the new generation of 5- and 6-gear manual transmissions and axle drives with and without limited slip differential. Especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is a high-performance transmission oil for maintaining manual transmissions and rear axles in many popular vehicles. Also suitable for highly stressed hypoid axle gears as well as spur- and bevel gears, change gears in vehicles and work machines, and steering gears. Particularly suited for applications requiring "limited slip" (LS) properties.

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Recommendations		MIL-L-2105 D		MIL-L-2105 D
Brookfield Viscosity at -50 °C	mPa*s	121.000	ASTM D2983	121.000 mPa*s ASTM D2983
Brand		RAVENOL		RAVENOL
SAE		75W-140		75W-140
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		Ford WSL-M2C 192-A, MIL-L-2105 D		Ford WSL-M2C 192-A, MIL-L-2105 D
Density at 20 °C	g/cm³	842.1	EN ISO 12185	842.1 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	28.1	DIN 51562-1	28.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	203.4	DIN 51562-1	203.4 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	127.600	ASTM D2983	127.600 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	220	DIN EN ISO 2592	220 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Ford WSL-M2C 192-A, MIL-L-2105 D		Ford WSL-M2C 192-A, MIL-L-2105 D

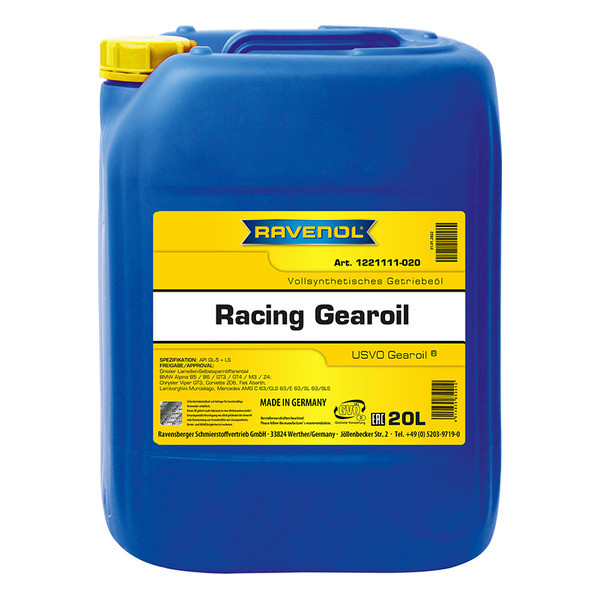

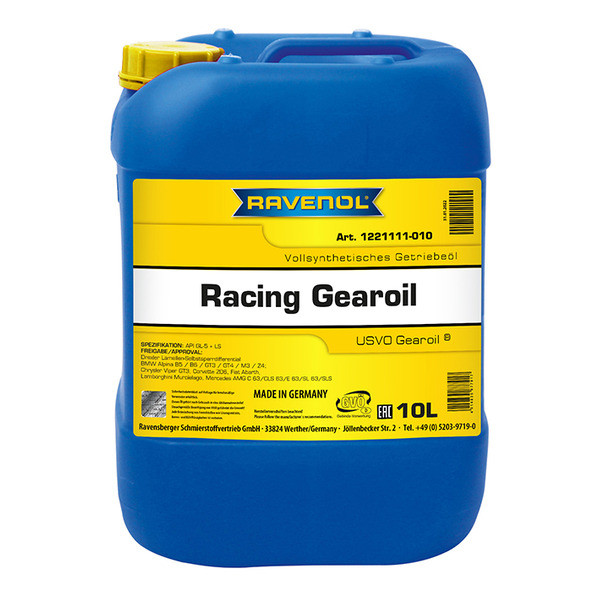

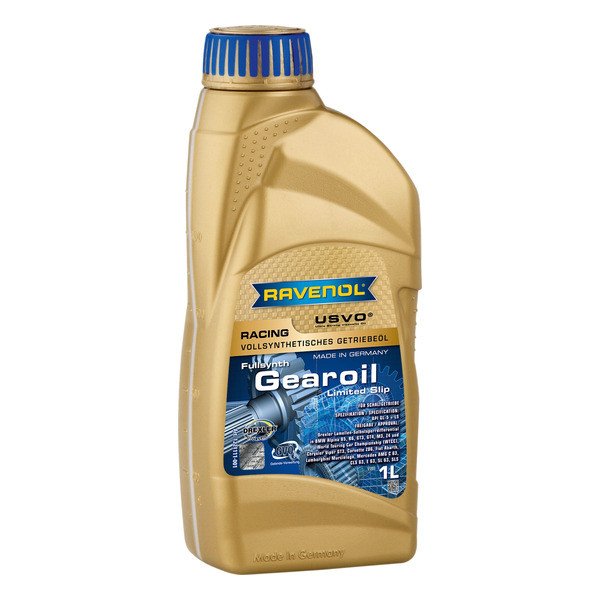

Racing Gearoil

RAVENOL Racing Gearoil was developed as manual and differential oil for use in racing vehicles. The USVO® technology offers high performance, improved gear protection and optimized gear cleanliness for your vehicle. Special additives guarantee limited slip properties, a high load carrying capacity, stable viscosity, optimum wear protection, low foaming, proper lubrication and reducing the heating of the transmission.

show details

API: GL-5 LS

Equivalents OEM:
Toyota 0888502606, Toyota 0888502606

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221111-001

Code:
4014835737617

Volume:
4 L

vendor code:
1221111-004

Volume:
10 L

vendor code:
1221111-010

Volume:
20 L

vendor code:
1221111-020

Code:
4014835850910

Volume:
20 L, ecobox

vendor code:
1221111-B20

Volume:
60 L

vendor code:
1221111-060

Volume:
60 L, print

vendor code:
1221111-D60

RAVENOL Racing Gearoil was developed as manual and differential oil for use in racing vehicles. The USVO® technology offers high performance, improved gear protection and optimized gear cleanliness for your vehicle. Special additives guarantee limited slip properties, a high load carrying capacity, stable viscosity, optimum wear protection, low foaming, proper lubrication and reducing the heating of the transmission.

RAVENOL Racing Gearoil offers excellent anti-wear properties and an optimum viscosity-temperature behavior.

Application Note

RAVENOL Racing Gearoil is used as special race oil based on PAO for limited-slip differentials of race cars.

Characteristics

A stable high-pressure lubricating oil film even at high temperatures and under high stress.
Excellent shear stability and excellent thermal stability.
A very good viscosity-temperature behaviour.
An excellent aging resistance and high oxidation resistance.
A very good wear protection, excellent EP characteristics.
A low foaming even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good circuit behaviour at low temperatures, low pour point.
Longest oil change intervals, thanks to excellent shear stability.
Reduced noise transmission through low vibration even in hot oil through the oil film with good adhesion and excellent LS additive.

Parameter	Unit	Value	Audit
Recommendations		BMW Alpina B5, BMW Alpina B6, BMW Alpina GT3, BMW Alpina GT4, BMW Alpina M3, BMW Alpina Z4, Chrysler Viper GT3, Corvette Z06, Fiat Abarth, Lamborghini Murcielago, Mercedes AMG C 63, Mercedes AMG CLS 63, Mercedes AMG E 63, Mercedes AMG SL 63, Mercedes AMG SLS, World Touring Car Championship (WTCC)		BMW Alpina B5, BMW Alpina B6, BMW Alpina GT3, BMW Alpina GT4, BMW Alpina M3, BMW Alpina Z4, Chrysler Viper GT3, Corvette Z06, Fiat Abarth, Lamborghini Murcielago, Mercedes AMG C 63, Mercedes AMG CLS 63, Mercedes AMG E 63, Mercedes AMG SL 63, Mercedes AMG SLS, World Touring Car Championship (WTCC)
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-5 LS		GL-5 LS
Recomendations		World Touring Car Championship (WTCC)		World Touring Car Championship (WTCC)
Suitable for		BMW Alpina B5, BMW Alpina B6, BMW Alpina GT3, BMW Alpina GT4, BMW Alpina M3, BMW Alpina Z4, Chrysler Viper GT3, Corvette Z06, Fiat Abarth, Lamborghini Murcielago, Mercedes AMG C 63, Mercedes AMG CLS 63, Mercedes AMG E 63, Mercedes AMG SL 63, Mercedes AMG SLS		BMW Alpina B5, BMW Alpina B6, BMW Alpina GT3, BMW Alpina GT4, BMW Alpina M3, BMW Alpina Z4, Chrysler Viper GT3, Corvette Z06, Fiat Abarth, Lamborghini Murcielago, Mercedes AMG C 63, Mercedes AMG CLS 63, Mercedes AMG E 63, Mercedes AMG SL 63, Mercedes AMG SLS
Density at 20 °C	g/cm³	864	EN ISO 12185	864 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
Viscosity at 100 °C	mm²/s	27	DIN 51562-1	27 mm²/s DIN 51562-1
Brookfield Viscosity at -40 °C	mPa*s	144.600	ASTM D2983	144.600 mPa*s ASTM D2983
Flashpoint	°C	204	DIN EN ISO 2592	204 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		World Touring Car Championship (WTCC)		World Touring Car Championship (WTCC)
