RAVENOL Multi ATF LVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with low viscosity is required.
Compliance with the requirements:
Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA QUEEN ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP
Equivalents OEM:
Aisin ATF6004, Aisin ATF6020, Aisin ATF6200, Chrysler 68333663AA, Chrysler 68333664AA, GM 19315204, GM 19315205, GM 19315206, GM 19315207, GM 88864059, GM 88864059, Hyundai XTeer 1011411, Hyundai XTeer 1011412, Hyundai XTeer 1011414, Hyundai XTeer 1041411, Hyundai XTeer 1041412, Hyundai XTeer 1041414, Mazda K020W0046M, Suzuki 9900022810000
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1211145-020
Volume:
60 L
vendor code:
1211145-060
Volume:
208 L
vendor code:
1211145-208
RAVENOL Multi ATF LVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with low viscosity is required.
Application Note
RAVENOL Multi ATF LVS Fluid is a product with a very wide manufacturer coverage and can be used in almost all conventional automatic transmissions with shift groups.
Not suitable for CVT automatic transmissions.
RAVENOL Multi ATF LVS Fluid can be used in a wide range of applications to meet the requirements of Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi and others. It will be used if no suitable original oil or RAVENOL Professional Line oil is available.
Observe the manufacturer's instructions.
Characteristics
- Very good lubricity even at low temperatures in winter
- A high, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against wear, corrosion and foaming
- Well-coordinated friction properties
- Neutral behavior towards sealing materials
- Neutral behavior due to inhibition against non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP |
Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP
|
||
| Suitable for | Chrysler, Honda Ultra 4WD Rear, SsangYong DSI M11 6-Speed, SsangYong DSI M78 6-Speed |
Chrysler, Honda Ultra 4WD Rear, SsangYong DSI M11 6-Speed, SsangYong DSI M78 6-Speed
|
||
| Compliant products | Honda DPSF, Hyundai SP-IV, Hyundai SPH-IV, MB A 001 989 45 03 10, Mitsubishi 4031610, Mopar ZF 8 & 9 Speed ATF, NIssan 999MP-MTP10P, Nissan 999MP-MTS00P, NIssan ATF Matic P, SsangYong Caltex, Volvo 31256774, Volvo 31256775, Volvo 31256776 |
Honda DPSF, Hyundai SP-IV, Hyundai SPH-IV, MB A 001 989 45 03 10, Mitsubishi 4031610, Mopar ZF 8 & 9 Speed ATF, NIssan 999MP-MTP10P, Nissan 999MP-MTS00P, NIssan ATF Matic P, SsangYong Caltex, Volvo 31256774, Volvo 31256775, Volvo 31256776
|
||
| Density at 20 °C | 848 | EN ISO 12185 |
848
EN ISO 12185
|
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | 5.9 | DIN 51562-1 |
5.9
DIN 51562-1
|
|
| Viscosity at 40 °C | 29.8 | DIN 51562-1 |
29.8
DIN 51562-1
|
|
| Viscosity Index VI | 149 | DIN ISO 2909 |
149
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 12050 | ASTM D2983 |
12050
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 220 | DIN EN ISO 2592 |
220
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP |
Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP
|

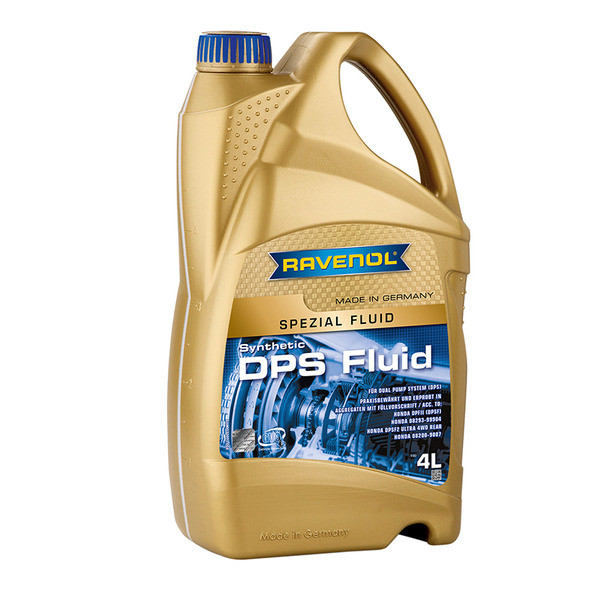

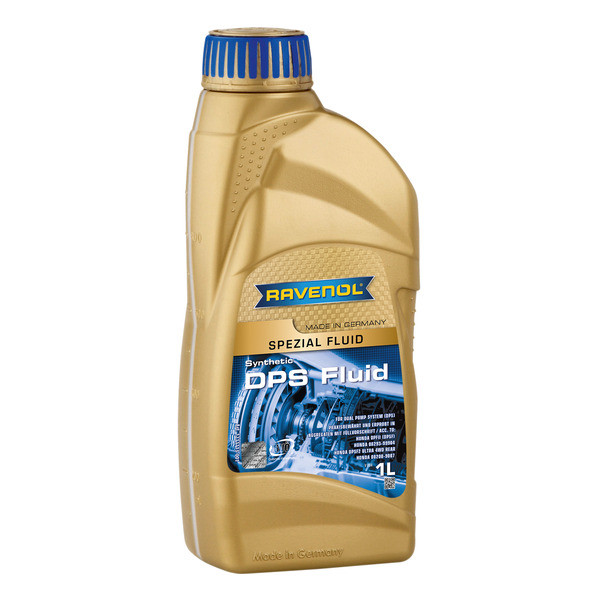

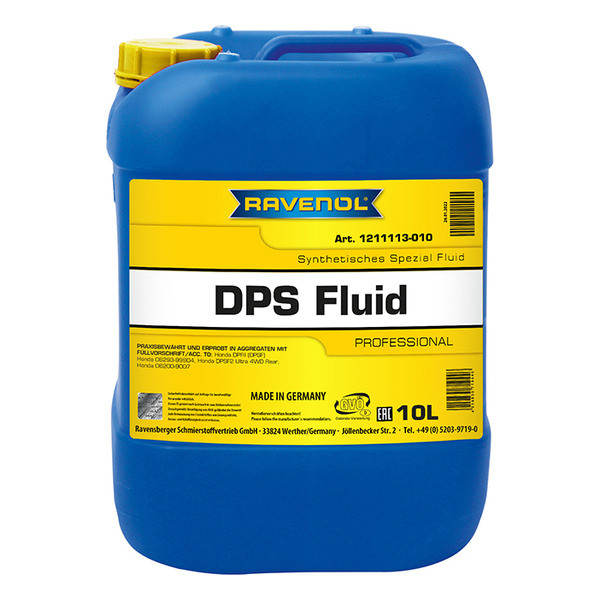

Application NoteRAVENOL DPS Fluid is used in vehicles with 4WD Real Time, e.g. Honda CR-V, Honda Element, Honda Odyssey, Honda Fit, Honda Orthia and others.
Compliance with the requirements:
Honda DPFII, Honda DPSF2
Equivalents OEM:
Honda 082009002, Honda 082009003, Honda 082009003A, Honda 082009003HE, Honda 082009007, Honda 082009007A, Honda 0826299964, Honda 0826299967, Honda 0826499964, Honda 0826499967, Honda 0826999903, Honda 08293LUB001, Honda 08293P99Z41Z3, Honda 08293P99Z41Z3, Honda 0829399901HA, Honda 0829399901HB, Honda 0829399901HE, Honda 0829399902HE, Honda 0829399904, Honda 0829399907, Honda 0829399920HE, Honda 82009003, Honda 82009007, Honda 826299964, Honda 826999903, Honda HO08293LUB001
- Available packaging
- Product parameters
Volume:
20 L
vendor code:

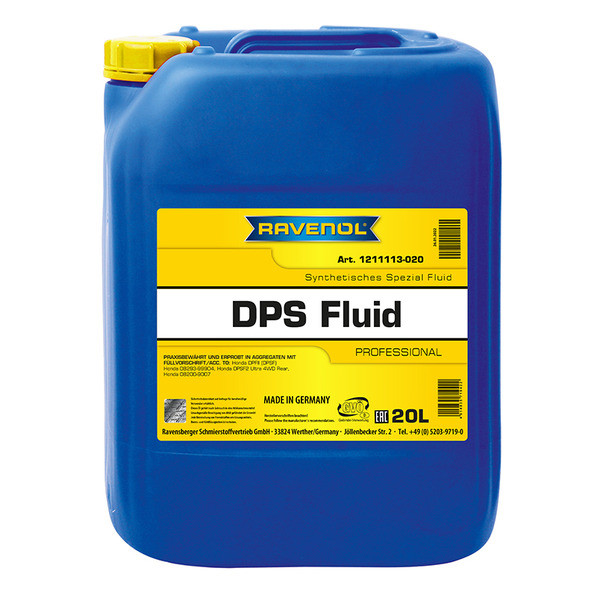

1211113-020
Volume:
20 L, ecobox
vendor code:
1211113-B20
Volume:
60 L, print
vendor code:
1211113-D60
Volume:
208 L, print
vendor code:
1211113-D28
Volume:
60 L
vendor code:
1211113-060
Volume:
208 L
vendor code:
1211113-208
Application Note
RAVENOL DPS Fluid is used in vehicles with 4WD Real Time, e.g. Honda CR-V, Honda Element, Honda Odyssey, Honda Fit, Honda Orthia and others.
Characteristics
- Superior resistance to lubricant failure und hard operating conditions
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Oxidation resistance and thermal stability
- Extensive protection against wear, corrosion and foaming
- Good balanced coefficient of friction
- High thermal and oxidative stability
- An excellent cooling capacity
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Honda DPFII, Honda DPSF2 |
Honda DPFII, Honda DPSF2
|
||
| Suitable for | Honda Ultra 4WD Rear |
Honda Ultra 4WD Rear
|
||
| Compliant products | Honda 08200-9007, Honda 08293-99904, Honda DPSF |
Honda 08200-9007, Honda 08293-99904, Honda DPSF
|
||
| Density at 20 °C | kg/m³ | 838 | EN ISO 12185 |
838
kg/m³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Approvals | Honda DPFII, Honda DPSF2 |
Honda DPFII, Honda DPSF2
|
