Search results for query «MB 228.1»

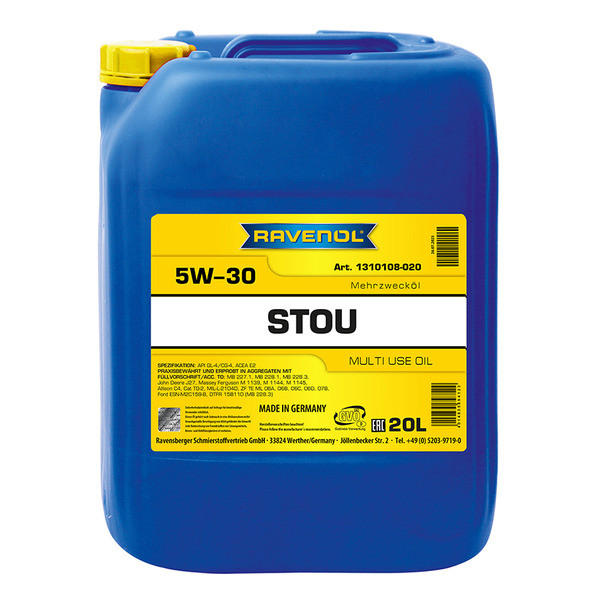

STOU 5W-30

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 5W-30

API: CG-4, GL-4

ACEA: E2

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310108-020

Volume:
60 L

vendor code:
1310108-060

Volume:
208 L

vendor code:
1310108-208

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Application Note

RAVENOL STOU SAE 5W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 5W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
API		CG-4, GL-4		CG-4, GL-4
ACEA		E2		E2
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Density at 20 °C	kg/m³	856	EN ISO 12185	856 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.8	DIN 51562-1	70.8 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	11.8	ASTM D2896	11.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.8	DIN 51575	1.8 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Super Turbo 20W-50

The high additive content of RAVENOL SUPER TURBO SAE 20W-50 guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.

Compliance with the requirements:
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00

show details

SAE: 20W-50

API: CF, CH-4, SL

ACEA: A3, B4, E2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113126-001

Volume:
4 L

vendor code:
1113126-004

Volume:
5 L

vendor code:
1113126-005

Volume:
10 L

vendor code:
1113126-010

Volume:
20 L

vendor code:
1113126-020

Volume:
20 L, ecobox

vendor code:
1113126-B20

Volume:
60 L

vendor code:
1113126-060

Volume:
208 L

vendor code:
1113126-208

Volume:
1000 L

vendor code:
1113126-700

The high additive content of RAVENOL SUPER TURBO SAE 20W-50 guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.

RAVENOL SUPER TURBO SAE 20W-50 is a top product with high safety reserves.

Application Note

RAVENOL SUPER TURBO SAE 20W-50 is used in passenger car gasoline and diesel engines with and without turbocharging, if the SAE 20W-50 is required.

RAVENOL SUPER TURBO SAE 20W-50 is miscible with all HD motor oils based on mineral oil.

Characteristics

Excellent detergent and dispersant
A good cold start performance
High oxidation stability
An excellent viscosity-temperature behaviour
Best wear protection
High safety reserves
Reduction of emissioins
Catalyst suitability

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		20W-50		20W-50
Type		Mineral		Mineral
API		CF, CH-4, SL		CF, CH-4, SL
ACEA		A3, B4, E2		A3, B4, E2
Recomendations		Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00		Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
Density at 20 °C		876,0	EN ISO 12185	876,0 EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	18.9	DIN 51562-1	18.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	161.2	DIN 51562-1	161.2 mm²/s DIN 51562-1
Viscosity Index VI		133	DIN ISO 2909	133 DIN ISO 2909
CCS Viscosity at -15 °C	mPa*s	6500	ASTM D5293	6500 mPa*s ASTM D5293
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	241	DIN EN ISO 2592	241 °C DIN EN ISO 2592
tbn	mgKOH/g	11.3	ASTM D2896	11.3 mgKOH/g ASTM D2896
Approvals		Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00		Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00

Expert SHPD 5W-30

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

Compliance with the requirements:
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

show details

SAE: 5W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
MB A000989240713FBDR, MB A000989240717FBDR, MB A000989630413BEER, MB A000989630417BEER, MB A000989730217BGEZ, MB A000989780715CDDB, MB A000989860219AEED, MB A000989890613ABDE, MB A000989890613ABDS, MB A000989890615ABDS, MB A000989890617ABDS, MB A000989890618ABDS, MB A0019890801AAA0, MB A0019890801AAA4, MB A0019890801AAA8, MB A0019890801AAA9, MB A0019890801ADA0, MB A0019890801ADA4, MB A0019890801ADA6, MB A0019890801ADA6, MB A0019890801ARU8, MB A0019890801BAA0, MB A0019890801BRD2, MB A002989370313FDDW, MB A094989210013ABDE, MB A094989210015ABDS, MB A094989210017ABDS, MB A094989210018ABDS, MB A094989260013FBDR, MB A094989260017FBDR

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1121104-001

Code:
4014835863842

Volume:
5 L

vendor code:
1121104-005

Code:
4014835863460

Volume:
7 L

vendor code:
1121104-007

Code:
4014835867949

Volume:
10 L

vendor code:
1121104-010

Code:
4014835864085

Volume:
20 L

vendor code:
1121104-020

Code:
4014835863491

Volume:
20 L, ecobox

vendor code:
1121104-B20

Code:
4014835863606

Volume:
60 L

vendor code:
1121104-060

Code:
4014835863583

Volume:
60 L, print

vendor code:
1121104-D60

Volume:
208 L

vendor code:
1121104-208

Code:
4014835863514

Volume:
208 L, print

vendor code:
1121104-D28

Volume:
1000 L

vendor code:
1121104-700

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.

Application Note

RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.

RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E3, E5, E7		A3, B4, E3, E5, E7
Recomendations		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Density at 20 °C	kg/m³	851	EN ISO 12185	851 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.2	DIN 51562-1	74.2 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6340	ASTM D5293	6340 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.890	ASTM D4684	25.890 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	8.3	ASTM D5800	8.3 % M/M ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.7	ASTM D2896	10.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.29	DIN 51575	1.29 %wt. DIN 51575
Approvals		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

Formel Diesel Super 20W-50

RAVENOL Formel Diesel Super SAE 20W-50 is a high-quality product with high safety reserves.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00

show details

SAE: 20W-50

API: CF-4, CH-4

ACEA: A3, B4, E2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123220-001

Volume:
5 L

vendor code:
1123220-005

Code:
4014835726451

Volume:
10 L

vendor code:
1123220-010

Code:
4014835726444

Volume:
20 L

vendor code:
1123220-020

Code:
4014835726420

Volume:
20 L, ecobox

vendor code:
1123220-B20

Volume:
60 L

vendor code:
1123220-060

Code:
4014835726468

Volume:
60 L, print

vendor code:
1123220-D60

Volume:
208 L

vendor code:
1123220-208

Code:
4014835726482

Volume:
208 L, print

vendor code:
1123220-D28

Volume:
1000 L

vendor code:
1123220-700

RAVENOL Formel Diesel Super SAE 20W-50 is a high-quality product with high safety reserves.

RAVENOL Formel Diesel Super SAE 20W-50 is particularly suitable for high mileage engines.

Application Note

RAVENOL Formel Diesel Super SAE 20W-50 is used for truck diesel engines with and without turbocharge. Also suitable for stationary units.

Characteristics

Good shearing stability
High oxidation stability
Excellent viscosity-temperature attribute
Compelling detergent- and dispersant properties
High safety reserves even in boundary lubrication
Excellent cold starting properties
Prevents black sludge from forming
Catalytic converter safe

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		20W-50		20W-50
Type		Mineral		Mineral
API		CF-4, CH-4		CF-4, CH-4
ACEA		A3, B4, E2		A3, B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00
Density at 20 °C	kg/m³	876	EN ISO 12185	876 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	19	DIN 51562-1	19 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	161.4	DIN 51562-1	161.4 mm²/s DIN 51562-1
Viscosity Index VI		133	DIN ISO 2909	133 DIN ISO 2909
CCS Viscosity at -15 °C	mPa*s	6200	ASTM D5293	6200 mPa*s ASTM D5293
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	11.1	ASTM D2896	11.1 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00

Formel Diesel Super 10W-30

RAVENOL Formel Diesel Super SAE 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

show details

SAE: 10W-30

API: CF, CF-4

ACEA: B4, E2

Equivalents OEM:
Chrysler VU02101, Hyundai Motor 0520000C10, Hyundai Motor 0520000410, Hyundai Motor 0520000610, Hyundai Motor 520000610, Mitsubishi 2423610, Mitsubishi 2987401, Mitsubishi 2987610, Mitsubishi MZ102041, Mitsubishi MZ102682, Nissan KLBD010302, Nissan KLBD010302, Nissan KLBD010304, Toyota 0888083320, Toyota 0888083321, Toyota 0888301900, Toyota 0888301903, Toyota 0888301905, Toyota 0888301906

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123205-001

Code:
4014835726215

Volume:
5 L

vendor code:
1123205-005

Code:
4014835726253

Volume:
10 L

vendor code:
1123205-010

Code:
4014835726246

Volume:
20 L

vendor code:
1123205-020

Code:
4014835726222

Volume:
20 L, ecobox

vendor code:
1123205-B20

Volume:
60 L

vendor code:
1123205-060

Code:
4014835726260

Volume:
208 L

vendor code:
1123205-208

Code:
4014835726284

Volume:
1000 L

vendor code:
1123205-700

RAVENOL Formel Diesel Super SAE 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.

Application Note

RAVENOL Formel Diesel Super SAE 10W-30 is suitable for all kinds of passenger cars - gasoline and diesel engines - and can be ideally used the whole year, even with turbo charging.

Characteristics

Suitable for catalyst vehicles
Excellent detergent and dispersant characteristics
Good cold start characteristics
High oxidation stability
Excellent viscosity temperature behaviour
Best wear protection
Reduces emissions
High safety reserves

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		10W-30		10W-30
Type		Mineral		Mineral
API		CF, CF-4		CF, CF-4
ACEA		B4, E2		B4, E2
Recomendations		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
Density at 20 °C	kg/m³	859	EN ISO 12185	859 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.4	DIN 51562-1	12.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	82.5	DIN 51562-1	82.5 mm²/s DIN 51562-1
Viscosity Index VI		147	DIN ISO 2909	147 DIN ISO 2909
CCS Viscosity at -25 °C	mPa*s	6200	ASTM D5293	6200 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -30 °C	mPa*s	20.600	ASTM D4684	20.600 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	8.9	ASTM D2896	8.9 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

STOU 10W-30

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310100-005

Volume:
20 L

vendor code:
1310100-020

Code:
4014835739529

Volume:
20 L, ecobox

vendor code:
1310100-B20

Volume:
60 L

vendor code:
1310100-060

Code:
4014835739567

Volume:
208 L

vendor code:
1310100-208

Code:
4014835739581

Volume:
1000 L

vendor code:
1310100-700

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Application Note

RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
Protection against wear, corrosion and foam
High resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	867	EN ISO 12185	867 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.7	DIN 51562-1	74.7 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.58	DIN 51575	1.58 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

STOU 10W-40

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310111-005

Volume:
10 L

vendor code:
1310111-010

Volume:
20 L

vendor code:
1310111-020

Code:
4014835739826

Volume:
20 L, ecobox

vendor code:
1310111-B20

Volume:
60 L

vendor code:
1310111-060

Volume:
1000 L

vendor code:
1310111-700

Volume:
208 L

vendor code:
1310111-208

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
SAE		10W-40		10W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	864	EN ISO 12185	864 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.7	DIN 51562-1	14.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	101.1	DIN 51562-1	101.1 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
