Search results for query «MB 236.10»

Multi ATF HVS Fluid

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

show details

Equivalents OEM:
BMW 83220403675, BMW 83222220442, BMW 83222220442, MB A001989220309, MB A990989070009, Nissan 999MPMTW00P

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211144-001

Code:
4014835866591

Volume:
4 L

vendor code:
1211144-004

Code:
4014835866621

Volume:
10 L

vendor code:
1211144-010

Code:
4014835866652

Volume:
20 L

vendor code:
1211144-020

Volume:
20 L, ecobox

vendor code:
1211144-B20

Code:
4014835866737

Volume:
60 L

vendor code:
1211144-060

Volume:
208 L

vendor code:
1211144-208

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

Application Note

RAVENOL Multi ATF HVS Fluid is a product with a very wide manufacturer coverage and can be used in almost all conventional automatic transmissions with shift groups.

Not suitable for CVT automatic transmissions.

RAVENOL Multi ATF HVS Fluid is an automatic transmission fluid for longest oil change intervals.

RAVENOL Multi ATF HVS Fluid can be used in a wide range of applications to meet the requirements of Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi and others. It will be used if no suitable original oil or RAVENOL Professional Line oil is available. Observe the manufacturer's instructions.

Characteristics

Very good lubricity even at low temperatures in winter
A high, stable viscosity index
Very low pour point
Very good oxidation stability
Protection against wear, corrosion and foaming
Well-coordinated friction properties
Neutral behavior towards sealing materials
Neutral behavior due to inhibition against non-ferrous metals

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
Suitable for		Mopar		Mopar
Compliant products		Motorcraft XT-1-QF, ZF S671 090 170		Motorcraft XT-1-QF, ZF S671 090 170
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7	DIN 51562-1	7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	37.1	DIN 51562-1	37.1 mm²/s DIN 51562-1
Viscosity Index VI		153	DIN ISO 2909	153 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	18.930	ASTM D2983	18.930 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	230	DIN 51757	230 °C DIN 51757
Copper Strip Test at 121 °C		1 b	ASTM D130	1 b ASTM D130
Approvals		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

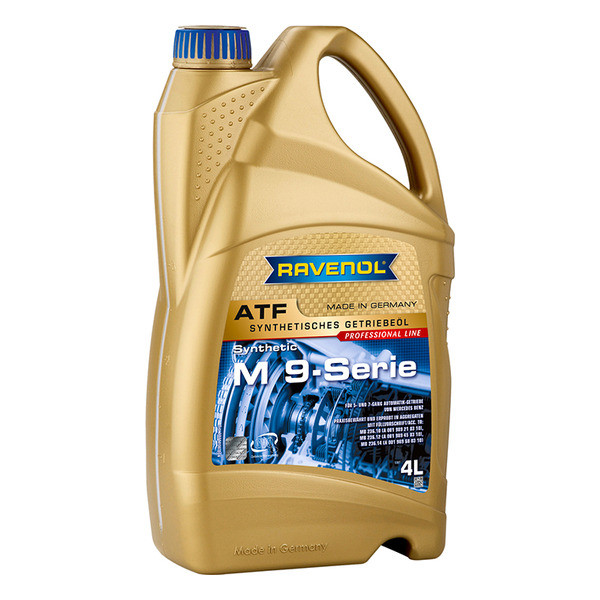

ATF M 9-Serie

RAVENOL ATF M-9 Serie is one of the ATF (Automatic Transmission Fluid) of the newly developed generation for all 7-motion automatic transmission of Mercedes Benz. A maximum wear protection in every operating state is guaranteed.

Compliance with the requirements:
MB 236.10, MB 236.12, MB 236.14

show details

Available packaging
Full description
Product parameters

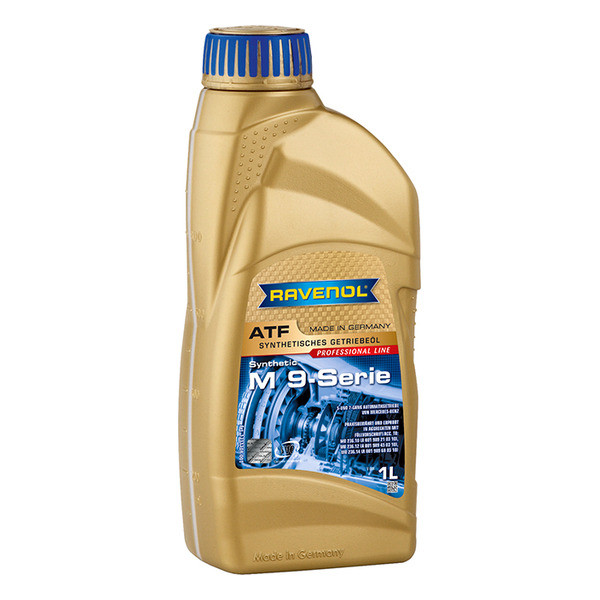

Volume:
1 L

vendor code:
1211108-001

Code:
4014835732414

Volume:
4 L

vendor code:
1211108-004

Code:
4014835732490

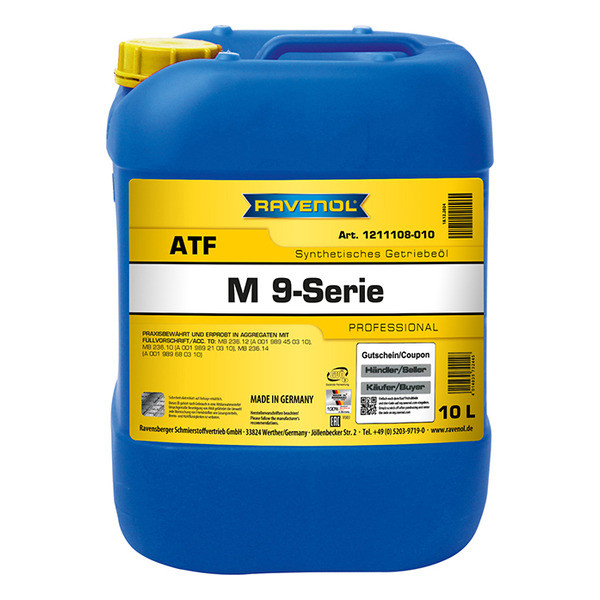

Volume:
10 L

vendor code:
1211108-010

Code:
4014835732445

Volume:
20 L, ecobox

vendor code:
1211108-B20

Code:
4014835785120

Volume:
60 L

vendor code:
1211108-060

Volume:
60 L, print

vendor code:
1211108-D60

Code:
4014835732438

Volume:
208 L, print

vendor code:
1211108-D28

Code:
4014835732407

Volume:
1000 L

vendor code:
1211108-700

Volume:
208 L

vendor code:
1211108-208

Code:
4014835732483

RAVENOL ATF M-9 Serie is one of the ATF (Automatic Transmission Fluid) of the newly developed generation for all 7-motion automatic transmission of Mercedes Benz. A maximum wear protection in every operating state is guaranteed.

Application Note

RAVENOL ATF M-9 Serie was developed for use in the latest NAG2VSport transmissions, 7G-Tronic (template 722.9 / W7A 700 / NAG2) without code A89, as well as for the 5-speed automatic transmissions (model 722.6 / W5A 580 / NAG1 and model 722.7 / FAG). It is also backward compatible for all earlier versions of Mercedes-Benz 4- and 5-speed automatic passenger car transmissions (template 722.3, 722.4, 722.5) with exception of the CVT automatic transmissions (continuously variable) template 722.8 installed in the A-Class W169 and in the B-Class W245, where RAVENOL CVT Fluid is required.

Characteristics

a very good lubricating ability even at low temperatures in winter
a high, stable viscosity index
a very low pour point
a very good oxidation stability
protection against corrosion and foam formation
good balanced coefficient of friction
a high thermal and oxidative stability
a exzellent cooling capacity
a exzellent shear stability
lowest evaporation losses
a neutral behaviour against sealing materials
a neutral behaviour because of inhibition against non ferrous metals

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		MB 236.10, MB 236.12, MB 236.14		MB 236.10, MB 236.12, MB 236.14
Compliant products		MB A 001 989 21 03 10, MB A 001 989 45 03 10		MB A 001 989 21 03 10, MB A 001 989 45 03 10
Density at 20 °C	kg/m³	846	EN ISO 12185	846 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Approvals		MB 236.10, MB 236.12, MB 236.14		MB 236.10, MB 236.12, MB 236.14

ATF Dexron III H

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212100-001

Code:
4014835732810

Volume:
4 L

vendor code:
1212100-004

Code:
4014835732896

Volume:
10 L

vendor code:
1212100-010

Code:
4014835732841

Volume:
20 L

vendor code:
1212100-020

Code:
4014835732827

Volume:
20 L, ecobox

vendor code:
1212100-B20

Code:
4014835787025

Volume:
60 L

vendor code:
1212100-060

Code:
4014835732865

Volume:
60 L, print

vendor code:
1212100-D60

Code:
4014835732834

Volume:
208 L

vendor code:
1212100-208

Code:
4014835732889

Volume:
208 L, print

vendor code:
1212100-D28

Code:
4014835732803

Volume:
1000 L

vendor code:
1212100-700

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application Note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

Very good lubricating properties even at low temperatures in winter
High and stable viscosity index
Very low flow point
Excellent oxidation stability
Extensive protection against wear, corrosion and foaming
Well-tuned friction properties
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition towards non-ferrous metals

Parameter	Unit	Value	Audit
ATF		Dexron III H		Dexron III H
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Recomendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
specification		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Suitable for		Nissan		Nissan
Compliant products		Volvo 1161521, Volvo 1161621		Volvo 1161521, Volvo 1161621
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	33.9	DIN 51562-1	33.9 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	14.200	ASTM D2983	14.200 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
tbn	mgKOH/g	1.8	ASTM D2896	1.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

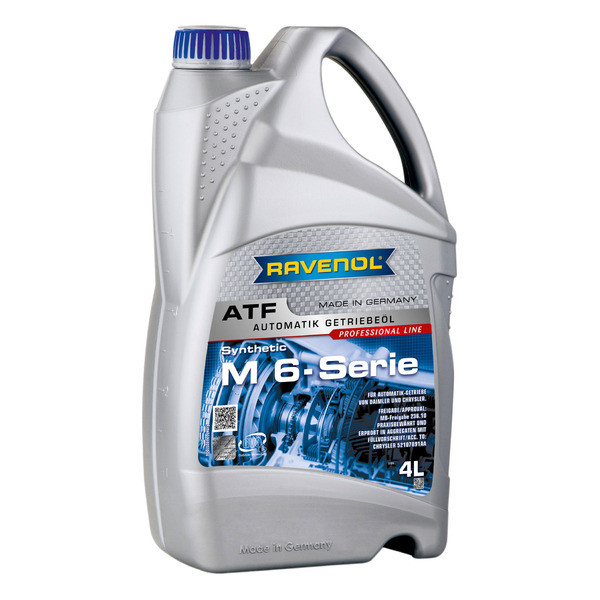

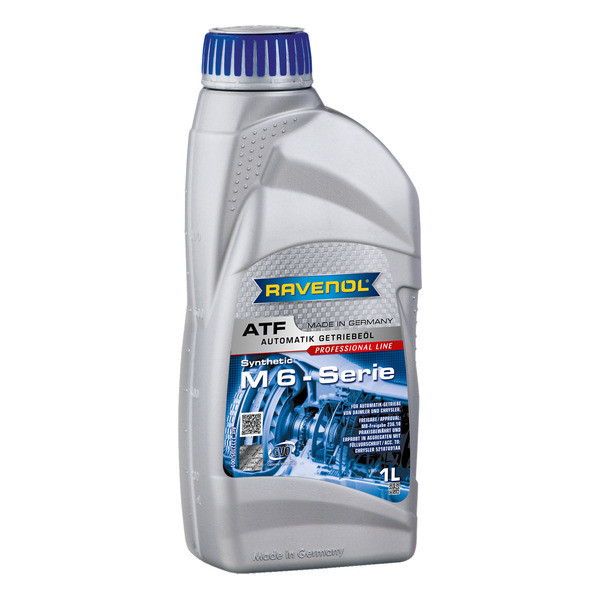

ATF M 6-Serie

RAVENOL ATF M-6 Serie is one of the ATF (Automatic Transmission Fluid) for all 5-motion automatic transmission of Mercedes Benz with controlled torque converter lockup clutch AG 722.6 and AG 722.7.

Manufacturer Approved:
MB-Approval 236.10

show details

Equivalents OEM:
Chrysler 52107891A, Chrysler 52107891AA, MB A0019892103, MB A0019892103S1, MB A0019892103S2, MB A0019892103S2, MB A001989210310

Available packaging
Full description
Product parameters

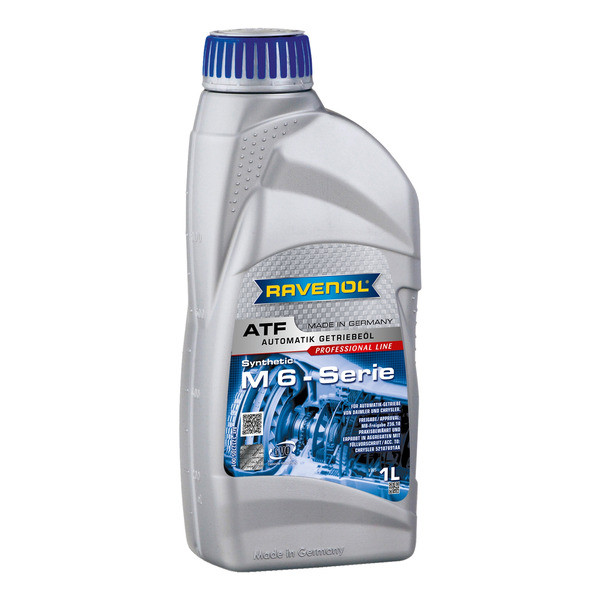

Volume:
1 L

vendor code:
1212105-001

Code:
4014835733312

Volume:

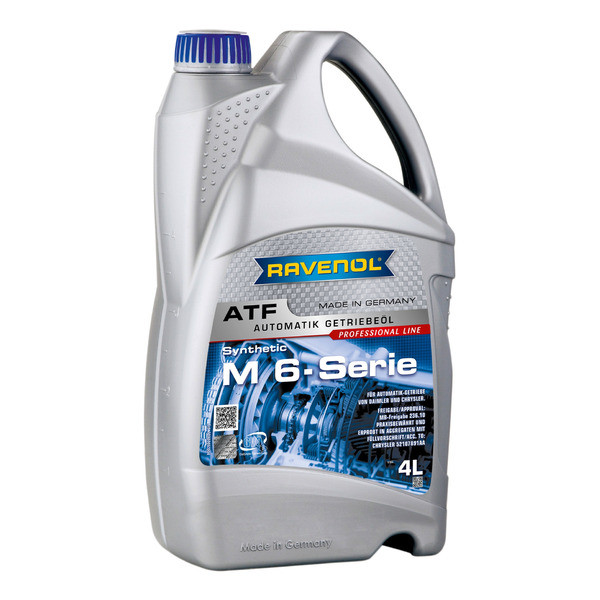

4 L

vendor code:
1212105-004

Code:
4014835733398

Volume:

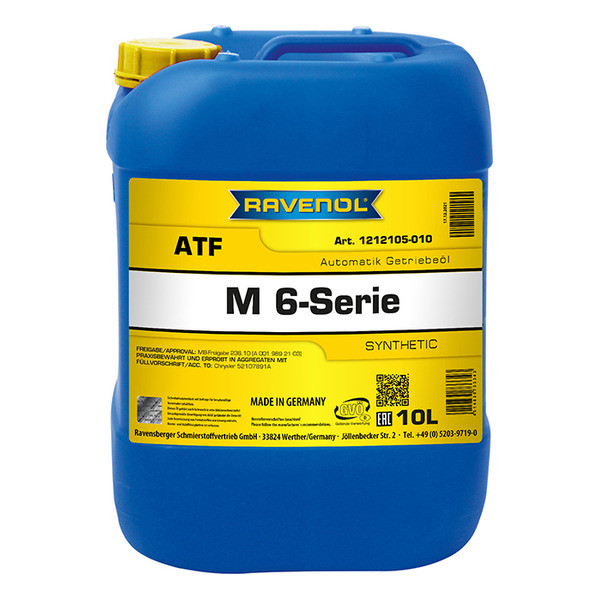

10 L

vendor code:
1212105-010

Volume:
20 L

vendor code:
1212105-020

Volume:

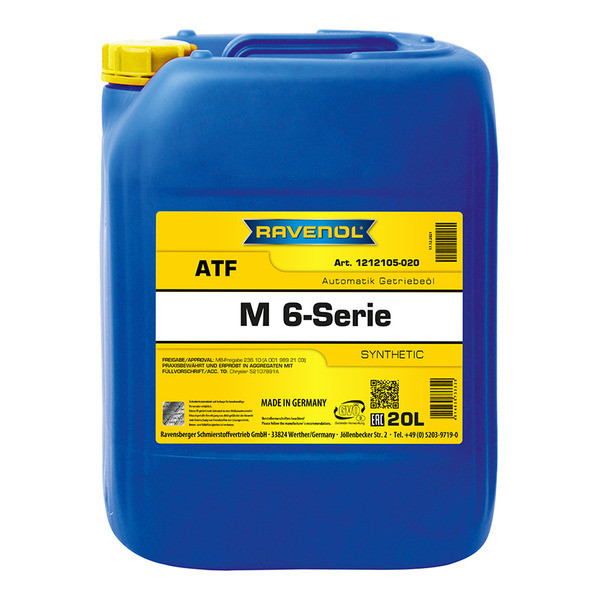

20 L, ecobox

vendor code:
1212105-B20

Code:
4014835787520

Volume:
60 L, print

vendor code:
1212105-D60

Code:
4014835733336

Volume:
208 L

vendor code:
1212105-208

Volume:
208 L, print

vendor code:
1212105-D28

Volume:
60 L

vendor code:
1212105-060

RAVENOL ATF M-6 Serie is one of the ATF (Automatic Transmission Fluid) for all 5-motion automatic transmission of Mercedes Benz with controlled torque converter lockup clutch AG 722.6 and AG 722.7.

RAVENOL ATF M-6 Serie guarantees a maximum wear protection in every operating state.

Application Note

RAVENOL ATF M-6 Serie was developed for use automatic transmission, especially for 5-gear transmission with with controlled torque converter lockup clutch AG 722.6 and AG 722.7 from Mercedes Benz.

Characteristics

a very good lubricating ability even at low temperatures in winter
a high, stable viscosity index
a very low pour point
a very good oxidation stability
protection against wear, corrosion and foam formation
good balanced coefficient of friction
a neutral behaviour against sealing materials
a neutral behaviour because of inhibition against non ferrous metals

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		MB-Approval 236.10		MB-Approval 236.10
Compliant products		Chrysler 52107891AA, MB A 001 989 21 03		Chrysler 52107891AA, MB A 001 989 21 03
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Approvals		MB 236.10		MB 236.10
