Search results for MIL-L-2105 D. Selection of RAVENOL oil.

SCG Super Construction Gear 85W-90 GL-5 LS

Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.

Compliance with the requirements:
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E

show details

SAE: 85W-90

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
10 L

vendor code:
1223310-010

Volume:
20 L

vendor code:
1223310-020

Volume:
60 L

vendor code:
1223310-060

Volume:
208 L

vendor code:
1223310-208

Volume:
1000 L

vendor code:
1223310-700

Volume:
20 L, ecobox

vendor code:
1223310-B20

Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is designed for the increased stress of manual transmissions and thus ensures perfect functioning of the transmissions.

Application Note

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is compatible with all brand-name transmission oils.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is particularly suitable for lubricating differential gears with limited slip.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS can be used in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is also suitable for use in Liebherr assemblies due to its high phosphorus content.

The operating instructions of the vehicle and transmission manufacturers must be observed.

Characteristics

Increased phosphorus content
High pressure stable lubrication film, thus outstanding wear protection under all loads
Outstanding shearing stability
Excellent oxidation stability, no foaming
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		85W-90		85W-90
Type		Mineral		Mineral
API		GL-5 LS		GL-5 LS
ASTM		D7450		D7450
Recomendations		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
Suitable for		Liebherr Cranes		Liebherr Cranes
Density at 20 °C	kg/m³	885.3	EN ISO 12185	885.3 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.9	DIN 51562-1	14.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	136	DIN 51562-1	136 mm²/s DIN 51562-1
Viscosity Index VI		110	DIN ISO 2909	110 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	194	DIN EN ISO 2592	194 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E		MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
Остатки и зола		>2300	ASTM D7751	>2300 ASTM D7751

RAVENOL Sperrdiff. Hyp. Getr.öl LS 80W-90 GL-5

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223303-001

Volume:
20 L, ecobox

vendor code:
1223303-B20

Volume:
4 L

vendor code:
1223303-004

Volume:
10 L

vendor code:
1223303-010

Volume:
20 L

vendor code:
1223303-020

Volume:
60 L

vendor code:
1223303-060

Volume:
208 L

vendor code:
1223303-208

Volume:
1000 L

vendor code:
1223303-700

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Application Note

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.

Characteristics

Extremely high load carrying capacity
Excellent wear protection by EP agents
Excellent resistance to aging
High oxidation resistance even under high thermal stress
Good foam / air separation and behave well at high speeds
Neutrality towards non-ferrous metals and seals
Excellent viscosity-temperature behavior

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	17.6	DIN 51562-1	17.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	177.3	DIN 51562-1	177.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	114.400	ASTM D2983	114.400 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

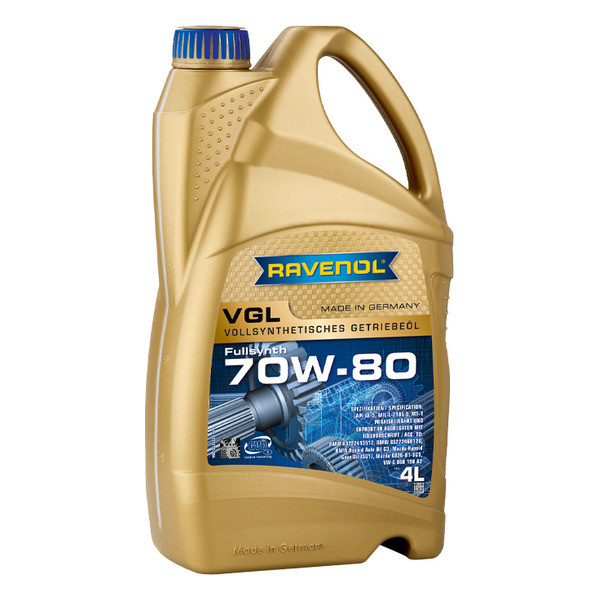

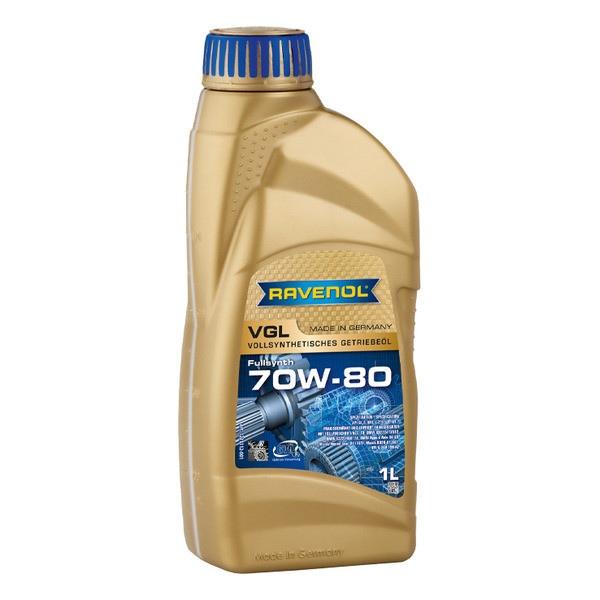

VGL 70W-80

RAVENOL VGL SAE 70W-80 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially for BMW vehicles.

Compliance with the requirements:
BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2

show details

SAE: 70W-80

API: GL-5 LS, MT-1

Equivalents OEM:
Mazda K02001SG1, Mazda K02001SG1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221112-001

Code:
4014835883147

Volume:
4 L

vendor code:
1221112-004

Code:
4014835883178

Volume:
10 L

vendor code:
1221112-010

Volume:
20 L

vendor code:
1221112-020

Volume:
20 L, ecobox

vendor code:
1221112-B20

Code:
4014835883291

Volume:
60 L

vendor code:
1221112-060

Volume:
208 L

vendor code:
1221112-208

RAVENOL VGL SAE 70W-80 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially for BMW vehicles.

RAVENOL VGL SAE 70W-80 ensures proper functioning of the aggregates even under the most severe operating conditions. Even under large temperature fluctuations it ensures a reliable lubricating film.

Application Note

RAVENOL VGL SAE 70W-80 is excellent for use in heavily loaded axle drives of vehicles. It is particularly suitable for axle drives with hypoid gearing.

Use RAVENOL VGL SAE 70W-80 according to the manufacturer's instructions!

Characteristics

Outstanding cold flow properties
Good wear protection protects the gearbox
Excellent resistance to aging
Extremely low pour point
High viscosity stability
Reduces running noise

Parameter	Unit	Value	Audit
Brookfield Viscosity at -55 °C	mPa*s	109400	ASTM D2983	109400 mPa*s ASTM D2983
Brand		RAVENOL		RAVENOL
SAE		70W-80		70W-80
Type		Full synthetic		Full synthetic
API		GL-5 LS, MT-1		GL-5 LS, MT-1
Recomendations		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C		848	EN ISO 12185	848 EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.27	DIN 51562-1	9.27 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.47	DIN 51562-1	50.47 mm²/s DIN 51562-1
Viscosity Index VI		169	DIN ISO 2909	169 DIN ISO 2909
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C)		1a	ASTM D130	1a ASTM D130
Approvals		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, MIL-L-2105 D, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, MIL-L-2105 D, VW G 060 190 A2
Склонность к пенообразованию (Seq. I	II	.	DIN EN 60243-1 (20°C)	. II DIN EN 60243-1 (20°C)

VSG 75W-90

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	kg/m³	839.8	EN ISO 12185	839.8 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

TGO 75W-90 API GL 5

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

show details

SAE: 75W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222105-001

Code:
4014835734418

Volume:
4 L

vendor code:
1222105-004

Code:
4014835734494

Volume:
10 L

vendor code:
1222105-010

Volume:
20 L

vendor code:
1222105-020

Volume:
20 L, ecobox

vendor code:
1222105-B20

Code:
4014835789128

Volume:
60 L, print

vendor code:
1222105-D60

Code:
4014835734432

Volume:
208 L

vendor code:
1222105-208

Code:
4014835734487

Volume:
208 L, print

vendor code:
1222105-D28

Code:
4014835734401

Volume:
1000 L

vendor code:
1222105-700

Volume:
60 L

vendor code:
1222105-060

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Application Note

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.

Characteristics

Excellent oxidation stability
Greatest possible protection from rust, corrosion, foaming
Low solidification point
Excellent extreme pressure (EP) properties
High viscosity index
Fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Semi-synthetic		Semi-synthetic
API		GL-5		GL-5
Recomendations		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		GM		GM
Density at 20 °C	kg/m³	842	EN ISO 12185	842 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	97.3	DIN 51562-1	97.3 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	70.000	ASTM D2983	70.000 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Getriebeoel SLS 75W-140 GL 5 LS

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
Ford WSL-M2C 192-A, MIL-L-2105 D

show details

SAE: 75W-140

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221110-001

Code:
4014835734012

Volume:
4 L

vendor code:
1221110-004

Code:
4014835734098

Volume:
10 L

vendor code:
1221110-010

Code:
4014835734043

Volume:
20 L

vendor code:
1221110-020

Volume:
20 L, ecobox

vendor code:
1221110-B20

Volume:
60 L

vendor code:
1221110-060

Volume:
60 L, print

vendor code:
1221110-D60

Volume:
208 L, print

vendor code:
1221110-D28

Code:
4014835734005

Volume:
1000 L

vendor code:
1221110-700

Volume:
208 L

vendor code:
1221110-208

Code:
4014835734081

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is outstanding for use as a rationalization product also with respect to the new generation of 5- and 6-gear manual transmissions and axle drives with and without limited slip differential. Especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is a high-performance transmission oil for maintaining manual transmissions and rear axles in many popular vehicles. Also suitable for highly stressed hypoid axle gears as well as spur- and bevel gears, change gears in vehicles and work machines, and steering gears. Particularly suited for applications requiring "limited slip" (LS) properties.

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Brookfield Viscosity at -50 °C	mPa*s	121.000	ASTM D2983	121.000 mPa*s ASTM D2983
Brand		RAVENOL		RAVENOL
SAE		75W-140		75W-140
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		Ford WSL-M2C 192-A, MIL-L-2105 D		Ford WSL-M2C 192-A, MIL-L-2105 D
Density at 20 °C	kg/m³	842.1	EN ISO 12185	842.1 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	28.1	DIN 51562-1	28.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	203.4	DIN 51562-1	203.4 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	127.600	ASTM D2983	127.600 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	220	DIN EN ISO 2592	220 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Ford WSL-M2C 192-A, MIL-L-2105 D		Ford WSL-M2C 192-A, MIL-L-2105 D

Getriebeoel EPX 90 GL 5

RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

show details

SAE: 90

API: GL-5

Equivalents OEM:
Chrysler 05136033AB

Available packaging
Full description
Product parameters

Volume:
4 L

vendor code:
1223202-004

Volume:
20 L

vendor code:
1223202-020

Code:
4014835738027

Volume:
20 L, ecobox

vendor code:
1223202-B20

Volume:
60 L

vendor code:
1223202-060

Volume:
208 L

vendor code:
1223202-208

Code:
4014835738089

Volume:
1000 L

vendor code:
1223202-700

Volume:
1 L

vendor code:
1223202-001

Code:
4014835738010

Volume:
10 L

vendor code:
1223202-010

RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 90 GL-5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		90		90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Getriebeoel SLG 80W-90

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.

Manufacturer Approved:
DTFR 12B130, MAN 342 Type M2, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 2B, ZF TE-ML 16B, ZF TE-ML 16D

show details

SAE: 80W-90

API: GL-3, GL-4, GL-5, MT-1

Equivalents OEM:
DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411 DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411, ZF 681000412

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223305-001

Volume:
4 L

vendor code:
1223305-004

Volume:
10 L

vendor code:
1223305-010

Code:
4014835738546

Volume:
20 L

vendor code:
1223305-020

Code:
4014835738522

Volume:
20 L, ecobox

vendor code:
1223305-B20

Volume:
60 L

vendor code:
1223305-060

Code:
4014835738560

Volume:
208 L

vendor code:
1223305-208

Code:
4014835738584

Volume:
1000 L

vendor code:
1223305-700

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.

Application Note

RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.

Characteristics

An excellent thermal stability
Excellent extreme pressure properties
A good circuit behavior at low temperatures
An extended service life
Neutral behavior towards sealing materials
Reliable protection against wear, sludge, adhesion and corrosion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-3, GL-4, GL-5, MT-1		GL-3, GL-4, GL-5, MT-1
Manufacturer Approved		DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B		DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
specification		MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E		MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E
Suitable for		DAF, IVECO		DAF, IVECO
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	15.2	DIN 51562-1	15.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	146.4	DIN 51562-1	146.4 mm²/s DIN 51562-1
Viscosity Index VI		105	DIN ISO 2909	105 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	161.000	ASTM D2983	161.000 mPa*s ASTM D2983
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	200	DIN EN ISO 2592	200 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B		DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B

LS 75W-90

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D

show details

SAE: 75W-90

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222102-001

Code:
4014835734319

Volume:
4 L

vendor code:
1222102-004

Code:
4014835734395

Volume:
10 L

vendor code:
1222102-010

Code:
4014835734340

Volume:
20 L

vendor code:
1222102-020

Volume:
20 L, ecobox

vendor code:
1222102-B20

Volume:
60 L, print

vendor code:
1222102-D60

Code:
4014835734333

Volume:
208 L, print

vendor code:
1222102-D28

Code:
4014835734302

Volume:
1000 L

vendor code:
1222102-700

Volume:
60 L

vendor code:
1222102-060

Volume:
208 L

vendor code:
1222102-208

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.

Characteristics

excellent oxidation stability
excellent protection against rust and corrosion
prevents foaming
outstanding extreme pressure properties
excellent limited slip properties
fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		ZF TE-ML 05C, ZF TE-ML 05D		ZF TE-ML 05C, ZF TE-ML 05D
specification		MIL-L-2105 D		MIL-L-2105 D
Compliant products		GM 1940058, GM 88862624, GM 88862625, GM 93165388		GM 1940058, GM 88862624, GM 88862625, GM 93165388
Density at 20 °C	kg/m³	839	EN ISO 12185	839 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	17.1	DIN 51562-1	17.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	102.1	DIN 51562-1	102.1 mm²/s DIN 51562-1
Viscosity Index VI		182	DIN ISO 2909	182 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	84.300	ASTM D2983	84.300 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D

Sperrdifferential-Hypoid-Getriebeoel LS 90

RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C

show details

SAE: 90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
4 L

vendor code:
1223302-004

Volume:
10 L

vendor code:
1223302-010

Volume:
20 L, ecobox

vendor code:
1223302-B20

Volume:
1000 L

vendor code:
1223302-700

Volume:
1 L

vendor code:
1223302-001

Volume:
20 L

vendor code:
1223302-020

Volume:
60 L

vendor code:
1223302-060

Volume:
208 L

vendor code:
1223302-208

RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Application Note

RAVENOL Sperrdiff.-Getr.-Oel LS 90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.

Characteristics

Extremely high load carrying capacity
Excellent wear protection by EP agents
Excellent "limited slip" – Features
Excellent resistance to aging
High oxidation resistance even under high thermal stress
Good foam / air separation and behave well at high speeds
Neutrality towards non-ferrous metals and seals
Excellent viscosity-temperature behavior

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		90		90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	17.6	DIN 51562-1	17.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	177.3	DIN 51562-1	177.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	12.400	ASTM D2983	12.400 mPa*s ASTM D2983
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C

Mehrzweck-Getriebeol MZG 80

Application NoteRAVENOL Getriebeoel MZG SAE 80W GL-4 can be used for the transmission oils API-GL-3 / GL-4 of the SAE class 80W.

Manufacturer Approved:
DTFR 13B100

Compliance with the requirements:
Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A

show details

SAE: 80W

API: GL-4

Equivalents OEM:
BMW 81229407052, BMW 81229407053, BMW 81229407053, Chrysler 23091616, Hyundai Motor 0430000440, Volvo 1161969

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223101-001

Code:
4014835734517

Volume:
4 L

vendor code:
1223101-004

Code:
4014835734593

Volume:
20 L, ecobox

vendor code:
1223101-B20

Volume:
208 L

vendor code:
1223101-208

Volume:
1000 L

vendor code:
1223101-700

Volume:
10 L

vendor code:
1223101-010

Volume:
20 L

vendor code:
1223101-020

Volume:
60 L

vendor code:
1223101-060

Application Note

RAVENOL Getriebeoel MZG SAE 80W GL-4 can be used for the transmission oils API-GL-3 / GL-4 of the SAE class 80W.

RAVENOL Getriebeoel MZG SAE 80W GL-4 offers a quickest possible full fluid film lubrication when starting also in case of very low outside temperatures, excellent transmission efficiency and thereby low power loss.

RAVENOL Getriebeoel MZG SAE 80W GL-4 is compatible for the lubrication of manucal transmissions, differential gears and steering transmissions in vehicles for which EP transmission oils are instructed by the manufacturer.

Characteristics

a very good adhesive and extreme pressure durable lubricant film even under high loads
an excellent cold flow capacity even under extreme conditions
a complete compatibility of elastomers
an excellent corrosion protection of all general metals of the transmission engineering
a high oxidation stability
an optimum corrosion protection
no foam also at high engine speed
Support of the faultless function of synchronous transmissions
miscible and compatible with all brand name transmission oils

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W		80W
Type		Mineral		Mineral
API		GL-4		GL-4
Manufacturer Approved		DTFR 13B100		DTFR 13B100
Recomendations		Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A		Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	872	EN ISO 12185	872 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	84.4	DIN 51562-1	84.4 mm²/s DIN 51562-1
Viscosity Index VI		102	DIN ISO 2909	102 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B100, Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02A, ZF TE-ML 17A		DTFR 13B100, Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02A, ZF TE-ML 17A

Getriebeoel EPX 80 GL 5

RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, VOLVO 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B

show details

SAE: 80W

API: GL-5

Available packaging
Full description
Product parameters

Volume:
4 L

vendor code:
1223201-004

Volume:
20 L, ecobox

vendor code:
1223201-B20

Volume:
60 L

vendor code:
1223201-060

Volume:
208 L

vendor code:
1223201-208

Volume:
1000 L

vendor code:
1223201-700

Volume:
1 L

vendor code:
1223201-001

Volume:
10 L

vendor code:
1223201-010

Volume:
20 L

vendor code:
1223201-020

RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80 GL 5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80 GL 5

Use RAVENOL Getriebeoel EPX SAE 80 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
SAE		80W		80W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B

DGL 75W-85 GL-5 LS

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details

SAE: 75W-85

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
A stable lubricating film even at high oil temperatures and under high stress.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-85		75W-85
Type		Full synthetic		Full synthetic
API		GL-5 LS		GL-5 LS
Recomendations		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C	kg/m³	862	EN ISO 12185	862 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64.3	DIN 51562-1	64.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	26.000	ASTM D2983	26.000 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Getriebeoel EPX 85W-90 GL 5

RAVENOL Getriebeoel EPX SAE 85W-90 GL5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B

show details

SAE: 85W-90

API: GL-5

Equivalents OEM:
Ford 5000166, Ford 5000167, Ford 5009922, Ford A72SX19K261CA, Ford A72SX19K261DA, Ford A82SX19K261AA, Toyota 0888500500, Toyota 0888500500, Toyota 0888500503

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223206-001

Volume:
4 L

vendor code:
1223206-004

Volume:
20 L

vendor code:
1223206-020

Volume:
20 L, ecobox

vendor code:
1223206-B20

Volume:
60 L

vendor code:
1223206-060

Volume:
208 L

vendor code:
1223206-208

RAVENOL Getriebeoel EPX SAE 85W-90 GL5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 85W-90 GL 5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 85W-90 GL 5.

Use RAVENOL Getriebeoel EPX SAE 85W-90 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil.
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		85W-90		85W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B

Getriebeoel EPX 140 GL4/GL5

Application NoteRAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B

show details

SAE: 140W

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223210-001

Volume:
4 L

vendor code:
1223210-004

Volume:
10 L

vendor code:
1223210-010

Volume:
20 L

vendor code:
1223210-020

Volume:
20 L, ecobox

vendor code:
1223210-B20

Volume:
60 L

vendor code:
1223210-060

Volume:
208 L

vendor code:
1223210-208

Volume:
1000 L

vendor code:
1223210-700

Application Note

RAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

good adhesion and pressure resistant lubricating film
excellent oxidation stability
exceptional viscosity-temperature behavior
a low pour point
excellent protection against rust and corrosion
enhanced wear-inhibiting effect
a good foam-resistant composition
compatible with all types of metals and sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		140W		140W
Type		Mineral		Mineral
API		GL-4, GL-5		GL-4, GL-5
Recomendations		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
Suitable for		GM		GM
Density at 20 °C	kg/m³	894	EN ISO 12185	894 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	26	DIN 51562-1	26 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	352	DIN 51562-1	352 mm²/s DIN 51562-1
Viscosity Index VI		97	DIN ISO 2909	97 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	55.000	ASTM D2983	55.000 mPa*s ASTM D2983
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B

Sperrdifferential-Hypoid-Getriebeoel LS 85W-90

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

show details

SAE: 85W-90

API: GL-5 LS

Equivalents OEM:
Alpine 0100761, Alpine 0100763, Alpine 0100764, Alpine 0100765, Alpine 100761, Alpine 100763, Alpine 100764, Alpine 100764, GM 19375057, Hyundai Motor 0210000100, MB A000989280312, Toyota 0888580623, Toyota 0888580626, Toyota 0888580633, Toyota 0888580924, Toyota 0888580933, Toyota 0888581004, Volvo 11708371, Volvo 11708372, Volvo VOE11708371, Volvo VOE11708372

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223301-001

Volume:
4 L

vendor code:
1223301-004

Volume:
20 L

vendor code:
1223301-020

Volume:
20 L, ecobox

vendor code:
1223301-B20

Volume:
60 L

vendor code:
1223301-060

Volume:
208 L

vendor code:
1223301-208

Code:
4014835738485

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.

Application Note

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.

Characteristics

Extremely high load carrying capacity
Excellent wear protection by EP agents
Excellent "limited slip" – Features
Excellent resistance to aging
High oxidation resistance even under high thermal stress
Good foam / air separation and behave well at high speeds
Neutrality towards non-ferrous metals and seals
Excellent viscosity-temperature behavior

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		85W-90		85W-90
Type		Mineral		Mineral
API		GL-5 LS		GL-5 LS
Recomendations		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	17.6	DIN 51562-1	17.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	177.3	DIN 51562-1	177.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	12.100	ASTM D2983	12.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E

EPX Getriebe-Oel 85W-140 GL-5

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use with maximum duty, hypoid gearing gears (axel drive, manual transmission, etc.), so far extreme pressure gear oils are required.

Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A

show details

SAE: 85W-140

API: GL-5

Equivalents OEM:
Alpine 0100781, Alpine 0100783, Alpine 0100784, Alpine 0100785, Alpine 100781, Alpine 100783, Alpine 100784, Alpine 100784, DAF 1660042, DAF 1660043, DAF 1660044, DAF 1678855, DAF 1697549, DAF 1699595, DAF 1699595G, DAF 1732360, GM 89021799, Hyundai Motor 0220000420, Hyundai XTeer 1041432, Scania 1892412, Scania 1892413, Scania 1892414, Scania 1892415, Scania 1892416, Volvo 1161279, Volvo 1161936, Volvo 1161937

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223211-001

Volume:
4 L

vendor code:
1223211-004

Code:
4014835738393

Volume:
10 L

vendor code:
1223211-010

Volume:
20 L

vendor code:
1223211-020

Code:
4014835738324

Volume:
20 L, ecobox

vendor code:
1223211-B20

Volume:
60 L

vendor code:
1223211-060

Code:
4014835738362

Volume:
208 L

vendor code:
1223211-208

Code:
4014835738386

Volume:
208 L, print

vendor code:
1223211-D28

Volume:
1000 L

vendor code:
1223211-700

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use with maximum duty, hypoid gearing gears (axel drive, manual transmission, etc.), so far extreme pressure gear oils are required.

Application Note

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

a very good oxidation stability
widest possible protection against rust and corrosion
no foam formation
excellent extreme pressure properties
low pour point
neutral behaviour towards metals and sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		85W-140		85W-140
Type		Mineral		Mineral
API		GL-5		GL-5
Recomendations		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		GM		GM
Density at 20 °C	kg/m³	894	EN ISO 12185	894 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	26.4	DIN 51562-1	26.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	355	DIN 51562-1	355 mm²/s DIN 51562-1
Viscosity Index VI		99	DIN ISO 2909	99 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	55.000	ASTM D2983	55.000 mPa*s ASTM D2983
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A		CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A

SGO 80W-140 GL-5

Application NoteRAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A

show details

SAE: 80W-140

API: GL-5, MT-1

Equivalents OEM:
BRP 779478, GM 1940770, GM 9163336, GM 9163336, Scania 1892407, Scania 1892408, Scania 1892409, Scania 1892410, Scania 1892411, Scania 2003096

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222201-001

Volume:
4 L

vendor code:
1222201-004

Volume:
20 L

vendor code:
1222201-020

Code:
4014835849853

Volume:
20 L, ecobox

vendor code:
1222201-B20

Volume:
60 L

vendor code:
1222201-060

Volume:
208 L

vendor code:
1222201-208

Code:
4014835849679

Volume:
1000 L

vendor code:
1222201-700

Application Note

RAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

A pressure-resistant lubricating film, excellent high-pressure (EP) properties
High viscosity index
Excellent oxidation stability
An exceptional viscosity-temperature behavior
A low pour point
Excellent protection against rust and corrosion
Wear-resistant effect
Good air separation capacity, no foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-140		80W-140
Type		Synthetic		Synthetic
API		GL-5, MT-1		GL-5, MT-1
Recomendations		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
Suitable for		Dana		Dana
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	27.5	DIN 51562-1	27.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	205.1	DIN 51562-1	205.1 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	32.000	ASTM D2983	32.000 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	202	DIN EN ISO 2592	202 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A

TDG 75W-110

RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Manufacturer Approved:
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A

Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B

show details

SAE: 75W-110

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221109-001

Code:
4014835772113

Volume:
4 L

vendor code:
1221109-004

Code:
4014835772199

Volume:
10 L

vendor code:
1221109-010

Volume:
20 L

vendor code:
1221109-020

Volume:
60 L

vendor code:
1221109-060

Volume:
60 L, print

vendor code:
1221109-D60

Volume:
208 L

vendor code:
1221109-208

Volume:
208 L, print

vendor code:
1221109-D28

RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.

Application Note

RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behaviour in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-110		75W-110
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A		ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
Recomendations		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
Suitable for		DAF, IVECO		DAF, IVECO
Density at 20 °C	kg/m³	874	EN ISO 12185	874 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	21.4	DIN 51562-1	21.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	163.5	DIN 51562-1	163.5 mm²/s DIN 51562-1
Viscosity Index VI		155	DIN ISO 2909	155 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	98.700	ASTM D2983	98.700 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	216	DIN EN ISO 2592	216 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B

Getriebeoel EPX 80W-90 GL 5

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Manufacturer Approved:
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223205-001

Code:
4014835734715

Volume:
4 L

vendor code:
1223205-004

Code:
4014835734791

Volume:
10 L

vendor code:
1223205-010

Code:
4014835734746

Volume:
20 L

vendor code:
1223205-020

Code:
4014835734722

Volume:
20 L, ecobox

vendor code:
1223205-B20

Code:
4014835789722

Volume:
60 L

vendor code:
1223205-060

Code:
4014835734760

Volume:
208 L

vendor code:
1223205-208

Code:
4014835734784

Volume:
208 L, print

vendor code:
1223205-D28

Volume:
1000 L

vendor code:
1223205-700

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80W-90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Manufacturer Approved		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
Density at 20 °C	kg/m³	882	EN ISO 12185	882 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Getriebeoel MZG 80W-90 GL 4

Application NoteRAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.

Manufacturer Approved:
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A

Compliance with the requirements:
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B

show details

SAE: 80W-90

API: GL-4

Equivalents OEM:
Alpine 0100681, Alpine 0100682, Alpine 0100683, Alpine 0100684, Alpine 0100685, Alpine 100681, Alpine 100682, Alpine 100683, Alpine 100684, Alpine 100685, DAF 1660082, DAF 1660083, DAF 1660084, DAF 1678853, DAF 1731974, DAF 1739298, FEBI 170153, FEBI 170154, FEBI 170154, Hyundai Motor 0430000460, Hyundai Motor 430000460, Hyundai XTeer 1011018, Hyundai XTeer 1041421, Hyundai XTeer 1120007, SsangYong 0000000801, Volvo 1161280, Volvo 1161932, Volvo 1161933, ZF 0671090498, ZF 0671090503, ZF 0671090504 Alpine 0100681, Alpine 0100682, Alpine 0100683, Alpine 0100684, Alpine 0100685, Alpine 100681, Alpine 100682, Alpine 100683, Alpine 100684, Alpine 100685, DAF 1660082, DAF 1660083, DAF 1660084, DAF 1678853, DAF 1731974, DAF 1739298, FEBI 170153, FEBI 170154, FEBI 170154, Hyundai Motor 0430000460, Hyundai Motor 430000460, Hyundai XTeer 1011018, Hyundai XTeer 1041421, Hyundai XTeer 1120007, SsangYong 0000000801, Volvo 1161280, Volvo 1161932, Volvo 1161933, ZF 0671090498, ZF 0671090503, ZF 0671090504

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223105-001

Code:
4014835734616

Volume:
4 L

vendor code:
1223105-004

Code:
4014835734692

Volume:
10 L

vendor code:
1223105-010

Code:
4014835734647

Volume:
20 L

vendor code:
1223105-020

Code:
4014835734623

Volume:
20 L, ecobox

vendor code:
1223105-B20

Code:
4014835789425

Volume:
60 L

vendor code:
1223105-060

Code:
4014835734661

Volume:
208 L

vendor code:
1223105-208

Code:
4014835734685

Volume:
1000 L

vendor code:
1223105-700

Code:
4014835734678

Application Note

RAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.

Characteristics

well adhering, pressure resistant lubricating films
excellent oxidation stability
above-average viscosity-temperature properties
anti-wear effect
good air release characteristics, no foaming
neutral to metal and sealants

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-4		GL-4
Manufacturer Approved		ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A		ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
Recomendations		DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B		DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C	kg/m³	879	EN ISO 12185	879 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14	DIN 51562-1	14 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	126.9	DIN 51562-1	126.9 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	45.600	ASTM D2983	45.600 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A		DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A

Search results for query «MIL-L-2105 D»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
