Search results for MT-1. Selection of RAVENOL oil.

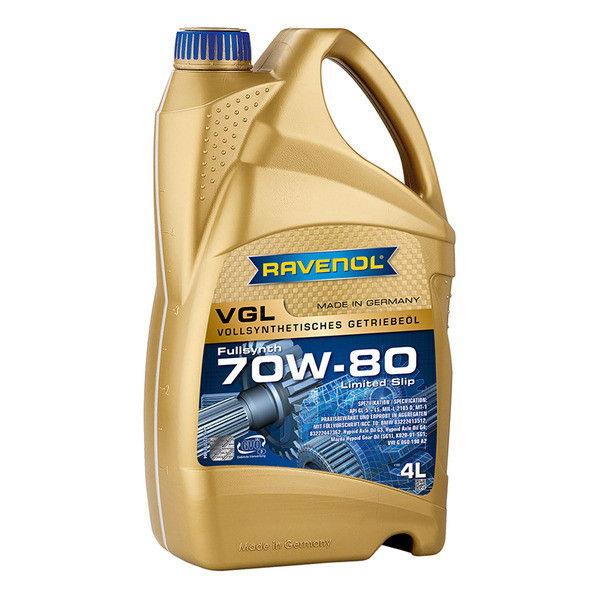

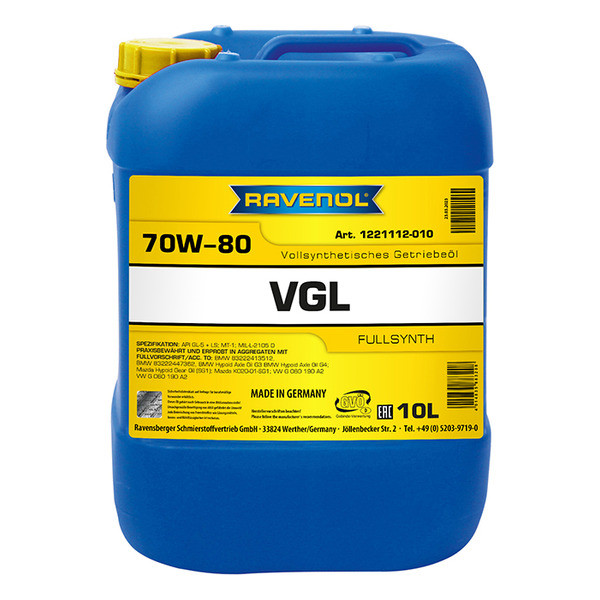

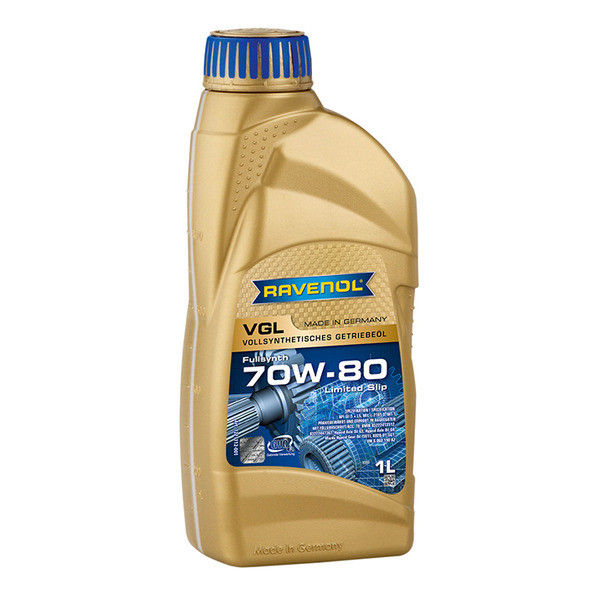

VGL 70W-80

RAVENOL VGL SAE 70W-80 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially for BMW vehicles.

Compliance with the requirements:
BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2

show details

SAE: 70W-80

API: GL-5 LS, MT-1

Equivalents OEM:
Mazda K02001SG1, Mazda K02001SG1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221112-001

Code:
4014835883147

Volume:
4 L

vendor code:
1221112-004

Code:
4014835883178

Volume:
10 L

vendor code:
1221112-010

Volume:
20 L

vendor code:
1221112-020

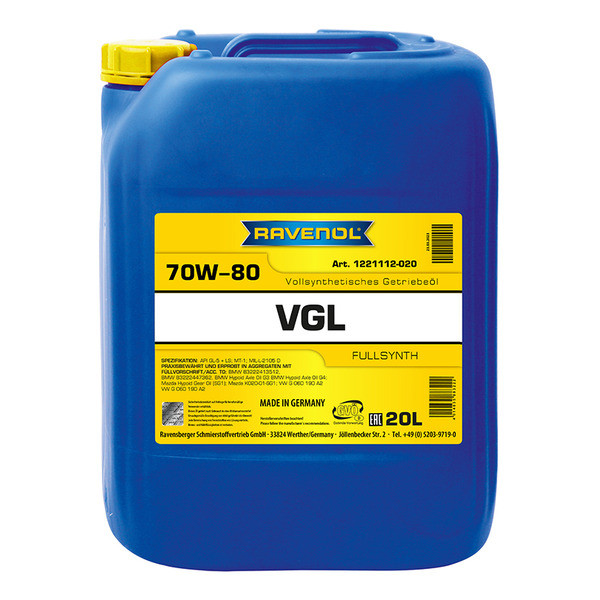

Volume:
20 L, ecobox

vendor code:
1221112-B20

Code:
4014835883291

Volume:
60 L

vendor code:
1221112-060

Volume:
208 L

vendor code:
1221112-208

RAVENOL VGL SAE 70W-80 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially for BMW vehicles.

RAVENOL VGL SAE 70W-80 ensures proper functioning of the aggregates even under the most severe operating conditions. Even under large temperature fluctuations it ensures a reliable lubricating film.

Application Note

RAVENOL VGL SAE 70W-80 is excellent for use in heavily loaded axle drives of vehicles. It is particularly suitable for axle drives with hypoid gearing.

Use RAVENOL VGL SAE 70W-80 according to the manufacturer's instructions!

Characteristics

Outstanding cold flow properties
Good wear protection protects the gearbox
Excellent resistance to aging
Extremely low pour point
High viscosity stability
Reduces running noise

Parameter	Unit	Value	Audit
Brookfield Viscosity at -55 °C	mPa*s	109400	ASTM D2983	109400 mPa*s ASTM D2983
Brand		RAVENOL		RAVENOL
SAE		70W-80		70W-80
Type		Full synthetic		Full synthetic
API		GL-5 LS, MT-1		GL-5 LS, MT-1
Recomendations		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, VW G 060 190 A2
specification		MIL-L-2105 D		MIL-L-2105 D
Density at 20 °C		848	EN ISO 12185	848 EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.27	DIN 51562-1	9.27 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.47	DIN 51562-1	50.47 mm²/s DIN 51562-1
Viscosity Index VI		169	DIN ISO 2909	169 DIN ISO 2909
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C)		1a	ASTM D130	1a ASTM D130
Approvals		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, MIL-L-2105 D, VW G 060 190 A2		BMW 83222413512, BMW Hypoid Axle Oil G3, BMW Hypoid Axle Oil G4, Mazda Hypoid Gear Oil (SG1), Mazda K020-01-SG1, MIL-L-2105 D, VW G 060 190 A2
Склонность к пенообразованию (Seq. I	II	.	DIN EN 60243-1 (20°C)	. II DIN EN 60243-1 (20°C)

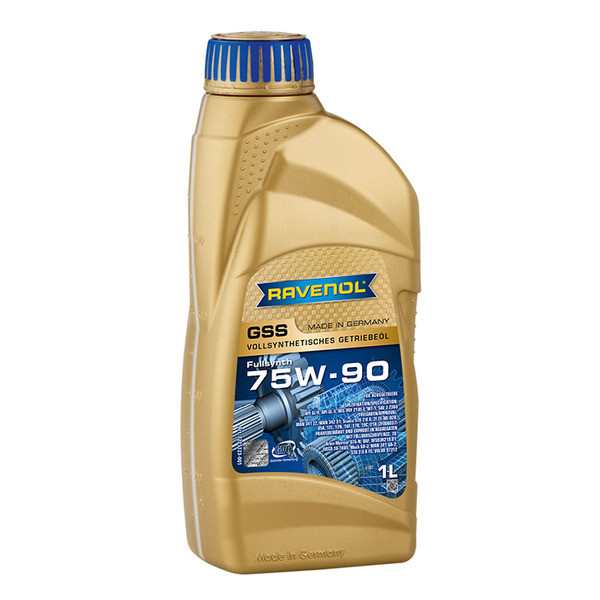

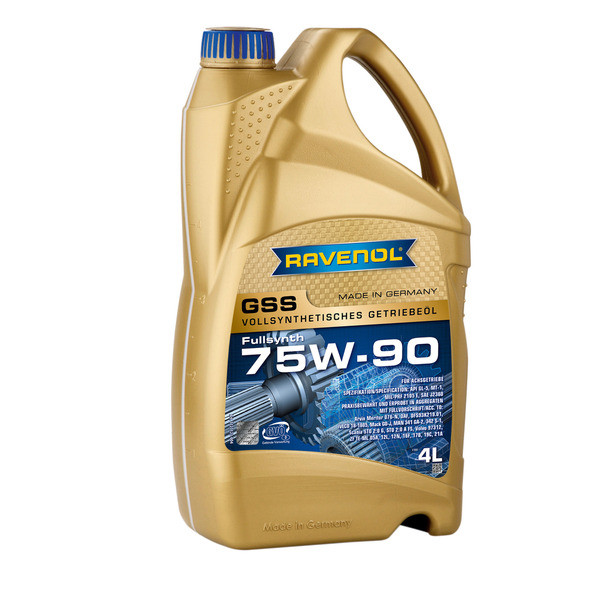

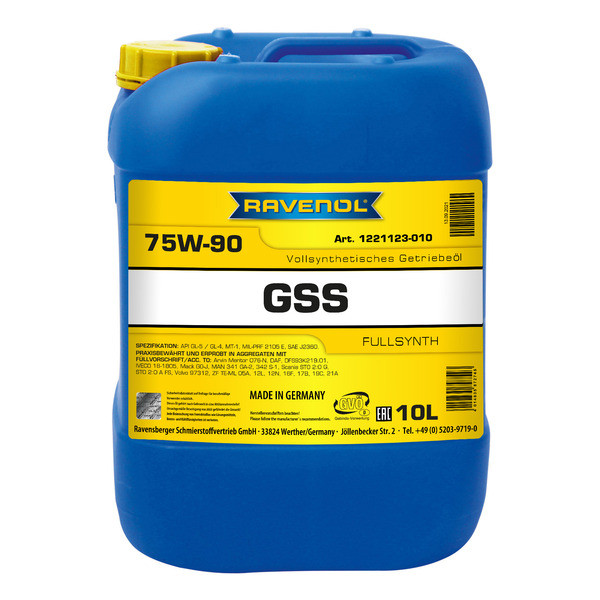

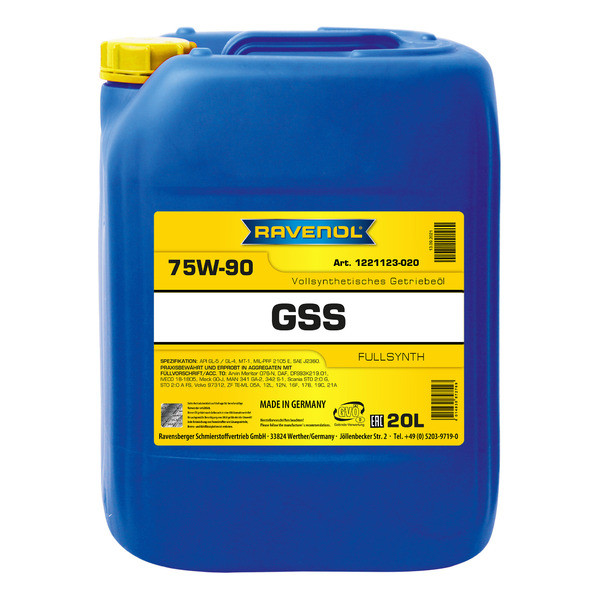

RAVENOL Gear Super Synth GSS 75W-90

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.

Manufacturer Approved:
MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

Compliance with the requirements:
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312

show details

SAE: 75W-90

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221123-001

Volume:
4 L

vendor code:
1221123-004

Volume:
10 L

vendor code:
1221123-010

Code:
4014835872745

Volume:
20 L

vendor code:
1221123-020

Volume:
20 L, ecobox

vendor code:
1221123-B20

Volume:
60 L

vendor code:
1221123-060

Volume:
60 L, print

vendor code:
1221123-D60

Volume:
208 L

vendor code:
1221123-208

Code:
4014835872806

Volume:
208 L, print

vendor code:
1221123-D28

Volume:
1000 L

vendor code:
1221123-700

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.

Application Note

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.

RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer instructions
excellent cold flow properties
good wear protection protects the gearbox
Fuel savings even with short distances in low outside temperatures
stable lubricating film even under high stress
extreme low pour point
Can be used at changing temperatures due to the high viscosity index

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Recomendations		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312
specification		MIL-PRF 2105 E, SAE J 2360		MIL-PRF 2105 E, SAE J 2360
Suitable for		DAF		DAF
Density at 20 °C		873,0	EN ISO 12185	873,0 EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	14.82	DIN 51562-1	14.82 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		141	DIN ISO 2909	141 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	97.000	ASTM D2983	97.000 mPa*s ASTM D2983
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Flashpoint	°C	186	DIN EN ISO 2592	186 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

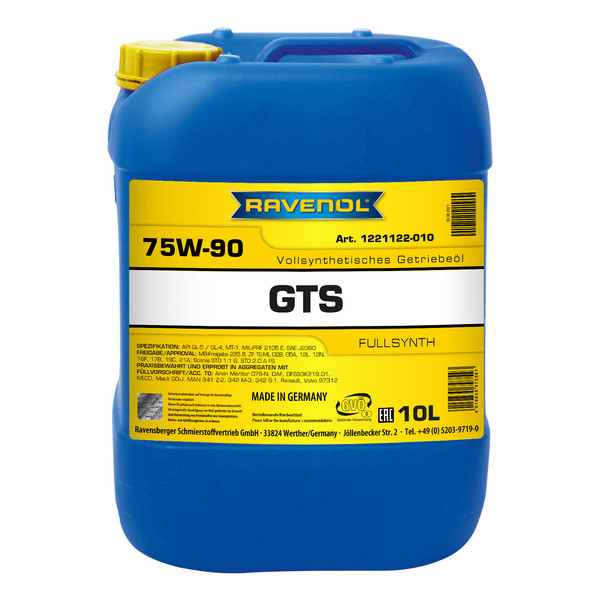

RAVENOL Gear Trans Synth GTS 75W-90

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.

Manufacturer Approved:
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

Compliance with the requirements:
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13

show details

SAE: 75W-90

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221122-001

Volume:
4 L

vendor code:
1221122-004

Volume:
10 L

vendor code:
1221122-010

Code:
4014835872561

Volume:
20 L

vendor code:
1221122-020

Volume:
20 L, ecobox

vendor code:
1221122-B20

Volume:
60 L

vendor code:
1221122-060

Volume:
60 L, print

vendor code:
1221122-D60

Volume:
208 L

vendor code:
1221122-208

Code:
4014835872622

Volume:
208 L, print

vendor code:
1221122-D28

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.

Application Note

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer instructions
excellent cold flow properties
good wear protection protects the gearbox
Fuel savings even with short distances in low outside temperatures
stable lubricating film even under high stress
extreme low pour point
Can be used at changing temperatures due to the high viscosity index

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Recomendations		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
specification		MIL-PRF 2105 E, SAE J 2360		MIL-PRF 2105 E, SAE J 2360
Suitable for		DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault		DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
Compliant products		Isuzu Axle Oil, Isuzu LCV Front Axle Oil		Isuzu Axle Oil, Isuzu LCV Front Axle Oil
Density at 20 °C		868,0	EN ISO 12185	868,0 EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	15.8	DIN 51562-1	15.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	106.8	DIN 51562-1	106.8 mm²/s DIN 51562-1
Viscosity Index VI		158	DIN ISO 2909	158 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	63,400	ASTM D2983	63,400 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	190	DIN EN ISO 2592	190 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C)		1a	ASTM D130	1a ASTM D130
Approvals		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A		Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

RAVENOL Catoel TO-4 40

Application NoteRAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

show details

SAE: 40W

API: CF, MT-1

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310614-020

Volume:
20 L, ecobox

vendor code:
1310614-B20

Volume:
208 L

vendor code:
1310614-208

Volume:
1000 L

vendor code:
1310614-700

Application Note

RAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parameter	Unit	Value	Audit
SAE		40W		40W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.6	DIN 51562-1	13.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	134	DIN 51562-1	134 mm²/s DIN 51562-1
Viscosity Index VI		96	DIN ISO 2909	96 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	270	DIN EN ISO 2592	270 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

Catoel TO-4 60

Application NoteRAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

show details

SAE: 60W

API: CF, MT-1

Available packaging
Full description
Product parameters

Volume:
208 L

vendor code:
1310616-208

Volume:
1000 L

vendor code:
1310616-700

Volume:
20 L

vendor code:
1310616-020

Application Note

RAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection.
High oxidation stability.
Excellent viscosity-temperature behavior.
Optimization of friction coefficient behavior.
Guarantees maximum life of the units.

Parameter	Unit	Value	Audit
SAE		60W		60W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	903	EN ISO 12185	903 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	23.5	DIN 51562-1	23.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	312.6	DIN 51562-1	312.6 mm²/s DIN 51562-1
Viscosity Index VI		95	DIN ISO 2909	95 DIN ISO 2909
Pourpoint	°C	-12	DIN ISO 3016	-12 °C DIN ISO 3016
Flashpoint	°C	272	DIN EN ISO 2592	272 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

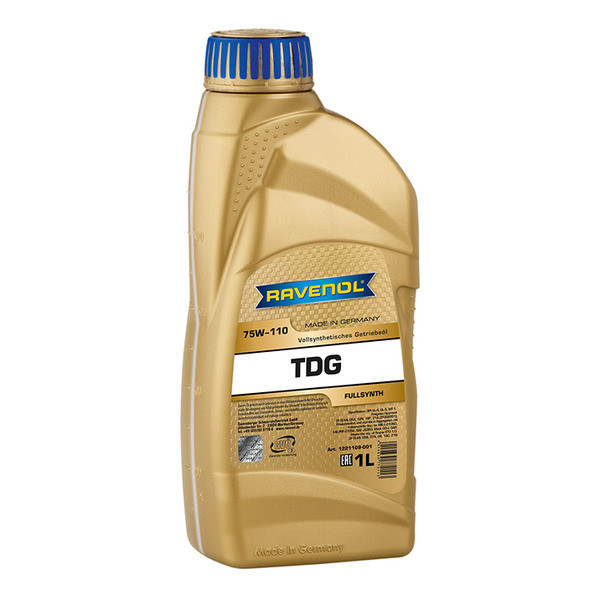

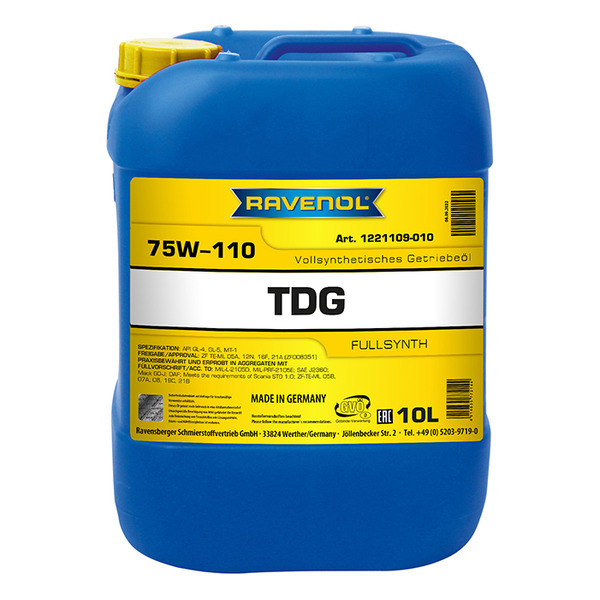

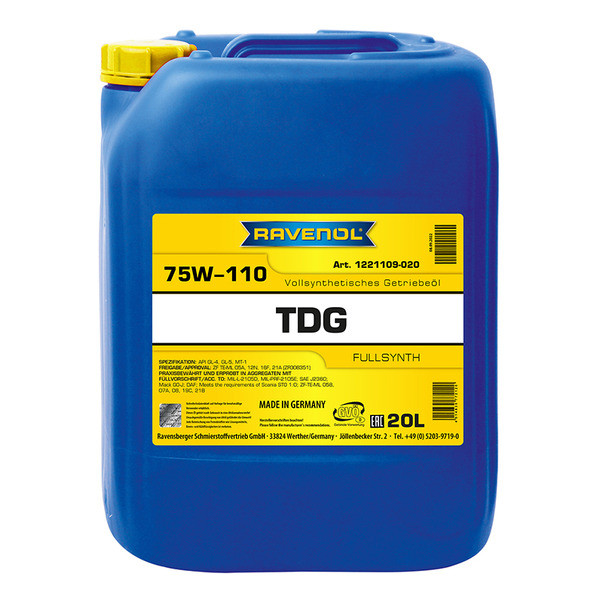

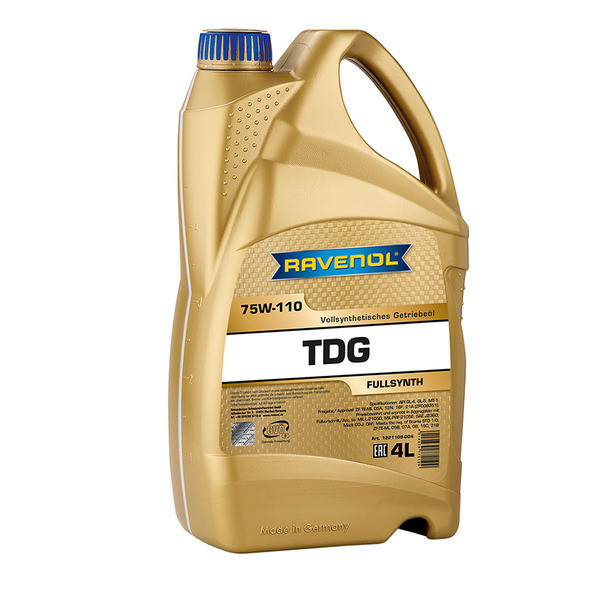

TDG 75W-110

RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Manufacturer Approved:
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A

Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B

show details

SAE: 75W-110

API: GL-4, GL-5, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221109-001

Code:
4014835772113

Volume:
4 L

vendor code:
1221109-004

Code:
4014835772199

Volume:
10 L

vendor code:
1221109-010

Volume:
20 L

vendor code:
1221109-020

Volume:
60 L

vendor code:
1221109-060

Volume:
60 L, print

vendor code:
1221109-D60

Volume:

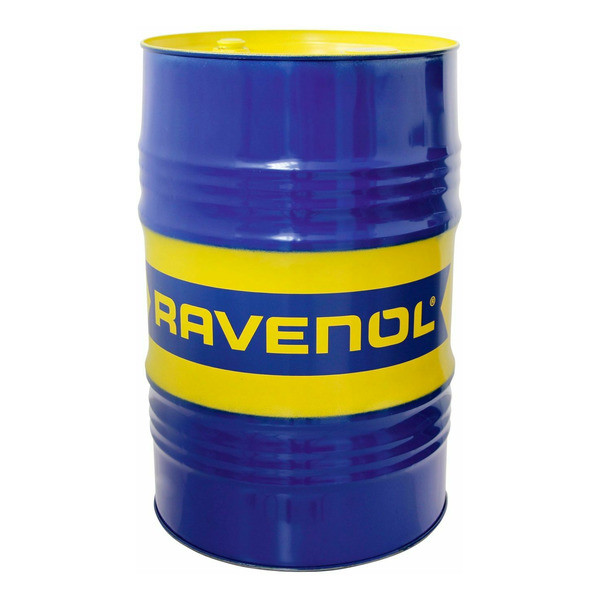

208 L

vendor code:
1221109-208

Volume:

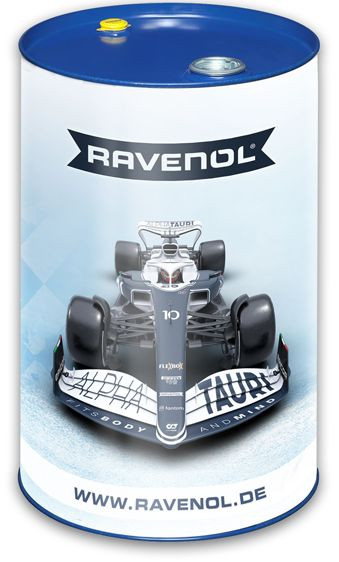

208 L, print

vendor code:
1221109-D28

RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.

Application Note

RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behaviour in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-110		75W-110
Type		Full synthetic		Full synthetic
API		GL-4, GL-5, MT-1		GL-4, GL-5, MT-1
Manufacturer Approved		ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A		ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
Recomendations		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
Suitable for		DAF, IVECO		DAF, IVECO
Density at 20 °C	kg/m³	874	EN ISO 12185	874 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	21.4	DIN 51562-1	21.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	163.5	DIN 51562-1	163.5 mm²/s DIN 51562-1
Viscosity Index VI		155	DIN ISO 2909	155 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	98.700	ASTM D2983	98.700 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	216	DIN EN ISO 2592	216 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B		Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B

CATOEL TO-4 50

Application NoteRAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

show details

SAE: 50W

API: CF, MT-1

Available packaging
Full description
Product parameters

Volume:
208 L

vendor code:
1310615-208

Volume:
1000 L

vendor code:
1310615-700

Volume:
20 L

vendor code:
1310615-020

Application Note

RAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection.
High oxidation stability.
Excellent viscosity-temperature behavior.
Optimization of friction coefficient behavior.
Guarantees maximum life of the units.

Parameter	Unit	Value	Audit
SAE		50W		50W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	894	EN ISO 12185	894 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	16.75	DIN 51562-1	16.75 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	183.9	DIN 51562-1	183.9 mm²/s DIN 51562-1
Viscosity Index VI		96	DIN ISO 2909	96 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	265	DIN EN ISO 2592	265 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

CATOEL TO-4 10W

RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Manufacturer Approved:
ZF TE-ML 03C

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F

show details

SAE: 10W

API: CF, MT-1

Equivalents OEM:
Caterpillar 7X7852, Caterpillar 7X7852, Caterpillar 143485

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310610-020

Code:
4014835740228

Volume:
20 L, ecobox

vendor code:
1310610-B20

Volume:
60 L

vendor code:
1310610-060

Volume:
208 L

vendor code:
1310610-208

Code:
4014835740280

Volume:
208 L, print

vendor code:
1310610-D28

Volume:
1000 L

vendor code:
1310610-700

RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Application Note

RAVENOL CATOEL TO-4 SAE 10W ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parameter	Unit	Value	Audit
SAE		10W		10W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Manufacturer Approved		ZF TE-ML 03C		ZF TE-ML 03C
Recomendations		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	860	EN ISO 12185	860 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	6.4	DIN 51562-1	6.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	37.2	DIN 51562-1	37.2 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

CATOEL TO-4 30

RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Manufacturer Approved:
ZF TE-ML 03C, ZF TE-ML 07F

Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)

show details

SAE: 30W

API: CF, MT-1

Equivalents OEM:
Caterpillar 7X7855, Caterpillar 143487, Volvo 1161943, Volvo 15002772, Volvo 15002772

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310613-020

Code:
4014835740327

Volume:
20 L, ecobox

vendor code:
1310613-B20

Volume:
208 L

vendor code:
1310613-208

Code:
4014835740389

Volume:
1000 L

vendor code:
1310613-700

RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Application Note

RAVENOL CATOEL TO-4 SAE 30 ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parameter	Unit	Value	Audit
SAE		30W		30W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Manufacturer Approved		ZF TE-ML 03C, ZF TE-ML 07F		ZF TE-ML 03C, ZF TE-ML 07F
Recomendations		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
Suitable for		Eaton Fuller		Eaton Fuller
Density at 20 °C	kg/m³	880.1	EN ISO 12185	880.1 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.5	DIN 51562-1	11.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	95.7	DIN 51562-1	95.7 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	252	DIN EN ISO 2592	252 °C DIN EN ISO 2592
Approvals		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

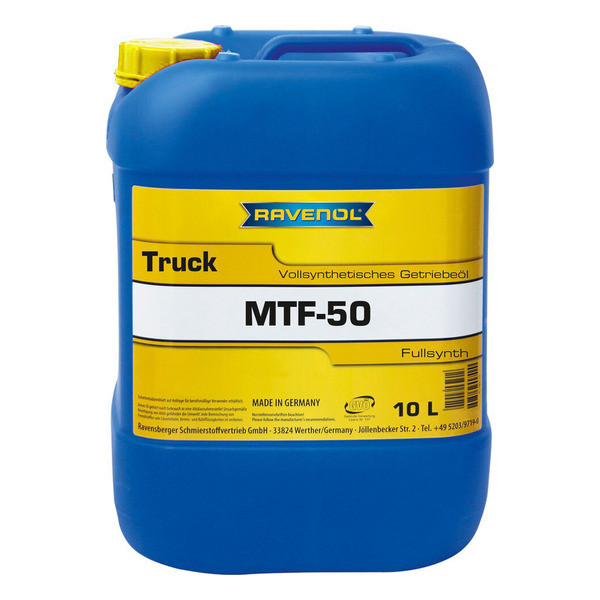

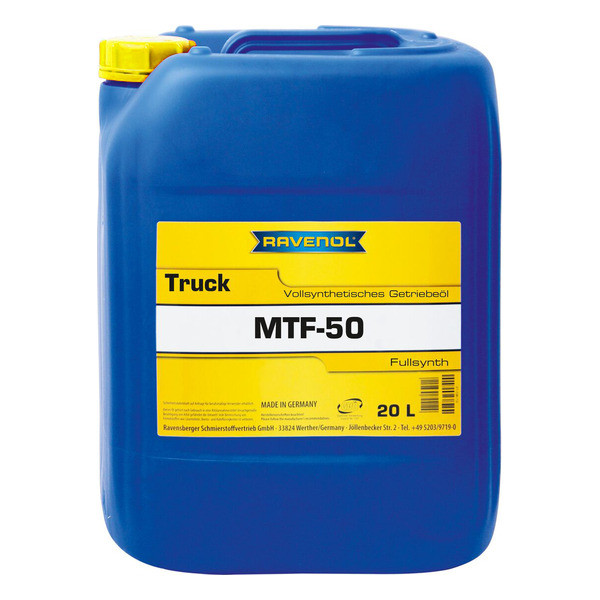

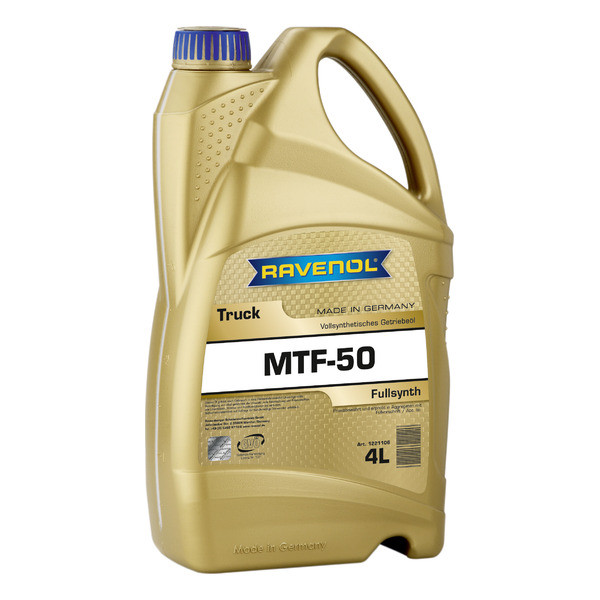

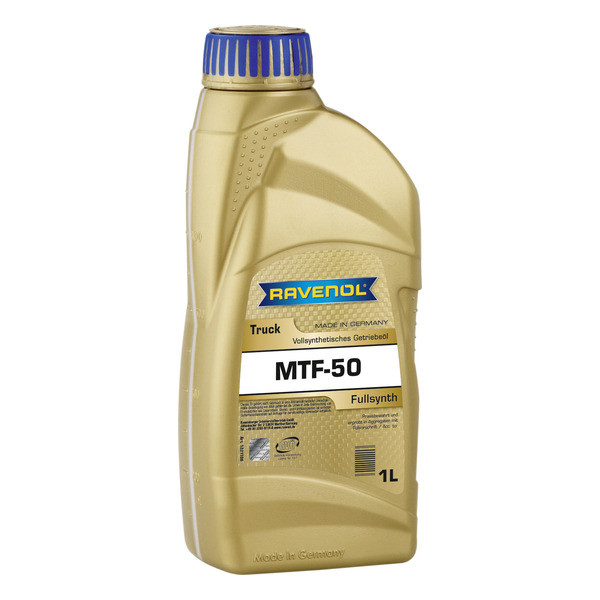

Truck MTF-50

RAVENOL Truck MTF-50 is based on synthetic base oils and special additives matched to them. Thus, the extended requirements of Eaton axle and transmission divisions are fulfilled.

Compliance with the requirements:
Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L

show details

API: MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221106-001

Volume:
4 L

vendor code:
1221106-004

Volume:
10 L

vendor code:
1221106-010

Volume:
20 L

vendor code:
1221106-020

Volume:
60 L

vendor code:
1221106-060

Volume:
208 L

vendor code:
1221106-208

RAVENOL Truck MTF-50 is based on synthetic base oils and special additives matched to them. Thus, the extended requirements of Eaton axle and transmission divisions are fulfilled.

RAVENOL Truck MTF-50 is ideally suited for severe operating conditions and extended oil change intervals.

Application Note

RAVENOL Truck MTF-50 is recommended for extended drain an severe service in heavy duty (class 6, 7, and 8) manual transmissions requiring a non-EP lubricant.

Characteristics

Excellent thermal stability.
Strong protection against rust, corrosion and foaming.
A very low pour point.
Excellent EP properties.
A good switching behavior at low temperatures.
An extended service life.
Fuel savings.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		MT-1		MT-1
Recomendations		Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L		Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L
Density at 20 °C	kg/m³	857	EN ISO 12185	857 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	17.5	DIN 51562-1	17.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	132	DIN 51562-1	132 mm²/s DIN 51562-1
Viscosity Index VI		146	DIN ISO 2909	146 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	16.900	ASTM D2983	16.900 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	221	DIN EN ISO 2592	221 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L		Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L

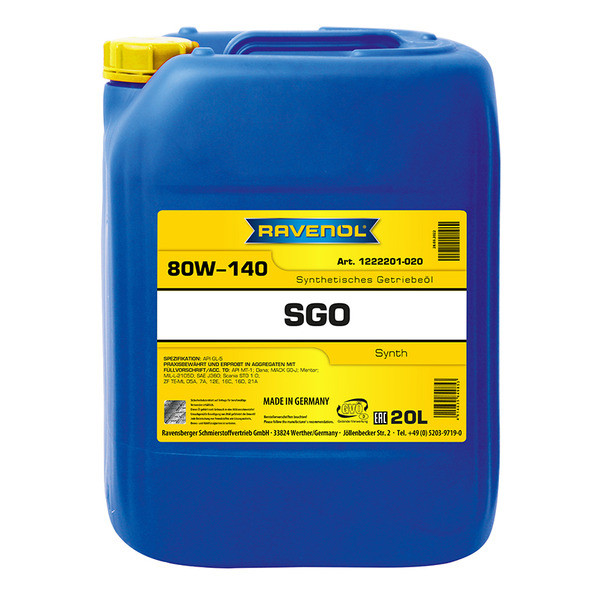

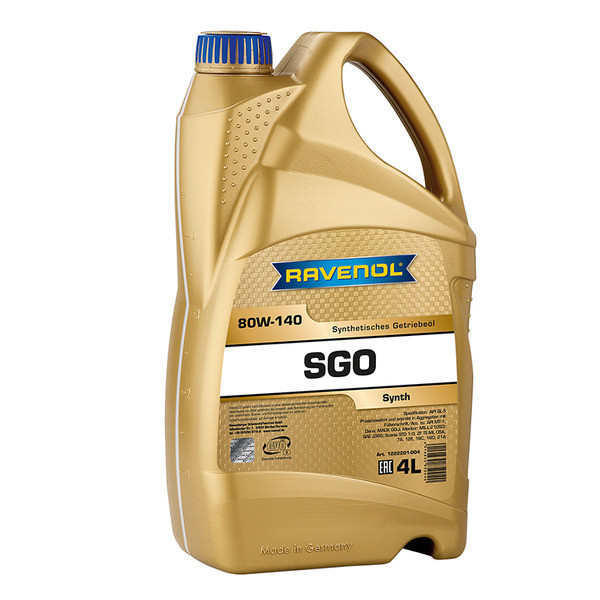

SGO 80W-140 GL-5

Application NoteRAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A

show details

SAE: 80W-140

API: GL-5, MT-1

Equivalents OEM:
BRP 779478, GM 1940770, GM 9163336, GM 9163336, Scania 1892407, Scania 1892408, Scania 1892409, Scania 1892410, Scania 1892411, Scania 2003096

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222201-001

Volume:
4 L

vendor code:
1222201-004

Volume:
20 L

vendor code:
1222201-020

Code:
4014835849853

Volume:
20 L, ecobox

vendor code:
1222201-B20

Volume:
60 L

vendor code:
1222201-060

Volume:
208 L

vendor code:
1222201-208

Code:
4014835849679

Volume:
1000 L

vendor code:
1222201-700

Application Note

RAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.

Characteristics

A pressure-resistant lubricating film, excellent high-pressure (EP) properties
High viscosity index
Excellent oxidation stability
An exceptional viscosity-temperature behavior
A low pour point
Excellent protection against rust and corrosion
Wear-resistant effect
Good air separation capacity, no foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-140		80W-140
Type		Synthetic		Synthetic
API		GL-5, MT-1		GL-5, MT-1
Recomendations		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
Suitable for		Dana		Dana
Density at 20 °C	kg/m³	850	EN ISO 12185	850 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	27.5	DIN 51562-1	27.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	205.1	DIN 51562-1	205.1 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
Brookfield Viscosity at -12 °C	mPa*s	32.000	ASTM D2983	32.000 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	202	DIN EN ISO 2592	202 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A		Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A

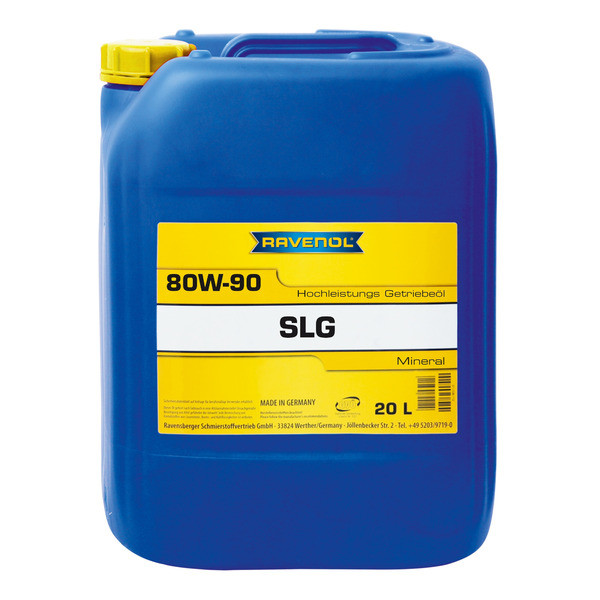

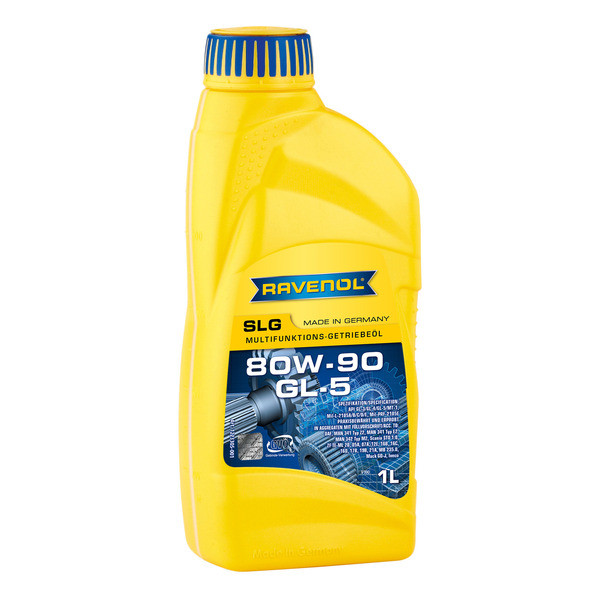

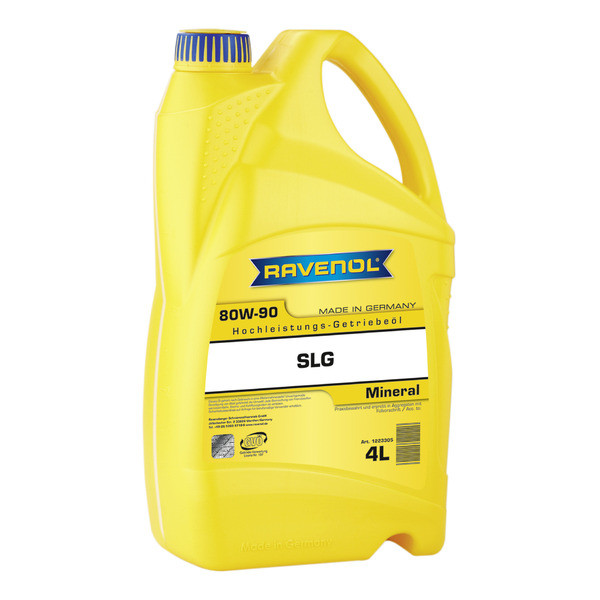

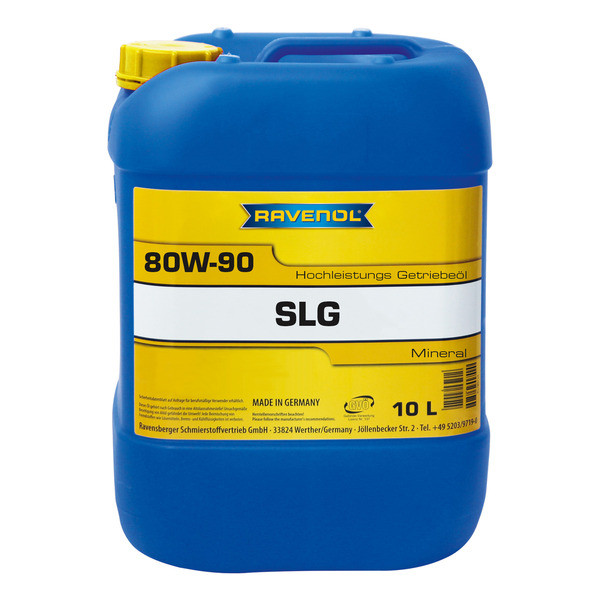

Getriebeoel SLG 80W-90

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.

Manufacturer Approved:
DTFR 12B130, MAN 342 Type M2, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 2B, ZF TE-ML 16B, ZF TE-ML 16D

show details

SAE: 80W-90

API: GL-3, GL-4, GL-5, MT-1

Equivalents OEM:
DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411 DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411, ZF 681000412

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223305-001

Volume:
4 L

vendor code:
1223305-004

Volume:
10 L

vendor code:
1223305-010

Code:
4014835738546

Volume:
20 L

vendor code:
1223305-020

Code:
4014835738522

Volume:
20 L, ecobox

vendor code:
1223305-B20

Volume:
60 L

vendor code:
1223305-060

Code:
4014835738560

Volume:
208 L

vendor code:
1223305-208

Code:
4014835738584

Volume:
1000 L

vendor code:
1223305-700

Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.

Application Note

RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.

Characteristics

An excellent thermal stability
Excellent extreme pressure properties
A good circuit behavior at low temperatures
An extended service life
Neutral behavior towards sealing materials
Reliable protection against wear, sludge, adhesion and corrosion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-3, GL-4, GL-5, MT-1		GL-3, GL-4, GL-5, MT-1
Manufacturer Approved		DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B		DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
specification		MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E		MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E
Suitable for		DAF, IVECO		DAF, IVECO
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	15.2	DIN 51562-1	15.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	146.4	DIN 51562-1	146.4 mm²/s DIN 51562-1
Viscosity Index VI		105	DIN ISO 2909	105 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	161.000	ASTM D2983	161.000 mPa*s ASTM D2983
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	200	DIN EN ISO 2592	200 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B		DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B

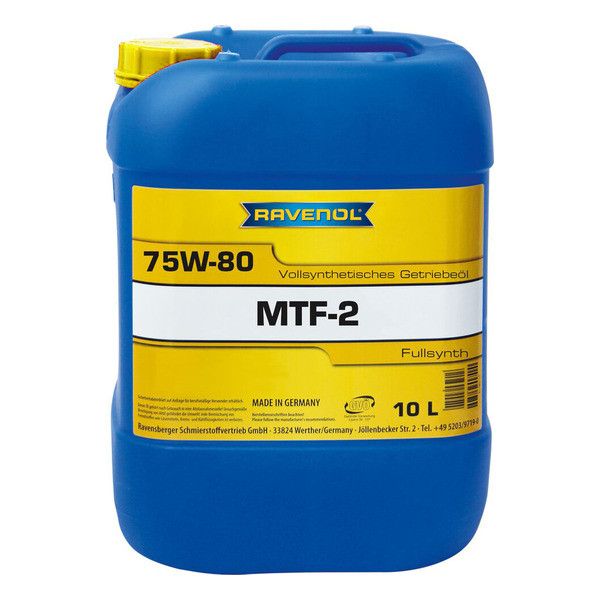

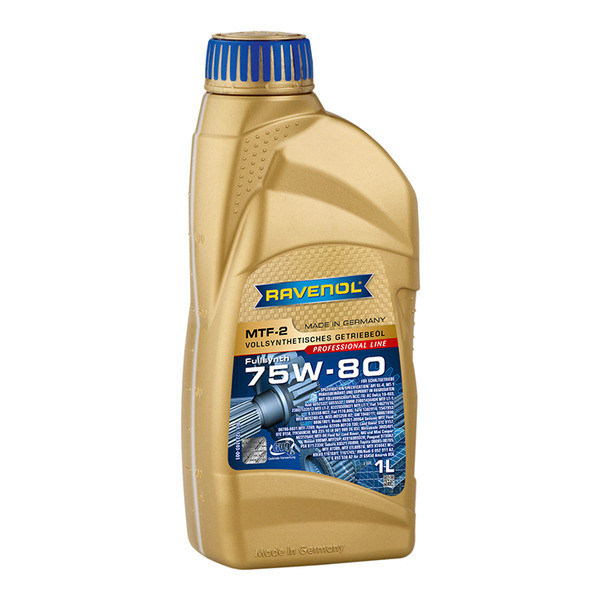

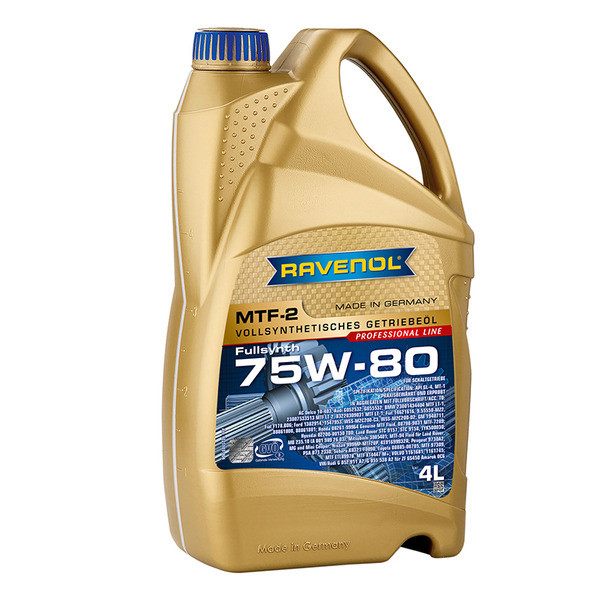

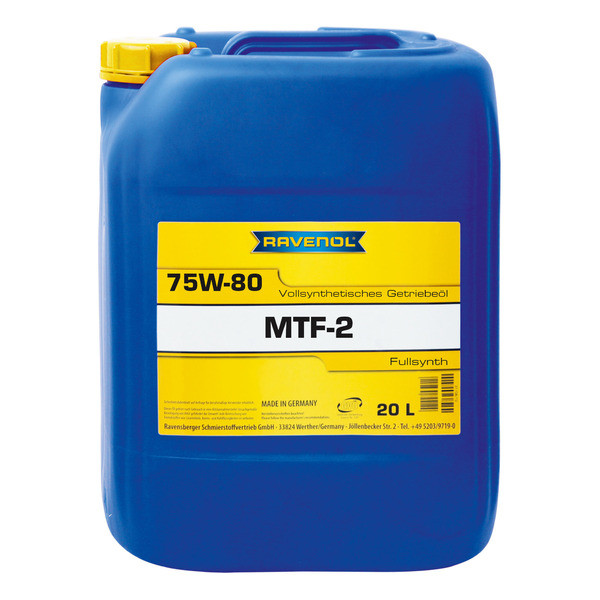

MTF-2 75W-80

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

show details

SAE: 75W-80

API: GL-4, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221103-001

Code:
4014835719712

Volume:
4 L

vendor code:
1221103-004

Code:
4014835719798

Volume:
10 L

vendor code:
1221103-010

Volume:
20 L

vendor code:
1221103-020

Volume:
20 L, ecobox

vendor code:
1221103-B20

Code:
4014835788428

Volume:
60 L

vendor code:
1221103-060

Code:
4014835719767

Volume:
60 L, print

vendor code:
1221103-D60

Volume:
208 L

vendor code:
1221103-208

Volume:
208 L, print

vendor code:
1221103-D28

Volume:
1000 L

vendor code:
1221103-700

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

A high-pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming property even at high speeds
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		75W-80		75W-80
Type		Full synthetic		Full synthetic
API		GL-4, MT-1		GL-4, MT-1
Recomendations		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
Compliant products		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
Density at 20 °C	kg/m³	847.5	EN ISO 12185	847.5 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.1	DIN 51562-1	9.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.8	DIN 51562-1	50.8 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	21.900	ASTM D2983	21.900 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

Search results for query «MT-1»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
