Standard Truck 40

Application NoteRAVENOL Standard Truck SAE 40 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A

show details

SAE: 40W

API: CF, SF

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1123625-020

Volume:
208 L

vendor code:
1123625-208

Volume:
1000 L

vendor code:
1123625-700

Application Note

RAVENOL Standard Truck SAE 40 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Characteristics

High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts
Reduced emissions

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		40W		40W
Type		Mineral		Mineral
API		CF, SF		CF, SF
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A
Density at 20 °C	kg/m³	896	EN ISO 12185	896 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	165.8	DIN 51562-1	165.8 mm²/s DIN 51562-1
Viscosity Index VI		97	DIN ISO 2909	97 DIN ISO 2909
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	254	DIN EN ISO 2592	254 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A

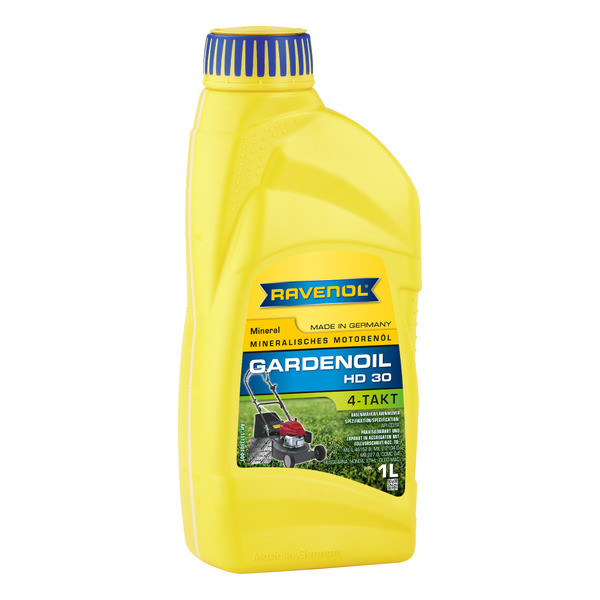

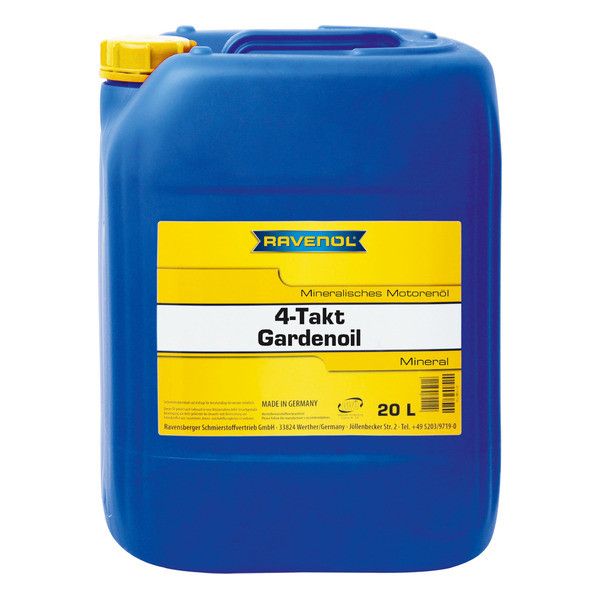

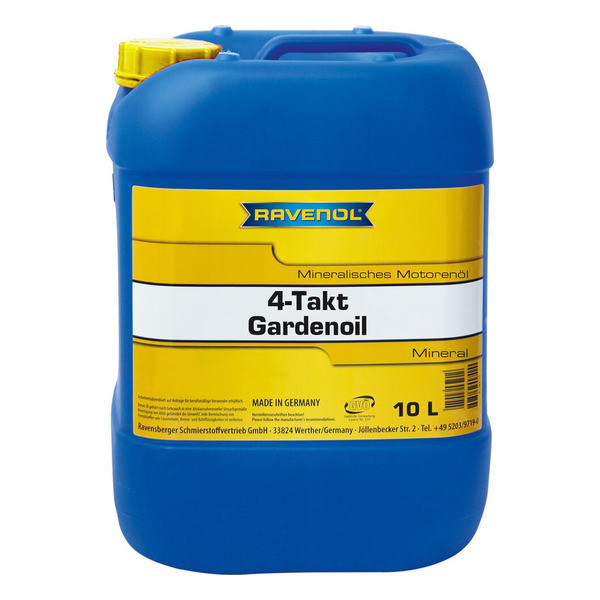

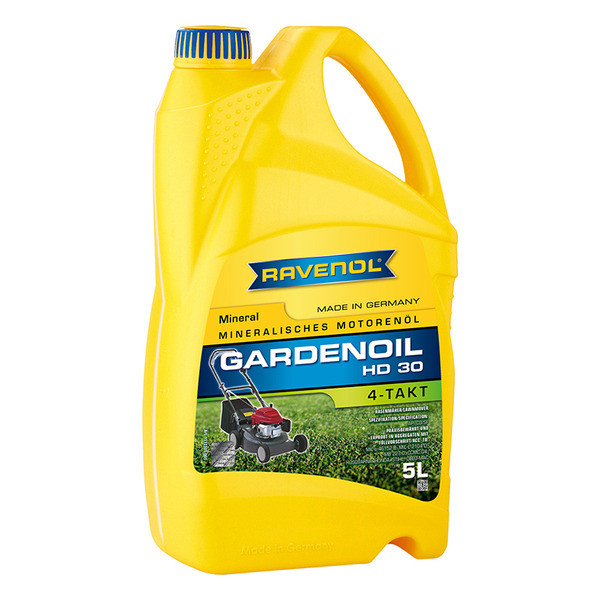

RAVENOL 4-Takt Gardenoil HD 30 usable especially where the normal operating temperatures will be expected. The oil viscosity remains constantly at the operation temperature over the whole service interval.

Compliance with the requirements:
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B

show details

SAE: 30W

API: CD, SF

Equivalents OEM:
Alpine 0100541, Alpine 0100546, Honda 08221888010MP, Honda 08221888061HE, Honda 08221888061MP, Honda 08232H99X8JT1, Honda 08232H99X8JT1, Honda 082322MAX1JT3, Honda 082322MAX1JT3F, Honda 082322MAX8JT1, Honda 082322MAX8JT1F

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113301-001

Code:
4014835725416

Volume:
4 L

vendor code:
1113301-004

Volume:
5 L

vendor code:
1113301-005

Volume:
10 L

vendor code:
1113301-010

Volume:
20 L

vendor code:
1113301-020

Volume:
20 L, ecobox

vendor code:
1113301-B20

Volume:
60 L

vendor code:
1113301-060

Volume:
208 L

vendor code:
1113301-208

Code:
4014835725485

Volume:
1000 L

vendor code:
1113301-700

RAVENOL 4-Takt Gardenoil HD 30 usable especially where the normal operating temperatures will be expected. The oil viscosity remains constantly at the operation temperature over the whole service interval.

Application Note

RAVENOL 4-Takt Gardenoil HD 30 is suitable for use in 4-stroke lawn mowers under normal operating temperatures.

Characteristics

Protection against corrosion
Good shear stability
High oxidation stability
Excellent viscosity-temperature behavior
Enhanced levels of detergent and dispersant for cleaner engines
Very good cold starting properties
Prevents formation of deposits and black sludge

Parameter	Unit	Value	Audit
Engine cycle		4T		4T
Brand		RAVENOL		RAVENOL
SAE		30W		30W
Type		Mineral		Mineral
API		CD, SF		CD, SF
Recomendations		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
Suitable for		Honda, Husqvarna, STIHL		Honda, Husqvarna, STIHL
Density at 20 °C	kg/m³	876	EN ISO 12185	876 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	103.3	DIN 51562-1	103.3 mm²/s DIN 51562-1
Viscosity Index VI		106	DIN ISO 2909	106 DIN ISO 2909
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Approvals		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B

Super HD 50

Extended oil drain capability where recommended by the vehicle manufacturer.

Compliance with the requirements:
CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C

show details

SAE: 50W

API: CD, SF

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113305-001

Volume:
4 L

vendor code:
1113305-004

Volume:
5 L

vendor code:
1113305-005

Volume:
10 L

vendor code:
1113305-010

Volume:
20 L

vendor code:
1113305-020

Volume:
20 L, ecobox

vendor code:
1113305-B20

Volume:
60 L

vendor code:
1113305-060

Volume:
60 L, print

vendor code:
1113305-D60

Volume:
208 L

vendor code:
1113305-208

Volume:
1000 L

vendor code:
1113305-700

Extended oil drain capability where recommended by the vehicle manufacturer.

Application Note

RAVENOL Super HD 50 is suitable for both gasoline and diesel engines in cars, van and commercial vehicles with and without turbocharging under light loads which require this SAE 50 grade of oil.

Characteristics

Good shear stability
High oxidation stability
Excellent viscosity-temperature behavior
Enhanced levels of detergent and dispersant for cleaner engines
Very good cold starting properties
Prevents formation of deposits and black sludge
High safety reserves even under boundary lubrication conditions
Catalyst suitability

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		50W		50W
Type		Mineral		Mineral
API		CD, SF		CD, SF
Recomendations		CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C		CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C
Density at 20 °C	kg/m³	889	EN ISO 12185	889 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	18.4	DIN 51562-1	18.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	200.1	DIN 51562-1	200.1 mm²/s DIN 51562-1
Viscosity Index VI		102	DIN ISO 2909	102 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	278	DIN EN ISO 2592	278 °C DIN EN ISO 2592
tbn	mgKOH/g	7.4	ASTM D2896	7.4 mgKOH/g ASTM D2896
Approvals		CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011-A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C		CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011-A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C

Standard Truck 30

RAVENOL Standard Truck SAE 30 is mineral mono grade motor oil for trucks. It is an all-season oil for all truck diesel engine typ es.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

show details

SAE: 30W

API: CF, SF

Available packaging
Full description
Product parameters

RAVENOL Standard Truck SAE 30 offers high protection against friction and abrasion, excellent cold start characteristics. Extende d oil change intervals according to manufacturer's recommendations.

Application Note:

RAVENOL Standard Truck SAE 30 is mono grade motor oil for use in truck diesel engines. It is also suitable for stationary plants.

Characteristics:

Good shear stability
High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts

Parameter	Unit	Value	Audit
SAE		30W		30W
Type		Mineral		Mineral
API		CF, SF		CF, SF
ASTM
Manufacturer Approved
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
Rennstrecken-Partnerschaft
Rennstrecken-Partner
specification
Suitable for
Compliant products
Density at 20 °C	kg/m³	887	EN ISO 12185	887 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	102.3	DIN 51562-1	102.3 mm²/s DIN 51562-1
Viscosity Index VI		100	DIN ISO 2909	100 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	262	DIN EN ISO 2592	262 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

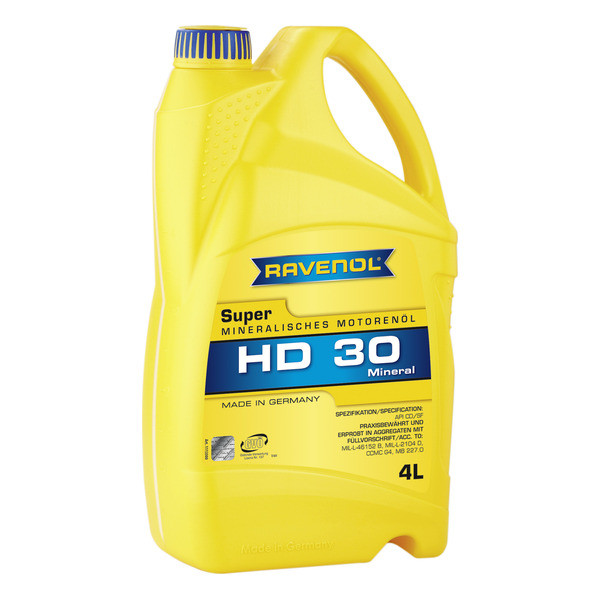

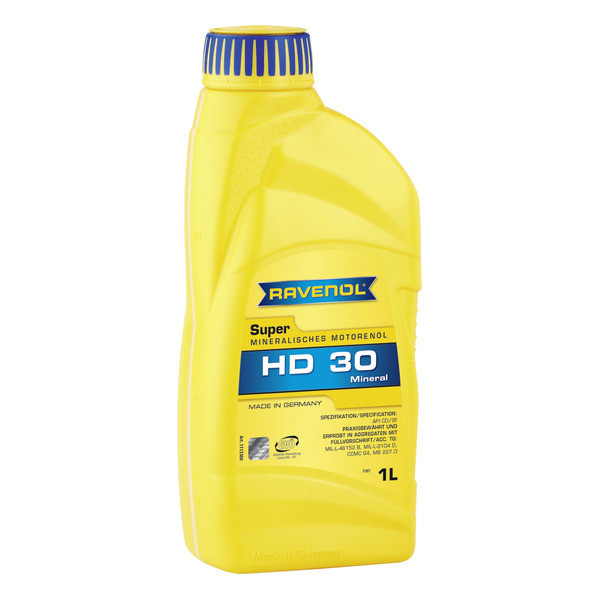

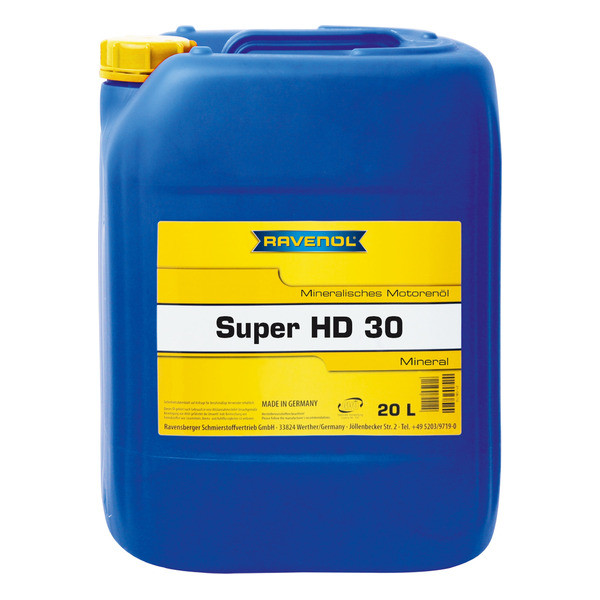

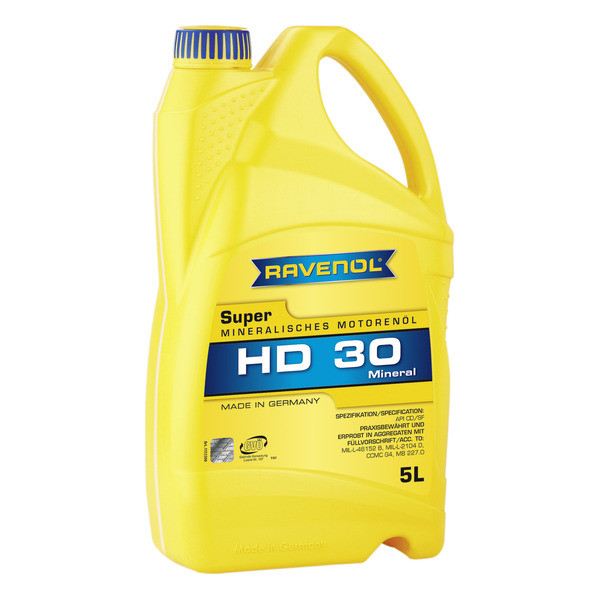

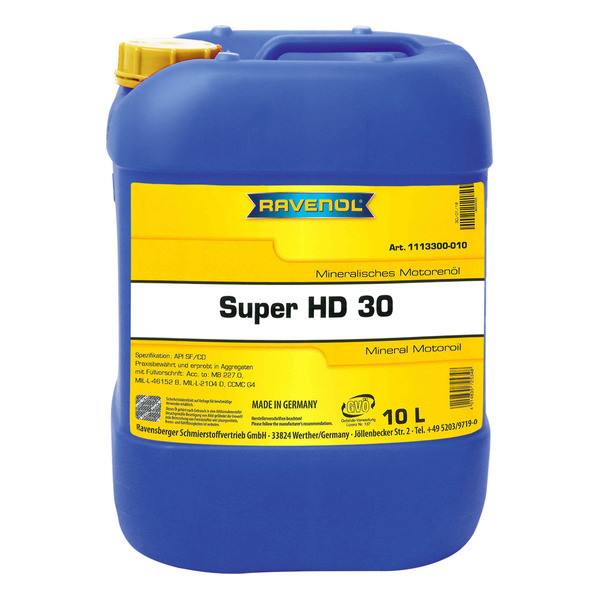

Super HD 30

Application NoteRAVENOL Super HD 30 is suitable for both gasoline and diesel engines in cars, van and commercial vehicles which require this grade of engine oil.

Compliance with the requirements:
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B

show details

SAE: 30W

API: CD, SF

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113300-001

Volume:
4 L

vendor code:
1113300-004

Volume:
5 L

vendor code:
1113300-005

Volume:
10 L

vendor code:
1113300-010

Volume:
20 L

vendor code:
1113300-020

Volume:
20 L, ecobox

vendor code:
1113300-B20

Volume:
60 L

vendor code:
1113300-060

Volume:
208 L

vendor code:
1113300-208

Volume:
1000 L

vendor code:
1113300-700

Application Note

RAVENOL Super HD 30 is suitable for both gasoline and diesel engines in cars, van and commercial vehicles which require this grade of engine oil.

Characteristics

Corrosion protection
Good shear stability
High oxidation stability
Excellent viscosity-temperature behavior
Enhanced levels of detergent and dispersant for cleaner engines
Very good cold starting properties
Prevents formation of deposits and black sludge

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		30W		30W
Type		Mineral		Mineral
API		CD, SF		CD, SF
Recomendations		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
Density at 20 °C	kg/m³	876	EN ISO 12185	876 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	103.3	DIN 51562-1	103.3 mm²/s DIN 51562-1
Viscosity Index VI		106	DIN ISO 2909	106 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
tbn	mgKOH/g	7.2	ASTM D2896	7.2 mgKOH/g ASTM D2896
Approvals		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B

Standard Truck 10W

Application NoteRAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

show details

SAE: 10W

API: CF, SF

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1123610-020

Volume:
20 L, ecobox

vendor code:
1123610-B20

Volume:
60 L

vendor code:
1123610-060

Volume:
208 L

vendor code:
1123610-208

Code:
4014835738188

Volume:
1000 L

vendor code:
1123610-700

Application Note

RAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Characteristics

Good shear stability
High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		10W		10W
Type		Mineral		Mineral
API		CF, SF		CF, SF
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
Density at 20 °C	kg/m³	862	EN ISO 12185	862 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	6.4	DIN 51562-1	6.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	36.9	DIN 51562-1	36.9 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	21	ASTM D2896	21 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

STOU 20W-40

RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 20W-40

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Yamalube ACCTRANSPLUS

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1310114-020

Code:
4014835740129

Volume:
20 L, ecobox

vendor code:
1310114-B20

Volume:
60 L

vendor code:
1310114-060

Volume:
208 L

vendor code:
1310114-208

Code:
4014835740181

Volume:
1000 L

vendor code:
1310114-700

RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 20W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 20W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		20W-40		20W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
Density at 20 °C	kg/m³	883	EN ISO 12185	883 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.1	DIN 51562-1	13.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	111.8	DIN 51562-1	111.8 mm²/s DIN 51562-1
Viscosity Index VI		112	DIN ISO 2909	112 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	246	DIN EN ISO 2592	246 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
CCS Viscosity at -15 °C	mPa*s	6860	ASTM D5293	6860 mPa*s ASTM D5293
Approvals		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B

STOU 15W-30

Application NoteRAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 15W-30

API: CE, GL-4, SF

ACEA: E1, E2

Available packaging
Full description
Product parameters

Volume:
20 L, ecobox

vendor code:
1310112-B20

Volume:
60 L

vendor code:
1310112-060

Code:
4014835739963

Volume:
60 L, print

vendor code:
1310112-D60

Volume:
208 L

vendor code:
1310112-208

Volume:
1000 L

vendor code:
1310112-700

Volume:
20 L

vendor code:
1310112-020

Application Note

RAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Characteristics

Excellent viscosity-temperature behaviour
Exceptional cold starting abilities
Excellent detergent and dispersant properties
High resistance to ageing

Parameter	Unit	Value	Audit
SAE		15W-30		15W-30
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CE, GL-4, SF		CE, GL-4, SF
ACEA		E1, E2		E1, E2
Recomendations		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	861	EN ISO 12185	861 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viscosity Index VI		159	DIN ISO 2909	159 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
tbn	mgKOH/g	11.7	ASTM D2896	11.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
Approvals		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

STOU 10W-30

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310100-005

Volume:
20 L

vendor code:
1310100-020

Code:
4014835739529

Volume:
20 L, ecobox

vendor code:
1310100-B20

Volume:
60 L

vendor code:
1310100-060

Code:
4014835739567

Volume:
208 L

vendor code:
1310100-208

Code:
4014835739581

Volume:
1000 L

vendor code:
1310100-700

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Application Note

RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
Protection against wear, corrosion and foam
High resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	867	EN ISO 12185	867 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.7	DIN 51562-1	74.7 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.58	DIN 51575	1.58 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

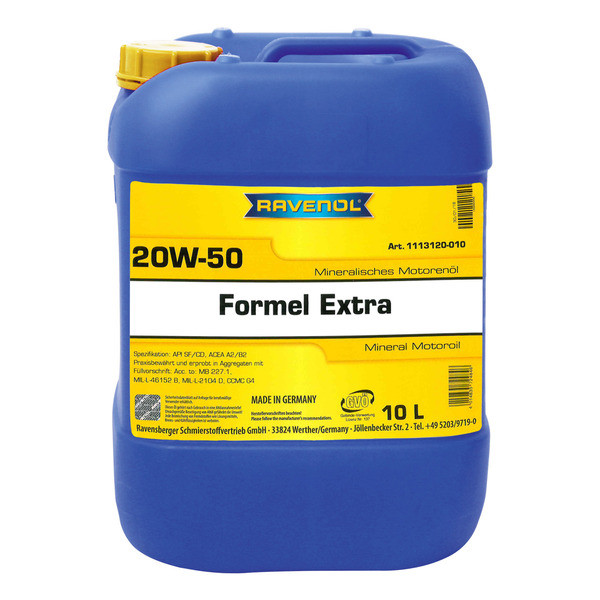

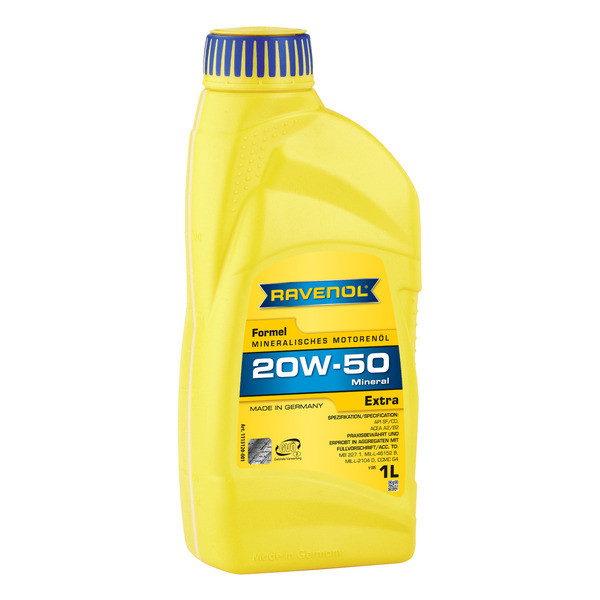

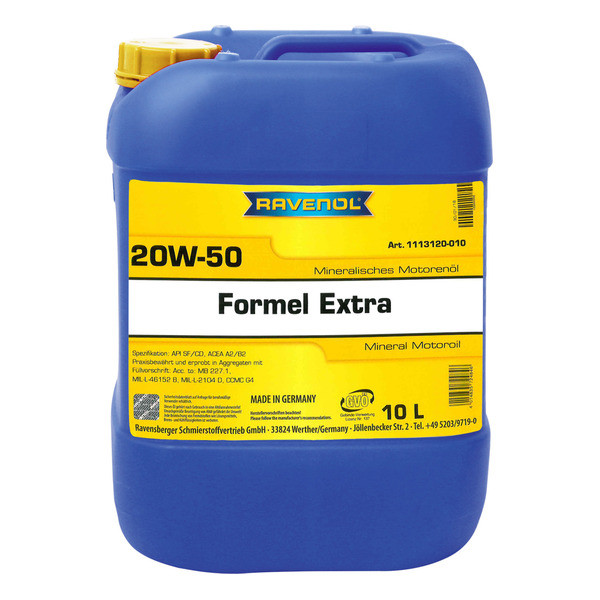

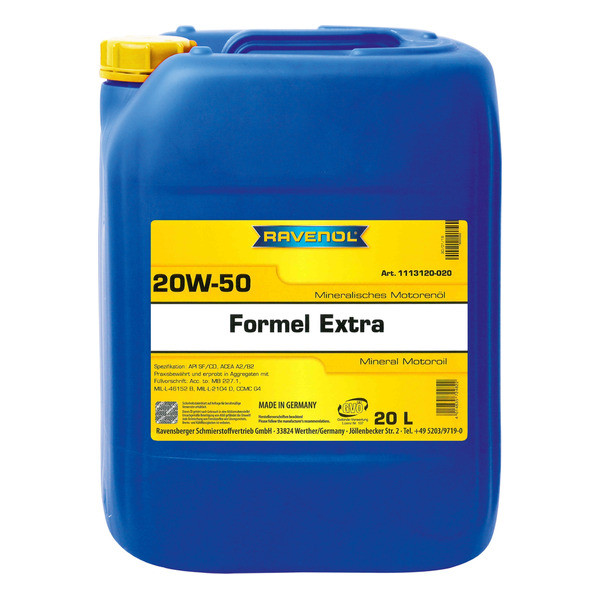

Formel Extra 20W-50

Application NoteRAVENOL Formel Extra SAE 20W-50 is suitable for both gasoline and diesel engines which require this grade of engine oil.

Compliance with the requirements:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B

show details

SAE: 20W-50

API: CD, SF

ACEA: A2, B2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113120-001

Code:
4014835724815

Volume:
4 L

vendor code:
1113120-004

Volume:
5 L

vendor code:
1113120-005

Code:
4014835724853

Volume:
10 L

vendor code:
1113120-010

Code:
4014835724846

Volume:
20 L

vendor code:
1113120-020

Code:
4014835724822

Volume:
20 L, ecobox

vendor code:
1113120-B20

Volume:
60 L

vendor code:
1113120-060

Code:
4014835724860

Volume:
208 L

vendor code:
1113120-208

Code:
4014835724884

Volume:
208 L, print

vendor code:
1113120-D28

Volume:
1000 L

vendor code:
1113120-700

Application Note

RAVENOL Formel Extra SAE 20W-50 is suitable for both gasoline and diesel engines which require this grade of engine oil.

Characteristics

Excellent protection against corrosion
A very good shear stability
A high oxidation stability
An excellent viscosity-temperature behavior
Optimum operation of hydraulic tappets (hydraulic valve adjustment)
High levels of detergent and dispersant additives for cleaner engines
Compatible with all types of sealing materials
Very good cold starting properties
Prevents the formation of adhesions, varnish, carbon deposits and sludge accumulation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		20W-50		20W-50
Type		Mineral		Mineral
API		CD, SF		CD, SF
ACEA		A2, B2		A2, B2
Recomendations		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
Density at 20 °C	kg/m³	871	EN ISO 12185	871 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	18.1	DIN 51562-1	18.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	151.5	DIN 51562-1	151.5 mm²/s DIN 51562-1
Viscosity Index VI		133	DIN ISO 2909	133 DIN ISO 2909
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
tbn	mgKOH/g	7.3	ASTM D2896	7.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.9	DIN 51575	0.9 %wt. DIN 51575
Approvals		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B

STOU 15W-40

RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 86-A, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 15W-40

API: CE, CF-4, GL-4, SF

ACEA: E1

Equivalents OEM:
Volvo 1161908, Volvo 1161908

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310113-005

Volume:
10 L

vendor code:
1310113-010

Code:
W24001055

Volume:
20 L

vendor code:
1310113-020

Code:
4014835740020

Volume:
20 L, ecobox

vendor code:
1310113-B20

Volume:
60 L

vendor code:
1310113-060

Volume:
208 L

vendor code:
1310113-208

Volume:
1000 L

vendor code:
1310113-700

RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 15W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 15W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
SAE		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CE, CF-4, GL-4, SF		CE, CF-4, GL-4, SF
ACEA		E1		E1
Recomendations		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
specification		CCMC D4, CCMC G2		CCMC D4, CCMC G2
Density at 20 °C	kg/m³	865	EN ISO 12185	865 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	94.2	DIN 51562-1	94.2 mm²/s DIN 51562-1
Viscosity Index VI		141	DIN ISO 2909	141 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.8	ASTM D2896	12.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B

STOU 10W-40

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310111-005

Volume:
10 L

vendor code:
1310111-010

Volume:
20 L

vendor code:
1310111-020

Code:
4014835739826

Volume:
20 L, ecobox

vendor code:
1310111-B20

Volume:
60 L

vendor code:
1310111-060

Volume:
1000 L

vendor code:
1310111-700

Volume:
208 L

vendor code:
1310111-208

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
SAE		10W-40		10W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	kg/m³	864	EN ISO 12185	864 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.7	DIN 51562-1	14.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	101.1	DIN 51562-1	101.1 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

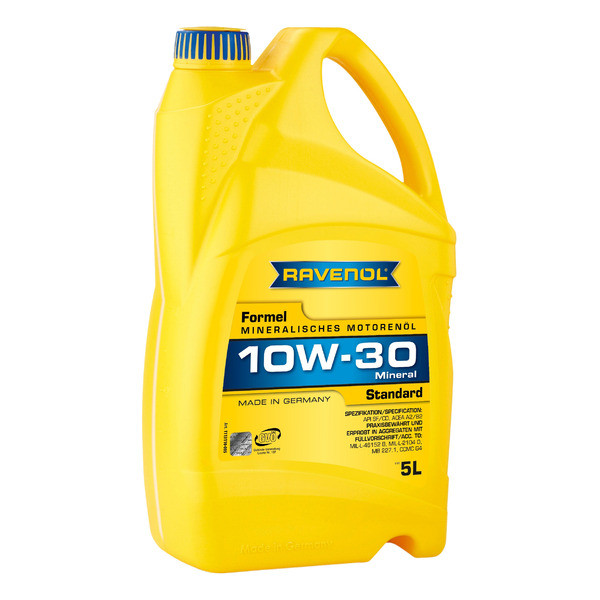

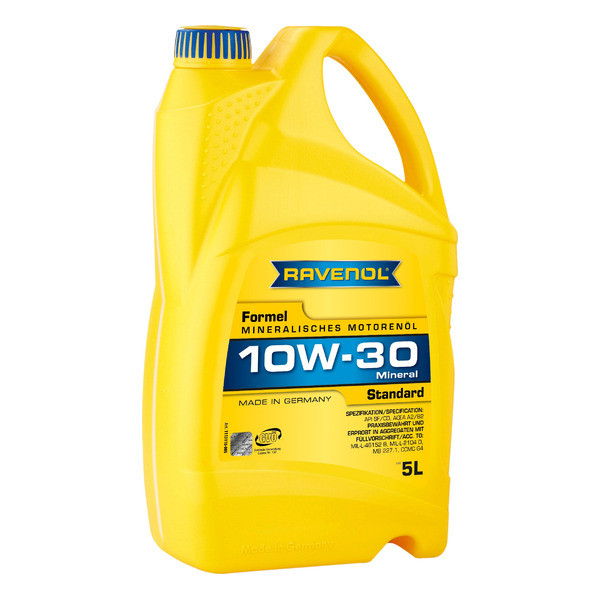

Formel Standard 10W-30

Application NoteRAVENOL Formel Standard SAE 10W-30 should be used according the manufacturer’s instructions for diesel and gasoline engines.

Compliance with the requirements:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B

show details

SAE: 10W-30

API: CD, SF

ACEA: A2, B2

Equivalents OEM:
Ford 14A4D3, Ford 145C85, Ford 145C85, Ford 1010313, Ford 1103055, Ford 1103057, Ford 1359064, Ford 1359080, Ford 5019256, Ford 5019272, Ford 5019273, Ford 5022524, Ford 5022528, Ford 5022530, Ford A87SX19M544A, Ford A87SX19M544AAA, Ford A87SX19M544ABA, Ford A87SX19M544B, Ford A89SX19M544AA, Ford A89SX19M544EA, Ford A89SX19M544GA, Ford A95SX19M544ACA, Ford XS4J10W30A1A, Ford XS4J10W30A1L, Toyota 0888300115, Toyota 0888300116

Available packaging
Full description
Product parameters

Volume:

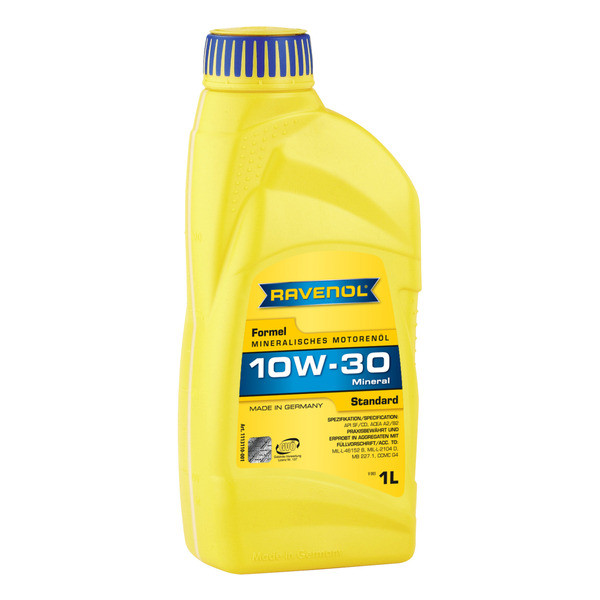

1 L

vendor code:
1113110-001

Code:
4014835724617

Volume:

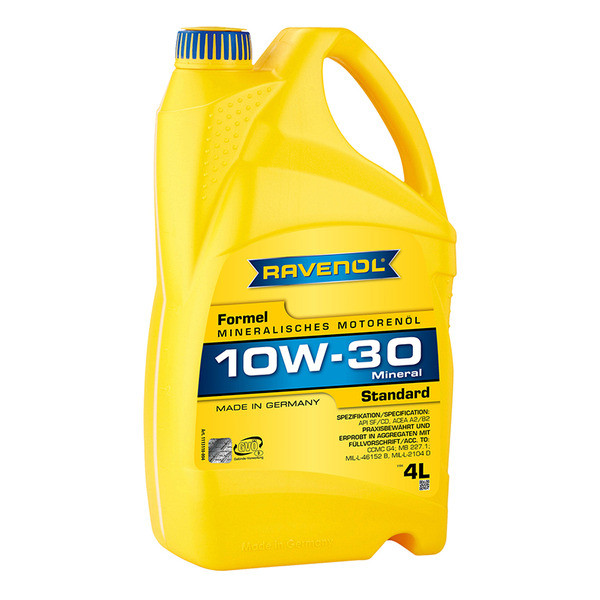

4 L

vendor code:
1113110-004

Volume:
5 L

vendor code:
1113110-005

Code:
4014835724655

Volume:

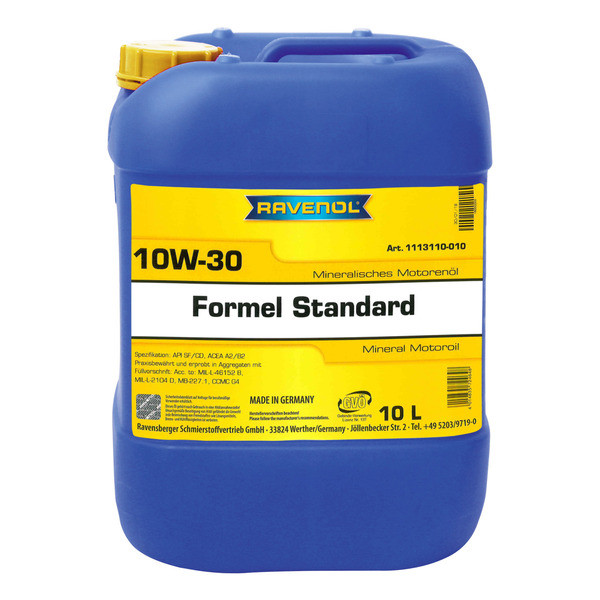

10 L

vendor code:
1113110-010

Volume:
20 L

vendor code:
1113110-020

Code:
4014835724624

Volume:
20 L, ecobox

vendor code:
1113110-B20

Volume:
60 L

vendor code:
1113110-060

Code:
4014835724662

Volume:
60 L, print

vendor code:
1113110-D60

Volume:
208 L

vendor code:
1113110-208

Code:
4014835724686

Volume:
208 L, print

vendor code:
1113110-D28

Volume:

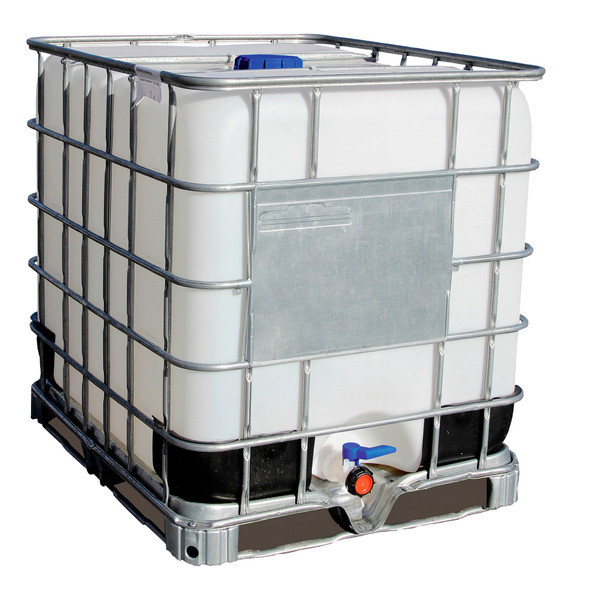

1000 L

vendor code:
1113110-700

Code:
4014835724679

Application Note

RAVENOL Formel Standard SAE 10W-30 should be used according the manufacturer’s instructions for diesel and gasoline engines.

Characteristics

Protection against corrosion
A very good shear stability
A very high oxidation stability
An excellent viscosity temperature behaviour
Efficient function of hydraulic shock absorbers (hydraulic valve compensation)
Convincing detergent and dispersant attributes
High security reserves even under limited lubrication conditions
Neutrality against sealing materials
Very good cold start attributes
Avoids the formation of conglutinations, pigmenting, coking and accumulation of mud (black sludge) on cylinders, pistons, valves, sparking plugs and in turbo superchargers
No problems with the use in catalyst vehicles

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		10W-30		10W-30
Type		Mineral		Mineral
API		CD, SF		CD, SF
ACEA		A2, B2		A2, B2
Recomendations		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
Density at 20 °C	kg/m³	859	EN ISO 12185	859 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.3	DIN 51562-1	12.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	84.3	DIN 51562-1	84.3 mm²/s DIN 51562-1
Viscosity Index VI		142	DIN ISO 2909	142 DIN ISO 2909
CCS Viscosity at -35 °C	mPa*s	6000	ASTM D5293	6000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	21.400	ASTM D4684	21.400 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.2	ASTM D2896	7.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.9	DIN 51575	0.9 %wt. DIN 51575
Approvals		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B

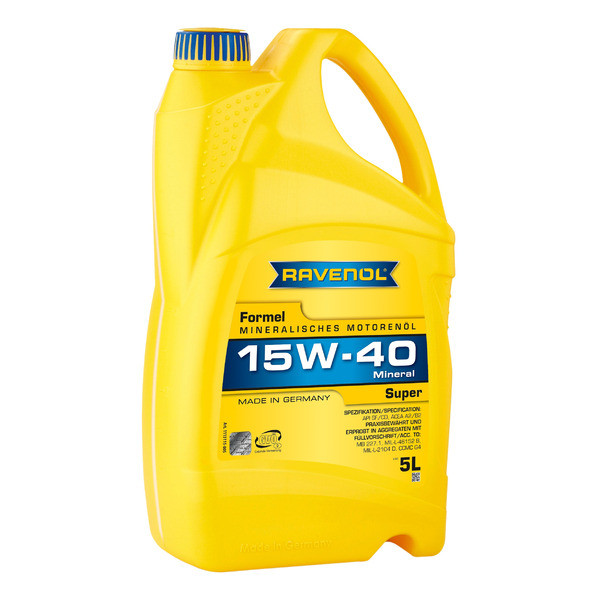

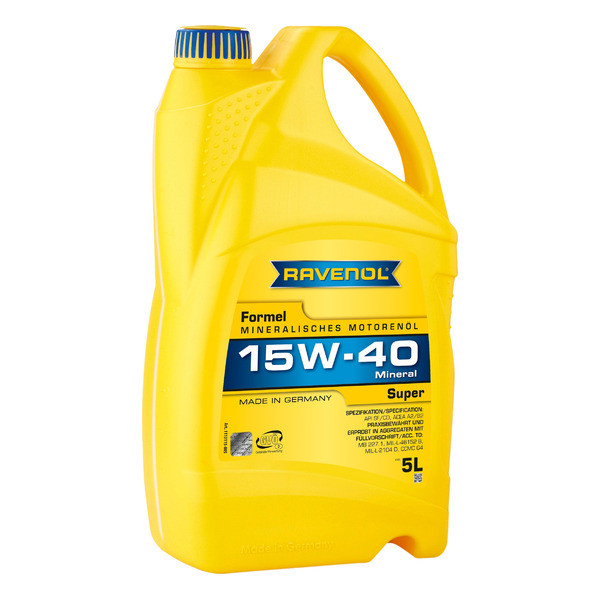

Formel Super 15W-40

Application NoteRAVENOL Formel Super SAE 15W-40 can be used according to the manufacturer specification for Diesel as well as Otto engines.

Compliance with the requirements:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B

show details

SAE: 15W-40

API: CD, SF

ACEA: A2, B2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113115-001

Code:
4014835724716

Volume:
4 L

vendor code:
1113115-004

Volume:
5 L

vendor code:
1113115-005

Code:
4014835724754

Volume:

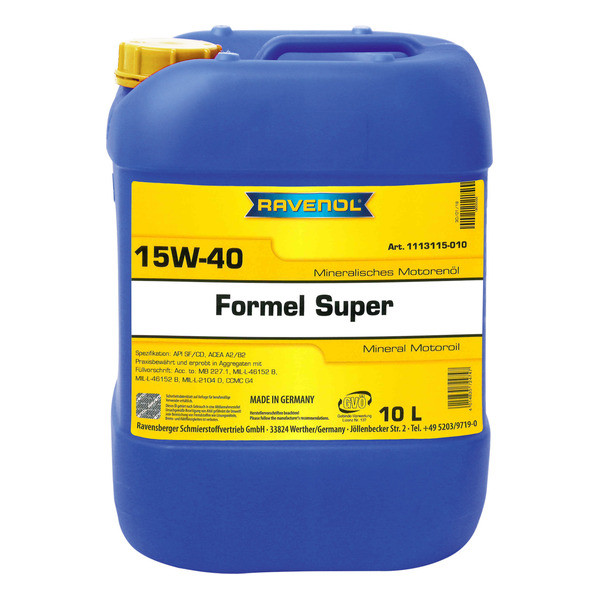

10 L

vendor code:
1113115-010

Code:
4014835724747

Volume:

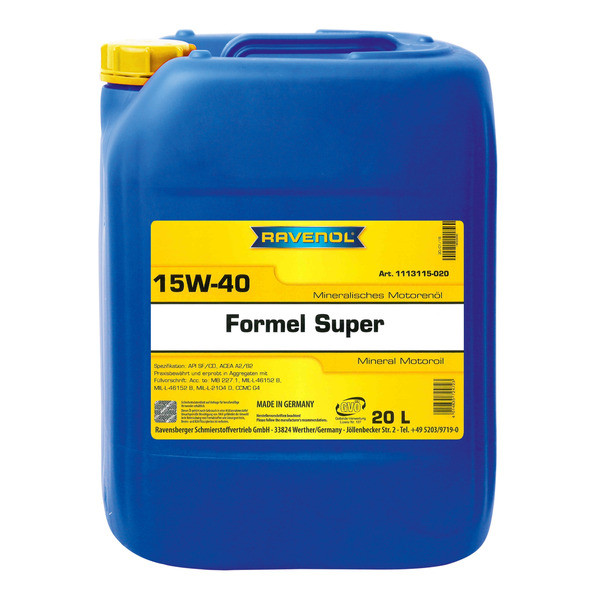

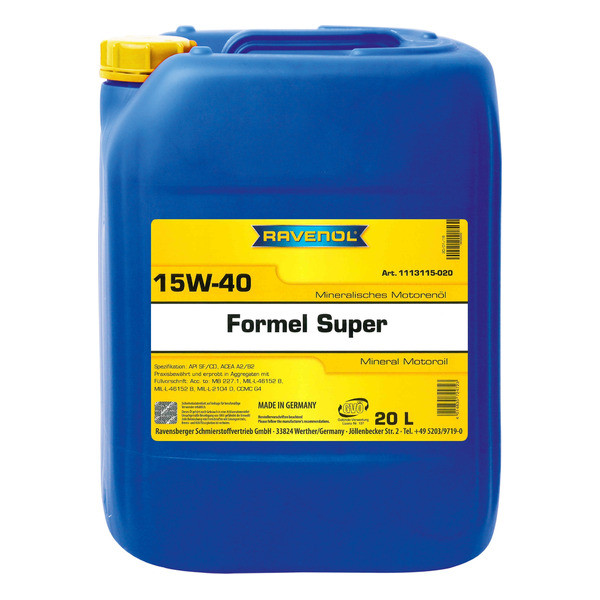

20 L

vendor code:
1113115-020

Code:
4014835724723

Volume:
20 L, ecobox

vendor code:
1113115-B20

Code:
4014835775022

Volume:
60 L

vendor code:
1113115-060

Code:
4014835724761

Volume:
60 L, print

vendor code:
1113115-D60

Volume:
208 L

vendor code:
1113115-208

Code:
4014835724785

Volume:
208 L, print

vendor code:
1113115-D28

Volume:
1000 L

vendor code:
1113115-700

Application Note

RAVENOL Formel Super SAE 15W-40 can be used according to the manufacturer specification for Diesel as well as Otto engines.

Characteristics

Protection against corrosion
A very good shear stability
A very high oxidation stability
An excellent viscosity temperature behaviour
Efficient function of hydraulic shock absorbers (hydraulic valve compensation)
Convincing detergent and dispersant attributes
High security reserves even under limited lubrication conditions
Neutrality against sealing materials
Very good cold start attributes
Avoids the formation of conglutinations, pigmenting, coking and accumulation of mud (black sludge) on cylinders, pistons, valves, sparking plugs and in turbo superchargers
No problems with the use in catalyst vehicles

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		15W-40		15W-40
Type		Mineral		Mineral
API		CD, SF		CD, SF
ACEA		A2, B2		A2, B2
Recomendations		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
Density at 20 °C	kg/m³	864	EN ISO 12185	864 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.2	DIN 51562-1	14.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	105.4	DIN 51562-1	105.4 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.1	ASTM D2896	7.1 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.9	DIN 51575	0.9 %wt. DIN 51575
Approvals		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B		CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B

Search results for query «SF»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Standard Truck 30

Application Note:

Characteristics:

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
