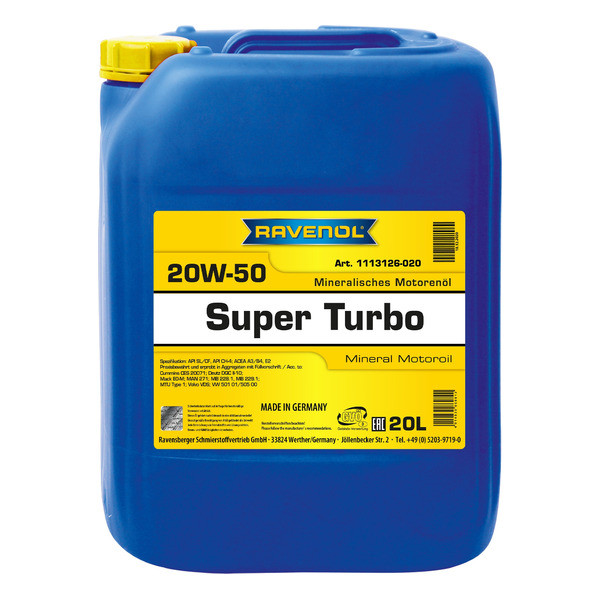

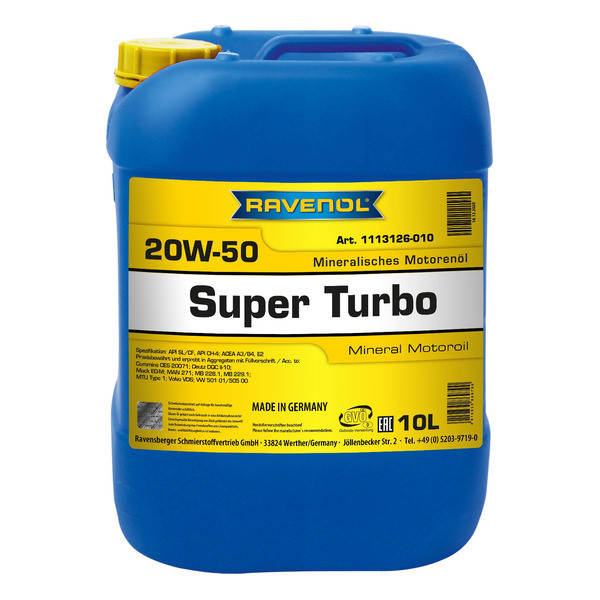

Super Turbo 20W-50

Super Turbo 20W-50

The high additive content of RAVENOL SUPER TURBO SAE 20W-50 guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.

Compliance with the requirements:
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00

show details hide details

SAE: 20W-50

API: CF, CH-4, SL

ACEA: A3, B4, E2

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1113126-001

Volume:
4 L

vendor code:
1113126-004

Volume:
5 L

vendor code:
1113126-005

Volume:
10 L

vendor code:
1113126-010

Volume:
20 L

vendor code:
1113126-020

Volume:
20 L, ecobox

vendor code:
1113126-B20

Volume:
60 L

vendor code:
1113126-060

Volume:
208 L

vendor code:
1113126-208

Volume:
1000 L

vendor code:
1113126-700

The high additive content of RAVENOL SUPER TURBO SAE 20W-50 guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.

RAVENOL SUPER TURBO SAE 20W-50 is a top product with high safety reserves.

Application Note

RAVENOL SUPER TURBO SAE 20W-50 is used in passenger car gasoline and diesel engines with and without turbocharging, if the SAE 20W-50 is required.

RAVENOL SUPER TURBO SAE 20W-50 is miscible with all HD motor oils based on mineral oil.

Characteristics

  • Excellent detergent and dispersant
  • A good cold start performance
  • High oxidation stability
  • An excellent viscosity-temperature behaviour
  • Best wear protection
  • High safety reserves
  • Reduction of emissioins
  • Catalyst suitability
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 20W-50
20W-50
Type Mineral
Mineral
API CF, CH-4, SL
CF, CH-4, SL
ACEA A3, B4, E2
A3, B4, E2
Recomendations Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
Density at 20 °C 876,0 EN ISO 12185
876,0 EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 18.9 DIN 51562-1
18.9 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 161.2 DIN 51562-1
161.2 mm²/s DIN 51562-1
Viscosity Index VI 133 DIN ISO 2909
133 DIN ISO 2909
CCS Viscosity at -15 °C mPa*s 6500 ASTM D5293
6500 mPa*s ASTM D5293
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
Flashpoint °C 241 DIN EN ISO 2592
241 °C DIN EN ISO 2592
tbn mgKOH/g 11.3 ASTM D2896
11.3 mgKOH/g ASTM D2896
Approvals Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00

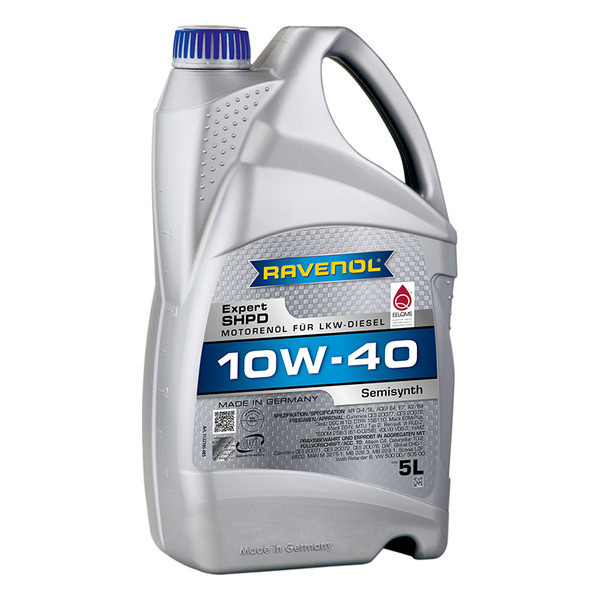

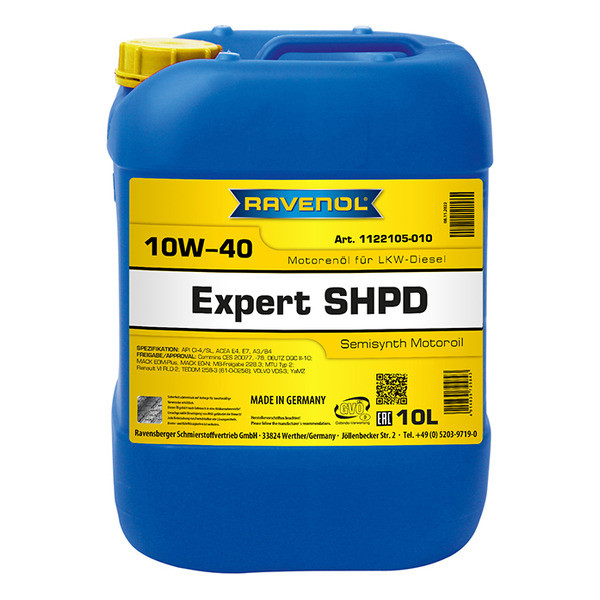

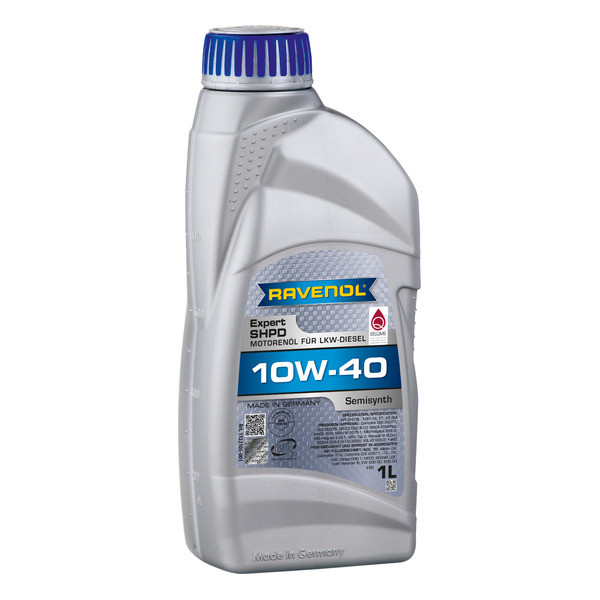

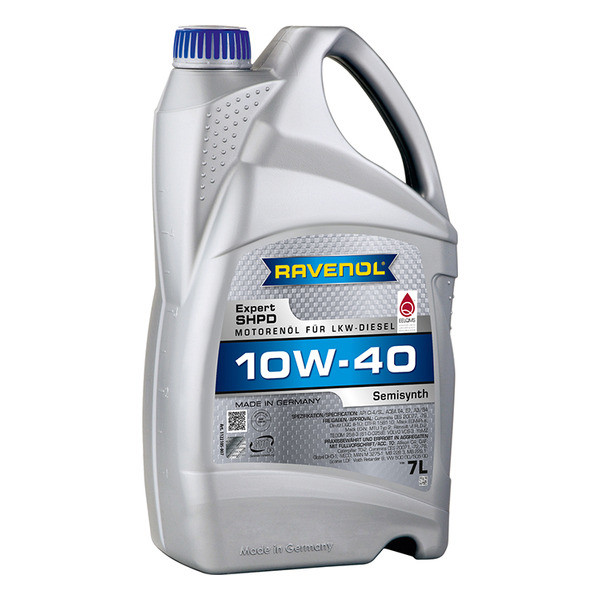

Expert SHPD 10W-40

Expert SHPD 10W-40

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00

show details hide details

SAE: 10W-40

API: CI-4, SL

ACEA: A3, B4, E4, E7

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1122105-001

Code:
4014835725812

Volume:
5 L

vendor code:
1122105-005

Code:
4014835725850

Volume:
7 L

vendor code:
1122105-007

Code:
4014835853515

Volume:
10 L

vendor code:
1122105-010

Code:
4014835725843

Volume:
20 L

vendor code:
1122105-020

Code:
4014835725829

Volume:
20 L, ecobox

vendor code:
1122105-B20

Code:
4014835776227

Volume:
60 L

vendor code:
1122105-060

Code:
4014835725867

Volume:
60 L, print

vendor code:
1122105-D60

Code:
4014835839533

Volume:
208 L

vendor code:
1122105-208

Code:
4014835725881

Volume:
208 L, print

vendor code:
1122105-D28

Code:
4014835725805

Volume:
1000 L

vendor code:
1122105-700

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Application Note

RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.

Characteristics

  • Excellent detergent and dispersant characteristics
  • Low evaporation
  • A high ageing stability
  • Protection of reflecting surface formation
  • Very good cold start characteristics
  • Reduces oil and fuel consumption
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 10W-40
10W-40
Type Semi-synthetic
Semi-synthetic
API CI-4, SL
CI-4, SL
ACEA A3, B4, E4, E7
A3, B4, E4, E7
Manufacturer Approved Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Suitable for DAF, IVECO, YaMZ
DAF, IVECO, YaMZ
Density at 20 °C kg/m³ 866 EN ISO 12185
866 kg/m³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 14.2 DIN 51562-1
14.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 93.5 DIN 51562-1
93.5 mm²/s DIN 51562-1
Viscosity Index VI 155 DIN ISO 2909
155 DIN ISO 2909
CCS Viscosity at -25 °C mPa*s 6480 ASTM D5293
6480 mPa*s ASTM D5293
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Noack Volatility % M/M 7.3 ASTM D5800
7.3 % M/M ASTM D5800
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 11 ASTM D2896
11 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.45 DIN 51575
1.45 %wt. DIN 51575
Approvals Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
FO 5W-30

FO 5W-30

CleanSynto®

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700

show details hide details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

  • Fuel economy in part and full power operation.
  • Very stable and excellent viscosity behaviour.
  • Excellent shear stability.
  • Excellent cold starting characteristics.
  • A safe lubricant film at high operating temperatures.
  • High wear and corrosion protection, high oxidation stability.
  • Prevention of sludge formation.
  • Excellent detergent- and dispersant characteristics.
  • Catalyst cleaning.
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API CF, SL
CF, SL
ACEA A5, B5
A5, B5
Recomendations Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700
Density at 20 °C kg/m³ 849 EN ISO 12185
849 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 10 DIN 51562-1
10 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 56.6 DIN 51562-1
56.6 mm²/s DIN 51562-1
Viscosity Index VI 165 DIN ISO 2909
165 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.08 ASTM D5481
3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 4300 ASTM D5293
4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 14.000 ASTM D4684
14.000 mPa*s ASTM D4684
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Noack Volatility % M/M 9.4 ASTM D5800
9.4 % M/M ASTM D5800
Flashpoint °C 240 DIN EN ISO 2592
240 °C DIN EN ISO 2592
tbn mgKOH/g 10.9 ASTM D2896
10.9 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.3 DIN 51575
1.3 %wt. DIN 51575
Approvals Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700

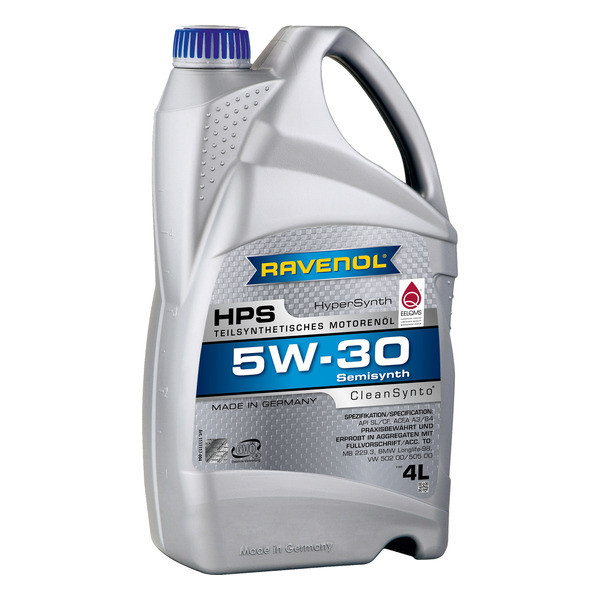

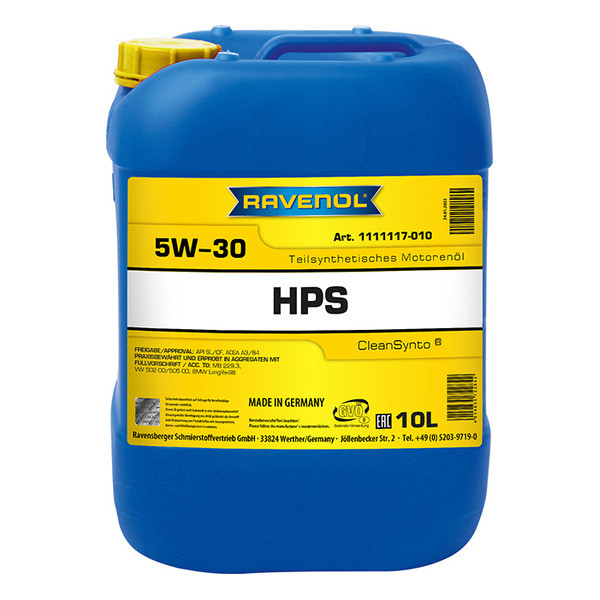

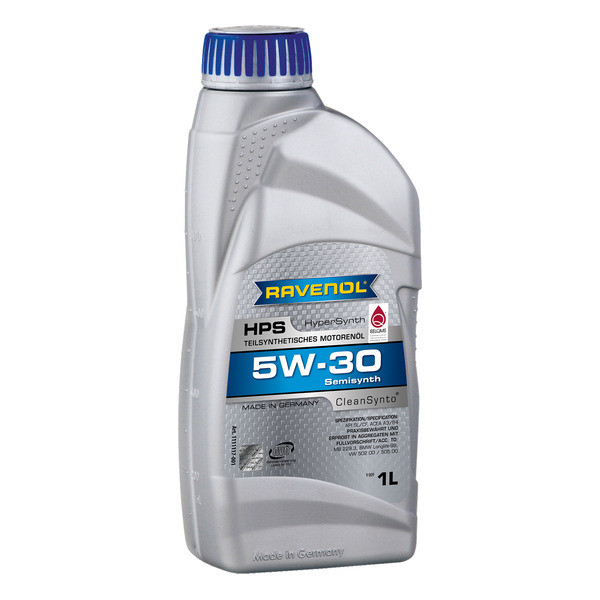

HPS 5W-30

HPS 5W-30

CleanSynto®

RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00

show details hide details

SAE: 5W-30

API: CF, SL

ACEA: A3, B4

Equivalents OEM:
Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036 Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036, Toyota 0888007705, Toyota 0888007706, Toyota 0888009105, Toyota 0888009106, Toyota 0888081015, Toyota 0888381013

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111117-001

Code:
4014835722811

Volume:
4 L

vendor code:
1111117-004

Code:
4014835722897

Volume:
5 L

vendor code:
1111117-005

Code:
4014835722859

Volume:
10 L

vendor code:
1111117-010

Code:
4014835722842

Volume:
20 L

vendor code:
1111117-020

Volume:
20 L, ecobox

vendor code:
1111117-B20

Code:
4014835773127

Volume:
60 L

vendor code:
1111117-060

Code:
4014835722866

Volume:
60 L, print

vendor code:
1111117-D60

Code:
4014835722835

Volume:
208 L

vendor code:
1111117-208

Code:
4014835722880

Volume:
208 L, print

vendor code:
1111117-D28

Code:
4014835722804

Volume:
1000 L

vendor code:
1111117-700

RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HPS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HPS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HPS SAE 5W-30 is low friction motor oil, which is suitable for performance motors. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

  • Fuel economy in part and full power operation.
  • Very stable and excellent viscosity behaviour.
  • Excellent shear stability.
  • Excellent cold starting characteristics.
  • A safe lubricant film at high operating temperatures.
  • Excellent detergent- and dispersant characteristics.
  • High wear and corrosion protection, high oxidation stability.
  • Prevention of sludge formation.
  • Extended lifetime because of oxidation stability.
  • Suitable for catalysts.
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Semi-synthetic
Semi-synthetic
API CF, SL
CF, SL
ACEA A3, B4
A3, B4
Recomendations BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
Density at 20 °C kg/m³ 850 EN ISO 12185
850 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12.15 DIN 51562-1
12.15 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 70.9 DIN 51562-1
70.9 mm²/s DIN 51562-1
Viscosity Index VI 170 DIN ISO 2909
170 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.71 ASTM D5481
3.71 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 6140 ASTM D5293
6140 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 20.800 ASTM D4684
20.800 mPa*s ASTM D4684
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Noack Volatility % M/M 8.9 ASTM D5800
8.9 % M/M ASTM D5800
Flashpoint °C 232 DIN EN ISO 2592
232 °C DIN EN ISO 2592
tbn mgKOH/g 11 ASTM D2896
11 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.18 DIN 51575
1.18 %wt. DIN 51575
Approvals BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00

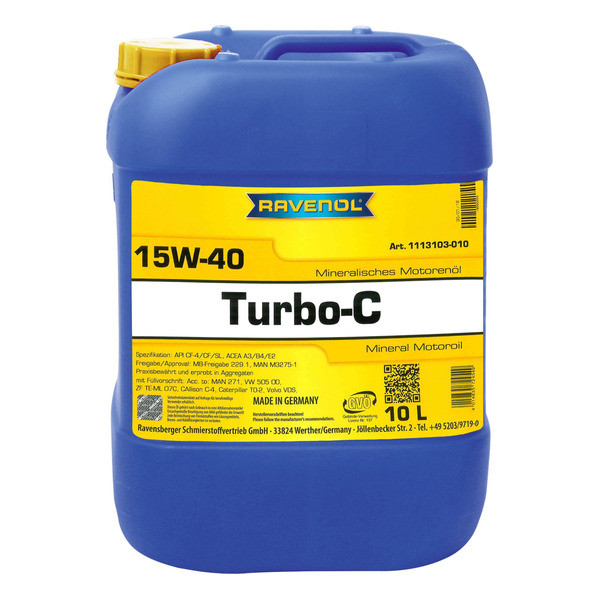

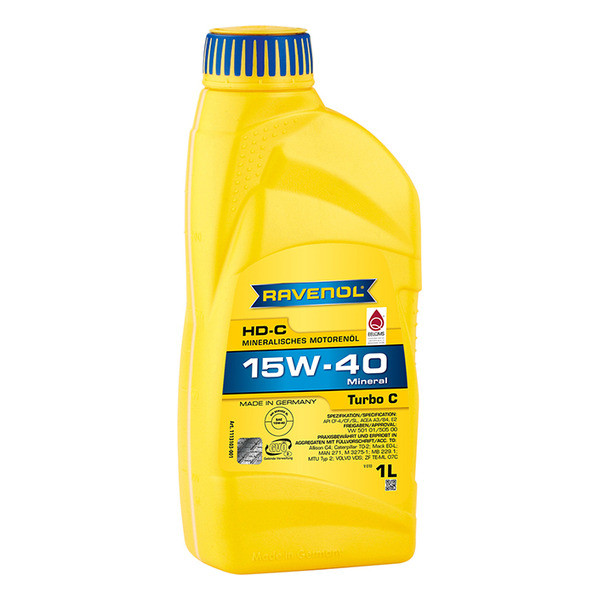

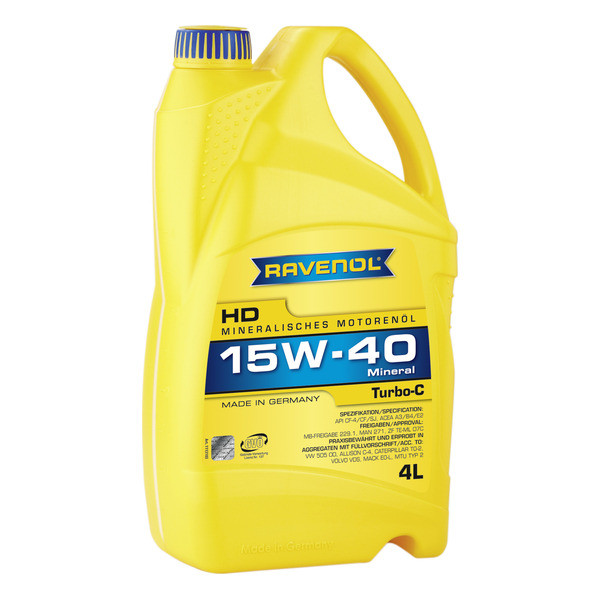

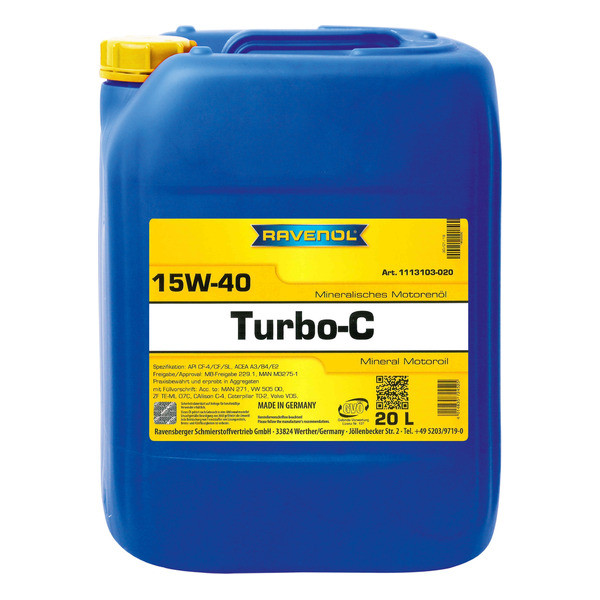

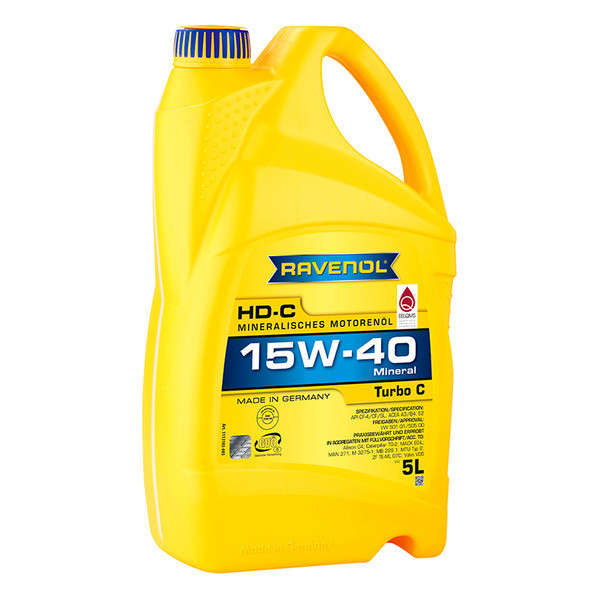

Turbo-C HD-C 15W-40

Turbo-C HD-C 15W-40

It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.

Manufacturer Approved:
VW 501.01, VW 505.00

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C

show details hide details

SAE: 15W-40

API: CF, CF-4, SL

ACEA: A3, B4, E2

Equivalents OEM:
GM 19375071, GM 19375072, GM 19375073, VAG G052107M2, VAG G052107M4, VAG G052107M6, VAG G052107S0, VAG G052107S0

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1113103-001

Code:
4014835724518

Volume:
4 L

vendor code:
1113103-004

Volume:
5 L

vendor code:
1113103-005

Code:
4014835724556

Volume:
10 L

vendor code:
1113103-010

Code:
4014835724549

Volume:
20 L

vendor code:
1113103-020

Code:
4014835724525

Volume:
20 L, ecobox

vendor code:
1113103-B20

Volume:
60 L

vendor code:
1113103-060

Code:
4014835724563

Volume:
60 L, print

vendor code:
1113103-D60

Volume:
208 L

vendor code:
1113103-208

Code:
4014835724587

Volume:
208 L, print

vendor code:
1113103-D28

Volume:
1000 L

vendor code:
1113103-700

It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.

Application Note

RAVENOL Turbo-C HD-C SAE 15W-40 is perfectly suited as all-season motor oil for the mixed fleet. It can be uses in the commercial vehicle sector for operation and extended oil change interval (up to 45,000 kilometres are possible) according to manufacturer's specifications.

Characteristics

  • An excellent shear stability
  • Very good cold start characteristics
  • A very high oxidation stability
  • Avoids the formation of coking and accumulation of mud (black sludge)
  • A very stable and excellent viscosity behaviour
  • Suitable for catalysts
  • Convincing detergent and dispersant attributes
  • High security reserves even under limited lubrication conditions
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 15W-40
15W-40
Type Mineral
Mineral
API CF, CF-4, SL
CF, CF-4, SL
ACEA A3, B4, E2
A3, B4, E2
Manufacturer Approved VW 501.01, VW 505.00
VW 501.01, VW 505.00
Recomendations Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
Density at 20 °C kg/m³ 873 EN ISO 12185
873 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 14.4 DIN 51562-1
14.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 107.2 DIN 51562-1
107.2 mm²/s DIN 51562-1
Viscosity Index VI 137 DIN ISO 2909
137 DIN ISO 2909
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Flashpoint °C 244 DIN EN ISO 2592
244 °C DIN EN ISO 2592
tbn mgKOH/g 8.5 ASTM D2896
8.5 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.1 DIN 51575
1.1 %wt. DIN 51575
Approvals Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C

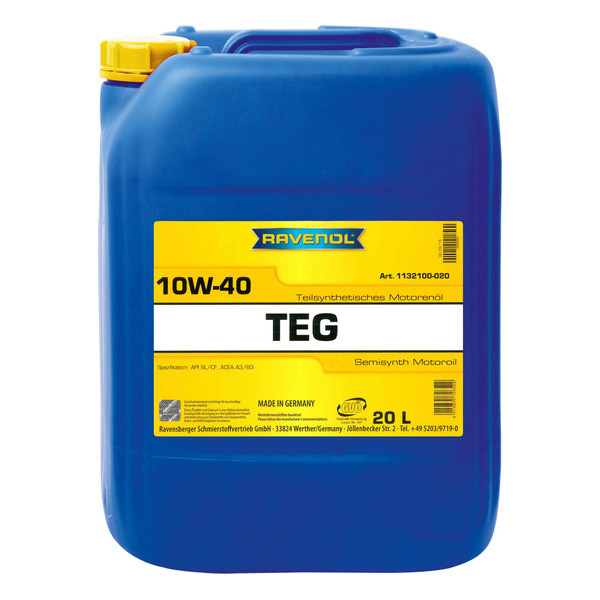

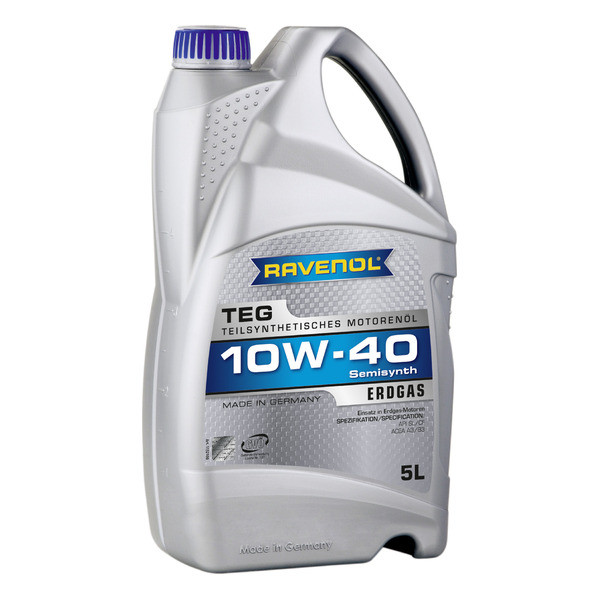

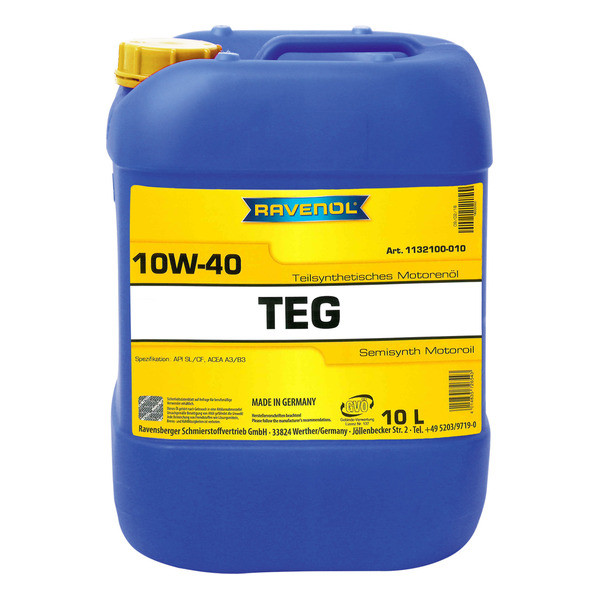

TEG 10W-40

TEG 10W-40

Application NoteRAVENOL TEG 10W-40 is suitable to apply as a multi-grade engine oil for natural gas engines.

show details hide details

SAE: 10W-40

API: CF, SL

ACEA: A3, B3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1132100-001

Code:
4014835726512

Volume:
4 L

vendor code:
1132100-004

Code:
4014835726598

Volume:
5 L

vendor code:
1132100-005

Code:
4014835726550

Volume:
10 L

vendor code:
1132100-010

Code:
4014835726543

Volume:
20 L

vendor code:
1132100-020

Volume:
20 L, ecobox

vendor code:
1132100-B20

Volume:
60 L, print

vendor code:
1132100-D60

Code:
4014835726536

Volume:
208 L, print

vendor code:
1132100-D28

Code:
4014835726505

Volume:
1000 L

vendor code:
1132100-700

Volume:
60 L

vendor code:
1132100-060

Volume:
208 L

vendor code:
1132100-208

Application Note

RAVENOL TEG 10W-40 is suitable to apply as a multi-grade engine oil for natural gas engines.

Characteristics

  • High wear protection
  • Fuel savings through low-friction properties
  • Excellent detergent and dispersant properties
  • Avoids the formation of accumulations of mud (black sludge)
  • Long life due to high oxidation stability
  • Excellent cold start performance
  • Very good viscosity-temperature behavior
  • Low evaporation loss
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 10W-40
10W-40
Type Semi-synthetic
Semi-synthetic
API CF, SL
CF, SL
ACEA A3, B3
A3, B3
Density at 20 °C kg/m³ 857.4 EN ISO 12185
857.4 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 14.6 DIN 51562-1
14.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 97.8 DIN 51562-1
97.8 mm²/s DIN 51562-1
Viscosity Index VI 154 DIN ISO 2909
154 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 4.03 ASTM D5481
4.03 mPa*s ASTM D5481
CCS Viscosity at -25 °C mPa*s 4900 ASTM D5293
4900 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -30 °C mPa*s 22000 ASTM D4684
22000 mPa*s ASTM D4684
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Noack Volatility % M/M 9.5 ASTM D5800
9.5 % M/M ASTM D5800
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 10.9 ASTM D2896
10.9 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.3 DIN 51575
1.3 %wt. DIN 51575

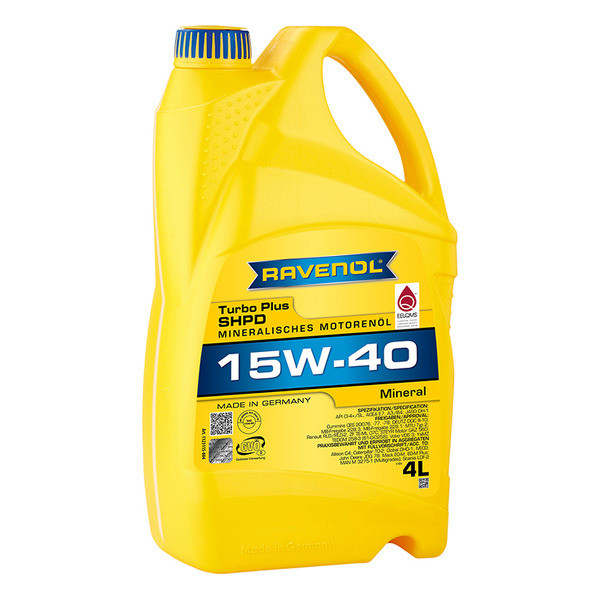

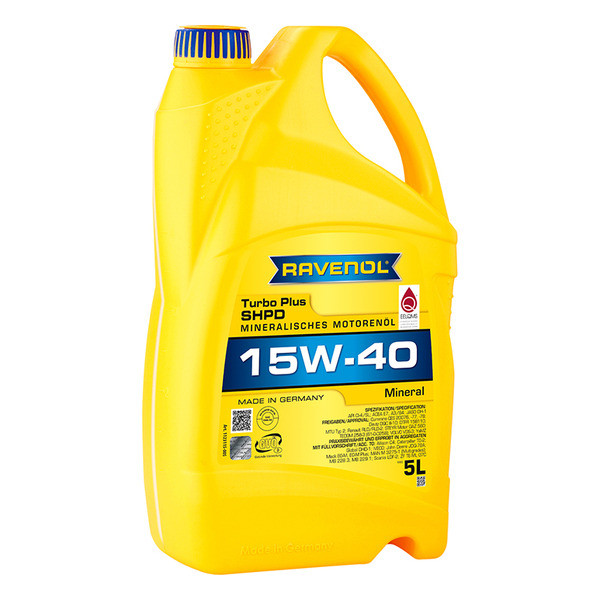

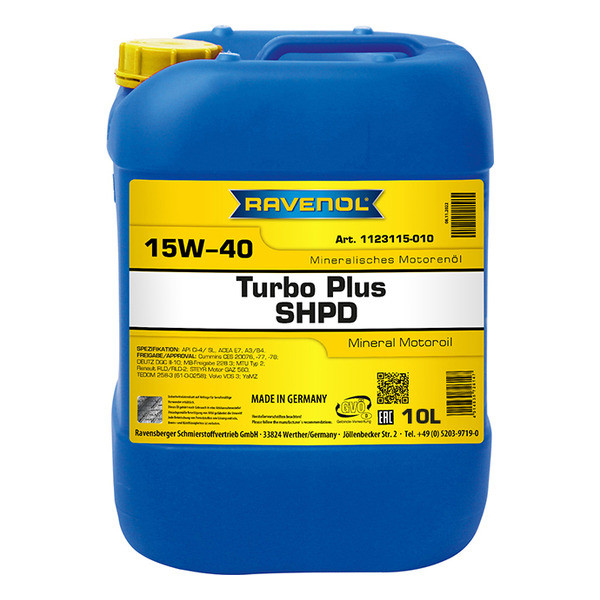

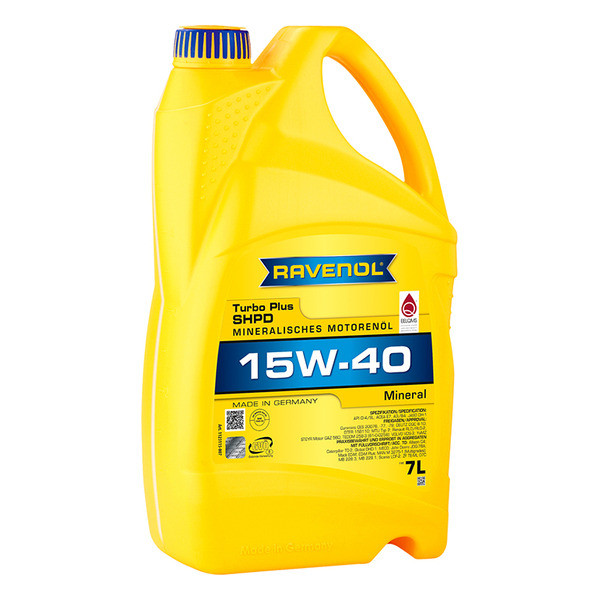

Turbo plus SHPD 15W-40

Turbo plus SHPD 15W-40

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

Manufacturer Approved:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C

show details hide details

SAE: 15W-40

API: CI-4, SL

ACEA: A3, B4, E7

Equivalents OEM:
Alpine 0100323, Alpine 100324, Chrysler 68024966AA, Chrysler 68024966PB, Chrysler 68024966PD, Chrysler 68024967AA, Chrysler 68218940AA, Chrysler 68218940AB, Chrysler 68218940AC, Chrysler 68218940AD, Chrysler 68218940CB, Chrysler 68218941AA, Chrysler 68218941AB, Chrysler 68218941AC, Chrysler 68218941CB, Chrysler 68218941CB, Chrysler 68218942AA, Chrysler 68218943AA, Chrysler 68218943AD, Chrysler 68218944AA, FEBI 32925, FEBI 32926, FEBI 32927, FEBI 32928, FEBI 32929, FEBI 32930, Motorcraft XO15W40BSD, Motorcraft XO15W40DSD, Motorcraft XO15W40DSDR, Motorcraft XO15W40QSD, Motorcraft XO15W40QSD1 Alpine 0100323, Alpine 100324, Chrysler 68024966AA, Chrysler 68024966PB, Chrysler 68024966PD, Chrysler 68024967AA, Chrysler 68218940AA, Chrysler 68218940AB, Chrysler 68218940AC, Chrysler 68218940AD, Chrysler 68218940CB, Chrysler 68218941AA, Chrysler 68218941AB, Chrysler 68218941AC, Chrysler 68218941CB, Chrysler 68218941CB, Chrysler 68218942AA, Chrysler 68218943AA, Chrysler 68218943AD, Chrysler 68218944AA, FEBI 32925, FEBI 32926, FEBI 32927, FEBI 32928, FEBI 32929, FEBI 32930, Motorcraft XO15W40BSD, Motorcraft XO15W40DSD, Motorcraft XO15W40DSDR, Motorcraft XO15W40QSD, Motorcraft XO15W40QSD1, Motorcraft XO15W40QSDF, Motorcraft XO15W40QSDW, Motorcraft XO15W40TBSD, Motorcraft XO15W405Q3SD, Motorcraft XO15W405QSD, Motorcraft XO15W406GSD, SWAG 15932925, SWAG 15932926, SWAG 15932927, SWAG 15932928, SWAG 15932929, SWAG 15932930, Toyota 0888080805, Toyota 0888080806, Volvo 85102464

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1123115-001

Volume:
4 L

vendor code:
1123115-004

Volume:
5 L

vendor code:
1123115-005

Code:
4014835726154

Volume:
7 L

vendor code:
1123115-007

Volume:
10 L

vendor code:
1123115-010

Code:
4014835726147

Volume:
20 L

vendor code:
1123115-020

Code:
4014835726123

Volume:
20 L, ecobox

vendor code:
1123115-B20

Code:
4014835776821

Volume:
60 L

vendor code:
1123115-060

Code:
4014835726161

Volume:
60 L, print

vendor code:
1123115-D60

Code:
4014835726130

Volume:
208 L

vendor code:
1123115-208

Code:
4014835726185

Volume:
208 L, print

vendor code:
1123115-D28

Code:
4014835726109

Volume:
1000 L

vendor code:
1123115-700

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

RAVENOL Turbo plus SHPD SAE 15W-40 has been especially developed for extended oil change intervals, according to manufacturer’s recommendations.

Application Note

RAVENOL Turbo-Plus SHPD SAE 15W-40 is recommended by the engine manufacturers for extended oil change intervals as SAE 15W-40 multigrade engine oil in heavy duty commercial vehicle diesel engines.

RAVENOL Turbo-Plus SHPD SAE 15W-40 is the preferred use for extended oil life in turbo charged diesel engines according to manufacturer’s recommendations.

Characteristics

  • Extremely high pressure absorption capacity
  • Very high oxidation stability
  • Excellent aging stability
  • Excellent viscosity and temperature behaviour
  • High security reserves even under limited lubrication circumstances
  • Suitable for extended oil change intervals
  • Suitable for heavy operating conditions
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 15W-40
15W-40
Type Mineral
Mineral
API CI-4, SL
CI-4, SL
ACEA A3, B4, E7
A3, B4, E7
JASO DH-1
DH-1
Manufacturer Approved Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Suitable for IVECO, Steyr Motor GAZ 560, YaMZ
IVECO, Steyr Motor GAZ 560, YaMZ
Density at 20 °C kg/m³ 870 EN ISO 12185
870 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 15 DIN 51562-1
15 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 115.7 DIN 51562-1
115.7 mm²/s DIN 51562-1
Viscosity Index VI 134 DIN ISO 2909
134 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 4 ASTM D5481
4 mPa*s ASTM D5481
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 238 DIN EN ISO 2592
238 °C DIN EN ISO 2592
tbn mgKOH/g 10.5 ASTM D2896
10.5 mgKOH/g ASTM D2896
Approvals Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C
Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C

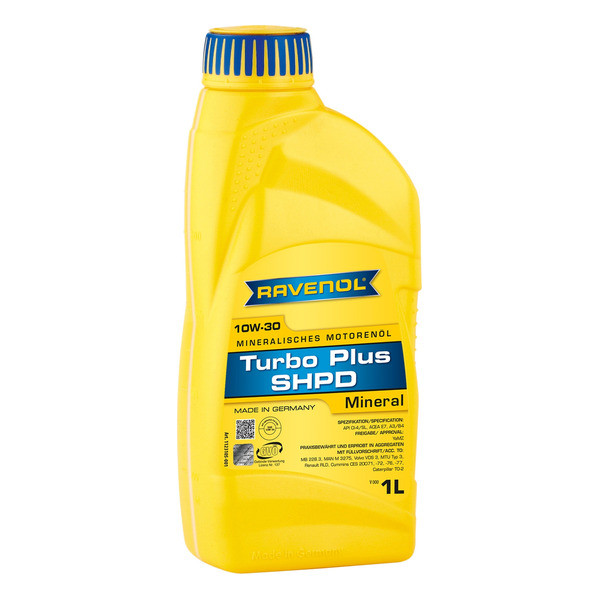

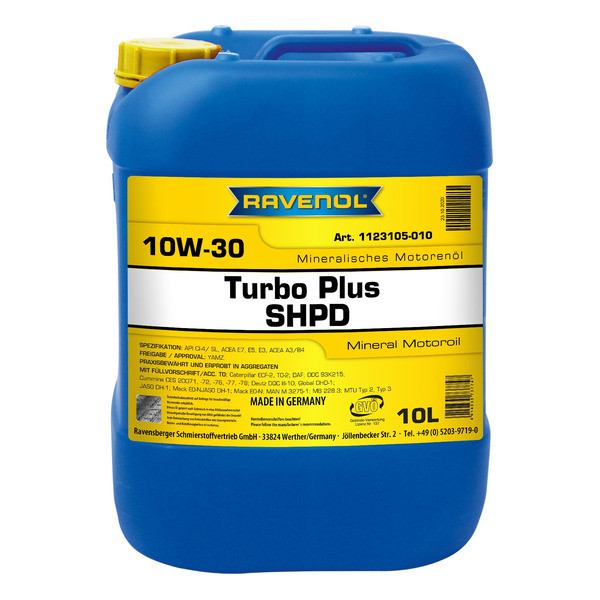

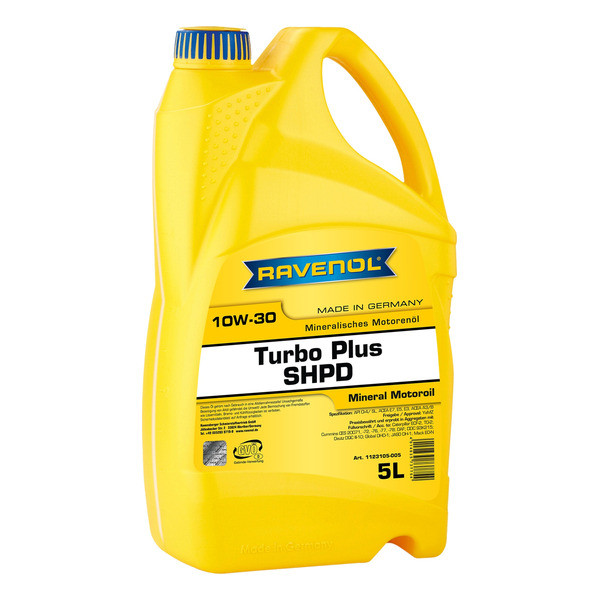

Turbo Plus SHPD 10W-30

Turbo Plus SHPD 10W-30

RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

Compliance with the requirements:
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

show details hide details

SAE: 10W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
Caterpillar 3E9844, Caterpillar 143465, Hino HRLIE10W30C, Hyundai Motor 0520000100, Hyundai Motor 0520000400, Hyundai Motor 0520000600, Hyundai XTeer 1011014, Hyundai XTeer 1061002, Nissan KLB2M10302, Nissan KLBFA10301, Nissan KLBFA10302, Nissan KLBFA10302, Nissan KLBFO10301, Nissan KLBFO10302, Nissan KLBFO10304, Nissan KLBH010302

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1123105-001

Volume:
5 L

vendor code:
1123105-005

Volume:
10 L

vendor code:
1123105-010

Code:
4014835737747

Volume:
20 L

vendor code:
1123105-020

Code:
4014835637726

Volume:
20 L, ecobox

vendor code:
1123105-B20

Volume:
60 L

vendor code:
1123105-060

Code:
4014835737761

Volume:
208 L

vendor code:
1123105-208

Code:
4014835737785

Volume:
1000 L

vendor code:
1123105-700

RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

RAVENOL Turbo Plus SHPD SAE 10W-30 is particularly suitable for engines with already high performance.

Application Note

RAVENOL Turbo Plus SHPD SAE 10W-30 is approved, tried and tested for aggregates specifying:

Specifications: API CI-4/ SL, ACEA E7, E5, E3, ACEA A3/B4

Approval: YaMZ

Recommendations: Caterpillar ECF-2, TO-2; Cummins CES 20071, -72, -76, -77, -78; DAF; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-N; MAN M 3275-1; MB 228.3;MTU Type 2, MTU Type 3; Renault RLD, Renault VI RLD-2; Volvo VDS 3.

Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 10W-30
10W-30
Type Mineral
Mineral
API CI-4, SL
CI-4, SL
ACEA A3, B4, E3, E5, E7
A3, B4, E3, E5, E7
JASO DH-1
DH-1
Recomendations Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Suitable for DAF, YaMZ
DAF, YaMZ
Density at 20 °C kg/m³ 865 EN ISO 12185
865 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12 DIN 51562-1
12 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 74.9 DIN 51562-1
74.9 mm²/s DIN 51562-1
Viscosity Index VI 156 DIN ISO 2909
156 DIN ISO 2909
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Flashpoint °C 232 DIN EN ISO 2592
232 °C DIN EN ISO 2592
tbn mgKOH/g 10.2 ASTM D2896
10.2 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.4 DIN 51575
1.4 %wt. DIN 51575
Approvals Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

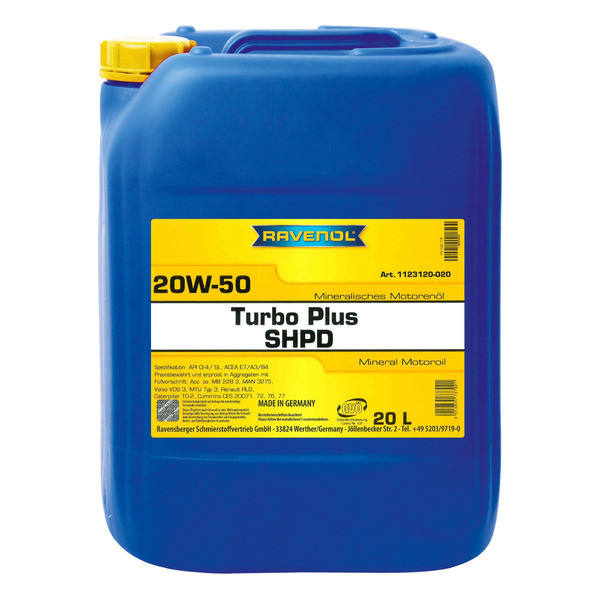

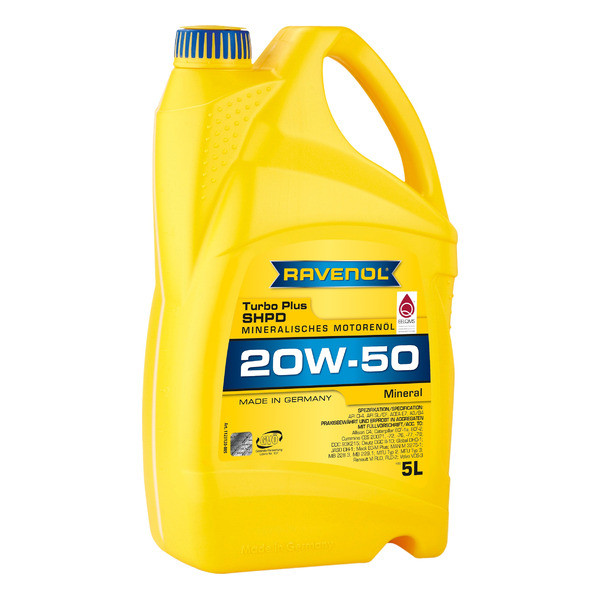

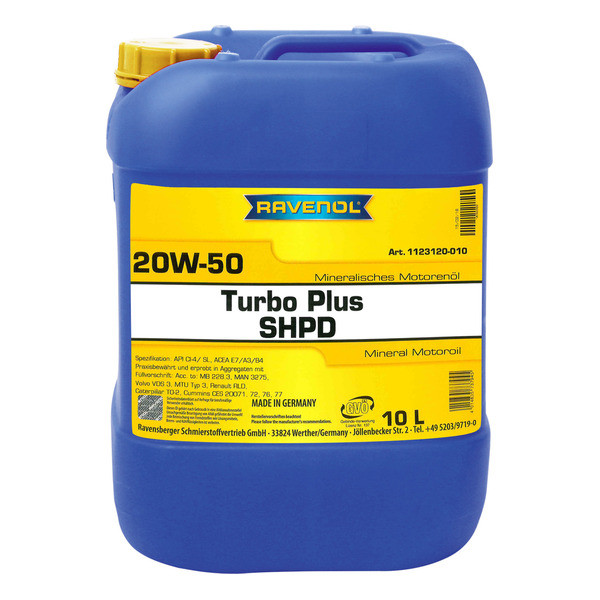

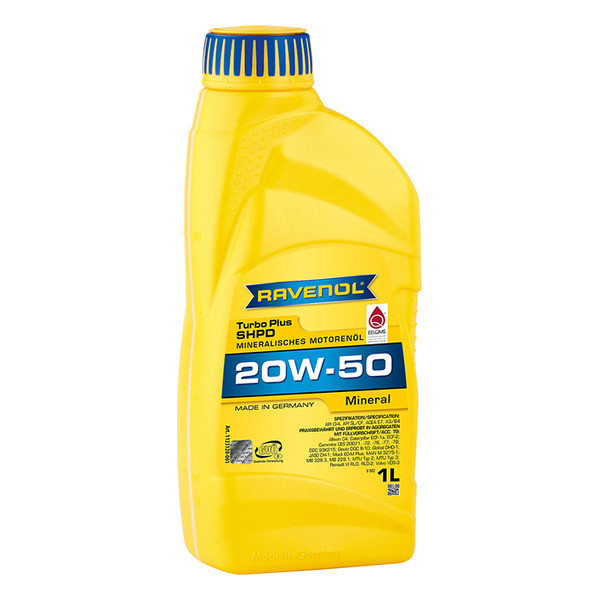

Turbo Plus SHPD 20W-50

Turbo Plus SHPD 20W-50

RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

Compliance with the requirements:
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

show details hide details

SAE: 20W-50

API: CF, CI-4, SL

ACEA: A3, B4, E7

Equivalents OEM:
FEBI 32921, FEBI 32922, FEBI 32923, FEBI 32924, FEBI 38408, GM 109206, GM 88865546, GM 88900131, GM 88900133, VAG G052167A9, VAG G052167A9

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1123120-001

Volume:
5 L

vendor code:
1123120-005

Volume:
10 L

vendor code:
1123120-010

Volume:
20 L

vendor code:
1123120-020

Code:
4014835737921

Volume:
20 L, ecobox

vendor code:
1123120-B20

Volume:
60 L

vendor code:
1123120-060

Code:
4014835737969

Volume:
208 L

vendor code:
1123120-208

Volume:
208 L, print

vendor code:
1123120-D28

Volume:
1000 L

vendor code:
1123120-700

RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

RAVENOL Turbo Plus SHPD 20W-50 is particularly suitable for engines with already high performance.

Application Note

RAVENOL Turbo Plus SHPD 20W-50 is tried and tested for aggregates specifying:

Specifications: API CI-4, API SL/CF, ACEA E7, A3/B4

Recommendations: Allison C4; Caterpillar ECF-1a, ECF-2; Cummins CES 20071, -72, -76, -77, -78; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-M Plus; MAN M 3275-1; MB 228.3, MB 229.1; MTU Type 2, MTU Type 3; Renault VI RLD, RLD-2; Volvo VDS-3

Characteristics

  • Well shear stability
  • Very high oxidation stability
  • Excellent viscosity-temperature behaviour
  • Conclusive detergent- and dispersant properties
  • High security reserves also under limited lubrication circumstances
  • Excellent cold start properties
  • Prevents black sludge formation
  • Suitable for catalyst
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 20W-50
20W-50
Type Mineral
Mineral
API CF, CI-4, SL
CF, CI-4, SL
ACEA A3, B4, E7
A3, B4, E7
JASO DH-1
DH-1
Recomendations Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Density at 20 °C kg/m³ 878 EN ISO 12185
878 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 18.4 DIN 51562-1
18.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 162.1 DIN 51562-1
162.1 mm²/s DIN 51562-1
Viscosity Index VI 127 DIN ISO 2909
127 DIN ISO 2909
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 248 DIN EN ISO 2592
248 °C DIN EN ISO 2592
tbn mgKOH/g 11.3 ASTM D2896
11.3 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.2 DIN 51575
1.2 %wt. DIN 51575
Approvals Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
STS 5W-30

STS 5W-30

CleanSynto®

can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of

show details hide details

SAE: 5W-30

API: CF, SL

ACEA: A3, B4

  • Available packaging
  • Full description
  • Product parameters

Volume:
60 L

vendor code:
1111312-060

Volume:
208 L

vendor code:
1111312-208

can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of

RAVENOL Fließverbesserer

are:complete restless burningno erosion of the flammabilityno change of the hazard categoryno r eduction of the viscosity, no illegal wastage in the pumpApplication note:Diesel fuel and fuel o il EL must have a temperature of more than 5°C when

RAVENOL Fließverbesserer

is used (this is given when the goods are stored in an underground tank!).

RAVENOL Fließverbesserer

itself must have a temperature of more than 0°C in case of use. Therefore, don’t store it outside.

RAVENOL Fließverbesserer

will become viscous below 0°C – this will not influence the product quality.Please follow!In or der to guarantee an optimum mixing the diesel fuel should have a temperature of more than 0°C and th e fuel oil EL more than 5°C. As the average temperatures are between 6°C and 9°C in case of a normal underground tank storage and diesel fuel and fuel oil EL are normally delivered with higher tempera tures than the annual average it satisfies to pour the necessary quantity of

RAVENOL Fließverbesserer

into the fixed tank or vehicle tank before the vehicle is fuelled. The “splash” during the filling of the vehicle secures the necessary stable mixing.Concerning overground positioned tanks approxim ately the half of diesel fuel or fuel oil quantity should be poured during the filling. If there is a deposit in the tank before filling a mixing with a temperature of more than 0°C can be secured. T hen the necessary quantity of

RAVENOL Fließverbesserer

has to be poured and afterwards the second half of diesel fuel or fuel oil has to be tanked.After having added

RAVENOL Fließverbesserer

(after having fuelled!) the engine of vehicles and working machines has to run approximately 10 min utes. Hereby it is secured that the

RAVENOL Fließverbesserer

reaches the fuel filter and the injection pump and can be effective there. This prevents starting p roblems.ATTENTION!Before use in common rail or pump injector vehicles be sure to read the operati ng instructions of the vehicle and follow the instructions of the vehicle manufacturer!

Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API CF, SL
CF, SL
ACEA A3, B4
A3, B4
Density at 20 °C kg/m³ 855 EN ISO 12185
855 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 10.9 DIN 51562-1
10.9 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 62.8 DIN 51562-1
62.8 mm²/s DIN 51562-1
Viscosity Index VI 165 DIN ISO 2909
165 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.54 ASTM D5481
3.54 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 5975 ASTM D5293
5975 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 16.600 ASTM D4684
16.600 mPa*s ASTM D4684
Pourpoint °C -33 DIN ISO 3016
-33 °C DIN ISO 3016
Noack Volatility % M/M 11.5 ASTM D5800
11.5 % M/M ASTM D5800
Flashpoint °C 230 DIN EN ISO 2592
230 °C DIN EN ISO 2592
tbn mgKOH/g 8.5 ASTM D2896
8.5 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.18 DIN 51575
1.18 %wt. DIN 51575

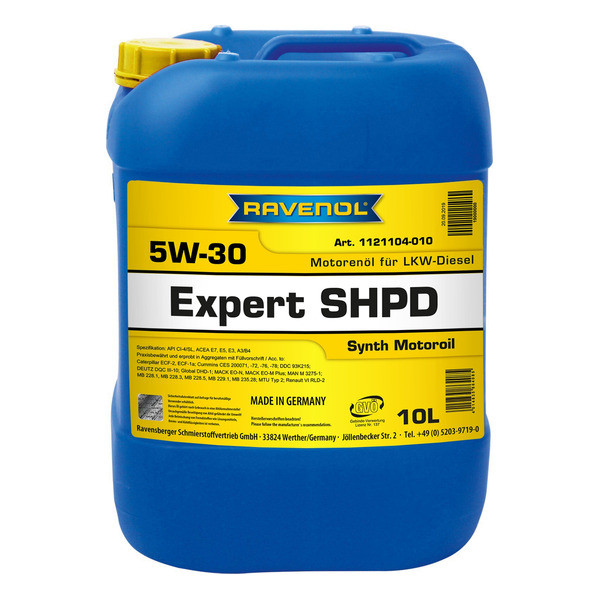

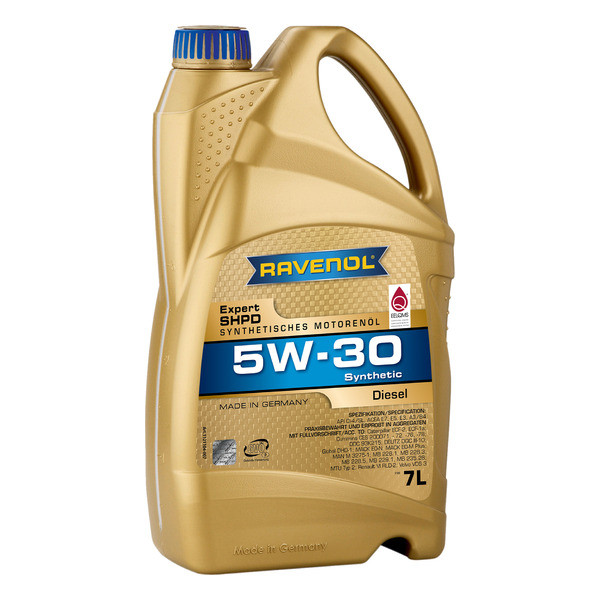

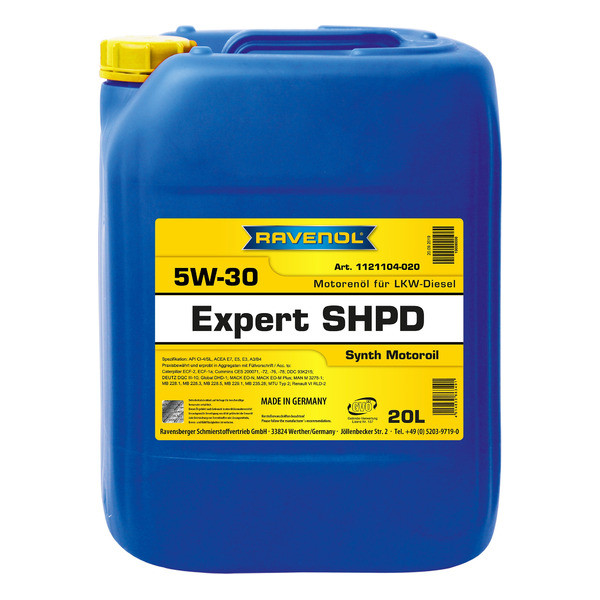

Expert SHPD 5W-30

Expert SHPD 5W-30

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

Compliance with the requirements:
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

show details hide details

SAE: 5W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
MB A000989240713FBDR, MB A000989240717FBDR, MB A000989630413BEER, MB A000989630417BEER, MB A000989730217BGEZ, MB A000989780715CDDB, MB A000989860219AEED, MB A000989890613ABDE, MB A000989890613ABDS, MB A000989890615ABDS, MB A000989890617ABDS, MB A000989890618ABDS, MB A0019890801AAA0, MB A0019890801AAA4, MB A0019890801AAA8, MB A0019890801AAA9, MB A0019890801ADA0, MB A0019890801ADA4, MB A0019890801ADA6, MB A0019890801ADA6, MB A0019890801ARU8, MB A0019890801BAA0, MB A0019890801BRD2, MB A002989370313FDDW, MB A094989210013ABDE, MB A094989210015ABDS, MB A094989210017ABDS, MB A094989210018ABDS, MB A094989260013FBDR, MB A094989260017FBDR

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1121104-001

Code:
4014835863842

Volume:
5 L

vendor code:
1121104-005

Code:
4014835863460

Volume:
7 L

vendor code:
1121104-007

Code:
4014835867949

Volume:
10 L

vendor code:
1121104-010

Code:
4014835864085

Volume:
20 L

vendor code:
1121104-020

Code:
4014835863491

Volume:
20 L, ecobox

vendor code:
1121104-B20

Code:
4014835863606

Volume:
60 L

vendor code:
1121104-060

Code:
4014835863583

Volume:
60 L, print

vendor code:
1121104-D60

Volume:
208 L

vendor code:
1121104-208

Code:
4014835863514

Volume:
208 L, print

vendor code:
1121104-D28

Volume:
1000 L

vendor code:
1121104-700

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.

Application Note

RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.

RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.

Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API CI-4, SL
CI-4, SL
ACEA A3, B4, E3, E5, E7
A3, B4, E3, E5, E7
Recomendations Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Density at 20 °C kg/m³ 851 EN ISO 12185
851 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12.2 DIN 51562-1
12.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 74.2 DIN 51562-1
74.2 mm²/s DIN 51562-1
Viscosity Index VI 161 DIN ISO 2909
161 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.53 ASTM D5481
3.53 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 6340 ASTM D5293
6340 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 25.890 ASTM D4684
25.890 mPa*s ASTM D4684
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Noack Volatility % M/M 8.3 ASTM D5800
8.3 % M/M ASTM D5800
Flashpoint °C 228 DIN EN ISO 2592
228 °C DIN EN ISO 2592
tbn mgKOH/g 10.7 ASTM D2896
10.7 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.29 DIN 51575
1.29 %wt. DIN 51575
Approvals Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

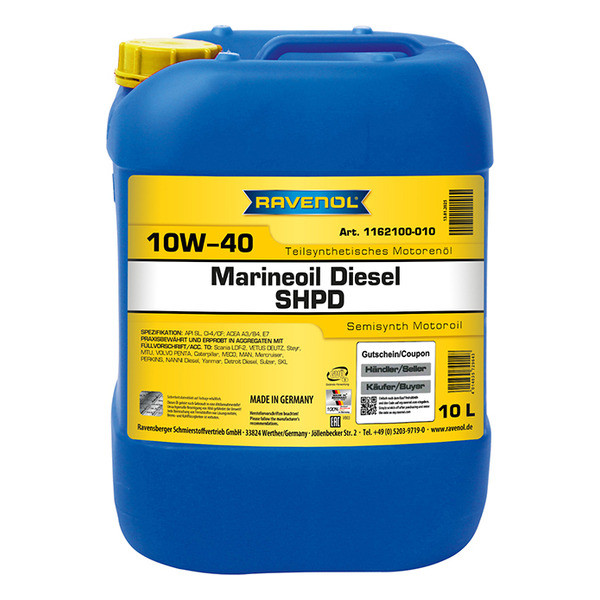

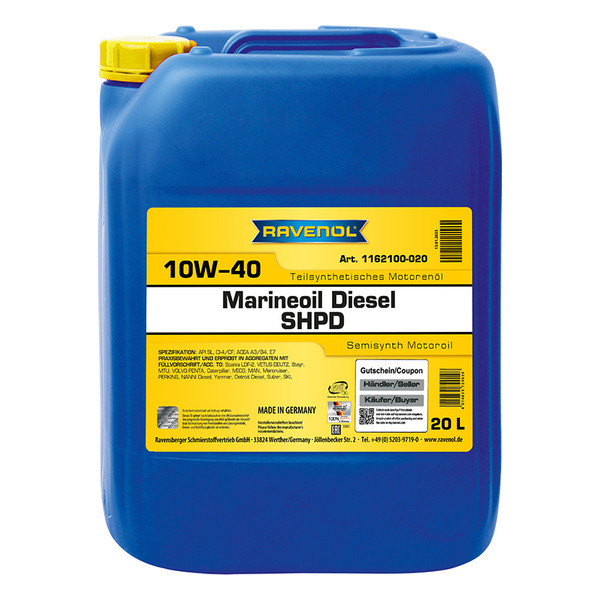

MARINEOIL DIESEL SHPD 10W-40

MARINEOIL DIESEL SHPD 10W-40

RAVENOL MARINEOIL DIESEL SHPD 10W-40 is produced with unconventional and HC basic oils, synthetic components and modern additives.

Compliance with the requirements:
DDC Detroit Diesel, Scania LDF-2, VETUS DEUTZ, Volvo PENTA

show details hide details

SAE: 10W-40

API: CF, CI-4, SL

ACEA: A3, B4, E7

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1162100-001

Volume:
4 L

vendor code:
1162100-004

Volume:
10 L

vendor code:
1162100-010

Volume:
20 L

vendor code:
1162100-020

Volume:
20 L, ecobox

vendor code:
1162100-B20

Volume:
60 L

vendor code:
1162100-060

Volume:
208 L

vendor code:
1162100-208

Volume:
1000 L

vendor code:
1162100-700

RAVENOL MARINEOIL DIESEL SHPD 10W-40 is produced with unconventional and HC basic oils, synthetic components and modern additives.

RAVENOL MARINEOIL DIESEL SHPD 10W-40 guarantees longest oil change intervals and a high corrosion protection with a low oil and fuel consumption.

Characteristics

  • Excellent detergent and dispersant characteristics
  • Low evaporation
  • High aging stability
  • Protection of reflecting surface formation
  • Very good cold start characteristics
  • Reduces oil and fuel consumption
Parameter Unit Value Audit
SAE 10W-40
10W-40
Brand RAVENOL
RAVENOL
Type Semi-synthetic
Semi-synthetic
API CF, CI-4, SL
CF, CI-4, SL
ACEA A3, B4, E7
A3, B4, E7
Recomendations DDC Detroit Diesel, Scania LDF-2, VETUS DEUTZ, Volvo PENTA
DDC Detroit Diesel, Scania LDF-2, VETUS DEUTZ, Volvo PENTA
Suitable for Caterpillar, IVECO, MAN, Mercruiser, MTU, NANNI Diesel, PERKINS, SKL, STEYR, SULZER, Yanmar
Caterpillar, IVECO, MAN, Mercruiser, MTU, NANNI Diesel, PERKINS, SKL, STEYR, SULZER, Yanmar
Density at 20 °C kg/m³ 866 EN ISO 12185
866 kg/m³ EN ISO 12185
Color Blue visual
Blue visual
Viscosity at 100 °C mm²/s 13.7 DIN 51562-1
13.7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 92 DIN 51562-1
92 mm²/s DIN 51562-1
Viscosity Index VI 151 DIN ISO 2909
151 DIN ISO 2909
CCS Viscosity at -25 °C mPa*s 6470 ASTM D5293
6470 mPa*s ASTM D5293
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 214 DIN EN ISO 2592
214 °C DIN EN ISO 2592
tbn mgKOH/g 11 ASTM D2896
11 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.3 DIN 51575
1.3 %wt. DIN 51575
Approvals DDC Detroit Diesel, Scania LDF-2, VETUS DEUTZ, Volvo PENTA
DDC Detroit Diesel, Scania LDF-2, VETUS DEUTZ, Volvo PENTA

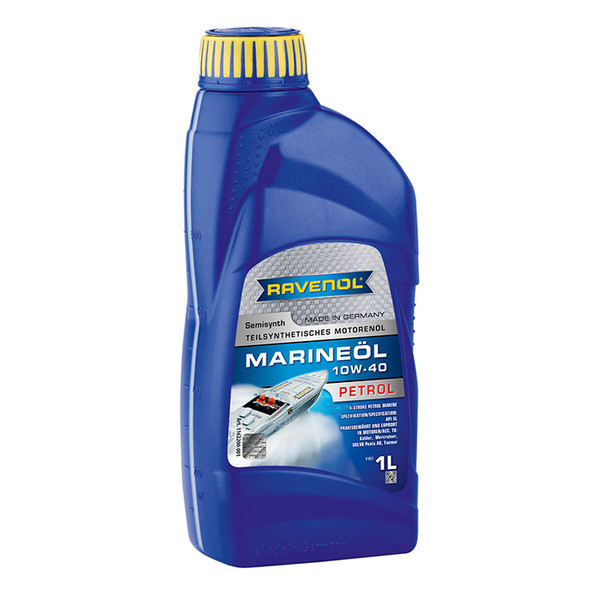

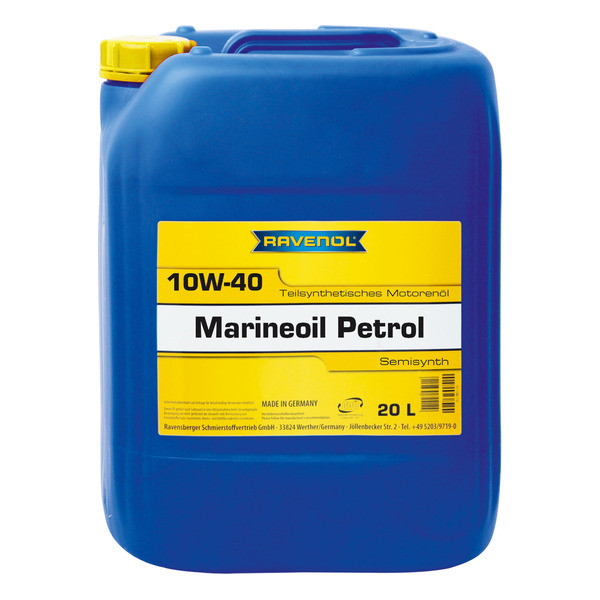

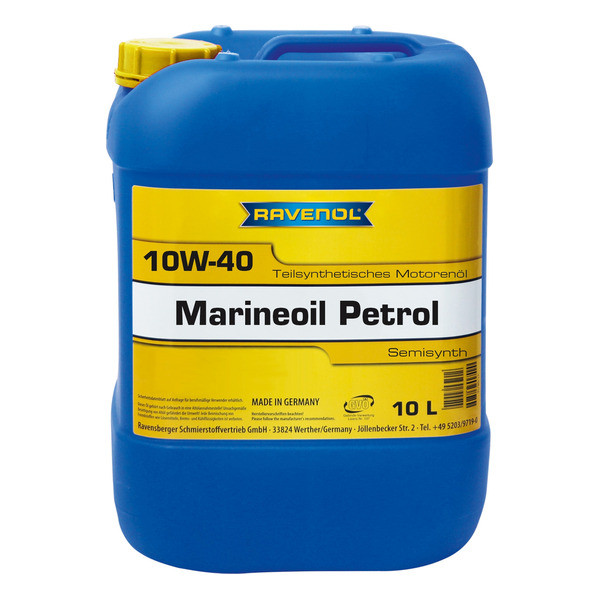

MARINEOIL PETROL 10W-40

MARINEOIL PETROL 10W-40

RAVENOL MARINEOIL PETROL 10W-40 is produced with unconventional and HC basic oils, synthetic components and modern additives.

Compliance with the requirements:
Volvo Penta AB

show details hide details

SAE: 10W-40

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1162200-001

Volume:
4 L

vendor code:
1162200-004

Volume:
10 L

vendor code:
1162200-010

Volume:
20 L

vendor code:
1162200-020

Volume:
20 L, ecobox

vendor code:
1162200-B20

Volume:
60 L

vendor code:
1162200-060

Volume:
60 L, print

vendor code:
1162200-D60

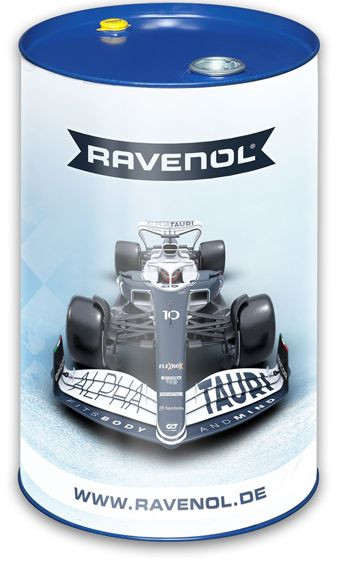

Volume:
208 L

vendor code:
1162200-208

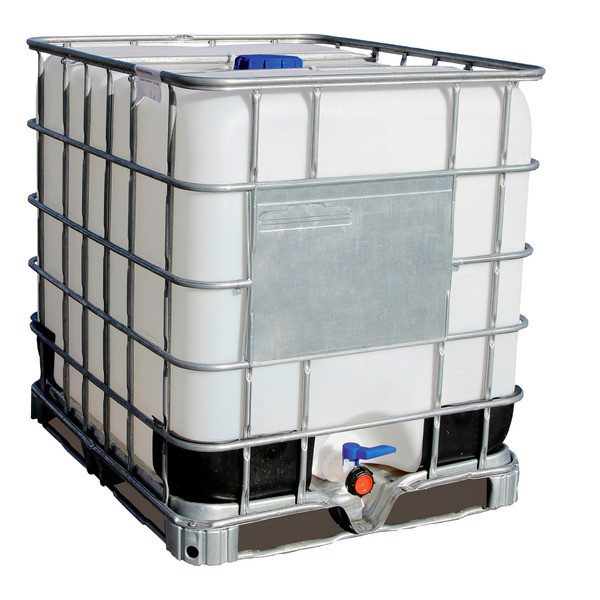

Volume:
1000 L

vendor code:
1162200-700

RAVENOL MARINEOIL PETROL 10W-40 is produced with unconventional and HC basic oils, synthetic components and modern additives.

RAVENOL MARINEOIL PETROL 10W-40 guarantees longest oil change intervals and a high corrosion protection with a low oil and fuel consumption.

Characteristics

  • Excellent detergent and dispersant characteristics
  • Low evaporation
  • High aging stability
  • Protection of reflecting surface formation
  • Very good cold start characteristics
  • Reduces oil and fuel consumption
Parameter Unit Value Audit
SAE 10W-40
10W-40
Brand RAVENOL
RAVENOL
Type Semi-synthetic
Semi-synthetic
API SL
SL
Recomendations Volvo Penta AB
Volvo Penta AB
Suitable for Kohler, Mercruiser, Yanmar
Kohler, Mercruiser, Yanmar
Density at 20 °C kg/m³ 866 EN ISO 12185
866 kg/m³ EN ISO 12185
Color Blue visual
Blue visual
Viscosity at 100 °C mm²/s 13.6 DIN 51562-1
13.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 91.8 DIN 51562-1
91.8 mm²/s DIN 51562-1
Viscosity Index VI 150 DIN ISO 2909
150 DIN ISO 2909
CCS Viscosity at -25 °C mPa*s 6480 ASTM D5293
6480 mPa*s ASTM D5293
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 210 DIN EN ISO 2592
210 °C DIN EN ISO 2592
tbn mgKOH/g 11 ASTM D2896
11 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.3 DIN 51575
1.3 %wt. DIN 51575
Approvals Volvo Penta AB
Volvo Penta AB

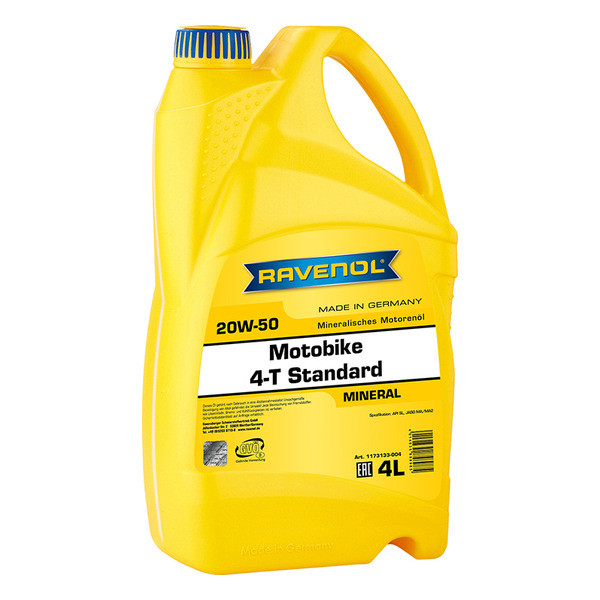

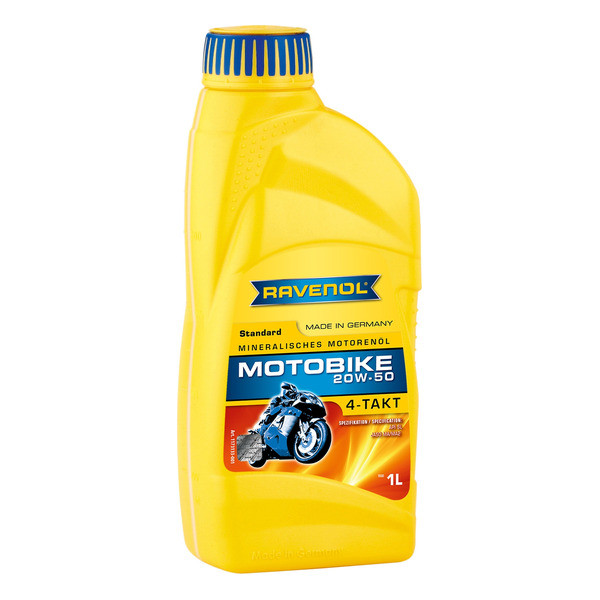

Motobike 4-T Standard 20W-50

Motobike 4-T Standard 20W-50

With RAVENOL Motobike 4-T Standard SAE 20W-50 a solid and high loadable engine oil was developed for superior engines of motorbikes with wet couplings and oil lubricated couplings.

show details hide details

SAE: 20W-50

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1173133-001

Volume:
4 L

vendor code:
1173133-004

With RAVENOL Motobike 4-T Standard SAE 20W-50 a solid and high loadable engine oil was developed for superior engines of motorbikes with wet couplings and oil lubricated couplings.

RAVENOL Motobike 4-T Standard SAE 20W-50 has an excellent lubricating film adhesive capacity and a very good shear stability as well as an excellent cleaning power and a high aging resistance.

Application Note

RAVENOL Motobike 4-T Standard SAE 20W-50 is suitable as an engine oil for all motorbikes from year 2001 in case the specification SAE 20W-50 JASO MA/MA2 is requested.

Characteristics

  • Good shear stability
  • Good cold start characteristics
  • High oxidation stability
  • Stable lubricating film even under heavy load
  • Prevention of black sludge formation
  • Very good viscosity-temperature behavior
  • Convincing detergent and dispersant properties
  • High safety reserves, even with boundary lubrication conditions
  • Very low evaporation tendency
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 20W-50
20W-50
Type Mineral
Mineral
API SL
SL
JASO MA, MA2
MA, MA2
Density at 20 °C kg/m³ 879 EN ISO 12185
879 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 18.8 DIN 51562-1
18.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 174.6 DIN 51562-1
174.6 mm²/s DIN 51562-1
Viscosity Index VI 121 DIN ISO 2909
121 DIN ISO 2909
Pourpoint °C -24 DIN ISO 3016
-24 °C DIN ISO 3016
Noack Volatility % M/M 3.4 ASTM D5800
3.4 % M/M ASTM D5800
Flashpoint °C 258 DIN EN ISO 2592
258 °C DIN EN ISO 2592
tbn mgKOH/g 6.7 ASTM D2896
6.7 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.82 DIN 51575
0.82 %wt. DIN 51575

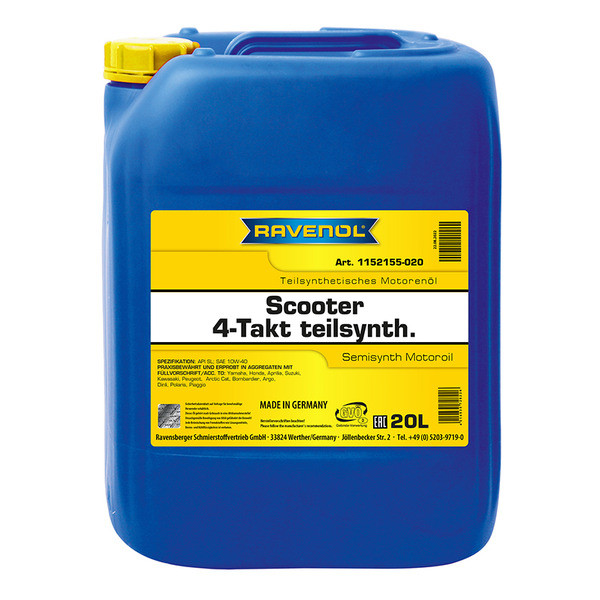

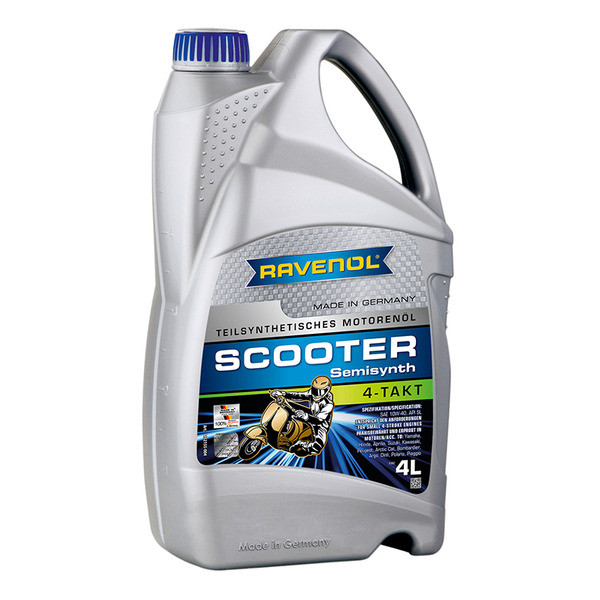

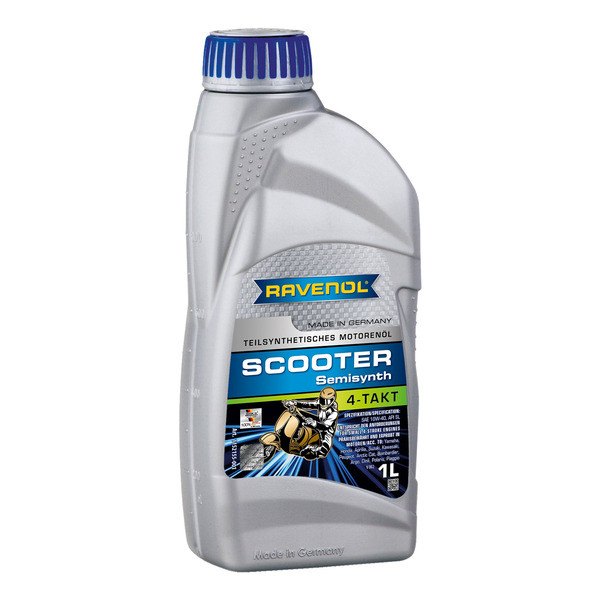

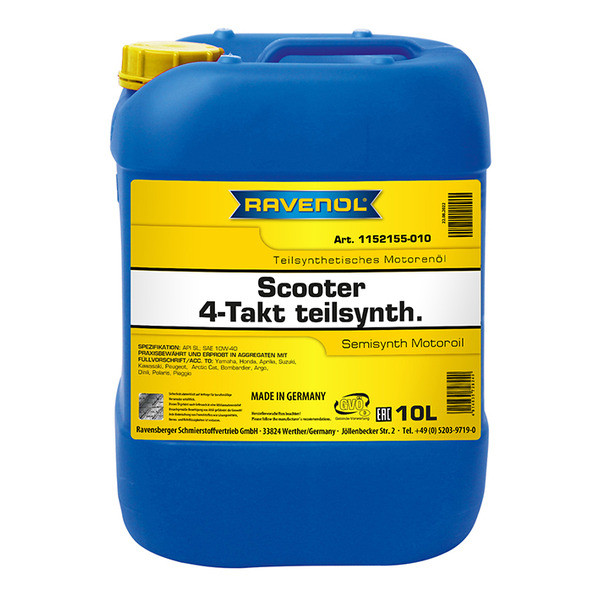

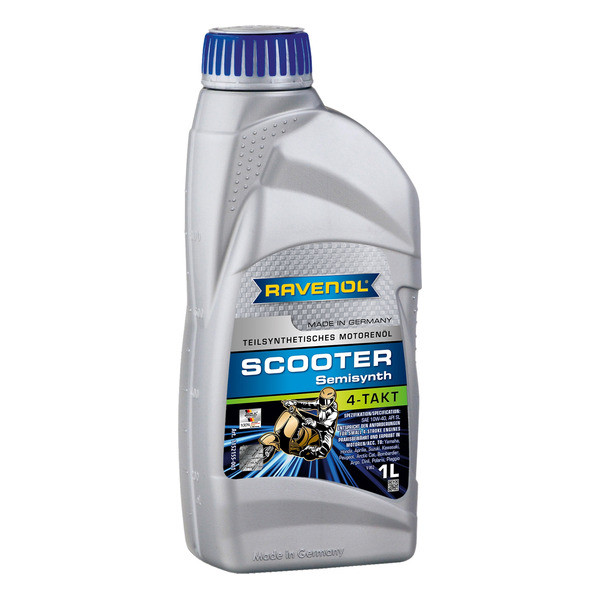

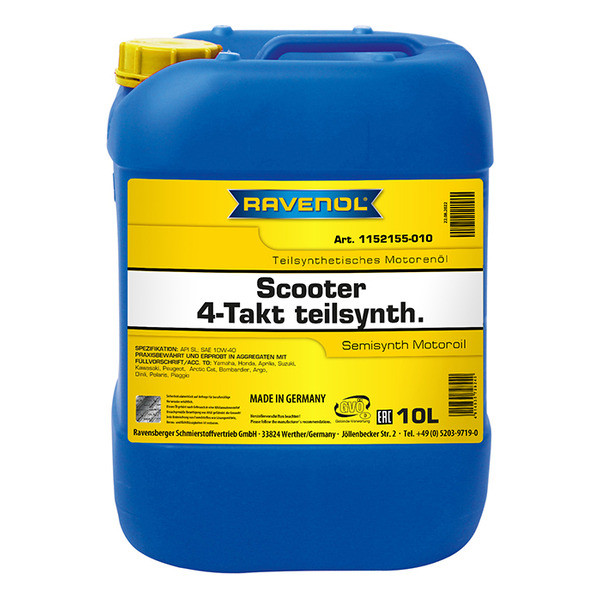

SCOOTER 4-Takt Teilsynth.

SCOOTER 4-Takt Teilsynth.

RAVENOL SCOOTER 4-Takt Teilsynth. enables an energy-saving operation of motors because of its additives and the selection of base oils and viscosity characteristics.

Compliance with the requirements:
Arctic

show details hide details

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1152155-001

Code:
4014835728219

Volume:
4 L

vendor code:
1152155-004

Code:
4014835728295

Volume:
10 L

vendor code:
1152155-010

Code:
4014835728240

Volume:
20 L

vendor code:
1152155-020

Volume:
20 L, ecobox

vendor code:
1152155-B20

Volume:
60 L, print

vendor code:
1152155-D60

Volume:
208 L

vendor code:
1152155-208

Volume:
1000 L

vendor code:
1152155-700

Volume:
60 L

vendor code:
1152155-060

RAVENOL SCOOTER 4-Takt Teilsynth. enables an energy-saving operation of motors because of its additives and the selection of base oils and viscosity characteristics.

Special ingredients in RAVENOL SCOOTER 4-Takt Teilsynth. provide for a clean motor and clean intake and exhaust systems.

RAVENOL SCOOTER 4-Takt Teilsynth. is the product for an ideal service life of the engine.

Application Note

RAVENOL SCOOTER 4-Takt Teilsynth. is for use in small 4-stroke engines.

Characteristics

  • High wear protection
  • Fuel saving due to smooth-running properties
  • Excellent detergent and dispersant properties
  • Prevention of black sludge formation
  • Long service life due to outstanding oxidation stability
  • Excellent cold start performance
  • Very good viscosity-temperature characteristics
  • Low tendency to evaporation
Parameter Unit Value Audit
Engine cycle 4T
4T
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 22000 ASTM D4684
22000 mPa*s ASTM D4684
Brand RAVENOL
RAVENOL
Type Semi-synthetic
Semi-synthetic
API SL
SL
Recomendations Arctic
Arctic
Suitable for Aprilia, Argo, Bombardier, Dinli, Honda, Kawasaki, Peugeot, Piaggio, Polaris, Suzuki, Yamaha
Aprilia, Argo, Bombardier, Dinli, Honda, Kawasaki, Peugeot, Piaggio, Polaris, Suzuki, Yamaha
Density at 20 °C kg/m³ 857.4 EN ISO 12185
857.4 kg/m³ EN ISO 12185
Color Green visual
Green visual
Viscosity at 100 °C mm²/s 14.4 DIN 51562-1
14.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 97.6 DIN 51562-1
97.6 mm²/s DIN 51562-1
Viscosity Index VI 153 DIN ISO 2909
153 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 4.03 ASTM D5481
4.03 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5351 ASTM D5293
5351 mPa*s ASTM D5293
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Noack Volatility % M/M 10.3 ASTM D5800
10.3 % M/M ASTM D5800
Flashpoint °C 229 DIN EN ISO 2592
229 °C DIN EN ISO 2592
tbn mgKOH/g 10.9 ASTM D2896
10.9 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.5 DIN 51575
1.5 %wt. DIN 51575
Approvals Arctic
Arctic

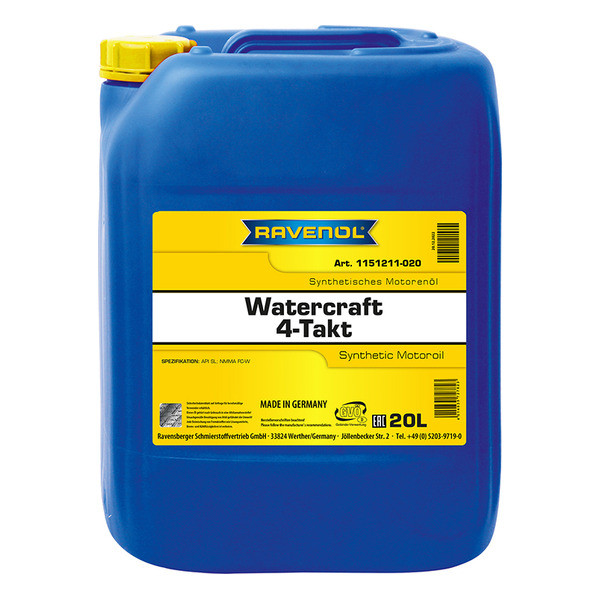

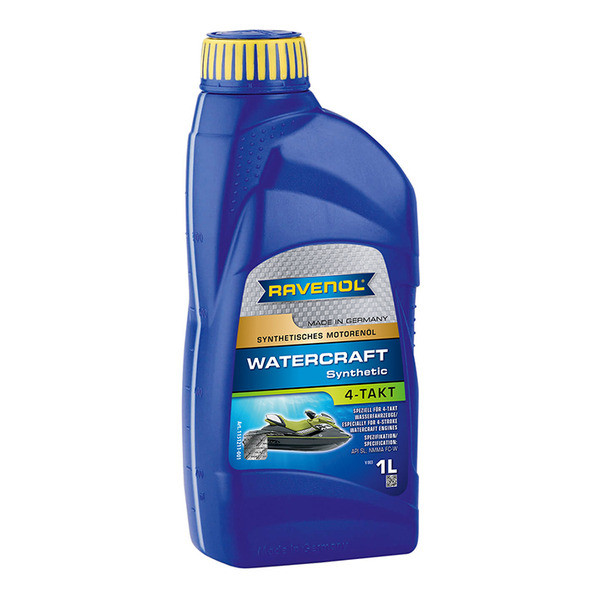

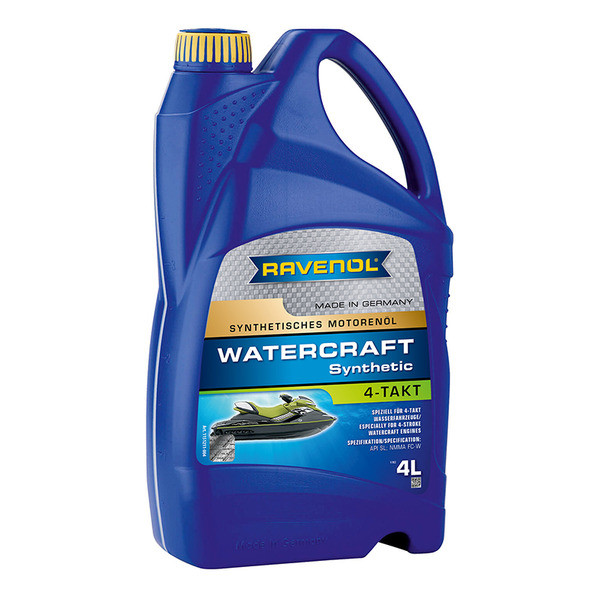

WATERCRAFT 4-Takt

WATERCRAFT 4-Takt

RAVENOL WATERCRAFT 4-Takt is a synthetic 4-stroke engine oil based on high quality base oils together with a selected additive package designed especially for use in marine petrol engines.

show details hide details

API: SL

Equivalents OEM:
Suzuki 9900026110B100, Suzuki 9900026110B500, Yamaha LUB10W40WV04, Yamaha LUB10W40WV12, Yamaha LUB20W40FC12, Yamalube YMD630800100, Yamalube YMD630800400, Yamalube YMD630800400

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1151211-001

Code:
4014835727816

Volume:
4 L

vendor code:
1151211-004

Code:
4014835727892

Volume:
10 L

vendor code:
1151211-010

Code:
4014835727847

Volume:
20 L

vendor code:
1151211-020

Volume:
20 L, ecobox

vendor code:
1151211-B20

Volume:
60 L

vendor code:
1151211-060

Volume:
208 L

vendor code:
1151211-208

Volume:
1000 L

vendor code:
1151211-700

RAVENOL WATERCRAFT 4-Takt is a synthetic 4-stroke engine oil based on high quality base oils together with a selected additive package designed especially for use in marine petrol engines.

The formulation of RAVENOL WATERCRAFT 4-Takt ensures optimum oil change intervals, a high corrosion protection and low oil and fuel consumption.

Application Note

RAVENOL WATERCRAFT 4-Takt is suitable for use in water-cooled 4-stroke engines operating in both fresh and sea water environments, and especially where a lubricant is required to meet NMMA FC-W standard. Follow the manufacturer’s recommendations!

Characteristics

  • Exceptional corrosion protection in all oil-wetted engine parts
  • An adhesive, pressure-and temperature-resistant oil film
  • An excellent anti-wear properties
  • A strong detergency and clean burning with no deposits
  • Low coking
  • High wear protection
Parameter Unit Value Audit
Engine cycle 4T
4T
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
API SL
SL
specification NMMA FC-W
NMMA FC-W
Density at 20 °C kg/m³ 864 EN ISO 12185
864 kg/m³ EN ISO 12185
Color Blue visual
Blue visual
Viscosity at 100 °C mm²/s 14.3 DIN 51562-1
14.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 98.9 DIN 51562-1
98.9 mm²/s DIN 51562-1
Viscosity Index VI 148 DIN ISO 2909
148 DIN ISO 2909
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
tbn mgKOH/g 8 ASTM D2896
8 mgKOH/g ASTM D2896
Approvals NMMA FC-W
NMMA FC-W

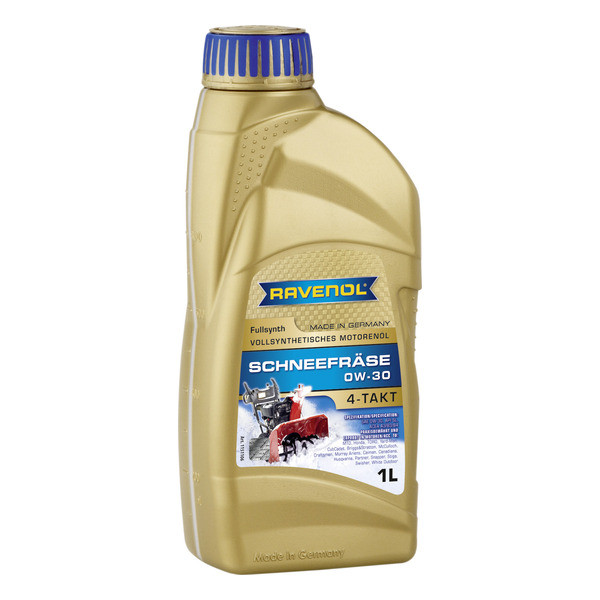

Schneefrase 4-Takt 0W-30

Schneefrase 4-Takt 0W-30

Application NoteRAVENOL Schneefräse 4-Takt SAE 0W-30 is fuel efficient engine oil special conceived for 4-stroke snow blower engines.

Compliance with the requirements:
White Outdoor

show details hide details

SAE: 0W-30

API: SL

ACEA: A3, B4

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1151106-001

Code:
4014835727410

Volume:
4 L

vendor code:
1151106-004

Application Note

RAVENOL Schneefräse 4-Takt SAE 0W-30 is fuel efficient engine oil special conceived for 4-stroke snow blower engines.

Characteristics

  • Fast oiling of the engine, also by low temperatures
  • Low oil consumption because of the low evaporation tendency
  • Excellent wear protection by high pressure
  • Excellent corrosion protection
  • Safety towards sludge, coking, laking and corrosion also in unfavourable operational conditions
  • No oil caused deposits in combustion chambers, in piston ring zone and on valves
  • Neutrality against seal materials
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 0W-30
0W-30
Type Full synthetic
Full synthetic
API SL
SL
ACEA A3, B4
A3, B4
Recomendations White Outdoor
White Outdoor
Suitable for Ariens, Briggs&Stratton, Caiman, Canadiana, Craftsman, CubCadet, Honda, Husqvarna, McCulloch, MTD, Murray, Partner, Snapper, Stiga, Swisher, TORO, Yard-Man
Ariens, Briggs&Stratton, Caiman, Canadiana, Craftsman, CubCadet, Honda, Husqvarna, McCulloch, MTD, Murray, Partner, Snapper, Stiga, Swisher, TORO, Yard-Man
Density at 20 °C kg/m³ 843 EN ISO 12185
843 kg/m³ EN ISO 12185
Color Green visual
Green visual
Viscosity at 100 °C mm²/s 12 DIN 51562-1
12 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 60.9 DIN 51562-1
60.9 mm²/s DIN 51562-1
Viscosity Index VI 198 DIN ISO 2909
198 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.57 ASTM D5481
3.57 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5750 ASTM D5293
5750 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 16.300 ASTM D4684
16.300 mPa*s ASTM D4684
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Noack Volatility % M/M 9.2 ASTM D5800
9.2 % M/M ASTM D5800
Flashpoint °C 236 DIN EN ISO 2592
236 °C DIN EN ISO 2592
tbn mgKOH/g 12.5 ASTM D2896
12.5 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.3 DIN 51575
1.3 %wt. DIN 51575
Approvals White Outdoor
White Outdoor

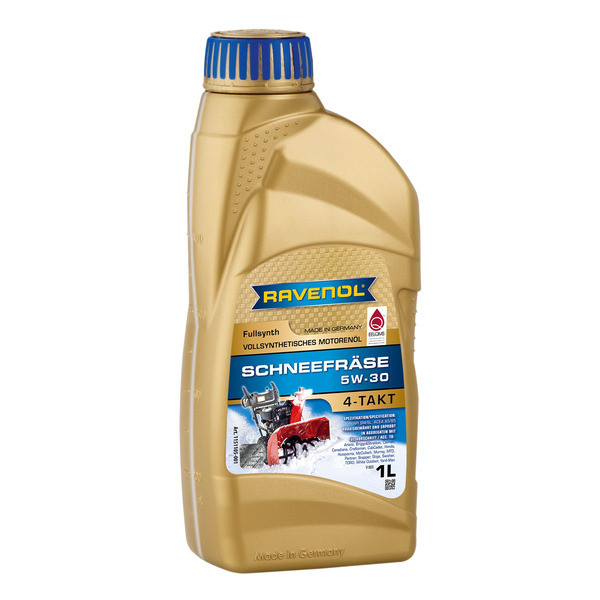

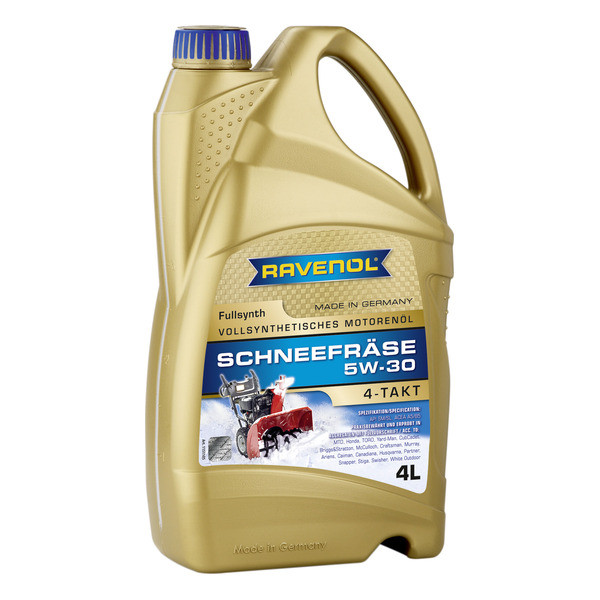

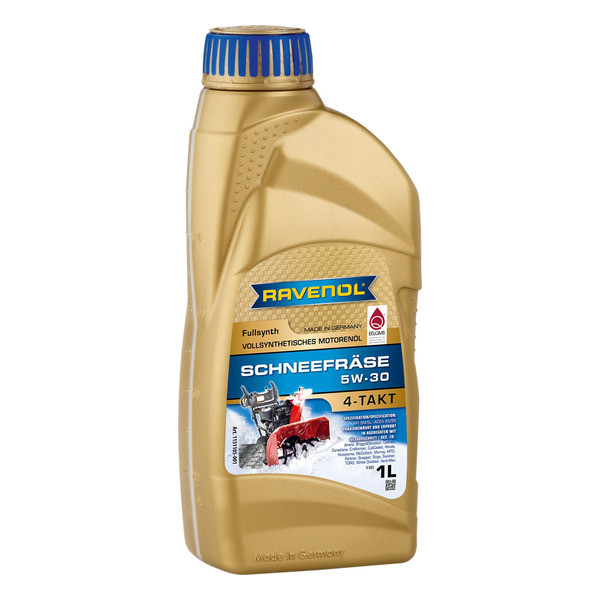

Schneefrase 4-Takt 5W-30

Schneefrase 4-Takt 5W-30

RAVENOL Schneefräse 4-Takt SAE 5W-30 is specially designed for 4-stroke snow blowers. Excellent wear protection also by high pressure, excellent corrosion protection. Because of the noticeable fuel economy RAVENOL Schneefräse 4-Takt SAE 5W-30 contributes to the reduction of pollutant emissions and protecting the environment.

Compliance with the requirements:
White Outdoor

show details hide details

SAE: 5W-30

API: SL, SM

ACEA: A5, B5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1151105-001

Code:
4014835727311

Volume:
4 L

vendor code:
1151105-004

RAVENOL Schneefräse 4-Takt SAE 5W-30 is specially designed for 4-stroke snow blowers. Excellent wear protection also by high pressure, excellent corrosion protection. Because of the noticeable fuel economy RAVENOL Schneefräse 4-Takt SAE 5W-30 contributes to the reduction of pollutant emissions and protecting the environment.

Application Note

RAVENOL Schneefräse 4-Takt SAE 5W-30 is fuel efficient engine oil special conceived for 4-stroke snow blower engines.

Characteristics

  • Fast oiling of the engine, also by low temperatures
  • Low oil consumption because of the low evaporation tendency
  • Excellent wear protection by high pressure
  • Excellent corrosion protection
  • Safety towards sludge, coking, leaking and corrosion also in unfavourable operational conditions
  • No oil caused deposits in combustion chambers, in piston ring zone and on valves
  • Neutrality against seal materials
Parameter Unit Value Audit
Engine cycle 4T
4T
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Full synthetic
Full synthetic
API SL, SM
SL, SM
ACEA A5, B5
A5, B5
Recomendations White Outdoor
White Outdoor
Suitable for Ariens, Briggs&Stratton, Caiman, Canadiana, Craftsman, CubCadet, Honda, Husqvarna, McCulloch, MTD, Murray, Partner, Snapper, Stiga, Swisher, TORO, Yard-Man
Ariens, Briggs&Stratton, Caiman, Canadiana, Craftsman, CubCadet, Honda, Husqvarna, McCulloch, MTD, Murray, Partner, Snapper, Stiga, Swisher, TORO, Yard-Man
Density at 20 °C kg/m³ 849 EN ISO 12185
849 kg/m³ EN ISO 12185
Color Green visual
Green visual
Viscosity at 100 °C mm²/s 10 DIN 51562-1
10 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 56.6 DIN 51562-1
56.6 mm²/s DIN 51562-1
Viscosity Index VI 165 DIN ISO 2909
165 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.08 ASTM D5481
3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 4300 ASTM D5293
4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 14.000 ASTM D4684
14.000 mPa*s ASTM D4684
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Noack Volatility % M/M 9.4 ASTM D5800
9.4 % M/M ASTM D5800
Flashpoint °C 240 DIN EN ISO 2592
240 °C DIN EN ISO 2592
tbn mgKOH/g 10.9 ASTM D2896
10.9 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.1 DIN 51575
1.1 %wt. DIN 51575
Approvals White Outdoor
White Outdoor
QUAD 4T 10W-40

QUAD 4T 10W-40

Application NoteRAVENOL QUAD 4T SAE 10W-4 is for use in 4-stroke quad engines from leading manufacturers. Compatible with wet clutch system and catalytic converters.

show details hide details

SAE: 10W-40

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1152160-001

Code:
4014835771116

Volume:
4 L

vendor code:
1152160-004

Code:
4014835771192

Volume:
20 L, ecobox

vendor code:
1152160-B20

Volume:
208 L

vendor code:
1152160-208

Application Note

RAVENOL QUAD 4T SAE 10W-4 is for use in 4-stroke quad engines from leading manufacturers. Compatible with wet clutch system and catalytic converters.

RAVENOL QUAD 4T SAE 10W-4 is all season motor oil.

Characteristics

  • A low-wear cold start even at extremely low outdoor temperatures
  • A strong lubricant film and high wear protection
  • Compatibility with wet clutch systems and catalytic converters
  • All season application
  • High corrosion and wear protection
  • Low tendency to evaporation and therefore, low oil consumption
Parameter Unit Value Audit
Engine cycle 4T
4T
Brand RAVENOL
RAVENOL
SAE 10W-40
10W-40
Type Semi-synthetic
Semi-synthetic
API SL
SL
JASO MA2
MA2
Suitable for Bombardier, Honda, Kawasaki, Suzuki, Yamaha
Bombardier, Honda, Kawasaki, Suzuki, Yamaha
Density at 20 °C kg/m³ 857.4 EN ISO 12185
857.4 kg/m³ EN ISO 12185
Color Green visual
Green visual
Viscosity at 100 °C mm²/s 14.5 DIN 51562-1
14.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 97.7 DIN 51562-1
97.7 mm²/s DIN 51562-1
Viscosity Index VI 153 DIN ISO 2909
153 DIN ISO 2909
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Flashpoint °C 230 DIN EN ISO 2592
230 °C DIN EN ISO 2592
tbn mgKOH/g 10.9 ASTM D2896
10.9 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.5 DIN 51575
1.5 %wt. DIN 51575
MARINEOIL PETROL 25W-40 SYNTHETIC

MARINEOIL PETROL 25W-40 SYNTHETIC

RAVENOL MARINEOIL PETROL 25W-40 synthetic is produced with unconventional and HC basic oils, synthetic components and additives.

Compliance with the requirements:
DDC Detroit Diesel, VETUS DEUTZ, Volvo PENTA

show details hide details

SAE: 25W-40

API: SL

ACEA: A3, B4

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1162115-001

Code:
4014835729810

Volume:
4 L

vendor code:
1162115-004

Code:
4014835729896

Volume:
10 L

vendor code:
1162115-010

Code:
4014835764941

Volume:
20 L

vendor code:
1162115-020

Volume:
20 L, ecobox

vendor code:
1162115-B20

Volume:
60 L, print

vendor code:
1162115-D60

Volume:
208 L

vendor code:
1162115-208

Code:
4014835764989

Volume:
1000 L

vendor code:
1162115-700

Volume:
60 L

vendor code:
1162115-060

RAVENOL MARINEOIL PETROL 25W-40 synthetic is produced with unconventional and HC basic oils, synthetic components and additives.

RAVENOL MARINEOIL PETROL 25W-40 synthetic guarantees longest oil change intervals and a high corrosion protection with a low oil and fuel consumption.

Characteristics

  • Excellent detergent and dispersant characteristics
  • Low evaporation
  • High aging stability
  • Protection of reflecting surface formation
  • Very good cold start characteristics
  • Reduces oil and fuel consumption
Parameter Unit Value Audit
Engine cycle 4T
4T
SAE 25W-40
25W-40
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
API SL
SL
ACEA A3, B4
A3, B4
Recomendations DDC Detroit Diesel, VETUS DEUTZ, Volvo PENTA
DDC Detroit Diesel, VETUS DEUTZ, Volvo PENTA
Suitable for Caterpillar, IVECO, MAN, Mercruiser, MTU, NANNI Diesel, PERKINS, SKL, STEYR, SULZER, Yanmar
Caterpillar, IVECO, MAN, Mercruiser, MTU, NANNI Diesel, PERKINS, SKL, STEYR, SULZER, Yanmar
Density at 20 °C kg/m³ 866 EN ISO 12185
866 kg/m³ EN ISO 12185
Color Blue visual
Blue visual
Viscosity at 100 °C mm²/s 13.8 DIN 51562-1
13.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 92.4 DIN 51562-1
92.4 mm²/s DIN 51562-1
Viscosity Index VI 152 DIN ISO 2909
152 DIN ISO 2909
CCS Viscosity at -25 °C mPa*s 6450 ASTM D5293
6450 mPa*s ASTM D5293
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
tbn mgKOH/g 11 ASTM D2896
11 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.3 DIN 51575
1.3 %wt. DIN 51575
Approvals DDC Detroit Diesel, VETUS DEUTZ, Volvo PENTA
DDC Detroit Diesel, VETUS DEUTZ, Volvo PENTA
MARINEOIL PETROL 15W-40

MARINEOIL PETROL 15W-40

RAVENOL MARINEOIL PETROL SAE 15W-40 is especially produced for extended oil change intervals (under consideration of the manufacturer instruction).

Compliance with the requirements:
Volvo Penta AB

show details hide details

SAE: 15W-40

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
4 L

vendor code:
1163200-004

Volume:
10 L

vendor code:
1163200-010

Volume:
20 L

vendor code:
1163200-020

Volume:
20 L, ecobox

vendor code:
1163200-B20

Volume:
60 L

vendor code:
1163200-060

Volume:
208 L

vendor code:
1163200-208

Volume:
1 L

vendor code:
1163200-001

RAVENOL MARINEOIL PETROL SAE 15W-40 is especially produced for extended oil change intervals (under consideration of the manufacturer instruction).

Characteristics

  • an extreme high pressure absorption capacity
  • a very high oxidation stability
  • an excellent aging resistance
  • an excellent viscosity temperature behaviour
  • high safety reserves also under boundary lubrication conditions
  • suitability for extended oil change intervals
  • suitability for complicate operating conditions
Parameter Unit Value Audit
SAE 15W-40
15W-40
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
API SL
SL
Recomendations Volvo Penta AB
Volvo Penta AB
Suitable for Kohler, Mercruiser, Yanmar
Kohler, Mercruiser, Yanmar
Density at 20 °C kg/m³ 879.5 EN ISO 12185
879.5 kg/m³ EN ISO 12185
Color Blue visual
Blue visual
Viscosity at 100 °C mm²/s 15 DIN 51562-1
15 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 115.7 DIN 51562-1
115.7 mm²/s DIN 51562-1
Viscosity Index VI 134 DIN ISO 2909
134 DIN ISO 2909
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 238 DIN EN ISO 2592
238 °C DIN EN ISO 2592
tbn mgKOH/g 10.5 ASTM D2896
10.5 mgKOH/g ASTM D2896
Approvals Volvo Penta AB
Volvo Penta AB
MARINEOIL PETROL 20W-50

MARINEOIL PETROL 20W-50

RAVENOL MARINEOIL PETROL 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.

Compliance with the requirements:
Volvo Penta AB

show details hide details

SAE: 20W-50

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1163210-001

Volume:
4 L

vendor code:
1163210-004

Code:
4014835730397

Volume:
10 L

vendor code:
1163210-010

Volume:
20 L

vendor code:
1163210-020

Volume:
20 L, ecobox

vendor code:
1163210-B20

Volume:
60 L

vendor code:
1163210-060

Volume:
208 L

vendor code:
1163210-208

Volume:
1000 L

vendor code:
1163210-700

RAVENOL MARINEOIL PETROL 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.

Characteristics

  • an extreme high pressure absorption capacity
  • a very high oxidation stability
  • an excellent aging resistance
  • an excellent viscosity temperature behaviour
  • high safety reserves also under boundary lubrication conditions
  • suitability for extended oil change intervals
  • suitability for complicate operating conditions
  • a good water separation behaviour
Parameter Unit Value Audit
Engine cycle 4T
4T
SAE 20W-50
20W-50
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
API SL
SL
Recomendations Volvo Penta AB
Volvo Penta AB
Suitable for Kohler, Mercruiser, Yanmar
Kohler, Mercruiser, Yanmar
Density at 20 °C kg/m³ 878.2 EN ISO 12185
878.2 kg/m³ EN ISO 12185
Color Blue visual
Blue visual
Viscosity at 100 °C mm²/s 18.5 DIN 51562-1
18.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 161 DIN 51562-1
161 mm²/s DIN 51562-1
Viscosity Index VI 129 DIN ISO 2909
129 DIN ISO 2909
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 247 DIN EN ISO 2592
247 °C DIN EN ISO 2592
tbn mgKOH/g 10.7 ASTM D2896
10.7 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.42 DIN 51575
1.42 %wt. DIN 51575
Approvals Volvo Penta AB
Volvo Penta AB
Motobike V-Twin 20W-50 Mineral

Motobike V-Twin 20W-50 Mineral

RAVENOL Motobike V-Twin SAE 20W-50 Mineral reduces the friction and reliably protects the valves and the crankshaft against metal-to-metal contact. The consistent viscosity reduces load peaks at high temperatures.

Compliance with the requirements:
Victory

show details hide details

SAE: 20W-50

API: SL

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1173105-001

Code:
4014835839328

Volume:
4 L

vendor code:
1173105-004

Code:
4014835839359

Volume:
20 L

vendor code:
1173105-020

Volume:
20 L, ecobox

vendor code:
1173105-B20

Volume:
60 L

vendor code:
1173105-060

Volume:
208 L

vendor code:
1173105-208

RAVENOL Motobike V-Twin SAE 20W-50 Mineral reduces the friction and reliably protects the valves and the crankshaft against metal-to-metal contact. The consistent viscosity reduces load peaks at high temperatures.

RAVENOL Motobike V-Twin SAE 20W-50 Mineral demonstrates excellent stability and durability against thermal loads under extremely high temperatures that can occur in air-cooled V-twin engines.

Application Note

RAVENOL Motobike V-Twin SAE 20W-50 Mineral is suitable as an engine oil for all V-twin chopper and cruiser motorcycles if the specification SAE 20W-50 is required.

Characteristics

  • a very stable and outstanding viscosity behaviour
  • reduced friction
  • outstanding viscosity temperature characteristics
  • a reliable lubrication film at extremely high operating temperatures
  • very good protection against wear and corrosion
  • protection against foaming
  • excellent deterging and dispersing properties
Parameter Unit Value Audit
Engine cycle 4T
4T
Brand RAVENOL
RAVENOL
SAE 20W-50
20W-50
Type Mineral
Mineral
API SL
SL
JASO MA2
MA2
Recomendations Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
Suitable for BMW Cruiser Motorcycles
BMW Cruiser Motorcycles
Compliant products Harley Davidson 62600005, Harley Davidson 62600031, Honda 08C35-A251L01, Honda 08C35-A251M01, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12
Harley Davidson 62600005, Harley Davidson 62600031, Honda 08C35-A251L01, Honda 08C35-A251M01, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12
Density at 20 °C kg/m³ 878 EN ISO 12185
878 kg/m³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 20.4 DIN 51562-1
20.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 173.4 DIN 51562-1
173.4 mm²/s DIN 51562-1
Viscosity Index VI 137 DIN ISO 2909
137 DIN ISO 2909
CCS Viscosity at -15 °C mPa*s 6459 ASTM D5293
6459 mPa*s ASTM D5293
Pourpoint °C -33 DIN ISO 3016
-33 °C DIN ISO 3016
Flashpoint °C 236 DIN EN ISO 2592
236 °C DIN EN ISO 2592
tbn mgKOH/g 8.7 ASTM D2896
8.7 mgKOH/g ASTM D2896
Approvals Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

Good
