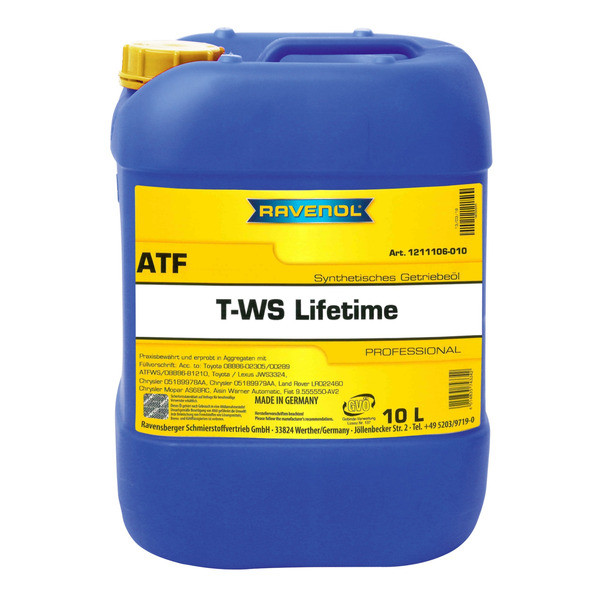

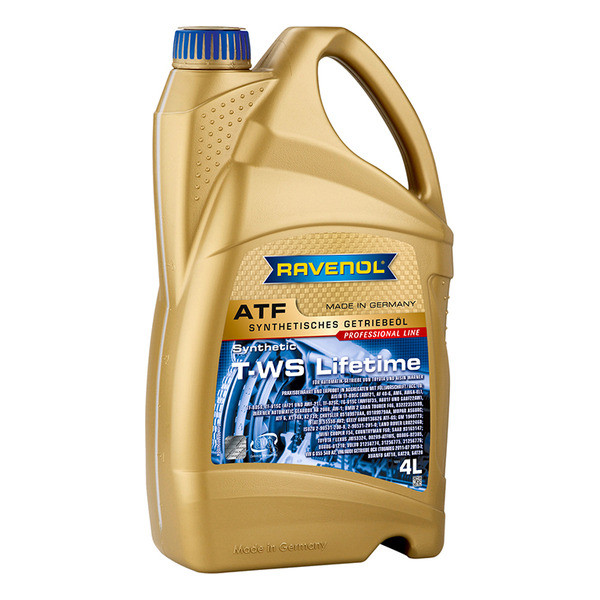

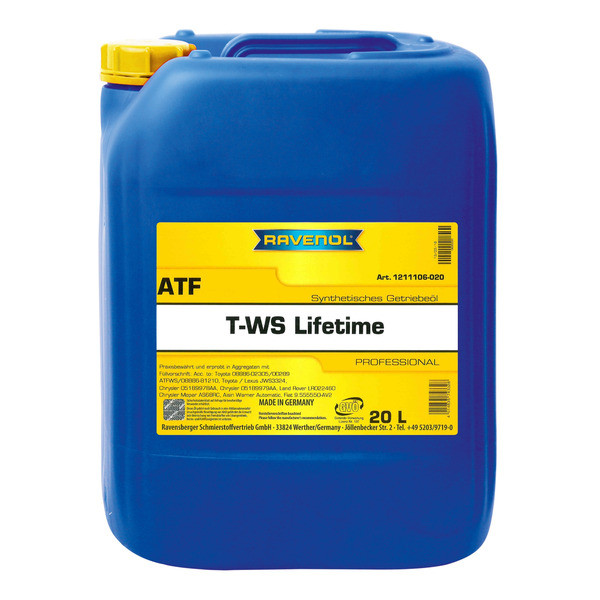

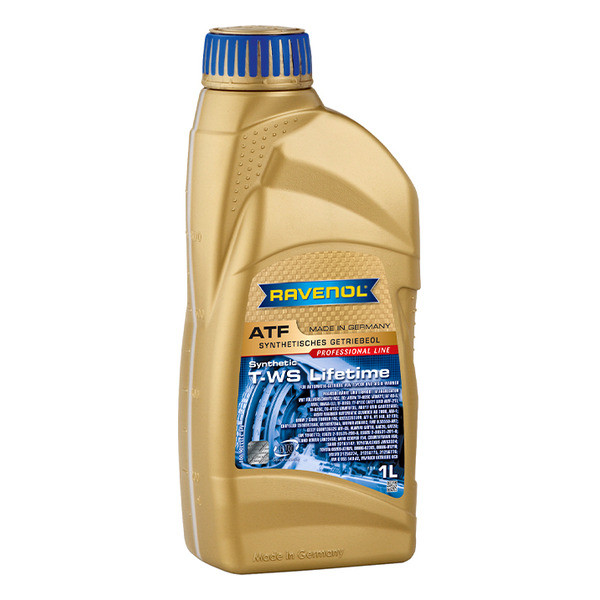

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Equivalent: JWS3324 Toyota Toyota JWS3324 1L.
- Available packaging
- Product parameters
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Application Note
RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.
Characteristics
- phenomenal resistance of lubricant failure under hard operating conditions
- a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
- phenomenal resistance of oil sludge and deposit accumulation
- an excellent oxidation resistance and thermic stability
- a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
- as a lower corrosion of the bearings, sleeves and gear wheels
- an excellent flow behaviour at low temperatures
- a more constant switching operation performance, optimised friction characteristics
- prevention of coupling grinding regarding modulation rotary conversion
- a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
- an improved shear stability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
||
| Suitable for | Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-) |
Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
|
||
| Compliant products | BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28 |
BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
|
||
| Density at 20 °C | kg/m³ | 838 | EN ISO 12185 |
838
kg/m³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Approvals | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
RAVENOL Multi ATF LVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with low viscosity is required.
Compliance with the requirements:
Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA QUEEN ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP
Equivalents OEM:
Aisin ATF6004, Aisin ATF6020, Aisin ATF6200, Chrysler 68333663AA, Chrysler 68333664AA, GM 19315204, GM 19315205, GM 19315206, GM 19315207, GM 88864059, GM 88864059, Hyundai XTeer 1011411, Hyundai XTeer 1011412, Hyundai XTeer 1011414, Hyundai XTeer 1041411, Hyundai XTeer 1041412, Hyundai XTeer 1041414, Mazda K020W0046M, Suzuki 9900022810000
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1211145-020
Volume:
60 L
vendor code:
1211145-060
Volume:
208 L
vendor code:
1211145-208
RAVENOL Multi ATF LVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with low viscosity is required.
Application Note
RAVENOL Multi ATF LVS Fluid is a product with a very wide manufacturer coverage and can be used in almost all conventional automatic transmissions with shift groups.
Not suitable for CVT automatic transmissions.
RAVENOL Multi ATF LVS Fluid can be used in a wide range of applications to meet the requirements of Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi and others. It will be used if no suitable original oil or RAVENOL Professional Line oil is available.
Observe the manufacturer's instructions.
Characteristics
- Very good lubricity even at low temperatures in winter
- A high, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against wear, corrosion and foaming
- Well-coordinated friction properties
- Neutral behavior towards sealing materials
- Neutral behavior due to inhibition against non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP |
Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP
|
||
| Suitable for | Chrysler, Honda Ultra 4WD Rear, SsangYong DSI M11 6-Speed, SsangYong DSI M78 6-Speed |
Chrysler, Honda Ultra 4WD Rear, SsangYong DSI M11 6-Speed, SsangYong DSI M78 6-Speed
|
||
| Compliant products | Honda DPSF, Hyundai SP-IV, Hyundai SPH-IV, MB A 001 989 45 03 10, Mitsubishi 4031610, Mopar ZF 8 & 9 Speed ATF, NIssan 999MP-MTP10P, Nissan 999MP-MTS00P, NIssan ATF Matic P, SsangYong Caltex, Volvo 31256774, Volvo 31256775, Volvo 31256776 |
Honda DPSF, Hyundai SP-IV, Hyundai SPH-IV, MB A 001 989 45 03 10, Mitsubishi 4031610, Mopar ZF 8 & 9 Speed ATF, NIssan 999MP-MTP10P, Nissan 999MP-MTS00P, NIssan ATF Matic P, SsangYong Caltex, Volvo 31256774, Volvo 31256775, Volvo 31256776
|
||
| Density at 20 °C | 848 | EN ISO 12185 |
848
EN ISO 12185
|
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | 5.9 | DIN 51562-1 |
5.9
DIN 51562-1
|
|
| Viscosity at 40 °C | 29.8 | DIN 51562-1 |
29.8
DIN 51562-1
|
|
| Viscosity Index VI | 149 | DIN ISO 2909 |
149
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 12050 | ASTM D2983 |
12050
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 220 | DIN EN ISO 2592 |
220
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP |
Aisin Warner AW-1, BMW ATF 3+, BMW ATF 6, BMW ATF L 12108, BMW ATF M1375.4, Ford MERCON® SP, Honda ATF DW-1, Honda ATF Type 3.1, Honda DPFII, Honda DPSF2, KIA SP-IV, KIA SP-IV-RR, Land Rover AW -1, Land Rover M1375.4, Mazda ATF FZ, MB 236.12, MB 236.14, MB 236.15, MB 236.17, Mitsubishi ATF Fluid J3, Mitsubishi DIA Queen ATF-PA, Nissan Matic Fluid S, Renault Matic J6, Shell ATF 134, Shell ATF 3353, Shell ATF L12108, Toyota ATF T-WS, Toyota JWS 3324, VW TL 525 33, VW TL 550 05, VW TL 555 40, VW TL 601 62, ZF LifeguardFluid 6 - 6HP, ZF LifeguardFluid 8 - 8HP, ZF LifeguardFluid 9 - 9HP
|
