Ultra Synthetik Truck 5W-30
Manufacturer Approved:
Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3677, MB-Approval 228.31, MB-Approval 228.51, Renault RLD-3, Scania LDF-4, Volvo VDS-4
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, MAN M 3297-1, MAN M 3691, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania LDF-4, Voith Retarder B, Volvo CNG
- Available packaging
- Product parameters
Volume:
208 L
vendor code:
1121103-208
Volume:
1000 L
vendor code:
1121103-700
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CJ-4 |
CJ-4
|
||
| ACEA | E4, E6, E7, E9 |
E4, E6, E7, E9
|
||
| JASO | DH-2 |
DH-2
|
||
| Manufacturer Approved | Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3677, MB-Approval 228.31, MB-Approval 228.51, Renault RLD-3, Scania LDF-4, Volvo VDS-4 |
Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3677, MB-Approval 228.31, MB-Approval 228.51, Renault RLD-3, Scania LDF-4, Volvo VDS-4
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, MAN M 3297-1, MAN M 3691, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania LDF-4, Voith Retarder B, Volvo CNG |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, MAN M 3297-1, MAN M 3691, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania LDF-4, Voith Retarder B, Volvo CNG
|
||
| Suitable for | DAF |
DAF
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.9 | DIN 51562-1 |
11.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 69.5 | DIN 51562-1 |
69.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 170 | DIN ISO 2909 |
170
DIN ISO 2909
|
|
| CCS Viscosity at -30 °C | mPa*s | 5590 | ASTM D5293 |
5590
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 17.400 | ASTM D4684 |
17.400
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 10.7 | ASTM D5800 |
10.7
% M/M
ASTM D5800
|
| Flashpoint | °C | 226 | DIN EN ISO 2592 |
226
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13.3 | ASTM D2896 |
13.3
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110 (MB 228.51), IVECO 18-1804 TLS E6, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4
|
is a top quality synthetic fuel economy “Low SAPS” year-round multigrade diesel engine oil based on the latest additive technology combined with very special base oils.
Manufacturer Approved:
DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3677, Renault RLD-3, Scania LDF-4, Volvo VDS-4
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Voith Retarder B, Volvo CNG
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1121102-020
Volume:
20 L, ecobox
vendor code:
1121102-B20
Volume:
60 L
vendor code:
1121102-060
Volume:
208 L, print
vendor code:
1121102-D28
Volume:
1000 L
vendor code:
1121102-700
is a top quality synthetic fuel economy “Low SAPS” year-round multigrade diesel engine oil based on the latest additive technology combined with very special base oils.
This fuel saving lubricant has mainly been developed for heavy diesel engines even under the toughest operation conditions and all the year round. This product is very suitable for EURO 4, EURO 5 and EURO 6 engines in combination with diesel fuel with a low sulphur content.
RAVENOL Ultra Synthetik Truck SAE 5W-30 is suitable for application in engines with or without particle filters and exhaust catalysts. The SAE 5W-30 viscosity range ensures reliable cold starting at low ambient temperatures and full lubricity at high operating temperatures. The use of shearstable additives guarantees that the SAE grade 5W-30 is maintained throughout the entire oil change interval.
RAVENOL Ultra Synthetik Truck SAE 5W-30 is developed as SHPD Motoroil (Super High Performance Diesel) and is suitable for use in engines with or without particle filter and catalytic converter and the special requirements for Low SAPS Technology. Low sulphur-, phosphor- and ash-content.
Application Note
RAVENOL Ultra Synthetik Truck SAE 5W-30 is a year round high performance motor oil, especially designed for economic use in exhaust-optimized engines with exhaust aftertreatment systems.
RAVENOL Ultra Synthetik Truck SAE 5W-30 is for universal use in all Diesel-engines with or without turbo-charging and for use in EURO 4, EURO 5 and EURO 6 engines.
Characteristics
- High wear protection
- Outstanding oxidation stability
- Excellent high temperature stability
- Outstanding detergent and dispersant properties
- Efficiency through low fuel consumption
- Long service life due to high oxidation stability
- Outstanding cold start behaviour, rapid engine oiling even at low temperatures
- Very good viscosity-temperature behavior
- Neutrality towards seals
- Low oil consumption due to the low evaporation loss through PAO and HC base oils
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CJ-4, CK-4, SN |
CJ-4, CK-4, SN
|
||
| ACEA | E11, E4, E6, E7, E8, E9 |
E11, E4, E6, E7, E8, E9
|
||
| JASO | DH-2 |
DH-2
|
||
| Manufacturer Approved | DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3677, Renault RLD-3, Scania LDF-4, Volvo VDS-4 |
DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3677, Renault RLD-3, Scania LDF-4, Volvo VDS-4
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Voith Retarder B, Volvo CNG |
Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Voith Retarder B, Volvo CNG
|
||
| Density at 20 °C | kg/m³ | 852 | EN ISO 12185 |
852
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 73.6 | DIN 51562-1 |
73.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 164 | DIN ISO 2909 |
164
DIN ISO 2909
|
|
| CCS Viscosity at -30 °C | mPa*s | 5900 | ASTM D5293 |
5900
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 23.200 | ASTM D4684 |
23.200
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 9.2 | ASTM D5800 |
9.2
% M/M
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.2 | ASTM D2896 |
10.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.97 | DIN 51575 |
0.97
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4 |
Caterpillar ECF-3, Cummins CES 20081, DAF Extended drain, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Voith Retarder B, Volvo CNG, Volvo VDS-4
|
Application NoteRAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).
Manufacturer Approved:
Renault RXD
Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1122102-B20
Volume:
1000 L
vendor code:
1122102-700
Volume:
1 L
vendor code:
1122102-001
Volume:
60 L
vendor code:
1122102-060
Application Note
RAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).
RAVENOL Super Performance Truck SAE 5W-3 is suitable for oil change intervals up to more than 100.000 km according to the manufacturer’s specifications.
Characteristics
- Protection against corrosion
- An excellent oxidation stability
- An excellent high temperature stability
- Excellent detergent and dispersant attributes
- Profitability because of a low fuel consumption
- Long endurance because of a high oxidation stability
- Excellent cold start attributes
- A very good viscosity temperature behaviour
- Low evaporation
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, CI-4 |
CF, CI-4
|
||
| ACEA | E4, E7 |
E4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Manufacturer Approved | Renault RXD |
Renault RXD
|
||
| Recomendations | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3
|
||
| Suitable for | IVECO |
IVECO
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.5 | DIN 51562-1 |
11.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 69.3 | DIN 51562-1 |
69.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| CCS Viscosity at -30 °C | mPa*s | 6000 | ASTM D5293 |
6000
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 16.200 | ASTM D4684 |
16.200
mPa*s
ASTM D4684
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 10.1 | ASTM D5800 |
10.1
% M/M
ASTM D5800
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13 | ASTM D2896 |
13
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1 | DIN 51575 |
1
%wt.
DIN 51575
|
| Approvals | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3
|
RAVENOL Low Emission Truck SAE 10W-40 is suitable for application in exhaust-optimized engines with exhaust gas after treatment.
Manufacturer Approved:
DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, Renault RLD-3, Volvo VDS-4
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania Low Ash, Voith Retarder B
- Available packaging
- Product parameters
Volume:

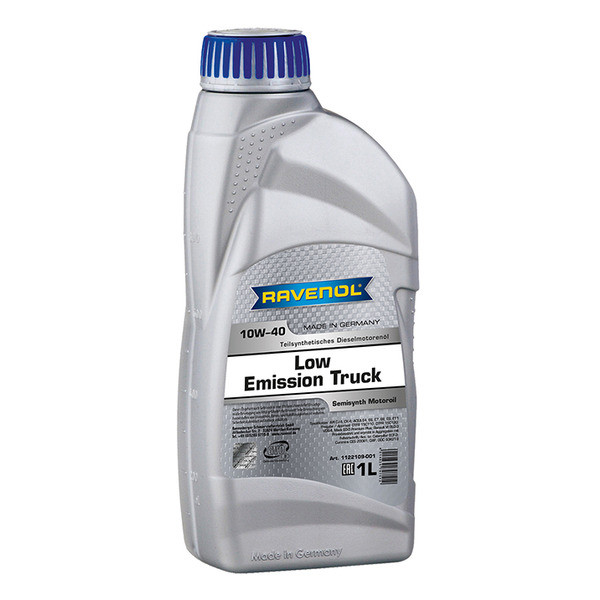

1 L
vendor code:
1122109-001
Volume:

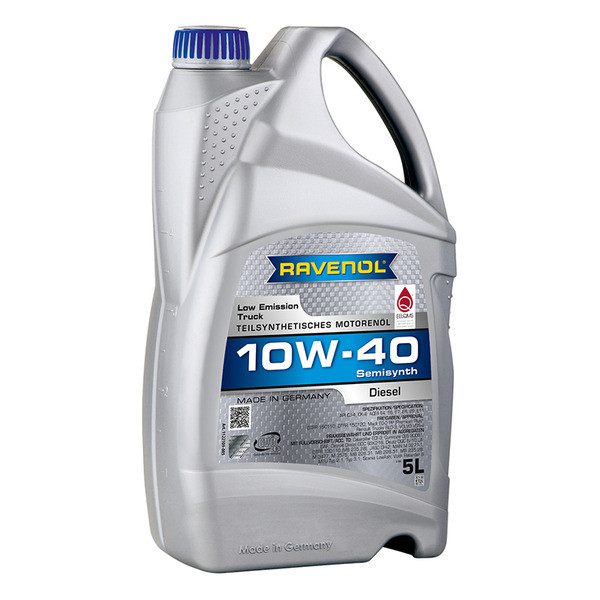

5 L
vendor code:
1122109-005
Volume:

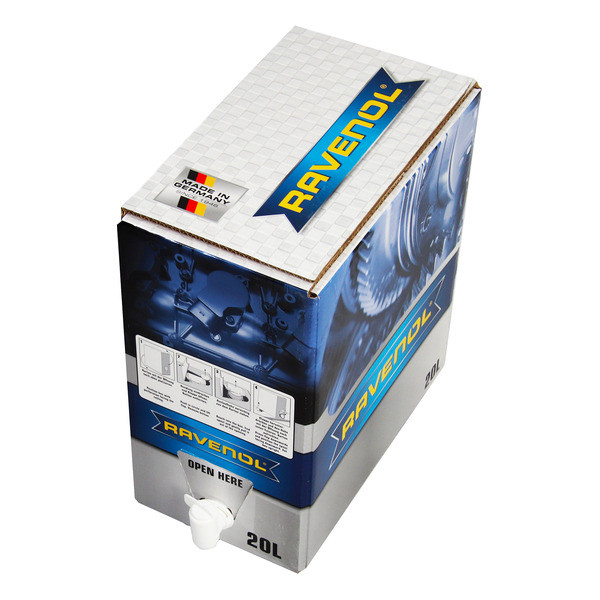

20 L, ecobox
vendor code:
1122109-B20
Volume:

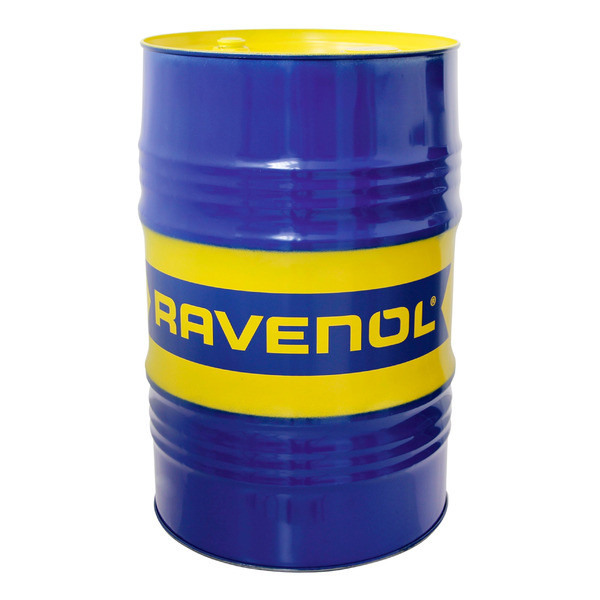

60 L
vendor code:
1122109-060
Volume:
60 L, print
vendor code:
1122109-D60
Volume:

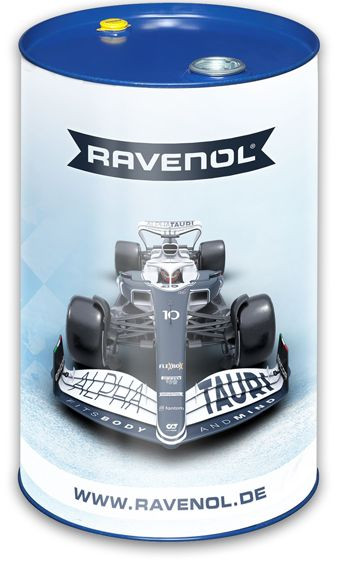

208 L, print
vendor code:
1122109-D28
Volume:
1000 L
vendor code:
1122109-700

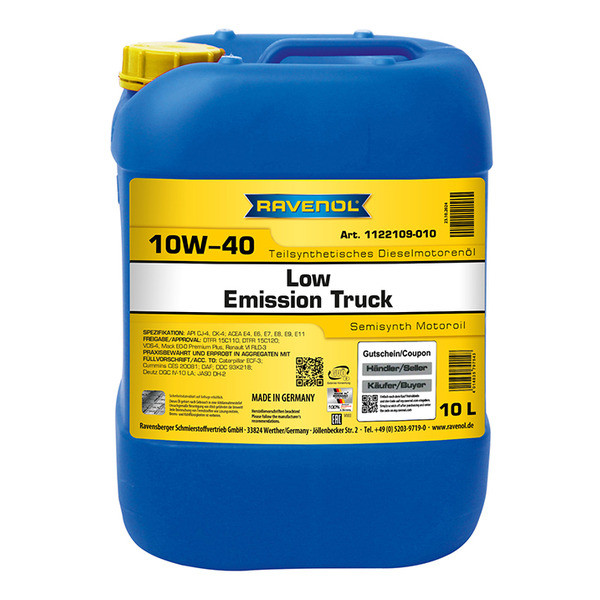

RAVENOL Low Emission Truck SAE 10W-40 is suitable for application in exhaust-optimized engines with exhaust gas after treatment.
RAVENOL Low Emission Truck SAE 10W-40 reduces friction, wear and fuel consumption and provides for longer oil change intervals in turbo diesel engines.
RAVENOL Low Emission Truck SAE 10W-40 with shear stable additives improves performance, reliability and cleanliness of the engines.
Application Note
RAVENOL Low Emission Truck SAE 10W-40 is a year round high performance motor oil, especially designed for economic use in Euro V and Euro VI engines with after treatment systems in the viscosity class SAE 10W -40 heavy duty vehicle diesel engines.
RAVENOL Low Emission Truck SAE 10W-40 is preferred recommended by the extended oil change intervals specified by the manufacturer in turbo diesel engines.
Characteristics
- An extremely high pressure absorption capacity
- Very high oxidation stability
- Excellent resistance to aging
- Excellent viscosity-temperature behavior
- High safety reserves even under boundary lubrication conditions
- Suitable for extended oil change intervals
- Best suitability for difficult operating conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CJ-4, CK-4 |
CJ-4, CK-4
|
||
| ACEA | E11, E4, E6, E7, E8, E9 |
E11, E4, E6, E7, E8, E9
|
||
| JASO | DH-2 |
DH-2
|
||
| Manufacturer Approved | DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, Renault RLD-3, Volvo VDS-4 |
DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, Renault RLD-3, Volvo VDS-4
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania Low Ash, Voith Retarder B |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania Low Ash, Voith Retarder B
|
||
| Suitable for | DAF |
DAF
|
||
| Density at 20 °C | kg/m³ | 859 | EN ISO 12185 |
859
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.1 | DIN 51562-1 |
14.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 90.2 | DIN 51562-1 |
90.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 5089 | ASTM D5293 |
5089
mPa*s
ASTM D5293
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.2 | ASTM D2896 |
9.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.83 | DIN 51575 |
0.83
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania Low Ash, Voith Retarder B, Volvo VDS-4 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania Low Ash, Voith Retarder B, Volvo VDS-4
|
RAVENOL Performance Truck SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Manufacturer Approved:
Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3
Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
SAE: 10W-40
Equivalents OEM:
Alpine 0100340,
Alpine 0100342,
Alpine 0100343,
Alpine 0100344,
Alpine 0100345,
MB A000989460413FBFR,
MB A000989460417FBFR,
MB A000989470413,
MB A000989470413FBFR,
MB A000989470417FBFR,
MB A000989620417BBCR,
MB A000989850215ABFE,
MB A000989850217ABFE,
MB A0009899601AAA4,
MB A0009899601AAA5,
MB A001989750117FBFE,
MB A001989750117FBFE,
MB A001989750117FBFK,
MB A001989750117FBGN,
MB A001989750118FBFE,
MB A001989750119FBFD,
MB A001989750119FBFK,
MB A094989000015CBFZ,
MB A094989000017CBFZ,
MB A094989020017ABFE,
MB A094989020017ABFW,
MB A094989170013FBFE,
MB A094989170013FBFK,
MB A094989170013FBFR,
MB A094989170015FBFK,
MB A094989170017FBFD
Alpine 0100340, Alpine 0100342, Alpine 0100343, Alpine 0100344, Alpine 0100345, MB A000989460413FBFR, MB A000989460417FBFR, MB A000989470413, MB A000989470413FBFR, MB A000989470417FBFR, MB A000989620417BBCR, MB A000989850215ABFE, MB A000989850217ABFE, MB A0009899601AAA4, MB A0009899601AAA5, MB A001989750117FBFE, MB A001989750117FBFE, MB A001989750117FBFK, MB A001989750117FBGN, MB A001989750118FBFE, MB A001989750119FBFD, MB A001989750119FBFK, MB A094989000015CBFZ, MB A094989000017CBFZ, MB A094989020017ABFE, MB A094989020017ABFW, MB A094989170013FBFE, MB A094989170013FBFK, MB A094989170013FBFR, MB A094989170015FBFK, MB A094989170017FBFD, MB A094989170017FBFE, MB A094989170017FBFK, MB A094989170017FBFR, MB A094989170018FBFE, MB A094989170019FBFD, MB A094989170019FBFK, Pentosin 1115208, Pentosin 1115305, Pentosin 114000000, Pentosin 2200000013903, Pentosin 4008849167584, Scania 2021366
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122106-001
Volume:
5 L
vendor code:
1122106-005
Volume:
20 L, ecobox
vendor code:
1122106-B20
Volume:
1000 L
vendor code:
1122106-700
RAVENOL Performance Truck SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Application Note
RAVENOL Performance Truck SAE 10W-40 has a higher performance than conventional high-performance engine oils. International such oils are called UHPD oils (UHPD = Ultra High Performance Diesel Oil). Regardless of the particular mileage, older diesel engines on RAVENOL Performance Truck SAE 10W-40 should be changed without rinsing.
Characteristics
- High wear protection even under constant load at full throttle
- Reduced fuel consumption by low-friction characteristics
- Quick oil circulation reduces cold-start and warm-up wear
- Protection against bore polishing of cylinder paths
- Reduction of exhaust particles
- Protects against corrosion, even when using diesel fuels with high sulfur content
- Safe protection against deposits and sticking, both under extreme thermal loads and short haul
- Optimum compatibility with seal materials
- Environmentally friendly due longest oil change intervals and low evaporation losses
- Guaranteed extended drain intervals for the long-haul truck or transport
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, CI-4 |
CF, CI-4
|
||
| ACEA | E4, E7 |
E4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Manufacturer Approved | Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3 |
Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3
|
||
| Recomendations | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | Dark brown | visual |
Dark brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.5 | DIN 51562-1 |
14.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 96.2 | DIN 51562-1 |
96.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13.2 | ASTM D2896 |
13.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.7 | DIN 51575 |
1.7
%wt.
DIN 51575
|
| Approvals | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, Deutz DQC III-10, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), DTFR 15B120, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3277, MB 228.5, MB 235.27, MB 235.28, MTU Type 3, Renault RLD-2, Scania LDF-2, TEDOM 258-4, Voith Retarder B, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, Deutz DQC III-10, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), DTFR 15B120, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3277, MB 228.5, MB 235.27, MB 235.28, MTU Type 3, Renault RLD-2, Scania LDF-2, TEDOM 258-4, Voith Retarder B, Volvo VDS-3
|
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
- Available packaging
- Product parameters
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Application Note
RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Characteristics
- Excellent detergent and dispersant characteristics
- Low evaporation
- A high ageing stability
- Protection of reflecting surface formation
- Very good cold start characteristics
- Reduces oil and fuel consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E4, E7 |
A3, B4, E4, E7
|
||
| Manufacturer Approved | Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3 |
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
|
||
| Suitable for | DAF, IVECO, YaMZ |
DAF, IVECO, YaMZ
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.2 | DIN 51562-1 |
14.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 93.5 | DIN 51562-1 |
93.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6480 | ASTM D5293 |
6480
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 7.3 | ASTM D5800 |
7.3
% M/M
ASTM D5800
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11 | ASTM D2896 |
11
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.45 | DIN 51575 |
1.45
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
|
