RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.
Manufacturer Approved:
MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Compliance with the requirements:
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221123-001
Volume:
4 L
vendor code:
1221123-004
Volume:
20 L
vendor code:
1221123-020
Volume:
20 L, ecobox
vendor code:
1221123-B20
Volume:
60 L
vendor code:
1221123-060
Volume:
60 L, print
vendor code:
1221123-D60
Volume:
208 L, print
vendor code:
1221123-D28
Volume:
1000 L
vendor code:
1221123-700
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox.
Application Note
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.
RAVENOL GEAR SUPER SYNTH GSS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer instructions
- excellent cold flow properties
- good wear protection protects the gearbox
- Fuel savings even with short distances in low outside temperatures
- stable lubricating film even under high stress
- extreme low pour point
- Can be used at changing temperatures due to the high viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
MAN 341 Type Z2, MAN 342 Type S1, Scania STO 2:0 G, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
||
| Recomendations | Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312 |
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, Scania STO 2:0 A FS, Volvo 97312
|
||
| specification | MIL-PRF 2105 E, SAE J 2360 |
MIL-PRF 2105 E, SAE J 2360
|
||
| Suitable for | DAF |
DAF
|
||
| Density at 20 °C | 873,0 | EN ISO 12185 |
873,0
EN ISO 12185
|
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.82 | DIN 51562-1 |
14.82
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 141 | DIN ISO 2909 |
141
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 97.000 | ASTM D2983 |
97.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Flashpoint | °C | 186 | DIN EN ISO 2592 |
186
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
Arvin Meritor 076-N, DDC 93K219.01, IVECO 18-1805, Mack GO-J, MAN 341 Type GA-2, MAN 341 Type Z2, MAN 342 Type S1, MIL-PRF 2105 E, SAE J 2360, Scania STO 2:0 A FS, Scania STO 2:0 G, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.
Manufacturer Approved:
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Compliance with the requirements:
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221122-001
Volume:
4 L
vendor code:
1221122-004
Volume:
20 L
vendor code:
1221122-020
Volume:
20 L, ecobox
vendor code:
1221122-B20
Volume:
60 L
vendor code:
1221122-060
Volume:
60 L, print
vendor code:
1221122-D60
Volume:
208 L, print
vendor code:
1221122-D28
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.
Application Note
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer instructions
- excellent cold flow properties
- good wear protection protects the gearbox
- Fuel savings even with short distances in low outside temperatures
- stable lubricating film even under high stress
- extreme low pour point
- Can be used at changing temperatures due to the high viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
||
| Recomendations | Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13 |
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
|
||
| specification | MIL-PRF 2105 E, SAE J 2360 |
MIL-PRF 2105 E, SAE J 2360
|
||
| Suitable for | DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault |
DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
|
||
| Compliant products | Isuzu Axle Oil, Isuzu LCV Front Axle Oil |
Isuzu Axle Oil, Isuzu LCV Front Axle Oil
|
||
| Density at 20 °C | 868,0 | EN ISO 12185 |
868,0
EN ISO 12185
|
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.8 | DIN 51562-1 |
15.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 106.8 | DIN 51562-1 |
106.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 63,400 | ASTM D2983 |
63,400
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 190 | DIN EN ISO 2592 |
190
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion (24h/120 °C) | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Manufacturer Approved:
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1221109-010
Volume:
20 L
vendor code:
1221109-020
Volume:
60 L
vendor code:
1221109-060
Volume:
60 L, print
vendor code:
1221109-D60
Volume:
208 L
vendor code:
1221109-208
Volume:
208 L, print
vendor code:
1221109-D28
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Application Note
RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behaviour in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-110 |
75W-110
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A |
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
|
||
| Recomendations | Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B |
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
|
||
| Suitable for | DAF, IVECO |
DAF, IVECO
|
||
| Density at 20 °C | kg/m³ | 874 | EN ISO 12185 |
874
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 21.4 | DIN 51562-1 |
21.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 163.5 | DIN 51562-1 |
163.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 98.700 | ASTM D2983 |
98.700
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B |
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B
|
Application NoteRAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
SAE: 80W-140
Equivalents OEM:
BRP 779478, GM 1940770, GM 9163336, GM 9163336, Scania 1892407, Scania 1892408, Scania 1892409, Scania 1892410, Scania 1892411, Scania 2003096
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1222201-001
Volume:
4 L
vendor code:
1222201-004
Volume:
20 L, ecobox
vendor code:
1222201-B20
Volume:
60 L
vendor code:
1222201-060
Volume:
1000 L
vendor code:
1222201-700
Application Note
RAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Characteristics
- A pressure-resistant lubricating film, excellent high-pressure (EP) properties
- High viscosity index
- Excellent oxidation stability
- An exceptional viscosity-temperature behavior
- A low pour point
- Excellent protection against rust and corrosion
- Wear-resistant effect
- Good air separation capacity, no foam formation
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-140 |
80W-140
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-5, MT-1 |
GL-5, MT-1
|
||
| Recomendations | Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A |
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
|
||
| Suitable for | Dana |
Dana
|
||
| Density at 20 °C | kg/m³ | 850 | EN ISO 12185 |
850
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 27.5 | DIN 51562-1 |
27.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 205.1 | DIN 51562-1 |
205.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 171 | DIN ISO 2909 |
171
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 32.000 | ASTM D2983 |
32.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 202 | DIN EN ISO 2592 |
202
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A |
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
|

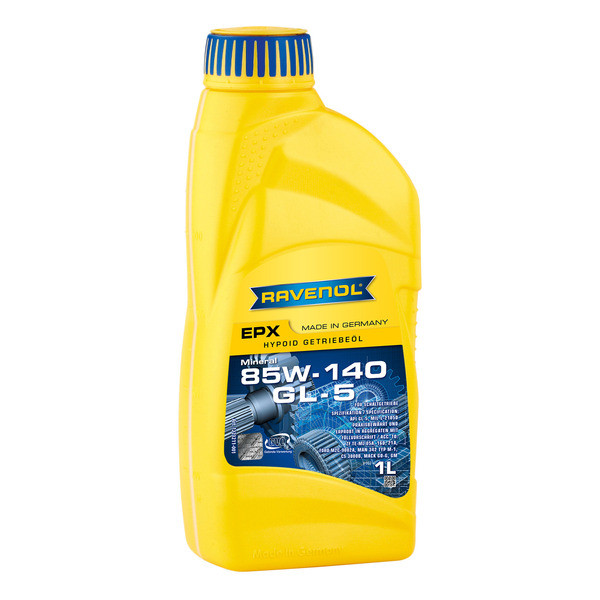

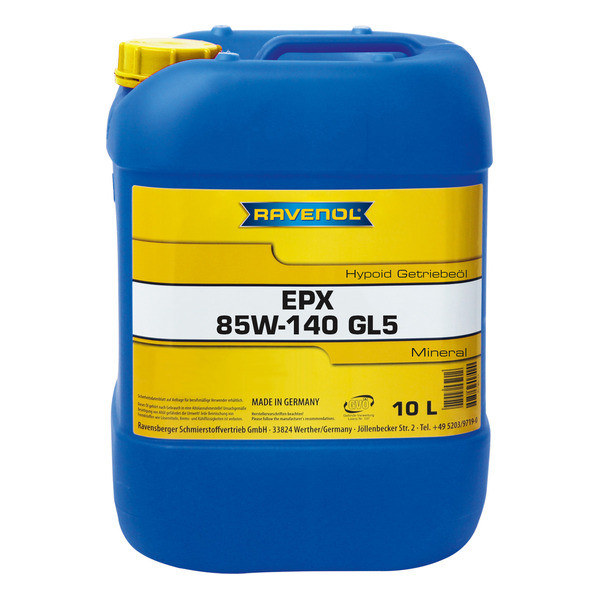

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use with maximum duty, hypoid gearing gears (axel drive, manual transmission, etc.), so far extreme pressure gear oils are required.
Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A
SAE: 85W-140
API: GL-5
Equivalents OEM:
Alpine 0100781, Alpine 0100783, Alpine 0100784, Alpine 0100785, Alpine 100781, Alpine 100783, Alpine 100784, Alpine 100784, DAF 1660042, DAF 1660043, DAF 1660044, DAF 1678855, DAF 1697549, DAF 1699595, DAF 1699595G, DAF 1732360, GM 89021799, Hyundai Motor 0220000420, Hyundai XTeer 1041432, Scania 1892412, Scania 1892413, Scania 1892414, Scania 1892415, Scania 1892416, Volvo 1161279, Volvo 1161936, Volvo 1161937
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223211-001
Volume:
10 L
vendor code:
1223211-010
Volume:
20 L, ecobox
vendor code:
1223211-B20
Volume:
208 L, print
vendor code:
1223211-D28
Volume:
1000 L
vendor code:
1223211-700

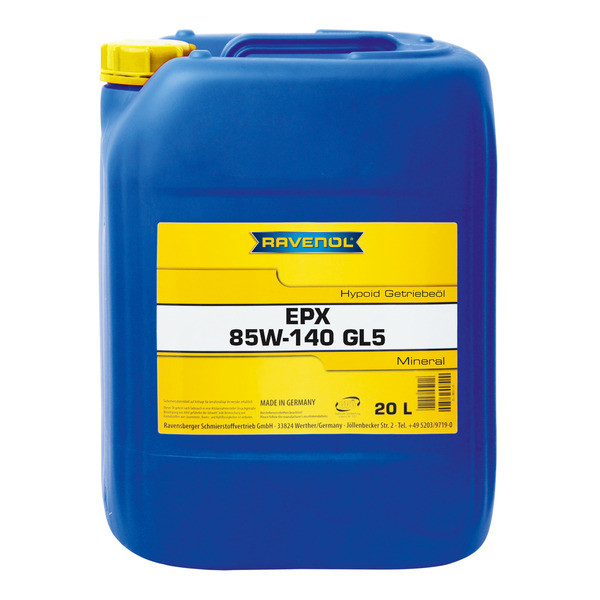

RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use with maximum duty, hypoid gearing gears (axel drive, manual transmission, etc.), so far extreme pressure gear oils are required.
Application Note
RAVENOL Getriebeoel EPX SAE 85W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Characteristics
- a very good oxidation stability
- widest possible protection against rust and corrosion
- no foam formation
- excellent extreme pressure properties
- low pour point
- neutral behaviour towards metals and sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 85W-140 |
85W-140
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A |
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | kg/m³ | 894 | EN ISO 12185 |
894
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 26.4 | DIN 51562-1 |
26.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 355 | DIN 51562-1 |
355
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 99 | DIN ISO 2909 |
99
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 55.000 | ASTM D2983 |
55.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A |
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M1, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16D, ZF TE-ML 21A
|

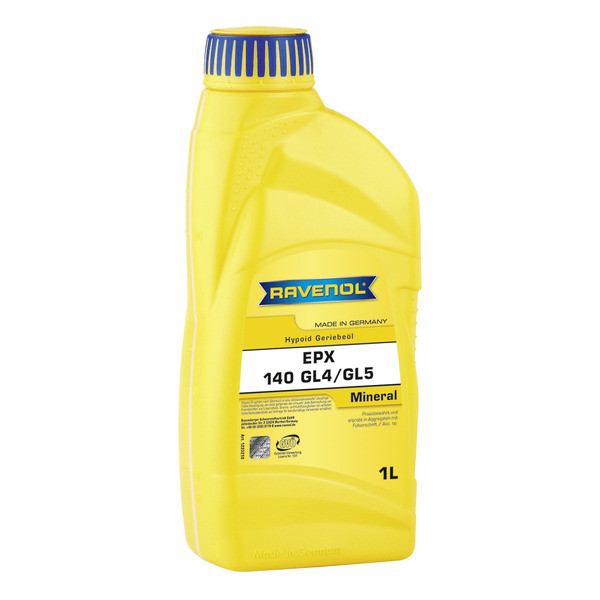

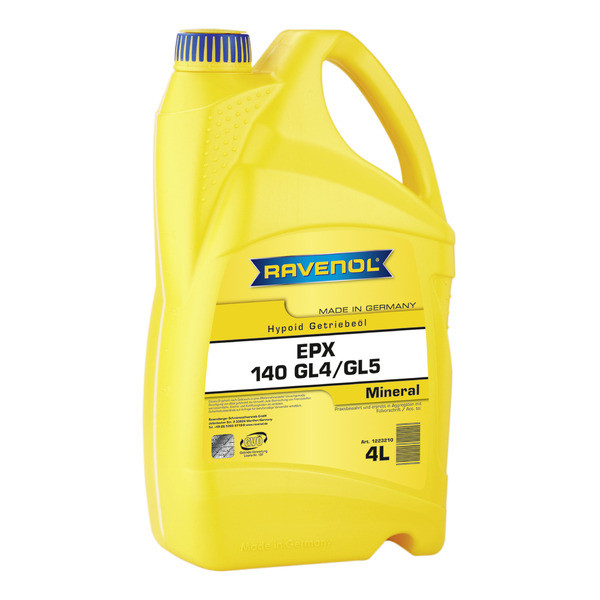

Application NoteRAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Compliance with the requirements:
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223210-001
Volume:
4 L
vendor code:
1223210-004
Volume:
10 L
vendor code:
1223210-010
Volume:
20 L
vendor code:
1223210-020
Volume:
20 L, ecobox
vendor code:
1223210-B20
Volume:
60 L
vendor code:
1223210-060
Volume:
208 L
vendor code:
1223210-208
Volume:
1000 L
vendor code:
1223210-700
Application Note
RAVENOL Getriebeoel EPX SAE 140 GL4/GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Characteristics
- good adhesion and pressure resistant lubricating film
- excellent oxidation stability
- exceptional viscosity-temperature behavior
- a low pour point
- excellent protection against rust and corrosion
- enhanced wear-inhibiting effect
- a good foam-resistant composition
- compatible with all types of metals and sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 140W |
140W
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B |
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | kg/m³ | 894 | EN ISO 12185 |
894
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 26 | DIN 51562-1 |
26
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 352 | DIN 51562-1 |
352
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 97 | DIN ISO 2909 |
97
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 55.000 | ASTM D2983 |
55.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B |
CS 3000B, Ford SQ-M2C 9002-A, Mack GO-G, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B
|

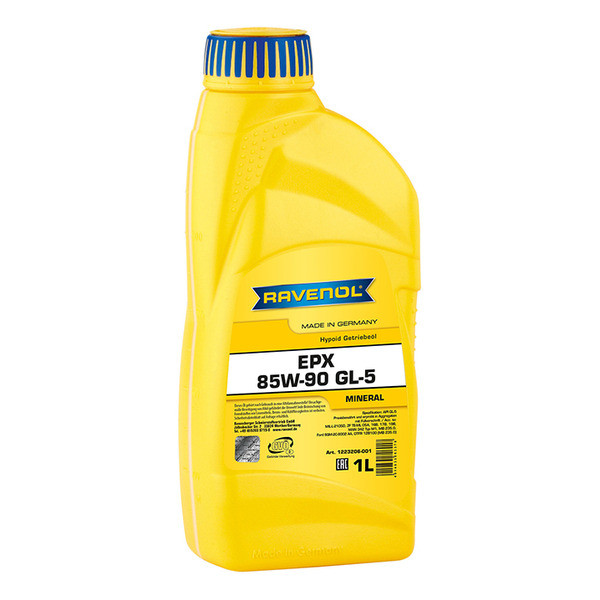

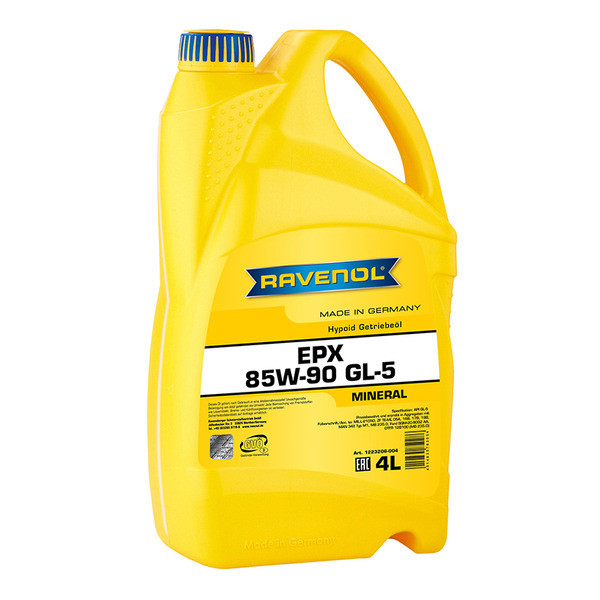

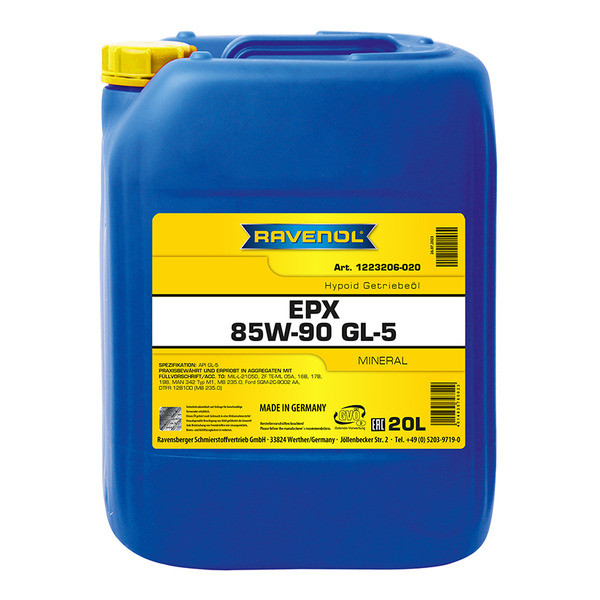

RAVENOL Getriebeoel EPX SAE 85W-90 GL5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B
SAE: 85W-90
API: GL-5
Equivalents OEM:
Ford 5000166, Ford 5000167, Ford 5009922, Ford A72SX19K261CA, Ford A72SX19K261DA, Ford A82SX19K261AA, Toyota 0888500500, Toyota 0888500500, Toyota 0888500503
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223206-001
Volume:
4 L
vendor code:
1223206-004
Volume:
20 L
vendor code:
1223206-020
Volume:
20 L, ecobox
vendor code:
1223206-B20
Volume:
60 L
vendor code:
1223206-060
Volume:
208 L
vendor code:
1223206-208
RAVENOL Getriebeoel EPX SAE 85W-90 GL5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Application Note
RAVENOL Getriebeoel EPX SAE 85W-90 GL 5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 85W-90 GL 5.
Use RAVENOL Getriebeoel EPX SAE 85W-90 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
Characteristics
- Optimal cold flow property
- Outstanding wear protection even with short trips in winter
- High pressure stable lubrication film, thus outstanding wear protection under any stress
- Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil.
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 85W-90 |
85W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B
|
||
| Density at 20 °C | kg/m³ | 882 | EN ISO 12185 |
882
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.3 | DIN 51562-1 |
14.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 130.3 | DIN 51562-1 |
130.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 60.100 | ASTM D2983 |
60.100
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B
|

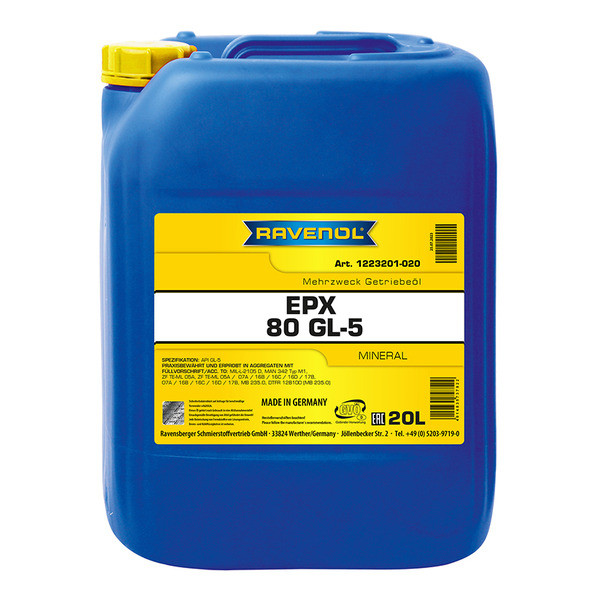

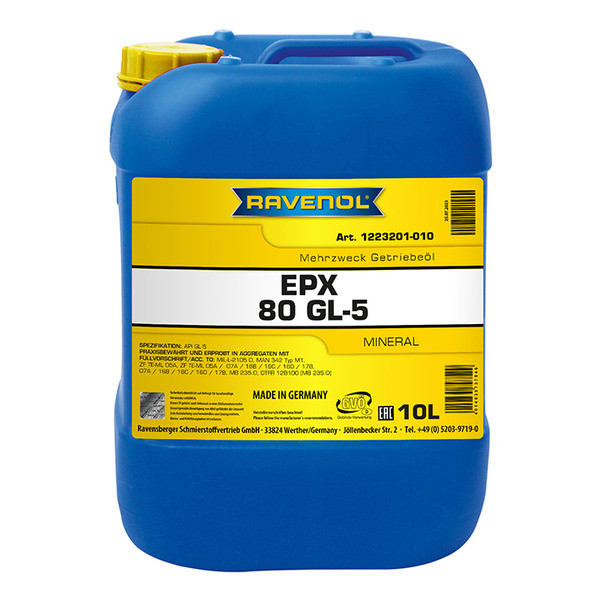

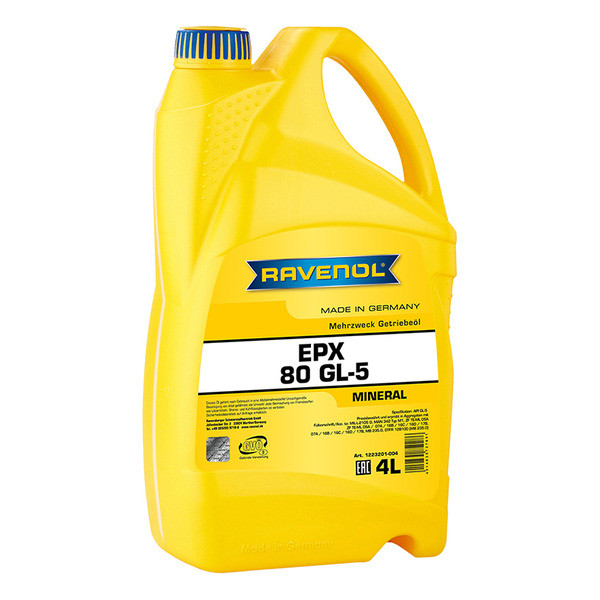

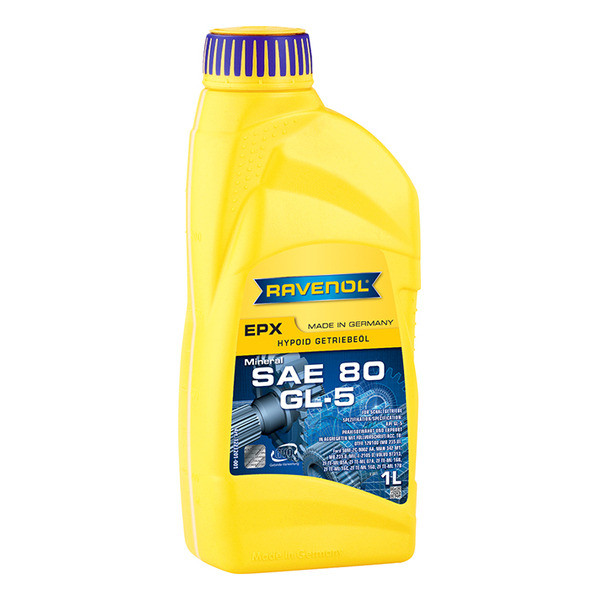

RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, VOLVO 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1223201-004
Volume:
20 L, ecobox
vendor code:
1223201-B20
Volume:
60 L
vendor code:
1223201-060
Volume:
208 L
vendor code:
1223201-208
Volume:
1000 L
vendor code:
1223201-700
Volume:
1 L
vendor code:
1223201-001
Volume:
10 L
vendor code:
1223201-010
Volume:
20 L
vendor code:
1223201-020
RAVENOL Getriebeoel EPX SAE 80 GL 5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Application Note
RAVENOL Getriebeoel EPX SAE 80 GL 5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80 GL 5
Use RAVENOL Getriebeoel EPX SAE 80 GL 5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
Characteristics
- Optimal cold flow property
- Outstanding wear protection even with short trips in winter
- High pressure stable lubrication film, thus outstanding wear protection under any stress
- Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 80W |
80W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B
|
||
| Density at 20 °C | kg/m³ | 882 | EN ISO 12185 |
882
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.3 | DIN 51562-1 |
14.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 130.3 | DIN 51562-1 |
130.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 60.100 | ASTM D2983 |
60.100
mPa*s
ASTM D2983
|
| Approvals | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, Volvo 97313, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B
|
Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Manufacturer Approved:
DTFR 12B130, MAN 342 Type M2, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 2B, ZF TE-ML 16B, ZF TE-ML 16D
SAE: 80W-90
Equivalents OEM:
DAF 09227RU,
DAF 1659975,
FEBI 170166,
FEBI 170167,
FEBI 170168,
Ford 173576,
Ford 5016429,
Ford 5016429,
Ford XY80W90KL,
Ford XY80W90Q,
Ford XY80W90QL,
GM 1942008,
GM 88900144,
GM 93165588,
Scania 1892391,
Scania 1892392,
Scania 1892393,
Scania 1892394,
Scania 1892395,
Scania 1905038,
Volvo 11706213,
Volvo 11706214,
Volvo 11706786,
Volvo VOE11706213,
Volvo VOE11706214,
Volvo VOE11706786,
ZF 0681000410,
ZF 0681000411,
ZF 0681000412,
ZF 681000410,
ZF 681000411
DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411, ZF 681000412
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223305-001
Volume:
4 L
vendor code:
1223305-004
Volume:
20 L, ecobox
vendor code:
1223305-B20
Volume:
1000 L
vendor code:
1223305-700
Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Application Note
RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Characteristics
- An excellent thermal stability
- Excellent extreme pressure properties
- A good circuit behavior at low temperatures
- An extended service life
- Neutral behavior towards sealing materials
- Reliable protection against wear, sludge, adhesion and corrosion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-3, GL-4, GL-5, MT-1 |
GL-3, GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B130, MAN 342 Type M2, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B |
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
|
||
| specification | MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E |
MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E
|
||
| Suitable for | DAF, IVECO |
DAF, IVECO
|
||
| Density at 20 °C | kg/m³ | 889 | EN ISO 12185 |
889
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.2 | DIN 51562-1 |
15.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 146.4 | DIN 51562-1 |
146.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 105 | DIN ISO 2909 |
105
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 161.000 | ASTM D2983 |
161.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 200 | DIN EN ISO 2592 |
200
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B |
DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, Volvo 97321, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B
|

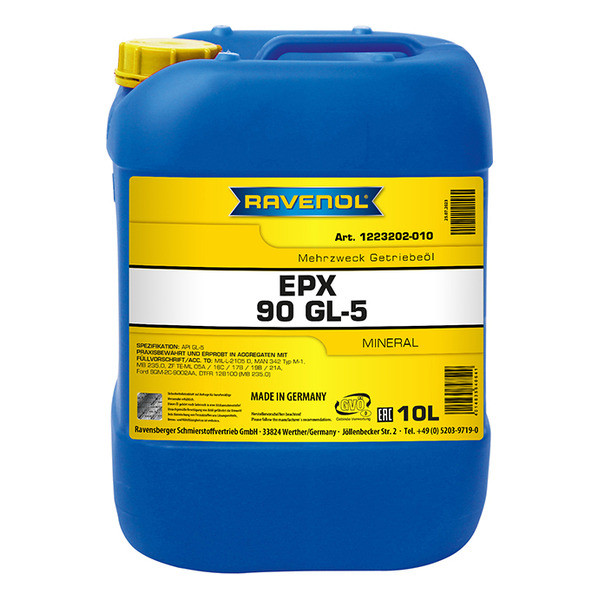

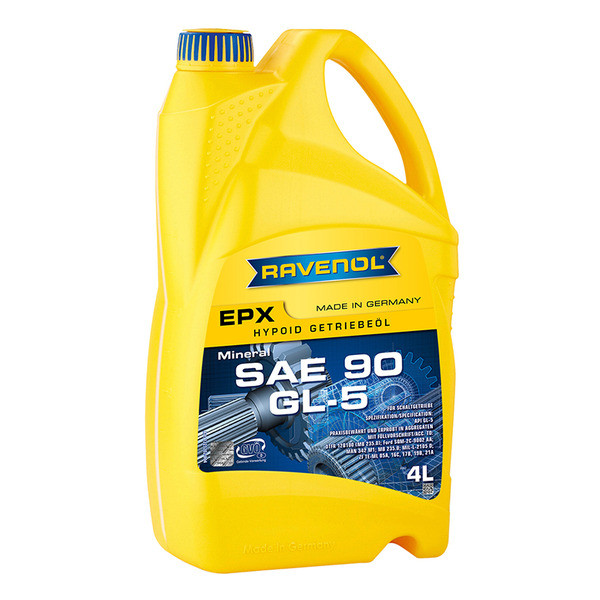

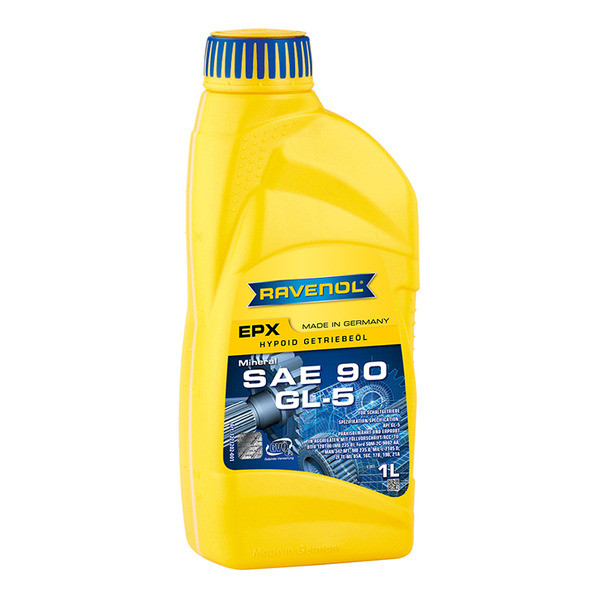

RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1223202-004
Volume:
20 L, ecobox
vendor code:
1223202-B20
Volume:
60 L
vendor code:
1223202-060
Volume:
1000 L
vendor code:
1223202-700
Volume:
10 L
vendor code:
1223202-010
RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Application Note
RAVENOL Getriebeoel EPX SAE 90 GL-5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 90 GL-5.
Use RAVENOL Getriebeoel EPX SAE 90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
Characteristics
- Optimal cold flow property
- Outstanding wear protection even with short trips in winter
- High pressure stable lubrication film, thus outstanding wear protection under any stress
- Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 90 |
90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Density at 20 °C | kg/m³ | 882 | EN ISO 12185 |
882
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.3 | DIN 51562-1 |
14.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 130.3 | DIN 51562-1 |
130.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 60.100 | ASTM D2983 |
60.100
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|

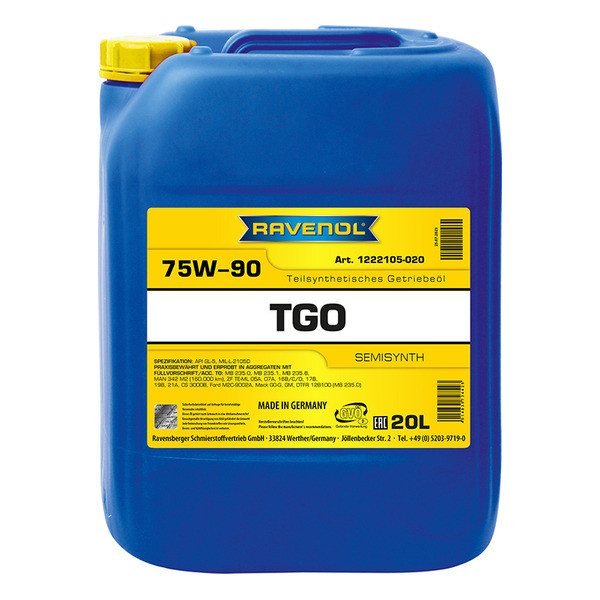

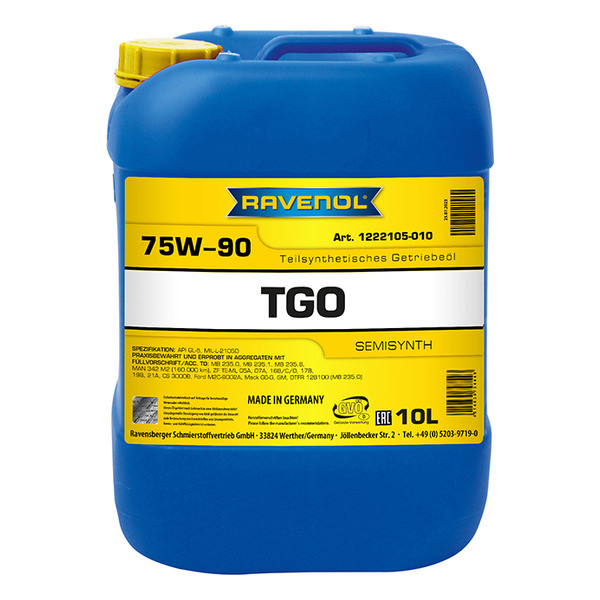

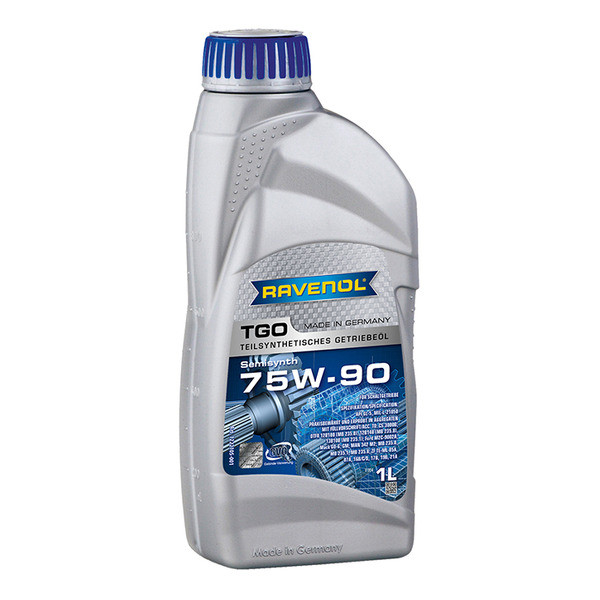

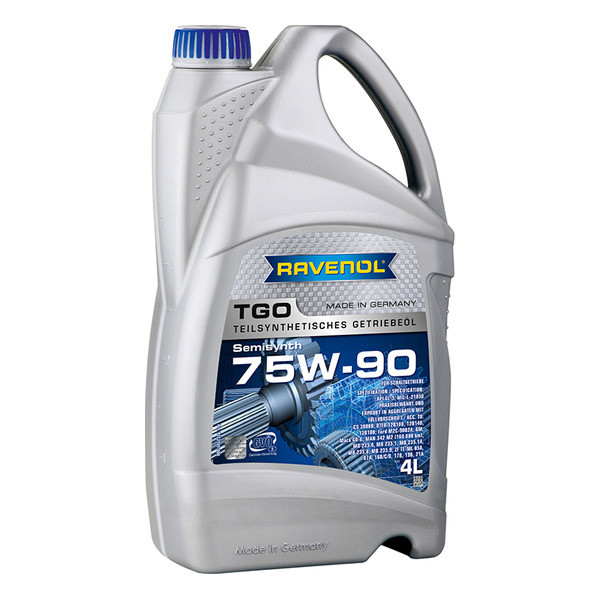

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1222105-010
Volume:
20 L
vendor code:
1222105-020
Volume:
1000 L
vendor code:
1222105-700
Volume:
60 L
vendor code:
1222105-060
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Application Note
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.
Characteristics
- Excellent oxidation stability
- Greatest possible protection from rust, corrosion, foaming
- Low solidification point
- Excellent extreme pressure (EP) properties
- High viscosity index
- Fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | kg/m³ | 842 | EN ISO 12185 |
842
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.3 | DIN 51562-1 |
97.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 70.000 | ASTM D2983 |
70.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 215 | DIN EN ISO 2592 |
215
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
