Toyota Raize, A200 Raize NV 1.2 2WD (WA-VE) (A201A/A251/A251L/A251R), year of issue from 2019 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Fuel: Gasoline
car drive: Front-wheel drive
Engine: Single row
Number of cylinders: 3
Valves per cylinder: 4
Working volume: 1196 cc
Power: 87 hp / 64 kW

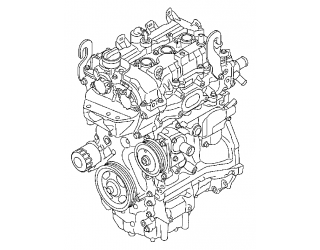

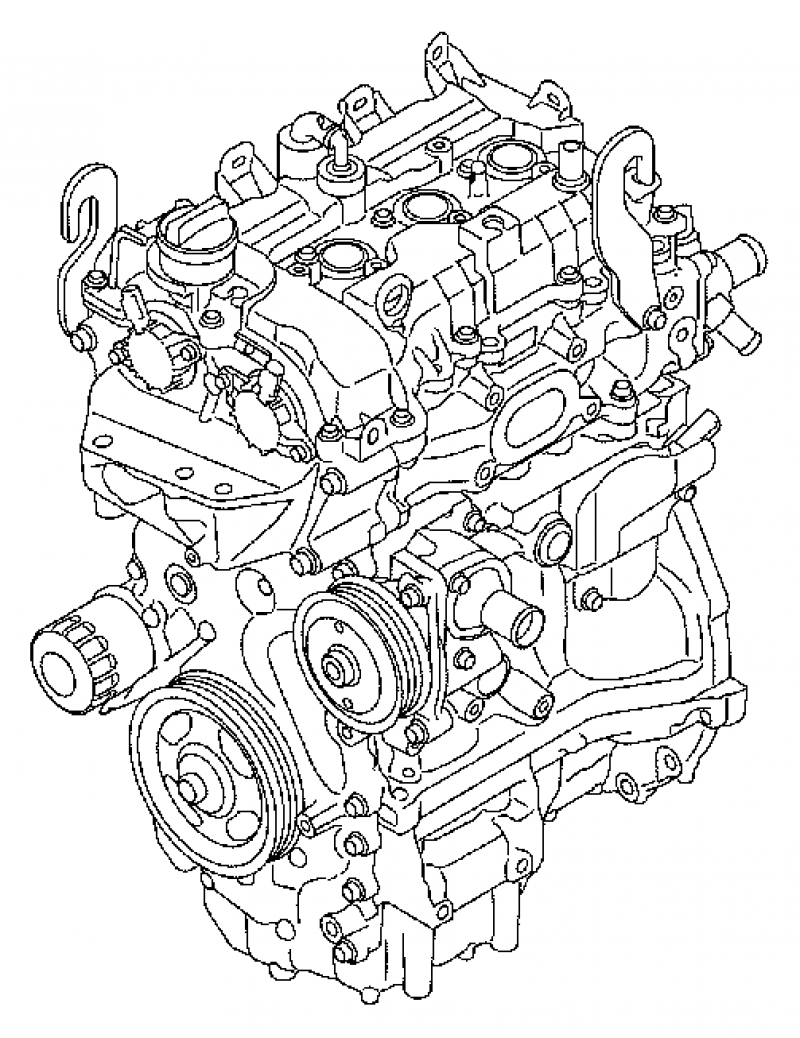

Engine
WA-VE 1.2 Dual-VVT
OEM:
19000-B1T00
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Compliance with the requirements:
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022
SAE: 0W-16
ILSAC: GF-7B
API: SQ (RC)
Equivalents OEM:
Alpine 0121681,
Alpine 0121682,
Honda 0821699974,
Honda 0821699974RUS,
Honda 0821699977,
Honda 08232P99S1LHE,
Honda 08232P99S4LHE,
Honda 08232P99S6LHE,
Honda 087989062,
Hyundai Motor 0510000191,
Hyundai Motor 0510000491,
Mitsubishi MZ102661,
Mitsubishi MZ102662,
Nissan KLAN901602,
Nissan KLAN901604,
Nissan KLAN901620,
Nissan KLANM01A02,
Nissan KLANM01A04,
Nissan KLAP901602,
Nissan KLAP901604,
Nissan KLAP901620,
Subaru SOA427V3000,
Subaru SOA427V3000,
Suzuki 990F021D40B017,
Suzuki 990F021D40B047,
Suzuki 990F021D400D7,
Suzuki 990F021D400P7,
Suzuki 9900021D40026,
Suzuki 9900021D40036,
Suzuki 9900021D40206,
Toyota 0027916QTE
Alpine 0121681, Alpine 0121682, Honda 0821699974, Honda 0821699974RUS, Honda 0821699977, Honda 08232P99S1LHE, Honda 08232P99S4LHE, Honda 08232P99S6LHE, Honda 087989062, Hyundai Motor 0510000191, Hyundai Motor 0510000491, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLAN901602, Nissan KLAN901604, Nissan KLAN901620, Nissan KLANM01A02, Nissan KLANM01A04, Nissan KLAP901602, Nissan KLAP901604, Nissan KLAP901620, Subaru SOA427V3000, Subaru SOA427V3000, Suzuki 990F021D40B017, Suzuki 990F021D40B047, Suzuki 990F021D400D7, Suzuki 990F021D400P7, Suzuki 9900021D40026, Suzuki 9900021D40036, Suzuki 9900021D40206, Toyota 0027916QTE, Toyota 0888011005, Toyota 0888012100, Toyota 0888012103, Toyota 0888012105, Toyota 0888012803, Toyota 0888013100, Toyota 0888013103, Toyota 0888013105, Toyota 0888013303, Toyota 0888083889, Toyota 0888084081, Toyota 0888084082, Toyota 0888084105
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1111103-020
Volume:
60 L
vendor code:
1111103-060
Volume:
208 L
vendor code:
1111103-208
Volume:
1000 L
vendor code:
1111103-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL Extra Fuel Economy EFE SAE 0W-16 is recommended especially for hybrid vehicles.
RAVENOL Extra Fuel Economy EFE SAE 0W-16 was formulated with tri-nuclear molybdenum and OFM (Organic Friction Modifiers), in order to achieve minimal friction, wear and fuel consumption with excellent cold start characteristics.
With its new formulation, RAVENOL Extra Fuel Economy EFE SAE 0W-16 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL Extra Fuel Economy EFE SAE 0W-16 helps to protect the environment by reducing emissions.
RAVENOL Extra Fuel Economy EFE SAE 0W-16 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Extra Fuel Economy EFE SAE 0W-16 is suitable as a high performance, smooth-running engine oil for sophisticated engines. It is recommended for modern passenger car petrol engines, including the supercharge models and for direct injection engines and hybrid vehicles under all operating conditions, if the engine manufacturer recommends using a low viscosity oil with the viscosity category SAE 0W-16, SAE 0W-20 or SAE 5W-20. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Fuel saving in partial and full load operation.
- Excellent wear protection and a high viscosity index ensure the long service life of the engine even under high speed driving conditions.
- Excellent cold start properties even at low temperatures of below -35°C.
- A reliable lubrication film even at high operating temperatures.
- Low volatility, resulting in low oil consumption.
- No oil-related deposits in combustion chambers, in the piston ring zone and on valves.
- Compatible with sealing materials.
- Extended oil change intervals protect natural resources.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Renault AN2022, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Renault AN2022, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-16 |
0W-16
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7B |
GF-7B
|
||
| Recomendations | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022 |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022
|
||
| Compliant products | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 38.4 | DIN 51562-1 |
38.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.4 | ASTM D5481 |
2.4
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4400 | ASTM D5293 |
4400
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 9.270 | ASTM D4684 |
9.270
mPa*s
ASTM D4684
|
| Pourpoint | °C | -60 | DIN ISO 3016 |
-60
°C
DIN ISO 3016
|
| Noack Volatility | % | 6.8 | ASTM D5800 |
6.8
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.4 | ASTM D2896 |
8.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022 |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022
|
RAVENOL FEH SAE 0W-16 minimises friction, wear and fuel consumption with excellent cold start characteristics. Suitable for extended oil change intervals when recommended by manufacturer.
Compliance with the requirements:
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1112115-005
Volume:
20 L
vendor code:
1112115-020
Volume:
60 L
vendor code:
1112115-060
Volume:
208 L
vendor code:
1112115-208
RAVENOL FEH SAE 0W-16 minimises friction, wear and fuel consumption with excellent cold start characteristics. Suitable for extended oil change intervals when recommended by manufacturer.
Application Note
RAVENOL FEH SAE 0W-16 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines as well as for hybrid vehicles from various manufacturers. It reduces emissions and thus helps to protect the environment. The operating instructions of the vehicle and engine manufacturers must be observed.
Characteristics
- High protection against wear and corrosion
- Fuel savings due to smooth running properties
- Excellent detergent and dispersant characteristics
- Neutrality towards sealing materials
- Long endurance because of high oxidation stability
- An excellent cold start performance
- A very good viscosity temperature behaviour
- Low evaporation tendency
- Suitable for catalysts
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Toyota 08880-11005 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Toyota 08880-11005
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-16 |
0W-16
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SN Plus, SP (RC) |
SN Plus, SP (RC)
|
||
| ILSAC | GF-6B |
GF-6B
|
||
| Recomendations | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine
|
||
| Compliant products | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 37.2 | DIN 51562-1 |
37.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 162 | DIN ISO 2909 |
162
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.44 | ASTM D5481 |
2.44
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4600 | ASTM D5293 |
4600
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 13.000 | ASTM D4684 |
13.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.7 | ASTM D5800 |
10.7
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.8 | ASTM D2896 |
8.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
CVT gearbox in a unit with final drive
1/1
OEM:
30400-B2A60
For transmission
RAVENOL CVT KFE Fluid is a synthetic CVT transmission fluid with low viscosity for Toyota CVT transmission.
- Available packaging
- Product parameters
RAVENOL CVT KFE Fluid is a synthetic CVT transmission fluid with low viscosity for Toyota CVT transmission.
RAVENOL CVT KFE Fluid guarantees an optimum of power transmission.
Application Note
RAVENOL CVT KFE Fluid was developed for use in CVT transmission (Steel Belt Continuously Variable Transmission), especially for Toyota transmissions.
RAVENOL CVT KFE Fluid ensures a stable viscosity under high mechanical stress in the transmission elements (push belt).
Characteristics
- Very good lubricating ability even at low temperatures in winter
- A high, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against corrosion and foam formation
- Good balanced coefficient of friction
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition to non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Toyota 08886-02503, Toyota 08886-02505 |
Toyota 08886-02503, Toyota 08886-02505
|
||
| Type | Synthetic |
Synthetic
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Compliant products | Toyota 08886-02503, Toyota 08886-02505 |
Toyota 08886-02503, Toyota 08886-02505
|
||
| Color | Red | visual |
Red
visual
|
|
| Density at 20 °C | g/cm³ | 829 | EN ISO 12185 |
829
g/cm³
EN ISO 12185
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
Hydraulic brake system
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
Cooling system
OEM:
16400-BZA90
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.
RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1070 | EN ISO 12185 |
1070
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| pH - value at 20 °C | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410110-010
Volume:
60 L, plastic
vendor code:
-
Code:
4014835755437
Volume:
60 L, print
vendor code:
1410110-D60
Volume:
1000 L
vendor code:
1410110-700
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).
MAN information for use:
Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
- systems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| Reserve alkalinity | mgKOH/g | 5.5 — | ASTM D1120 |
5.5 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 187 | ASTM D1121 |
187
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
