RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.
Compliance with the requirements:
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
Equivalent: 043002N110 Hyundai WET DCT Hydraulic Oil GL-4 GS WDCTF HD H 70W (GS CALTEX) 1L.
Equivalents OEM:
BMW 83225B3AC81,
BMW 83222433157,
Chery 9009011085,
FEBI 171871,
FEBI 4054224718711,
Ford 2426698,
Ford KU7JM2C218AA,
Hyundai 0023219101,
Hyundai 043002N110,
Hyundai 043002N110EU,
Hyundai UM020CH266,
MB A0009892002,
MB A0009896104,
MB A000989610409,
MB A000989610410,
MB A000989610411,
MB A000989610412,
Renault 7711579594,
Renault 7711782057,
Renault 7711785242,
Renault 7711785243,
Renault 7711945804,
Renault 7711945805,
Renault 7711945827,
Renault 9141860904,
SWAG 33101041,
SWAG 4054228718717,
VAG G055529A2,
VAG G055529Z2,
Volvo 32240419,
Volvo 32240419
BMW 83225B3AC81, BMW 83222433157, Chery 9009011085, FEBI 171871, FEBI 4054224718711, Ford 2426698, Ford KU7JM2C218AA, Hyundai 0023219101, Hyundai 043002N110, Hyundai 043002N110EU, Hyundai UM020CH266, MB A0009892002, MB A0009896104, MB A000989610409, MB A000989610410, MB A000989610411, MB A000989610412, Renault 7711579594, Renault 7711782057, Renault 7711785242, Renault 7711785243, Renault 7711945804, Renault 7711945805, Renault 7711945827, Renault 9141860904, SWAG 33101041, SWAG 4054228718717, VAG G055529A2, VAG G055529Z2, Volvo 32240419, Volvo 32240419
- Available packaging
- Product parameters

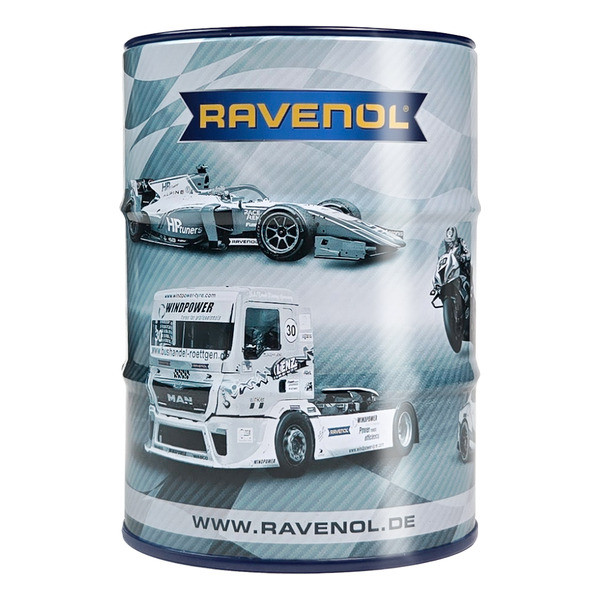

Volume:
60 L, print
vendor code:
1212107-D60
Volume:
208 L, print
vendor code:
1212107-D28
Volume:
1000 L
vendor code:
1212107-700
RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.
RAVENOL DCT-LV Fluid guarantees an optimum of power transmission and excellent clutch performance under extreme loads in midsummer as well as at low temperatures in winter.
Application Note
RAVENOL DCT-LV Fluid was specially developed for dual-clutch transmissions from various car manufacturers such as BMW, Ford, Mercedes, VW/Audi.
RAVENOL DCT-LV Fluid is used to lubricate clutches in 7-speed Magna GETRAG dual-clutch transmissions (7DCT300/ 6DCT200/ 6DCT150). It can be used in direct shift transmissions with wet or dry clutches.
Characteristics
- Very good lubricating ability even at low temperatures
- A high, stable viscosity index
- Protection against wear, corrosion and foam formation
- Excellent viscosity-temperature behavior
- High thermal and oxidative stability
- Neutral behavior towards sealing materials
- Stable lubricating film under extreme loads in summer
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Viscosity at 100 °C | mm²/s | 5.55 | DIN 51562-1 |
5.55
mm²/s
DIN 51562-1
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Viscosity at 40 °C | mm²/s | 23.77 | DIN 51562-1 |
23.77
mm²/s
DIN 51562-1
|
| Brookfield Viscosity at -40 °C | mPa*s | 3100 | ASTM D2983 |
3100
mPa*s
ASTM D2983
|
| Viscosity Index VI | 187 | DIN ISO 2909 |
187
DIN ISO 2909
|
|
| Recommendations | BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C |
BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C
|
||
| Brookfield Viscosity at -55 °C | mPa*s | 17200 | ASTM D2983 |
17200
mPa*s
ASTM D2983
|
| Type | Full synthetic |
Full synthetic
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C |
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
|
||
| Compliant products | BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529 |
BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529
|
||
| Density at 20 °C | g/cm³ | 832 | EN ISO 12185 |
832
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Pourpoint | °C | -75 | DIN ISO 3016 |
-75
°C
DIN ISO 3016
|
| Approvals | BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C |
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
|
