Application NoteRAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330708-020
Volume:
20 L, ecobox
vendor code:
1330708-B20
Volume:
60 L
vendor code:
1330708-060
Volume:
208 L
vendor code:
1330708-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 886 | EN ISO 12185 |
886
kg/m³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
- Available packaging
- Product parameters

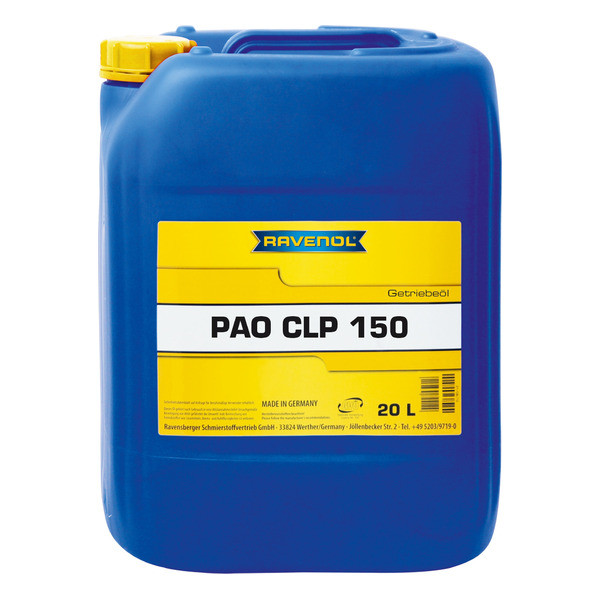

RAVENOL Getriebeöl PAO CLP 150 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 150
- Available packaging
- Product parameters
RAVENOL Getriebeöl PAO CLP 150 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeöl PAO CLP 150 enhances gear box efficiency over a wide temperature range and can reduce power consumption.
RAVENOL Getriebeöl PAO CLP 150 is free of zinc and ash due to its formulation.
Application Note
RAVENOL Getriebeöl PAO CLP 150 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.
The tough oil film of RAVENOL Getriebeöl PAO CLP 150 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 150 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.
RAVENOL Getriebeöl PAO CLP 150 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors.
When converting a gearbox to RAVENOL Getriebeöl PAO CLP 150, it is recommended to be cleaned and flushed first to gain the full benefit of the product.
RAVENOL Getriebeöl PAO CLP 150 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.
RAVENOL Getriebeöl PAO CLP 150 operates over the temperature range from -50°C to 150°C.
Characteristics
- An excellent wear protection
- Extends the life of gears and bearings and the plan
- Protects plants, which are operated under harsh conditions and high load
- Allows trouble-free operation in a wide temperature and load range
- A very stable high-pressure absorption capacity under shock loads
- A low foaming tendency
- The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
- An excellent low-temperature behavior
- An excellent rust and corrosion protection
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 150 |
150
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
| specification | DIN 51517-3 |
DIN 51517-3
|
||
| Suitable for | Cincinnati Milacron |
Cincinnati Milacron
|
||
| Density at 20 °C | kg/m³ | 853.1 | EN ISO 12185 |
853.1
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 23.3 | DIN 51562-1 |
23.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 155.5 | DIN 51562-1 |
155.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 180 | DIN ISO 2909 |
180
DIN ISO 2909
|
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Copper Strip Test at 150 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|

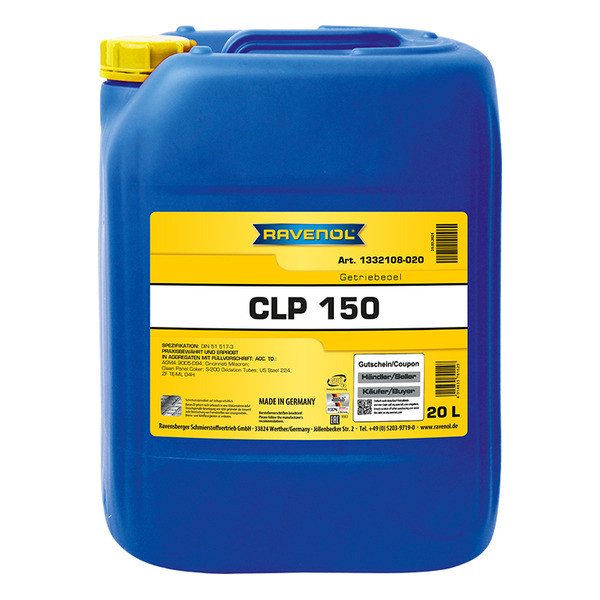

RAVENOL Getriebeoel CLP 150 has a low pour point and therefore a very good cold behaviour.
Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
SAE: 150
- Available packaging
- Product parameters
RAVENOL Getriebeoel CLP 150 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 150 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity.
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 150 |
150
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|
||
| specification | DIN 51517-3 |
DIN 51517-3
|
||
| Suitable for | Cincinnati Milacron |
Cincinnati Milacron
|
||
| Density at 20 °C | kg/m³ | 884 | EN ISO 12185 |
884
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.8 | DIN 51562-1 |
14.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 152.9 | DIN 51562-1 |
152.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
| Approvals | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|

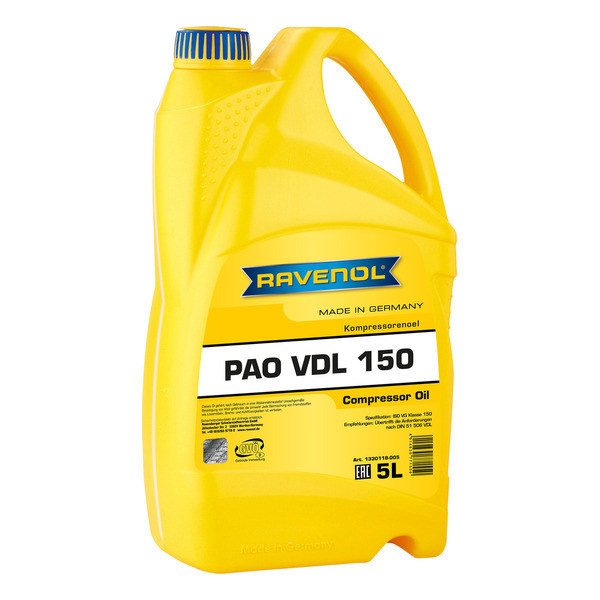

RAVENOL Kompressorenoel PAO VDL 150 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 150
- Available packaging
- Product parameters
RAVENOL Kompressorenoel PAO VDL 150 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
In addition RAVENOL Kompressorenoel PAO VDL 150 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel PAO VDL 150 is recommended for all compressors especially in rotary screw air compressors.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
- Very low evaporative behavior and an outstanding demulsifying power.
- Excellent air separation ability.
- Better resistance to oxidative breakdown.
- Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
- Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickening.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Noack Volatility | % M/M | 1.32 | ASTM D5800 |
1.32
% M/M
ASTM D5800
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| specification | ISO VG Class 150 |
ISO VG Class 150
|
||
| Density at 20 °C | kg/m³ | 868 | EN ISO 12185 |
868
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.1 | DIN 51562-1 |
16.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 146.5 | DIN 51562-1 |
146.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 115 | DIN ISO 2909 |
115
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 287 | DIN EN ISO 2592 |
287
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.14 | ASTM D664 |
0.14
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-40-0 (10) | ASTM D1401 |
41-40-0 (10)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL, ISO VG Class 150 |
DIN 51 506 VDL, ISO VG Class 150
|

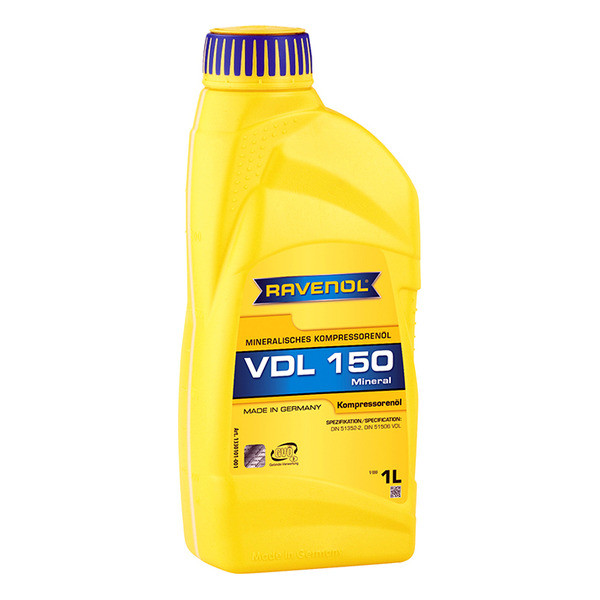

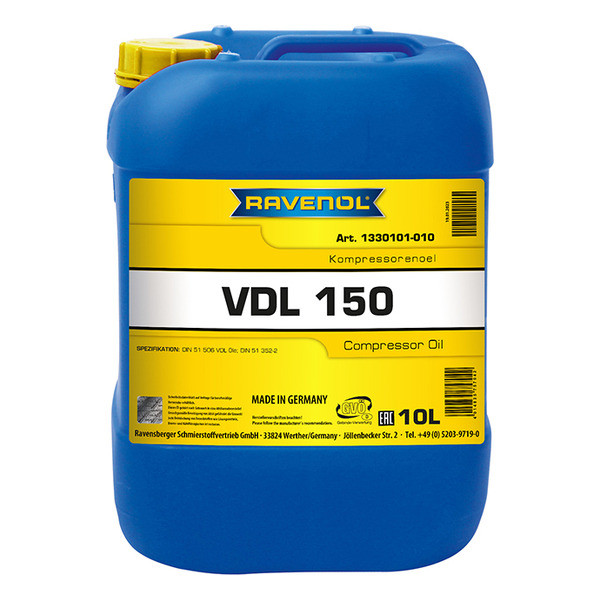

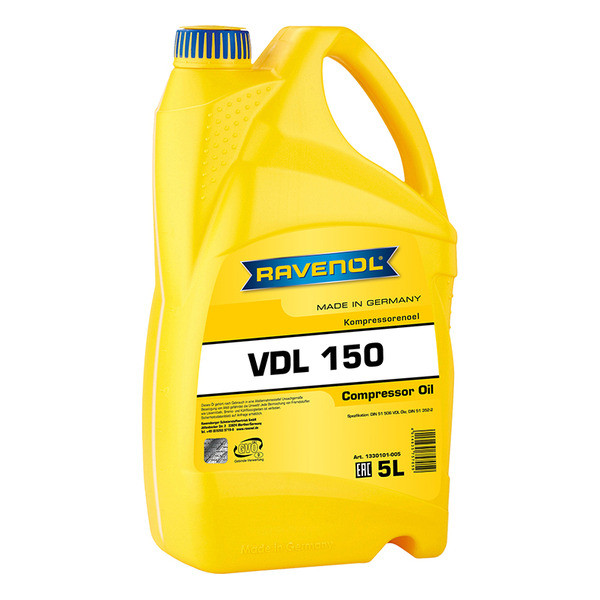

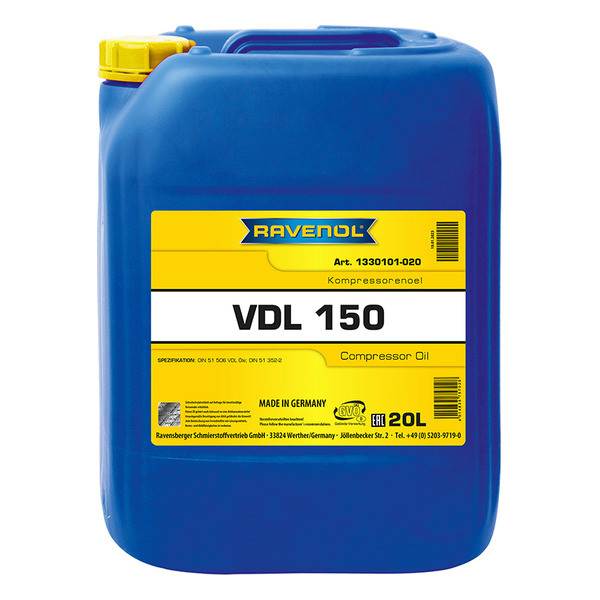

RAVENOL Kompressorenoel VDL 150 has a good adhesion, is water repellent and wear-reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1330101-B20
Volume:
1000 L
vendor code:
1330101-700
Volume:
60 L
vendor code:
1330101-060
RAVENOL Kompressorenoel VDL 150 has a good adhesion, is water repellent and wear-reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 150 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 150 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 150 can also be used for circular lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Characteristics
- Excellent aging resistance
- Best wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51352-2, DIN 51506 VDL |
DIN 51352-2, DIN 51506 VDL
|
||
| Density at 20 °C | kg/m³ | 885 | EN ISO 12185 |
885
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 148.2 | DIN 51562-1 |
148.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 97 | DIN ISO 2909 |
97
DIN ISO 2909
|
|
| Pourpoint | °C | -20 | DIN ISO 3016 |
-20
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.45 | ASTM D664 |
0.45
mgKOH/g
ASTM D664
|
| Approvals | DIN 51506 VDL, DIN 51352-2 |
DIN 51506 VDL, DIN 51352-2
|
