is a zinc and ash-free compounded oil based phosphorous and sulfur intended especially for use in the metal industry. Excellent results were achieved in the Timken test. Through the addition of selected ingredients,
Compliance with the requirements:
MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434
SAE: 22
- Available packaging
- Product parameters
Volume:

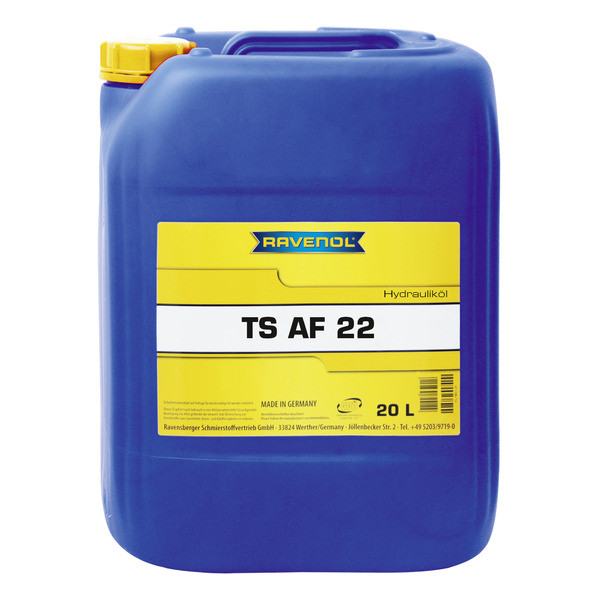

20 L
vendor code:
1323123-020
Volume:

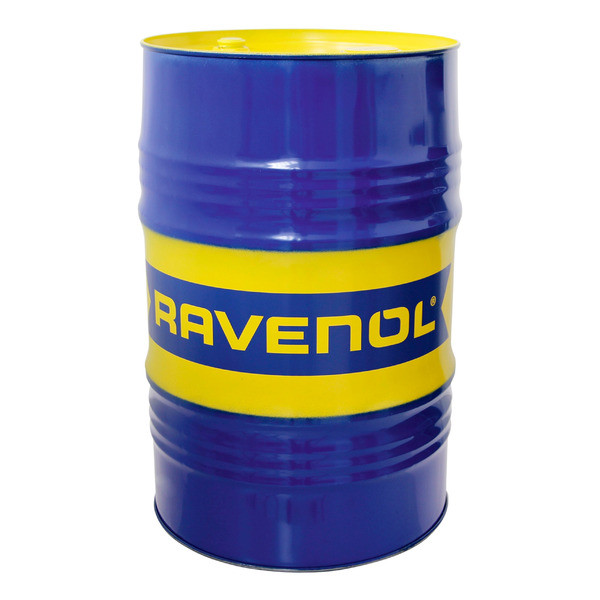

208 L
vendor code:
1323123-208
Volume:

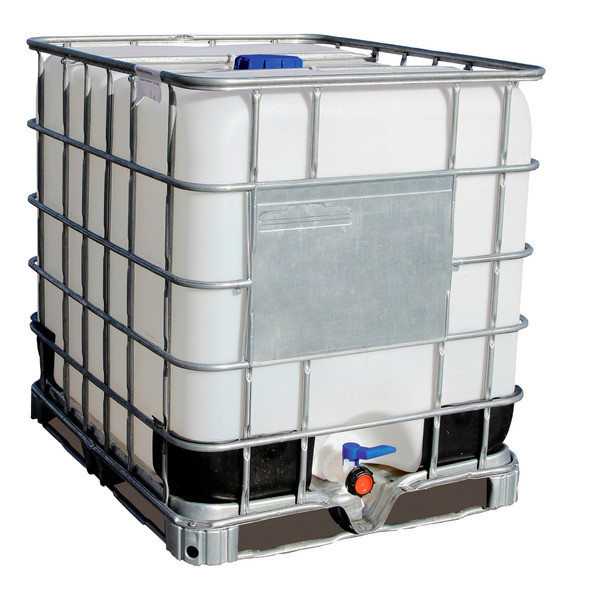

1000 L
vendor code:
1323123-700
is a zinc and ash-free compounded oil based phosphorous and sulfur intended especially for use in the metal industry. Excellent results were achieved in the Timken test. Through the addition of selected ingredients,
RAVENOL Hydraulikoel TS AF 22
has excellent wear protection, good oxidation stability and has a long service life even under extreme conditions. Compatibility with sealants is neutral. Furthermore, the additives provide corrosion protection and prevent foaming.
RAVENOL Hydraulikoel TS AF 22
exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.
Application Note
RAVENOL Hydraulikoel TS AF 2
is for use as a hydraulic fluid in the metal industry, if zinc and ash-free hydraulic oil and the specification DIN 51 524, Part 2 is required.
Characteristics
- High level of performance
- Good oxidation stability
- High resistance to aging
- High wear protection
- High corrosion protection
- Neutral towards sealing materials
- No foaming
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434 |
MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 857 | EN ISO 12185 |
857
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.3 | DIN 51562-1 |
4.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 22 | DIN 51562-1 |
22
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 103 | DIN ISO 2909 |
103
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 206 | DIN EN ISO 2592 |
206
°C
DIN EN ISO 2592
|
| Approvals | DIN 51524-2, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434 |
DIN 51524-2, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434
|
RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 22
- Available packaging
- Product parameters
Volume:

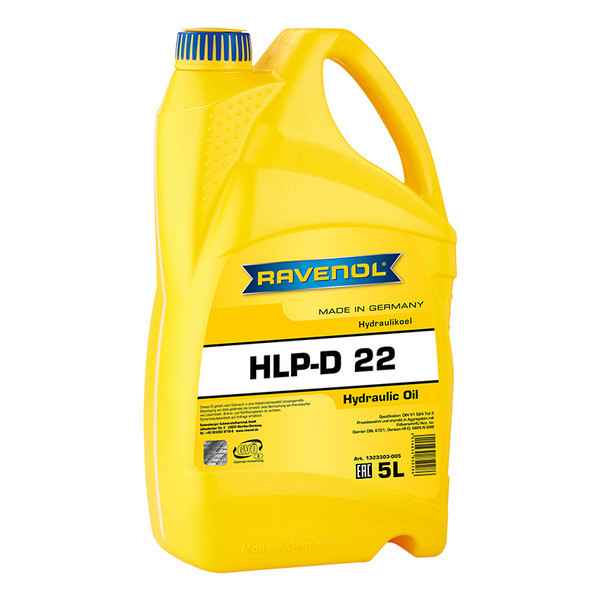

5 L
vendor code:
1323303-005
Volume:

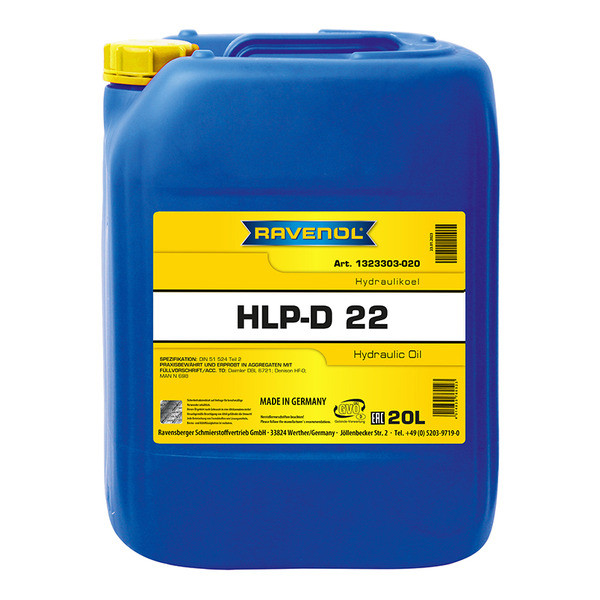

20 L, ecobox
vendor code:
1323303-B20
Volume:
1000 L
vendor code:
1323303-700
RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 22 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application Note
RAVENOL Hydraulikoel HLP-D 22 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 849 | EN ISO 12185 |
849
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.6 | DIN 51562-1 |
4.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 23 | DIN 51562-1 |
23
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 120 | DIN ISO 2909 |
120
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 200 | DIN EN ISO 2592 |
200
°C
DIN EN ISO 2592
|
| Approvals | Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0
|
Application NoteRAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
SAE: 22
Equivalents OEM:
GM 88865214, GM 88865214, Scania 2252146
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323203-005
Volume:

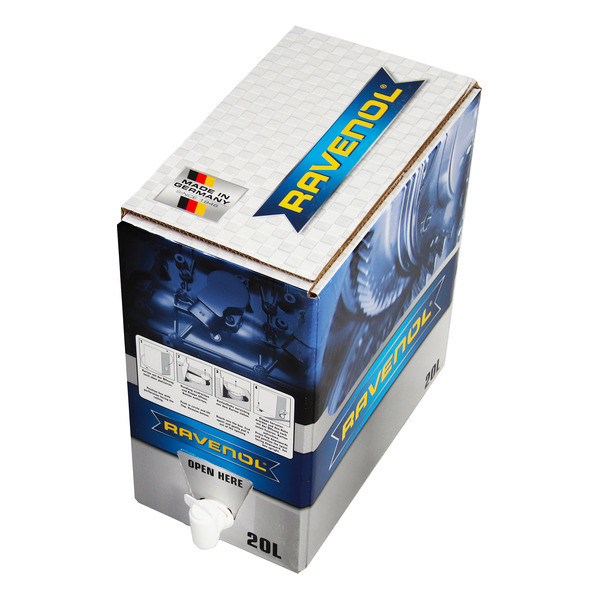

20 L, ecobox
vendor code:
1323203-B20
Volume:
60 L
vendor code:
1323203-060
Volume:
1000 L
vendor code:
1323203-700
Application Note
RAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5 | DIN 51562-1 |
5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 22.5 | DIN 51562-1 |
22.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 206 | DIN EN ISO 2592 |
206
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
RAVENOL Hydraulikoel TS 22 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron -68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
SAE: 22
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323103-001
Volume:
5 L
vendor code:
1323103-005
Volume:
10 L
vendor code:
1323103-010
Volume:
20 L, ecobox
vendor code:
1323103-B20
Volume:
60 L
vendor code:
1323103-060
Volume:
1000 L
vendor code:
1323103-700
RAVENOL Hydraulikoel TS 22 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 22 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 22 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 22 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 22 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Suitable for | Metso |
Metso
|
||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.5 | DIN 51562-1 |
4.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 22.6 | DIN 51562-1 |
22.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 114 | DIN ISO 2909 |
114
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Aging stability | TOST | 2000 | DIN 51587 |
2000
TOST
DIN 51587
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
