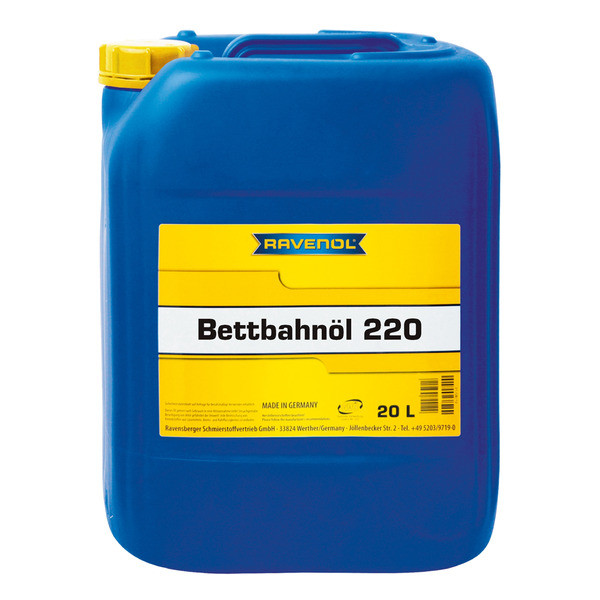

RAVENOL Bettbahnoel 220 is characterized by good lubricating and sliding properties as well as high tackiness.
SAE: 220
- Available packaging
- Product parameters
RAVENOL Bettbahnoel 220 is characterized by good lubricating and sliding properties as well as high tackiness.
RAVENOL Bettbahnoel 220 is formulated with mineral base oils and contains additives and corrosion inhibitors to prevent rust formation and stains on slide ways and track surfaces.
RAVENOL Bettbahnoel 220 is compatible with most of drilling-, cutting or grinding emulsions. The lubricant film of the slide way oil is not washed off.
Application Note
RAVENOL Bettbahnoel 220 can be used for all types of lubrication systems such as pressure, circulating or central lubrication. If necessary, it can be applied manually. It can also be used for lubricating bearings and gear boxes.
Characteristics
- Very good stick-slip characteristics
- High tackiness
- Good corrosion protection, no rust and stain formation
- Resistance to aqueous metalworking fluids
- Good demulsification
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 220 |
220
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51502 CGLP, DIN 51517-3, DIN 51524-2 |
DIN 51502 CGLP, DIN 51517-3, DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 890 | EN ISO 12185 |
890
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.7 | DIN 51562-1 |
18.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 216.7 | DIN 51562-1 |
216.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
| Pourpoint | °C | -15 | DIN ISO 3016 |
-15
°C
DIN ISO 3016
|
| Flashpoint | °C | 250 | DIN EN ISO 2592 |
250
°C
DIN EN ISO 2592
|
| Approvals | DIN 51517-3, DIN 51524-2, DIN 51502 CGLP |
DIN 51517-3, DIN 51524-2, DIN 51502 CGLP
|
RAVENOL Kompressorenoel VDL 220 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 220
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330102-020
Volume:
60 L
vendor code:
1330102-060
Volume:
208 L
vendor code:
1330102-208
RAVENOL Kompressorenoel VDL 220 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 220 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 220 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 220 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-oils.
Characteristics
- Excellent aging resistance
- Best wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 220 |
220
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL |
DIN 51506 VDL
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
| Density at 20 °C | kg/m³ | 893 | EN ISO 12185 |
893
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.8 | DIN 51562-1 |
18.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 226.5 | DIN 51562-1 |
226.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 93 | DIN ISO 2909 |
93
DIN ISO 2909
|
|
| Pourpoint | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
| Flashpoint | °C | 276 | DIN EN ISO 2592 |
276
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL |
DIN 51506 VDL
|
- Available packaging
- Product parameters
Getriebeoel PAO CLP 220
RAVENOL Getriebeoel CLP 220 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP add itives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 220
- Available packaging
- Product parameters
RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.
Application Note:
RAVENOL Getriebeoel CLP 220 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impac t characteristics.
Characteristics:
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 220 |
220
|
||
| Type | Mineral |
Mineral
|
||
| ASTM |
|
|||
| Manufacturer Approved |
|
|||
| Recomendations | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
| Rennstrecken-Partnerschaft |
|
|||
| Rennstrecken-Partner |
|
|||
| specification | DIN 51517-3 |
DIN 51517-3
|
||
| Suitable for | Cincinnati Milacron |
Cincinnati Milacron
|
||
| Compliant products |
|
|||
| Density at 20 °C | kg/m³ | 888 | EN ISO 12185 |
888
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 207.6 | DIN 51562-1 |
207.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
| Approvals | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.
Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 220
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1332109-001
Volume:
5 L
vendor code:
1332209-005
Volume:
5 L
vendor code:
1332109-005
Volume:
20 L, ecobox
vendor code:
1332109-B20
Volume:
60 L
vendor code:
1332209-060
Volume:
60 L
vendor code:
1332109-060
Volume:
208 L
vendor code:
1332209-208
Volume:
1000 L
vendor code:
1332109-700
RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 220 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 220 |
220
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
| specification | DIN 51517-3 |
DIN 51517-3
|
||
| Suitable for | Cincinnati Milacron |
Cincinnati Milacron
|
||
| Density at 20 °C | kg/m³ | 888 | EN ISO 12185 |
888
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 207.6 | DIN 51562-1 |
207.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
| Approvals | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
