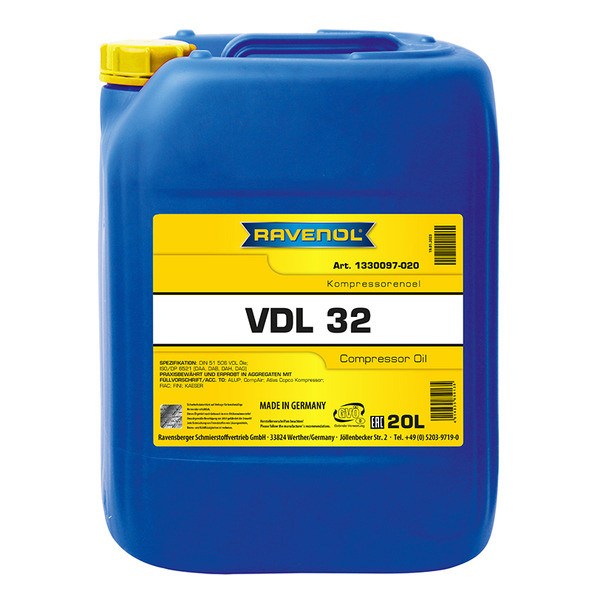

RAVENOL Kompressorenoel VDL 32 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 32W
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330097-020
Volume:

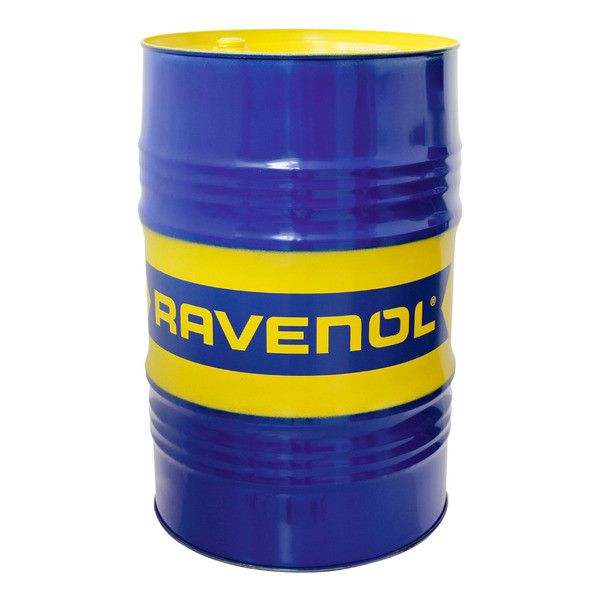

208 L
vendor code:
1330097-208
RAVENOL Kompressorenoel VDL 32 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 32 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 32 can be used in stationary and mobile compressors with discharge temperatures up to 220 °C.
RAVENOL Kompressorenoel VDL 32 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-Oils.
Characteristics
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
is a high quality lubricating oil for gas and steam turbines as well as for turbo compressors with and without gears, which meets the requirements of DIN 51515-2.
Manufacturer Approved:
Siemens TLV 9013 04, Siemens TLV 9013 05
Compliance with the requirements:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.
SAE: 32W
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1331114-020
Volume:
60 L
vendor code:
1331114-060
Volume:
208 L
vendor code:
1331114-208
Volume:

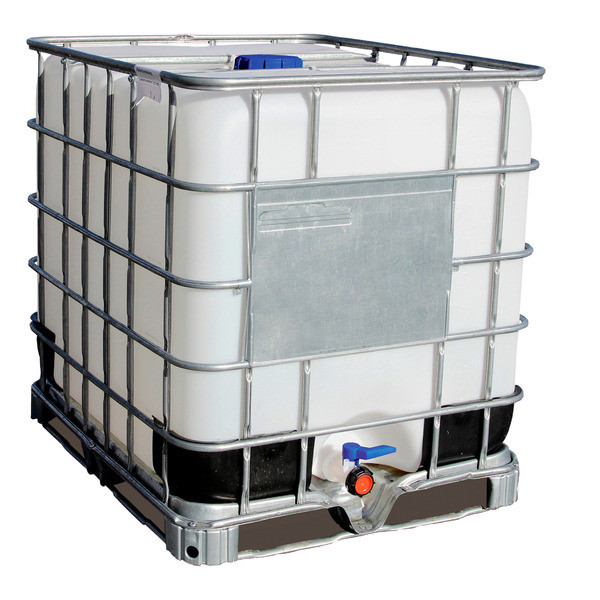

1000 L
vendor code:
1331114-700

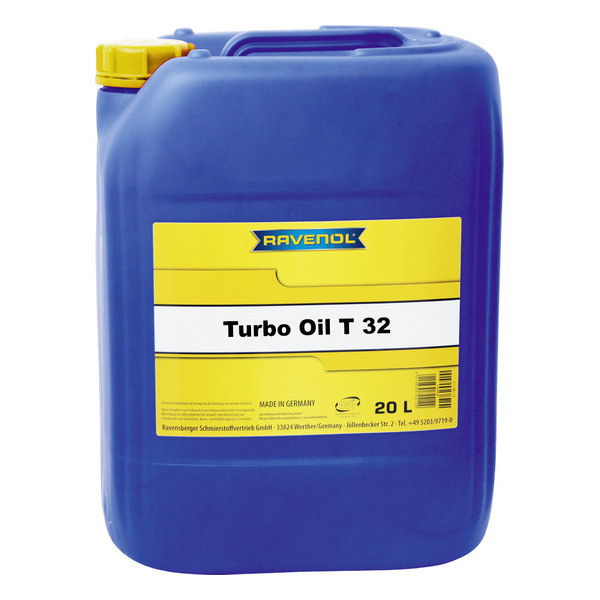

is a high quality lubricating oil for gas and steam turbines as well as for turbo compressors with and without gears, which meets the requirements of DIN 51515-2.

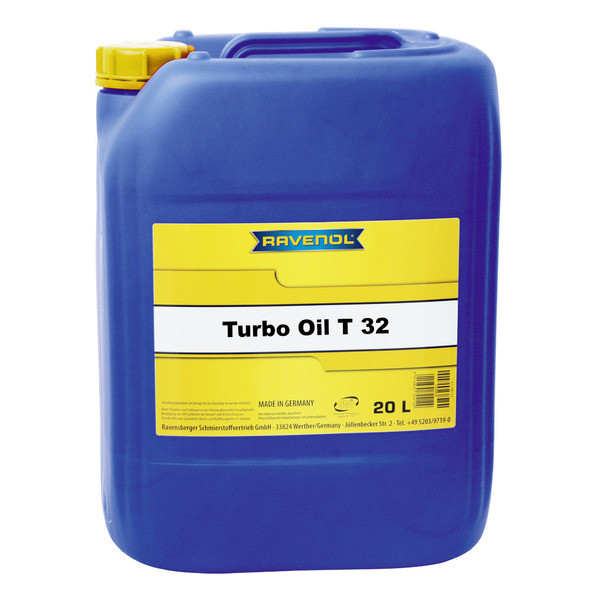

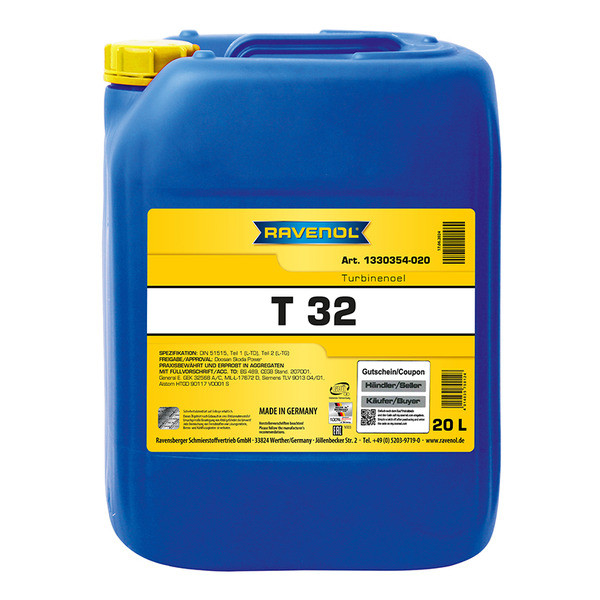

RAVENOL Turbo Oil T32
is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.
RAVENOL Turbo Oil T32
is an all-purpose oil for turbines from specially selected base oils with the addition of special refined additives.
RAVENOL Turbo Oil T32 is zinc-free due to its formulation.
Application Note
RAVENOL Turbo Oil T3
is used in stationary gas turbines, steam turbines and also in electrical or in driven by steam machines, such as generators, compressors, pumps and gearboxes.
RAVENOL Turbo Oil T3
is also for use in lubrication of hydraulic systems, compressors, gear transmissions and bearings.
Characteristics
- Excellent thermal and oxidative stability
- Excellent viscosity-temperature behavior
- Very good oxidation stability
- Good protection against corrosion of steel and non-ferrous metals
- A very good air separation ability, which largely eliminates foam formation
- Low pour point
- Good wear behavior
- Excellent water separation ability/demulsification behavior
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Air release at 50 °C | max. | 3 | DIN ISO 9120 |
3
max.
DIN ISO 9120
|
| Copper strip corrosion | pass | DIN EN ISO 2160 |
pass
DIN EN ISO 2160
|
|
| FZG Pass Load Stage | 10 | DIN ISO 14635-1 |
10
DIN ISO 14635-1
|
|
| Purity grade | 19/16/13 | ISO 4406 |
19/16/13
ISO 4406
|
|
| Time to collapse of the foam at 25 °C | s | 245 | ISO 6247 |
245
s
ISO 6247
|
| Foam Volume at 25 °C | ml | 60 | ISO 6247 |
60
ml
ISO 6247
|
| NZ Neutralisation number | mg KOH/g | 0.06 | DIN 51558-1 |
0.06
mg KOH/g
DIN 51558-1
|
| Water Separability | s | 35 | DIN 51589-1 |
35
s
DIN 51589-1
|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | Siemens TLV 9013 04, Siemens TLV 9013 05 |
Siemens TLV 9013 04, Siemens TLV 9013 05
|
||
| Recomendations | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.
|
||
| specification | DIN 51515-1 L-TD, DIN 51515-2 L-TG |
DIN 51515-1 L-TD, DIN 51515-2 L-TG
|
||
| Density at 20 °C | kg/m³ | 849 | EN ISO 12185 |
849
kg/m³
EN ISO 12185
|
| Color | L1.5 | DIN ISO 2049 |
L1.5
DIN ISO 2049
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | — -12 | DIN ISO 3016 |
— -12
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| Water content | mg/kg | — 0.01 | DIN 51777-1 |
— 0.01
mg/kg
DIN 51777-1
|
| Approvals | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 120, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 120, Westinghouse Turbine Oil Spec.
|
RAVENOL Bettbahnoel 32 is characterized by good lubricating and sliding properties as well as high tackiness.
Compliance with the requirements:
Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2, GM LW-03-1-04
SAE: 32W
- Available packaging
- Product parameters
Volume:
208 L
vendor code:
1350374-208
RAVENOL Bettbahnoel 32 is characterized by good lubricating and sliding properties as well as high tackiness.
RAVENOL Bettbahnoel 32 is formulated with mineral base oils and contains additives and corrosion inhibitors to prevent rust formation and stains on slide ways and track surfaces.
RAVENOL Bettbahnoel 32 is compatible with most of drilling-, cutting or grinding emulsions. The lubricant film of the slide way oil is not washed off.
Application Note
RAVENOL Bettbahnoel 32 can be used for all types of lubrication systems such as pressure, circulating or central lubrication. If necessary, it can be applied manually. It can also be used for lubricating bearings and gear boxes.
Characteristics
- Wear protection and pressure absorption capacity
- High tackiness
- Good corrosion protection, no rust and stain formation
- Resistance to aqueous metalworking fluids
- Good demulsification
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2, GM LW-03-1-04 |
Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2, GM LW-03-1-04
|
||
| specification | AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51502 CGLP, DIN 51517-3, DIN 51524-2, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G |
AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51502 CGLP, DIN 51517-3, DIN 51524-2, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.75 | DIN 51562-1 |
5.75
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 31.9 | DIN 51562-1 |
31.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Approvals | AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51517-3, DIN 51524-2, DIN 51502 CGLP, Eaton Vickers M-2950-S, Fives Cincinnati P-53, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, GM LS-2, GM LW-03-1-04, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G |
AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51517-3, DIN 51524-2, DIN 51502 CGLP, Eaton Vickers M-2950-S, Fives Cincinnati P-53, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, GM LS-2, GM LW-03-1-04, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G
|
is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
SAE: 32W
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1332104-020

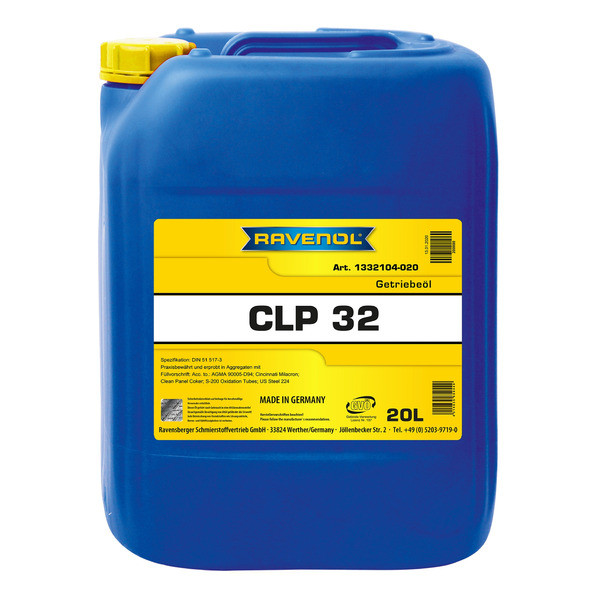

is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.
RAVENOL Getriebeoel CLP 32
has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 3
can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure absorption capacity under shock loads.
- Resistant properties at elevated temperatures
- A good anti-rust and anti-corrosion effect
- Excellent wear protection
- A very good effect against foam formation
- A low pour point
- A very good cold behavior
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
|
||
| specification | DIN 51517-3 |
DIN 51517-3
|
||
| Suitable for | Cincinnati Milacron |
Cincinnati Milacron
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6 | DIN 51562-1 |
6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 34.6 | DIN 51562-1 |
34.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 119 | DIN ISO 2909 |
119
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 205 | DIN EN ISO 2592 |
205
°C
DIN EN ISO 2592
|
| Approvals | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224 |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
|
RAVENOL Hydraulikoel HVLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
Compliance with the requirements:
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 6743-4, ISO 11158 HV
SAE: 32W
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323364-020
Volume:
60 L
vendor code:
1323364-060
Volume:
208 L
vendor code:
1323364-208
RAVENOL Hydraulikoel HVLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HVLP-D 32 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.
RAVENOL Hydraulikoel HVLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.
These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application Note
RAVENOL Hydraulikoel HVLP-D 32 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.
RAVENOL Hydraulikoel HVLP-D 32 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.
Characteristics
- Reliable corrosion protection even when absorbing moisture
- Good air and water separation capacity, prevention of foam formation
- Excellent wear protection
- Good oxidation stability
- Excellent detergent and dispersing properties
- Neutral behavior against sealing materials
- Very low flow point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4 |
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4
|
||
| specification | DIN 51524-3 |
DIN 51524-3
|
||
| Density at 20 °C | kg/m³ | 845.1 | EN ISO 12185 |
845.1
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.6 | DIN 51562-1 |
6.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.3 | DIN 51562-1 |
32.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 165 | DIN ISO 2909 |
165
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 218 | DIN EN ISO 2592 |
218
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, DIN 51524-3, ISO 11158 HV, ISO 6743-4 |
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, DIN 51524-3, ISO 11158 HV, ISO 6743-4
|
RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Müller, Parker Denison HF-0
SAE: 32W
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323304-005
Volume:
20 L
vendor code:
1323304-020
Volume:
20 L, ecobox
vendor code:
1323304-B20
Volume:
60 L
vendor code:
1323304-060
Volume:
1000 L
vendor code:
1323304-700
RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
RAVENOL Hydraulikoel HLP-D 32 is zinc and ash-free.
Application Note
RAVENOL Hydraulikoel HLP-D 32 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
- zinc and ash-free
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Müller, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller, Parker Denison HF-0
|
||
| specification | AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Density at 20 °C | kg/m³ | 865 | EN ISO 12185 |
865
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.5 | DIN 51562-1 |
5.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 31.8 | DIN 51562-1 |
31.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 107 | DIN ISO 2909 |
107
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NF E 48-603 HM, Daimler DBL 6721, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller, Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, Daimler DBL 6721, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller, Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
Application NoteRAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
Equivalents OEM:
Alpine 0100836, Alpine 0100837, Alpine 0100837, Scania 2252140, Volvo 11706208, Volvo 11706209, Volvo VOE11706208, Volvo VOE11706209
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323204-005
Volume:
20 L, ecobox
vendor code:
1323204-B20
Volume:
1000 L
vendor code:
1323204-700
Volume:
1 L
vendor code:
1323204-001
Application Note
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | kg/m³ | 845 | EN ISO 12185 |
845
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 227 | DIN EN ISO 2592 |
227
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|
RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
SAE: 32W
Equivalents OEM:
Alpine 0100823, Alpine 0100824, Alpine 0100825, GM 88861678, GM 88861679, GM 88861693, GM 88861693
- Available packaging
- Product parameters
RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 32 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 32 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 32 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 32 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Suitable for | Atos, Metso |
Atos, Metso
|
||
| Density at 20 °C | kg/m³ | 848 | EN ISO 12185 |
848
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
|
Application NoteRAVENOL Vakuumpumpenoel ISO VG 32 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
SAE: 32W
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330704-001
Volume:
5 L
vendor code:
1330704-005
Volume:
10 L
vendor code:
1330704-010
Volume:
20 L, ecobox
vendor code:
1330704-B20
Volume:
60 L
vendor code:
1330704-060
Volume:
208 L
vendor code:
1330704-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 32 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 32 oil can be used very well for the lubrication of crankcases.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Neutral to seal materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100 |
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
|
||
| Compliant products | Edwards Ultragrade 19 |
Edwards Ultragrade 19
|
||
| Density at 20 °C | kg/m³ | 848 | EN ISO 12185 |
848
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| FZG-Test A/8.3/90 Damage loading step | %wt. | 12 | DIN 51354/2 |
12
%wt.
DIN 51354/2
|
| Approvals | Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100 |
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
|

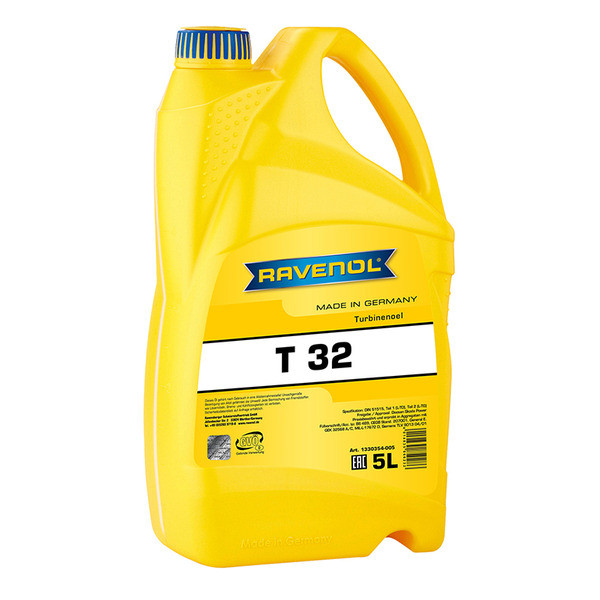

RAVENOL Turbinenöl T 32 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.
Compliance with the requirements:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
SAE: 32W
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330354-005
Volume:
20 L
vendor code:
1330354-020
Volume:
208 L
vendor code:
1330354-208
Volume:
1000 L
vendor code:
1330354-700
RAVENOL Turbinenöl T 32 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.
RAVENOL Turbinenöl T 32 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee excellent characteristics.
RAVENOL Turbinenöl T 32 is zinc-free due to its formulation.
Application Note
RAVENOL Turbinenöl T 32 is used in fixed gas and steam turbines as well as in electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.
RAVENOL Turbinenöl T 32 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.
Characteristics
- an excellent thermic and oxidative stability
- an excellent viscosity temperature behaviour
- a high and stable viscosity index
- a very good oxidation stability also at very high temperatures
- a good protection against corrosion of Ferro and non Ferro metals
- an excellent water separation behaviour
- a very good air separation behaviour which excludes foam formation as far as possible
- a low pourpoint
- a good corrosion behaviour
- an excellent water separation behaviour / demulsifying behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
||
| specification | DIN 51515-1 L-TD, DIN 51515-2 L-TG |
DIN 51515-1 L-TD, DIN 51515-2 L-TG
|
||
| Suitable for | Doosan Skoda Power |
Doosan Skoda Power
|
||
| Density at 20 °C | kg/m³ | 849 | EN ISO 12185 |
849
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Approvals | Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec. |
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
|
RAVENOL SCR PAO 32 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 32W
- Available packaging
- Product parameters
RAVENOL SCR PAO 32 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
RAVENOL SCR PAO 32 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.
RAVENOL SCR PAO 32 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption.
The full benefits of a change to RAVENOL SCR PAO 32 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 32 Screw Kompressorenöl may not result in optimum performance and fluid service life.
RAVENOL SCR PAO 32 Screw Kompressorenöl has excellent oxidation stability, corrosion, deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.
Application Note
RAVENOL SCR PAO 32 Screw Kompressorenöl is recommended for use in rotary screw air compressors.
While RAVENOL SCR PAO 32 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures
- Higher thermal stability reduces carbon deposit formation.
- Improved viscosity index and good low temperature properties.
- Good protection against wear.
- Protects against rust and corrosion.
- Low volatility reduces oil carry-over into the air system.
- Reduces fluid consumption.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| specification | ISO ISO VG Class 32 |
ISO ISO VG Class 32
|
||
| Density at 20 °C | kg/m³ | 839 | EN ISO 12185 |
839
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6 | DIN 51562-1 |
6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 30.9 | DIN 51562-1 |
30.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 142 | DIN ISO 2909 |
142
DIN ISO 2909
|
|
| Pourpoint | °C | -69 | DIN ISO 3016 |
-69
°C
DIN ISO 3016
|
| Flashpoint | °C | 250 | DIN EN ISO 2592 |
250
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.15 | ASTM D664 |
0.15
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 40-40-0 (5) | ASTM D1401 |
40-40-0 (5)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL, ISO ISO VG Class 32 |
DIN 51 506 VDL, ISO ISO VG Class 32
|
Application NoteRAVENOL SCR 32 Screw Kompressorenöl is used in compressors.
SAE: 32W
- Available packaging
- Product parameters
Application Note

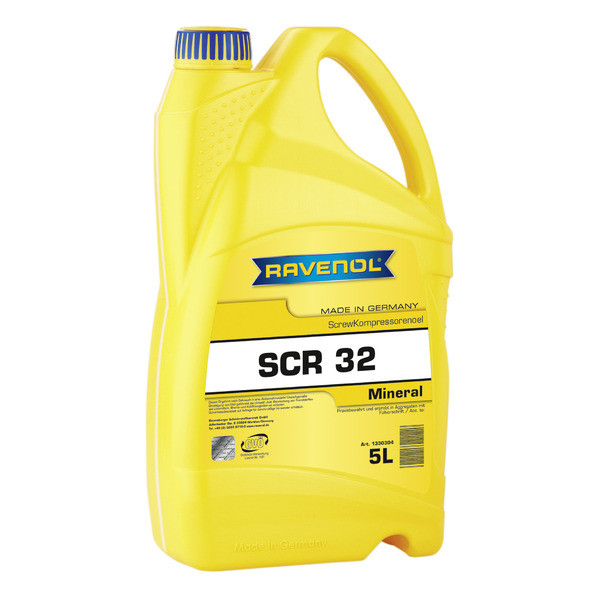

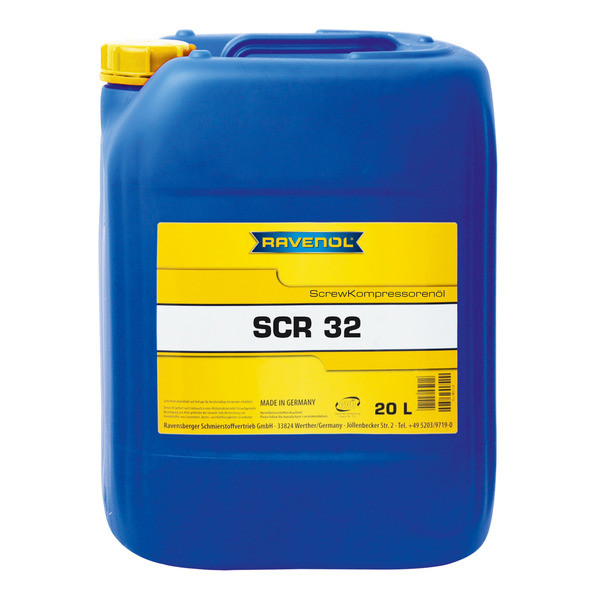

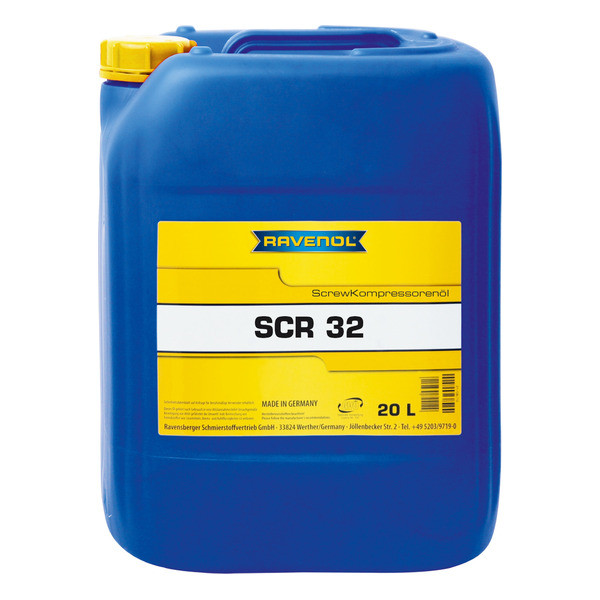

RAVENOL SCR 32 Screw Kompressorenöl is used in compressors.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 848 | EN ISO 12185 |
848
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Aging stability | TOST | 2000 | DIN 51587 |
2000
TOST
DIN 51587
|
| FZG-Test A/8.3/90 Damage loading step | %wt. | 12 | DIN 51354/2 |
12
%wt.
DIN 51354/2
|
| Approvals | DIN 51524-2 |
DIN 51524-2
|
RAVENOL ODL 32 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.
Compliance with the requirements:
Black & Decker
SAE: 32W
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1323404-010
Volume:

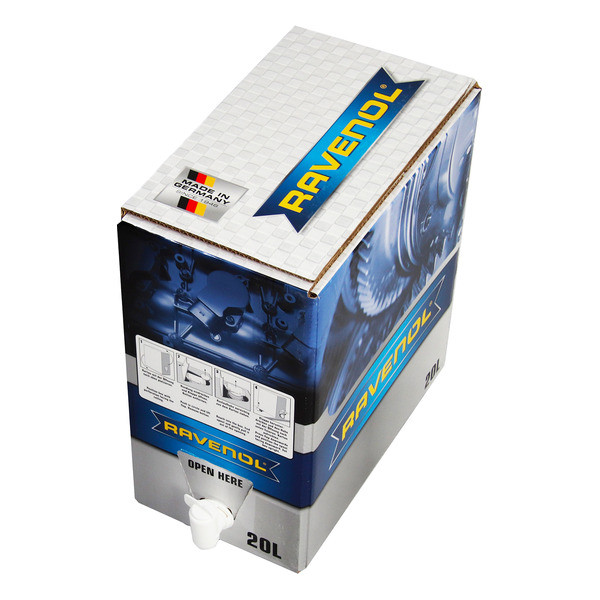

20 L, ecobox
vendor code:
1323404-B20
Volume:
60 L
vendor code:
1323404-060
Volume:
208 L
vendor code:
1323404-208
Volume:
5 L
vendor code:
1323404-005

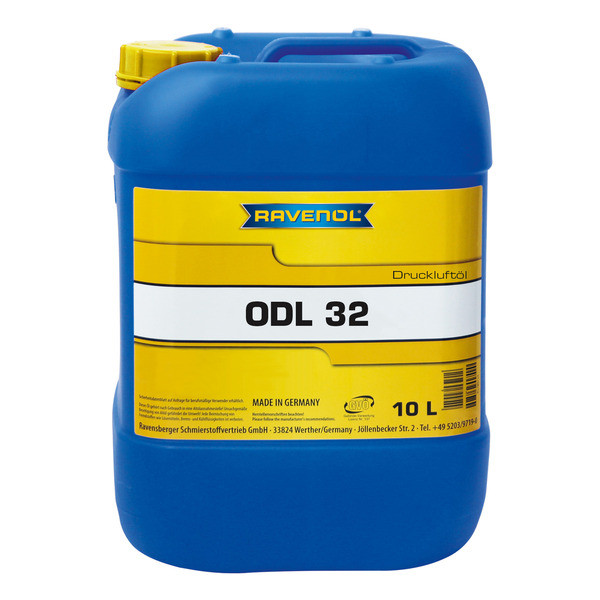

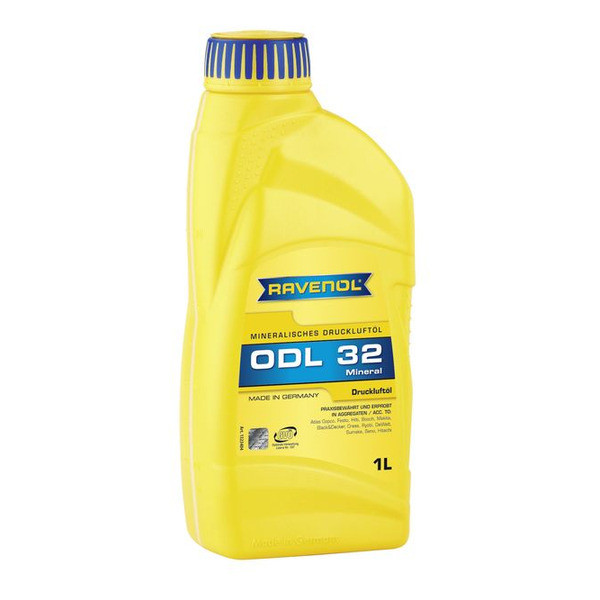

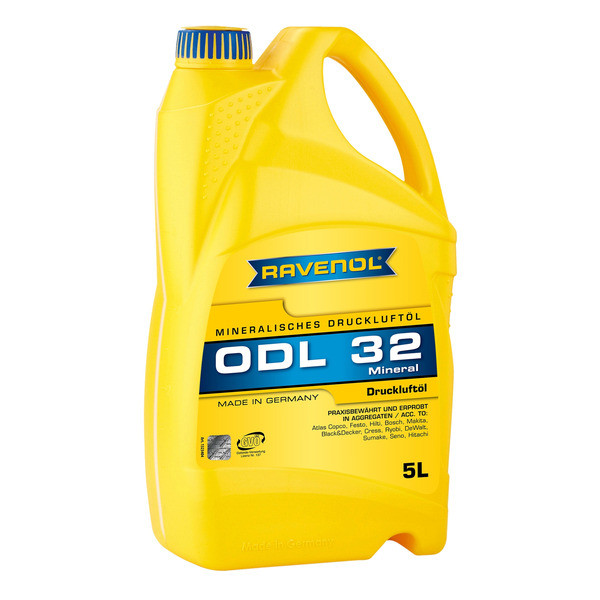

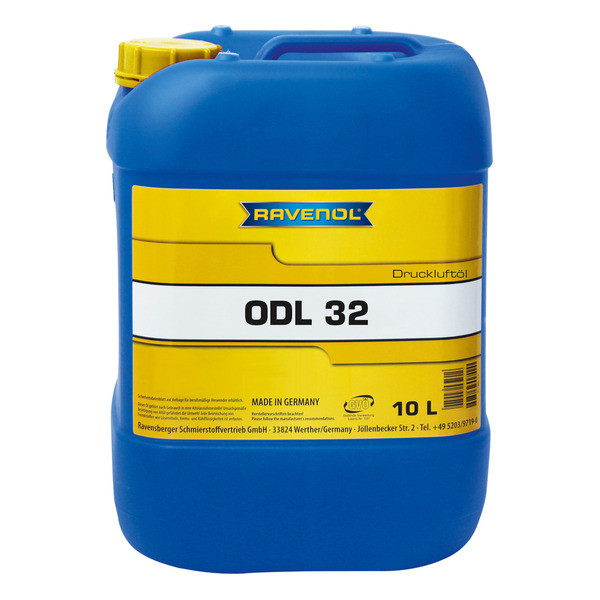

RAVENOL ODL 32 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.
Application Note
RAVENOL ODL 32 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe.
Please follow the manufacturer´s instructions.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a good adherence
- a high aging resistance
- a reliable wear protection
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Black & Decker |
Black & Decker
|
||
| Suitable for | Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake |
Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake
|
||
| Density at 20 °C | kg/m³ | 848 | EN ISO 12185 |
848
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| FZG-Test A/8.3/90 Damage loading step | %wt. | 12 | DIN 51354/2 |
12
%wt.
DIN 51354/2
|
| Approvals | Black & Decker |
Black & Decker
|
RAVENOL Hydraulikoel TS AF 32 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.
Compliance with the requirements:
Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GM LH-03-1-04, MAN N 698, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest
SAE: 32W
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323124-020
Volume:
20 L, ecobox
vendor code:
1323124-B20
Volume:
60 L
vendor code:
1323124-060
RAVENOL Hydraulikoel TS AF 32 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.
Application Note
RAVENOL Hydraulikoel TS AF 32 is for use as a hydraulic fluid in the metal industry, if zinc and ash-free hydraulic oil and the specification DIN 51 524, Part 2 is required.
Characteristics
- High performance level
- Good oxidation stability
- High resistance to ageing
- Outstanding wear protection
- High level of corrosion protection
- Neutral to sealants
- No foaming
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GM LH-03-1-04, MAN N 698, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest |
Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GM LH-03-1-04, MAN N 698, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest
|
||
| specification | AFNOR NF E 48-603 HM, DIN 51524-2, GB 111118.1 L-HM, ISO 11158, ISO 6743-4 HM, MS1004 HM, SAE MS 1004 HM, U.S. Steel 127, U.S. Steel 136 |
AFNOR NF E 48-603 HM, DIN 51524-2, GB 111118.1 L-HM, ISO 11158, ISO 6743-4 HM, MS1004 HM, SAE MS 1004 HM, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.2 | DIN 51562-1 |
32.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 124 | DIN ISO 2909 |
124
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NF E 48-603 HM, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-03-1-04, ISO 11158, ISO 6743-4 HM, MAN N 698, MS1004 HM, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, U.S. Steel 127, U.S. Steel 136, Vickers Pumpentest |
AFNOR NF E 48-603 HM, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-03-1-04, ISO 11158, ISO 6743-4 HM, MAN N 698, MS1004 HM, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, U.S. Steel 127, U.S. Steel 136, Vickers Pumpentest
|
