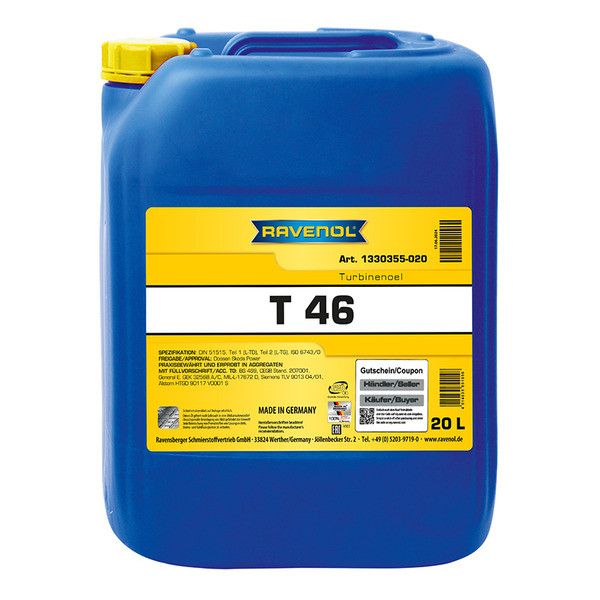

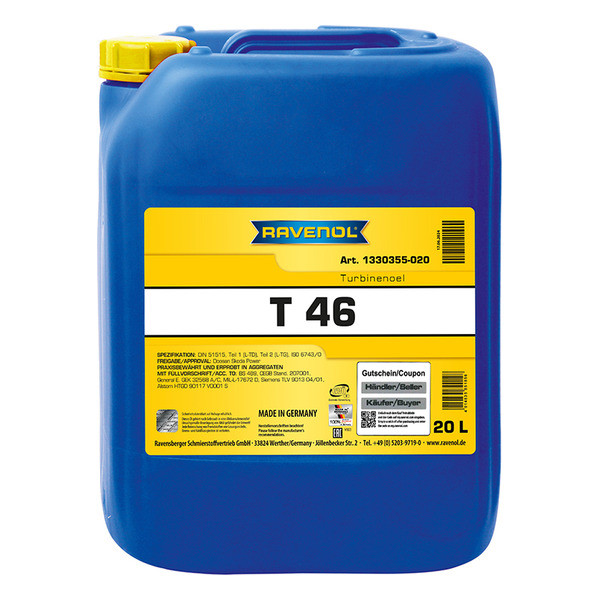

Turbinenöl T46

RAVENOL Turbinenöl T 46 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.

Compliance with the requirements:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, U.S. Steel 20, Westinghouse Turbine Oil Spec.

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1330355-020

Volume:
208 L

vendor code:
1330355-208

Volume:
1000 L

vendor code:
1330355-700

RAVENOL Turbinenöl T 46 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.

RAVENOL Turbinenöl T 46 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee the excellent characteristics.

RAVENOL Turbinenöl T 46 is zinc-free due to its formulation.

Application Note

RAVENOL Turbinenöl T 46 is used in fixed gas and steam turbines as well as electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.

RAVENOL Turbinenöl T 46 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.

Characteristics

an excellent thermic and oxidative stability
an excellent viscosity temperature behaviour
a high and stable viscosity index
a very good oxidation stability also at very high temperatures
a good protection against corrosion of Ferro and non Ferro metals
an excellent water separation behaviour
a very good air separation behaviour which excludes foam formation as far as possible
a low pourpoint
a good corrosion behaviour
an excellent water separation behaviour / demulsifying behaviour

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, U.S. Steel 20, Westinghouse Turbine Oil Spec.		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, U.S. Steel 20, Westinghouse Turbine Oil Spec.
specification		DIN 51515-1 L-TD, DIN 51515-2 L-TG, ISO 6743-0		DIN 51515-1 L-TD, DIN 51515-2 L-TG, ISO 6743-0
Suitable for		Doosan Skoda Power		Doosan Skoda Power
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.8	DIN 51562-1	7.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46.1	DIN 51562-1	46.1 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Approvals		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO 6743-0, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec.		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO 6743-0, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec.

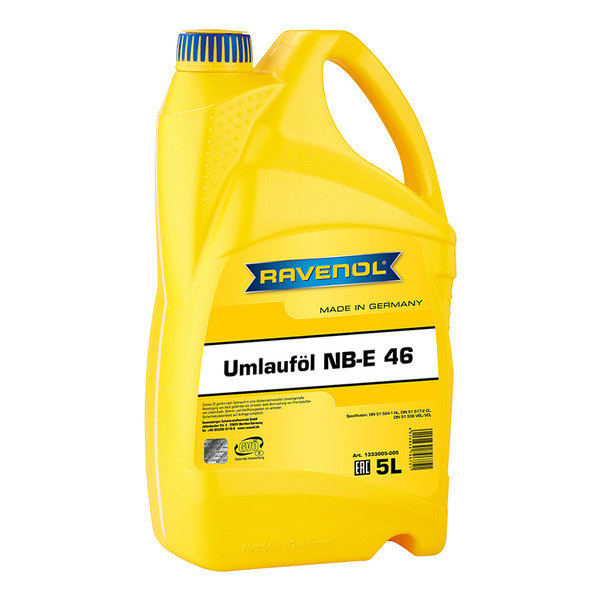

Umlaufoel NB-E 46

is a hydraulic and lubricating oil (machine oil) based on select base oils with active agents to im prove the ageing behaviour and corrosion protection.

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1333005-020

Volume:
208 L

vendor code:
1333005-208

Volume:
5 L

vendor code:
1333005-005

is a hydraulic and lubricating oil (machine oil) based on select base oils with active agents to im prove the ageing behaviour and corrosion protection.

RAVENOL Umlaufoel NB-E 46

is mineral oil based, demulsifying according to DIN 51 524-1 (HL) andDIN 51 517-2 (CL).

Application Note:

RAVENOL Umlaufoel NB-E 4

is a demulsifying lubricating oil for circulatory and bearing lubrication. It is an excellent fluid medium for all applications in mobile and stationary hydraulic systems where the use of a hydraulic oil according to DIN 51 524-1 (HL) is recommended.

RAVENOL Umlaufoel NB-E 4

is excellent for operating conditions including high temperatures encountered e.g. in calenders and lubricating systems on rolling stands. Also proven excellent for vacuum pumps.DIN 51 524-1 HL: Hyd raulic oils for hydraulic systems with primarily hydrostatic drive, with high thermal stress and/or where corrosion is to be expected e.g. due to ingress of water. Also use in hydraulic systems with h ydrodynamic drive, provided they meet the requirements of these drives.DIN 51 517-2 CL: For circula tory lubrication requiring high age durability and/or anti-corrosion. Also suitable as hydraulic oil s and general lubricating or machine oils. Recommended where e.g. corrosion may occur due to water o r for higher lubricating oil temperatures. DIN 51 506 VBL: For air compressors and compressors, in cl. Reservoir and pipeline systems activating brake, tipping, signal or conveyor systems by compress ed air, stationary and on vehicles with discharge temperatures up to 140°C.

Characteristics:

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
specification		DIN 51506 VBL, DIN 51506: VCL, DIN 51517-2, DIN 51524-1		DIN 51506 VBL, DIN 51506: VCL, DIN 51517-2, DIN 51524-1
Density at 20 °C	kg/m³	871.5	EN ISO 12185	871.5 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47	DIN 51562-1	47 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Approvals		DIN 51506 VBL, DIN 51517-2, DIN 51524-1, DIN 51506: VCL		DIN 51506 VBL, DIN 51517-2, DIN 51524-1, DIN 51506: VCL

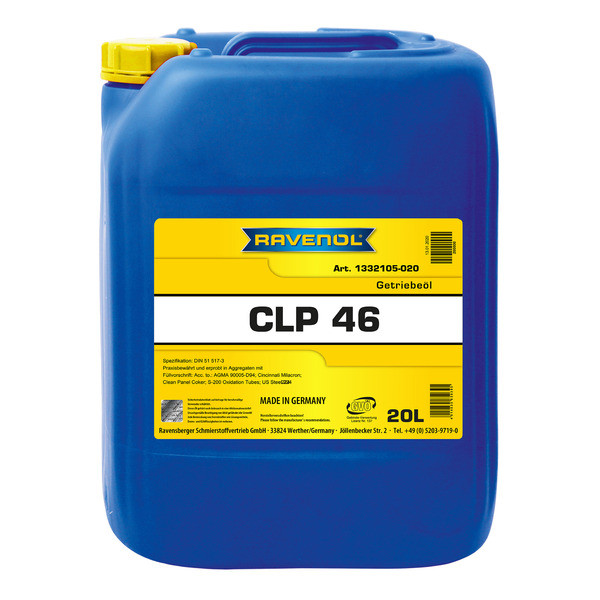

Getriebeöl CLP 46

Application NoteRAVENOL Getriebeoel CLP 46 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1332105-020

Volume:
208 L

vendor code:
1332105-208

Application Note

RAVENOL Getriebeoel CLP 46 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

A very good, stable high-pressure absorption capacity under shock loads.
Resistant properties at elevated temperatures
A good anti-rust and anti-corrosion effect
Excellent wear protection
A very good effect against foam formation
A low pour point
Very good cold behavior

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224		AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification		DIN 51517-3		DIN 51517-3
Suitable for		Cincinnati Milacron		Cincinnati Milacron
Density at 20 °C	kg/m³	857	EN ISO 12185	857 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7	DIN 51562-1	7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	44.8	DIN 51562-1	44.8 mm²/s DIN 51562-1
Viscosity Index VI		114	DIN ISO 2909	114 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Approvals		AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224		AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224

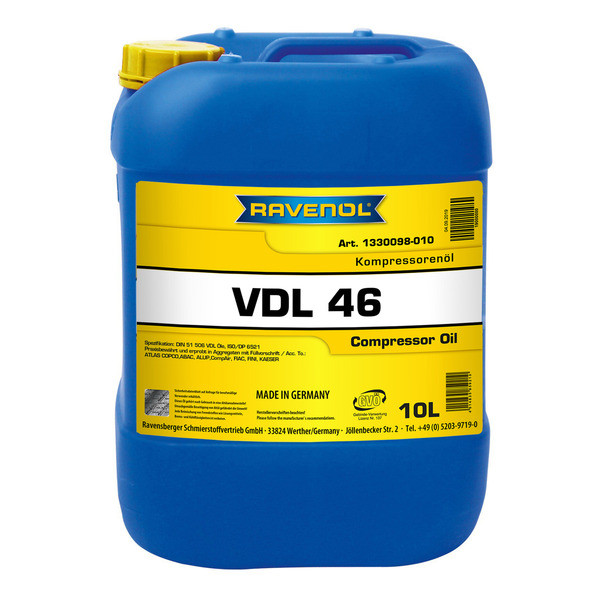

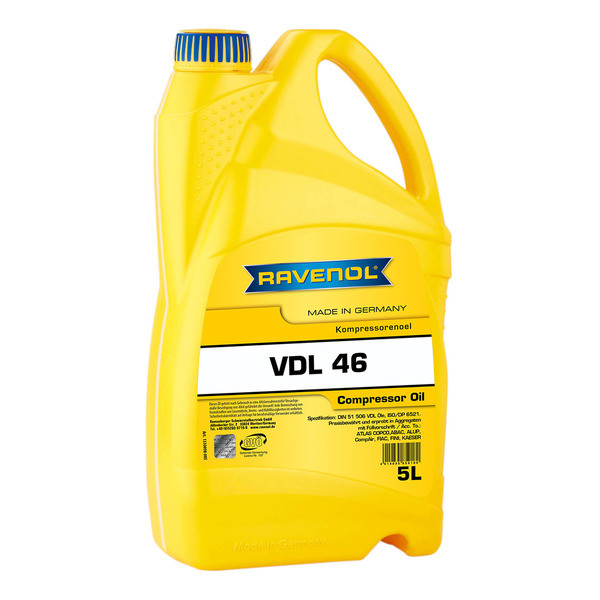

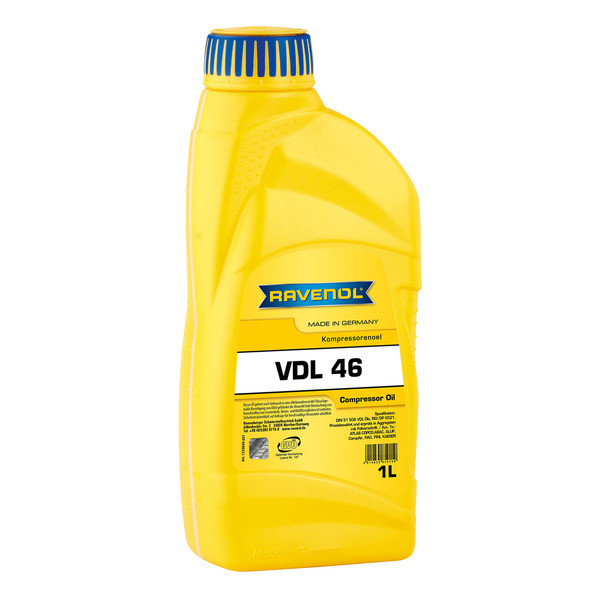

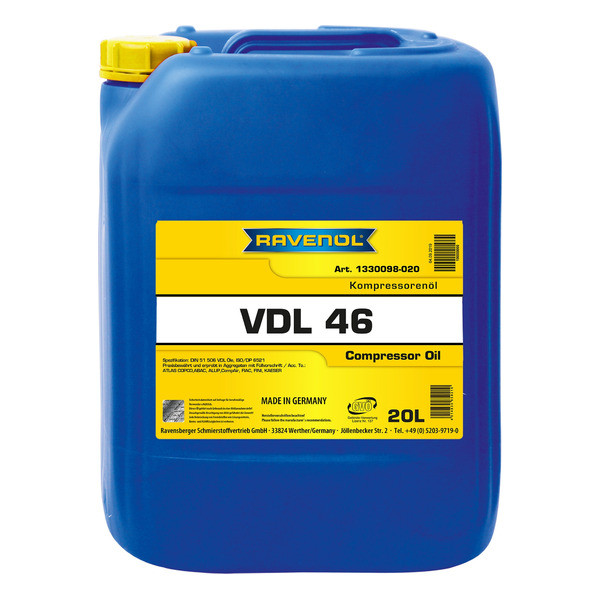

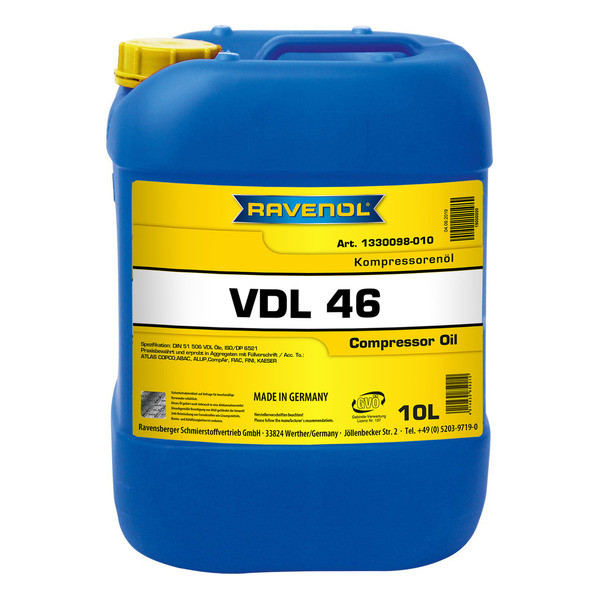

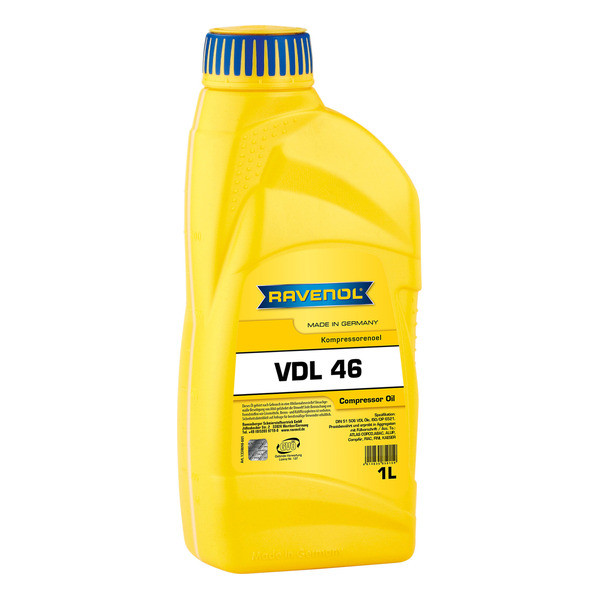

Kompressorenoel VDL 46

RAVENOL Kompressorenoel VDL 46 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1330098-001

Volume:
5 L

vendor code:
1330098-005

Volume:
20 L

vendor code:
1330098-020

Volume:
208 L

vendor code:
1330098-208

Volume:
10 L

vendor code:
1330098-010

RAVENOL Kompressorenoel VDL 46 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

RAVENOL Kompressorenoel VDL 46 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.

Application Note

RAVENOL Kompressorenoel VDL 46 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.

RAVENOL Kompressorenoel VDL 46 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.

RAVENOL Kompressorenoel VDL 46 is not recommended for ATLAS COPCA GA xx series compressors.

Exceeds the requirements for VBL- and VCL-Oils.

Characteristics

Ashless active substances
Excellent aging resistance
Reliable wear protection
Excellent viscosity-temperature behavior
Very good cold starting properties
Low coking tendency
Neutral towards sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		46		46
Type		Mineral		Mineral
specification		DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH		DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
Suitable for		ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW		ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.8	DIN 51562-1	7.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46.1	DIN 51562-1	46.1 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Flashpoint	°C	274	DIN EN ISO 2592	274 °C DIN EN ISO 2592
Approvals		DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH		DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH

Hydraulikoel HVLP-D 46

RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323365-020

Volume:
60 L

vendor code:
1323365-060

Volume:
208 L

vendor code:
1323365-208

Volume:
1000 L

vendor code:
1323365-700

RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 46 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 46 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 46 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

Reliable corrosion protection even when absorbing moisture
Good air and water separation capacity, prevention of foam formation
Excellent wear protection
Good oxidation stability
Excellent detergent and dispersing properties
Neutral behavior against sealing materials
Very low flow point

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	858	EN ISO 12185	858 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46.1	DIN 51562-1	46.1 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

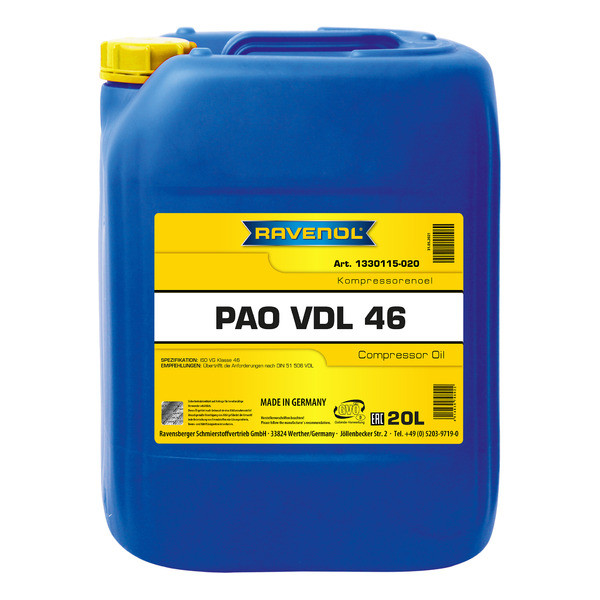

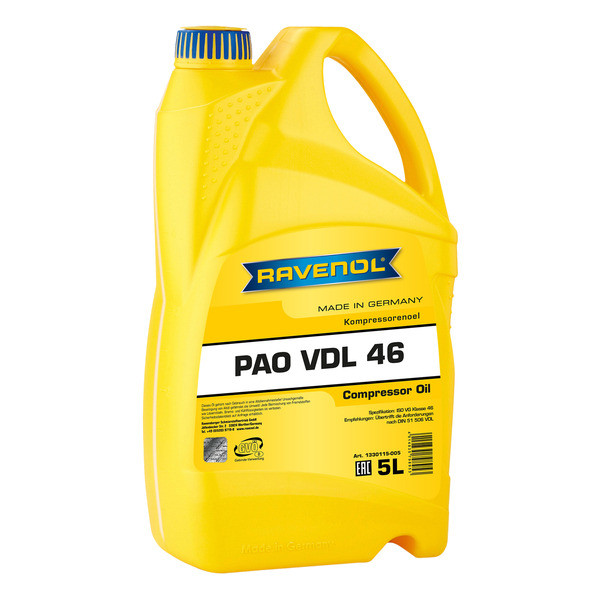

Kompressorenoel VDL PAO 46

RAVENOL Kompressorenoel PAO VDL 46 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.

Compliance with the requirements:
DIN 51 506 VDL

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1330115-005

Volume:
60 L

vendor code:
1330115-060

Volume:
208 L

vendor code:
1330115-208

Volume:
20 L

vendor code:
1330115-020

RAVENOL Kompressorenoel PAO VDL 46 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.

In addition RAVENOL Kompressorenoel PAO VDL 46 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.

Application Note

RAVENOL Kompressorenoel PAO VDL 46 is recommended for all compressors especially in rotary screw air compressors.

Characteristics

High oxidation stability.
Excellent protection against rust and corrosion.
Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
Very low evaporative behavior and an outstanding demulsifying power.
Excellent air separation ability.
Better resistance to oxidative breakdown.
Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickeng

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		46		46
Type		Full synthetic		Full synthetic
Recomendations		DIN 51 506 VDL		DIN 51 506 VDL
Density at 20 °C	kg/m³	843	EN ISO 12185	843 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45.4	DIN 51562-1	45.4 mm²/s DIN 51562-1
Viscosity Index VI		159	DIN ISO 2909	159 DIN ISO 2909
Pourpoint	°C	-65	DIN ISO 3016	-65 °C DIN ISO 3016
Flashpoint	°C	239	DIN EN ISO 2592	239 °C DIN EN ISO 2592
Acid Number TAN	mgKOH/g	0.14	ASTM D664	0.14 mgKOH/g ASTM D664
Water separation	ml/54°Cmin	40-40-0 (15)	ASTM D1401	40-40-0 (15) ml/54°Cmin ASTM D1401
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion:	3h 100 °C	1a	ASTM D130	1a 3h 100 °C ASTM D130
Rust A – distilled Water		passed	ASTM D665	passed ASTM D665
Rust B – Synthetic Sea Water		passed	ASTM D665	passed ASTM D665
Conradson Carbon Residue mass	%	— 0.1	ASTM D524	— 0.1 % ASTM D524
Approvals		DIN 51 506 VDL		DIN 51 506 VDL

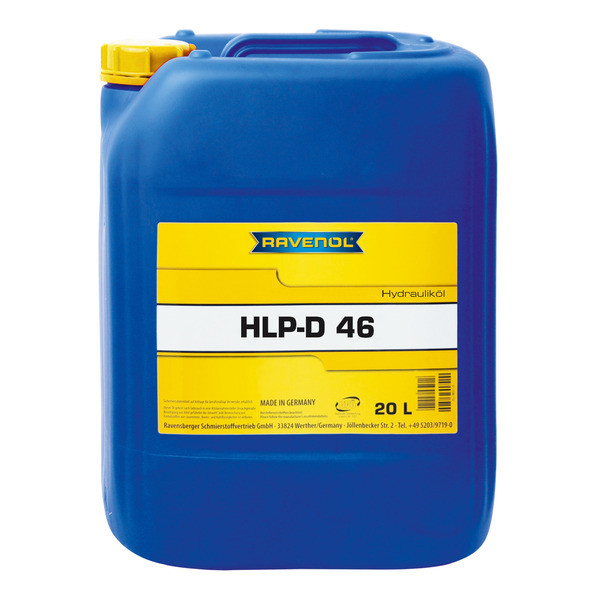

Hydraulikoel HLP-D 46

RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323305-020

Volume:
20 L, ecobox

vendor code:
1323305-B20

Volume:
60 L

vendor code:
1323305-060

Volume:
208 L

vendor code:
1323305-208

Code:
4014835760783

RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HLP-D 46 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.

Characteristics

High aging resistance and high corrosion protection
Good air release
Excellent wear protection and proper conduct foam
Very good viscosity-temperature behaviour
neutral behaviour towards sealing materials
Extremely good detergent and dispersant characteristics
Excellent corrosion protection even at the ingress of wetness

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Daimler DBL 6721, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, MAN N 698, Parker Denison HF-0
specification		DIN 51524-2		DIN 51524-2
Density at 20 °C	kg/m³	863	EN ISO 12185	863 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.3	DIN 51562-1	47.3 mm²/s DIN 51562-1
Viscosity Index VI		111	DIN ISO 2909	111 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
Approvals		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0

BIO-Hydraulikoel HEES 46

Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 46 has much better high temperature oxidation stability.

Compliance with the requirements:
JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1321105-020

Volume:
20 L, ecobox

vendor code:
1321105-B20

Volume:
60 L

vendor code:
1321105-060

Volume:
208 L

vendor code:
1321105-208

Volume:
1000 L

vendor code:
1321105-700

Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 46 has much better high temperature oxidation stability.

RAVENOL BIO-Hydraulikoel HEES 46 can be used year-round due to its outstanding low-temperature behaviour and provides excellent wear and corrosion protection.

Application Note

RAVENOL BIO-Hydraulikoel HEES 46 is used wherever there is the danger of hydraulic fluid leaking into the ground-or waste water. This includes all equipment operating in or near areas of water purification or water protection or near surface water, such as e.g. sewage treatment plants, dredging ships and floating dredges, lock hydraulics and river weirs, pipe and tunnel driving machines, hydraulic aggregates in forests and on fields, earth moving machines in water and forestry machines.

Characteristics

Biodegradability
Excellent corrosion protection
Outstanding cold behaviour
Excellent oxidation stability

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570		JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570
specification		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3)		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3)
Density at 20 °C	kg/m³	917	EN ISO 12185	917 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	9.45	DIN 51562-1	9.45 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46	DIN 51562-1	46 mm²/s DIN 51562-1
Viscosity Index VI		190	DIN ISO 2909	190 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	296	DIN EN ISO 2592	296 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Air release at 50 °C	max.	2	DIN ISO 9120	2 max. DIN ISO 9120
Approvals		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3), JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3), JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570

Hydraulikol TSX 46

Application NoteRAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 46

Equivalents OEM:
Alpine 0100831, Alpine 0100832, Alpine 0100832, Scania 2252141, Volvo 11706210, Volvo 11706211, Volvo 11713238, Volvo 15030482, Volvo 15030580, Volvo VOE11706210, Volvo VOE11706211, Volvo VOE11713238, Volvo VOE15030482, Volvo VOE15030580

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323205-005

Volume:
20 L

vendor code:
1323205-020

Code:
4014835760226

Volume:
20 L, ecobox

vendor code:
1323205-B20

Volume:
60 L

vendor code:
1323205-060

Volume:
208 L

vendor code:
1323205-208

Code:
4014835760288

Volume:
208 L, print

vendor code:
1323205-D28

Volume:
1000 L

vendor code:
1323205-700

Volume:
10 L

vendor code:
1323205-010

Application Note

RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524-3, ISO 6743-4 HV		DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.9	DIN 51562-1	7.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45	DIN 51562-1	45 mm²/s DIN 51562-1
Viscosity Index VI		148	DIN ISO 2909	148 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

Hydraulikoel TS 46 (HLP)

RAVENOL Hydraulikoel TS 46 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cetop RP 2950-S, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H

show details

SAE: 46

Equivalents OEM:
Alpine 0100843, Alpine 0100844, Alpine 0100845, GM 88861680, GM 88861680

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323105-005

Code:
4014835759459

Volume:
10 L

vendor code:
1323105-010

Volume:
20 L

vendor code:
1323105-020

Code:
4014835759428

Volume:
20 L, ecobox

vendor code:
1323105-B20

Volume:
60 L

vendor code:
1323105-060

Code:
4014835759466

Volume:
208 L

vendor code:
1323105-208

Code:
4014835759480

Volume:
208 L, print

vendor code:
1323105-D28

Volume:
1000 L

vendor code:
1323105-700

Code:
4014835759473

Volume:
1 L

vendor code:
1323105-001

RAVENOL Hydraulikoel TS 46 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 46 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 46 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 46 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 46 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Arburg, Atos, Metso		Arburg, Atos, Metso
Density at 20 °C	kg/m³	857	EN ISO 12185	857 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47	DIN 51562-1	47 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Demulsification		40ml/40ml/10min.	DIN 51757	40ml/40ml/10min. DIN 51757
Aging stability	TOST	2000	DIN 51587	2000 TOST DIN 51587
FZG-Test A/8.3/90 Damage loading step	%wt.	12	DIN 51354/2	12 %wt. DIN 51354/2
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H

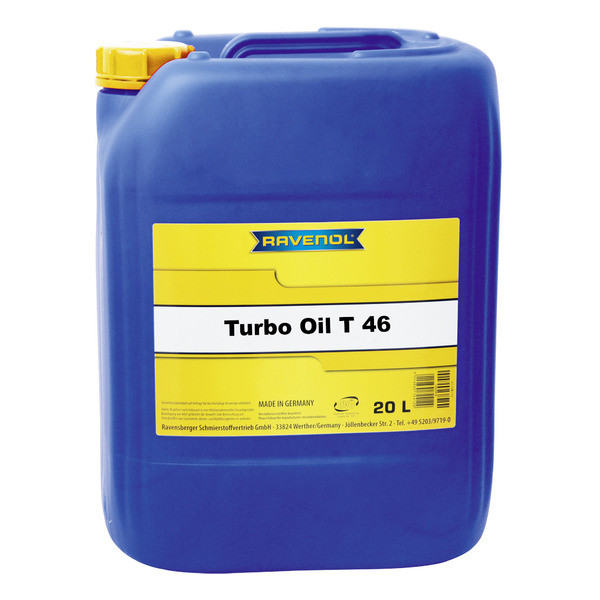

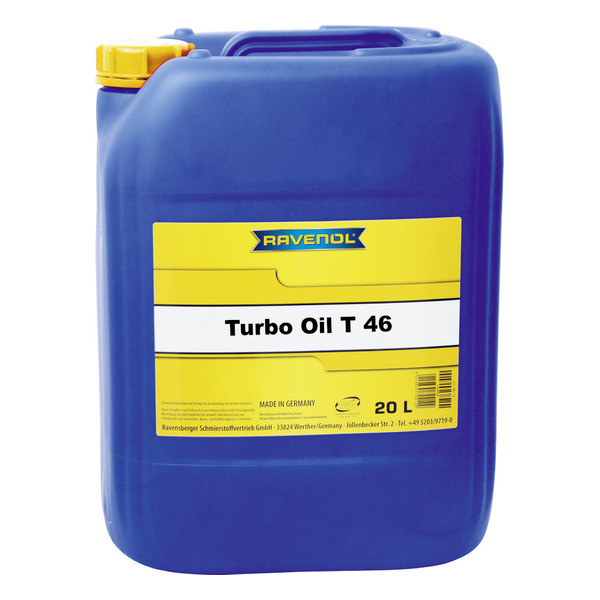

Turbo Oil T 46

RAVENOL Turbo Oil T46 is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.

Manufacturer Approved:
Siemens TLV 9013 04, Siemens TLV 9013 05

Compliance with the requirements:
Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, U.S. Steel 20, Westinghouse Turbine Oil Spec.

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1331115-020

Volume:
60 L

vendor code:
1331115-060

Volume:
208 L

vendor code:
1331115-208

Code:
4014835842373

Volume:
1000 L

vendor code:
1331115-700

RAVENOL Turbo Oil T46 is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.

RAVENOL Turbo Oil T46 is an all-purpose oil for turbines from specially selected base oils with the addition of special refined additives.

RAVENOL Turbo Oil T46 is zinc-free due to its formulation.

Application Note

RAVENOL Turbo Oil T4

is used in stationary gas turbines, steam turbines and also in electrical or in driven by steam machines, such as generators, compressors, pumps and gearboxes.

RAVENOL Turbo Oil T4

is also for use in lubrication of hydraulic systems, compressors, gear transmissions and bearings.

Characteristics

Excellent thermal and oxidative stability
Excellent viscosity-temperature behavior
Very good oxidation stability
Good protection against corrosion of steel and non-ferrous metals
A very good air separation ability, which largely eliminates foam formation
Low pour point
Good wear behavior
Excellent water separation ability/demulsification behavior

Parameter	Unit	Value	Audit
Air release at 50 °C	max.	5	DIN ISO 9120	5 max. DIN ISO 9120
Copper strip corrosion		pass	DIN EN ISO 2160	pass DIN EN ISO 2160
FZG Pass Load Stage		10	DIN ISO 14635-1	10 DIN ISO 14635-1
Purity grade		20/17/12	ISO 4406	20/17/12 ISO 4406
NZ Neutralisation number	mg KOH/g	0.06	DIN 51558-1	0.06 mg KOH/g DIN 51558-1
Water Separability	s	75	DIN 51589-1	75 s DIN 51589-1
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Siemens TLV 9013 04, Siemens TLV 9013 05		Siemens TLV 9013 04, Siemens TLV 9013 05
Recomendations		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, U.S. Steel 20, Westinghouse Turbine Oil Spec.		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, U.S. Steel 20, Westinghouse Turbine Oil Spec.
specification		DIN 51515-1 L-TD, DIN 51515-2 L-TG		DIN 51515-1 L-TD, DIN 51515-2 L-TG
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		L1.0	DIN ISO 2049	L1.0 DIN ISO 2049
Viscosity at 40 °C	mm²/s	46.1	DIN 51562-1	46.1 mm²/s DIN 51562-1
Pourpoint	°C	— -12	DIN ISO 3016	— -12 °C DIN ISO 3016
Flashpoint	°C	274	DIN EN ISO 2592	274 °C DIN EN ISO 2592
Water content	mg/kg	— 0.01	DIN 51777-1	— 0.01 mg/kg DIN 51777-1
Approvals		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec.		Alstom HTGD 90117 V0001 S, Brown Boveri HTGD 90117, BS 489, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 46568 A, General Electric GEK 46568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 20, Westinghouse Turbine Oil Spec.

Vakuumpumpenoil ISO VG 46

Application NoteRAVENOL Vakuumpumpenöl ISO VG 46 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.

Compliance with the requirements:
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, Fisherbrand 19, Hyvac 93055, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1330705-001

Volume:
5 L

vendor code:
1330705-005

Volume:
20 L

vendor code:
1330705-020

Code:
4014835758629

Volume:
20 L, ecobox

vendor code:
1330705-B20

Volume:
60 L

vendor code:
1330705-060

Volume:
208 L

vendor code:
1330705-208

Application Note

RAVENOL Vakuumpumpenöl ISO VG 46 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.

RAVENOL Vakuumpumpenöl ISO VG 46 oil can be used very well for the lubrication of crankcases.

Characteristics

High performance level
Very good viscosity-temperature behavior
High resistance to aging
Excellent wear protection
Reliable corrosion protection
Neutral to seal materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		46		46
Type		Mineral		Mineral
Recomendations		Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, Fisherbrand 19, Hyvac 93055, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100		Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, Fisherbrand 19, Hyvac 93055, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
specification		DIN 51506 VC, ISO 6743-3 DVA, ISO 6743-3 DVC		DIN 51506 VC, ISO 6743-3 DVA, ISO 6743-3 DVC
Compliant products		Edwards Ultragrade 19		Edwards Ultragrade 19
Density at 20 °C	kg/m³	854	EN ISO 12185	854 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	7.4	DIN 51562-1	7.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.2	DIN 51562-1	47.2 mm²/s DIN 51562-1
Viscosity Index VI		121	DIN ISO 2909	121 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
Carbon residue Conradson	%	0.05	DIN 51551	0.05 % DIN 51551
Boiling point at 0,01 bar		112	DIN 51757	112 DIN 51757
Vapor pressure	bar	3 x 10 ‾3	DIN 51757	3 x 10 ‾3 bar DIN 51757
Approvals		Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO 6743-3 DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100		Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO 6743-3 DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100

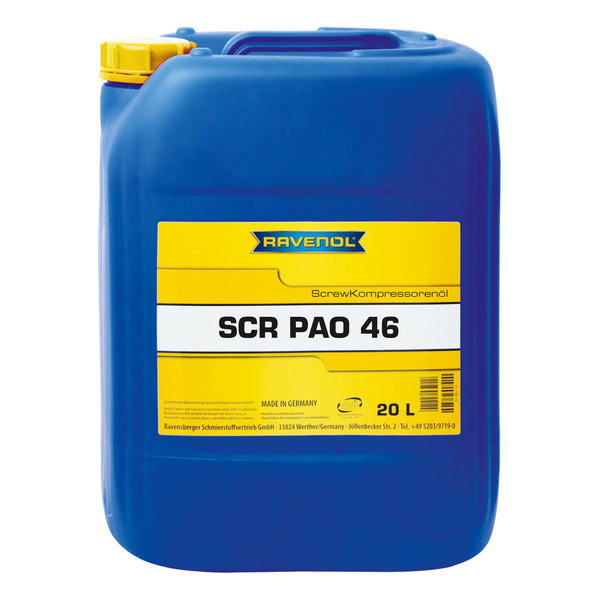

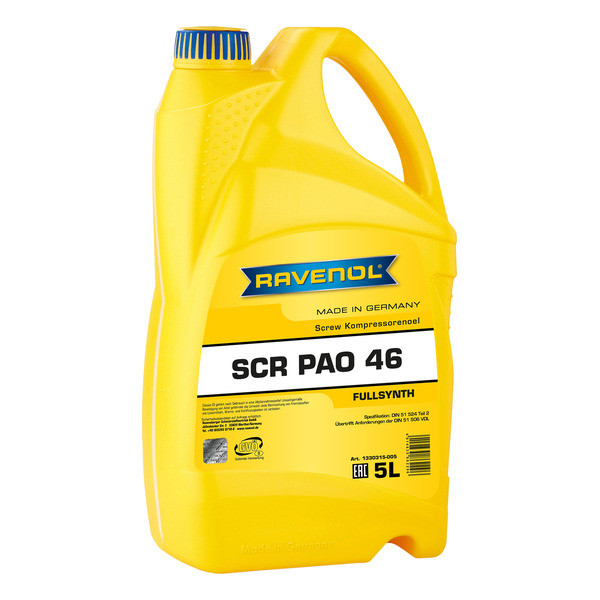

SCR PAO 46 Screw Kompressorenoil

RAVENOL SCR PAO 46 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.

Compliance with the requirements:
DIN 51 506 VDL

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1330315-005

Code:
4014835862296

Volume:
20 L

vendor code:
1330315-020

Code:
4014835757622

Volume:
20 L, ecobox

vendor code:
1330315-B20

Volume:
208 L

vendor code:
1330315-208

Code:
4014835757684

RAVENOL SCR PAO 46 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.

RAVENOL SCR PAO 46 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.

RAVENOL SCR PAO 46 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption. The full benefits of a change to RAVENOL SCR PAO 46 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 46 Screw Kompressorenöl may not result in optimum performance and fluid service life.

RAVENOL SCR PAO 46 Screw Kompressorenöl has excellent oxidation stability, corrosion, deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.

Application Note

RAVENOL SCR PAO 46 Screw Kompressorenöl is recommended for use in rotary screw air compressors.

While RAVENOL SCR PAO 46 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones

Characteristics

High oxidation stability.
Excellent protection against rust and corrosion.
Excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures.
Higher thermal lstability reduces carbon deposit formation
Improved viscosity index and good low temperature properties
Good protection against wear
Protects against rust and corrosion
Low volatility reduces oil carry-over into the air system
Reduces fluid consumption

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		46		46
Type		Full synthetic		Full synthetic
Recomendations		DIN 51 506 VDL		DIN 51 506 VDL
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45.4	DIN 51562-1	45.4 mm²/s DIN 51562-1
Viscosity Index VI		160	DIN ISO 2909	160 DIN ISO 2909
Pourpoint	°C	-66	DIN ISO 3016	-66 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
Acid Number TAN	mgKOH/g	0.14	ASTM D664	0.14 mgKOH/g ASTM D664
Water separation	ml/54°Cmin	40-40-0 (15)	ASTM D1401	40-40-0 (15) ml/54°Cmin ASTM D1401
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Corrosion:	3h 100 °C	1a	ASTM D130	1a 3h 100 °C ASTM D130
Rust A – distilled Water		passed	ASTM D665	passed ASTM D665
Rust B – Synthetic Sea Water		passed	ASTM D665	passed ASTM D665
Conradson Carbon Residue mass	%	— 0.1	ASTM D524	— 0.1 % ASTM D524
Approvals		DIN 51 506 VDL		DIN 51 506 VDL

Screw Kompressorenoil SCR 46

Application NoteRAVENOL Screw Kompressorenöl SCR 46 is used in compressors.

Compliance with the requirements:
FZG Test A 8,3/90, Vickers Pumpentest

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1330305-005

Code:
4014835757257

Volume:
20 L

vendor code:
1330305-020

Code:
4014835757226

Volume:
20 L, ecobox

vendor code:
1330305-B20

Volume:
60 L

vendor code:
1330305-060

Volume:
208 L

vendor code:
1330305-208

Code:
4014835757288

Application Note

RAVENOL Screw Kompressorenöl SCR 46 is used in compressors.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistanta high aging resistant
an excellent corrosion protection
a solid corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		46		46
Type		Mineral		Mineral
Recomendations		FZG Test A 8,3/90, Vickers Pumpentest		FZG Test A 8,3/90, Vickers Pumpentest
specification		DIN 51524-2		DIN 51524-2
Density at 20 °C	kg/m³	857	EN ISO 12185	857 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47	DIN 51562-1	47 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Demulsification		40ml/40ml/10min.	DIN 51757	40ml/40ml/10min. DIN 51757
Aging stability	TOST	2000	DIN 51587	2000 TOST DIN 51587
FZG-Test A/8.3/90 Damage loading step	%wt.	12	DIN 51354/2	12 %wt. DIN 51354/2
Approvals		DIN 51524-2, FZG Test A 8,3/90, Vickers Pumpentest		DIN 51524-2, FZG Test A 8,3/90, Vickers Pumpentest

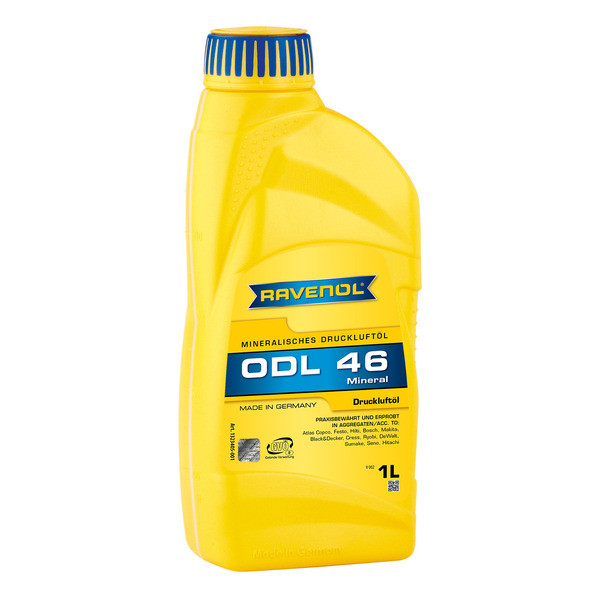

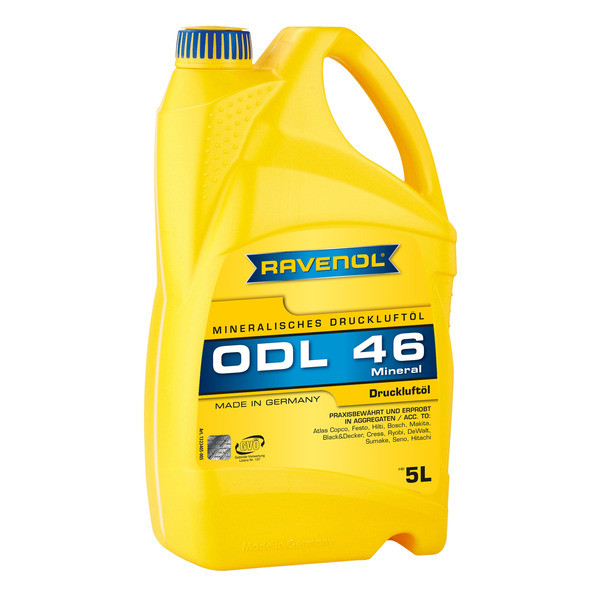

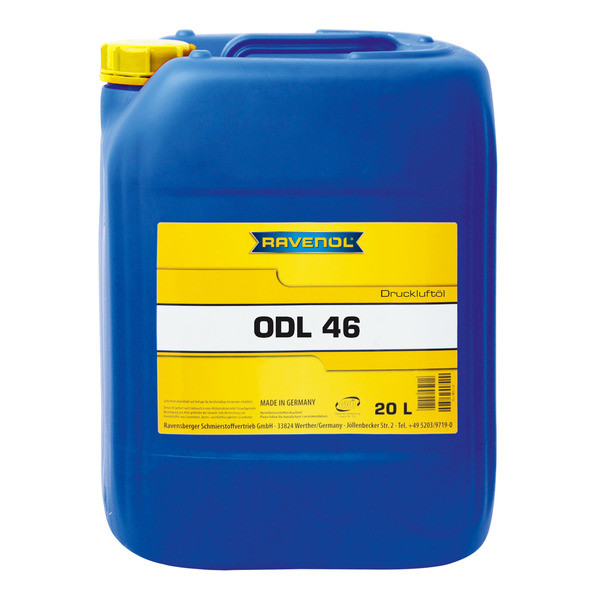

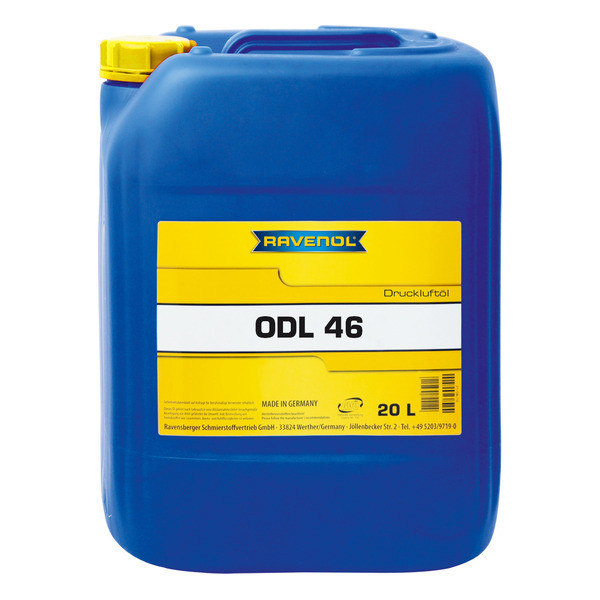

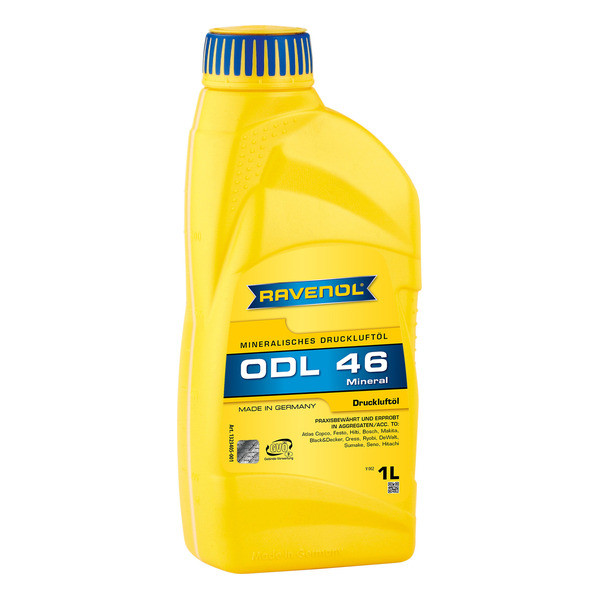

ODL 46 Oel fur Druckluftaggregate

RAVENOL ODL 46 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.

Compliance with the requirements:
Black & Decker

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323405-001

Code:
4014835736719

Volume:
5 L

vendor code:
1323405-005

Volume:
20 L

vendor code:
1323405-020

Code:
4014835761223

Volume:
20 L, ecobox

vendor code:
1323405-B20

Volume:
60 L

vendor code:
1323405-060

Volume:
208 L

vendor code:
1323405-208

Code:
4014835761285

Volume:
1000 L

vendor code:
1323405-700

RAVENOL ODL 46 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.

Application Note

RAVENOL ODL 46 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe. Please follow the manufacturer´s instructions.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a good adherence
a high aging resistance
a reliable wear protection
an excellent corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		46		46
Type		Mineral		Mineral
Recomendations		Black & Decker		Black & Decker
Suitable for		Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake		Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake
Density at 20 °C	kg/m³	857	EN ISO 12185	857 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47	DIN 51562-1	47 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Demulsification		40ml/40ml/10min.	DIN 51757	40ml/40ml/10min. DIN 51757
Aging stability	TOST	2000	DIN 51587	2000 TOST DIN 51587
FZG-Test A/8.3/90 Damage loading step	%wt.	12	DIN 51354/2	12 %wt. DIN 51354/2
Approvals		Black & Decker		Black & Decker

Hydraulikoil TS AF 46

RAVENOL Hydraulikoel TS AF 46 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.

Compliance with the requirements:
FZG Test A 8,3/90, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434, Vickers Pumpentest

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323125-020

Volume:
60 L

vendor code:
1323125-060

Volume:
1000 L

vendor code:
1323125-700

Volume:
208 L

vendor code:
1323125-208

RAVENOL Hydraulikoel TS AF 46 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.

Application Note

RAVENOL Hydraulikoel TS AF 46 is for use as a hydraulic fluid in the metal industry, if zinc and ash-free hydraulic oil and the specification DIN 51 524, Part 2 is required.

Characteristics

High performance level
Good oxidation stability
High resistance to ageing
Outstanding wear protection
High level of corrosion protection
Neutral to sealants
No foaming

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		FZG Test A 8,3/90, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434, Vickers Pumpentest		FZG Test A 8,3/90, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434, Vickers Pumpentest
specification		DIN 51524-2		DIN 51524-2
Density at 20 °C	kg/m³	862	EN ISO 12185	862 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46.4	DIN 51562-1	46.4 mm²/s DIN 51562-1
Viscosity Index VI		118	DIN ISO 2909	118 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
Approvals		DIN 51524-2, FZG Test A 8,3/90, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434, Vickers Pumpentest		DIN 51524-2, FZG Test A 8,3/90, MAN N 698, SEB 181.222, SEB 181.226, Timken-Test DIN E 51434, Vickers Pumpentest

Search results for query «46»

Application Note

Characteristics

Application Note:

Characteristics:

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
