Oil for Hyundai - Accent V / Verna V, HC / YC / MXH - Accent 1.6 MPI 2WD (G4FG)

Hyundai Accent V / Verna V, HC / YC / MXH Accent 1.6 MPI 2WD (G4FG), year of issue from 2016 date to 2022 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline

Add to Garage

Nodes and assemblies

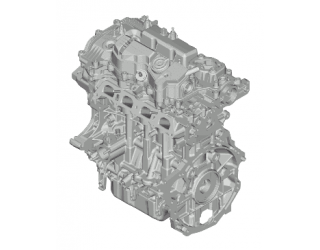

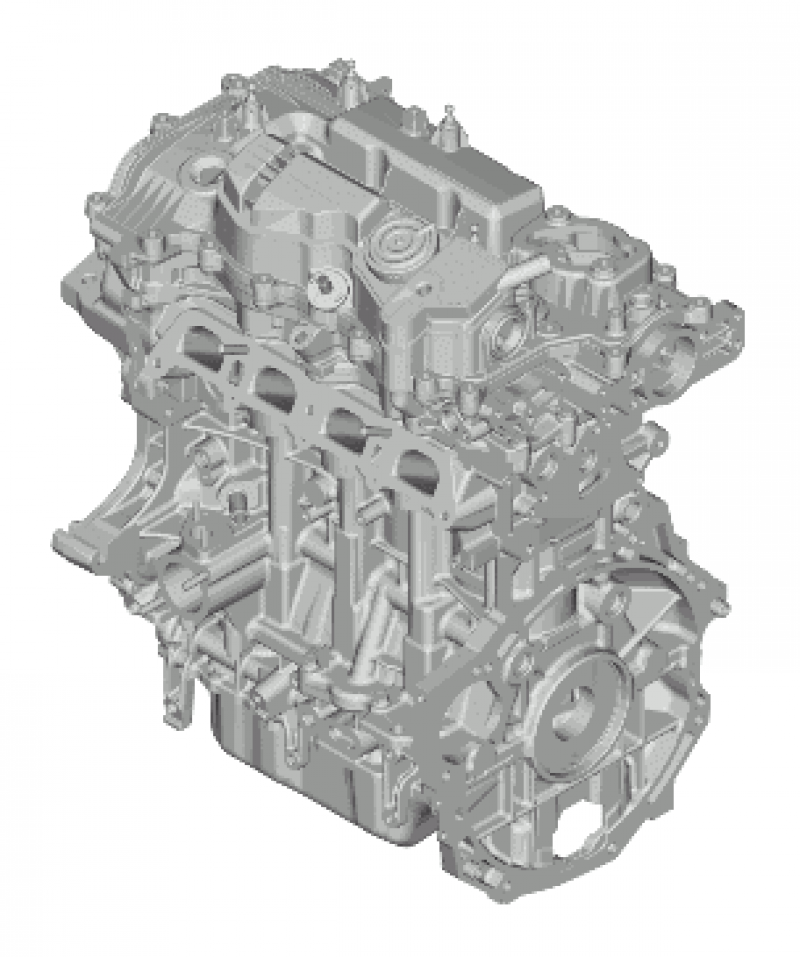

Engine G4FM G4FG
Transmission, automatic in a unit with final drive A6GF1 6/1
Hydraulic brakes/clutch system

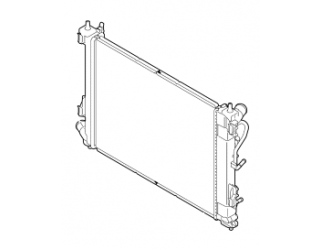

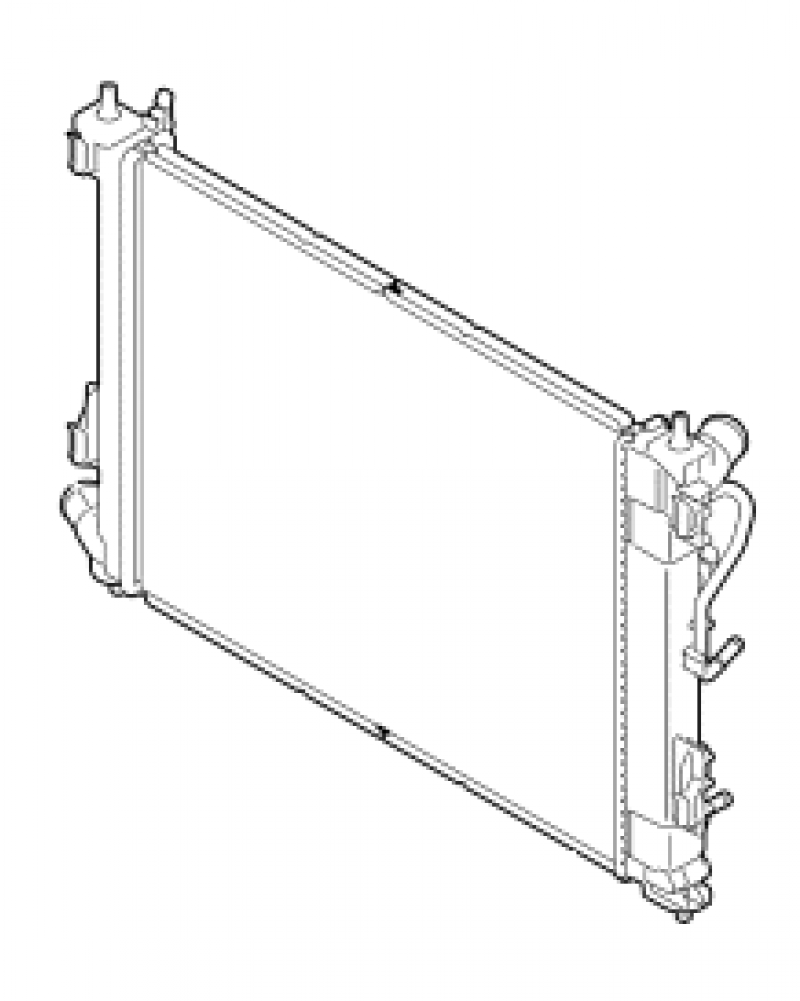

Cooling system

Engine G4FM G4FG

Liquid volume (basic): 3.8 L
Liquid volume (filter): 0.2 L

VSE 0W-20

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Porsche C20, VW 508.00, VW 509.00

Compliance with the requirements:
Ford WSS-M2C 956-A1

show details

SAE: 0W-20

ACEA: C5

Equivalents OEM:
Alpine 0101461, Alpine 0101462, Alpine 0101463, Alpine 0101464, Alpine 0101465, Alpine 101461, Alpine 101462, Alpine 101463, Alpine 101464, Alpine 101465, FEBI 177649, FEBI 177650, FEBI 177651, Porsche 00004321046, VAG G052577, VAG G052577A2, VAG G052577M2, VAG G052577M4, VAG G052577M6, VAG G052577M9, VAG G052577Z2, VAG G052577Z2, VAG G055577A2, VAG G055577M2, VAG G055577M4, VAG G055577M6, VAG GAUR52577M2, VAG GOIS60577M2EUR, VAG GR52577M2, VAG GR52577M4, VAG GR52577M6 Alpine 0101461, Alpine 0101462, Alpine 0101463, Alpine 0101464, Alpine 0101465, Alpine 101461, Alpine 101462, Alpine 101463, Alpine 101464, Alpine 101465, FEBI 177649, FEBI 177650, FEBI 177651, Porsche 00004321046, VAG G052577, VAG G052577A2, VAG G052577M2, VAG G052577M4, VAG G052577M6, VAG G052577M9, VAG G052577Z2, VAG G052577Z2, VAG G055577A2, VAG G055577M2, VAG G055577M4, VAG G055577M6, VAG GAUR52577M2, VAG GOIS60577M2EUR, VAG GR52577M2, VAG GR52577M4, VAG GR52577M6, VAG GR52577M9, VAG GS52577M2, VAG GS60577C2, VAG GS60577C2EUR, VAG GS60577D2, VAG GS60577D2EUR, VAG GS60577F2, VAG GS60577F2EUR, VAG GS60577G2, VAG GS60577G2EUR, VAG GS60577M2, VAG GS60577M2EUR, VAG GS60577M4, VAG GS60577M4EUR, VAG GS60577M6, VAG GS60577M6EUR, VAG GS60577M9, VAG GS60577M9EUR, VAG GS560577M4, VAG GS560577M4EUR, VAG GSKR52577M2, VAG GVWR52577M2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111112-001

Code:
4014835862036

Volume:
4 L

vendor code:
1111112-004

Code:
4014835862067

Volume:
5 L

vendor code:
1111112-005

Code:
4014835862098

Volume:
10 L

vendor code:
1111112-010

Code:
4014835862128

Volume:
20 L

vendor code:
1111112-020

Code:
4014835862166

Volume:
20 L, ecobox

vendor code:
1111112-B20

Code:
4014835862142

Volume:
60 L

vendor code:
1111112-060

Volume:
60 L, print

vendor code:
1111112-D60

Code:
4014835862180

Volume:
208 L

vendor code:
1111112-208

Volume:
208 L, print

vendor code:
1111112-D28

RAVENOL VSE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSE SAE 0W-20 has a high viscosity index because of its formulation with special base oils. The formulation contains chemical marker for identification and is green colored. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL VSE SAE 0W-20 ensures compliance with the viscosity class even with a long oil life over the entire change interval.

By significantly reducing fuel consumption, RAVENOL VSE SAE 0W-20 helps to protect the environment by reducing emissions.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSE SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended.

RAVENOL VSE SAE 0W-20 is specially developed for the latest Volkswagen Specification VW 508 00 / 509 00 (VW Blue Oil).

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Lowered HTHS viscosity for maximum fuel economy.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Contains chemical markers for identification and is green colored.

Parameter	Unit	Value	Audit
Recommendations		Ford WSS-M2C956-A1		Ford WSS-M2C956-A1
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
ACEA		C5		C5
Manufacturer Approved		Porsche C20, VW 508.00, VW 509.00		Porsche C20, VW 508.00, VW 509.00
Recomendations		Ford WSS-M2C 956-A1		Ford WSS-M2C 956-A1
Density at 20 °C	g/cm³	846.4	EN ISO 12185	846.4 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45.3	DIN 51562-1	45.3 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.73	ASTM D5481	2.73 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.900	ASTM D4684	10.900 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	10.4	ASTM D5800	10.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	8.3	ASTM D2896	8.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.77	DIN 51575	0.77 %wt. DIN 51575
Approvals		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00

VSH 0W-20

For engine

RAVENOL VSH SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Manufacturer Approved:
Porsche C20, VW 508.00, VW 509.00

Compliance with the requirements:
Ford WSS-M2C 956-A1

show details

SAE: 0W-20

API: SP

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111154-001

Code:
4014835873490

Volume:
4 L

vendor code:
1111154-004

Code:
4014835873520

Volume:
5 L

vendor code:
1111154-005

Code:
4014835873568

Volume:
10 L

vendor code:
1111154-010

Code:
4014835873599

Volume:
20 L

vendor code:
1111154-020

Code:
4014835873612

Volume:
20 L, ecobox

vendor code:
1111154-B20

Code:
4014835873674

Volume:
60 L

vendor code:
1111154-060

Code:
4014835873636

Volume:
208 L

vendor code:
1111154-208

Code:
4014835873650

RAVENOL VSH SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSH SAE 0W-20 has a high viscosity index because of its formulation with special base oils. The formulation contains chemical marker for identification and is green colored. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL VSH SAE 0W-20 ensures compliance with the viscosity class even with a long oil life over the entire change interval.

By significantly reducing fuel consumption, RAVENOL VSH SAE 0W-20 helps to protect the environment by reducing emissions.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSH SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended.

RAVENOL VSH SAE 0W-20 is specially developed for the latest Volkswagen Specification VW 508 00 / 509 00 (VW Blue Oil).

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Lowered HTHS viscosity for maximum fuel economy.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Contains chemical markers for identification and is green colored.
Excellent for extended oil change intervals.

Parameter	Unit	Value	Audit
Recommendations		Ford WSS-M2C956-A1		Ford WSS-M2C956-A1
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Synthetic		Synthetic
API		SP		SP
ACEA		C5, C6		C5, C6
Manufacturer Approved		Porsche C20, VW 508.00, VW 509.00		Porsche C20, VW 508.00, VW 509.00
Recomendations		Ford WSS-M2C 956-A1		Ford WSS-M2C 956-A1
Density at 20 °C	g/cm³	841	DIN 51757	841 g/cm³ DIN 51757
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	8.6	DIN 51562-1	8.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	44.9	DIN 51562-1	44.9 mm²/s DIN 51562-1
Viscosity Index VI		172	DIN ISO 2909	172 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.77	ASTM D5481	2.77 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5860	ASTM D5293	5860 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	26000	ASTM D4684	26000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9.5	ASTM D5800	9.5 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	8.2	ASTM D2896	8.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00

Eco Synth ECS 0W-20

For engine

Manufacturer Approved:
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010

show details

SAE: 0W-20

ILSAC: GF-5

API: SN (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111102-001

Code:
4014835718517

Volume:
4 L

vendor code:
1111102-004

Code:
4014835718593

Volume:
5 L

vendor code:
1111102-005

Code:
4014835718555

Volume:
10 L

vendor code:
1111102-010

Code:
4014835718548

Volume:
20 L

vendor code:
1111102-020

Code:
4014835718524

Volume:
20 L, ecobox

vendor code:
1111102-B20

Code:
4014835772625

Volume:
60 L, print

vendor code:
1111102-D60

Code:
4014835718531

Volume:
208 L

vendor code:
1111102-208

Volume:
208 L, print

vendor code:
1111102-D28

Code:
4014835718500

Volume:
1000 L

vendor code:
1111102-700

With its new formulation, RAVENOL Eco Synth ECS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL Eco Synth ECS SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL Eco Synth ECS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Eco Synth ECS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable
operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good aging behavior, confirmed by the Hot Tube Test.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Ideal for hybrid vehicles

Parameter	Unit	Value	Audit
Recommendations		Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota		Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
API		SN (RC)		SN (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-5		GF-5
Manufacturer Approved		Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20		Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
Recomendations		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
Suitable for		Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota		Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	41.3	DIN 51562-1	41.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.64	ASTM D5481	2.64 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4890	ASTM D5293	4890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.000	ASTM D4684	10.000 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	9.2	ASTM D2896	9.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.79	DIN 51575	0.79 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010

EFS EcoFullSynth. 0W-20

For engine

Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE

Compliance with the requirements:
Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010

show details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111105-001

Code:
4014835843127

Volume:
4 L

vendor code:
1111105-004

Code:
4014835843158

Volume:
10 L

vendor code:
1111105-010

Code:
4014835860377

Volume:
20 L

vendor code:
1111105-020

Code:
4014835846753

Volume:
20 L, ecobox

vendor code:
1111105-B20

Code:
4014835846777

Volume:
60 L

vendor code:
1111105-060

Code:
4014835846791

Volume:
208 L

vendor code:
1111105-208

Code:
4014835846814

Volume:
1000 L

vendor code:
1111105-700

RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

With its new formulation, RAVENOL Eco Synth EFS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL Eco Synth EFS SAE 0W-20 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

By significantly reducing fuel consumption, RAVENOL Eco Synth EFS SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Eco Synth EFS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Ideal for hybrid vehicles.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo		Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-7A		GF-7A
Manufacturer Approved		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Recomendations		Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010		Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010
Suitable for		Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo		Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	42.7	DIN 51562-1	42.7 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.65	ASTM D5481	2.65 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.240	ASTM D4684	10.240 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	9.7	ASTM D5800	9.7 % ASTM D5800
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	7.5	ASTM D2896	7.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.47	DIN 51575	0.47 %wt. DIN 51575
Approvals		BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE		BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE

EHS 0W-20

For engine

RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE

Compliance with the requirements:
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057

show details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111113-001

Code:
4014835858077

Volume:
4 L

vendor code:
1111113-004

Code:
4014835858107

Volume:
5 L

vendor code:
1111113-005

Code:
4014835858138

Volume:
20 L

vendor code:
1111113-020

Code:
4014835858312

Volume:
20 L, ecobox

vendor code:
1111113-B20

Code:
4014835858336

Volume:
60 L

vendor code:
1111113-060

Code:
4014835858374

Volume:
60 L, print

vendor code:
1111113-D60

Volume:
208 L

vendor code:
1111113-208

Code:
4014835858411

Volume:
208 L, print

vendor code:
1111113-D28

Volume:
1000 L

vendor code:
1111113-700

Volume:
10 L

vendor code:
1111113-010

Code:
4014835886735

RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By a significant fuel economy RAVENOL EHS SAE 0W-20 contributes by reducing emissions to protect the environment. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL EHS SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL EHS SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Reduces CO2 emissions, protect the environment.
Ideal for hybrid vehicles.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Synthetic		Synthetic
API		SQ (RC)		SQ (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-7A		GF-7A
Manufacturer Approved		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Recomendations		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
Suitable for		Geely, Lynk & Co, Polestar, Volvo		Geely, Lynk & Co, Polestar, Volvo
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	43.8	DIN 51562-1	43.8 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.76	ASTM D5481	2.76 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5490	ASTM D5293	5490 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	12.700	ASTM D4684	12.700 mPa*s ASTM D4684
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Noack Volatility	%	10.4	ASTM D5800	10.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.64	DIN 51575	0.64 %wt. DIN 51575
Approvals		BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057		BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive A6GF1 6/1

Liquid volume (basic): 6 L

ATF SP-IV Fluid

For automatic transmission

RAVENOL ATF SP-IV Fluid meets the requirements of the latest gear oil specifications from Hyundai and KIA.

show details

Equivalents OEM:
Chrysler 68171866AA, Chrysler 68171866AB, Chrysler 68171866GA, Chrysler 68171866GA, Chrysler 68171869AA, Chrysler 68171869AB, Chrysler 68171869GB, Hyundai 0450000125, Hyundai 0450000125EU, Hyundai Motor 002321904, Hyundai Motor 0023219045, Hyundai Motor 0023219057, Hyundai Motor 0023219059, Hyundai Motor 0450000A15, Hyundai Motor 0450000115, Hyundai Motor 450000115, Hyundai Motor UM090CH042, Hyundai XTeer 1011006, Hyundai XTeer 1041017, Hyundai XTeer 1121014, Hyundai XTeer 1200017, SsangYong 0000000850, SsangYong LLKSPIV001

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211107-001

Code:
4014835714014

Volume:
4 L

vendor code:
1211107-004

Code:
4014835714090

Volume:
10 L

vendor code:
1211107-010

Code:
4014835719149

Volume:
20 L

vendor code:
1211107-020

Code:
4014835719125

Volume:
20 L, ecobox

vendor code:
1211107-B20

Code:
4014835785021

Volume:
60 L

vendor code:
1211107-060

Volume:
60 L, print

vendor code:
1211107-D60

Code:
4014835719132

Volume:
208 L

vendor code:
1211107-208

Volume:
208 L, print

vendor code:
1211107-D28

Code:
4014835719101

RAVENOL ATF SP-IV Fluid meets the requirements of the latest gear oil specifications from Hyundai and KIA.

Application Note

RAVENOL ATF SP-IV Fluid is recommended for all vehicles with Hyundai/ KIA 6-stroke automatic transmission A6LF1/2/3, A6GF1, A6MF1/2 from 2009 and 8-speed Hyundai/KIA automatic transmission A8LF1/2, A8MF1 from 2019.

Follow the recommendations of the instruction manual of your vehicle.

ATTENTION!

For 8-speed Hyundai/KIA automatic transmissions A8LR1 and A8TR1 from 2010 only RAVENOL ATF SP-IV RR Fluid is recommended.

Characteristics

phenomenal resistance of lubricant failure under hard operating conditions
a long oil durability, extension of the durability of the transmission, offers longer changing intervals
phenomenal resistance of oil sludge and deposit accumulation
an excellent corrosion protection, a much better foaming resistance for a smooth switching operation as well as a lower corrosion of the bearings, sleeves and gear wheels
an excellent flow behaviour at low temperatures
a constant switching operation performance, optimised friction characteristics
prevention of coupling grinding regarding modulation rotary conversion
a long durability of oil and coupling, offers a smooth switching operation at low temperatures
an improved shear stability

Parameter	Unit	Value	Audit
Recommendations		6-Gang Hyundai Automatik, 8-Gang Hyundai/KIA Automatikgetriebe, Azera TG 2011- V6 3.3L 3.8L, Forte/Forte Koup 2010- L4 2.0L 2.4L, Grandeur HG 2011- V6 3.3L 3.8L, Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai SP-IV-M, Hyundai SP-IV-M1, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-, KIA UM090 CH042 für Sorento 2009- V6 3.3L 3.5L 3.8, Optima TF 2011- L4 2.0L 2.4L, Sedona VQ 2011- V6 3.5L, Veracruz 2011- V6 3.0		6-Gang Hyundai Automatik, 8-Gang Hyundai/KIA Automatikgetriebe, Azera TG 2011- V6 3.3L 3.8L, Forte/Forte Koup 2010- L4 2.0L 2.4L, Grandeur HG 2011- V6 3.3L 3.8L, Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai SP-IV-M, Hyundai SP-IV-M1, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-, KIA UM090 CH042 für Sorento 2009- V6 3.3L 3.5L 3.8, Optima TF 2011- L4 2.0L 2.4L, Sedona VQ 2011- V6 3.5L, Veracruz 2011- V6 3.0
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Suitable for		Hyundai 6-Gang Automatik, Hyundai Azera TG 2011- V6 3.3L 3.8L, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai Grandeur HG 2011- V6 3.3L 3.8L, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sedona VQ 2011- V6 3.5L, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, Hyundai Veracruz 2011- V6 3.0, Hyundai/KIA 8-speed automatic transmission, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA Forte/Forte Koup 2010- L4 2.0L 2.4L, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Optima TF 2011- L4 2.0L 2.4L, KIA Sorento 2009- V6 3.3L 3.5L 3.8, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-		Hyundai 6-Gang Automatik, Hyundai Azera TG 2011- V6 3.3L 3.8L, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai Grandeur HG 2011- V6 3.3L 3.8L, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sedona VQ 2011- V6 3.5L, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, Hyundai Veracruz 2011- V6 3.0, Hyundai/KIA 8-speed automatic transmission, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA Forte/Forte Koup 2010- L4 2.0L 2.4L, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Optima TF 2011- L4 2.0L 2.4L, KIA Sorento 2009- V6 3.3L 3.5L 3.8, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-
Compliant products		Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai SP-IV-M, Hyundai SP-IV-M1, KIA UM090-CH042		Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai SP-IV-M, Hyundai SP-IV-M1, KIA UM090-CH042
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016

Hydraulic brakes/clutch system

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system
OEM: 25310-H9000

Liquid volume (basic): 6.6 L

HJC Hybrid Japanese Coolant PREMIX -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410123-150

Code:
4014835755918

Volume:
5 L

vendor code:
1410123-005

Code:
4014835755956

Volume:
10 L

vendor code:
1410123-010

Volume:
20 L

vendor code:
1410123-020

Code:
4014835755925

Volume:
20 L, ecobox

vendor code:
1410123-B20

Code:
4014835855977

Volume:
60 L, plastic

vendor code:
1410123-060

Code:
4014835755963

Volume:
208 L

vendor code:
1410123-208

Code:
4014835755987

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HJC Hybrid Japanese Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1082	EN ISO 12185	1082 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
pH - value		7 — 8.5	ASTM D1287	7 — 8.5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

HJC Hybrid Japanese Coolant Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410122-150

Code:
4014835755819

Volume:
5 L

vendor code:
1410122-005

Code:
4014835755857

Volume:
10 L

vendor code:
1410122-010

Volume:
20 L

vendor code:
1410122-020

Code:
4014835755826

Volume:
20 L, ecobox

vendor code:
1410122-B20

Code:
4014835855489

Volume:
60 L

vendor code:
1410122-060

Code:
4014835755864

Volume:
208 L

vendor code:
1410122-208

Code:
4014835755888

Volume:
1000 L

vendor code:
1410122-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HJC Hybrid Japanese Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1132	EN ISO 12185	1132 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	150 —	ASTM D1121	150 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,5	ASTM D1287	7,0 - 8,5 ASTM D1287
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
