Oil for Mercedes-Benz E-Class, W214 / C214 E 260L 4MATIC 214.151 (year of issue from 2024 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Mercedes-Benz - E-Class, W214 / C214 - E 260L 4MATIC 214.151

Mercedes-Benz E-Class, W214 / C214 E 260L 4MATIC 214.151, year of issue from 2024 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Engine 254.920

Liquid volume (basic): 6 L

Eco Synth ECS 0W-20

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010

show details

SAE: 0W-20

ILSAC: GF-5

API: SN (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111102-001

Code:
4014835718517

Volume:
4 L

vendor code:
1111102-004

Code:
4014835718593

Volume:
5 L

vendor code:
1111102-005

Code:
4014835718555

Volume:
10 L

vendor code:
1111102-010

Code:
4014835718548

Volume:
20 L

vendor code:
1111102-020

Code:
4014835718524

Volume:
20 L, ecobox

vendor code:
1111102-B20

Code:
4014835772625

Volume:
60 L, print

vendor code:
1111102-D60

Code:
4014835718531

Volume:
208 L

vendor code:
1111102-208

Volume:
208 L, print

vendor code:
1111102-D28

Code:
4014835718500

Volume:
1000 L

vendor code:
1111102-700

With its new formulation, RAVENOL Eco Synth ECS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL Eco Synth ECS SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL Eco Synth ECS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Eco Synth ECS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable
operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good aging behavior, confirmed by the Hot Tube Test.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Ideal for hybrid vehicles

Parameter	Unit	Value	Audit
Recommendations		Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota		Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
API		SN (RC)		SN (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-5		GF-5
Manufacturer Approved		Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20		Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
Recomendations		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
Suitable for		Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota		Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	41.3	DIN 51562-1	41.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.64	ASTM D5481	2.64 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4890	ASTM D5293	4890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.000	ASTM D4684	10.000 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	9.2	ASTM D2896	9.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.79	DIN 51575	0.79 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010

EFS EcoFullSynth. 0W-20

For engine

Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE

Compliance with the requirements:
Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010

show details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111105-001

Code:
4014835843127

Volume:
4 L

vendor code:
1111105-004

Code:
4014835843158

Volume:
10 L

vendor code:
1111105-010

Code:
4014835860377

Volume:
20 L

vendor code:
1111105-020

Code:
4014835846753

Volume:
20 L, ecobox

vendor code:
1111105-B20

Code:
4014835846777

Volume:
60 L

vendor code:
1111105-060

Code:
4014835846791

Volume:
208 L

vendor code:
1111105-208

Code:
4014835846814

Volume:
1000 L

vendor code:
1111105-700

RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

With its new formulation, RAVENOL Eco Synth EFS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL Eco Synth EFS SAE 0W-20 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

By significantly reducing fuel consumption, RAVENOL Eco Synth EFS SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Eco Synth EFS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Ideal for hybrid vehicles.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo		Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-7A		GF-7A
Manufacturer Approved		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Recomendations		Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010		Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010
Suitable for		Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo		Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	42.7	DIN 51562-1	42.7 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.65	ASTM D5481	2.65 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.240	ASTM D4684	10.240 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	9.7	ASTM D5800	9.7 % ASTM D5800
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	7.5	ASTM D2896	7.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.47	DIN 51575	0.47 %wt. DIN 51575
Approvals		BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE		BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE

EHS 0W-20

For engine

RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE

Compliance with the requirements:
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057

show details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111113-001

Code:
4014835858077

Volume:
4 L

vendor code:
1111113-004

Code:
4014835858107

Volume:
5 L

vendor code:
1111113-005

Code:
4014835858138

Volume:
20 L

vendor code:
1111113-020

Code:
4014835858312

Volume:
20 L, ecobox

vendor code:
1111113-B20

Code:
4014835858336

Volume:
60 L

vendor code:
1111113-060

Code:
4014835858374

Volume:
60 L, print

vendor code:
1111113-D60

Volume:
208 L

vendor code:
1111113-208

Code:
4014835858411

Volume:
208 L, print

vendor code:
1111113-D28

Volume:
1000 L

vendor code:
1111113-700

Volume:
10 L

vendor code:
1111113-010

Code:
4014835886735

RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By a significant fuel economy RAVENOL EHS SAE 0W-20 contributes by reducing emissions to protect the environment. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL EHS SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL EHS SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Reduces CO2 emissions, protect the environment.
Ideal for hybrid vehicles.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Synthetic		Synthetic
API		SQ (RC)		SQ (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-7A		GF-7A
Manufacturer Approved		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE		BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Recomendations		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057		BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
Suitable for		Geely, Lynk & Co, Polestar, Volvo		Geely, Lynk & Co, Polestar, Volvo
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	43.8	DIN 51562-1	43.8 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.76	ASTM D5481	2.76 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5490	ASTM D5293	5490 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	12.700	ASTM D4684	12.700 mPa*s ASTM D4684
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Noack Volatility	%	10.4	ASTM D5800	10.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.64	DIN 51575	0.64 %wt. DIN 51575
Approvals		BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057		BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic 9/1 725.171

Liquid volume (basic): 11 L

ATF M 9-G Serie

For automatic transmission

RAVENOL ATF M 9-G Serie is an ATF (Automatic Transmission Fluid) developed for all 9-gear automatic transmissions (9G-Tronic) of motor vehicles by Mercedes-Benz. Guarantees maximum wear protection in every operating state.

Compliance with the requirements:
ATF D971, MB 236.16, MB 236.17

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211139-001

Code:
4014835842397

Volume:
4 L

vendor code:
1211139-004

Code:
4014835842427

Volume:
10 L

vendor code:
1211139-010

Code:
4014835847897

Volume:
20 L, ecobox

vendor code:
1211139-B20

Code:
4014835847873

Volume:
60 L

vendor code:
1211139-060

Volume:
208 L

vendor code:
1211139-208

Code:
4014835853041

Volume:
1000 L

vendor code:
1211139-700

Volume:
20 L

vendor code:
1211139-020

Code:
4014835848269

RAVENOL ATF M 9-G Serie is an ATF (Automatic Transmission Fluid) developed for all 9-gear automatic transmissions (9G-Tronic) of motor vehicles by Mercedes-Benz. Guarantees maximum wear protection in every operating state.

Application Note

RAVENOL ATF M 9-G Serie was developed for use in the 9G-Tronic automatic transmission of the Series W9A 700 by Mercedes-Benz and JR913E from Jatco for Nissan Titan 2020 – 2024, Nissan Frontier from 2020- and Nissan Z (RZ34) 2023-). These Transmissions are also known under the name NAG3 (New Automatic Transmission of the 3rd Generation) of the type 725.011.

RAVENOL ATF M 9-G Serie can also be used in aggregates with the specification MB 236.16 (A 001 989 92 03), since these were replaced by the new specification MB 236.17.

RAVENOL ATF M 9-G Serie must not be used in older Mercedes Benz 5 and 7-gear automatic transmission, which require automatic transmission oil according to the MB approval MB 236.10, 236.12, 236.14 or 236.15.

Characteristics

Very good lubricity even at low temperatures in winter, very low pour point
High, stable viscosity index
Very good oxidation stability
Broadest protection against wear, corrosion and foaming
An excellent shear stability due to a high thermal and oxidative stability
An excellent friction characteristic
An excellent cooling capability

Parameter	Unit	Value	Audit
Recommendations		ATF D971, MB 236.17, Mercedes A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P		ATF D971, MB 236.17, Mercedes A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		ATF D971, MB 236.16, MB 236.17		ATF D971, MB 236.16, MB 236.17
Compliant products		MB A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P		MB A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P
Density at 20 °C	g/cm³	834	EN ISO 12185	834 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Approvals		ATF D971, MB 236.16, MB 236.17		ATF D971, MB 236.16, MB 236.17

Transfer case

Liquid volume (basic): 1 L

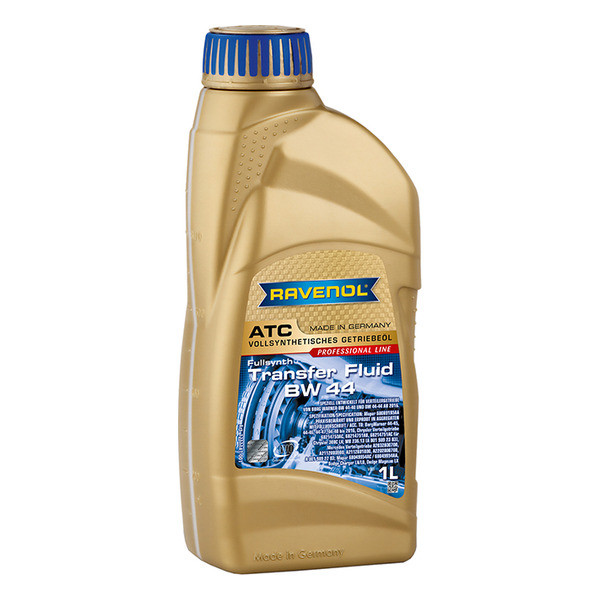

Transfer Fluid BW 44

Transmission oil

RAVENOL Transfer Fluid BW 44 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

Compliance with the requirements:
BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, MB 236.13

show details

Equivalents OEM:
Chrysler 00K68049954AA, Chrysler 68049954AA, Chrysler 68049954AB, Chrysler 68049954AC, Chrysler 68049954GA, Chrysler 68049954GB, Chrysler 68049954GB, Chrysler 68089195AA, Chrysler 68089195GA, Chrysler K68049954AA, Fiat K68049954AB, Fiat K68049954AC, GM 104044, GM 88861950, GM 88861951, MB A0019892303, MB A001989230309, MB A001989230310, Porsche 00004320933, Porsche 00004330297, Porsche 00004330341

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211147-001

Code:
4014835870321

RAVENOL Transfer Fluid BW 44 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

RAVENOL Transfer Fluid BW 44 ensures optimum power transmission.

Application Note

RAVENOL Transfer Fluid BW 44 was developed for use in Borg-Warner transmission systems BW 44-40 and BW 44-44 from 2016.

RAVENOL Transfer Fluid BW 44 provides a stable viscosity even under the highest loads. It is particularly suitable when a specification according to MB 236.13 is required for Mercedes A001 989 23 03; Mercedes transfer case A2202800700, A2112801000, A2112800900, A2032800700, A2112801000, A2112800900, A2032800700 for 4Matik S-Klasse W220, E-Klasse W211, C-Klasse W203. Also suitable for Chrysler transfer case 68214750AC, 68214751AB, 68214751AC for Chrysler 300C LX, Dodge Charger LX/LD, Dodge Magnum LX.

Characteristics

Very good lubricating ability even at very low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against wear, corrosion and foam formation
Good balanced coefficient of friction
Neutral towards sealing materials
Neutral behavior by inhibition compared with non-ferrous metals

Parameter	Unit	Value	Audit
Recommendations		BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45 bis 2016, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, Chrysler 300C LX, Chrysler Verteilgetriebe 68214750AC, Chrysler Verteilgetriebe 68214751AB, Chrysler Verteilgetriebe 68214751AC für 300C LX, MB 236.13 (A 001 989 23 03), Mercedes A 001 989 22 03, Mercedes Verteilgetriebe A2032800700, Mercedes Verteilgetriebe A2112800900, Mercedes Verteilgetriebe A2112801000, Mercedes Verteilgetriebe A2202800700, Mopar 68049954AC / 68049954AA		BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45 bis 2016, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, Chrysler 300C LX, Chrysler Verteilgetriebe 68214750AC, Chrysler Verteilgetriebe 68214751AB, Chrysler Verteilgetriebe 68214751AC für 300C LX, MB 236.13 (A 001 989 23 03), Mercedes A 001 989 22 03, Mercedes Verteilgetriebe A2032800700, Mercedes Verteilgetriebe A2112800900, Mercedes Verteilgetriebe A2112801000, Mercedes Verteilgetriebe A2202800700, Mopar 68049954AC / 68049954AA
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, MB 236.13		BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, MB 236.13
Suitable for		Chrysler 300C LX		Chrysler 300C LX
Compliant products		Chrysler 68214750AC, Chrysler 68214751AB, Chrysler 68214751AC, MB A 001 989 22 03, MB A 001 989 23 03, MB A 203 280 07 00, MB A 211 280 09 00, MB A 211 280 10 00, MB A 220 280 07 00, Mopar 68049954AA, Mopar 68049954AC		Chrysler 68214750AC, Chrysler 68214751AB, Chrysler 68214751AC, MB A 001 989 22 03, MB A 001 989 23 03, MB A 203 280 07 00, MB A 211 280 09 00, MB A 211 280 10 00, MB A 220 280 07 00, Mopar 68049954AA, Mopar 68049954AC
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Yellow	DIN 51757	Yellow DIN 51757
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	37.2	DIN 51562-1	37.2 mm²/s DIN 51562-1
Viscosity Index VI		162	DIN ISO 2909	162 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	7900	ASTM D2983	7900 mPa*s ASTM D2983
Pourpoint	°C	-66	DIN ISO 3016	-66 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
Copper Strip Test at 150 °C		1a	ASTM D130	1a ASTM D130
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
VKA Four Ball Test (Wear)	mm	0.34	DIN EN ISO 20623	0.34 mm DIN EN ISO 20623
VKA Four Ball Test (EP Extreme Pressure)	N	2200 / 2400	DIN EN ISO 20623	2200 / 2400 N DIN EN ISO 20623
Approvals		BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, MB 236.13		BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, MB 236.13

Differential, rear,

Liquid volume (basic): 2 L

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details

SAE: 75W-85

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
A stable lubricating film even at high oil temperatures and under high stress.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18		AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand		RAVENOL		RAVENOL
SAE		75W-85		75W-85
Type		Full synthetic		Full synthetic
API		GL-5 LS		GL-5 LS
Recomendations		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C	g/cm³	862	EN ISO 12185	862 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64.3	DIN 51562-1	64.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	26.000	ASTM D2983	26.000 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Hydraulic brakes/clutch system

Liquid volume (basic): 1 L

DOT 4 LV

Brake fluid

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1350605-001

Code:
4014835862326

Volume:
20 L

vendor code:
1350605-020

DOT 4

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.

RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.

Application Note

RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.

RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.

RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.

To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.

RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

Fluidity even at very low temperatures
Optimal ABS properties.
Chemical stability.
High lubricating power
Neutral behavior towards brake parts.
Can be mixed with all brake fluids of the same specification.

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4 LV		DOT-4 LV
Recommendations		Ford WSS-M6C65-A2, VW 501 14		Ford WSS-M6C65-A2, VW 501 14
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Ford WSS-M6C 65-A2, VW 501.14		Ford WSS-M6C 65-A2, VW 501.14
specification		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.1	ASTM D445	2.1 mPa*s ASTM D445
Viscosity at -40 °C	cSt	675	ASTM D445	675 cSt ASTM D445
Boiling point	°C	267	FMVSS 116	267 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	172	FMVSS 116	172 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14

Cooling system main

ETC Premix -40C Protect C12evo

Antifreeze

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, VOLVO TR-31854114-002, VOLVO TR 1286083, VOLVO VCS-2, VW L 774-L (entspricht G12evo)

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410166-150

Code:
4014835882614

Volume:
5 L

vendor code:
1410166-005

Code:
4014835882546

Volume:
20 L

vendor code:
1410166-020

Code:
4014835882577

Volume:
20 L, ecobox

vendor code:
1410166-B20

Code:
4014835882676

Volume:
60 L

vendor code:
1410166-060

Code:
4014835882591

Volume:
208 L

vendor code:
1410166-208

Code:
4014835882645

Volume:
1000 L

vendor code:
1410166-700

RAVENOL ETC Premix -40°C Protect C12evo protects the cooling system from corrosion and frost as well as from overheating in summer.

Application Note

RAVENOL ETC Premix -40°C Protect C12evo is a premixed coolant with frost and corrosion protection for year-round use in automotive engines. Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions:

Clean cooling system, check for leaks, flush. Add RAVENOL ETC Premix -40°C Protect C12evo to fill level.

Characteristics

Modern additive inhibitors based on Si-OAT technology
Premium anticorrosion additives for optimal protection for all metals and metal alloys used in coolingsystems, including aluminium
Long-term corrosion protection up to 5 years
Compatible with elastomers used in automotive radiators
Prevention of deposits and foam formation in the cooling system
Miscibility with all other types of radiator antifreeze
Free from nitrites, amines, phosphates, borates and 2-ethylhexanoic acid (2-EHA)
Outstanding protection against thermal stress

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 326.0 (Premix), MB 326.6 (Premix), MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 326.0 (Premix), MB 326.6 (Premix), MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4985, D6210		D3306, D4985, D6210
Recomendations		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
Density at 20 °C	g/cm³	1078	EN ISO 12185	1078 g/cm³ EN ISO 12185
Color		pink	visual	pink visual
Reserve alkalinity	mgKOH/g	4 —	ASTM D1121	4 — mgKOH/g ASTM D1121
Boiling point	°C	111.1	ASTM D1120	111.1 °C ASTM D1120
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
pH - value at 20 °C (50 Vol %)		>8	ASTM D1287	>8 ASTM D1287
pH - value at 20 °C		>8	ASTM D1287	>8 ASTM D1287
Approvals		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)

ETC Concentrate Protect C12evo

Compliance with the requirements:
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, VOLVO TR-31854114-002, VOLVO TR 1286083, VOLVO VCS-2, VW L 774-L (entspricht G12evo)

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410165-150

Code:
4014835882478

Volume:
5 L

vendor code:
1410165-005

Code:
4014835882409

Volume:
20 L

vendor code:
1410165-020

Code:
4014835882430

Volume:
20 L, ecobox

vendor code:
1410165-B20

Code:
4014835882522

Volume:
60 L

vendor code:
1410165-060

Code:
4014835882454

Volume:
208 L

vendor code:
1410165-208

Volume:
1000 L

vendor code:
1410165-700

RAVENOL ETC Concentrate Protect C12evo protects the cooling system from corrosion, frost and from overheating in summer.

Application Note

RAVENOL ETC Concentrate Protect C12evo with highly effective frost and corrosion protection. Application according to the mixture table. Follow manufacturer's recommendations.

Instructions for use: Clean the cooling system, check for leaks, flush. Mix RAVENOL ETC Concentrate Protect C12evo with demineralized or distilled water (according to the mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

ATTENTION: Never use undiluted! We recommend a mixing ratio of 50:50 (vol %). The minimum proportion of antifreeze concentrate should be between 35% - 60%, otherwise the product will not have a sufficient effect.

Mixture table:

Frost protection up to approx.	proportion of concentrate	proportion of water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Modern additive inhibitors based on Si-OAT technology
Premium anticorrosion additives for optimal protection for all metals and metal alloys used in coolingsystems, including aluminium
Long-term corrosion protection up to 5 years
Compatible with elastomers used in automotive radiators
Prevention of deposits and foam formation in the cooling system
Miscibility with all other types of radiator antifreeze
Free from nitrites, amines, phosphates, borates and 2-ethylhexanoic acid (2-EHA)
Outstanding protection against thermal stress

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 325.0 (Konzentrat), MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 325.0 (Konzentrat), MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4985, D6210		D3306, D4985, D6210
Recomendations		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
Density at 20 °C	g/cm³	1125	EN ISO 12185	1125 g/cm³ EN ISO 12185
Color		pink	visual	pink visual
Reserve alkalinity	mgKOH/g	10 —	ASTM D1121	10 — mgKOH/g ASTM D1121
Boiling point	°C	178.9	ASTM D1120	178.9 °C ASTM D1120
Water content	%	— 4	ASTM D1123	— 4 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-38	ASTM D1177	-38 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5-8,5	ASTM D1287	7,5-8,5 ASTM D1287
Approvals		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
