RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.How the Haldex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.
Compliance with the requirements:
VW G 052 175, VW G 055 175, VW G 060 175
Equivalent: 101172 FEBI Febi Haldex, 0.85 0.85L.
Equivalents OEM:
BMW 83222413513,
FEBI 101170,
FEBI 101171,
FEBI 101172,
Ford 8U7J8708687A,
Ford 8U7J8708687AA,
Ford 1524498,
Ford 1931273,
Ford FU7J8708687AA,
GM 1940057,
GM 88863349,
GM 88863350,
GM 93165387,
Jaguar/Land Rover T4A15328,
Land Rover 469815DE01,
Land Rover LR003136,
Land Rover LR054941,
Land Rover LR160851,
Land Rover SL12301,
Motorcraft XL13,
SWAG 30101170,
SWAG 30101171,
SWAG 30101172,
VAG G052175,
VAG G052175A1,
VAG G052175A2,
VAG G052175S0,
VAG G055175,
VAG G055175A1,
VAG G055175A2,
VAG G055175S0
BMW 83222413513, FEBI 101170, FEBI 101171, FEBI 101172, Ford 8U7J8708687A, Ford 8U7J8708687AA, Ford 1524498, Ford 1931273, Ford FU7J8708687AA, GM 1940057, GM 88863349, GM 88863350, GM 93165387, Jaguar/Land Rover T4A15328, Land Rover 469815DE01, Land Rover LR003136, Land Rover LR054941, Land Rover LR160851, Land Rover SL12301, Motorcraft XL13, SWAG 30101170, SWAG 30101171, SWAG 30101172, VAG G052175, VAG G052175A1, VAG G052175A2, VAG G052175S0, VAG G055175, VAG G055175A1, VAG G055175A2, VAG G055175S0, VAG G055175S2, VAG G060175, VAG G060175A2, VAG G060175S0, VAG G065175, VAG G065175A2, VAG N052175Y0, VAG N052175Z0, Volvo 1161641, Volvo 30759648, Volvo 31325136, Volvo 31367940, Volvo 31367941, Volvo 32240904, Volvo 32240904, Volvo 313679940
- Available packaging
- Product parameters
RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.How the Haldex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.
RAVENOL AWD-H FLUID supports this power transfer process with its outstanding qualities.
Application Note
RAVENOL AWD-H Fluid is suitable for use with all-wheel drive powertrains with Haldex couplings in AUDI, VOLKSWAGEN, SEAT, SKODA, OPEL, LANDROVER and VOLVO vehicles.
RAVENOL AWD-H Fluid should be changed every 60.000 km in order to avoid damage to the powertrain.
RAVENOL recommendation: When changing the oil, always change the oil filter of the Haldex coupling and clean the pre-filter of the oil pump or replace it at the same time. This prevents damage to the Haldex caused by deposits or clogging of the filters.
Characteristics
- An excellent flow behaviour at low temperatures
- High, stable viscosity index
- Very good oxidation stability
- Reliable protection against wear, corrosion and foaming
- Excellent coefficient of friction constancy
- High thermal and oxidative stability
- Excellent cooling ability
- Improved shear stability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | VW G 052 175, VW G 055 175, VW G 060 175 |
VW G 052 175, VW G 055 175, VW G 060 175
|
||
| Compliant products | BMW 83222413513, GM 93165387, Land Rover LR003136, Land Rover LR054941, Opel 1940057, Volvo 31367940, VW G 052 175, VW G 055 175, VW G 060 175 |
BMW 83222413513, GM 93165387, Land Rover LR003136, Land Rover LR054941, Opel 1940057, Volvo 31367940, VW G 052 175, VW G 055 175, VW G 060 175
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Colour Code | 1 | DIN ISO 2049 |
1
DIN ISO 2049
|
|
| Viscosity at 100 °C | mm²/s | 5.4 | DIN 51562-1 |
5.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 24.5 | DIN 51562-1 |
24.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 6060 | ASTM D5481 |
6060
mPa*s
ASTM D5481
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Flashpoint | °C | 192 | DIN EN ISO 2592 |
192
°C
DIN EN ISO 2592
|
| VKA Four Ball Test (Wear) | mm | 0.58 | DIN 51350-3 |
0.58
mm
DIN 51350-3
|
| VKA Four Ball Test (EP Extreme Pressure) | N | 2000 / 2200 | DIN 51350-3 |
2000 / 2200
N
DIN 51350-3
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 150 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | VW G 052 175, VW G 055 175, VW G 060 175 |
VW G 052 175, VW G 055 175, VW G 060 175
|
RAVENOL WIV II SAE 0W-30 has been specially developed for VW and Audi petrol engines and diesel engines (from model year 2000 with intermittent extension WIV) including pump-nozzle engines. It allows significantly longer maintenance intervals. Excellent cold start characteristics due to a faster oiling of the system. It ensures reduced friction losses and high oil film stability as well as excellent viscosity-temperature behavior.
Compliance with the requirements:
VW 503.00, VW 506.00, VW 506.01
Equivalent: 101172 Motul Motul Specific VW 506.01-506.00-503.00 0W-30 60L.
SAE: 0W-30
Equivalents OEM:
BMW 83122219739, VAG G052183M2, VAG G052183M4, VAG G052183M6, VAG G052183M9, VAG G052183S0, VAG G052183S0, VAG GR52183M2, VAG GR52183M4, VAG GR52183M6, VAG GS60183M2, VAG GS60183M2EUR, VAG GS60183M3, VAG GS60183M3EUR
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1111101-020
Volume:
20 L, ecobox
vendor code:
1111101-B20

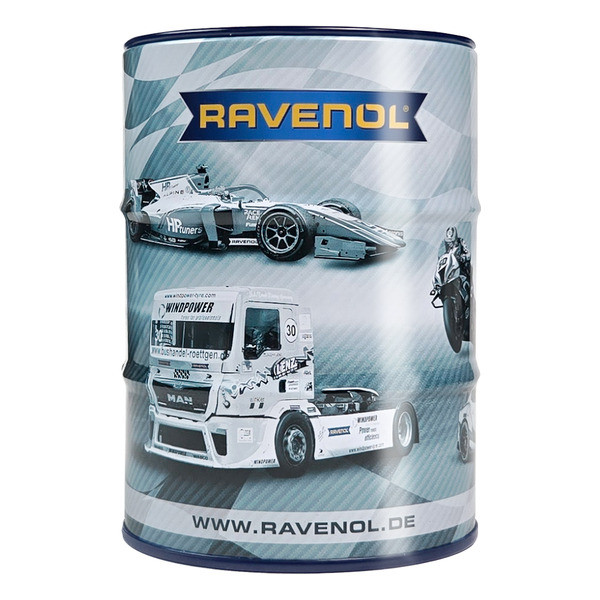

Volume:
208 L, print
vendor code:
1111101-D28
Volume:
1000 L
vendor code:
1111101-700
Volume:
60 L
vendor code:
1111101-060
RAVENOL WIV II SAE 0W-30 has been specially developed for VW and Audi petrol engines and diesel engines (from model year 2000 with intermittent extension WIV) including pump-nozzle engines. It allows significantly longer maintenance intervals. Excellent cold start characteristics due to a faster oiling of the system. It ensures reduced friction losses and high oil film stability as well as excellent viscosity-temperature behavior.
Application Note
RAVENOL WIV II SAE 0W-30 can be used in all long-life vehicles (except for models that require a product to VW standard 503 01).
Attention: Extended oil change intervals must never be used in engines of non-WIV vehicles. In this case, RAVENOL WIV II SAE 0W-30 may only be used with change intervals that are described by the manufacturer.
Characteristics
- It is recommended for VW and Audi gasoline and diesel engines (model year 2000 with WIV service interval prolongation), including pump-nozzle engines.
- A special low-friction character and an excellent range by special additives.
- An excellent engine protection, even after a cold start and under stricter conditions.
- Guaranteed for maximum wear protection and engine cleanliness combined with reduced fuel consumption.
- Provides extended oil change intervals due to its exceptional product stability.
- Supports the protection of the environment through reduced emissions.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-30 |
0W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| ACEA | A5, B5 |
A5, B5
|
||
| Recomendations | VW 503.00, VW 506.00, VW 506.01 |
VW 503.00, VW 506.00, VW 506.01
|
||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.1 | DIN 51562-1 |
10.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 55.3 | DIN 51562-1 |
55.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 174 | DIN ISO 2909 |
174
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.92 | ASTM D5481 |
2.92
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5351 | ASTM D5293 |
5351
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 14.130 | ASTM D4684 |
14.130
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 10.3 | ASTM D5800 |
10.3
% M/M
ASTM D5800
|
| Flashpoint | °C | 220 | DIN EN ISO 2592 |
220
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.2 | ASTM D2896 |
10.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.12 | DIN 51575 |
1.12
%wt.
DIN 51575
|
| Approvals | VW 503.00, VW 506.00, VW 506.01 |
VW 503.00, VW 506.00, VW 506.01
|
