RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1223302-004
Volume:
10 L
vendor code:
1223302-010
Volume:
20 L, ecobox
vendor code:
1223302-B20
Volume:
1000 L
vendor code:
1223302-700
Volume:
1 L
vendor code:
1223302-001
Volume:
20 L
vendor code:
1223302-020
Volume:
60 L
vendor code:
1223302-060
Volume:
208 L
vendor code:
1223302-208
RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Application Note
RAVENOL Sperrdiff.-Getr.-Oel LS 90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.
Characteristics
- Extremely high load carrying capacity
- Excellent wear protection by EP agents
- Excellent "limited slip" – Features
- Excellent resistance to aging
- High oxidation resistance even under high thermal stress
- Good foam / air separation and behave well at high speeds
- Neutrality towards non-ferrous metals and seals
- Excellent viscosity-temperature behavior
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 90 |
90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C |
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 889 | EN ISO 12185 |
889
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.6 | DIN 51562-1 |
17.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 177.3 | DIN 51562-1 |
177.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 12.400 | ASTM D2983 |
12.400
mPa*s
ASTM D2983
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C |
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
|

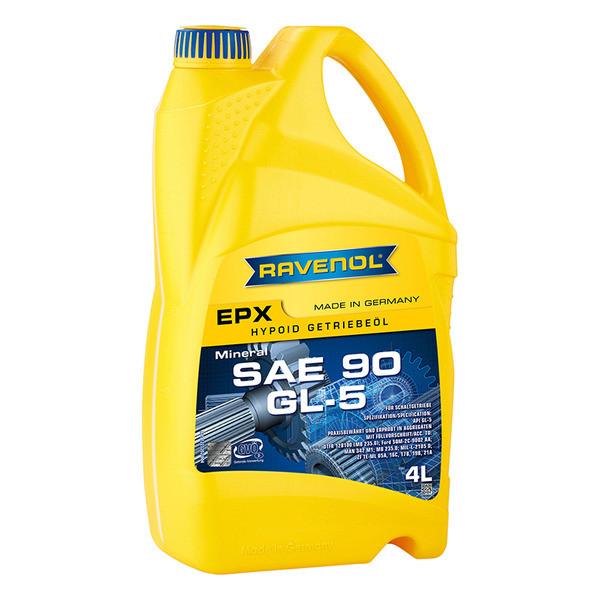

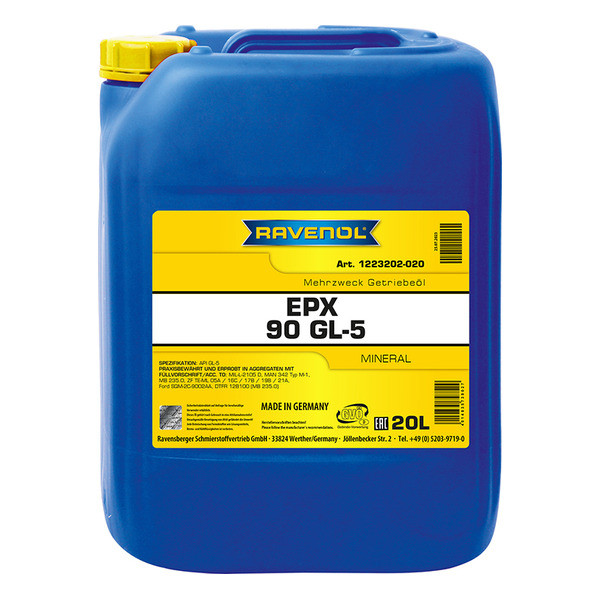

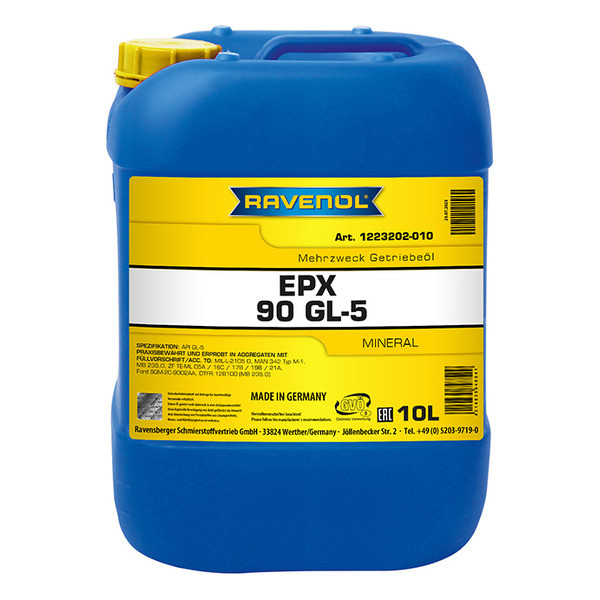

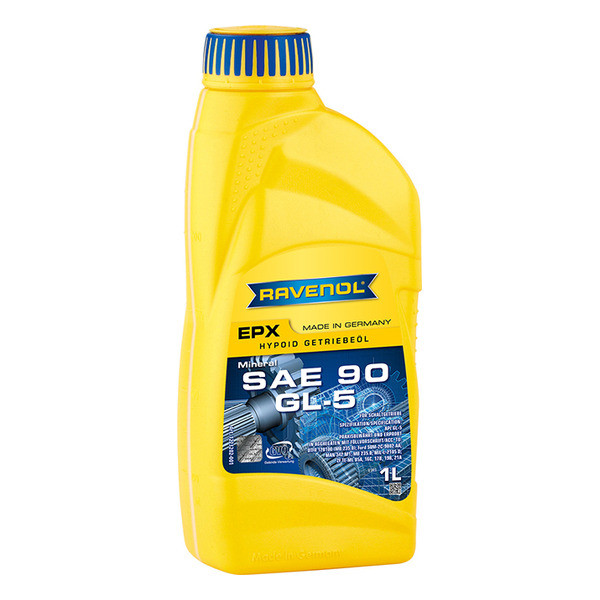

RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1223202-004
Volume:
20 L, ecobox
vendor code:
1223202-B20
Volume:
60 L
vendor code:
1223202-060
Volume:
1000 L
vendor code:
1223202-700
Volume:
10 L
vendor code:
1223202-010
RAVENOL Getriebeoel EPX SAE 90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Application Note
RAVENOL Getriebeoel EPX SAE 90 GL-5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 90 GL-5.
Use RAVENOL Getriebeoel EPX SAE 90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
Characteristics
- Optimal cold flow property
- Outstanding wear protection even with short trips in winter
- High pressure stable lubrication film, thus outstanding wear protection under any stress
- Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 90 |
90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Density at 20 °C | g/cm³ | 882 | EN ISO 12185 |
882
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.3 | DIN 51562-1 |
14.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 130.3 | DIN 51562-1 |
130.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 60.100 | ASTM D2983 |
60.100
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
