RAVENOL Truck MTF-50 is based on synthetic base oils and special additives matched to them. Thus, the extended requirements of Eaton axle and transmission divisions are fulfilled.
Compliance with the requirements:
Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L
API: MT-1
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221106-001
Volume:
4 L
vendor code:
1221106-004
Volume:
10 L
vendor code:
1221106-010
Volume:
20 L
vendor code:
1221106-020
Volume:
60 L
vendor code:
1221106-060
Volume:
208 L
vendor code:
1221106-208
RAVENOL Truck MTF-50 is based on synthetic base oils and special additives matched to them. Thus, the extended requirements of Eaton axle and transmission divisions are fulfilled.
RAVENOL Truck MTF-50 is ideally suited for severe operating conditions and extended oil change intervals.
Application Note
RAVENOL Truck MTF-50 is recommended for extended drain an severe service in heavy duty (class 6, 7, and 8) manual transmissions requiring a non-EP lubricant.
Characteristics
- Excellent thermal stability.
- Strong protection against rust, corrosion and foaming.
- A very low pour point.
- Excellent EP properties.
- A good switching behavior at low temperatures.
- An extended service life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | MT-1 |
MT-1
|
||
| Recomendations | Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L |
Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L
|
||
| Density at 20 °C | g/cm³ | 857 | EN ISO 12185 |
857
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.5 | DIN 51562-1 |
17.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 132 | DIN 51562-1 |
132
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 146 | DIN ISO 2909 |
146
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 16.900 | ASTM D2983 |
16.900
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 221 | DIN EN ISO 2592 |
221
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L |
Arvin Meritor 0-81, Eaton PS-164 Rev. 7, International Harvester TMS-6816, Mack TO-A Plus, ZF FreedomLine, ZF TE-ML 02L
|
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Manufacturer Approved:
MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K
Compliance with the requirements:
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P
SAE: 75W-80
API: GL-4
Equivalents OEM:
Alpine 0101683,
Alpine 0101684,
Alpine 0101685,
DAF 09052IT,
DAF 09069EU,
DAF 09069IT,
DAF 09069RU,
DAF 09225RU,
DAF 09226BN,
DAF 1659981,
DAF 1659982,
DAF 1659982G,
DAF 1659988,
DAF 1659988G,
DAF 1659989,
FEBI 170126,
FEBI 170127,
FEBI 170134,
Hyundai Motor 0450000440,
MAN 09110700672,
Pentosin 1027107,
Porsche 00004330300,
Porsche 00004330540,
Volvo 1161950,
Volvo 85108170,
Volvo 85108171,
Volvo 85113903,
Volvo 85113904,
Volvo 85123561,
Volvo 85123562,
Volvo 85136277
Alpine 0101683, Alpine 0101684, Alpine 0101685, DAF 09052IT, DAF 09069EU, DAF 09069IT, DAF 09069RU, DAF 09225RU, DAF 09226BN, DAF 1659981, DAF 1659982, DAF 1659982G, DAF 1659988, DAF 1659988G, DAF 1659989, FEBI 170126, FEBI 170127, FEBI 170134, Hyundai Motor 0450000440, MAN 09110700672, Pentosin 1027107, Porsche 00004330300, Porsche 00004330540, Volvo 1161950, Volvo 85108170, Volvo 85108171, Volvo 85113903, Volvo 85113904, Volvo 85123561, Volvo 85123562, Volvo 85136277, Volvo 85136278, Volvo MVBVISHIFT75W80JUG, Volvo VPO120548, Volvo VPO120548, Volvo VPO120549, ZF 0671090383, ZF 0671090384, ZF 0671090385, ZF 0671090386, ZF 671090383, ZF 671090384, ZF 671090385, ZF 671090386, ZF S0671090383, ZF S0671090384, ZF S0671090385, ZF S0671090386, ZF S671090385
- Available packaging
- Product parameters
Volume:

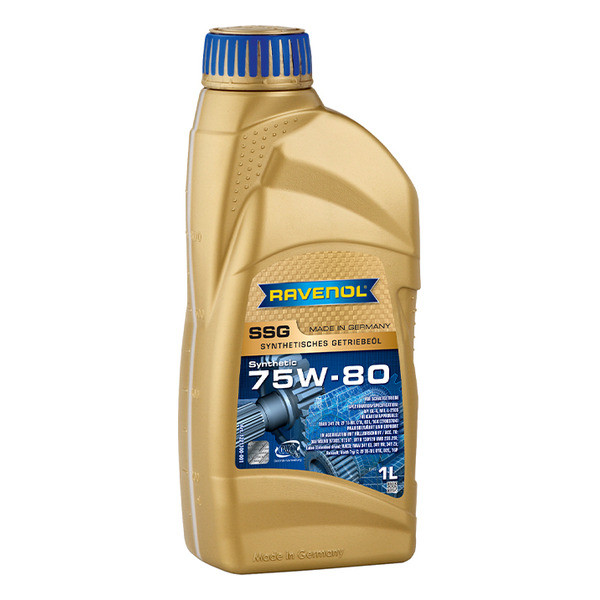

1 L
vendor code:
1221100-001
Volume:

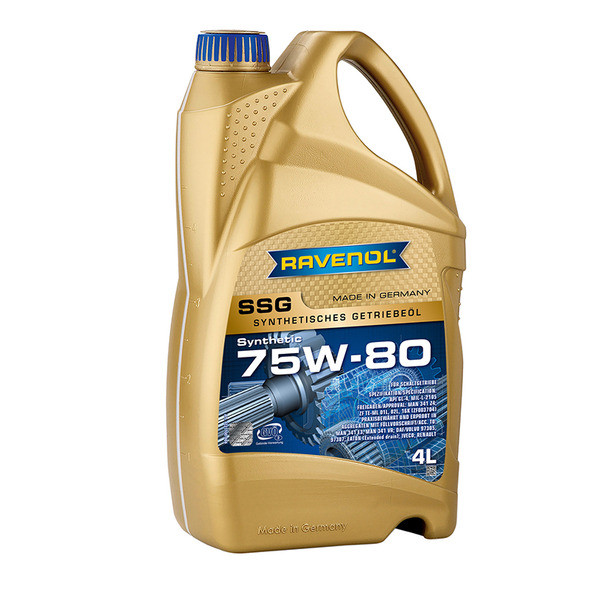

4 L
vendor code:
1221100-004
Volume:

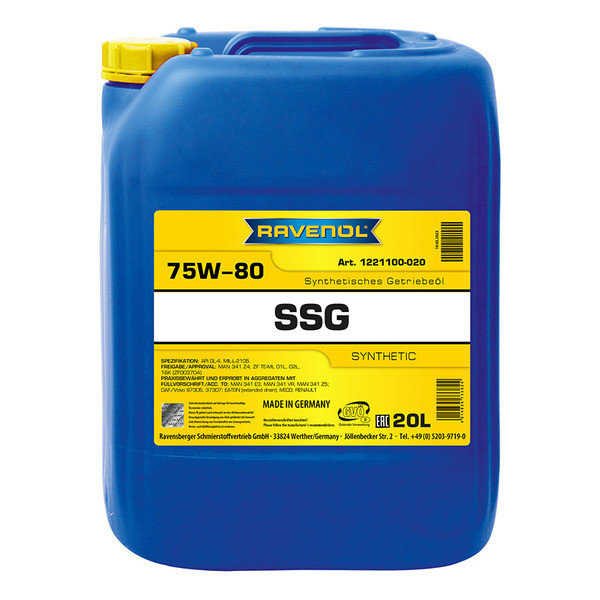

20 L, ecobox
vendor code:
1221100-B20
Volume:
60 L
vendor code:
1221100-060
Volume:
60 L, print
vendor code:
1221100-D60
Volume:

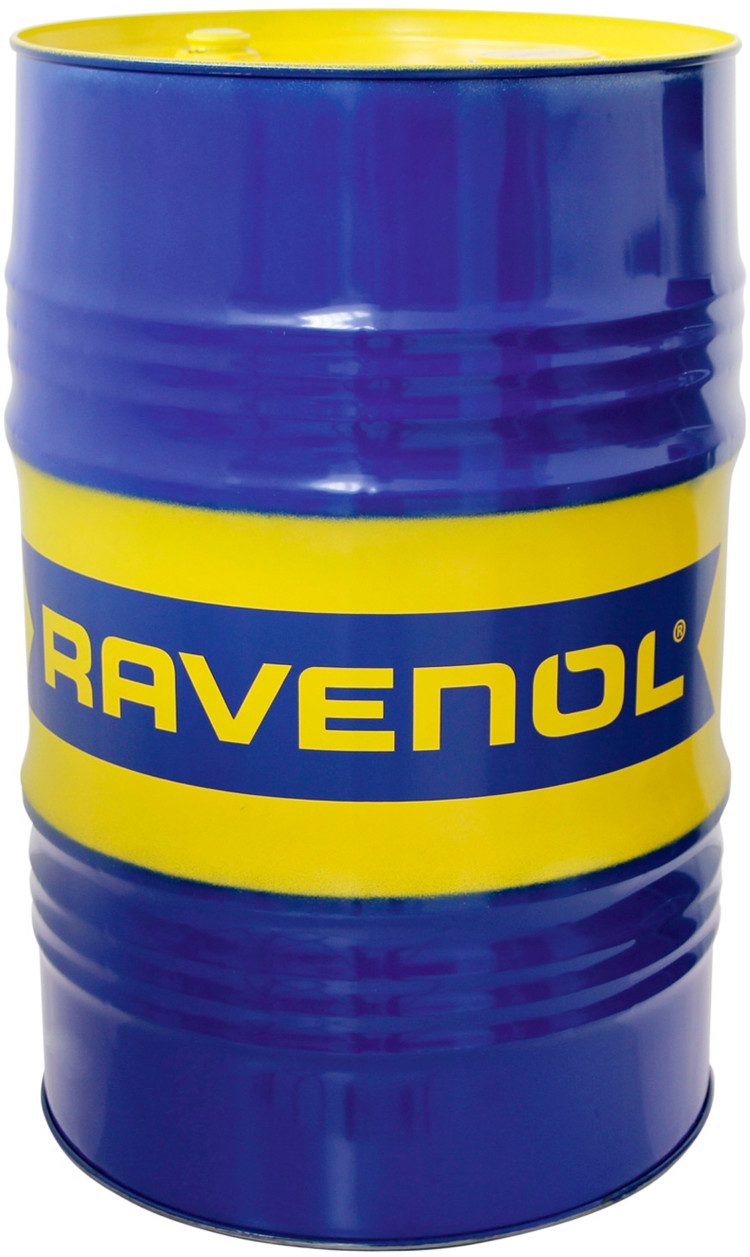

208 L
vendor code:
1221100-208
Volume:
1000 L
vendor code:
1221100-700
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is a heavy duty transmission oil to care for synchronised manual transmissions in commercial vehicles with intarder or retarder. Shift comfort isnoticeably increased. Extreme oil change intervals according as specified by the manufacturer at up to 500,000 km reduce maintenance costs and increase cost-effectiveness.
Characteristics
- Excellent thermal stability
- High protection from rust, corrosion, foaming
- Low solidification point
- Excellent EP properties
- Good shifting behaviour in low temperatures
- Extended life
- Fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-80 |
75W-80
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K |
MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K
|
||
| Recomendations | DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P |
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P
|
||
| specification | MIL-L-2105 |
MIL-L-2105
|
||
| Suitable for | IVECO, Renault |
IVECO, Renault
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.29 | DIN 51562-1 |
9.29
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 51.97 | DIN 51562-1 |
51.97
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z4, MAN 341 Type Z5, MIL-L-2105, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 01L, ZF TE-ML 02E, ZF TE-ML 02L, ZF TE-ML 16K, ZF TE-ML 16P |
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z4, MAN 341 Type Z5, MIL-L-2105, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 01L, ZF TE-ML 02E, ZF TE-ML 02L, ZF TE-ML 16K, ZF TE-ML 16P
|
