Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.
Compliance with the requirements:
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
- Available packaging
- Product parameters

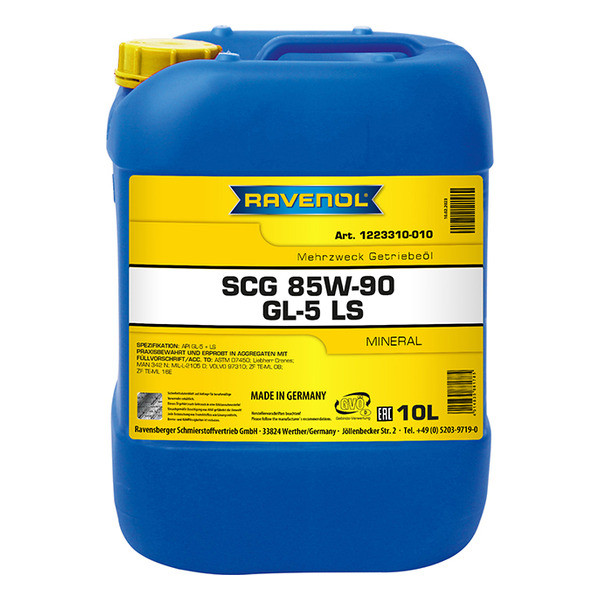

Volume:
10 L
vendor code:
1223310-010

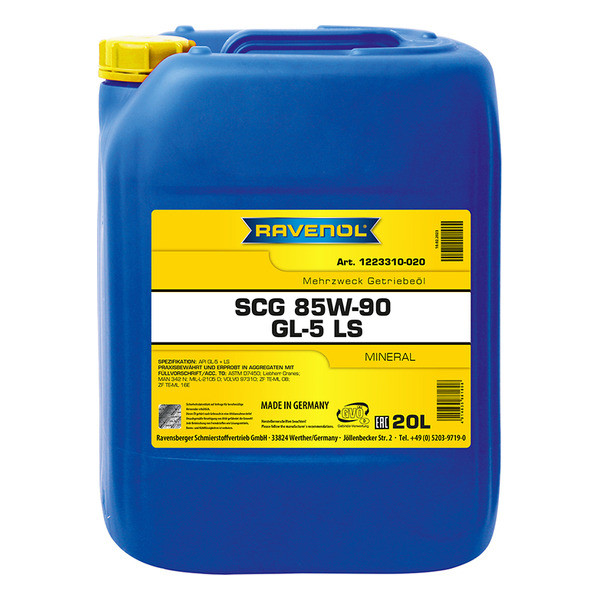

Volume:
20 L
vendor code:
1223310-020
Volume:
60 L
vendor code:
1223310-060
Volume:
208 L
vendor code:
1223310-208

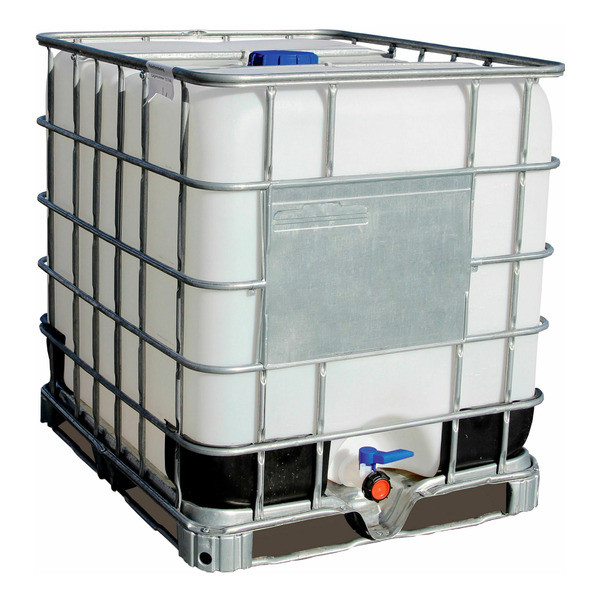

Volume:
1000 L
vendor code:
1223310-700
Volume:
20 L, ecobox
vendor code:
1223310-B20
Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is designed for the increased stress of manual transmissions and thus ensures perfect functioning of the transmissions.
Application Note
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is compatible with all brand-name transmission oils.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is particularly suitable for lubricating differential gears with limited slip.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS can be used in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is also suitable for use in Liebherr assemblies due to its high phosphorus content.
The operating instructions of the vehicle and transmission manufacturers must be observed.
Characteristics
- Increased phosphorus content
- High pressure stable lubrication film, thus outstanding wear protection under all loads
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 85W-90 |
85W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| ASTM | D7450 |
D7450
|
||
| Recomendations | MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E |
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
|
||
| Suitable for | Liebherr Cranes |
Liebherr Cranes
|
||
| Density at 20 °C | g/cm³ | 885.3 | EN ISO 12185 |
885.3
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.9 | DIN 51562-1 |
14.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 136 | DIN 51562-1 |
136
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 110 | DIN ISO 2909 |
110
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 194 | DIN EN ISO 2592 |
194
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E |
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
|
||
| Остатки и зола | >2300 | ASTM D7751 |
>2300
ASTM D7751
|

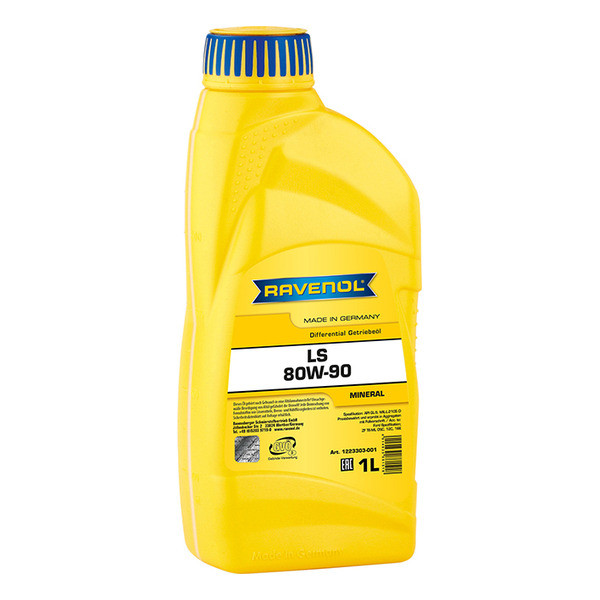

RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223303-001
Volume:
20 L, ecobox
vendor code:
1223303-B20

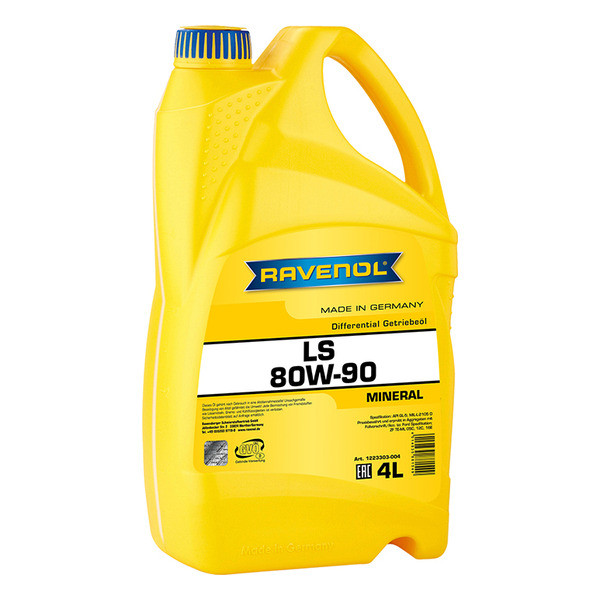

Volume:
4 L
vendor code:
1223303-004

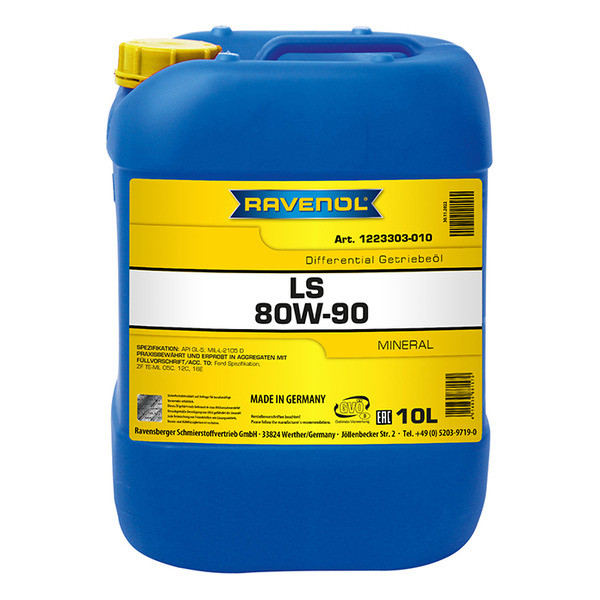

Volume:
10 L
vendor code:
1223303-010
Volume:
20 L
vendor code:
1223303-020
Volume:
60 L
vendor code:
1223303-060
Volume:
208 L
vendor code:
1223303-208
Volume:
1000 L
vendor code:
1223303-700
RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Application Note
RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 80W-90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.
Characteristics
- Extremely high load carrying capacity
- Excellent wear protection by EP agents
- Excellent resistance to aging
- High oxidation resistance even under high thermal stress
- Good foam / air separation and behave well at high speeds
- Neutrality towards non-ferrous metals and seals
- Excellent viscosity-temperature behavior
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E |
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 889 | EN ISO 12185 |
889
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.6 | DIN 51562-1 |
17.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 177.3 | DIN 51562-1 |
177.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 114.400 | ASTM D2983 |
114.400
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E |
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
|
RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
SAE: 85W-90
API: GL-5 LS
Equivalents OEM:
Alpine 0100761, Alpine 0100763, Alpine 0100764, Alpine 0100765, Alpine 100761, Alpine 100763, Alpine 100764, Alpine 100764, GM 19375057, Hyundai Motor 0210000100, MB A000989280312, Toyota 0888580623, Toyota 0888580626, Toyota 0888580633, Toyota 0888580924, Toyota 0888580933, Toyota 0888581004, Volvo 11708371, Volvo 11708372, Volvo VOE11708371, Volvo VOE11708372
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223301-001

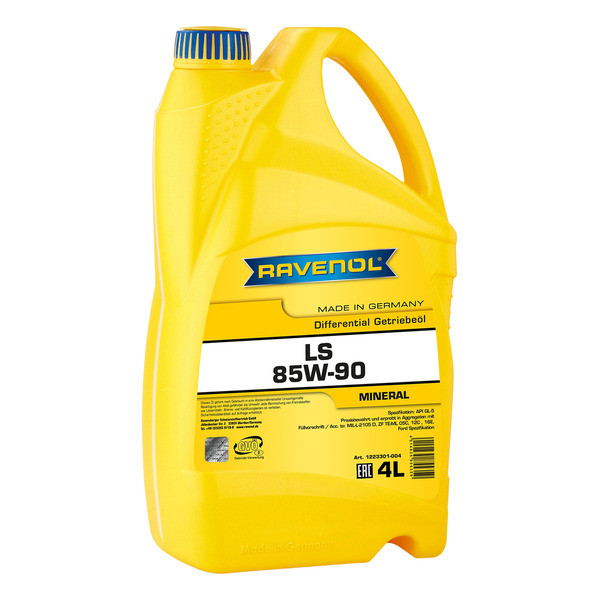

Volume:
4 L
vendor code:
1223301-004

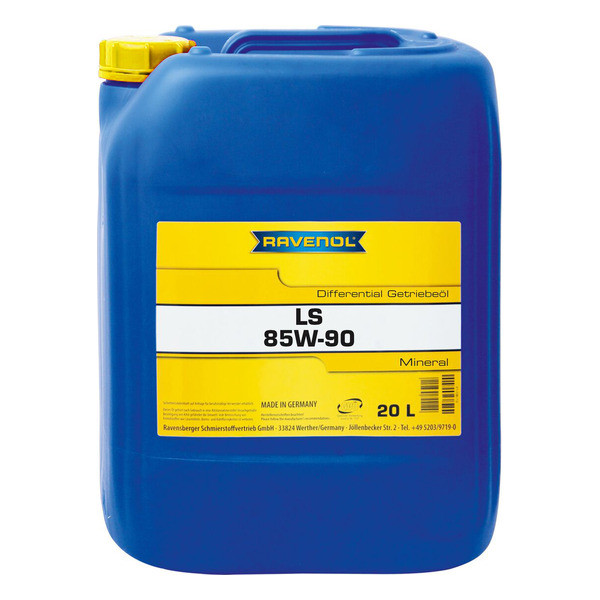

Volume:
20 L
vendor code:
1223301-020
Volume:
20 L, ecobox
vendor code:
1223301-B20
Volume:
60 L
vendor code:
1223301-060
RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Application Note
RAVENOL Sperrdiff. Hyp. Getr.öl LS SAE 85W-90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.
Characteristics
- Extremely high load carrying capacity
- Excellent wear protection by EP agents
- Excellent "limited slip" – Features
- Excellent resistance to aging
- High oxidation resistance even under high thermal stress
- Good foam / air separation and behave well at high speeds
- Neutrality towards non-ferrous metals and seals
- Excellent viscosity-temperature behavior
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 85W-90 |
85W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| Recomendations | ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E |
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 889 | EN ISO 12185 |
889
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.6 | DIN 51562-1 |
17.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 177.3 | DIN 51562-1 |
177.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 12.100 | ASTM D2983 |
12.100
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E |
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E
|

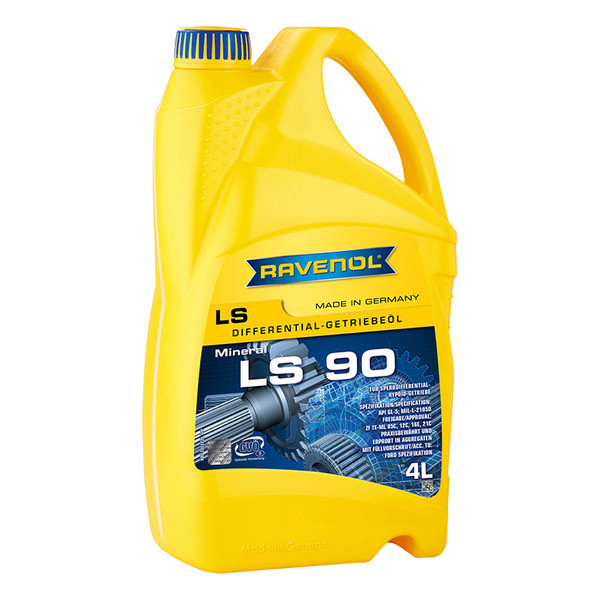

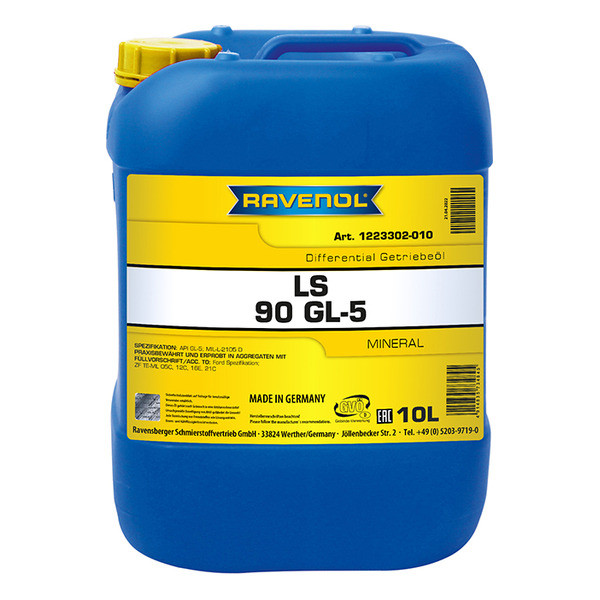

RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1223302-004
Volume:
10 L
vendor code:
1223302-010
Volume:
20 L, ecobox
vendor code:
1223302-B20
Volume:
1000 L
vendor code:
1223302-700

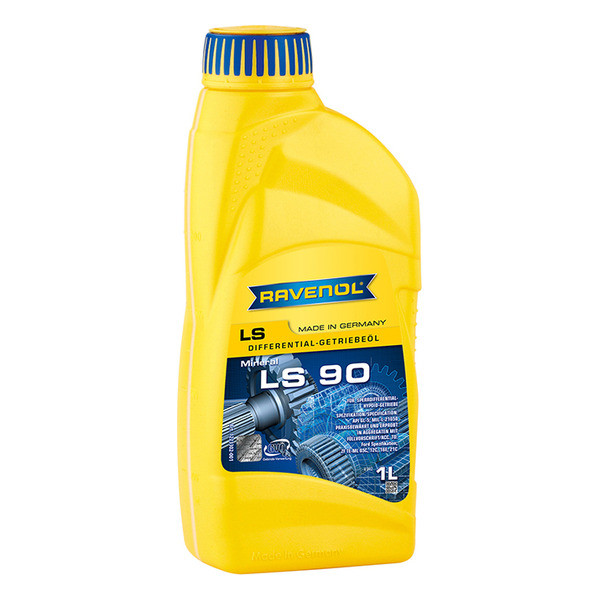

Volume:
1 L
vendor code:
1223302-001
Volume:
20 L
vendor code:
1223302-020
Volume:
60 L
vendor code:
1223302-060
Volume:
208 L
vendor code:
1223302-208
RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Application Note
RAVENOL Sperrdiff.-Getr.-Oel LS 90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.
Characteristics
- Extremely high load carrying capacity
- Excellent wear protection by EP agents
- Excellent "limited slip" – Features
- Excellent resistance to aging
- High oxidation resistance even under high thermal stress
- Good foam / air separation and behave well at high speeds
- Neutrality towards non-ferrous metals and seals
- Excellent viscosity-temperature behavior
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 90 |
90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C |
ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 889 | EN ISO 12185 |
889
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.6 | DIN 51562-1 |
17.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 177.3 | DIN 51562-1 |
177.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 12.400 | ASTM D2983 |
12.400
mPa*s
ASTM D2983
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C |
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 12C, ZF TE-ML 16E, ZF TE-ML 21C
|
