Fiat

Oil for Fiat - Freemont - 2.0 Multijet AWD / 4WD (120 kW) (125)

Fiat Freemont 2.0 Multijet AWD / 4WD (120 kW) (125), year of issue from 2011 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Diesel fuel
car drive: All-wheel drive
Engine: Single row
Number of cylinders: 4
Valves per cylinder: 4
Working volume: 1956 cc
Power: 163 hp / 120 kW

Add to Garage

Nodes and assemblies

Engine

Liquid volume (basic): 5.2 L
DXG 5W-30

DXG 5W-30

CleanSynto®
USVO®
For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details hide details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed ​​Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

  • New formula with dexos1™ Gen 3 approval
  • Particularly suitable for GDI engines
  • Avoids low speed pre-ignition (LSPI)
  • No oil-related deposits in combustion chambers, in the piston ring zone and on valves
  • Fuel savings potential under both part and full load operation
  • Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
  • A very stable viscosity behavior and an excellent shear stability
  • Very good cold starting properties
  • A safe lubricant film even at very high operating temperatures
  • Exceptional wear and corrosion protection
  • Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
  • Long service life through high oxidation stability
  • Suitable for catalyst-equipped vehicles
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Full synthetic
Full synthetic
API SQ (RC)
SQ (RC)
ILSAC GF-7A
GF-7A
Manufacturer Approved GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C g/cm³ 846 EN ISO 12185
846 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 11.1 DIN 51562-1
11.1 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 65.6 DIN 51562-1
65.6 mm²/s DIN 51562-1
Viscosity Index VI 163 DIN ISO 2909
163 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.25 ASTM D5481
3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 3990 ASTM D5293
3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 11.800 ASTM D4684
11.800 mPa*s ASTM D4684
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Noack Volatility % 6 ASTM D5800
6 % ASTM D5800
Flashpoint °C 244 DIN EN ISO 2592
244 °C DIN EN ISO 2592
tbn mgKOH/g 7.8 ASTM D2896
7.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.8 DIN 51575
0.8 %wt. DIN 51575
Approvals Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
HDX 5W-30

HDX 5W-30

CleanSynto®
For engine

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

show details hide details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111125-001

Code:
4014835858541

Volume:
4 L

vendor code:
1111125-004

Code:
4014835858572

Volume:
5 L

vendor code:
1111125-005

Code:
4014835858602

Volume:
10 L

vendor code:
1111125-010

Code:
4014835858633

Volume:
20 L, ecobox

vendor code:
1111125-B20

Code:
4014835858657

Volume:
60 L

vendor code:
1111125-060

Code:
4014835858718

Volume:
60 L, print

vendor code:
1111125-D60

Volume:
208 L

vendor code:
1111125-208

Code:
4014835858756

Volume:
208 L, print

vendor code:
1111125-D28

Volume:
1000 L

vendor code:
1111125-700

Volume:
20 L

vendor code:
1111125-020

Code:
4014835858671

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed ​​Pre-ignition). This can help avoid engine damage.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.

RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.

Characteristics

  • Fuel savings in partial and full load operation
  • Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
  • Excellent cold-start properties even at low temperatures below -25°C
  • A safe lubricating film at high operating temperatures
  • Low evaporation tendency, thus low oil consumption
  • No oil-based deposits in combustion chambers, in the piston ring zone and on valves
  • Neutrality towards sealing materials
  • Extended oil change intervals protect natural resources
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API SQ (RC)
SQ (RC)
ILSAC GF-7A
GF-7A
Manufacturer Approved GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Density at 20 °C g/cm³ 844 EN ISO 12185
844 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 10.8 DIN 51562-1
10.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 59.8 DIN 51562-1
59.8 mm²/s DIN 51562-1
Viscosity Index VI 173 DIN ISO 2909
173 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.4 ASTM D5481
3.4 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 3630 ASTM D5293
3630 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 13.500 ASTM D4684
13.500 mPa*s ASTM D4684
Pourpoint °C -45 DIN ISO 3016
-45 °C DIN ISO 3016
Noack Volatility % 8.1 ASTM D5800
8.1 % ASTM D5800
Flashpoint °C 240 DIN EN ISO 2592
240 °C DIN EN ISO 2592
tbn mgKOH/g 7.8 ASTM D2896
7.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.86 DIN 51575
0.86 %wt. DIN 51575
Approvals Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Professional Engine Cleaner

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details hide details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

  • Long-term effectiveness and clean fresh oil
  • Remedy for soiled engines
  • Protection against compression loss in the area of the piston rings
  • Leads to better exhaust emissions and increases the performance of the engine
Parameter Unit Value Audit
Color Light brown visual
Light brown visual
Flashpoint (PM) °C 62 DIN ISO 3679
62 °C DIN ISO 3679
Density at 20 °C 805 EN ISO 12185
805 EN ISO 12185
Viscosity at 40 °C mm²/s 7 DIN EN ISO 3104
7 mm²/s DIN EN ISO 3104
Brand RAVENOL
RAVENOL

Mechanical gearbox in a unit with final drive 6/1

DCT/DSG Getriebe Fluid

DCT/DSG Getriebe Fluid

For DCT/DSG

RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.

Compliance with the requirements:
BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1212106-001

Code:
4014835718913

Volume:
4 L

vendor code:
1212106-004

Code:
4014835718999

Volume:
10 L

vendor code:
1212106-010

Code:
4014835718944

Volume:
20 L

vendor code:
1212106-020

Code:
4014835718920

Volume:
20 L, ecobox

vendor code:
1212106-B20

Code:
4014835787629

Volume:
60 L

vendor code:
1212106-060

Volume:
60 L, print

vendor code:
1212106-D60

Code:
4014835718937

Volume:
208 L

vendor code:
1212106-208

Volume:
208 L, print

vendor code:
1212106-D28

Code:
4014835718906

Volume:
1000 L

vendor code:
1212106-700

RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.

RAVENOL DCT-HV Fluid allows virtually slip-free operation and thus minimal torque losses. Ensures low wear and long life of the transmission. Fuel economy.

Application Note

RAVENOL DCT-HV Fluid has been developed especially for Dual Clutch Gear of several manufacturers like VW/Audi, Ford, Volvo, Chrysler, Dodge, Mitsubishi and others.

RAVENOL DCT-HV Fluid is also recommended for use in Dual Clutch Gear DQ-250 (02E) and DQ-500 (0BT) acc. to VW Part-No. G 052 182 of VW, Audi, Seat and Skoda.

RAVENOL DCT-HV Fluid is recommended by Fa. Drexler for all DCG-transmissions with MibaCarbon plates.

Characteristics

  • Good lubricating properties also at low temperatures in winter
  • Stable lubricant film even under extreme loads in summer
  • Low wear
  • Excellent viscosity-temperature behaviour
  • Very low pour point
  • Low foaming even under heavy demands
  • Extensive protection against wear, corrosion and foaming
  • Neutral behavior towards sealing materials
Parameter Unit Value Audit
Viscosity at 100 °C mm²/s 7.4 DIN 51562-1
7.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 35.1 DIN 51562-1
35.1 mm²/s DIN 51562-1
Viscosity Index VI 184 DIN ISO 2909
184 DIN ISO 2909
Recommendations BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, BMW DCTF-1, BOT 341, Chrysler 68044345 EA, Citroën/Peugeot 9734.S2 für DCS6, Drexler DSG-Getriebe mit Miba-Carbon-Lamelle, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6 für TCT (Twin Clutch Transmission, Ford 1490761, Ford 1490763, Ford USA XT-11-QDC, Ford WSD-M2C200-D2, Ford WSS-M2C936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, Mitsubishi MZ320065, Renault EDC (Efficiency Dual Clutch System), Volvo 1161838, Volvo 1161839, VW G 052 182 A2, VW G 052 529, VW TL 52529-A
BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, BMW DCTF-1, BOT 341, Chrysler 68044345 EA, Citroën/Peugeot 9734.S2 für DCS6, Drexler DSG-Getriebe mit Miba-Carbon-Lamelle, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6 für TCT (Twin Clutch Transmission, Ford 1490761, Ford 1490763, Ford USA XT-11-QDC, Ford WSD-M2C200-D2, Ford WSS-M2C936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, Mitsubishi MZ320065, Renault EDC (Efficiency Dual Clutch System), Volvo 1161838, Volvo 1161839, VW G 052 182 A2, VW G 052 529, VW TL 52529-A
Flashpoint °C 216 DIN EN ISO 2592
216 °C DIN EN ISO 2592
Type Synthetic
Synthetic
Brand RAVENOL
RAVENOL
Recomendations BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A
BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A
Suitable for Drexler, PSA DCS6, Renault EDC (Efficiency Dual Clutch System)
Drexler, PSA DCS6, Renault EDC (Efficiency Dual Clutch System)
Compliant products BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, Chrysler 68044345EA, Ford 1490761, Ford 1490763, Mitsubishi MZ320065, Motorcraft XT-11-QDC, PSA 9734.S2, Volvo 1161838, Volvo 1161839, VW G 052 182
BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, Chrysler 68044345EA, Ford 1490761, Ford 1490763, Mitsubishi MZ320065, Motorcraft XT-11-QDC, PSA 9734.S2, Volvo 1161838, Volvo 1161839, VW G 052 182
Density at 20 °C g/cm³ 840 EN ISO 12185
840 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Approvals BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A
BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A
MTF-3 75W

MTF-3 75W

For gearbox

RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2

show details hide details

SAE: 75W

API: GL-4

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221104-001

Code:
4014835719811

Volume:
4 L

vendor code:
1221104-004

Code:
4014835719897

Volume:
10 L

vendor code:
1221104-010

Code:
4014835719842

Volume:
20 L

vendor code:
1221104-020

Volume:
20 L, ecobox

vendor code:
1221104-B20

Code:
4014835788527

Volume:
60 L

vendor code:
1221104-060

Code:
4014835736061

Volume:
60 L, print

vendor code:
1221104-D60

Volume:
208 L

vendor code:
1221104-208

Volume:
208 L, print

vendor code:
1221104-D28

Volume:
1000 L

vendor code:
1221104-700

RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.

Characteristics

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good shifting behaviour even in low temperatures, extremely low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
Parameter Unit Value Audit
Recommendations AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
SAE 75W
75W
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
API GL-4
GL-4
Recomendations BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
Compliant products AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
Density at 20 °C g/cm³ 840 EN ISO 12185
840 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 7.4 DIN 51562-1
7.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 35.1 DIN 51562-1
35.1 mm²/s DIN 51562-1
Viscosity Index VI 184 DIN ISO 2909
184 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 8.800 ASTM D2983
8.800 mPa*s ASTM D2983
Pourpoint °C -48 DIN ISO 3016
-48 °C DIN ISO 3016
Flashpoint °C 216 DIN EN ISO 2592
216 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2

Power steering

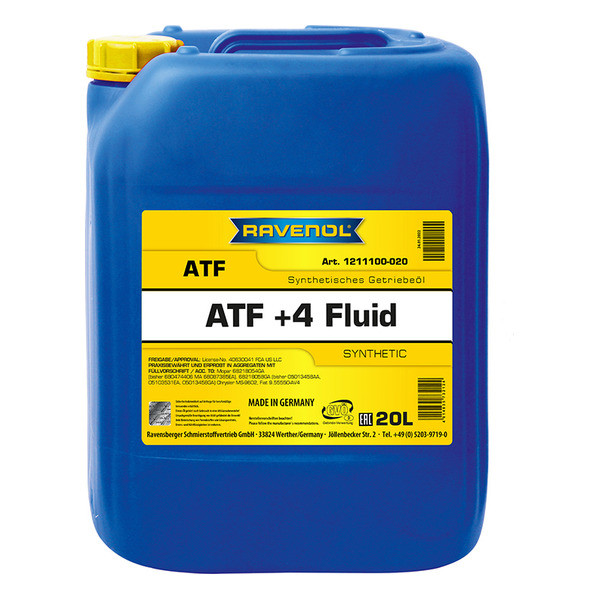

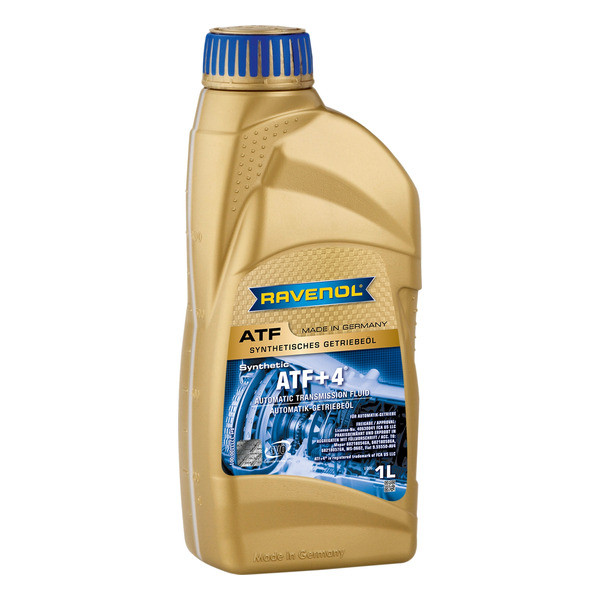

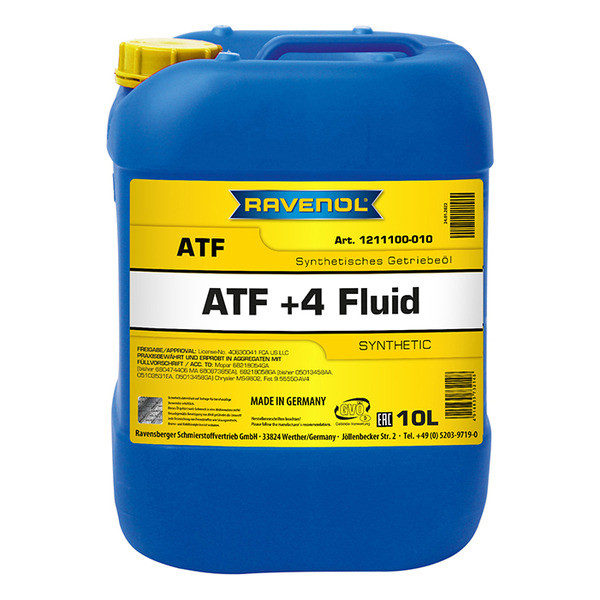

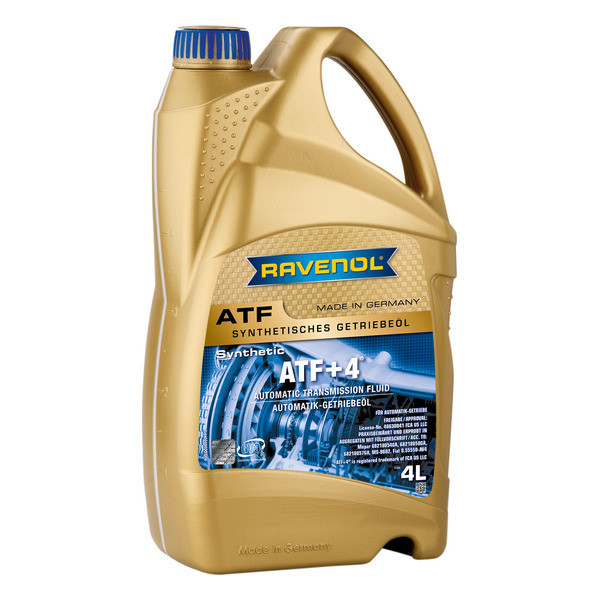

ATF+4 Fluid

ATF+4 Fluid

For Chrysler automatic transmission

RAVENOL ATF+4® Fluid guarantees maximum wear protection in all operating conditions.

Manufacturer Approved:
Chrysler License-No. 40630041 FCA US LLC

Compliance with the requirements:
Chrysler MS-9602, Fiat 9.55550-AV4

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211100-001

Code:
4014835732117

Volume:
4 L

vendor code:
1211100-004

Code:
4014835732193

Volume:
10 L

vendor code:
1211100-010

Code:
4014835732148

Volume:
20 L

vendor code:
1211100-020

Code:
4014835732124

Volume:
20 L, ecobox

vendor code:
1211100-B20

Code:
4014835784529

Volume:
60 L

vendor code:
1211100-060

Volume:
60 L, print

vendor code:
1211100-D60

Code:
4014835732131

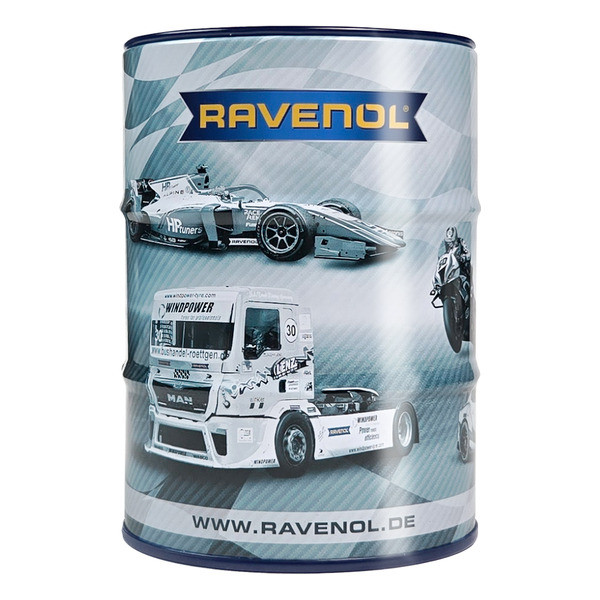

Volume:
208 L

vendor code:
1211100-208

Volume:
208 L, print

vendor code:
1211100-D28

Code:
4014835732100

RAVENOL ATF+4® Fluid guarantees maximum wear protection in all operating conditions.

RAVENOL ATF+4® Fluid is mixable with all ATF+4®, ATF+2® or ATF+3® transmission oil.

Application Note

RAVENOL ATF+4® Fluid is recommended for refilling and fill up automatic transmission oil for Fiat-Chrysler, Dodge, Plymouth, RAM, Jeep and Eagle vehicles with automatic transmission.

RAVENOL ATF+4® Fluid achieves the warranty of FCA US LLC (Fiat Chrysler Automobiles) and is released with License-No. 40630041.

RAVENOL ATF+4® Fluid meets the requirements of current and previous standards for Fiat-Chrysler, Dodge, Plymouth, Jeep and Eagle automatic transmission oil.

Characteristics

  • Better protection and better performance than ATF+3®
  • Extended transmission life
  • Reduces maintenance costs
  • Better shift quality through a consistent viscosity profile
  • Better cold flow properties
  • Smooth switching at low temperatures
  • Less transmission wear when operating at low temperatures
  • Better oxidation stability and thermal stability than the previous ATF+3®
  • Longer oil life period
  • Lower oil consumption
  • Better fuel economy
  • Longer oil change intervals (has been tested extensively with oil change intervals of about 160,000 km)
Parameter Unit Value Audit
Recommendations Chrysler MS-9602, Fiat 9.55550-AV4, Mopar 68218054GA, Mopar 68218057GA, Mopar 68218058GA
Chrysler MS-9602, Fiat 9.55550-AV4, Mopar 68218054GA, Mopar 68218057GA, Mopar 68218058GA
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Manufacturer Approved Chrysler License-No. 40630041 FCA US LLC
Chrysler License-No. 40630041 FCA US LLC
Recomendations Chrysler MS-9602, Fiat 9.55550-AV4
Chrysler MS-9602, Fiat 9.55550-AV4
Compliant products Mopar 68218054GA, Mopar 68218057GA, Mopar 68218058GA
Mopar 68218054GA, Mopar 68218057GA, Mopar 68218058GA
Density at 20 °C g/cm³ 845 EN ISO 12185
845 g/cm³ EN ISO 12185
Color Red visual
Red visual
Viscosity at 100 °C mm²/s 7.5 DIN 51562-1
7.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 35.1 DIN 51562-1
35.1 mm²/s DIN 51562-1
Viscosity Index VI 192 DIN ISO 2909
192 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 6.500 ASTM D2983
6.500 mPa*s ASTM D2983
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Flashpoint °C 198 DIN EN ISO 2592
198 °C DIN EN ISO 2592
Approvals Chrysler License-No. 40630041 FCA US LLC, Chrysler MS-9602, Fiat 9.55550-AV4
Chrysler License-No. 40630041 FCA US LLC, Chrysler MS-9602, Fiat 9.55550-AV4

Hydraulic brakes/clutch system

DOT 4

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • optimum ABS characteristics
  • chemical stability
  • best lubrication efficiency
  • neutral behaviour regarding brake parts
  • low viscosity at low temperatures
  • miscible with all brake fluids of the same specifications
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4
DOT-4
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.41 ASTM D445
2.41 mPa*s ASTM D445
Viscosity at -40 °C cSt 1340 ASTM D445
1340 cSt ASTM D445
Boiling point °C 271 FMVSS 116
271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 169 FMVSS 116
169 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 9.9 L
TTC - Protect C11 Premix -40ºC

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastome
Parameter Unit Value Audit
Recommendations AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for Suzuki
Suzuki
Density at 20 °C g/cm³ 1080 EN ISO 12185
1080 g/cm³ EN ISO 12185
Color yellow green visual
yellow green visual
pH - value at 20 °C 7,8 ASTM D1287
7,8 ASTM D1287
Freezing point °C -40 ASTM D1177
-40 °C ASTM D1177
Approvals AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
TTC - Protect C11 Concentrate

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details hide details

Equivalents OEM:
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastomers used in automotive radiators
Parameter Unit Value Audit
Recommendations AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for Suzuki
Suzuki
Density at 20 °C g/cm³ 1130 EN ISO 12185
1130 g/cm³ EN ISO 12185
Color yellow green visual
yellow green visual
Reserve alkalinity mgKOH/g — 20 ASTM D1121
— 20 mgKOH/g ASTM D1121
Boiling point °C 155 ASTM D1120
155 °C ASTM D1120
Water content % — 5 ASTM D1123
— 5 % ASTM D1123
Flashpoint °C 112 DIN 51758
112 °C DIN 51758
Freezing point (50 % solution) °C -37 ASTM D1177
-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %) 8,4 ASTM D1287
8,4 ASTM D1287
Approvals AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Destilliertes Wasser (entionisiert)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details hide details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter Unit Value Audit
Recommendations DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand RAVENOL
RAVENOL
Recomendations DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Approvals DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Professional Radiator Cleaner

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details hide details

Equivalents OEM:
Ford MP14300500AB

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

  • Cleaning of the cooling and heating system
  • Protection of the new coolant against prior contamination
  • Elimination of sludge and corrosion residue
Parameter Unit Value Audit
Color Colorless visual
Colorless visual
Density at 20 °C g/cm³ 1003 EN ISO 12185
1003 g/cm³ EN ISO 12185
pH - value at 20 °C 10,25 DIN 19268
10,25 DIN 19268
Brand RAVENOL
RAVENOL

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

+ - Configure cookies
Good
