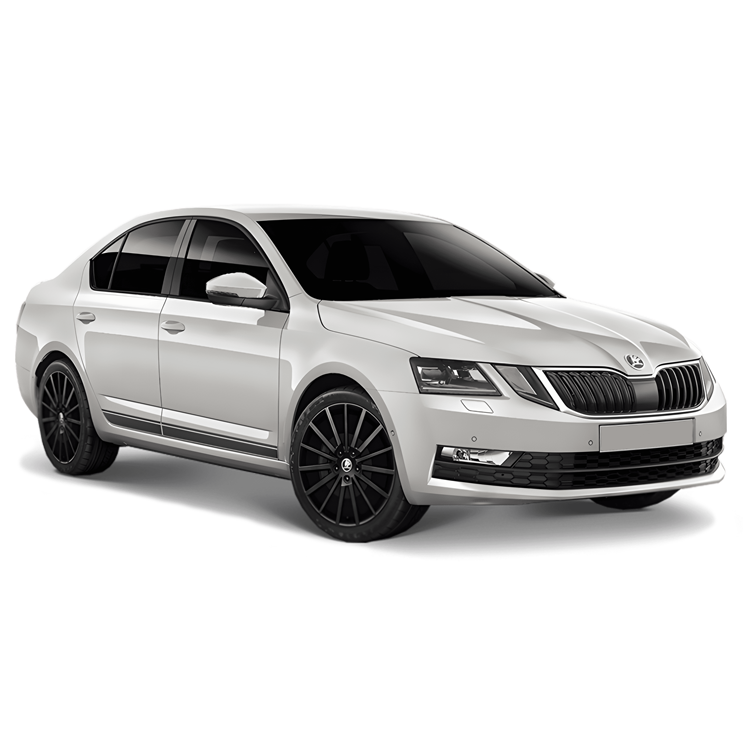

Skoda Octavia III, A7 5E / NL / NM / NR / 5E3 / 5E5 / 5E6 / NL3 / NM3 / NM4 / NM5 Octavia III 1.0 TSI (85 kW) PF, year of issue from 2018 date to 2021 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Nodes and assemblies
Engine DKRA, DKRF
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Porsche C20, VW 508.00, VW 509.00
Compliance with the requirements:
Ford WSS-M2C 956-A1
SAE: 0W-20
ACEA: C5
Equivalents OEM:
Alpine 0101461,
Alpine 0101462,
Alpine 0101463,
Alpine 0101464,
Alpine 0101465,
Alpine 101461,
Alpine 101462,
Alpine 101463,
Alpine 101464,
Alpine 101465,
FEBI 177649,
FEBI 177650,
FEBI 177651,
Porsche 00004321046,
VAG G052577,
VAG G052577A2,
VAG G052577M2,
VAG G052577M4,
VAG G052577M6,
VAG G052577M9,
VAG G052577Z2,
VAG G052577Z2,
VAG G055577A2,
VAG G055577M2,
VAG G055577M4,
VAG G055577M6,
VAG GAUR52577M2,
VAG GOIS60577M2EUR,
VAG GR52577M2,
VAG GR52577M4,
VAG GR52577M6
Alpine 0101461, Alpine 0101462, Alpine 0101463, Alpine 0101464, Alpine 0101465, Alpine 101461, Alpine 101462, Alpine 101463, Alpine 101464, Alpine 101465, FEBI 177649, FEBI 177650, FEBI 177651, Porsche 00004321046, VAG G052577, VAG G052577A2, VAG G052577M2, VAG G052577M4, VAG G052577M6, VAG G052577M9, VAG G052577Z2, VAG G052577Z2, VAG G055577A2, VAG G055577M2, VAG G055577M4, VAG G055577M6, VAG GAUR52577M2, VAG GOIS60577M2EUR, VAG GR52577M2, VAG GR52577M4, VAG GR52577M6, VAG GR52577M9, VAG GS52577M2, VAG GS60577C2, VAG GS60577C2EUR, VAG GS60577D2, VAG GS60577D2EUR, VAG GS60577F2, VAG GS60577F2EUR, VAG GS60577G2, VAG GS60577G2EUR, VAG GS60577M2, VAG GS60577M2EUR, VAG GS60577M4, VAG GS60577M4EUR, VAG GS60577M6, VAG GS60577M6EUR, VAG GS60577M9, VAG GS60577M9EUR, VAG GS560577M4, VAG GS560577M4EUR, VAG GSKR52577M2, VAG GVWR52577M2
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111112-060
Volume:
208 L
vendor code:
1111112-208
Volume:
208 L, print
vendor code:
1111112-D28
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL VSE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL VSE SAE 0W-20 has a high viscosity index because of its formulation with special base oils. The formulation contains chemical marker for identification and is green colored. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
RAVENOL VSE SAE 0W-20 ensures compliance with the viscosity class even with a long oil life over the entire change interval.
By significantly reducing fuel consumption, RAVENOL VSE SAE 0W-20 helps to protect the environment by reducing emissions.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL VSE SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended.
RAVENOL VSE SAE 0W-20 is specially developed for the latest Volkswagen Specification VW 508 00 / 509 00 (VW Blue Oil).
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used.
- Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Lowered HTHS viscosity for maximum fuel economy.
- Stable engine oil, no NOx oxidation.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Contains chemical markers for identification and is green colored.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Ford WSS-M2C956-A1 |
Ford WSS-M2C956-A1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| ACEA | C5 |
C5
|
||
| Manufacturer Approved | Porsche C20, VW 508.00, VW 509.00 |
Porsche C20, VW 508.00, VW 509.00
|
||
| Recomendations | Ford WSS-M2C 956-A1 |
Ford WSS-M2C 956-A1
|
||
| Density at 20 °C | g/cm³ | 846.4 | EN ISO 12185 |
846.4
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 45.3 | DIN 51562-1 |
45.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.73 | ASTM D5481 |
2.73
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4700 | ASTM D5293 |
4700
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 10.900 | ASTM D4684 |
10.900
mPa*s
ASTM D4684
|
| Pourpoint | °C | -60 | DIN ISO 3016 |
-60
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.4 | ASTM D5800 |
10.4
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.3 | ASTM D2896 |
8.3
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.77 | DIN 51575 |
0.77
%wt.
DIN 51575
|
| Approvals | Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00 |
Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00
|
For engine
RAVENOL VSH SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Manufacturer Approved:
Porsche C20, VW 508.00, VW 509.00
Compliance with the requirements:
Ford WSS-M2C 956-A1
- Available packaging
- Product parameters
RAVENOL VSH SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL VSH SAE 0W-20 has a high viscosity index because of its formulation with special base oils. The formulation contains chemical marker for identification and is green colored. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
RAVENOL VSH SAE 0W-20 ensures compliance with the viscosity class even with a long oil life over the entire change interval.
By significantly reducing fuel consumption, RAVENOL VSH SAE 0W-20 helps to protect the environment by reducing emissions.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL VSH SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended.
RAVENOL VSH SAE 0W-20 is specially developed for the latest Volkswagen Specification VW 508 00 / 509 00 (VW Blue Oil).
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used.
- Low volatilization tendency, thereby lower oil consumption.
- Lowered HTHS viscosity for maximum fuel economy.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Contains chemical markers for identification and is green colored.
- Excellent for extended oil change intervals.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Ford WSS-M2C956-A1 |
Ford WSS-M2C956-A1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SP |
SP
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| Manufacturer Approved | Porsche C20, VW 508.00, VW 509.00 |
Porsche C20, VW 508.00, VW 509.00
|
||
| Recomendations | Ford WSS-M2C 956-A1 |
Ford WSS-M2C 956-A1
|
||
| Density at 20 °C | g/cm³ | 841 | DIN 51757 |
841
g/cm³
DIN 51757
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.6 | DIN 51562-1 |
8.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 44.9 | DIN 51562-1 |
44.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 172 | DIN ISO 2909 |
172
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.77 | ASTM D5481 |
2.77
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5860 | ASTM D5293 |
5860
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 26000 | ASTM D4684 |
26000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.5 | ASTM D5800 |
9.5
%
ASTM D5800
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.2 | ASTM D2896 |
8.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00 |
Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Mechanical gearbox in a unit with final drive 0AJ 6/1
For gearbox
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1221104-020
Volume:
60 L, print
vendor code:
1221104-D60
Volume:
208 L
vendor code:
1221104-208
Volume:
208 L, print
vendor code:
1221104-D28
Volume:
1000 L
vendor code:
1221104-700
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
- A stable lubricating film even at high oil temperatures and under high stress.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2 |
AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
|
||
| SAE | 75W |
75W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
||
| Compliant products | AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726 |
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 35.1 | DIN 51562-1 |
35.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 184 | DIN ISO 2909 |
184
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 8.800 | ASTM D2983 |
8.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
Transmission, semi-automatic DSG7 0CW (DQ200) 7/1
For gearbox
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1221104-020
Volume:
60 L, print
vendor code:
1221104-D60
Volume:
208 L
vendor code:
1221104-208
Volume:
208 L, print
vendor code:
1221104-D28
Volume:
1000 L
vendor code:
1221104-700
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
- A stable lubricating film even at high oil temperatures and under high stress.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2 |
AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
|
||
| SAE | 75W |
75W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
||
| Compliant products | AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726 |
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 35.1 | DIN 51562-1 |
35.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 184 | DIN ISO 2909 |
184
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 8.800 | ASTM D2983 |
8.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
Hydraulic actuation, gearbox
For power steering
Application NoteRAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.
Compliance with the requirements:
DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
- Available packaging
- Product parameters
Application Note
RAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.
RAVENOL SSF Special Servolenkung Fluid fulfils the requirements of VW-Specification TL 521 46 and has therefore an optimal performance behaviour as central hydraulic oil in power steering, rear axle steering, level control, hydro pneumatic suspension, shock absorbers, for active damping and engine protection, for hydrostatic drive of fan, alternator and air conditioning, for stability and traction systems (ABS/ASR/ASC), central locking, electro-hydraulic convertible top control, hydraulic brake booster and hydro pneumatic suspension for VW, Audi, Seat, Skoda. Especially to be used in cold countries.
Characteristics
- Extremely low pour point
- Improved viscosity and coefficient of friction behaviour
- A very good protection against consumption
- Excellent thermal stability
- Improved EP-characteristics
- A good foaming behaviour
- Neutral behaviour towards sealing materials
- Reliable protection against corrosion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K |
BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K |
DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
|
||
| specification | DIN 51524-2, ISO 7308 |
DIN 51524-2, ISO 7308
|
||
| Compliant products | BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000 |
BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000
|
||
| Density at 20 °C | g/cm³ | 829 | EN ISO 12185 |
829
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.6 | DIN 51562-1 |
6.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 19.7 | DIN 51562-1 |
19.7
mm²/s
DIN 51562-1
|
| Viscosity at -40 °C | mm²/s | 900 | ASTM D445 |
900
mm²/s
ASTM D445
|
| Viscosity Index VI | 333 | DIN ISO 2909 |
333
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 980 | ASTM D2983 |
980
mPa*s
ASTM D2983
|
| Pourpoint | °C | -55 | DIN ISO 3016 |
-55
°C
DIN ISO 3016
|
| Flashpoint | °C | 166 | DIN EN ISO 2592 |
166
°C
DIN EN ISO 2592
|
| Approvals | DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K |
DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
|
Hydraulic brakes/clutch system
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
For brake system
The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.
- Available packaging
- Product parameters
DOT 5.1
The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.
RAVENOL DOT 5.1 fluid is an ideal brake fluid for modern vehicles with the brake circuit accompanying systems such as ESP and ABS due to its low viscosity. The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 5.1 even at low temperatures.
Application Note
RAVENOL DOT 5.1 brake fluid can be used in all vehicles where DOT 5.1 specification is required. It is suitable for all hydraulic brake systems with synthetic fluid.
RAVENOL DOT 5.1 brake fluid is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT 5.1, a complete change of the brake fluid is recommended.
RAVENOL DOT 5.1 is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Optimal ABS properties
- Chemical stability
- High lubricating power
- Neutral behavior towards brake parts
- Low viscosity at low temperatures
- Miscibility with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-5.1 |
DOT-5.1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 5.1, ISO 4925 Class 5.1, SAE J 1704 |
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1069 | EN ISO 12185 |
1069
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.16 | ASTM D445 |
2.16
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 810 | ASTM D445 |
810
cSt
ASTM D445
|
| Boiling point | °C | 269 | FMVSS 116 |
269
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 187 | FMVSS 116 |
187
°C
FMVSS 116
|
| Chemical Stability | °C | 1.5 | FMVSS 116 |
1.5
°C
FMVSS 116
|
| Evaporation | %w/w | 68 | FMVSS 116 |
68
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 2s | FMVSS 116 |
i.O., 2s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 2s | FMVSS 116 |
transparent, 2s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | 0.1 | DIN 51777-1 |
0.1
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | -0.01 | FMVSS 116 |
-0.01
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.004 | FMVSS 116 |
-0.004
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,01 | FMVSS 116 |
-0,01
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.03 | FMVSS 116 |
-0.03
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.03 | FMVSS 116 |
0.03
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 7.33 | FMVSS 116 |
7.33
FMVSS 116
|
|
| Rubber Diameter Change | 0.03 | FMVSS 116 |
0.03
FMVSS 116
|
|
| Hardness Change | °IRHD | -6 | FMVSS 116 |
-6
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.44 | FMVSS 116 |
0.44
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.72 | FMVSS 116 |
0.72
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -3 | FMVSS 116 |
-3
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.42 | FMVSS 116 |
0.42
mm
FMVSS 116
|
| Approvals | DOT 5.1, ISO 4925 Class 5.1, SAE J 1704 |
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
|
Cooling system until production date 08. 07. 2019
Coolant
RAVENOL LTC Lobrid Technology Coolant Premix -40°C is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.
Compliance with the requirements:
Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
- Available packaging
- Product parameters
RAVENOL LTC Lobrid Technology Coolant Premix -40°C is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL LTC Lobrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL LTC Lobrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL LTC Lobrid Technology Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for all-aluminium engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cooling systems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Si-OAT, MB (A 000 989 08 25 10), MB 325.5, MB 326.6 (Premix), Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13) |
Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Si-OAT, MB (A 000 989 08 25 10), MB 325.5, MB 326.6 (Premix), Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J |
Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
|
||
| Compliant products | MB A 000 989 08 25 10, Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J |
MB A 000 989 08 25 10, Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J
|
||
| Density at 20 °C | g/cm³ | 1079 | EN ISO 12185 |
1079
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| pH - value at 20 °C | 8,2 | ASTM D1287 |
8,2
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J |
Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
|
Coolant
RAVENOL LTC Lobrid Technology Coolant Concentrate is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.
Compliance with the requirements:
Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410125-010
Volume:
20 L, ecobox
vendor code:
1410125-B20
Volume:
60 L
vendor code:
1410125-060
Volume:
208 L
vendor code:
1410125-208
Volume:
1000 L
vendor code:
1410125-700
RAVENOL LTC Lobrid Technology Coolant Concentrate is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL LTC Lobrid Technology Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL LTC Lobrid Technology Coolant Concentrate with frost and rust protection for year-round use in all-aluminium engines. Use according to the mixing chart. Follow manufacturer’s recommendations.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL LTC Lobrid Technology Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for all-aluminium engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Si-OAT, MB 325.5, MB 325.6, Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13) |
Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Si-OAT, MB 325.5, MB 325.6, Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J |
Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
|
||
| Compliant products | Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J |
Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J
|
||
| Density at 20 °C | g/cm³ | 1120 | EN ISO 12185 |
1120
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| Reserve alkalinity | mgKOH/g | 5.5 — | ASTM D1120 |
5.5 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 175 — | ASTM D1121 |
175 —
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 115 | DIN 51758 |
115
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 8,1 | ASTM D1287 |
8,1
ASTM D1287
|
|
| Approvals | Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J |
Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
Cooling system starting from production date 08. 07. 2019
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.
RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1070 | EN ISO 12185 |
1070
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| pH - value at 20 °C | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410110-010
Volume:
60 L, plastic
vendor code:
-
Code:
4014835755437
Volume:
60 L, print
vendor code:
1410110-D60
Volume:
1000 L
vendor code:
1410110-700
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).
MAN information for use:
Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
- systems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| Reserve alkalinity | mgKOH/g | 5.5 — | ASTM D1120 |
5.5 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 187 | ASTM D1121 |
187
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
