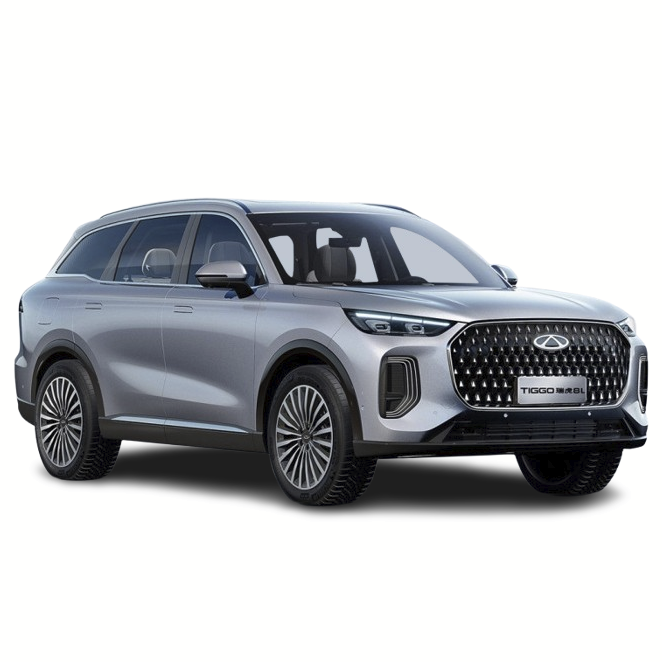

Oil for Chery - Tiggo 8L - 2.0 FWD / 2WD (SQRF4J20) (254 hp) (187 kW)
Chery Tiggo 8L 2.0 FWD / 2WD (SQRF4J20) (254 hp) (187 kW), year of issue from 2024 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Engine SQRF4J20
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
- Available packaging
- Product parameters
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL Eco Synth ECS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL Eco Synth ECS SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL Eco Synth ECS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Eco Synth ECS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable
- operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good aging behavior, confirmed by the Hot Tube Test.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota |
Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SN (RC) |
SN (RC)
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| ILSAC | GF-5 |
GF-5
|
||
| Manufacturer Approved | Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20 |
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
|
||
| Recomendations | Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010 |
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
|
||
| Suitable for | Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 839 | EN ISO 12185 |
839
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 41.3 | DIN 51562-1 |
41.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 177 | DIN ISO 2909 |
177
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.64 | ASTM D5481 |
2.64
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4890 | ASTM D5293 |
4890
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 10.000 | ASTM D4684 |
10.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.4 | ASTM D5800 |
9.4
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.2 | ASTM D2896 |
9.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.79 | DIN 51575 |
0.79
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010 |
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010
|
For passenger cars
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
SAE: 0W-20
ILSAC: GF-7A
API: SQ (RC)
Equivalents OEM:
Alpine 0100191,
Alpine 0100192,
Alpine 0100193,
Alpine 0100194,
Alpine 0100195,
Alpine 0100199,
Alpine 100191,
Alpine 100192,
Alpine 100193,
Alpine 100194,
Alpine 100195,
Alpine 100199,
GM 109236,
GM 19259487,
GM 88865553,
Honda 00W20BASN0LDRM,
Honda 0821199904,
Honda 0821199906,
Honda 0821199907,
Honda 0821799974,
Honda 0821799976,
Honda 0821799977,
Honda 0822799974,
Honda 08232P99A1HMR,
Honda 08232P99A1LHE,
Honda 08232P99A6HMR,
Honda 08232P99A30HE,
Honda 08232P99C1HMR,
Honda 08232P99C3HMR,
Honda 08232P99D1LHE,
Honda 08232P99D4LHE
Alpine 0100191, Alpine 0100192, Alpine 0100193, Alpine 0100194, Alpine 0100195, Alpine 0100199, Alpine 100191, Alpine 100192, Alpine 100193, Alpine 100194, Alpine 100195, Alpine 100199, GM 109236, GM 19259487, GM 88865553, Honda 00W20BASN0LDRM, Honda 0821199904, Honda 0821199906, Honda 0821199907, Honda 0821799974, Honda 0821799976, Honda 0821799977, Honda 0822799974, Honda 08232P99A1HMR, Honda 08232P99A1LHE, Honda 08232P99A6HMR, Honda 08232P99A30HE, Honda 08232P99C1HMR, Honda 08232P99C3HMR, Honda 08232P99D1LHE, Honda 08232P99D4LHE, Honda 08232P99D6LHE, Honda 087989029, Honda 087989037, Honda 087989081, Honda 087989081, Honda 087989137, Honda 87989036, Hyundai Motor 0510000161, Hyundai Motor 0510000461, Mitsubishi 3013611, Motorcraft XO0W20DSP, Motorcraft XO0W20Q1SP, Motorcraft XO0W20QSP, Motorcraft XO0W205Q3SP, Toyota 0888009209, Toyota 0888009210, Toyota 0888082654
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111109-060
Volume:
208 L
vendor code:
1111109-208
Volume:
208 L, print
vendor code:
1111109-D28
Volume:
1000 L
vendor code:
1111109-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL DFE SAE 0W-20 ensures the prevention of premature fuel ignition LSPI (Low Speed Pre-ignition), thus avoiding engine damage. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DFE SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL DFE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer 's instructions.
Application Note
RAVENOL DFE SAE 0W-20 is suitable as a high-performance light-running engine oil for demanding engines. It is recommended for modern passenger car engines from OPEL, GENERAL MOTORS, Chevrolet, Daewoo and Holden according to Dexos1 specification under all operating conditions.
RAVENOL DFE SAE 0W-20 is also applicable to the specified specifications of Ford and Chrysler and suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Fuel savings in partial and full load operation.
- LowSAPS = Low sulfate ash, phosphorus and sulfur.
- Very stable and excellent viscosity behavior.
- Excellent shear stability.
- Very good cold start characteristics.
- A safe lubrication film at very high operating temperatures.
- Very good detergents and dispersing properties.
- Very good wear and corrosion protection.
- Protection from foam formation.
- Excellent detergent and dispersant properties.
- Long life due to high oxidation stability.
- Catalyst suitability.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.93 | DIN 51562-1 |
8.93
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 50.5 | DIN 51562-1 |
50.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.78 | ASTM D5481 |
2.78
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5400 | ASTM D5293 |
5400
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 14.600 | ASTM D4684 |
14.600
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 5.9 | ASTM D5800 |
5.9
%
ASTM D5800
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
For engine
RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Compliance with the requirements:
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1111113-D60
Volume:
208 L, print
vendor code:
1111113-D28
Volume:
1000 L
vendor code:
1111113-700
RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By a significant fuel economy RAVENOL EHS SAE 0W-20 contributes by reducing emissions to protect the environment. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL EHS SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL EHS SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used.
- Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Reduces CO2 emissions, protect the environment.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057 |
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE |
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
|
||
| Recomendations | BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057 |
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
|
||
| Suitable for | Geely, Lynk & Co, Polestar, Volvo |
Geely, Lynk & Co, Polestar, Volvo
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 43.8 | DIN 51562-1 |
43.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 174 | DIN ISO 2909 |
174
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.76 | ASTM D5481 |
2.76
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5490 | ASTM D5293 |
5490
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 12.700 | ASTM D4684 |
12.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.4 | ASTM D5800 |
10.4
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.8 | ASTM D2896 |
8.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.64 | DIN 51575 |
0.64
%wt.
DIN 51575
|
| Approvals | BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057 |
BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057
|
RAVENOL EHC SAE 0W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
Compliance with the requirements:
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111128-060
Volume:
208 L
vendor code:
1111128-208
Volume:
1000 L
vendor code:
1111128-700
RAVENOL EHC SAE 0W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By a significant fuel economy RAVENOL EHC SAE 0W-20 contributes by reducing emissions to protect the environment.
RAVENOL EHC SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL EHC SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL EHC SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol engines. It is also suitable for use in hybrid vehicles from various manufacturers. The operating instructions of the engine manufacturers must be observed.
Characteristics
- Guaranteed fastest possible lubrication of the engine
- High fuel economy (FE) effect due to the base oils and additives used
- Low volatilization tendency, thereby lower oil consumption
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves
- Ensures the function of the hydraulic tappets at all temperatures
- Stable engine oil, no NOx oxidation
- Good soot absorption and dispersion
- Neutral towards sealing materials
- Reduces CO2 emissions, protects the environment
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Buick , Cadillac, Chevrolet, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, GM 6094M, GM dexos1™ Gen 3, Honda/Acura HTO-06, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick , Cadillac, Chevrolet, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, GM 6094M, GM dexos1™ Gen 3, Honda/Acura HTO-06, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Recomendations | Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06 |
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06
|
||
| Suitable for | Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 44.2 | DIN 51562-1 |
44.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.62 | ASTM D5481 |
2.62
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5490 | ASTM D5293 |
5490
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 16.800 | ASTM D4684 |
16.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.4 | ASTM D5800 |
10.4
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.79 | DIN 51575 |
0.79
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 3, Honda/Acura HTO-06 |
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 3, Honda/Acura HTO-06
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Transmission, automatic in a unit with final drive 8/1
Hydraulic fluid
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
- Available packaging
- Product parameters
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Application Note
RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.
Characteristics
- phenomenal resistance of lubricant failure under hard operating conditions
- a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
- phenomenal resistance of oil sludge and deposit accumulation
- an excellent oxidation resistance and thermic stability
- a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
- as a lower corrosion of the bearings, sleeves and gear wheels
- an excellent flow behaviour at low temperatures
- a more constant switching operation performance, optimised friction characteristics
- prevention of coupling grinding regarding modulation rotary conversion
- a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
- an improved shear stability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28 |
Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
||
| Suitable for | Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-) |
Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
|
||
| Compliant products | BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28 |
BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
|
||
| Density at 20 °C | g/cm³ | 838 | EN ISO 12185 |
838
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Approvals | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
Hydraulic brake system
Brake fluid
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14
- Available packaging
- Product parameters

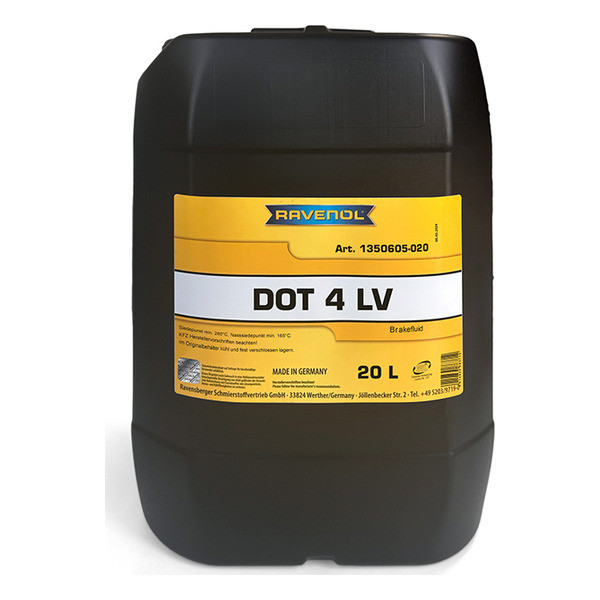

Volume:
20 L
vendor code:
1350605-020

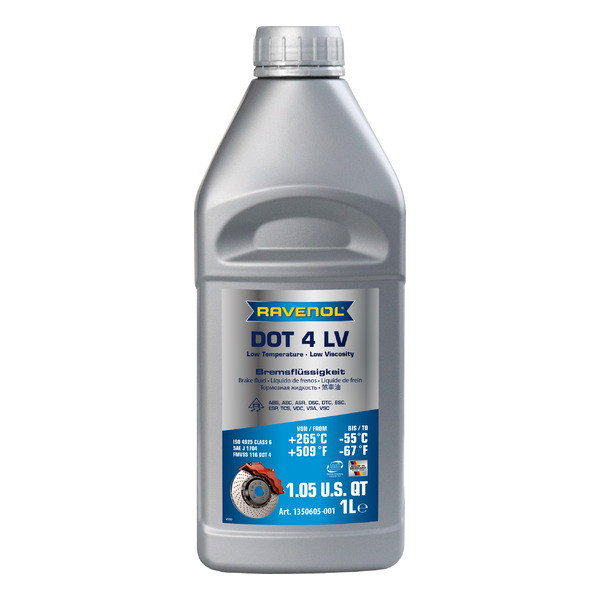

DOT 4
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.
RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.
Application Note
RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.
RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.
RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.
To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.
RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Fluidity even at very low temperatures
- Optimal ABS properties.
- Chemical stability.
- High lubricating power
- Neutral behavior towards brake parts.
- Can be mixed with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 LV |
DOT-4 LV
|
||
| Recommendations | Ford WSS-M6C65-A2, VW 501 14 |
Ford WSS-M6C65-A2, VW 501 14
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Ford WSS-M6C 65-A2, VW 501.14 |
Ford WSS-M6C 65-A2, VW 501.14
|
||
| specification | DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704 |
DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.1 | ASTM D445 |
2.1
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 675 | ASTM D445 |
675
cSt
ASTM D445
|
| Boiling point | °C | 267 | FMVSS 116 |
267
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 172 | FMVSS 116 |
172
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14 |
DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.
RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1070 | EN ISO 12185 |
1070
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| pH - value at 20 °C | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410110-010
Volume:
60 L, plastic
vendor code:
-
Code:
4014835755437
Volume:
60 L, print
vendor code:
1410110-D60
Volume:
1000 L
vendor code:
1410110-700
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).
MAN information for use:
Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
- systems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| Reserve alkalinity | mgKOH/g | 5.5 — | ASTM D1120 |
5.5 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 187 | ASTM D1121 |
187
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
