Oil for JCB - Telescopic manipulators - 532-120 ( - )
JCB Telescopic manipulators 532-120 ( - ) - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Engine
For engine
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
- Available packaging
- Product parameters
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.
RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.
RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.
Characteristics
- New formula with dexos1™ Gen 3 approval
- Particularly suitable for GDI engines
- Avoids low speed pre-ignition (LSPI)
- No oil-related deposits in combustion chambers, in the piston ring zone and on valves
- Fuel savings potential under both part and full load operation
- Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
- A very stable viscosity behavior and an excellent shear stability
- Very good cold starting properties
- A safe lubricant film even at very high operating temperatures
- Exceptional wear and corrosion protection
- Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
- Long service life through high oxidation stability
- Suitable for catalyst-equipped vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Density at 20 °C | g/cm³ | 846 | EN ISO 12185 |
846
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.1 | DIN 51562-1 |
11.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 65.6 | DIN 51562-1 |
65.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.25 | ASTM D5481 |
3.25
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3990 | ASTM D5293 |
3990
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 11.800 | ASTM D4684 |
11.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Noack Volatility | % | 6 | ASTM D5800 |
6
%
ASTM D5800
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
For engine
With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1111125-D60
Volume:
208 L, print
vendor code:
1111125-D28
Volume:
1000 L
vendor code:
1111125-700
With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.
RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.
RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.
Characteristics
- Fuel savings in partial and full load operation
- Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
- Excellent cold-start properties even at low temperatures below -25°C
- A safe lubricating film at high operating temperatures
- Low evaporation tendency, thus low oil consumption
- No oil-based deposits in combustion chambers, in the piston ring zone and on valves
- Neutrality towards sealing materials
- Extended oil change intervals protect natural resources
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
||
| Density at 20 °C | g/cm³ | 844 | EN ISO 12185 |
844
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.8 | DIN 51562-1 |
10.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 59.8 | DIN 51562-1 |
59.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.4 | ASTM D5481 |
3.4
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3630 | ASTM D5293 |
3630
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 13.500 | ASTM D4684 |
13.500
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.1 | ASTM D5800 |
8.1
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.86 | DIN 51575 |
0.86
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
Transmission Powershift
Transmission fluid

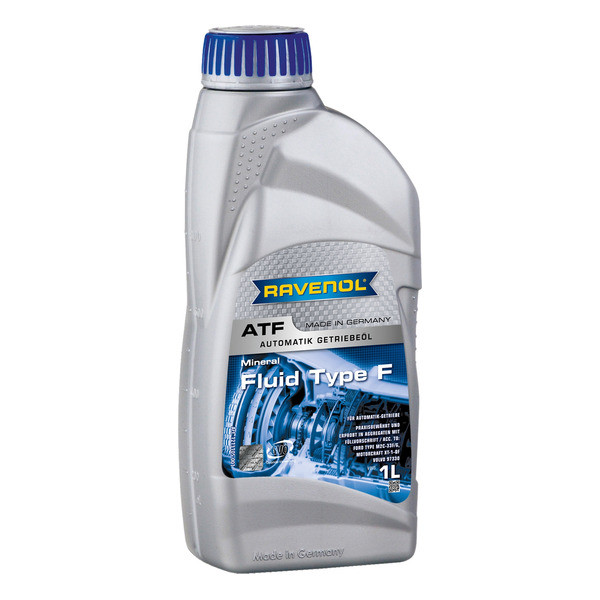

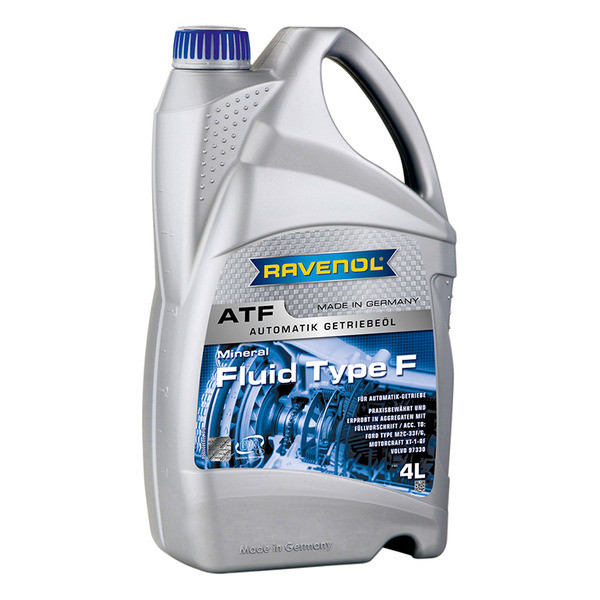

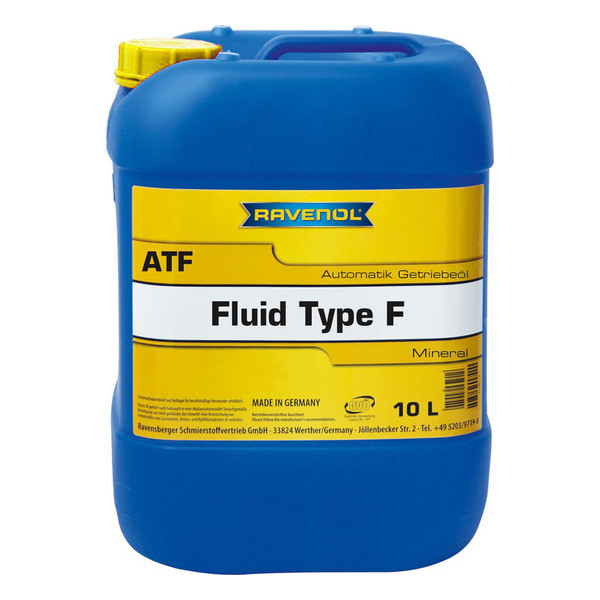

RAVENOL ATF Fluid Type F is designed based on refined base oils with a special additive treatment and inhibition ensuring trouble-free function.
Compliance with the requirements:
Ford ESW-M2C 33-F, Ford ESW-M2C 33-G
Equivalents OEM:
Ford 5006342, Ford 5006342, Ford CXT1LF12, Ford XT1Q1F, Ford XT1QF
- Available packaging
- Product parameters

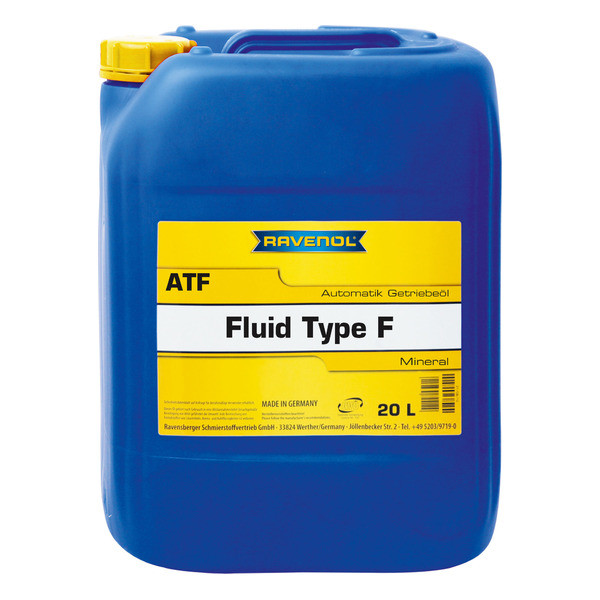

Volume:
20 L
vendor code:
1213105-020

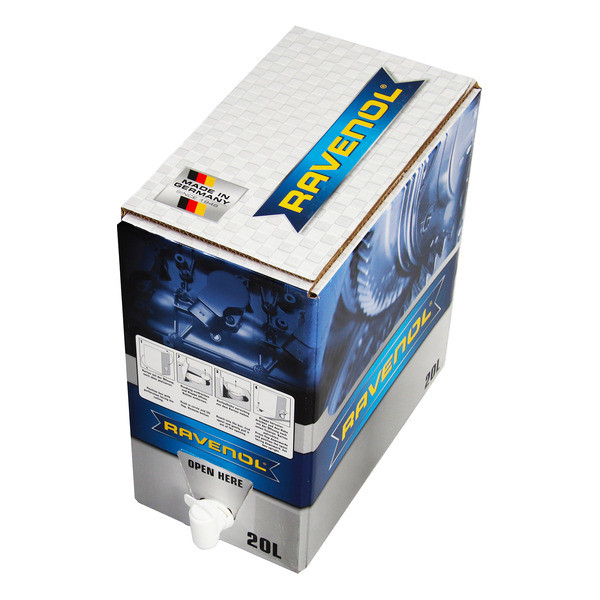

Volume:
20 L, ecobox
vendor code:
1213105-B20

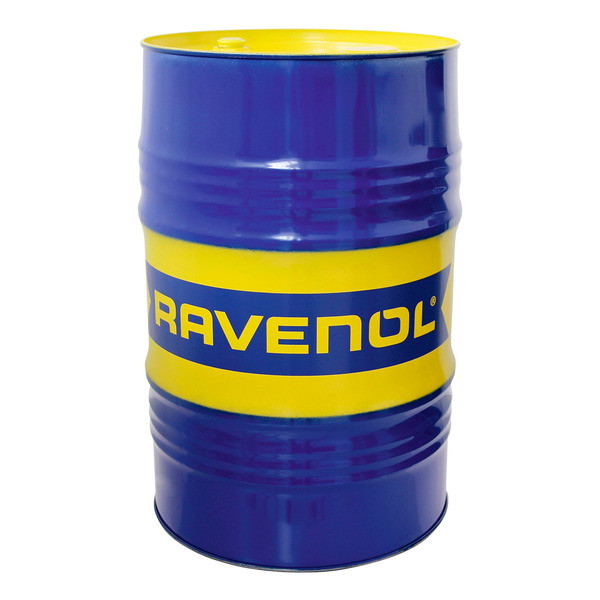

Volume:
60 L
vendor code:
1213105-060

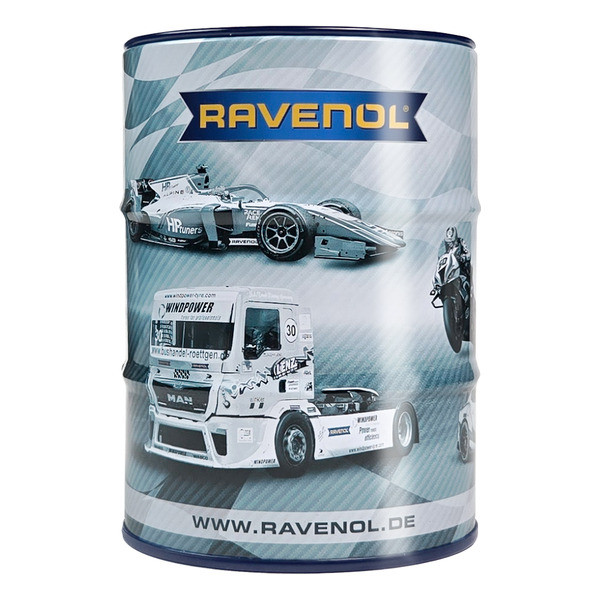

Volume:
60 L, print
vendor code:
1213105-D60
Volume:
208 L
vendor code:
1213105-208

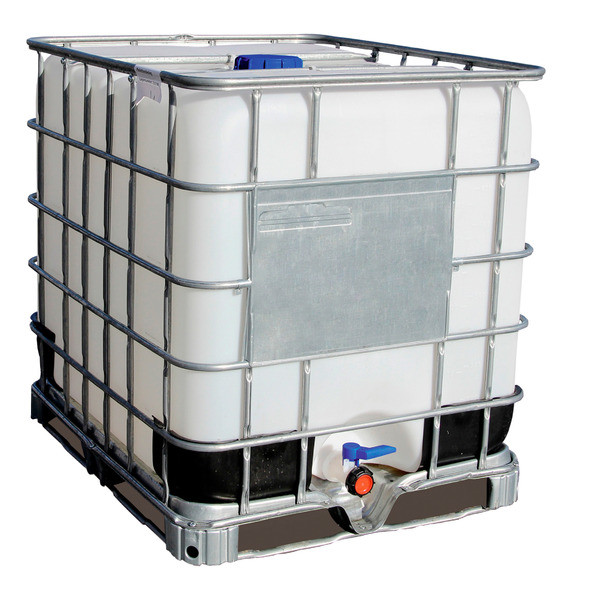

Volume:
1000 L
vendor code:
1213105-700
RAVENOL ATF Fluid Type F is designed based on refined base oils with a special additive treatment and inhibition ensuring trouble-free function.
Application Note
RAVENOL ATF Fluid Type F is suitable for use as speciality transmission oil for Ford, Borg Wagner and Volvo.
Use RAVENOL ATF Fluid Type F according to aggregate manufacturer operating instructions in: Automatic transmissions, fluid turbo coupling, servo clutches and other hydrostatic and hydrodynamic systems.
Characteristics
- Universal use, therefore minimising the risk of confusion and making stock-keeping easy.
- Good lubricating ability even in low temperatures during winter.
- Stable lubricating film under extreme stress in midsummer resulting in comparatively low wear throughout the change interval.
- Excellent viscosity-temperature properties.
- High thermal resilience.
- Non-foaming even in extreme conditions.
- Reliable protection against wear, sludge, corrosion and adhesion.
- FZG test: Reaches failure load stage 12 before and after shearing.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Ford Motorcraft XT-1-QF, Ford Type M2C-33F, Ford Type M2C-33G, VOLVO 97330 |
Ford Motorcraft XT-1-QF, Ford Type M2C-33F, Ford Type M2C-33G, VOLVO 97330
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Ford ESW-M2C 33-F, Ford ESW-M2C 33-G |
Ford ESW-M2C 33-F, Ford ESW-M2C 33-G
|
||
| Compliant products | Motorcraft XT-1-QF, Volvo 97330 |
Motorcraft XT-1-QF, Volvo 97330
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.3 | DIN 51562-1 |
7.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 34.3 | DIN 51562-1 |
34.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Approvals | Ford ESW-M2C 33-F, Ford ESW-M2C 33-G |
Ford ESW-M2C 33-F, Ford ESW-M2C 33-G
|
Differential, wheels gearboxes
For differentials
RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.
Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1222102-020
Volume:
1000 L
vendor code:
1222102-700
Volume:
60 L
vendor code:
1222102-060
Volume:
208 L
vendor code:
1222102-208
RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.
Characteristics
- excellent oxidation stability
- excellent protection against rust and corrosion
- prevents foaming
- outstanding extreme pressure properties
- excellent limited slip properties
- fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D |
GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| Recomendations | ZF TE-ML 05C, ZF TE-ML 05D |
ZF TE-ML 05C, ZF TE-ML 05D
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Compliant products | GM 1940058, GM 88862624, GM 88862625, GM 93165388 |
GM 1940058, GM 88862624, GM 88862625, GM 93165388
|
||
| Density at 20 °C | g/cm³ | 839 | EN ISO 12185 |
839
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.1 | DIN 51562-1 |
17.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 102.1 | DIN 51562-1 |
102.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 182 | DIN ISO 2909 |
182
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 84.300 | ASTM D2983 |
84.300
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D |
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D
|
Hydraulic brake system
Hydraulic oil
Application NoteRAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
Equivalents OEM:
Scania 2252143
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
-
Volume:
20 L, ecobox
vendor code:
1323202-B20
Volume:
1000 L
vendor code:
1323202-700
Volume:
20 L
vendor code:
1323202-020
Volume:
1 L
vendor code:
1323202-001
Volume:
5 L
vendor code:
1323202-005
Application Note
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 15 |
15
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | g/cm³ | 839.2 | EN ISO 12185 |
839.2
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 180 | DIN EN ISO 2592 |
180
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
Hydraulic system
For hydraulics
RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
SAE: 32W
Equivalents OEM:
Alpine 0100823, Alpine 0100824, Alpine 0100825, GM 88861678, GM 88861679, GM 88861693, GM 88861693
- Available packaging
- Product parameters
RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 32 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 32 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 32 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 32 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR NFE 48-603 HM, ASTM D6158, Atos, Bosch Rexroth RE 90220, CETOP RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG-Test A 8,3/90, GB 111118.1 L-HM (conventional), GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, M-2950-S, Metso, MIL-PRF-17672 E, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SAE MS1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, US Steel 126, US Steel 127, US Steel 136, VDMA 24318, Vickers-Pumpentest |
AFNOR NFE 48-603 HM, ASTM D6158, Atos, Bosch Rexroth RE 90220, CETOP RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG-Test A 8,3/90, GB 111118.1 L-HM (conventional), GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, M-2950-S, Metso, MIL-PRF-17672 E, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SAE MS1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, US Steel 126, US Steel 127, US Steel 136, VDMA 24318, Vickers-Pumpentest
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Suitable for | Atos, Metso |
Atos, Metso
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
|
Lubrication points oilers
For bearings
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
Manufacturer Approved:
LOVAT LOV-204
- Available packaging
- Product parameters
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.
Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.
Application Note
RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.
Characteristics
- Universal application, multi-purpose mixed pattern for machinery
- Excellent impact and wear-EP
- Very good oxidation and corrosion protection even in the presence of moisture
- Very good mechanical stability
- Excellent water resistance
- Long service life and thus extended lubrication intervals possible
- Very good resistance to aging
- Good pumpability, even at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | LOVAT LOV-204 |
LOVAT LOV-204
|
||
| specification | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
|
||
| Color | Brown | visual |
Brown
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2K-30 | DIN 51502 |
KP2K-30
DIN 51502
|
|
| Working Temperature | °C | -30 / +120 | DIN 51825 |
-30 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2400 — 2600 | DIN 51350-4 |
2400 — 2600
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 130 | DIN 51562-1 |
130
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204
|
For bearings
Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1
Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2
- Available packaging
- Product parameters
Application Note
RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.
Characteristics
- Work resistance
- Resistance to oxidation
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Manufacturer Approved | MAN 284 Li-H2, MB-Approval 265.1 |
MAN 284 Li-H2, MB-Approval 265.1
|
||
| specification | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
|
||
| Color | Red | visual |
Red
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2P-35 | DIN 51502 |
KP2P-35
DIN 51502
|
|
| Working Temperature | °C | -35 / +160 | DIN 51825 |
-35 / +160
°C
DIN 51825
|
| Short term temperature up to | °C | 200 | DIN 51757 |
200
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 260 — | DIN ISO 2176 |
260 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2600 — 2800 | DIN 51350-4 |
2600 — 2800
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 140 | DIN 51562-1 |
140
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
|
For bearings
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
- Available packaging
- Product parameters
Volume:
200 g
vendor code:
1340126-200
Volume:
1 kg
vendor code:
1340126-001
Volume:
180 kg
vendor code:
1340126-180
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.
Application Note
RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.
The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.
Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.
Characteristics
- Working resistance
- Oxidation resistance
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| specification | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
||
| Color | Green | visual |
Green
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KPE2K-60 | DIN 51502 |
KPE2K-60
DIN 51502
|
|
| Working Temperature | °C | -60 / +120 | DIN 51825 |
-60 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 160 | DIN 51757 |
160
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 3000 — 3200 | DIN 51350-4 |
3000 — 3200
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 20 | DIN 51562-1 |
20
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastome
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF |
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1080 | EN ISO 12185 |
1080
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| pH - value at 20 °C | 7,8 | ASTM D1287 |
7,8
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Equivalents OEM:
Alpine 0101141,
Alpine 0101142,
Alpine 0101143,
Alpine 0101144,
Alpine 0101145,
Alpine 101141,
Alpine 101142,
Alpine 101143,
Alpine 101144,
Alpine 101145,
Chrysler 04267020AA,
Chrysler 04267020AB,
Chrysler 04267020AC,
Chrysler 04267020AD,
Chrysler 04267020GA,
Chrysler 04267020GB,
Chrysler 04267020GC,
Chrysler 04267020GD,
Chrysler 4267020GA,
Chrysler 4267020GB,
Chrysler 4267020GD,
FEBI 02374,
FEBI 2374,
FEBI 88541,
Ford 1326830,
Ford CVC5,
Ford CVC7B2,
Ford VC5,
Ford VC7B,
Ford VC7D,
Ford VC7DILB
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410100-010
Volume:
20 L, ecobox
vendor code:
1410100-B20
Volume:
60 L, print
vendor code:
1410100-D60
Volume:
1000 L
vendor code:
1410100-700
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF |
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| Reserve alkalinity | mgKOH/g | — 20 | ASTM D1121 |
— 20
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 155 | ASTM D1120 |
155
°C
ASTM D1120
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 112 | DIN 51758 |
112
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 8,4 | ASTM D1287 |
8,4
ASTM D1287
|
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
