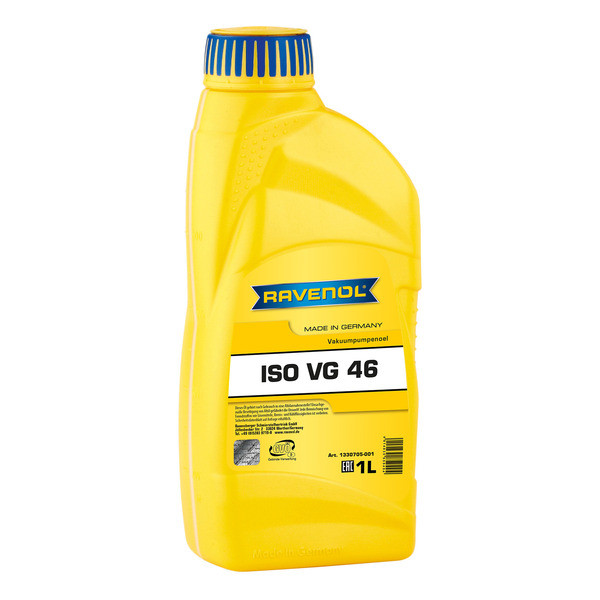

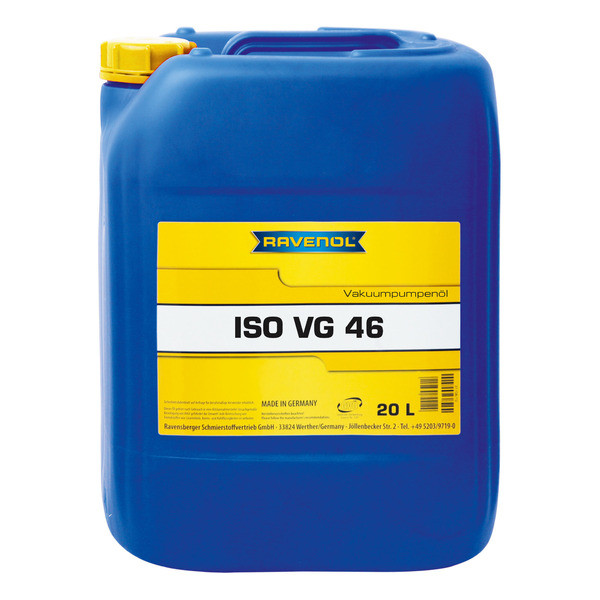

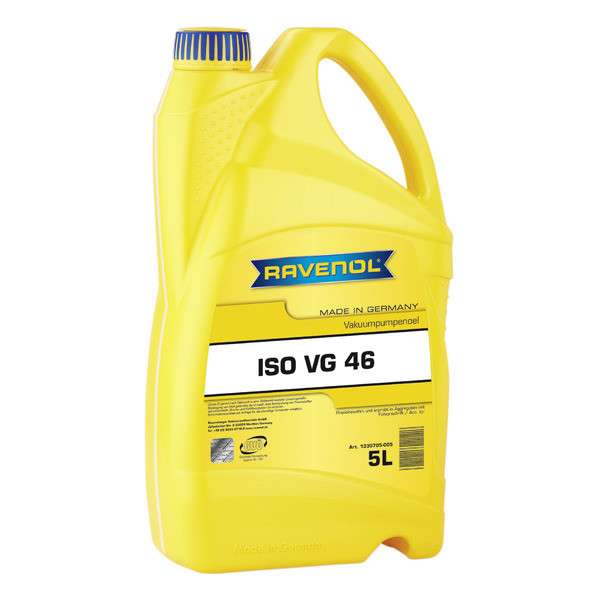

Application NoteRAVENOL Vakuumpumpenöl ISO VG 46 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, Fisherbrand 19, Hyvac 93055, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
SAE: 46
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330705-001
Volume:
5 L
vendor code:
1330705-005
Volume:

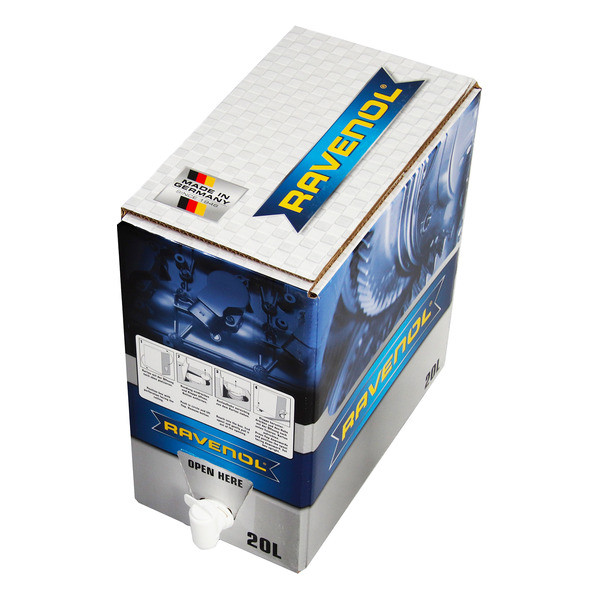

20 L, ecobox
vendor code:
1330705-B20
Volume:
60 L
vendor code:
1330705-060
Volume:

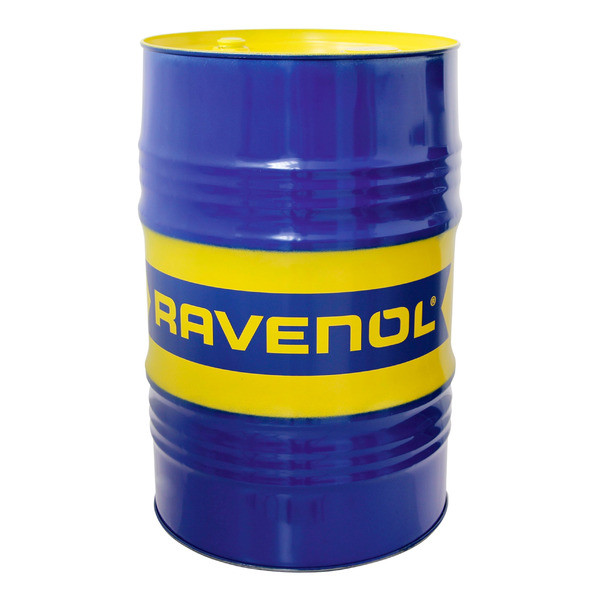

208 L
vendor code:
1330705-208
Application Note
RAVENOL Vakuumpumpenöl ISO VG 46 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenöl ISO VG 46 oil can be used very well for the lubrication of crankcases.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Neutral to seal materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 46 |
46
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, Fisherbrand 19, Hyvac 93055, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100 |
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, Fisherbrand 19, Hyvac 93055, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
|
||
| specification | DIN 51506 VC, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Compliant products | Edwards Ultragrade 19 |
Edwards Ultragrade 19
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.2 | DIN 51562-1 |
47.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 121 | DIN ISO 2909 |
121
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| Carbon residue Conradson | % | 0.05 | DIN 51551 |
0.05
%
DIN 51551
|
| Boiling point at 0,01 bar | 112 | DIN 51757 |
112
DIN 51757
|
|
| Vapor pressure | bar | 3 x 10 ‾3 | DIN 51757 |
3 x 10 ‾3
bar
DIN 51757
|
| Approvals | Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO 6743-3 DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100 |
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO 6743-3 DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
|

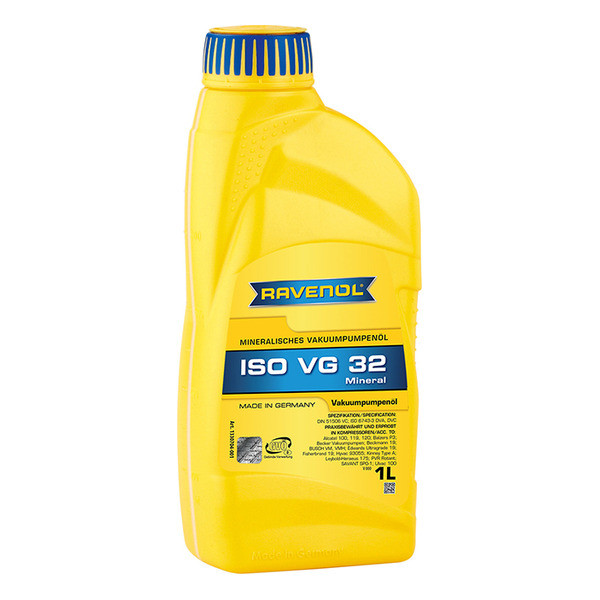

Application NoteRAVENOL Vakuumpumpenoel ISO VG 32 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
SAE: 32W
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330704-001
Volume:

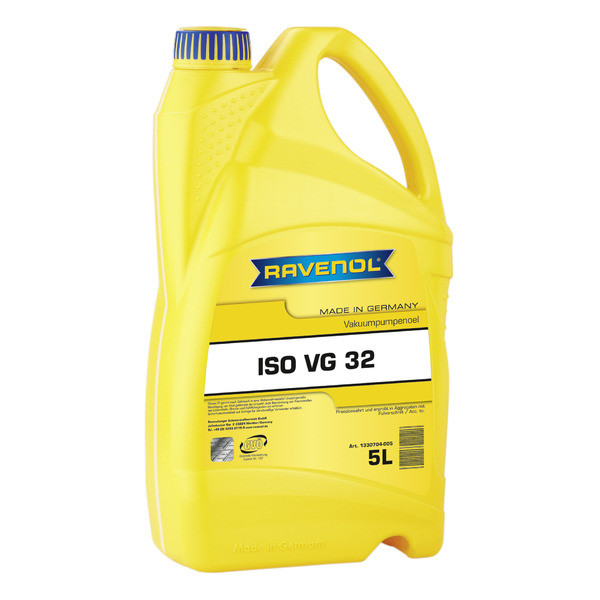

5 L
vendor code:
1330704-005
Volume:

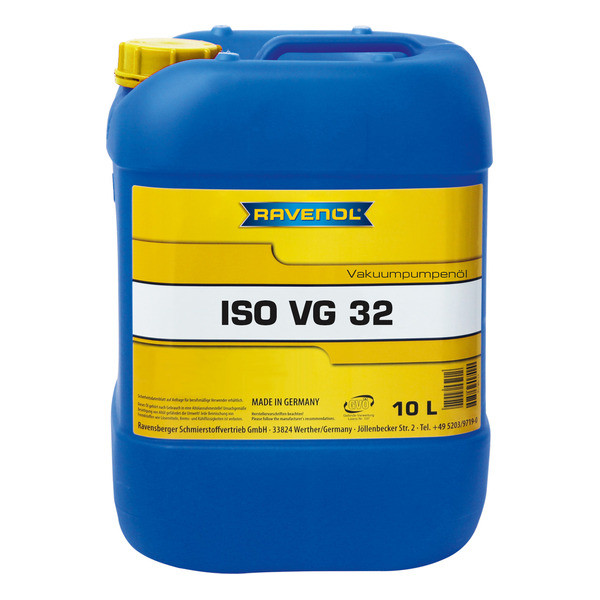

10 L
vendor code:
1330704-010
Volume:
20 L, ecobox
vendor code:
1330704-B20
Volume:
60 L
vendor code:
1330704-060
Volume:
208 L
vendor code:
1330704-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 32 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 32 oil can be used very well for the lubrication of crankcases.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Neutral to seal materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100 |
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
|
||
| Compliant products | Edwards Ultragrade 19 |
Edwards Ultragrade 19
|
||
| Density at 20 °C | kg/m³ | 848 | EN ISO 12185 |
848
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| FZG-Test A/8.3/90 Damage loading step | %wt. | 12 | DIN 51354/2 |
12
%wt.
DIN 51354/2
|
| Approvals | Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100 |
Alcatel 100, Alcatel 119, Alcatel 120, Balzers P3, Becker Vakuumpumpen, Beckmann 19, BUSCH VM, BUSCH VMH, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
|
Application NoteRAVENOL SCR 100 Screw Kompressorenöl is used in screw compressors.
Compliance with the requirements:
Vickers Pumpentest
SAE: 100
- Available packaging
- Product parameters
Volume:
208 L
vendor code:
1330307-208
Application Note
RAVENOL SCR 100 Screw Kompressorenöl is used in screw compressors.
Vickers-Pump Test, FZG-Test A 8,3/90: 12th load level is reached. Refer to the manual.
Characteristics
- High performance level
- Very good viscosity temperature behaviour
- High aging resistant
- Excellent corrosion protection
- Solid corrosion protection
- Neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Recomendations | Vickers Pumpentest |
Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| Approvals | DIN 51524-2, ISO 6743-4 HM, Vickers Pumpentest |
DIN 51524-2, ISO 6743-4 HM, Vickers Pumpentest
|

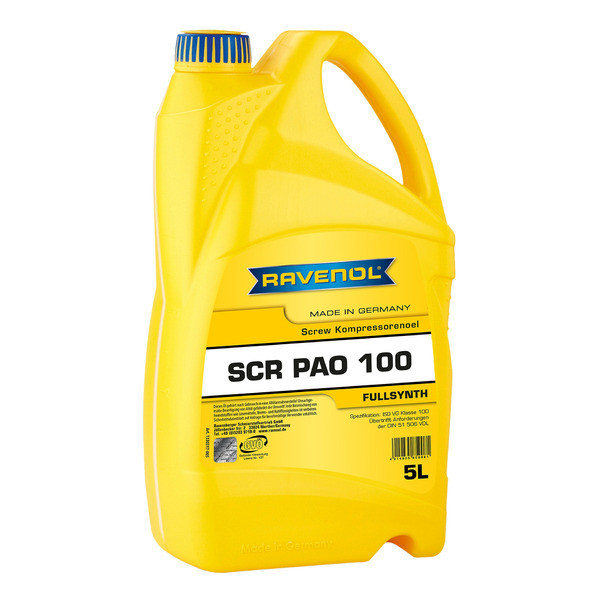

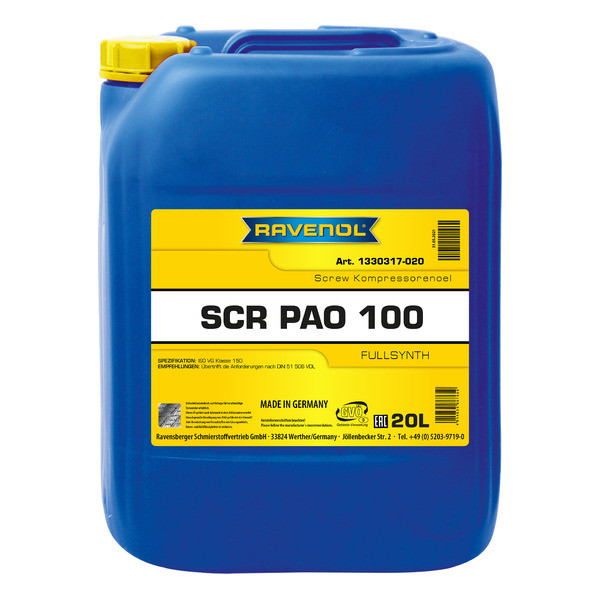

RAVENOL SCR PAO 100 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330317-005
Volume:
20 L
vendor code:
1330317-020
Volume:
60 L
vendor code:
1330317-060
Volume:
205 L
vendor code:
1330317-205
Volume:
208 L
vendor code:
1330317-208
RAVENOL SCR PAO 100 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
RAVENOL SCR PAO 100 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.
RAVENOL SCR PAO 100 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption.
The full benefits of a change to RAVENOL SCR PAO 100 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 100 Screw Kompressorenöl may not result in optimum performance and fluid service life.
RAVENOL SCR PAO 100 Screw Kompressorenöl has excellent oxidation stability, corrosion,deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.
Application Note
RAVENOL SCR PAO 100 Screw Kompressorenöl is recommended for use in rotary screw air compressors.
While RAVENOL SCR PAO 100 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.
Characteristics
- High oxidation stability
- Excellent protection against rust and corrosion.
- Excellent resistance to oxidative breakdown caused by exposure toair at high discharge temperatures
- Higher thermal stability reduces carbon deposit formation
- Improved viscosity index and good low temperature properties
- Good protection against wear
- Protects against rust and corrosion
- Low volatility reduces oil carry-over into the air system
- Reduces fluid consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 845 | EN ISO 12185 |
845
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.8 | DIN 51562-1 |
97.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 171 | DIN ISO 2909 |
171
DIN ISO 2909
|
|
| Pourpoint | °C | -60 | DIN ISO 3016 |
-60
°C
DIN ISO 3016
|
| Flashpoint | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.11 | ASTM D664 |
0.11
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-39-0 (10) | ASTM D1401 |
41-39-0 (10)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL Hydraulikoel TS 100 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.RAVENOL Hydraulikoel TS 100 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
SAE: 100
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323107-001
Volume:
5 L
vendor code:
1323107-005
Volume:
10 L
vendor code:
1323107-010
Volume:
20 L
vendor code:
1323107-020
Volume:
20 L, ecobox
vendor code:
1323107-B20
Volume:
60 L
vendor code:
1323107-060
Volume:
208 L
vendor code:
1323107-208

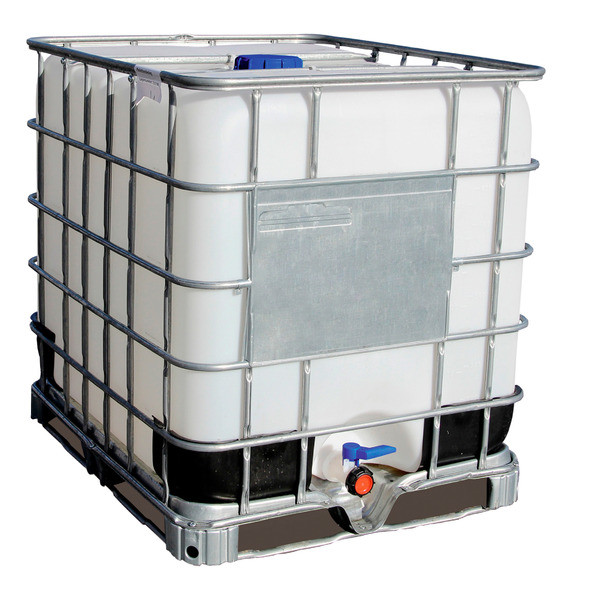

Volume:
1000 L
vendor code:
1323107-700
RAVENOL Hydraulikoel TS 100 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.RAVENOL Hydraulikoel TS 100 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 100 (HLP)
is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 100 (HLP)
is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 100 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Viscosity index | 100 |
100
|
||
| SAE | 100 |
100
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
Application NoteRAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
SAE: 100
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323207-020
Volume:
20 L, ecobox
vendor code:
1323207-B20
Volume:
60 L
vendor code:
1323207-060
Application Note
RAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
|
||
| specification | DIN 51524, DIN 51524-3, ISO 6743-4 HV |
DIN 51524, DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 871 | EN ISO 12185 |
871
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 99.9 | DIN 51562-1 |
99.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 148 | DIN ISO 2909 |
148
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 260 | DIN EN ISO 2592 |
260
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
|
RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.
Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
SAE: 100
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1332107-020
Volume:
1000 L
vendor code:
1332107-700
Volume:
20 L, ecobox
vendor code:
1332107-B20
RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.
Application Note
RAVENOL Getriebeoel CLP 100 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.
Characteristics
- A very good, stable high-pressure impact capacity
- Resistant characteristics at high temperatures
- A good rust and corrosion impeding effect
- Excellent wear protection
- Very good anti-foaming characteristics
- A low pour point
- Very good cold behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|
||
| specification | DIN 51517-3 |
DIN 51517-3
|
||
| Suitable for | Cincinnati Milacron |
Cincinnati Milacron
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.4 | DIN 51562-1 |
11.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 106.3 | DIN 51562-1 |
106.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| Approvals | AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H |
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
|
Application NoteRAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330707-005
Volume:
20 L, ecobox
vendor code:
1330707-B20
Volume:
60 L
vendor code:
1330707-060
Application Note
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|

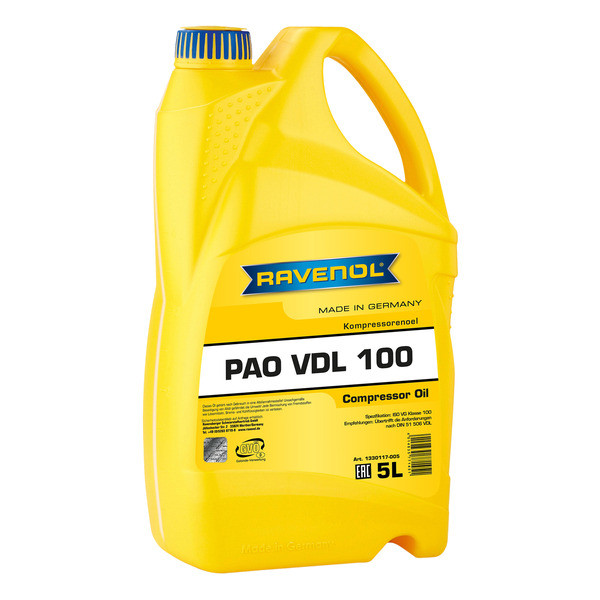

RAVENOL Kompressorenoel PAO VDL 100 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330117-005
Volume:
60 L
vendor code:
1330117-060
Volume:
208 L
vendor code:
1330117-208
RAVENOL Kompressorenoel PAO VDL 100 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
In addition RAVENOL Kompressorenoel PAO VDL 100 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel PAO VDL 100 is recommended for all compressors especially in rotary screw air compressors.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
- Very low evaporative behavior and an outstanding demulsifying power
- Excellent air separation ability.
- Better resistance to oxidative breakdown.
- Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
- Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickening.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Noack Volatility | % M/M | 2.54 | ASTM D5800 |
2.54
% M/M
ASTM D5800
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.1 | DIN 51562-1 |
14.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.7 | DIN 51562-1 |
100.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 143 | DIN ISO 2909 |
143
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 263 | DIN EN ISO 2592 |
263
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.11 | ASTM D664 |
0.11
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-39-0 (10) | ASTM D1401 |
41-39-0 (10)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|

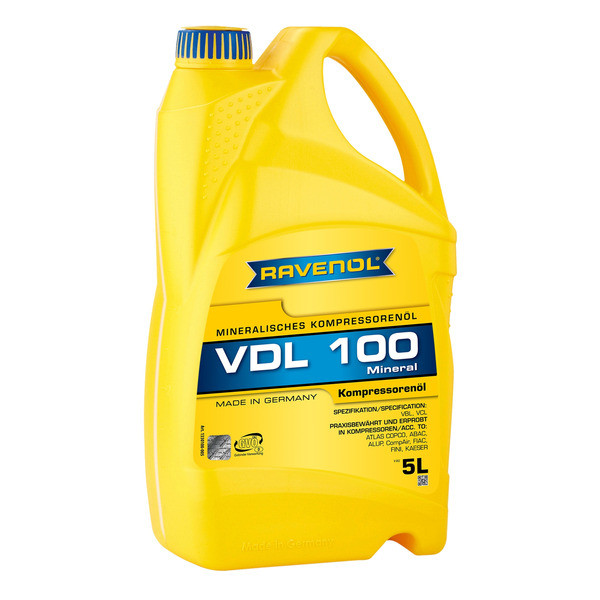

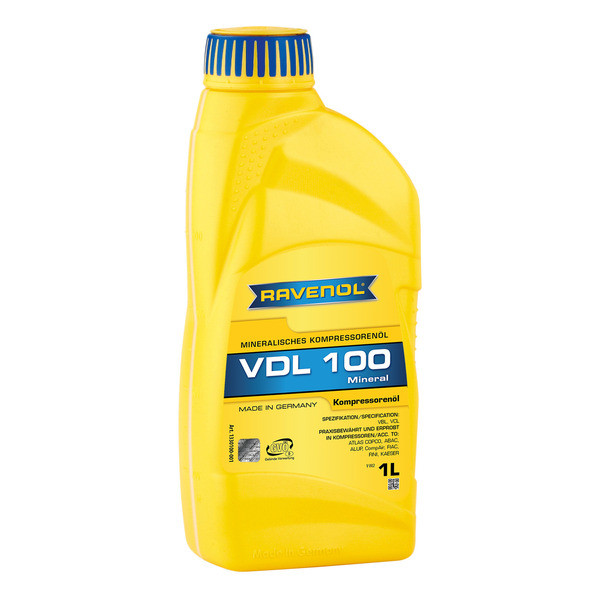

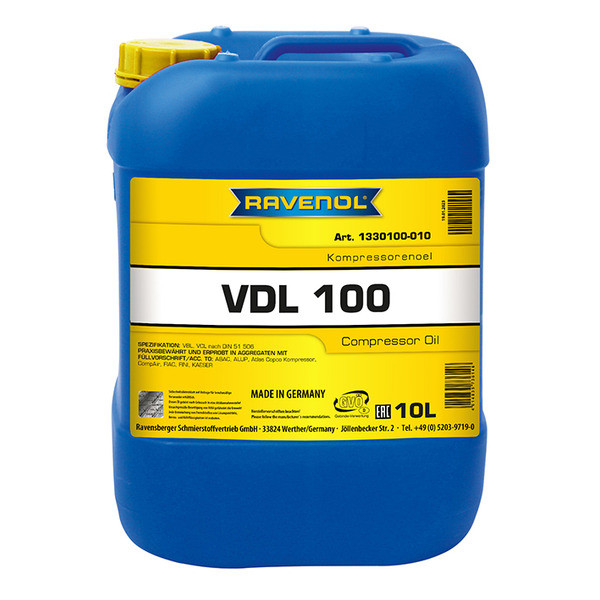

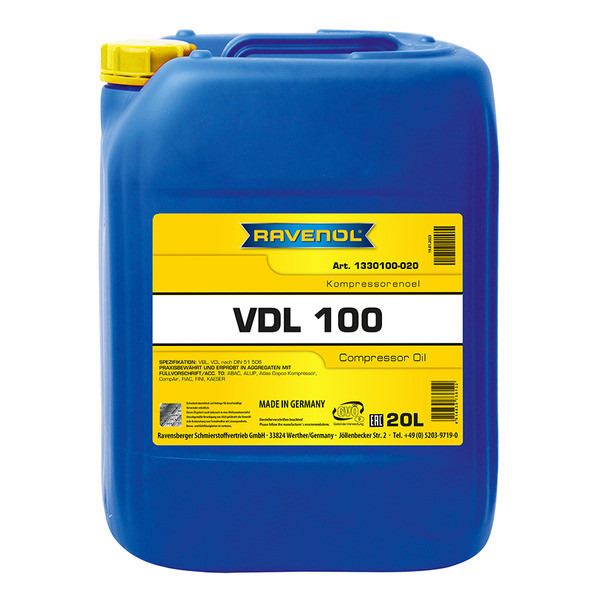

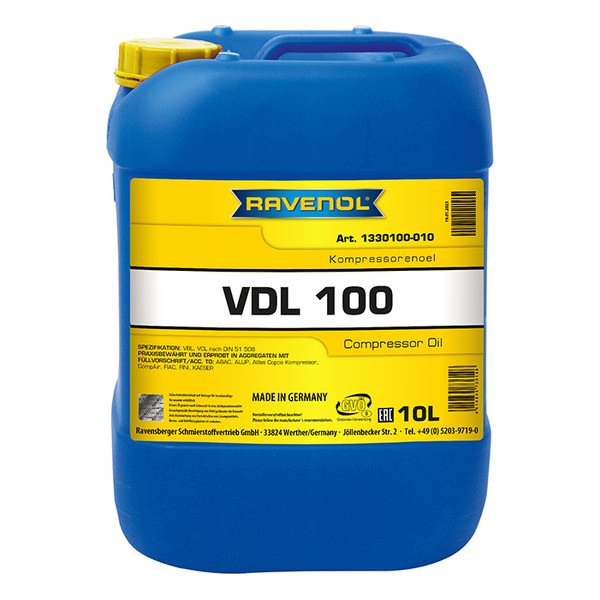

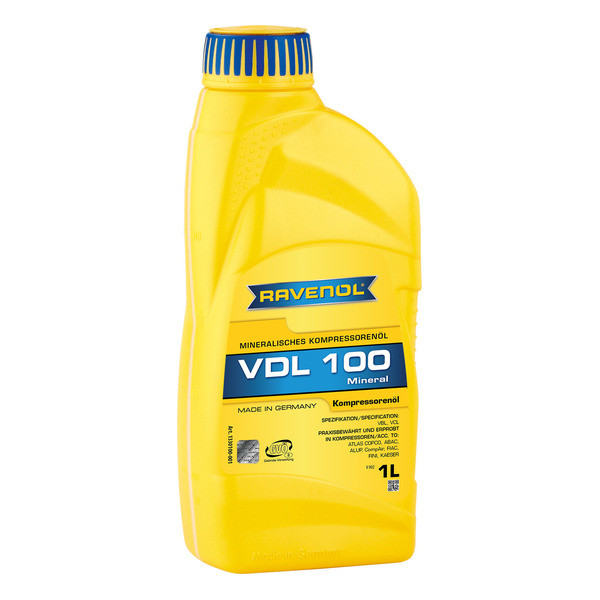

RAVENOL Kompressorenöl VDL 100 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 100
Equivalents OEM:
Alpine 0100980, Alpine 0100981, Alpine 0100983, Alpine 0100984, Alpine 0100984
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1330100-B20
Volume:
60 L
vendor code:
1330100-060
Volume:
1000 L
vendor code:
1330100-700
RAVENOL Kompressorenöl VDL 100 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenöl VDL 100 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenöl VDL 100 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenöl VDL 100 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Characteristics
- Excellent aging resistance
- Best wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51 506 VCL |
DIN 51 506 VCL
|
||
| Suitable for | ABAC, ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER |
ABAC, ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER
|
||
| Density at 20 °C | kg/m³ | 881 | EN ISO 12185 |
881
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 97 | DIN ISO 2909 |
97
DIN ISO 2909
|
|
| Pourpoint | °C | -22 | DIN ISO 3016 |
-22
°C
DIN ISO 3016
|
| Flashpoint | °C | 235 | DIN EN ISO 2592 |
235
°C
DIN EN ISO 2592
|
| Approvals | DIN 51 506 VCL |
DIN 51 506 VCL
|

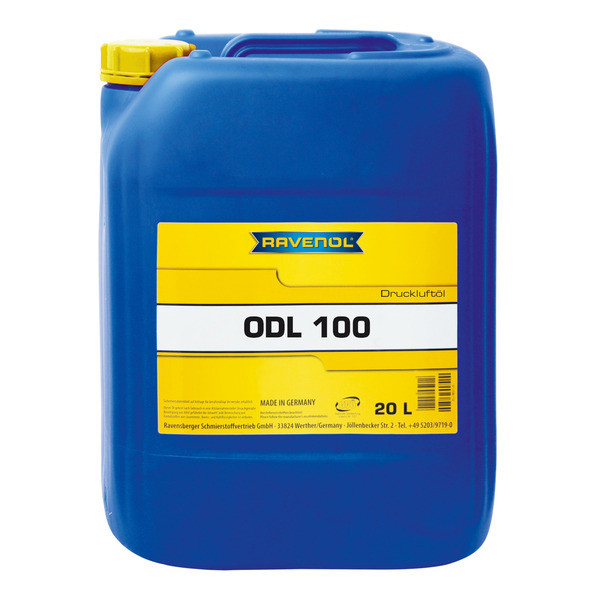

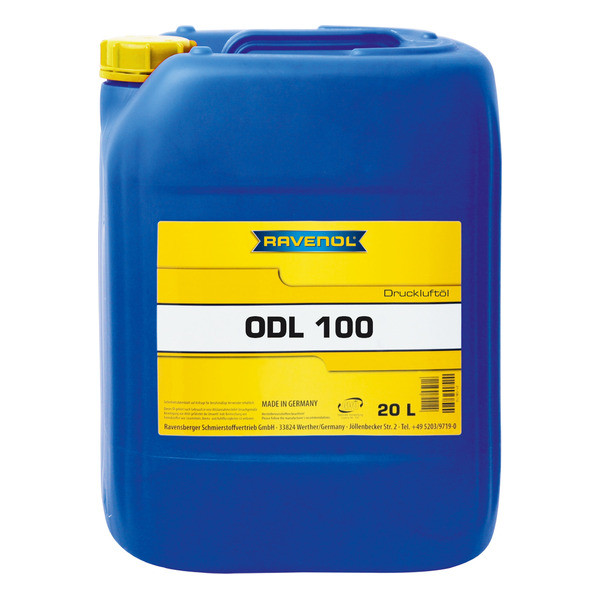

RAVENOL ODL 100 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.
Compliance with the requirements:
Black & Decker
SAE: 100
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323407-020
Volume:
20 L, ecobox
vendor code:
1323407-B20
Volume:
1000 L
vendor code:
1323407-700
RAVENOL ODL 100 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.
Application Note
RAVENOL ODL 100 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe.
Please follow the manufacturer´s instructions.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a good adherence
- a high aging resistance
- a reliable wear protection
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Black & Decker |
Black & Decker
|
||
| Suitable for | Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake |
Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100 | DIN 51562-1 |
100
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 105 | DIN ISO 2909 |
105
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| FZG-Test A/8.3/90 Damage loading step | %wt. | 12 | DIN 51354/2 |
12
%wt.
DIN 51354/2
|
| Approvals | Black & Decker |
Black & Decker
|
