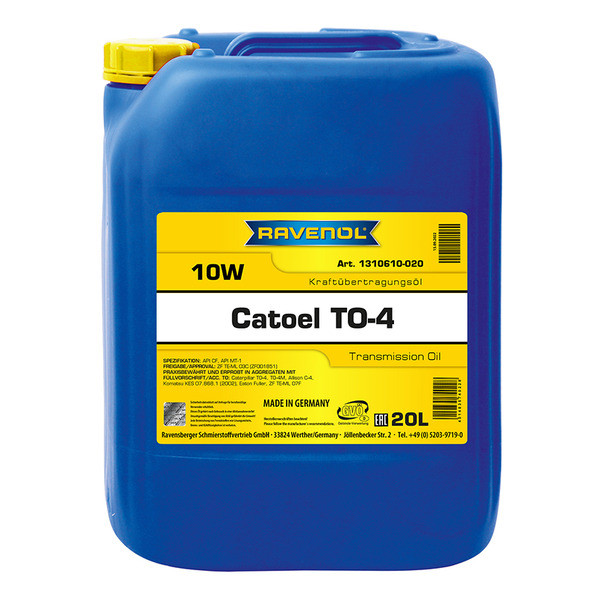

RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Manufacturer Approved:
ZF TE-ML 03C
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1310610-B20
Volume:
60 L
vendor code:
1310610-060
Volume:
208 L, print
vendor code:
1310610-D28
Volume:
1000 L
vendor code:
1310610-700
RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Application Note
RAVENOL CATOEL TO-4 SAE 10W ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.
Characteristics
- Highest wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimization of friction coefficient behavior
- Guarantees maximum life of the units
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 10W |
10W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 03C |
ZF TE-ML 03C
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 860 | EN ISO 12185 |
860
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.4 | DIN 51562-1 |
6.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 37.2 | DIN 51562-1 |
37.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
RAVENOL FORKOIL Medium 10W is especially characterised by a high and stable viscosity index as well as a solid corrosion protection. Efficient additives offer even under extreme loads an excellent corrosion protection. The behaviour against sealing materials is neutral.
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1182104-004
Volume:
20 L, ecobox
vendor code:
1182104-B20
Volume:
60 L
vendor code:
1182104-060
Volume:
20 L
vendor code:
1182104-020
RAVENOL FORKOIL Medium 10W is especially characterised by a high and stable viscosity index as well as a solid corrosion protection. Efficient additives offer even under extreme loads an excellent corrosion protection. The behaviour against sealing materials is neutral.
Application Note
RAVENOL FORKOIL Medium 10W was developed for the use in all chassis components of two-wheeler vehicles and offers good power characteristics. In order to obtain the optimum viscosity for the vehicle and operating condition the mineral fork oils are miscible among each other.
Characteristics
- good damping characteristics at all temperatures
- a high and stable viscosity index
- an excellent protection against corrosion, therefore a longer endurance of the fork components
- as far as possible protection against corrosion of the inside components
- a very good air and water separation behaviour to prevent foam formation
- neutral behaviour against sealings made of plastics
- a very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 10W |
10W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Suitable for | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Density at 20 °C | kg/m³ | 846 | EN ISO 12185 |
846
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.6 | DIN 51562-1 |
6.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.8 | DIN 51562-1 |
32.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 162 | DIN ISO 2909 |
162
DIN ISO 2909
|
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
Application NoteRAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1123610-020
Volume:
20 L, ecobox
vendor code:
1123610-B20
Volume:
60 L
vendor code:
1123610-060
Volume:
1000 L
vendor code:
1123610-700
Application Note
RAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.
Characteristics
- Good shear stability
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- High safety reserves
- Good cold start characteristics
- Best corrosion protection
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W |
10W
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, SF |
CF, SF
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D |
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
|
||
| Density at 20 °C | kg/m³ | 862 | EN ISO 12185 |
862
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.4 | DIN 51562-1 |
6.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 36.9 | DIN 51562-1 |
36.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 21 | ASTM D2896 |
21
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D |
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
|

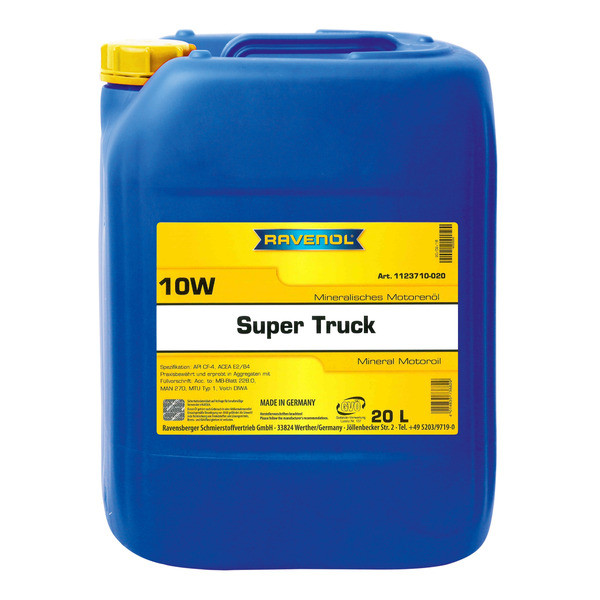

RAVENOL Super Truck SAE 10W is a top-quality product with high safety reserves.
Compliance with the requirements:
MAN 270, MB 228.0, MTU Type 1, Voith DIWA
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1123710-020
Volume:
20 L, ecobox
vendor code:
1123710-B20
Volume:
60 L
vendor code:
1123710-060
Volume:
1000 L
vendor code:
1123710-700
Volume:
208 L
vendor code:
1123710-208
RAVENOL Super Truck SAE 10W is a top-quality product with high safety reserves.
Application Note
RAVENOL Super Truck SAE 10W is mono grade motor oil for use in truck diesel engines with or without turbo charger.
Characteristics
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- High safety reserves
- Good cold start characteristics
- Best corrosion protection
- Suitable for catalysts
- Reduced emissions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W |
10W
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4 |
CF-4
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Recomendations | MAN 270, MB 228.0, MTU Type 1, Voith DIWA |
MAN 270, MB 228.0, MTU Type 1, Voith DIWA
|
||
| Density at 20 °C | kg/m³ | 864 | EN ISO 12185 |
864
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.9 | DIN 51562-1 |
6.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 42.4 | DIN 51562-1 |
42.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| Approvals | MAN 270, MB 228.0, MTU Type 1, Voith DIWA |
MAN 270, MB 228.0, MTU Type 1, Voith DIWA
|
