Search results for query «MAN 341 Type Z1»

RAVENOL Gear Trans Synth GTS 75W-90

RAVENOL Gear Trans Synth GTS 75W-90

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.

Manufacturer Approved:
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

Compliance with the requirements:
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13

show details hide details

SAE: 75W-90

API: GL-4, GL-5, MT-1

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221122-001

Volume:
4 L

vendor code:
1221122-004

Volume:
10 L

vendor code:
1221122-010

Code:
4014835872561

Volume:
20 L

vendor code:
1221122-020

Volume:
20 L, ecobox

vendor code:
1221122-B20

Volume:
60 L

vendor code:
1221122-060

Volume:
60 L, print

vendor code:
1221122-D60

Volume:
208 L

vendor code:
1221122-208

Code:
4014835872622

Volume:
208 L, print

vendor code:
1221122-D28

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.

Application Note

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.

RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer instructions
  • excellent cold flow properties
  • good wear protection protects the gearbox
  • Fuel savings even with short distances in low outside temperatures
  • stable lubricating film even under high stress
  • extreme low pour point
  • Can be used at changing temperatures due to the high viscosity index
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Full synthetic
Full synthetic
API GL-4, GL-5, MT-1
GL-4, GL-5, MT-1
Manufacturer Approved DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Recomendations Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
specification MIL-PRF 2105 E, SAE J 2360
MIL-PRF 2105 E, SAE J 2360
Suitable for DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
Compliant products Isuzu Axle Oil, Isuzu LCV Front Axle Oil
Isuzu Axle Oil, Isuzu LCV Front Axle Oil
Density at 20 °C 868,0 EN ISO 12185
868,0 EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 15.8 DIN 51562-1
15.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 106.8 DIN 51562-1
106.8 mm²/s DIN 51562-1
Viscosity Index VI 158 DIN ISO 2909
158 DIN ISO 2909
Brookfield Viscosity at -12 °C mPa*s 63,400 ASTM D2983
63,400 mPa*s ASTM D2983
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Flashpoint °C 190 DIN EN ISO 2592
190 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Corrosion (24h/120 °C) 1a ASTM D130
1a ASTM D130
Approvals Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A

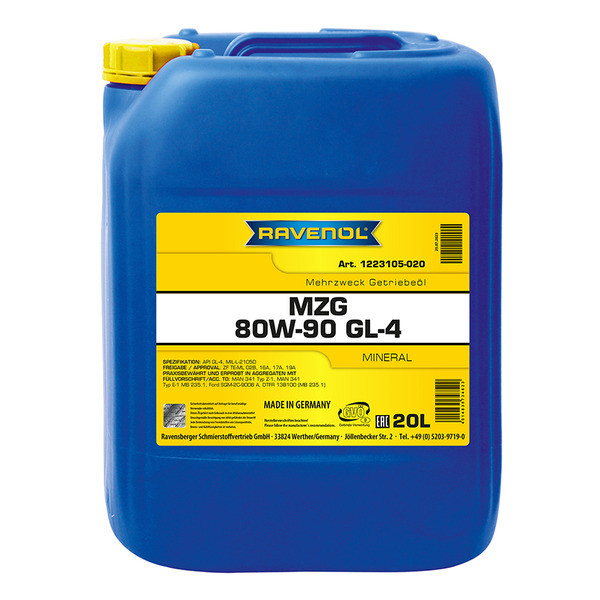

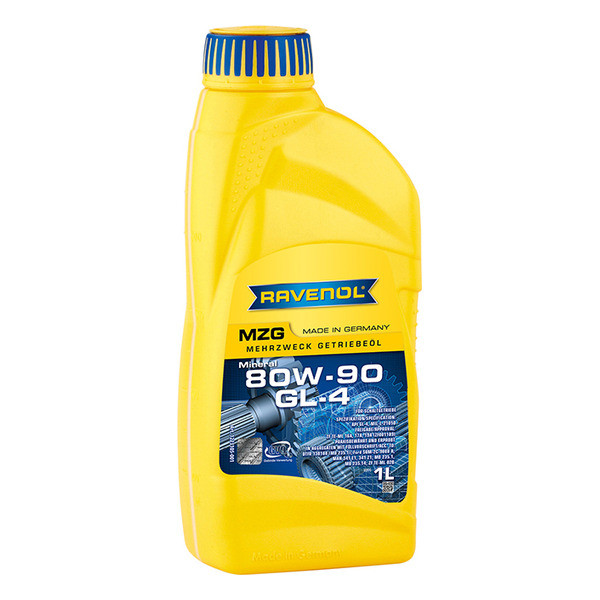

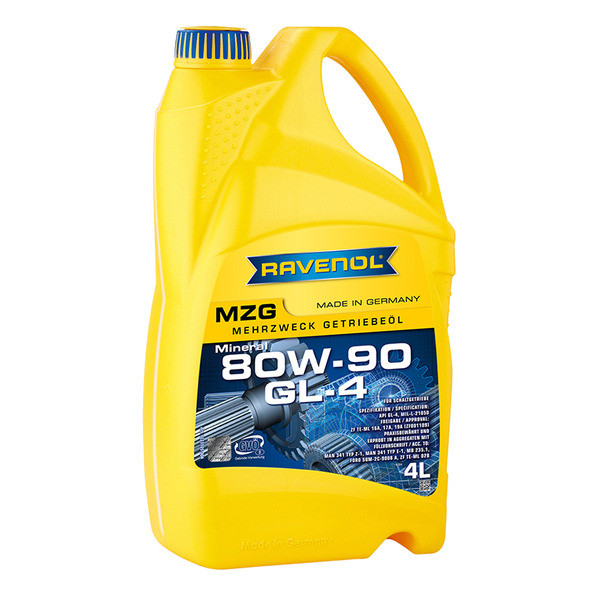

Getriebeoel MZG 80W-90 GL 4

Getriebeoel MZG 80W-90 GL 4

Application NoteRAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.

Manufacturer Approved:
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A

Compliance with the requirements:
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B

show details hide details

SAE: 80W-90

API: GL-4

Equivalents OEM:
Alpine 0100681, Alpine 0100682, Alpine 0100683, Alpine 0100684, Alpine 0100685, Alpine 100681, Alpine 100682, Alpine 100683, Alpine 100684, Alpine 100685, DAF 1660082, DAF 1660083, DAF 1660084, DAF 1678853, DAF 1731974, DAF 1739298, FEBI 170153, FEBI 170154, FEBI 170154, Hyundai Motor 0430000460, Hyundai Motor 430000460, Hyundai XTeer 1011018, Hyundai XTeer 1041421, Hyundai XTeer 1120007, SsangYong 0000000801, Volvo 1161280, Volvo 1161932, Volvo 1161933, ZF 0671090498, ZF 0671090503, ZF 0671090504 Alpine 0100681, Alpine 0100682, Alpine 0100683, Alpine 0100684, Alpine 0100685, Alpine 100681, Alpine 100682, Alpine 100683, Alpine 100684, Alpine 100685, DAF 1660082, DAF 1660083, DAF 1660084, DAF 1678853, DAF 1731974, DAF 1739298, FEBI 170153, FEBI 170154, FEBI 170154, Hyundai Motor 0430000460, Hyundai Motor 430000460, Hyundai XTeer 1011018, Hyundai XTeer 1041421, Hyundai XTeer 1120007, SsangYong 0000000801, Volvo 1161280, Volvo 1161932, Volvo 1161933, ZF 0671090498, ZF 0671090503, ZF 0671090504

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1223105-001

Code:
4014835734616

Volume:
4 L

vendor code:
1223105-004

Code:
4014835734692

Volume:
10 L

vendor code:
1223105-010

Code:
4014835734647

Volume:
20 L

vendor code:
1223105-020

Code:
4014835734623

Volume:
20 L, ecobox

vendor code:
1223105-B20

Code:
4014835789425

Volume:
60 L

vendor code:
1223105-060

Code:
4014835734661

Volume:
208 L

vendor code:
1223105-208

Code:
4014835734685

Volume:
1000 L

vendor code:
1223105-700

Code:
4014835734678

Application Note

RAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.

Characteristics

  • well adhering, pressure resistant lubricating films
  • excellent oxidation stability
  • above-average viscosity-temperature properties
  • anti-wear effect
  • good air release characteristics, no foaming
  • neutral to metal and sealants
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 80W-90
80W-90
Type Mineral
Mineral
API GL-4
GL-4
Manufacturer Approved ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
Recomendations DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
specification MIL-L-2105 D
MIL-L-2105 D
Density at 20 °C g/cm³ 879 EN ISO 12185
879 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 14 DIN 51562-1
14 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 126.9 DIN 51562-1
126.9 mm²/s DIN 51562-1
Viscosity Index VI 108 DIN ISO 2909
108 DIN ISO 2909
Brookfield Viscosity at -26 °C mPa*s 45.600 ASTM D2983
45.600 mPa*s ASTM D2983
Pourpoint °C -33 DIN ISO 3016
-33 °C DIN ISO 3016
Flashpoint °C 244 DIN EN ISO 2592
244 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A

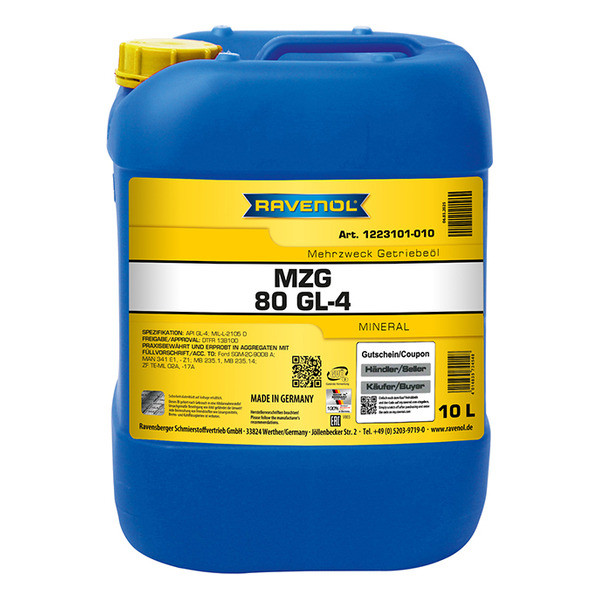

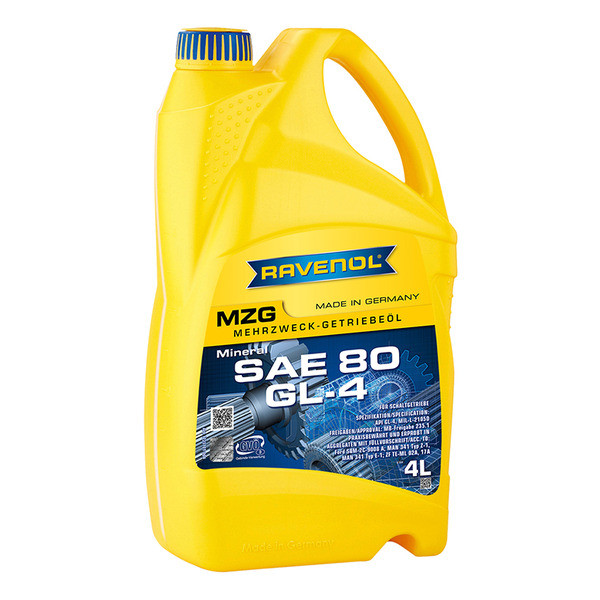

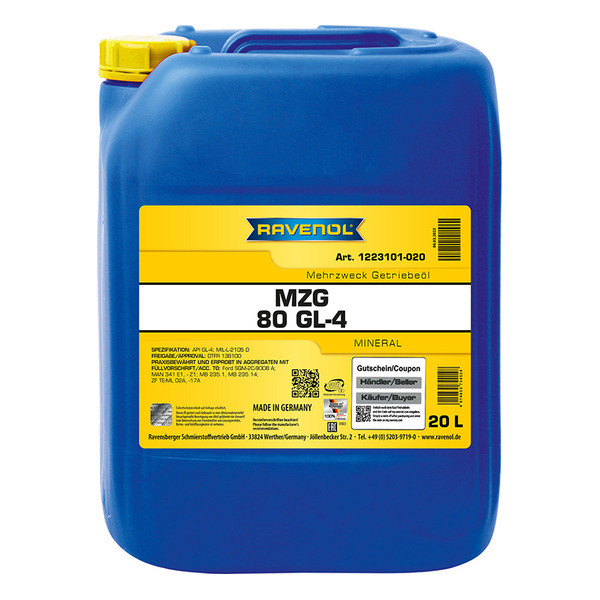

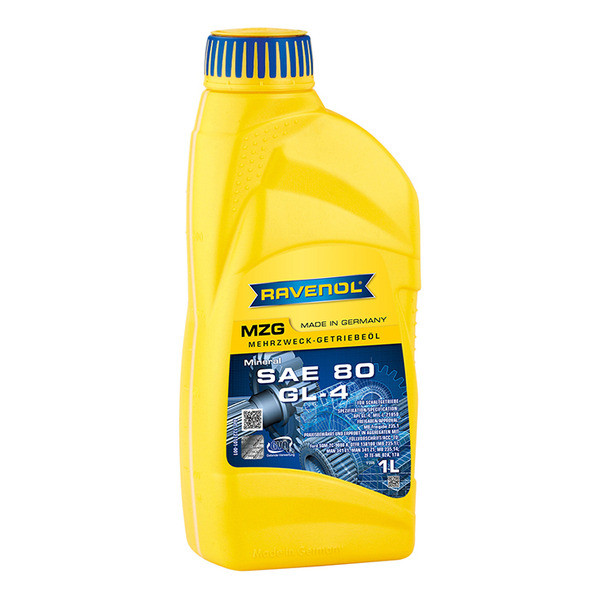

Mehrzweck-Getriebeol MZG 80

Mehrzweck-Getriebeol MZG 80

Application NoteRAVENOL Getriebeoel MZG SAE 80W GL-4 can be used for the transmission oils API-GL-3 / GL-4 of the SAE class 80W.

Manufacturer Approved:
DTFR 13B100

Compliance with the requirements:
Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A

show details hide details

SAE: 80W

API: GL-4

Equivalents OEM:
BMW 81229407052, BMW 81229407053, BMW 81229407053, Chrysler 23091616, Hyundai Motor 0430000440, Volvo 1161969

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1223101-001

Code:
4014835734517

Volume:
4 L

vendor code:
1223101-004

Code:
4014835734593

Volume:
20 L, ecobox

vendor code:
1223101-B20

Volume:
208 L

vendor code:
1223101-208

Volume:
1000 L

vendor code:
1223101-700

Volume:
10 L

vendor code:
1223101-010

Volume:
20 L

vendor code:
1223101-020

Volume:
60 L

vendor code:
1223101-060

Application Note

RAVENOL Getriebeoel MZG SAE 80W GL-4 can be used for the transmission oils API-GL-3 / GL-4 of the SAE class 80W.

RAVENOL Getriebeoel MZG SAE 80W GL-4 offers a quickest possible full fluid film lubrication when starting also in case of very low outside temperatures, excellent transmission efficiency and thereby low power loss.

RAVENOL Getriebeoel MZG SAE 80W GL-4 is compatible for the lubrication of manucal transmissions, differential gears and steering transmissions in vehicles for which EP transmission oils are instructed by the manufacturer.

Characteristics

  • a very good adhesive and extreme pressure durable lubricant film even under high loads
  • an excellent cold flow capacity even under extreme conditions
  • a complete compatibility of elastomers
  • an excellent corrosion protection of all general metals of the transmission engineering
  • a high oxidation stability
  • an optimum corrosion protection
  • no foam also at high engine speed
  • Support of the faultless function of synchronous transmissions
  • miscible and compatible with all brand name transmission oils
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 80W
80W
Type Mineral
Mineral
API GL-4
GL-4
Manufacturer Approved DTFR 13B100
DTFR 13B100
Recomendations Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A
Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02A, ZF TE-ML 17A
specification MIL-L-2105 D
MIL-L-2105 D
Density at 20 °C g/cm³ 872 EN ISO 12185
872 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 10.2 DIN 51562-1
10.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 84.4 DIN 51562-1
84.4 mm²/s DIN 51562-1
Viscosity Index VI 102 DIN ISO 2909
102 DIN ISO 2909
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
Flashpoint °C 230 DIN EN ISO 2592
230 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals DTFR 13B100, Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02A, ZF TE-ML 17A
DTFR 13B100, Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02A, ZF TE-ML 17A
