RAVENOL Hydraulikoel TS 100 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.RAVENOL Hydraulikoel TS 100 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
SAE: 100
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323107-001
Volume:
5 L
vendor code:
1323107-005
Volume:
10 L
vendor code:
1323107-010
Volume:
20 L
vendor code:
1323107-020
Volume:
20 L, ecobox
vendor code:
1323107-B20
Volume:
60 L
vendor code:
1323107-060
Volume:
208 L
vendor code:
1323107-208
Volume:
1000 L
vendor code:
1323107-700
RAVENOL Hydraulikoel TS 100 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.RAVENOL Hydraulikoel TS 100 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 100 (HLP)
is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 100 (HLP)
is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 100 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Viscosity index | 100 |
100
|
||
| SAE | 100 |
100
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
RAVENOL Hydraulikoel TS 15 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron -68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318
SAE: 15
Equivalents OEM:
Volvo 21732287, Volvo 21732287, Volvo 22618337
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323102-001
Volume:
5 L
vendor code:
1323102-005
Volume:
20 L
vendor code:
1323102-020
Volume:
20 L, ecobox
vendor code:
1323102-B20
Volume:
60 L
vendor code:
1323102-060
Volume:
208 L
vendor code:
1323102-208
Volume:
1000 L
vendor code:
1323102-700
RAVENOL Hydraulikoel TS 15 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 15 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 15 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 15 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 15 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318 |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Suitable for | Metso |
Metso
|
||
| Density at 20 °C | kg/m³ | 837 | EN ISO 12185 |
837
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.5 | DIN 51562-1 |
3.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15 | DIN 51562-1 |
15
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 113 | DIN ISO 2909 |
113
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 186 | DIN EN ISO 2592 |
186
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, ISO 6743-4 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318 |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, ISO 6743-4 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318
|
RAVENOL Hydraulikoel TS 22 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron -68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
SAE: 22
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323103-001
Volume:
5 L
vendor code:
1323103-005
Volume:
10 L
vendor code:
1323103-010
Volume:
20 L, ecobox
vendor code:
1323103-B20
Volume:
60 L
vendor code:
1323103-060
Volume:
1000 L
vendor code:
1323103-700
RAVENOL Hydraulikoel TS 22 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 22 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 22 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 22 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 22 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Suitable for | Metso |
Metso
|
||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.5 | DIN 51562-1 |
4.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 22.6 | DIN 51562-1 |
22.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 114 | DIN ISO 2909 |
114
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
214
°C
DIN EN ISO 2592
|
| Aging stability | TOST | 2000 | DIN 51587 |
2000
TOST
DIN 51587
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
|
RAVENOL Hydraulikoel TS 68 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H
SAE: 68
Equivalents OEM:
Alpine 0100863, Alpine 0100864, Alpine 0100865, GM 88861681, GM 88861681
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323106-001
Volume:
5 L
vendor code:
1323106-005
Volume:
20 L, ecobox
vendor code:
1323106-B20
Volume:
1000 L
vendor code:
1323106-700
RAVENOL Hydraulikoel TS 68 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 68 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 68 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 68 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 68 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| ASTM | D6158 |
D6158
|
||
| Recomendations | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H
|
||
| specification | DIN 51524-2, ISO 6743-4 HM |
DIN 51524-2, ISO 6743-4 HM
|
||
| Suitable for | Atos, Metso |
Atos, Metso
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, ISO 6743-4 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H |
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, ISO 6743-4 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H
|

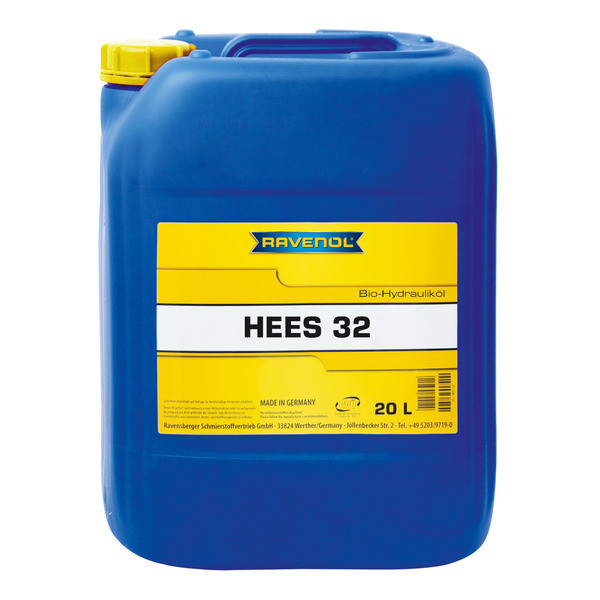

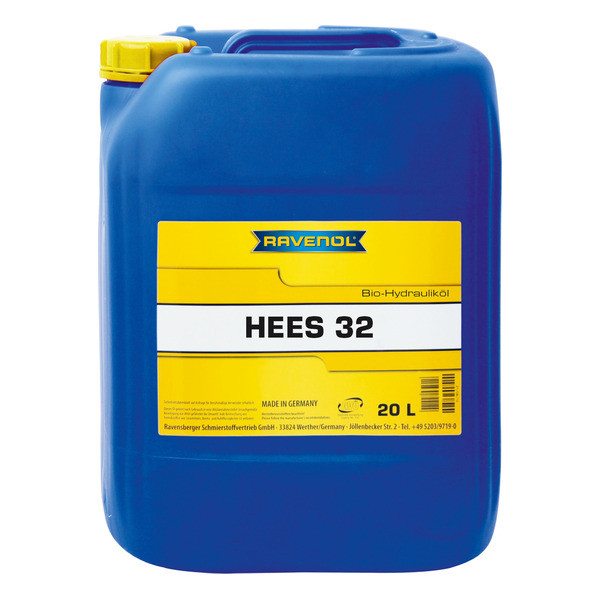

Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 32 has much better high temperature oxidation stability.
Compliance with the requirements:
ISO 15380, VDMA 24532
SAE: 32
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1321104-020
Volume:
20 L, ecobox
vendor code:
1321104-B20
Volume:
60 L
vendor code:
1321104-060
Volume:
208 L
vendor code:
1321104-208
Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 32 has much better high temperature oxidation stability.
Application Note
RAVENOL BIO-Hydraulikoel HEES 32 is used wherever there is the danger of hydraulic fluid leaking into the ground or waste water. This includes all equipment operating in or near areas of water purification or water protection or near surface water, such as e.g. sewage treatment plants, dredging ships and floating dredges, lock hydraulics and river weirs, pipe and tunnel diving machines, - hydraulic aggregates in forests and on plains, earth moving machines in water collecting areas, forestry machines.
Characteristics
- Meets the requirements of the Federal Ministry for consumer protection, alimentation and agricultureregarding good biodegradability and technical specifications.
- On account of the used raw materials, RAVENOL BIO-Hydraulikoel HEES 32 is classified as waterpolluting class NWG (not water-polluting) – German classification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32 |
32
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | ISO 15380, VDMA 24532 |
ISO 15380, VDMA 24532
|
||
| specification | Rexroth Bosch Group RE / RD 90221-01/02.10,, Swedish Standard 15 54 34 |
Rexroth Bosch Group RE / RD 90221-01/02.10,, Swedish Standard 15 54 34
|
||
| Density at 20 °C | kg/m³ | 908 | EN ISO 12185 |
908
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.25 | DIN 51562-1 |
7.25
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 248 | DIN ISO 2909 |
248
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 260 | DIN EN ISO 2592 |
260
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 5/0 | ASTM D892 |
5/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 5/0 | ASTM D892 |
5/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Air release at 50 °C | max. | 1 | DIN ISO 9120 |
1
max.
DIN ISO 9120
|
| Approvals | ISO 15380, Rexroth Bosch Group RE / RD 90221-01/02.10,, Swedish Standard 15 54 34, VDMA 24532 |
ISO 15380, Rexroth Bosch Group RE / RD 90221-01/02.10,, Swedish Standard 15 54 34, VDMA 24532
|
