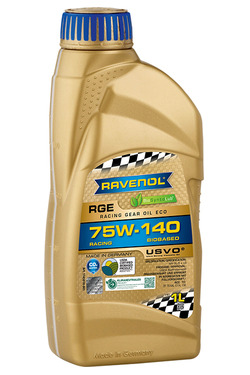

Racing Gear Oil Eco 75W-140
RAVENOL Racing Gear Oil Eco SAE 75W-140 is a fully synthetic multi-grade hypoid gear oil for manual transmissions in the performance class API GL-5 +LS for many common motor vehicles. It is suitable for highly stressed hypoid axle drives and multi-plate drives in vehicles and work machines, where "limited slip" properties are also required.
Compliance with the requirements:
ZF TE-ML 07A, ZF TE-ML 08
- Available packaging
- Product parameters
RAVENOL Racing Gear Oil Eco SAE 75W-140 is a USDA certified organic product based on plant-based base oils and special additives tailored to them. This exceeds compliance with today's practical requirements.
RAVENOL Racing Gear Oil Eco SAE 75W-140 is especially suited for applications requiring "limited slip" (LS) properties.
Application Note:
RAVENOL Racing Gear Oil Eco SAE 75W-140 is a high-performance transmission oil for maintaining manual transmissions in many popular vehicles. Also suitable for highly stressed hypoid axle gears in vehicles and work machines. Particularly suited for applications requiring "limited slip" (LS) properties, as in multi-disc limited slip differentials. Observe manufacturer's instructions!
Characteristics:
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Low foaming properties even at high speeds.
- Good compatibility with non-ferrous metals and sealing materials.
- Good shifting behaviour even in low temperatures, low pour point.
- Extended life.
- Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise
- even when oil is hot.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 75W-140 |
75W-140
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| ASTM |
|
|||
| Manufacturer Approved | USDA Biopreferred® |
USDA Biopreferred®
|
||
| Recomendations | ZF TE-ML 07A, ZF TE-ML 08 |
ZF TE-ML 07A, ZF TE-ML 08
|
||
| Rennstrecken-Partnerschaft |
|
|||
| Rennstrecken-Partner |
|
|||
| specification |
|
|||
| Suitable for |
|
|||
| Compliant products |
|
|||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 28.5 | DIN 51562-1 |
28.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 195.3 | DIN 51562-1 |
195.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 186 | DIN ISO 2909 |
186
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 107.100 | ASTM D2983 |
107.100
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 202 | DIN EN ISO 2592 |
202
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 2c | ASTM D130 |
2c
ASTM D130
|
|
| Approvals | USDA Biopreferred®, ZF TE-ML 07A, ZF TE-ML 08 |
USDA Biopreferred®, ZF TE-ML 07A, ZF TE-ML 08
|
Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.
Compliance with the requirements:
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
- Available packaging
- Product parameters

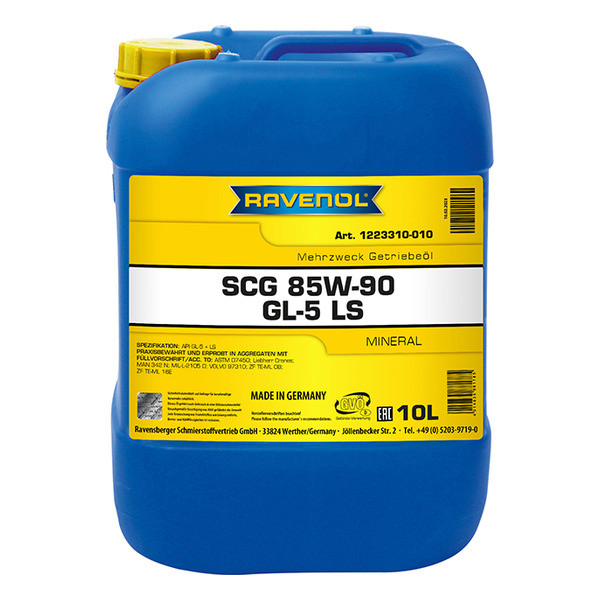

Volume:
10 L
vendor code:
1223310-010

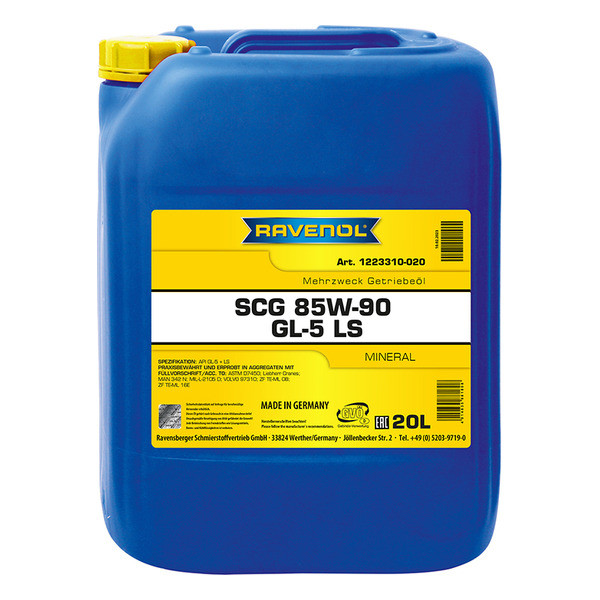

Volume:
20 L
vendor code:
1223310-020
Volume:
60 L
vendor code:
1223310-060

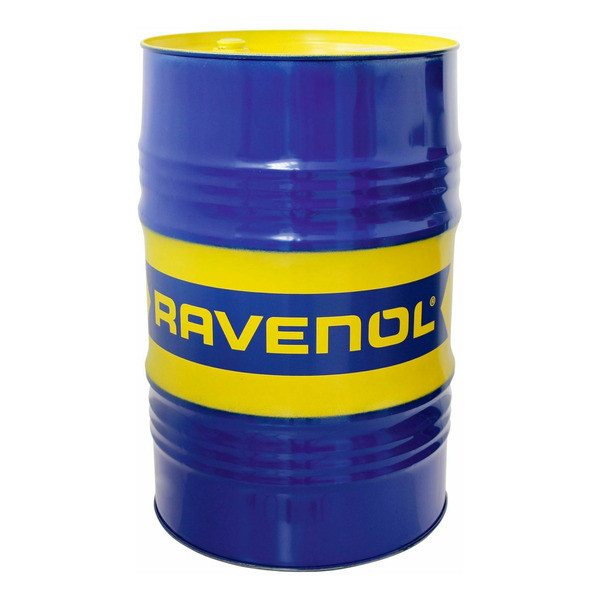

Volume:
208 L
vendor code:
1223310-208

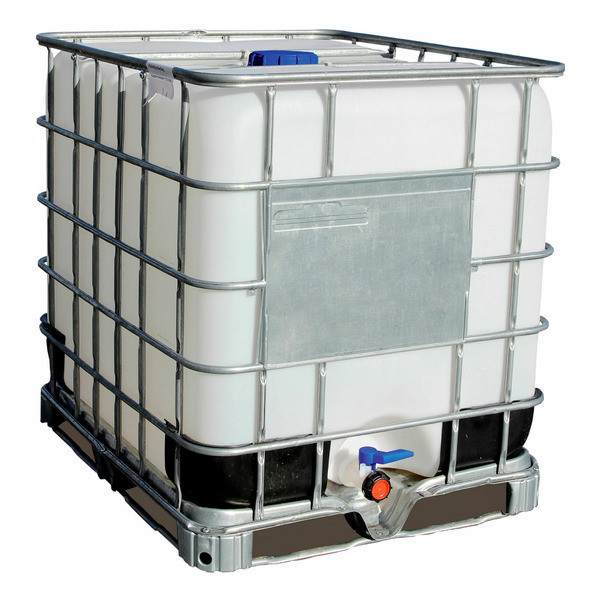

Volume:
1000 L
vendor code:
1223310-700
Volume:
20 L, ecobox
vendor code:
1223310-B20
Thanks to the balanced combination of additives, RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS ensures characteristics like a high pressure absorptioncapacity, a superior viscosity temperature behaviour and a high oxidation stability.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is designed for the increased stress of manual transmissions and thus ensures perfect functioning of the transmissions.
Application Note
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is compatible with all brand-name transmission oils.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is particularly suitable for lubricating differential gears with limited slip.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS can be used in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
RAVENOL SCG Super Construction Gear 85W-90 GL-5 LS is also suitable for use in Liebherr assemblies due to its high phosphorus content.
The operating instructions of the vehicle and transmission manufacturers must be observed.
Characteristics
- Increased phosphorus content
- High pressure stable lubrication film, thus outstanding wear protection under all loads
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 85W-90 |
85W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| ASTM | D7450 |
D7450
|
||
| Recomendations | MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E |
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
|
||
| Suitable for | Liebherr Cranes |
Liebherr Cranes
|
||
| Density at 20 °C | kg/m³ | 885.3 | EN ISO 12185 |
885.3
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.9 | DIN 51562-1 |
14.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 136 | DIN 51562-1 |
136
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 110 | DIN ISO 2909 |
110
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 194 | DIN EN ISO 2592 |
194
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E |
MAN 342 N, MIL-L-2105 D, Volvo 97310, ZF TE-ML 08, ZF TE-ML 16E
|
||
| Остатки и зола | >2300 | ASTM D7751 |
>2300
ASTM D7751
|
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.
Manufacturer Approved:
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
Compliance with the requirements:
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1221122-001
Volume:
4 L
vendor code:
1221122-004
Volume:
20 L
vendor code:
1221122-020
Volume:
20 L, ecobox
vendor code:
1221122-B20
Volume:
60 L
vendor code:
1221122-060
Volume:
60 L, print
vendor code:
1221122-D60
Volume:
208 L, print
vendor code:
1221122-D28
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is designed on the basis of high quality synthetic base oils with special additivation and inhibition, which ensure proper functioning of the gearbox. It was specially developed to meet the latest requirements of axle drive manufacturers, especially according to Daimler specification 235.8/ DTFR 12B140.
Application Note
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is excellent for use in heavily loaded axle drives of commercial vehicles.
RAVENOL GEAR TRANS SYNTH GTS SAE 75W-90 is suitable for non-synchronized manual transmissions, for which an oil according to API GL-5 or GL-4 is prescribed.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer instructions
- excellent cold flow properties
- good wear protection protects the gearbox
- Fuel savings even with short distances in low outside temperatures
- stable lubricating film even under high stress
- extreme low pour point
- Can be used at changing temperatures due to the high viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
DTFR 12B140, MAN 341 GA1, MAN 341 Type Z1, MAN 342 Type S1, Scania STO 1:1 G, Scania STO 2:0 A FS, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
||
| Recomendations | Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13 |
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, Mack GO-J, MAN 341 Type Z2, MAN 342 Type M3, MB 235.8, MB 235.9, Meritor 0-95, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 13
|
||
| specification | MIL-PRF 2105 E, SAE J 2360 |
MIL-PRF 2105 E, SAE J 2360
|
||
| Suitable for | DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault |
DAF, Isuzu Large Manual Transmission Oil, IVECO, Renault
|
||
| Compliant products | Isuzu Axle Oil, Isuzu LCV Front Axle Oil |
Isuzu Axle Oil, Isuzu LCV Front Axle Oil
|
||
| Density at 20 °C | 868,0 | EN ISO 12185 |
868,0
EN ISO 12185
|
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.8 | DIN 51562-1 |
15.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 106.8 | DIN 51562-1 |
106.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 63,400 | ASTM D2983 |
63,400
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 190 | DIN EN ISO 2592 |
190
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion (24h/120 °C) | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A |
Arvin Meritor 076-N, Dana SHAES 256 Rev C, Dana SHAES 429, DDC 93K219.01, DTFR 12B140, Mack GO-J, MAN 341 GA1, MAN 341 Type Z1, MAN 341 Type Z2, MAN 342 Type M3, MAN 342 Type S1, MB 235.8, MB 235.9, Meritor 0-95, MIL-PRF 2105 E, SAE J 2360, Scania STO 1:1 G, Scania STO 2:0 A FS, Voith Turbo 132.00374401, Voith Turbo 132.00374402, Volvo 97312, ZF TE-ML 02B, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12B, ZF TE-ML 12L, ZF TE-ML 12N, ZF TE-ML 13, ZF TE-ML 16F, ZF TE-ML 17B, ZF TE-ML 19C, ZF TE-ML 21A
|
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Manufacturer Approved:
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1221109-010
Volume:
20 L
vendor code:
1221109-020
Volume:
60 L
vendor code:
1221109-060
Volume:
60 L, print
vendor code:
1221109-D60
Volume:
208 L
vendor code:
1221109-208
Volume:
208 L, print
vendor code:
1221109-D28
RAVENOL TDG 75W-110 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL TDG 75W-110 is oil is developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Application Note
RAVENOL TDG 75W-110 is universal gear oil developed for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks. This so called "Total Drive Line" oil is as universal product widely usable.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behaviour in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-110 |
75W-110
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A |
ZF TE-ML 05A, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 21A
|
||
| Recomendations | Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B |
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 19C, ZF TE-ML 21B
|
||
| Suitable for | DAF, IVECO |
DAF, IVECO
|
||
| Density at 20 °C | kg/m³ | 874 | EN ISO 12185 |
874
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 21.4 | DIN 51562-1 |
21.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 163.5 | DIN 51562-1 |
163.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 98.700 | ASTM D2983 |
98.700
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B |
Mack GO-J, MIL-L-2105 D, MIL-PRF-2105 E, SAE J 2360, Scania STO 2:0 A, ZF TE-ML 05A, ZF TE-ML 05B, ZF TE-ML 07A, ZF TE-ML 08, ZF TE-ML 12N, ZF TE-ML 16F, ZF TE-ML 19C, ZF TE-ML 21A, ZF TE-ML 21B
|
