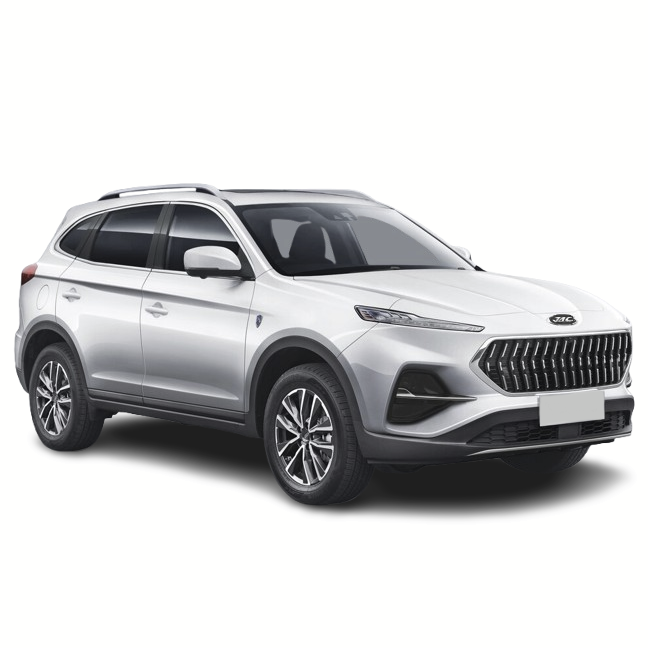

Oil for JAC Sehol X7 1.5 2WD (HFC4GC1.6E) (174 hp) (128 kW) (year of issue from 2020 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for JAC - Sehol X7 - 1.5 2WD (HFC4GC1.6E) (174 hp) (128 kW)

JAC Sehol X7 1.5 2WD (HFC4GC1.6E) (174 hp) (128 kW), year of issue from 2020 date to 2021 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine HFC4GC1.6E
Robotic gearbox in a unit with final drive 6/1
Hydraulic brake system
Cooling system

Engine HFC4GC1.6E

Liquid volume (basic): 4.5 L

DXG 5W-30

For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	6	ASTM D5800	6 % ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

FDS 5W-30

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036

show details

SAE: 5W-30

API: CF, SP

ACEA: A5, A7, B5, B7

Equivalents OEM:
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111139-001

Code:
4014835795617

Volume:
4 L

vendor code:
1111139-004

Code:
4014835795693

Volume:
5 L

vendor code:
1111139-005

Code:
4014835795655

Volume:
10 L

vendor code:
1111139-010

Code:
4014835795648

Volume:
20 L

vendor code:
1111139-020

Code:
4014835795624

Volume:
20 L, ecobox

vendor code:
1111139-B20

Code:
4014835797925

Volume:
60 L

vendor code:
1111139-060

Code:
4014835795662

Volume:
60 L, print

vendor code:
1111139-D60

Volume:
208 L

vendor code:
1111139-208

Code:
4014835795686

Volume:
208 L, print

vendor code:
1111139-D28

Volume:
1000 L

vendor code:
1111139-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.

Characteristics

Excellent cold starting properties even at low temperatures of below -30 ° C
A very stable and excellent viscosity characteristics, shear stability
Fuel efficiency under all operating conditions
Excellent detergency and dispersing properties
Neutrality towards sealing materials
Low evaporation loss, thereby lower oil consumption
An extensive protection against wear, corrosion and foaming
Catalyst suitability
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		A5, A7, B5, B7		A5, A7, B5, B7
Manufacturer Approved		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.35	DIN 51562-1	58.35 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3880	ASTM D5293	3880 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	10.400	ASTM D4684	10.400 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	%	8.9	ASTM D5800	8.9 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

FO 5W-30

For engine

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

HDX 5W-30

For engine

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111125-001

Code:
4014835858541

Volume:
4 L

vendor code:
1111125-004

Code:
4014835858572

Volume:
5 L

vendor code:
1111125-005

Code:
4014835858602

Volume:
10 L

vendor code:
1111125-010

Code:
4014835858633

Volume:
20 L, ecobox

vendor code:
1111125-B20

Code:
4014835858657

Volume:
60 L

vendor code:
1111125-060

Code:
4014835858718

Volume:
60 L, print

vendor code:
1111125-D60

Volume:
208 L

vendor code:
1111125-208

Code:
4014835858756

Volume:
208 L, print

vendor code:
1111125-D28

Volume:
1000 L

vendor code:
1111125-700

Volume:
20 L

vendor code:
1111125-020

Code:
4014835858671

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.

RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.

Characteristics

Fuel savings in partial and full load operation
Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
Excellent cold-start properties even at low temperatures below -25°C
A safe lubricating film at high operating temperatures
Low evaporation tendency, thus low oil consumption
No oil-based deposits in combustion chambers, in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.8	DIN 51562-1	10.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	59.8	DIN 51562-1	59.8 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.4	ASTM D5481	3.4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3630	ASTM D5293	3630 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.500	ASTM D4684	13.500 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	8.1	ASTM D5800	8.1 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.86	DIN 51575	0.86 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Robotic gearbox in a unit with final drive 6/1

Liquid volume (basic): 7.1 L

DCT/DSG Getriebe Fluid

For DCT/DSG

RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.

Compliance with the requirements:
BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212106-001

Code:
4014835718913

Volume:
4 L

vendor code:
1212106-004

Code:
4014835718999

Volume:
10 L

vendor code:
1212106-010

Code:
4014835718944

Volume:
20 L

vendor code:
1212106-020

Code:
4014835718920

Volume:
20 L, ecobox

vendor code:
1212106-B20

Code:
4014835787629

Volume:
60 L

vendor code:
1212106-060

Volume:
60 L, print

vendor code:
1212106-D60

Code:
4014835718937

Volume:
208 L

vendor code:
1212106-208

Volume:
208 L, print

vendor code:
1212106-D28

Code:
4014835718906

Volume:
1000 L

vendor code:
1212106-700

RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.

RAVENOL DCT-HV Fluid allows virtually slip-free operation and thus minimal torque losses. Ensures low wear and long life of the transmission. Fuel economy.

Application Note

RAVENOL DCT-HV Fluid has been developed especially for Dual Clutch Gear of several manufacturers like VW/Audi, Ford, Volvo, Chrysler, Dodge, Mitsubishi and others.

RAVENOL DCT-HV Fluid is also recommended for use in Dual Clutch Gear DQ-250 (02E) and DQ-500 (0BT) acc. to VW Part-No. G 052 182 of VW, Audi, Seat and Skoda.

RAVENOL DCT-HV Fluid is recommended by Fa. Drexler for all DCG-transmissions with MibaCarbon plates.

Characteristics

Good lubricating properties also at low temperatures in winter
Stable lubricant film even under extreme loads in summer
Low wear
Excellent viscosity-temperature behaviour
Very low pour point
Low foaming even under heavy demands
Extensive protection against wear, corrosion and foaming
Neutral behavior towards sealing materials

Parameter	Unit	Value	Audit
Viscosity at 100 °C	mm²/s	7.4	DIN 51562-1	7.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	35.1	DIN 51562-1	35.1 mm²/s DIN 51562-1
Viscosity Index VI		184	DIN ISO 2909	184 DIN ISO 2909
Recommendations		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, BMW DCTF-1, BOT 341, Chrysler 68044345 EA, Citroën/Peugeot 9734.S2 für DCS6, Drexler DSG-Getriebe mit Miba-Carbon-Lamelle, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6 für TCT (Twin Clutch Transmission, Ford 1490761, Ford 1490763, Ford USA XT-11-QDC, Ford WSD-M2C200-D2, Ford WSS-M2C936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, Mitsubishi MZ320065, Renault EDC (Efficiency Dual Clutch System), Volvo 1161838, Volvo 1161839, VW G 052 182 A2, VW G 052 529, VW TL 52529-A		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, BMW DCTF-1, BOT 341, Chrysler 68044345 EA, Citroën/Peugeot 9734.S2 für DCS6, Drexler DSG-Getriebe mit Miba-Carbon-Lamelle, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6 für TCT (Twin Clutch Transmission, Ford 1490761, Ford 1490763, Ford USA XT-11-QDC, Ford WSD-M2C200-D2, Ford WSS-M2C936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, Mitsubishi MZ320065, Renault EDC (Efficiency Dual Clutch System), Volvo 1161838, Volvo 1161839, VW G 052 182 A2, VW G 052 529, VW TL 52529-A
Flashpoint	°C	216	DIN EN ISO 2592	216 °C DIN EN ISO 2592
Type		Synthetic		Synthetic
Brand		RAVENOL		RAVENOL
Recomendations		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A
Suitable for		Drexler, PSA DCS6, Renault EDC (Efficiency Dual Clutch System)		Drexler, PSA DCS6, Renault EDC (Efficiency Dual Clutch System)
Compliant products		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, Chrysler 68044345EA, Ford 1490761, Ford 1490763, Mitsubishi MZ320065, Motorcraft XT-11-QDC, PSA 9734.S2, Volvo 1161838, Volvo 1161839, VW G 052 182		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, Chrysler 68044345EA, Ford 1490761, Ford 1490763, Mitsubishi MZ320065, Motorcraft XT-11-QDC, PSA 9734.S2, Volvo 1161838, Volvo 1161839, VW G 052 182
Density at 20 °C	g/cm³	840	EN ISO 12185	840 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Approvals		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A

Hydraulic brake system

Liquid volume (basic): 1 L

DOT 4 LV

Brake fluid

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1350605-001

Code:
4014835862326

Volume:
20 L

vendor code:
1350605-020

DOT 4

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.

RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.

Application Note

RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.

RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.

RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.

To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.

RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

Fluidity even at very low temperatures
Optimal ABS properties.
Chemical stability.
High lubricating power
Neutral behavior towards brake parts.
Can be mixed with all brake fluids of the same specification.

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4 LV		DOT-4 LV
Recommendations		Ford WSS-M6C65-A2, VW 501 14		Ford WSS-M6C65-A2, VW 501 14
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Ford WSS-M6C 65-A2, VW 501.14		Ford WSS-M6C 65-A2, VW 501.14
specification		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.1	ASTM D445	2.1 mPa*s ASTM D445
Viscosity at -40 °C	cSt	675	ASTM D445	675 cSt ASTM D445
Boiling point	°C	267	FMVSS 116	267 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	172	FMVSS 116	172 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14

Cooling system

Liquid volume (basic): 7 L

ETC Premix -40C Protect C12evo

Antifreeze

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, VOLVO TR-31854114-002, VOLVO TR 1286083, VOLVO VCS-2, VW L 774-L (entspricht G12evo)

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410166-150

Code:
4014835882614

Volume:
5 L

vendor code:
1410166-005

Code:
4014835882546

Volume:
20 L

vendor code:
1410166-020

Code:
4014835882577

Volume:
20 L, ecobox

vendor code:
1410166-B20

Code:
4014835882676

Volume:
60 L

vendor code:
1410166-060

Code:
4014835882591

Volume:
208 L

vendor code:
1410166-208

Code:
4014835882645

Volume:
1000 L

vendor code:
1410166-700

RAVENOL ETC Premix -40°C Protect C12evo protects the cooling system from corrosion and frost as well as from overheating in summer.

Application Note

RAVENOL ETC Premix -40°C Protect C12evo is a premixed coolant with frost and corrosion protection for year-round use in automotive engines. Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions:

Clean cooling system, check for leaks, flush. Add RAVENOL ETC Premix -40°C Protect C12evo to fill level.

Characteristics

Modern additive inhibitors based on Si-OAT technology
Premium anticorrosion additives for optimal protection for all metals and metal alloys used in coolingsystems, including aluminium
Long-term corrosion protection up to 5 years
Compatible with elastomers used in automotive radiators
Prevention of deposits and foam formation in the cooling system
Miscibility with all other types of radiator antifreeze
Free from nitrites, amines, phosphates, borates and 2-ethylhexanoic acid (2-EHA)
Outstanding protection against thermal stress

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 326.0 (Premix), MB 326.6 (Premix), MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 326.0 (Premix), MB 326.6 (Premix), MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4985, D6210		D3306, D4985, D6210
Recomendations		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
Density at 20 °C	g/cm³	1078	EN ISO 12185	1078 g/cm³ EN ISO 12185
Color		pink	visual	pink visual
Reserve alkalinity	mgKOH/g	4 —	ASTM D1121	4 — mgKOH/g ASTM D1121
Boiling point	°C	111.1	ASTM D1120	111.1 °C ASTM D1120
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
pH - value at 20 °C (50 Vol %)		>8	ASTM D1287	>8 ASTM D1287
pH - value at 20 °C		>8	ASTM D1287	>8 ASTM D1287
Approvals		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)

ETC Concentrate Protect C12evo

Compliance with the requirements:
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, VOLVO TR-31854114-002, VOLVO TR 1286083, VOLVO VCS-2, VW L 774-L (entspricht G12evo)

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410165-150

Code:
4014835882478

Volume:
5 L

vendor code:
1410165-005

Code:
4014835882409

Volume:
20 L

vendor code:
1410165-020

Code:
4014835882430

Volume:
20 L, ecobox

vendor code:
1410165-B20

Code:
4014835882522

Volume:
60 L

vendor code:
1410165-060

Code:
4014835882454

Volume:
208 L

vendor code:
1410165-208

Volume:
1000 L

vendor code:
1410165-700

RAVENOL ETC Concentrate Protect C12evo protects the cooling system from corrosion, frost and from overheating in summer.

Application Note

RAVENOL ETC Concentrate Protect C12evo with highly effective frost and corrosion protection. Application according to the mixture table. Follow manufacturer's recommendations.

Instructions for use: Clean the cooling system, check for leaks, flush. Mix RAVENOL ETC Concentrate Protect C12evo with demineralized or distilled water (according to the mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

ATTENTION: Never use undiluted! We recommend a mixing ratio of 50:50 (vol %). The minimum proportion of antifreeze concentrate should be between 35% - 60%, otherwise the product will not have a sufficient effect.

Mixture table:

Frost protection up to approx.	proportion of concentrate	proportion of water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Modern additive inhibitors based on Si-OAT technology
Premium anticorrosion additives for optimal protection for all metals and metal alloys used in coolingsystems, including aluminium
Long-term corrosion protection up to 5 years
Compatible with elastomers used in automotive radiators
Prevention of deposits and foam formation in the cooling system
Miscibility with all other types of radiator antifreeze
Free from nitrites, amines, phosphates, borates and 2-ethylhexanoic acid (2-EHA)
Outstanding protection against thermal stress

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 325.0 (Konzentrat), MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)		ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 325.0 (Konzentrat), MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4985, D6210		D3306, D4985, D6210
Recomendations		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
Density at 20 °C	g/cm³	1125	EN ISO 12185	1125 g/cm³ EN ISO 12185
Color		pink	visual	pink visual
Reserve alkalinity	mgKOH/g	10 —	ASTM D1121	10 — mgKOH/g ASTM D1121
Boiling point	°C	178.9	ASTM D1120	178.9 °C ASTM D1120
Water content	%	— 4	ASTM D1123	— 4 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-38	ASTM D1177	-38 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5-8,5	ASTM D1287	7,5-8,5 ASTM D1287
Approvals		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)		BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
