Oil for Mercedes-Benz - SL-class, R232 - SL 63 AMG S E PERFORMANCE Roadster (177.880) 232.482

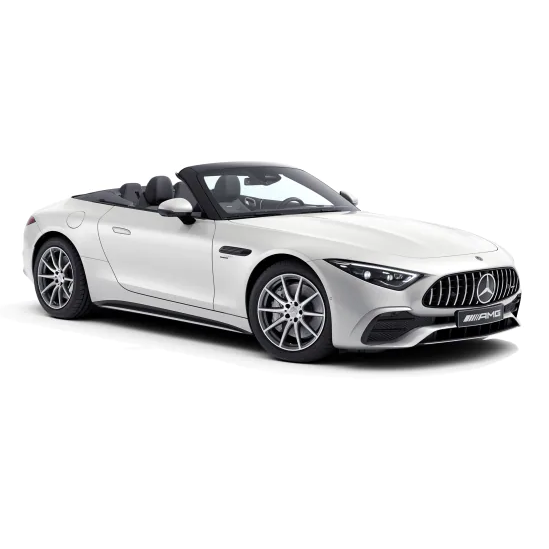

Mercedes-Benz SL-class, R232 SL 63 AMG S E PERFORMANCE Roadster (177.880) 232.482, year of issue from 2023 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine 177.880 / M177 DE 40 LA
Transmission, automatic 9/1 725.099/725.163
Differential, rear 215 FE, Ø 215 mm
Differential, front
Hydraulic brake system ABS
Cooling system

Engine 177.880 / M177 DE 40 LA

Liquid volume (basic): 9 L

VollSynth Turbo VST 5W-40

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111136-001

Code:
4014835790117

Volume:
4 L

vendor code:
1111136-004

Code:
4014835790193

Volume:
5 L

vendor code:
1111136-005

Code:
4014835790155

Volume:
10 L

vendor code:
1111136-010

Code:
4014835790148

Volume:
20 L, ecobox

vendor code:
1111136-B20

Code:
4014835790223

Volume:
60 L

vendor code:
1111136-060

Volume:
60 L, print

vendor code:
1111136-D60

Code:
4014835790131

Volume:
208 L

vendor code:
1111136-208

Volume:
208 L, print

vendor code:
1111136-D28

Code:
4014835798502

Volume:
1000 L

vendor code:
1111136-700

Volume:
20 L

vendor code:
1111136-020

Code:
4014835798526

RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance.
Fuel saving because of easy running characteristics.
Excellent detergent and dispersant characteristics.
Prevention of black sludge creation.
Long endurance because of high oxidation stability.
Excellent cold start performance.
Very good viscosity temperature behaviour.
Low evaporation.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.5	DIN 51562-1	13.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	79.4	DIN 51562-1	79.4 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.900	ASTM D4684	13.900 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	7.3	ASTM D5800	7.3 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Super Synthenik Oel SSL 0W-40

For engine

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700

show details

SAE: 0W-40

API: CF, SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111108-001

Code:
4014835718715

Volume:
4 L

vendor code:
1111108-004

Code:
4014835718791

Volume:
5 L

vendor code:
1111108-005

Code:
4014835718753

Volume:
10 L

vendor code:
1111108-010

Code:
4014835718746

Volume:
20 L

vendor code:
1111108-020

Volume:
20 L, ecobox

vendor code:
1111108-B20

Code:
4014835772724

Volume:
60 L

vendor code:
1111108-060

Volume:
60 L, print

vendor code:
1111108-D60

Code:
4014835718739

Volume:
208 L

vendor code:
1111108-208

Volume:
208 L, print

vendor code:
1111108-D28

Code:
4014835718708

Volume:
1000 L

vendor code:
1111108-700

With its new formulation, RAVENOL Super Synthetik Öl SSL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL Super Synthetik Öl SSL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL Super Synthetik Öl SSL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Super Synthetik Öl SSL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL Super Synthetik Öl SSL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

Excellent cold starting behavior.
Fuel savings for part and full load.
A very stable and excellent viscosity behavior.
Good shear stability.
A safe smear layer at very high operating temperatures.
Excellent detergent and dispersant properties.
A broad protection against wear, corrosion and foaming
Excellent aging stability.
Low evaporation loss.
Excellent engine cleanliness.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN0700		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN0700
Brand		RAVENOL		RAVENOL
SAE		0W-40		0W-40
Type		Full synthetic		Full synthetic
API		CF, SN Plus, SP		CF, SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700
Density at 20 °C	g/cm³	842.9	EN ISO 12185	842.9 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.8	DIN 51562-1	13.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	78.1	DIN 51562-1	78.1 mm²/s DIN 51562-1
Viscosity Index VI		182	DIN ISO 2909	182 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4560	ASTM D5293	4560 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	21.300	ASTM D4684	21.300 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	8.5	ASTM D5800	8.5 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.21	DIN 51575	1.21 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

HST 5W-40

Engine oil

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Equivalents OEM:
Geely 92432F100, Geely 92432F100, Geely 92432F101, Renault 7711658110, Renault 7711658111, Renault 7711943689, Renault 7711943690, Renault 7711943691, UAZ 000000473400600, UAZ 000101001054002, UAZ 000101004054002, UAZ 473400600

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111147-001

Code:
4014835856523

Volume:
4 L

vendor code:
1111147-004

Code:
4014835856554

Volume:
5 L

vendor code:
1111147-005

Code:
4014835856585

Volume:
10 L

vendor code:
1111147-010

Code:
4014835856615

Volume:
20 L

vendor code:
1111147-020

Volume:
20 L, ecobox

vendor code:
1111147-B20

Code:
4014835856639

Volume:
60 L

vendor code:
1111147-060

Volume:
60 L, print

vendor code:
1111147-D60

Volume:
208 L

vendor code:
1111147-208

Volume:
208 L, print

vendor code:
1111147-D28

Volume:
1000 L

vendor code:
1111147-700

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HST SAE 5W-40 contributes to protect the environment by reducing the emissions.

RAVENOL HST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HST SAE 5W-40 is suitable for the energy saving operation year-round of all modern cars with gasoline and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	78.2	DIN 51562-1	78.2 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.91	ASTM D5481	3.91 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5480	ASTM D5293	5480 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.000	ASTM D4684	25.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	7.4	ASTM D5800	7.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	12	ASTM D2896	12 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.19	DIN 51575	1.19 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

SHL 0W-40

For engine

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700

show details

SAE: 0W-40

API: SN

ACEA: A3, B4

Equivalents OEM:
BMW 83210144459, BMW 83212365515, BMW 83212405609, BMW 83212405635, BMW 83212405635, BMW 83212406983, FEBI 101140, FEBI 101141, FEBI 101142, FEBI 101143, FEBI 101144, Renault 8671000073, Renault 8671000074, Renault 8671000075, SWAG 30101140, SWAG 30101141, SWAG 30101142, SWAG 30101143, SWAG 30101144

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111127-001

Code:
4014835868809

Volume:
4 L

vendor code:
1111127-004

Code:
4014835868830

Volume:
5 L

vendor code:
1111127-005

Code:
4014835868861

Volume:
10 L

vendor code:
1111127-010

Code:
4014835868892

Volume:
20 L

vendor code:
1111127-020

Code:
4014835868915

Volume:
20 L, ecobox

vendor code:
1111127-B20

Code:
4014835868977

Volume:
60 L

vendor code:
1111127-060

Volume:
60 L, print

vendor code:
1111127-D60

Code:
4014835868991

Volume:
208 L

vendor code:
1111127-208

Volume:
208 L, print

vendor code:
1111127-D28

Code:
4014835869011

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SHL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL SHL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SHL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL SHL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

Excellent cold starting behavior
Fuel savings for part and full load
A very stable and excellent viscosity behavior
Good shear stability
A safe lubricant film at very high operating temperatures
Excellent detergent and dispersant properties
A broad protection against wear, corrosion and foaming
Excellent aging stability
Low evaporation loss
Excellent engine cleanliness

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700
Brand		RAVENOL		RAVENOL
SAE		0W-40		0W-40
Type		Synthetic		Synthetic
API		SN		SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.46	DIN 51562-1	13.46 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	75	DIN 51562-1	75 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.84	ASTM D5481	3.84 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5950	ASTM D5293	5950 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.46	ASTM D2896	10.46 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.15	DIN 51575	1.15 %wt. DIN 51575
Approvals		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic 9/1 725.099/725.163

Liquid volume (basic): 11 L

ATF M 9-G Serie

For automatic transmission

RAVENOL ATF M 9-G Serie is an ATF (Automatic Transmission Fluid) developed for all 9-gear automatic transmissions (9G-Tronic) of motor vehicles by Mercedes-Benz. Guarantees maximum wear protection in every operating state.

Compliance with the requirements:
ATF D971, MB 236.16, MB 236.17

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211139-001

Code:
4014835842397

Volume:
4 L

vendor code:
1211139-004

Code:
4014835842427

Volume:
10 L

vendor code:
1211139-010

Code:
4014835847897

Volume:
20 L, ecobox

vendor code:
1211139-B20

Code:
4014835847873

Volume:
60 L

vendor code:
1211139-060

Volume:
208 L

vendor code:
1211139-208

Code:
4014835853041

Volume:
1000 L

vendor code:
1211139-700

Volume:
20 L

vendor code:
1211139-020

Code:
4014835848269

RAVENOL ATF M 9-G Serie is an ATF (Automatic Transmission Fluid) developed for all 9-gear automatic transmissions (9G-Tronic) of motor vehicles by Mercedes-Benz. Guarantees maximum wear protection in every operating state.

Application Note

RAVENOL ATF M 9-G Serie was developed for use in the 9G-Tronic automatic transmission of the Series W9A 700 by Mercedes-Benz and JR913E from Jatco for Nissan Titan 2020 – 2024, Nissan Frontier from 2020- and Nissan Z (RZ34) 2023-). These Transmissions are also known under the name NAG3 (New Automatic Transmission of the 3rd Generation) of the type 725.011.

RAVENOL ATF M 9-G Serie can also be used in aggregates with the specification MB 236.16 (A 001 989 92 03), since these were replaced by the new specification MB 236.17.

RAVENOL ATF M 9-G Serie must not be used in older Mercedes Benz 5 and 7-gear automatic transmission, which require automatic transmission oil according to the MB approval MB 236.10, 236.12, 236.14 or 236.15.

Characteristics

Very good lubricity even at low temperatures in winter, very low pour point
High, stable viscosity index
Very good oxidation stability
Broadest protection against wear, corrosion and foaming
An excellent shear stability due to a high thermal and oxidative stability
An excellent friction characteristic
An excellent cooling capability

Parameter	Unit	Value	Audit
Recommendations		ATF D971, MB 236.17, Mercedes A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P		ATF D971, MB 236.17, Mercedes A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		ATF D971, MB 236.16, MB 236.17		ATF D971, MB 236.16, MB 236.17
Compliant products		MB A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P		MB A 002 989 06 03, NIssan 999MP-MTP10P, NIssan ATF Matic P
Density at 20 °C	g/cm³	834	EN ISO 12185	834 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Approvals		ATF D971, MB 236.16, MB 236.17		ATF D971, MB 236.16, MB 236.17

Differential, rear 215 FE, Ø 215 mm

Liquid volume (basic): 1.2 L

Getriebeoel SLS 75W-140 GL 5 LS

For Sport

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
Ford WSL-M2C 192-A, MIL-L-2105 D

show details

SAE: 75W-140

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221110-001

Code:
4014835734012

Volume:
4 L

vendor code:
1221110-004

Code:
4014835734098

Volume:
10 L

vendor code:
1221110-010

Code:
4014835734043

Volume:
20 L

vendor code:
1221110-020

Code:
4014835734029

Volume:
20 L, ecobox

vendor code:
1221110-B20

Volume:
60 L

vendor code:
1221110-060

Volume:
60 L, print

vendor code:
1221110-D60

Volume:
208 L, print

vendor code:
1221110-D28

Code:
4014835734005

Volume:
1000 L

vendor code:
1221110-700

Volume:
208 L

vendor code:
1221110-208

Code:
4014835734081

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is outstanding for use as a rationalization product also with respect to the new generation of 5- and 6-gear manual transmissions and axle drives with and without limited slip differential. Especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is a high-performance transmission oil for maintaining manual transmissions and rear axles in many popular vehicles. Also suitable for highly stressed hypoid axle gears as well as spur- and bevel gears, change gears in vehicles and work machines, and steering gears. Particularly suited for applications requiring "limited slip" (LS) properties.

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Recommendations		MIL-L-2105 D		MIL-L-2105 D
Brookfield Viscosity at -50 °C	mPa*s	121.000	ASTM D2983	121.000 mPa*s ASTM D2983
Brand		RAVENOL		RAVENOL
SAE		75W-140		75W-140
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		Ford WSL-M2C 192-A, MIL-L-2105 D		Ford WSL-M2C 192-A, MIL-L-2105 D
Density at 20 °C	g/cm³	842.1	EN ISO 12185	842.1 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	28.1	DIN 51562-1	28.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	203.4	DIN 51562-1	203.4 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	127.600	ASTM D2983	127.600 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	220	DIN EN ISO 2592	220 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Ford WSL-M2C 192-A, MIL-L-2105 D		Ford WSL-M2C 192-A, MIL-L-2105 D

Differential, front

Liquid volume (basic): 0.55 L

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details

SAE: 75W-85

API: GL-5 LS

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good compatibility with non-ferrous metals and sealing materials.
Good shifting behaviour even in low temperatures, low pour point.
Extended life.
A stable lubricating film even at high oil temperatures and under high stress.
Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18		AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand		RAVENOL		RAVENOL
SAE		75W-85		75W-85
Type		Full synthetic		Full synthetic
API		GL-5 LS		GL-5 LS
Recomendations		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus		BMW\|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190		AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C	g/cm³	862	EN ISO 12185	862 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64.3	DIN 51562-1	64.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	26.000	ASTM D2983	26.000 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18		BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Hydraulic brake system ABS

Liquid volume (basic): 0.6 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 17.8 L

LTC - Protect C12++ Premix -40°C

Coolant

RAVENOL LTC Lobrid Technology Coolant Premix -40°C is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

Compliance with the requirements:
Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410126-150

Code:
4014835756113

Volume:
5 L

vendor code:
1410126-005

Code:
4014835756151

Volume:
10 L

vendor code:
1410126-010

Volume:
20 L

vendor code:
1410126-020

Code:
4014835756120

Volume:
20 L, ecobox

vendor code:
1410126-B20

Code:
4014835858893

Volume:
208 L

vendor code:
1410126-208

Code:
4014835756182

Volume:
1000 L

vendor code:
1410126-700

Volume:
60 L

vendor code:
1410126-060

Code:
4014835756168

RAVENOL LTC Lobrid Technology Coolant Premix -40°C is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL LTC Lobrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL LTC Lobrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL LTC Lobrid Technology Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for all-aluminium engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cooling systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Si-OAT, MB (A 000 989 08 25 10), MB 325.5, MB 326.6 (Premix), Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Si-OAT, MB (A 000 989 08 25 10), MB 325.5, MB 326.6 (Premix), Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)
Brand		RAVENOL		RAVENOL
Recomendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
Compliant products		MB A 000 989 08 25 10, Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J		MB A 000 989 08 25 10, Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J
Density at 20 °C	g/cm³	1079	EN ISO 12185	1079 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		8,2	ASTM D1287	8,2 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

LTC - Protect C12++ Concentrate

Coolant

RAVENOL LTC Lobrid Technology Coolant Concentrate is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

Compliance with the requirements:
Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410125-150

Code:
4014835756014

Volume:
5 L

vendor code:
1410125-005

Code:
4014835756052

Volume:
10 L

vendor code:
1410125-010

Volume:
20 L

vendor code:
1410125-020

Code:
4014835756021

Volume:
20 L, ecobox

vendor code:
1410125-B20

Volume:
60 L

vendor code:
1410125-060

Volume:
208 L

vendor code:
1410125-208

Volume:
1000 L

vendor code:
1410125-700

RAVENOL LTC Lobrid Technology Coolant Concentrate is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL LTC Lobrid Technology Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL LTC Lobrid Technology Coolant Concentrate with frost and rust protection for year-round use in all-aluminium engines. Use according to the mixing chart. Follow manufacturer’s recommendations.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL LTC Lobrid Technology Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for all-aluminium engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Si-OAT, MB 325.5, MB 325.6, Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Si-OAT, MB 325.5, MB 325.6, Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)
Brand		RAVENOL		RAVENOL
Recomendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
Compliant products		Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J		Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J
Density at 20 °C	g/cm³	1120	EN ISO 12185	1120 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	175 —	ASTM D1121	175 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	115	DIN 51758	115 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,1	ASTM D1287	8,1 ASTM D1287
Approvals		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
