Application NoteRAVENOL Motorenoel SAE 30 W Regular SA is used in passenger car petrol and diesel engines where the API specification SA is required.
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1113302-005
Volume:
20 L
vendor code:
1113302-020
Volume:

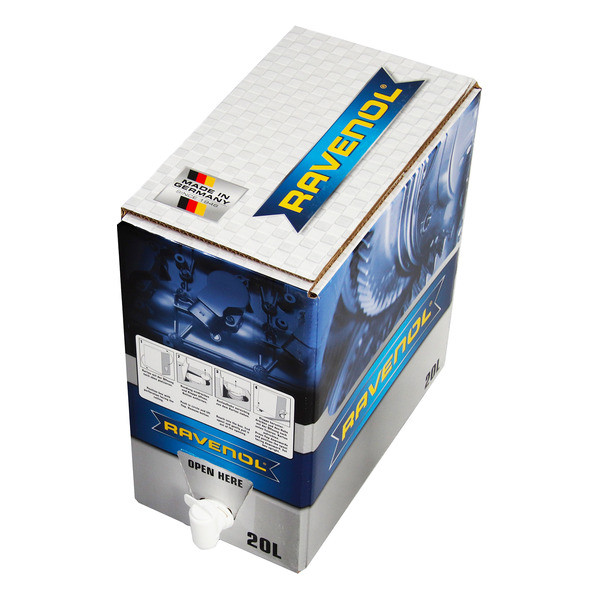

20 L, ecobox
vendor code:
1113302-B20

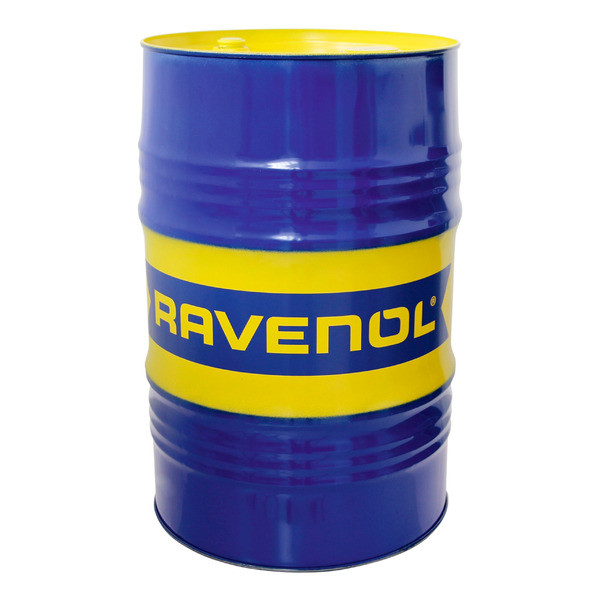

Volume:
60 L
vendor code:
1113302-060
Volume:
208 L
vendor code:
1113302-208
Application Note

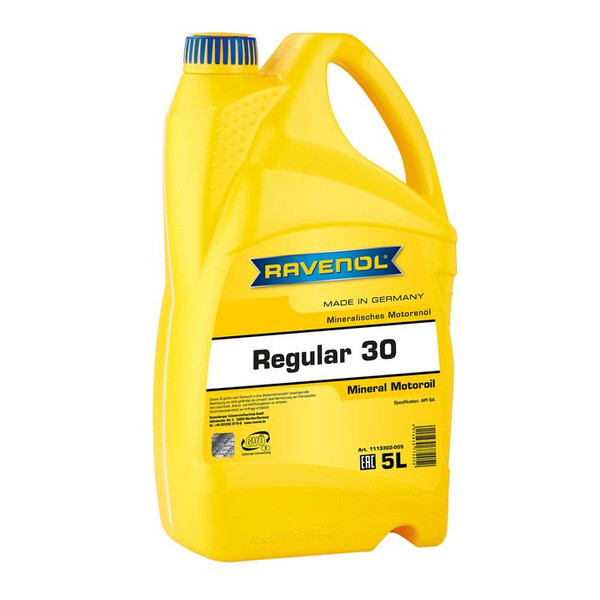

RAVENOL Motorenoel SAE 30 W Regular SA is used in passenger car petrol and diesel engines where the API specification SA is required.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | SA |
SA
|
||
| Density at 20 °C | kg/m³ | 882 | EN ISO 12185 |
882
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11 | DIN 51562-1 |
11
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 92 | DIN 51562-1 |
92
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 105 | DIN ISO 2909 |
105
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 245 | DIN EN ISO 2592 |
245
°C
DIN EN ISO 2592
|

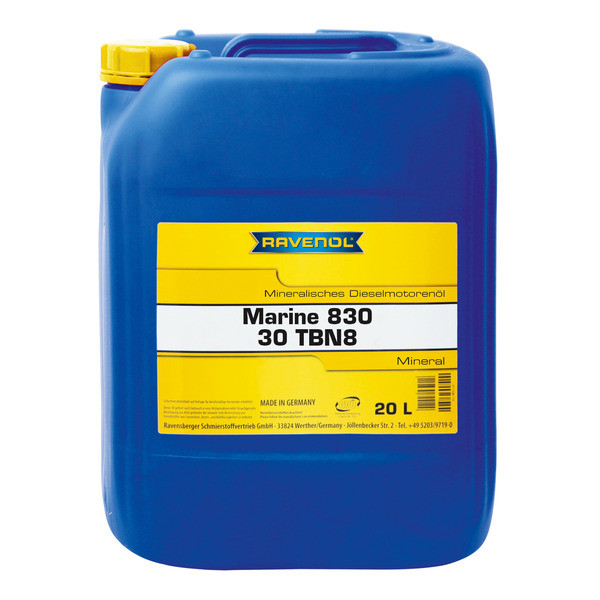

RAVENOL MARINE 830 SAE 30 TBN8 is produced with a special additivation for the demands for a navy oil for the use in crosshead diesel engines and engines for the coasting and inland navigation.
Compliance with the requirements:
DEF 2101D, MIL-L-2104 A
- Available packaging
- Product parameters

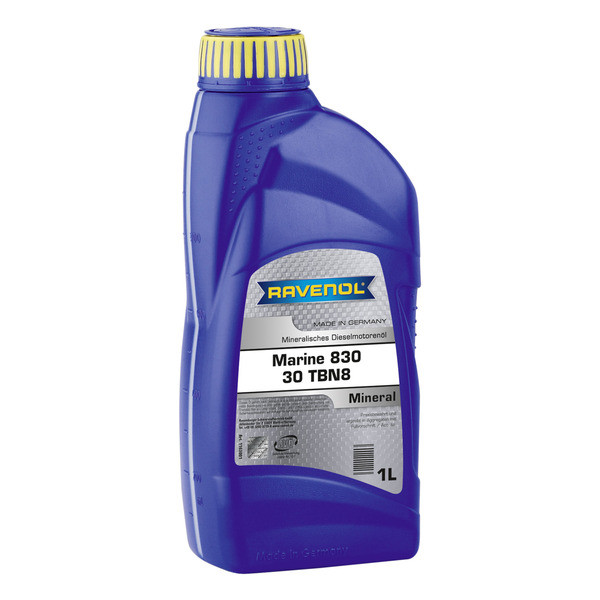

Volume:
1 L
vendor code:
1163001-001
Volume:
4 L
vendor code:
1163001-004
Volume:

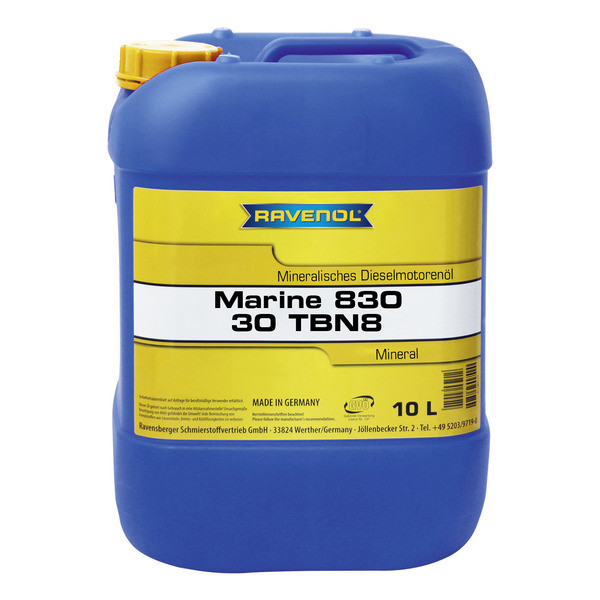

10 L
vendor code:
1163001-010
Volume:
20 L
vendor code:
1163001-020
Volume:
20 L, ecobox
vendor code:
1163001-B20
Volume:
60 L
vendor code:
1163001-060
Volume:
208 L
vendor code:
1163001-208

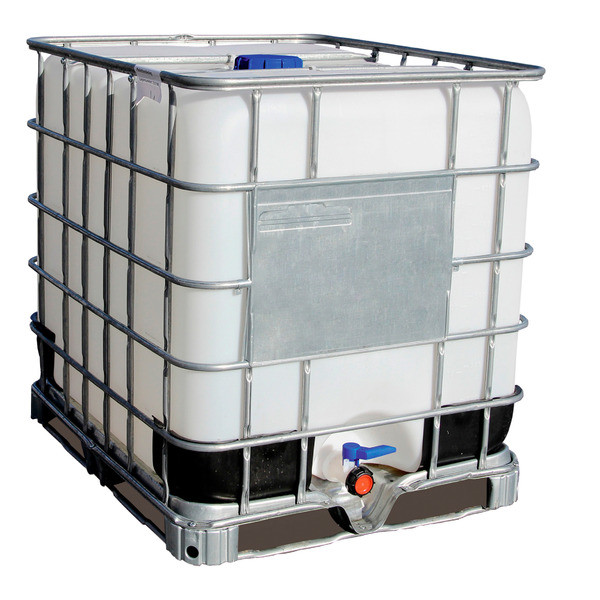

Volume:
1000 L
vendor code:
1163001-700
RAVENOL MARINE 830 SAE 30 TBN8 is produced with a special additivation for the demands for a navy oil for the use in crosshead diesel engines and engines for the coasting and inland navigation.
Application Note
RAVENOL MARINE 830 SAE 30 TBN8 is used as a lubrication oil in slowly running crosshead diesel enginesand as an engine oil in easy loaded engines of the coasting and inland navigation.
Characteristics
- a very good oxidation resistance
- a stable viscosity index
- a good neutralizing power to neutralize acid connections which occur when burning diesel fuels
- a good cleaning power
- a good corrosion protection
- a good foam prevention
- a low pourpoint
- a good water separation behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| SAE | 30W |
30W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CC |
CC
|
||
| Recomendations | DEF 2101D, MIL-L-2104 A |
DEF 2101D, MIL-L-2104 A
|
||
| specification | SAE 30 |
SAE 30
|
||
| Density at 20 °C | kg/m³ | 883 | EN ISO 12185 |
883
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.45 | DIN 51562-1 |
11.45
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 102 | DIN 51562-1 |
102
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 99 | DIN ISO 2909 |
99
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.5 | ASTM D2896 |
8.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.15 | DIN 51575 |
1.15
%wt.
DIN 51575
|
| Approvals | DEF 2101D, MIL-L-2104 A, SAE 30 |
DEF 2101D, MIL-L-2104 A, SAE 30
|

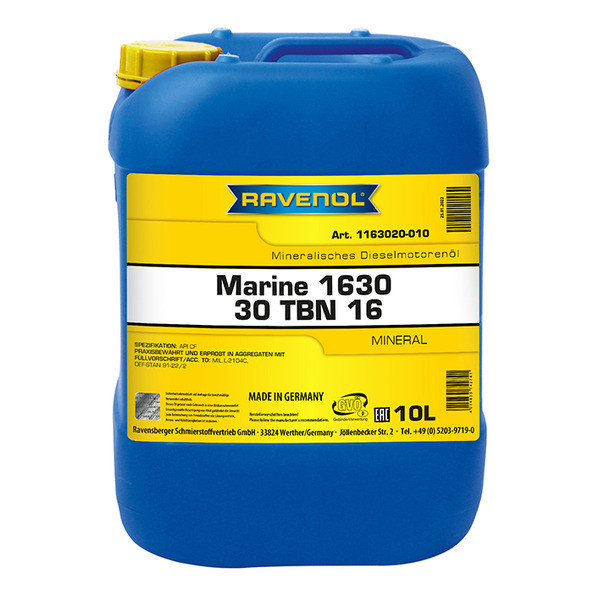

RAVENOL MARINE 1630 SAE 30 TBN16 is made from high quality solvent refined basic oils with a special multi functional additivation for the demands of a navy oil for the use of navy diesel engines and for the lubrication of gear transfers in aggregates used on boats.
Compliance with the requirements:
DEF 91-22/2, MIL-L-2104 C
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1163020-001
Volume:
4 L
vendor code:
1163020-004
Volume:
10 L
vendor code:
1163020-010

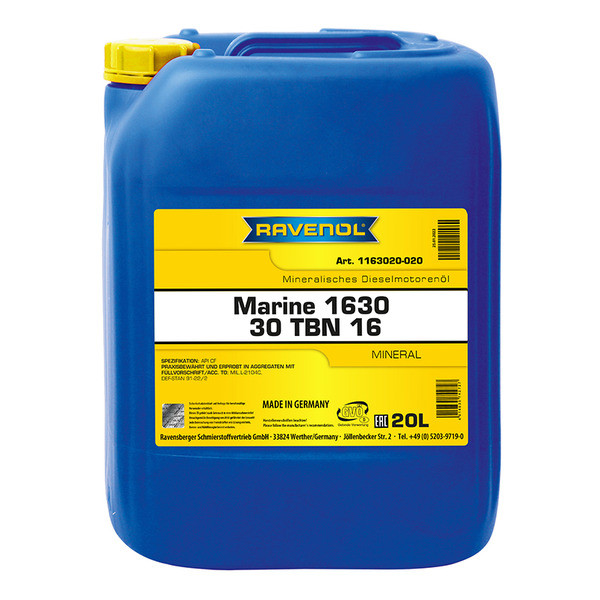

Volume:
20 L
vendor code:
1163020-020
Volume:
20 L, ecobox
vendor code:
1163020-B20
Volume:
60 L
vendor code:
1163020-060
Volume:
208 L
vendor code:
1163020-208
Volume:
1000 L
vendor code:
1163020-700
RAVENOL MARINE 1630 SAE 30 TBN16 is made from high quality solvent refined basic oils with a special multi functional additivation for the demands of a navy oil for the use of navy diesel engines and for the lubrication of gear transfers in aggregates used on boats.
Application Note
RAVENOL MARINE 1630 SAE 30 TBN16 is used as a lubrication oil in quickly running and so-called« medium speed » navy diesel engines, perhaps with turbo charging and when using distilled fuels with asulfur content up to 1,8 %.
RAVENOL MARINE 1630 SAE 30 TBN16 can also be used for the lubrication of gear transfers inaggregates used on boats.
Characteristics
- a very good oxidation resistance
- a stable viscosity index
- excellent dispersant and detergent characteristics
- a good neutralizing power to neutralize acid connections which occur when burning diesel fuels
- a good cleaning power
- a good corrosion protection
- a good foam prevention
- a low pourpoint
- a good water separation behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| SAE | 30W |
30W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF |
CF
|
||
| Recomendations | DEF 91-22/2, MIL-L-2104 C |
DEF 91-22/2, MIL-L-2104 C
|
||
| specification | SAE 30 |
SAE 30
|
||
| Density at 20 °C | kg/m³ | 890 | EN ISO 12185 |
890
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.5 | DIN 51562-1 |
11.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 101.5 | DIN 51562-1 |
101.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 100 | DIN ISO 2909 |
100
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 245 | DIN EN ISO 2592 |
245
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 16 | ASTM D2896 |
16
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 2.21 | DIN 51575 |
2.21
%wt.
DIN 51575
|
| Approvals | DEF 91-22/2, MIL-L-2104 C, SAE 30 |
DEF 91-22/2, MIL-L-2104 C, SAE 30
|

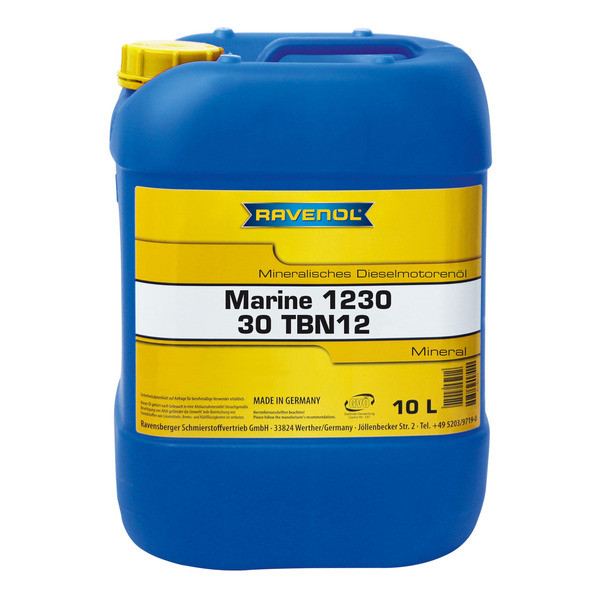

RAVENOL MARINE 1230 SAE 30 TBN12 is made from high quality solvent refined basic oils with a special multi functional additivation for the demands of a navy oil for the use of navy diesel engines and for the lubrication of gear transfers in aggregates used on boats.
Compliance with the requirements:
DEF 91-22/2, MIL-L-2104 C
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1163010-001
Volume:
4 L
vendor code:
1163010-004
Volume:
10 L
vendor code:
1163010-010
Volume:
20 L
vendor code:
1163010-020
Volume:
20 L, ecobox
vendor code:
1163010-B20
Volume:
60 L
vendor code:
1163010-060
Volume:
208 L
vendor code:
1163010-208
Volume:
1000 L
vendor code:
1163010-700
RAVENOL MARINE 1230 SAE 30 TBN12 is made from high quality solvent refined basic oils with a special multi functional additivation for the demands of a navy oil for the use of navy diesel engines and for the lubrication of gear transfers in aggregates used on boats.
Application Note
RAVENOL MARINE 1230 SAE 30 TBN12 is used as a lubrication oil in quickly running and so-called « medium speed » navy diesel engines, perhaps with turbo charging and when using distilled fuels.
Characteristics
- a very good oxidation resistance
- a stable viscosity index
- excellent dispersant and detergent characteristics
- a good neutralizing power to neutralize acid connections which occur when burning diesel fuels
- a good cleaning power
- a good corrosion protection
- a good foam prevention
- a low pourpoint
- a good water separation behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| SAE | 30W |
30W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF |
CF
|
||
| Recomendations | DEF 91-22/2, MIL-L-2104 C |
DEF 91-22/2, MIL-L-2104 C
|
||
| Density at 20 °C | kg/m³ | 883 | EN ISO 12185 |
883
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 105.2 | DIN 51562-1 |
105.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 99 | DIN ISO 2909 |
99
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 274 | DIN EN ISO 2592 |
274
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.5 | ASTM D2896 |
12.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.67 | DIN 51575 |
1.67
%wt.
DIN 51575
|
| Approvals | DEF 91-22/2, MIL-L-2104 C |
DEF 91-22/2, MIL-L-2104 C
|

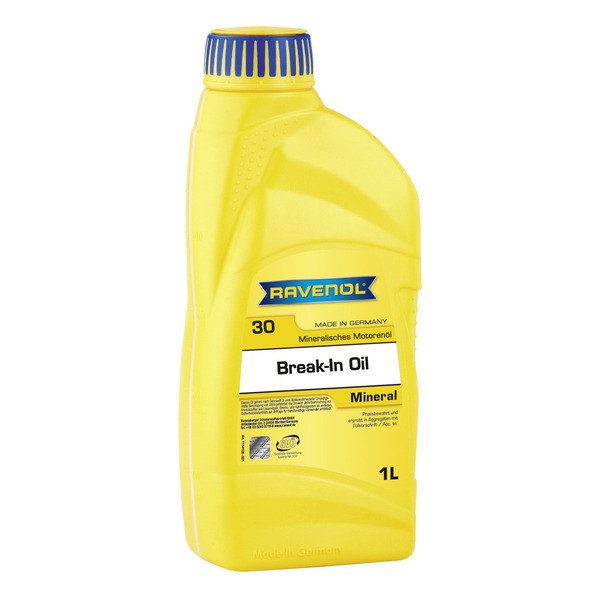

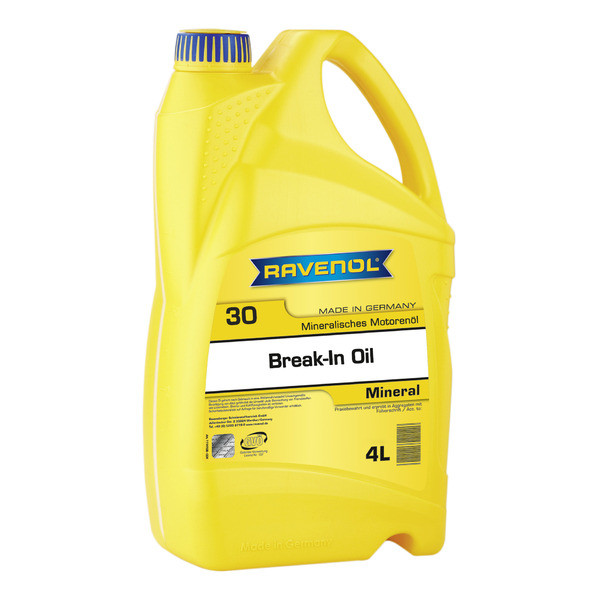

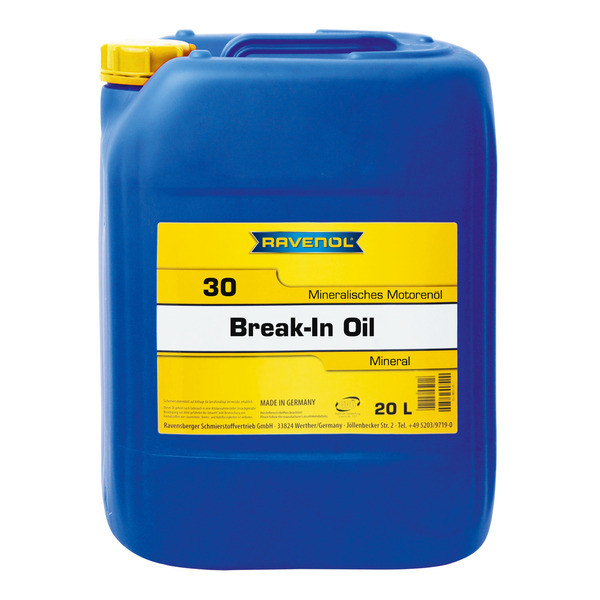

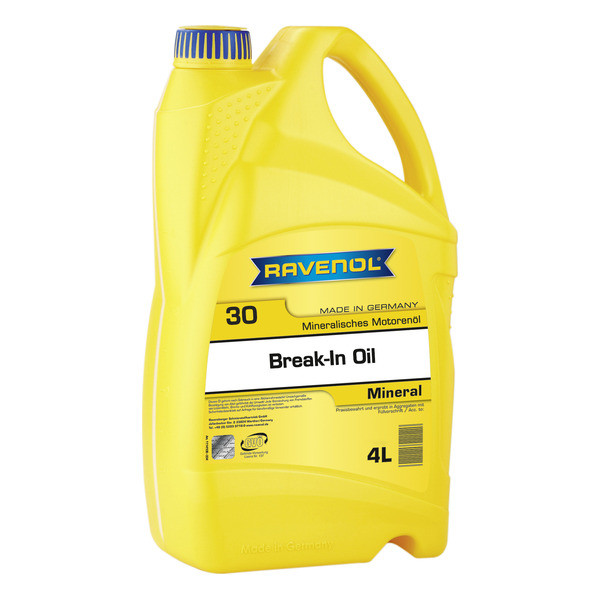

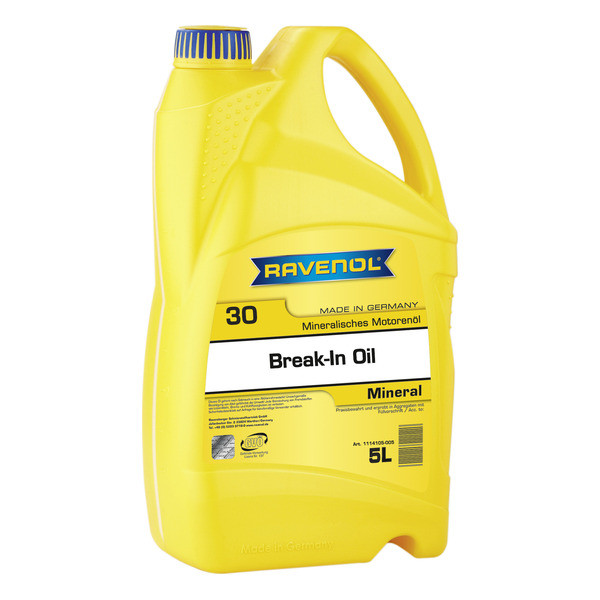

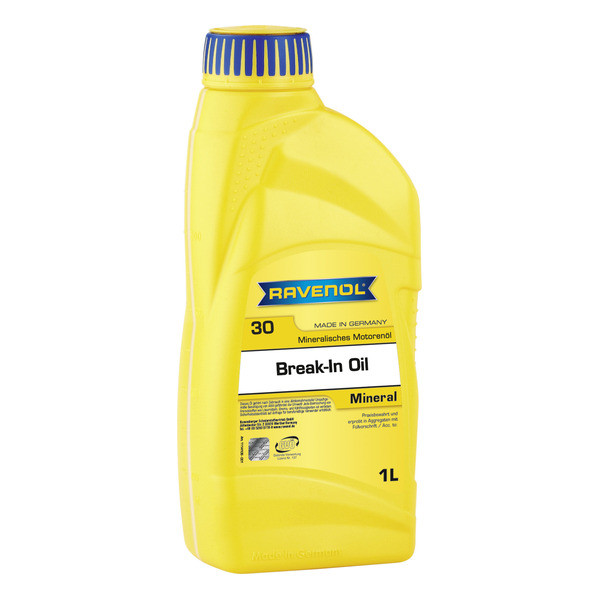

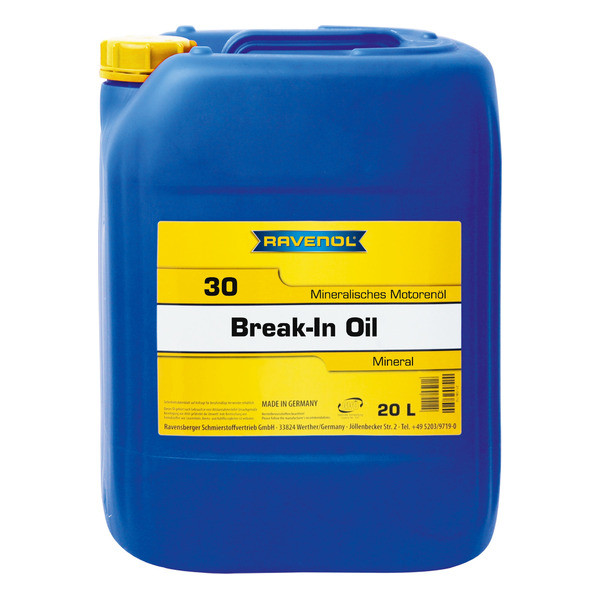

RAVENOL Break-In Oil SAE 30 dispenses with the use of friction coefficient improving additives (friction modifier) to considerably shorten the break-in phase for rebuilt and modified engines. The piston rings are rapidly seated.
SAE: 30W
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1114105-005
Volume:
20 L
vendor code:
1114105-020
Volume:
20 L, ecobox
vendor code:
1114105-B20
Volume:
60 L
vendor code:
1114105-060
Volume:
60 L, print
vendor code:
1114105-D60
Volume:
208 L
vendor code:
1114105-208
Volume:
208 L, print
vendor code:
1114105-D28
RAVENOL Break-In Oil SAE 30 dispenses with the use of friction coefficient improving additives (friction modifier) to considerably shorten the break-in phase for rebuilt and modified engines. The piston rings are rapidly seated.
Due to its high content of 2.5% ZDDP (zinc dithiophosphate) (equivalent to approx. 2,500 ppm zinc), RAVENOL Break-In Oil SAE 30 is especially recommended for driving classic V8 engines with flat tappets.
Application Note
RAVENOL Break-In Oil SAE 30 serves as a classic break-in oil and therefore can only remain in the engine for a short time (max. 1000km). The particularly high levels of anti-wear additives offer extra protection during the critical break-in phase of rebuilt engines. Please pay attention to the specifications of your engine reconditioners during the break-in phase. High engine loads and speeds are to be avoided.
Characteristics
- Very high levels of ZDDP
- No friction modifier
- Breaks the engine in as quickly as possible
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| Density at 20 °C | kg/m³ | 881 | EN ISO 12185 |
881
kg/m³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 11 | DIN 51562-1 |
11
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 90.6 | DIN 51562-1 |
90.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 258 | DIN EN ISO 2592 |
258
°C
DIN EN ISO 2592
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
RAVENOL 4-Takt Gardenoil HD 30 usable especially where the normal operating temperatures will be expected. The oil viscosity remains constantly at the operation temperature over the whole service interval.
Compliance with the requirements:
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1113301-004
Volume:
5 L
vendor code:
1113301-005
Volume:
10 L
vendor code:
1113301-010
Volume:
20 L
vendor code:
1113301-020
Volume:
20 L, ecobox
vendor code:
1113301-B20
Volume:
60 L
vendor code:
1113301-060
Volume:
1000 L
vendor code:
1113301-700
RAVENOL 4-Takt Gardenoil HD 30 usable especially where the normal operating temperatures will be expected. The oil viscosity remains constantly at the operation temperature over the whole service interval.
Application Note
RAVENOL 4-Takt Gardenoil HD 30 is suitable for use in 4-stroke lawn mowers under normal operating temperatures.
Characteristics
- Protection against corrosion
- Good shear stability
- High oxidation stability
- Excellent viscosity-temperature behavior
- Enhanced levels of detergent and dispersant for cleaner engines
- Very good cold starting properties
- Prevents formation of deposits and black sludge
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| Recomendations | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
||
| Suitable for | Honda, Husqvarna, STIHL |
Honda, Husqvarna, STIHL
|
||
| Density at 20 °C | kg/m³ | 876 | EN ISO 12185 |
876
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.1 | DIN 51562-1 |
12.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 103.3 | DIN 51562-1 |
103.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| Approvals | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Manufacturer Approved:
ZF TE-ML 03C, ZF TE-ML 07F
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
SAE: 30W
Equivalents OEM:
Caterpillar 7X7855, Caterpillar 143487, Volvo 1161943, Volvo 15002772, Volvo 15002772
- Available packaging
- Product parameters
RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Application Note
RAVENOL CATOEL TO-4 SAE 30 ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.
Characteristics
- Highest wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimization of friction coefficient behavior
- Guarantees maximum life of the units
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 30W |
30W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 03C, ZF TE-ML 07F |
ZF TE-ML 03C, ZF TE-ML 07F
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002) |
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 880.1 | EN ISO 12185 |
880.1
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.5 | DIN 51562-1 |
11.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 95.7 | DIN 51562-1 |
95.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
RAVENOL Super Truck SAE 30 is a top-quality product with high safety reserves.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1123720-020
Volume:
20 L, ecobox
vendor code:
1123720-B20
Volume:
60 L
vendor code:
1123720-060
Volume:
208 L
vendor code:
1123720-208
Volume:
1000 L
vendor code:
1123720-700
RAVENOL Super Truck SAE 30 is a top-quality product with high safety reserves.
Application Note
RAVENOL Super Truck SAE 30 is mono grade motor oil for use in truck diesel engines with or without turbo charger.Please follow engine manufacturer’s recommendations.
Characteristics
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- Good cold start characteristics
- Best corrosion protection
- High safety reserves even with boundary lubrication conditions
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4, SG |
CF-4, SG
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
||
| Density at 20 °C | kg/m³ | 882.9 | EN ISO 12185 |
882.9
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 112.8 | DIN 51562-1 |
112.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 99 | DIN ISO 2909 |
99
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 272 | DIN EN ISO 2592 |
272
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
Standard Truck 30
RAVENOL Standard Truck SAE 30 is mineral mono grade motor oil for trucks. It is an all-season oil for all truck diesel engine typ es.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
- Available packaging
- Product parameters
RAVENOL Standard Truck SAE 30 offers high protection against friction and abrasion, excellent cold start characteristics. Extende d oil change intervals according to manufacturer's recommendations.
Application Note:
RAVENOL Standard Truck SAE 30 is mono grade motor oil for use in truck diesel engines. It is also suitable for stationary plants.
Characteristics:
- Good shear stability
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- High safety reserves
- Good cold start characteristics
- Best corrosion protection
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, SF |
CF, SF
|
||
| ASTM |
|
|||
| Manufacturer Approved |
|
|||
| Recomendations | Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D |
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
|
||
| Rennstrecken-Partnerschaft |
|
|||
| Rennstrecken-Partner |
|
|||
| specification |
|
|||
| Suitable for |
|
|||
| Compliant products |
|
|||
| Density at 20 °C | kg/m³ | 887 | EN ISO 12185 |
887
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.6 | DIN 51562-1 |
11.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 102.3 | DIN 51562-1 |
102.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 100 | DIN ISO 2909 |
100
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 262 | DIN EN ISO 2592 |
262
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13 | ASTM D2896 |
13
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D |
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
|
Application NoteRAVENOL Super HD 30 is suitable for both gasoline and diesel engines in cars, van and commercial vehicles which require this grade of engine oil.
Compliance with the requirements:
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1113300-001
Volume:
4 L
vendor code:
1113300-004
Volume:
5 L
vendor code:
1113300-005
Volume:
10 L
vendor code:
1113300-010
Volume:
20 L
vendor code:
1113300-020
Volume:
20 L, ecobox
vendor code:
1113300-B20
Volume:
60 L
vendor code:
1113300-060
Volume:
208 L
vendor code:
1113300-208
Volume:
1000 L
vendor code:
1113300-700
Application Note
RAVENOL Super HD 30 is suitable for both gasoline and diesel engines in cars, van and commercial vehicles which require this grade of engine oil.
Characteristics
- Corrosion protection
- Good shear stability
- High oxidation stability
- Excellent viscosity-temperature behavior
- Enhanced levels of detergent and dispersant for cleaner engines
- Very good cold starting properties
- Prevents formation of deposits and black sludge
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| Recomendations | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
||
| Density at 20 °C | kg/m³ | 876 | EN ISO 12185 |
876
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.1 | DIN 51562-1 |
12.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 103.3 | DIN 51562-1 |
103.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.2 | ASTM D2896 |
7.2
mgKOH/g
ASTM D2896
|
| Approvals | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|

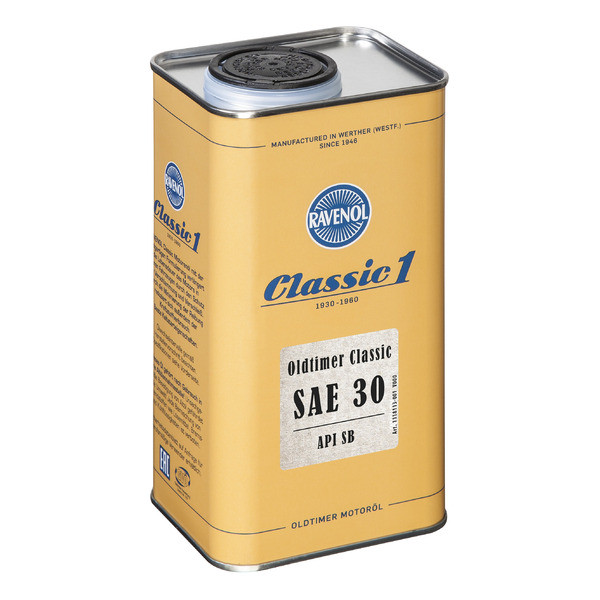

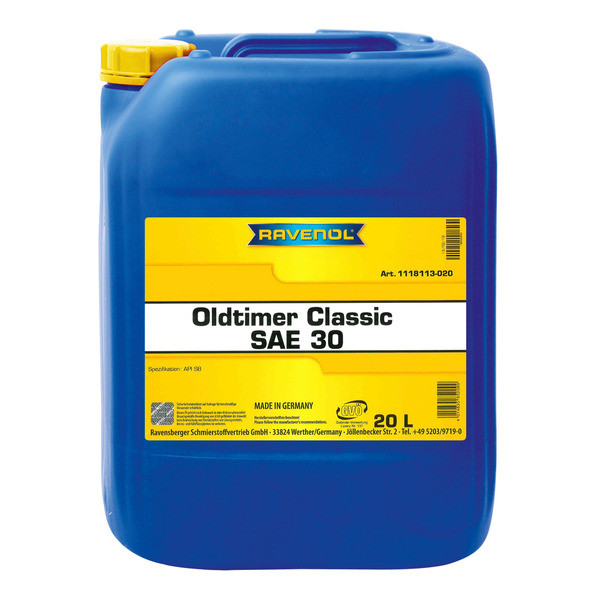

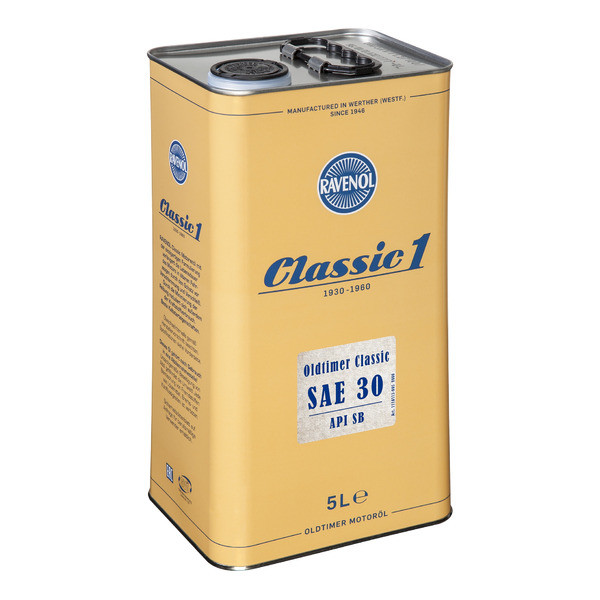

RAVENOL Oldtimer Classic SAE 30 API SB is an alloyed single grade engine oil for use in classic vehicles with or without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1951. Using this oil in modern engines can lead to defective performance or cause damage.
- Available packaging
- Product parameters
RAVENOL Oldtimer Classic SAE 30 API SB is an alloyed single grade engine oil for use in classic vehicles with or without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1951. Using this oil in modern engines can lead to defective performance or cause damage.
Application Note
RAVENOL Oldtimer Classic SAE 30 API SB is designed for use in the engines of vehicles which were built prior to 1951, where the API specification SB is required. Adhere to oil change intervals specified in the manufacturer's instructions.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | SB |
SB
|
||
| Density at 20 °C | kg/m³ | 877 | EN ISO 12185 |
877
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.41 | DIN 51562-1 |
11.41
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 103.3 | DIN 51562-1 |
103.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
| Pourpoint | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
| Flashpoint | °C | 266 | DIN EN ISO 2592 |
266
°C
DIN EN ISO 2592
|

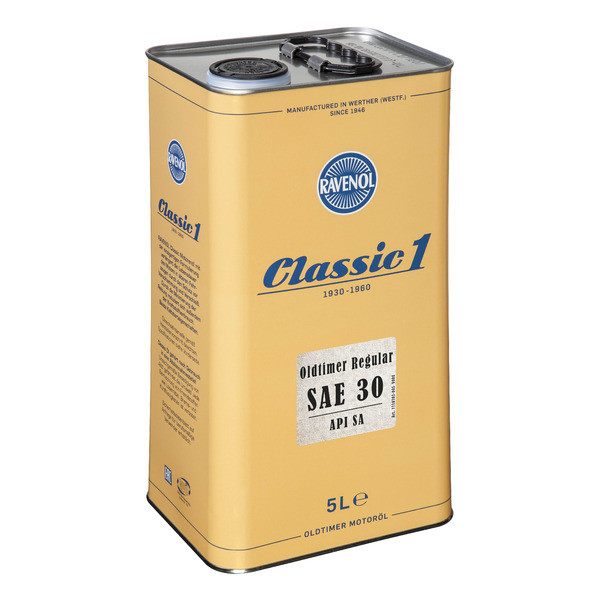

RAVENOL Oldtimer Regular SAE 30 API SA is a non-alloyed single grade engine oil for use in classic vehicles without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1930.
- Available packaging
- Product parameters
RAVENOL Oldtimer Regular SAE 30 API SA is a non-alloyed single grade engine oil for use in classic vehicles without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1930.
RAVENOL Oldtimer Regular SAE 30 API SA is especially recommended for old pre-war engines, where sludge should settle in the oil pan as there is no oil filter. The oil does not contain any active ingredients which can remove the sludge or deposits and keep them in suspension. Using this oil in modern engines can lead to defective performance or cause damage.
Application Note
RAVENOL Oldtimer Regular SAE 30 API SA is designed for use in the engines of vehicles which were built prior to 1930, where the API specification SA is required. Adhere to oil change intervals specified in the manufacturer's instructions.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | SA |
SA
|
||
| Density at 20 °C | kg/m³ | 877 | EN ISO 12185 |
877
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 103.1 | DIN 51562-1 |
103.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 92 | DIN ISO 2909 |
92
DIN ISO 2909
|
|
| Pourpoint | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
| Flashpoint | °C | 266 | DIN EN ISO 2592 |
266
°C
DIN EN ISO 2592
|
