RAVENOL Super Truck SAE 50 is a top-quality product with high safety reserves.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123726-001
Volume:
5 L
vendor code:
1123726-005
Volume:
20 L
vendor code:
1123726-020
Volume:
20 L, ecobox
vendor code:
1123726-B20
Volume:
60 L
vendor code:
1123726-060
Volume:
208 L
vendor code:
1123726-208
Volume:
208 L, print
vendor code:
1123726-D28
Volume:
1000 L
vendor code:
1123726-700
RAVENOL Super Truck SAE 50 is a top-quality product with high safety reserves.
Application Note
RAVENOL Super Truck SAE 50 is mono grade motor oil for use in truck diesel engines. Please follow engine manufacturer’s recommendations.
Characteristics
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- Good cold start characteristics
- Best corrosion protection
- High safety reserves even with boundary lubrication conditions
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 50W |
50W
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4, SG |
CF-4, SG
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
|
||
| Density at 20 °C | kg/m³ | 890 | EN ISO 12185 |
890
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.3 | DIN 51562-1 |
18.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 198.7 | DIN 51562-1 |
198.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 101 | DIN ISO 2909 |
101
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 258 | DIN EN ISO 2592 |
258
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
|
Application NoteRAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
208 L
vendor code:
1310615-208
Volume:
1000 L
vendor code:
1310615-700
Volume:
20 L
vendor code:
1310615-020
Application Note
RAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Characteristics
- Highest wear protection.
- High oxidation stability.
- Excellent viscosity-temperature behavior.
- Optimization of friction coefficient behavior.
- Guarantees maximum life of the units.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 50W |
50W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 894 | EN ISO 12185 |
894
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.75 | DIN 51562-1 |
16.75
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 183.9 | DIN 51562-1 |
183.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 265 | DIN EN ISO 2592 |
265
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
Extended oil drain capability where recommended by the vehicle manufacturer.
Compliance with the requirements:
CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1113305-001
Volume:
4 L
vendor code:
1113305-004
Volume:
5 L
vendor code:
1113305-005
Volume:
10 L
vendor code:
1113305-010
Volume:

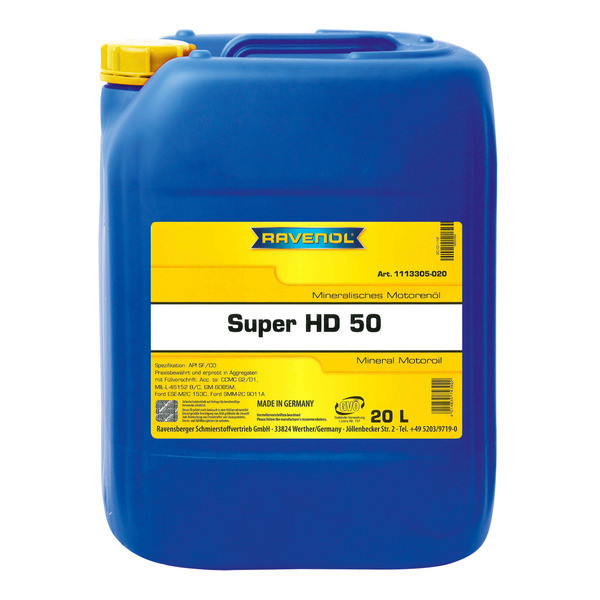

20 L
vendor code:
1113305-020
Volume:
20 L, ecobox
vendor code:
1113305-B20
Volume:
60 L
vendor code:
1113305-060
Volume:
60 L, print
vendor code:
1113305-D60
Volume:
208 L
vendor code:
1113305-208
Volume:
1000 L
vendor code:
1113305-700
Extended oil drain capability where recommended by the vehicle manufacturer.
Application Note

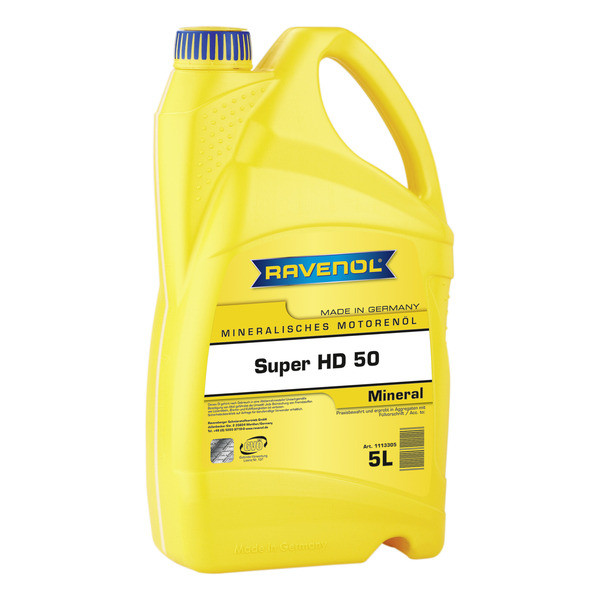

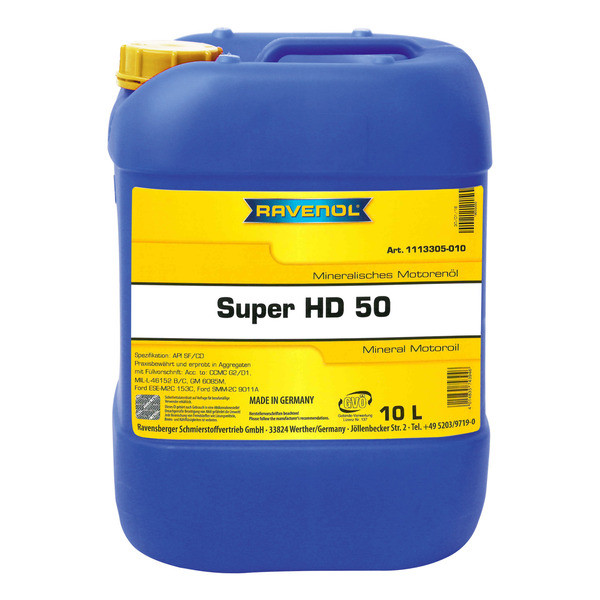

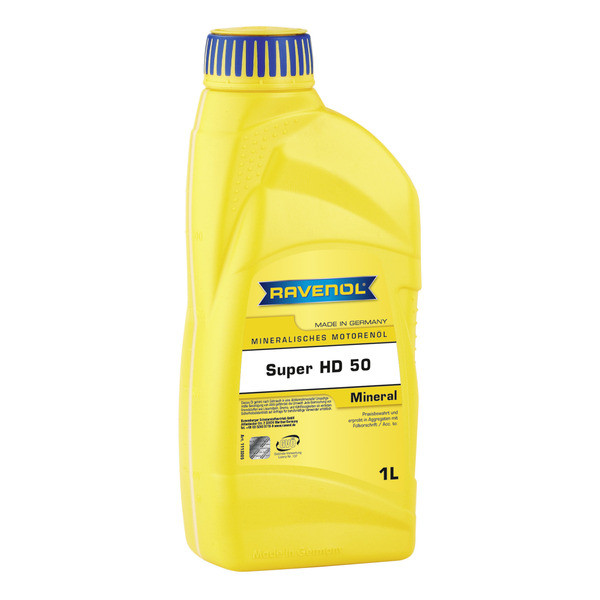

RAVENOL Super HD 50 is suitable for both gasoline and diesel engines in cars, van and commercial vehicles with and without turbocharging under light loads which require this SAE 50 grade of oil.
Characteristics
- Good shear stability
- High oxidation stability
- Excellent viscosity-temperature behavior
- Enhanced levels of detergent and dispersant for cleaner engines
- Very good cold starting properties
- Prevents formation of deposits and black sludge
- High safety reserves even under boundary lubrication conditions
- Catalyst suitability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 50W |
50W
|
||
| Type | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| Recomendations | CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C |
CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C
|
||
| Density at 20 °C | kg/m³ | 889 | EN ISO 12185 |
889
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 200.1 | DIN 51562-1 |
200.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 102 | DIN ISO 2909 |
102
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 278 | DIN EN ISO 2592 |
278
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.4 | ASTM D2896 |
7.4
mgKOH/g
ASTM D2896
|
| Approvals | CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011-A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C |
CCMC D1, CCMC G2, Ford ESE-M2C 153-C, Ford SMM-2C 9011-A, GM 6085M, MIL-L-46152 B, MIL-L-46152 C
|

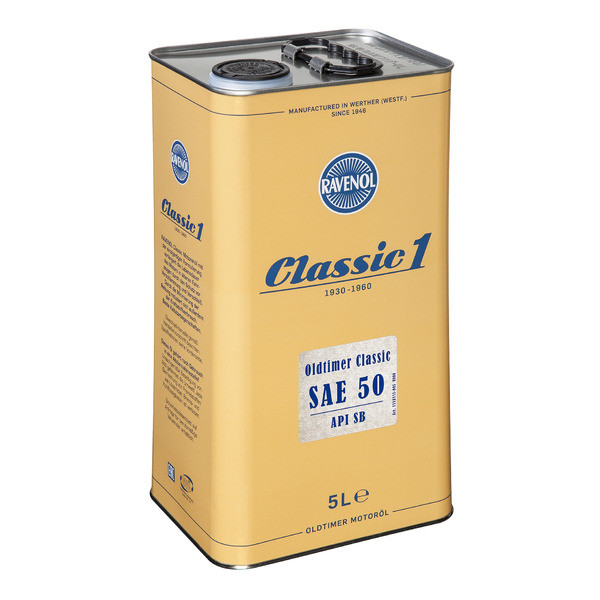

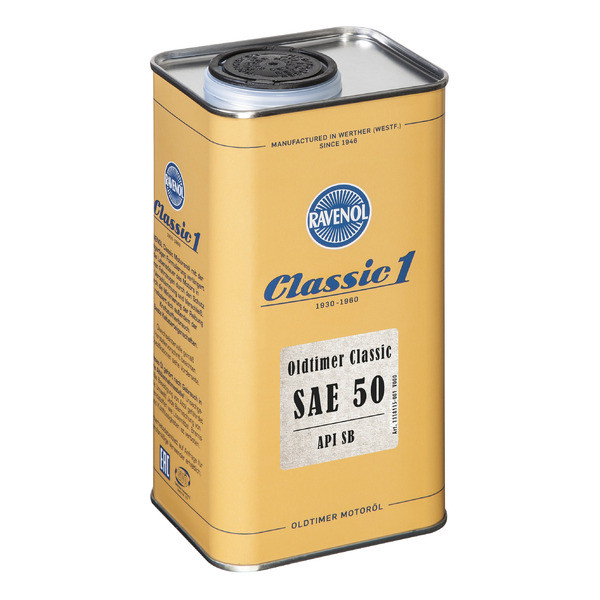

RAVENOL Oldtimer Classic SAE 50 API SB is an alloyed single grade engine oil for use in classic vehicles with or without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1951. Using this oil in modern engines can lead to defective performance or cause damage.
- Available packaging
- Product parameters
RAVENOL Oldtimer Classic SAE 50 API SB is an alloyed single grade engine oil for use in classic vehicles with or without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1951. Using this oil in modern engines can lead to defective performance or cause damage.
Application Note
RAVENOL Oldtimer Classic SAE 50 API SB is designed for use in the engines of vehicles which were built prior to 1951, where the API specification SB is required. Adhere to oil change intervals specified in the manufacturer's instructions.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 50W |
50W
|
||
| Type | Mineral |
Mineral
|
||
| API | SB |
SB
|
||
| Density at 20 °C | kg/m³ | 889 | EN ISO 12185 |
889
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.9 | DIN 51562-1 |
17.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 205.6 | DIN 51562-1 |
205.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Pourpoint | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
| Flashpoint | °C | 283 | DIN EN ISO 2592 |
283
°C
DIN EN ISO 2592
|

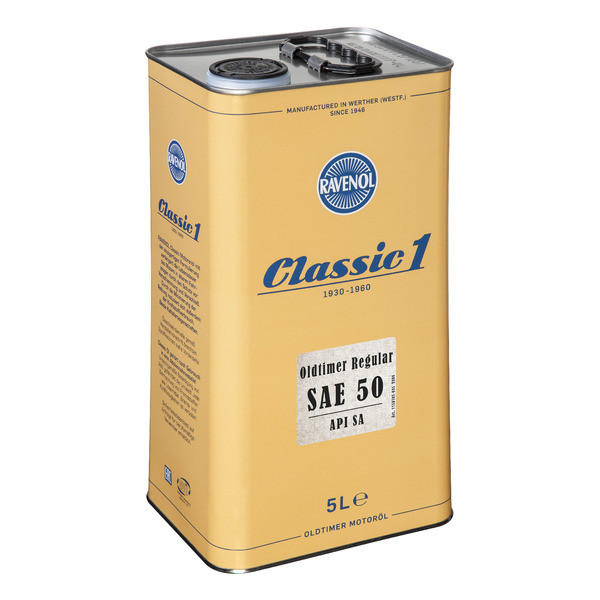

RAVENOL Oldtimer Regular SAE 50 API SA is a non-alloyed single grade engine oil for use in classic vehicles without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1930.
- Available packaging
- Product parameters
RAVENOL Oldtimer Regular SAE 50 API SA is a non-alloyed single grade engine oil for use in classic vehicles without an oil filter. It is manufactured using carefully selected pure mineral raffinates. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol engines / classic vehicles built before 1930.
RAVENOL Oldtimer Regular SAE 50 API SA is especially recommended for old pre-war engines, where sludge should settle in the oil pan as there is no oil filter. The oil does not contain any active ingredients which can remove the sludge or deposits and keep them in suspension. Using this oil in modern engines can lead to defective performance or cause damage.
Application Note
RAVENOL Oldtimer Regular SAE 50 API SA is designed for use in the engines of vehicles which were built prior to 1930, where the API specification SA is required. Adhere to oil change intervals specified in the manufacturer's instructions.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 50W |
50W
|
||
| Type | Mineral |
Mineral
|
||
| API | SA |
SA
|
||
| Density at 20 °C | kg/m³ | 889 | EN ISO 12185 |
889
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.9 | DIN 51562-1 |
17.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 207.8 | DIN 51562-1 |
207.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 92 | DIN ISO 2909 |
92
DIN ISO 2909
|
|
| Pourpoint | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
| Flashpoint | °C | 283 | DIN EN ISO 2592 |
283
°C
DIN EN ISO 2592
|
