Application NoteRAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330708-020
Volume:
20 L, ecobox
vendor code:
1330708-B20
Volume:
60 L
vendor code:
1330708-060
Volume:
208 L
vendor code:
1330708-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 886 | EN ISO 12185 |
886
kg/m³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
Equivalents OEM:
Scania 2252143
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
-
Volume:
20 L, ecobox
vendor code:
1323202-B20
Volume:
1000 L
vendor code:
1323202-700
Volume:
20 L
vendor code:
1323202-020
Volume:
1 L
vendor code:
1323202-001
Volume:
5 L
vendor code:
1323202-005
Application Note
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 839.2 | EN ISO 12185 |
839.2
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 180 | DIN EN ISO 2592 |
180
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
Application NoteRAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
Equivalents OEM:
Alpine 0100836, Alpine 0100837, Alpine 0100837, Scania 2252140, Volvo 11706208, Volvo 11706209, Volvo VOE11706208, Volvo VOE11706209
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323204-005
Volume:
20 L, ecobox
vendor code:
1323204-B20
Volume:
1000 L
vendor code:
1323204-700
Volume:
1 L
vendor code:
1323204-001
Application Note
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | kg/m³ | 845 | EN ISO 12185 |
845
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 227 | DIN EN ISO 2592 |
227
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|

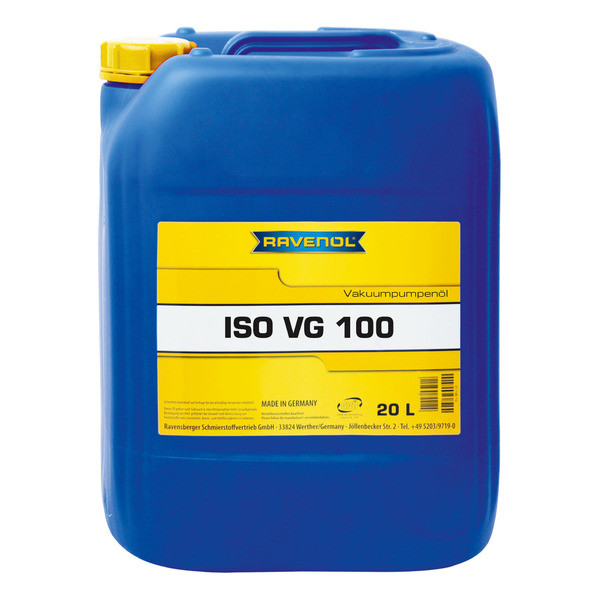

Application NoteRAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330707-005
Volume:
20 L, ecobox
vendor code:
1330707-B20
Volume:
60 L
vendor code:
1330707-060
Application Note
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|

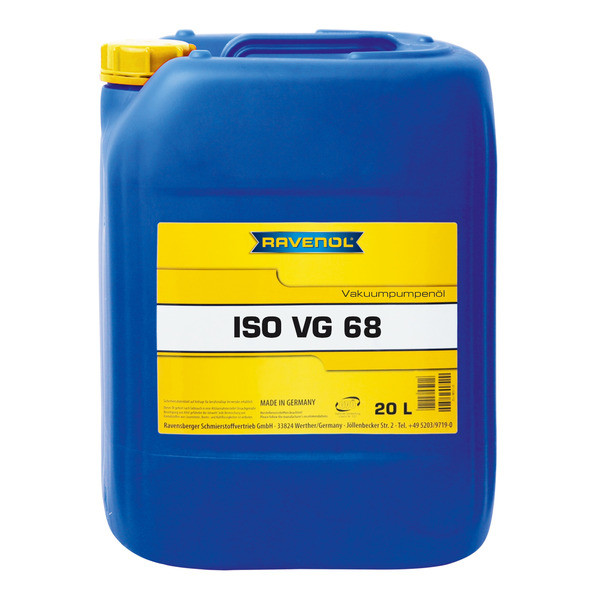

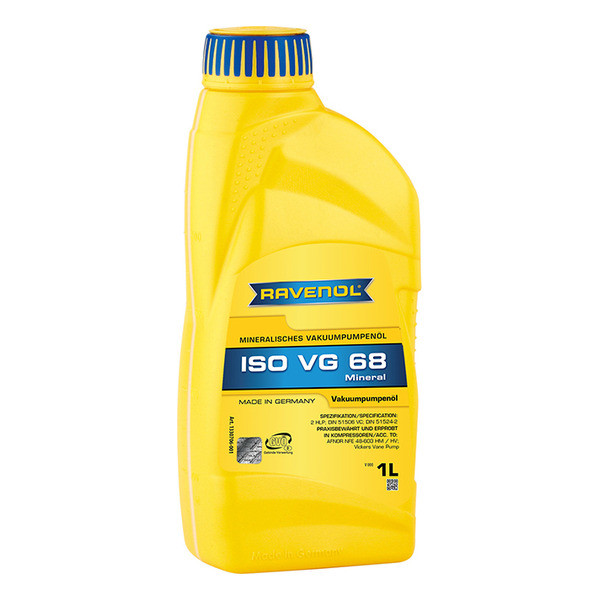

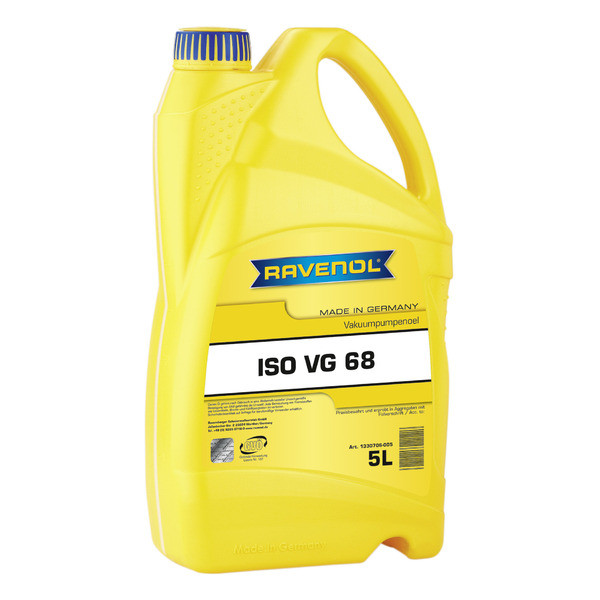

Application NoteRAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 68
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330706-001
Volume:
5 L
vendor code:
1330706-005
Volume:
20 L, ecobox
vendor code:
1330706-B20
Volume:
208 L
vendor code:
1330706-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 68 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
