Search results for C3. Selection of RAVENOL oil.

VMP 5W-30

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:

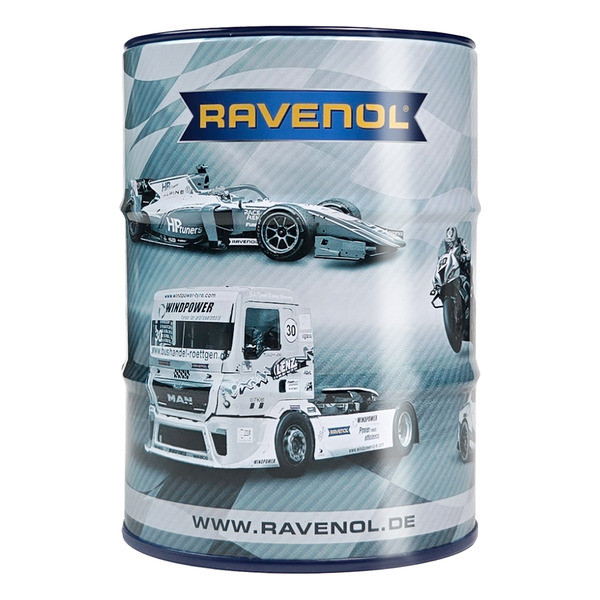

208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:

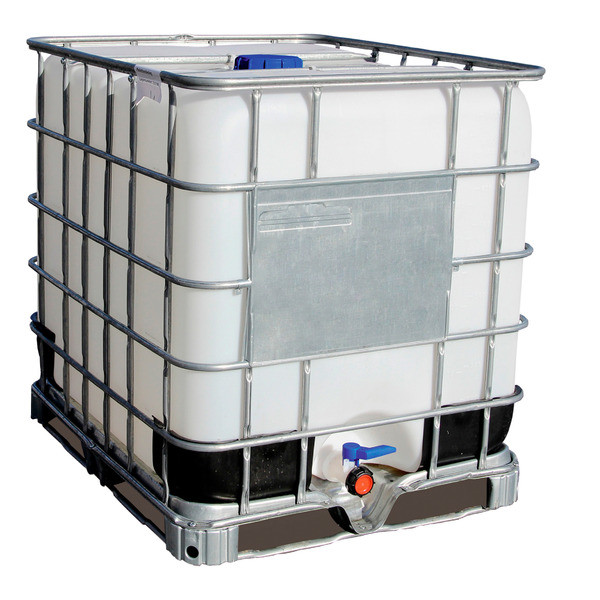

1000 L

vendor code:
1111122-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Application area		Audi Motorsport V31 748 026		Audi Motorsport V31 748 026
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.9	DIN 51562-1	11.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.3	DIN 51562-1	66.3 mm²/s DIN 51562-1
Viscosity Index VI		179	DIN ISO 2909	179 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4740	ASTM D5293	4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.000	ASTM D4684	12.000 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	6.4	ASTM D5800	6.4 % M/M ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

SMP 5W-30

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Equivalents OEM:
Alpine 0100271, Alpine 0100272, Alpine 0100273, Alpine 0100274, Alpine 0100275, Alpine 0100279, Alpine 100271, Alpine 100272, Alpine 100273, Alpine 100274, Alpine 100274, Alpine 100279, BMW 83212465851, FEBI 32945, FEBI 32946, FEBI 32947, FEBI 32948, FEBI 39337, MB A000989780110, MB A000989890110, MB A0009899301, SWAG 15932945, SWAG 15932946, SWAG 15932947, SWAG 15932948, SWAG 99939337

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111126-001

Code:
4014835856981

Volume:
4 L

vendor code:
1111126-004

Code:
4014835857018

Volume:
5 L

vendor code:
1111126-005

Code:
4014835857049

Volume:
10 L

vendor code:
1111126-010

Code:
4014835857070

Volume:
20 L

vendor code:
1111126-020

Code:
4014835857117

Volume:
20 L, ecobox

vendor code:
1111126-B20

Code:
4014835857094

Volume:
60 L

vendor code:
1111126-060

Code:
4014835857155

Volume:
60 L, print

vendor code:
1111126-D60

Code:
4014835857131

Volume:
208 L

vendor code:
1111126-208

Code:
4014835857193

Volume:
208 L, print

vendor code:
1111126-D28

Volume:
1000 L

vendor code:
1111126-700

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL SMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures an optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL SMP SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL SMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL SMP SAE 5W-30 is universal fuel economy, especially formulated engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter.

Due to the specific composition is RAVENOL SMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valvesbecause of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	kg/m³	844	EN ISO 12185	844 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.95	DIN 51562-1	11.95 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.4	DIN 51562-1	70.4 mm²/s DIN 51562-1
Viscosity Index VI		167	DIN ISO 2909	167 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.63	ASTM D5481	3.63 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5000	ASTM D5293	5000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	19200	ASTM D4684	19200 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	% M/M	9.8	ASTM D5800	9.8 % M/M ASTM D5800
Flashpoint	°C	233	DIN EN ISO 2592	233 °C DIN EN ISO 2592
tbn	mgKOH/g	8.4	ASTM D2896	8.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

HSW 0W-30

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112118-001

Code:
4014835889545

Volume:
4 L

vendor code:
1112118-004

Code:
4014835889576

Volume:
5 L

vendor code:
1112118-005

Code:
4014835889606

Volume:
10 L

vendor code:
1112118-010

Code:
4014835889637

Volume:
20 L

vendor code:
1112118-020

Code:
4014835889651

Volume:
20 L, ecobox

vendor code:
1112118-B20

Volume:
60 L

vendor code:
1112118-060

Code:
4014835889675

Volume:
208 L

vendor code:
1112118-208

Code:
4014835889699

Volume:
1000 L

vendor code:
1112118-700

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its formulation, RAVENOL HSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By reducing fuel consumption, RAVENOL HSW SAE 0W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption.

RAVENOL HSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL HSW SAE 0W-30 can be used in all vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufacturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Good protection against wear and tear and the high level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Density at 20 °C	kg/m³	836	EN ISO 12185	836 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	62.4	DIN 51562-1	62.4 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5890	ASTM D5293	5890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	19.200	ASTM D4684	19.200 mPa*s ASTM D4684
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Noack Volatility	% M/M	10	ASTM D5800	10 % M/M ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	8.3	ASTM D2896	8.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

RAVENOL Racing Eco Track RET 5W-40

RAVENOL Racing Eco Track RET SAE 5W-40 is a modern, full synthetic fuel-efficent multigrade engine oil based on renewable vegetable raw materials.

show details

SAE: 5W-40

API: CF, SP

ACEA: C3

Available packaging
Full description
Product parameters

RAVENOL Racing Eco Track RET SAE 5W-40 is a USDA certified bioproduct. It was developed to offer both environmental and performance benefits over conventional engine oils.

RAVENOL Racing Eco Track RET SAE 5W-40 is also suitable for an extremely sporty driving style. It uses the positive properties of molybdenum, which smoothes the surface structure in the engine, thus reducing friction and wear and improving mechanical efficiency.

RAVENOL Racing Eco Track RET SAE 5W-40 achieves a secure lubrication layer thanks to its unique formulation even at very high operating temperatures, protection from corrosion (oxidation) and foaming.

Application Note:

RAVENOL Racing Eco Track RET SAE 5W-40 is ideally suited for gasoline engines for car racing, even when subject to the highest levels of strain.

RAVENOL Racing Eco Track RET SAE 5W-40 achieves a reliable lubricating layer even at very high operating temperatures. It is therefore a real alternative to conventional engine oils, as it reduces the environmental impact compared to conventional engine oils.

Characteristics:

On the basis of renewable resources
USDA BioPreferred - biodegradable
Ultra-modern full synthetic engine oil for car race with special additives
Safe lubricating layer, even at very high operating temperatures
Increased HTHS value
Very stable and excellent viscosity behaviour
Very low evaporation tendency
Very good cold start characteristics
Catalyst suitability
Protection against wear, corrosion and foam formation
Prevention of black sludge and deposits

Parameter	Unit	Value	Audit
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		C3		C3
ASTM
Manufacturer Approved		USDA Biopreferred®		USDA Biopreferred®
Recomendations
Rennstrecken-Partnerschaft
Rennstrecken-Partner
specification
Suitable for
Compliant products
Density at 20 °C	kg/m³	842.2	EN ISO 12185	842.2 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.06	DIN 51562-1	14.06 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	81.25	DIN 51562-1	81.25 mm²/s DIN 51562-1
Viscosity Index VI		180	DIN ISO 2909	180 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4.31	ASTM D5481	4.31 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5750	ASTM D5293	5750 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13500	ASTM D4684	13500 mPa*s ASTM D4684
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Noack Volatility	% M/M	6.3	ASTM D5800	6.3 % M/M ASTM D5800
Flashpoint	°C	250	DIN EN ISO 2592	250 °C DIN EN ISO 2592
tbn	mgKOH/g	8.6	ASTM D2896	8.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.71	DIN 51575	0.71 %wt. DIN 51575
Approvals		USDA Biopreferred®		USDA Biopreferred®

RNV 5W-30

RAVENOL RNV SAE 5W-30 is suitable for use in petrol and diesel engines with and without a particle filter and exhaust gas catalytic converter and in engines according to the latest EURO 6d-Temp standard.

Manufacturer Approved:
MB-Approval 226.52, Renault RN17

show details

SAE: 5W-30

ACEA: C3

Equivalents OEM:
MB A000989040811BBDW, MB A000989040813BBDW, MB A000989040817BBDW, Nissan KLACN05301, Nissan KLACN05302, Nissan KLRJ005301, Nissan KLRJ005301, Renault 7711658105, Renault 7711943679, Renault 7711943681

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111114-001

Code:
4014835864733

Volume:
4 L

vendor code:
1111114-004

Code:
4014835864764

Volume:
5 L

vendor code:
1111114-005

Volume:
10 L

vendor code:
1111114-010

Code:
4014835864825

Volume:
20 L

vendor code:
1111114-020

Volume:
20 L, ecobox

vendor code:
1111114-B20

Volume:
60 L

vendor code:
1111114-060

Volume:
208 L

vendor code:
1111114-208

Volume:
1000 L

vendor code:
1111114-700

RAVENOL RNV SAE 5W-30 is suitable for use in petrol and diesel engines with and without a particle filter and exhaust gas catalytic converter and in engines according to the latest EURO 6d-Temp standard.

The viscosity range SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures. Frictional losses and wear are reduced.

By significantly reducing fuel consumption, RAVENOL RNV SAE 5W-30 helps to protect the environment by reducing emissions.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL RNV SAE 5W-30 is suitable for all petrol engines, diesel engines without DPF (Diesel Particulate Filter), diesel engines with DPF from EURO 6d-Temp by RENAULT and Dacia as well as for diesel engines with DPF, if an engine oil according to ACEA C3 is required.

RAVENOL RNV SAE 5W-30 can be used universally in all petrol and diesel engines with and without turbocharging, except RS /Alpine.

RAVENOL RNV SAE 5W-30 can also be used for the latest EURO 6d engines.

The Renault specification RN17 replaces the specification RN0700 and RN0710.

The oil change intervals according to the manufacturer's instructions must be observed.

Characteristics

Low content of ash-forming components (sulfate ash, phosphorus and sulfur).
Specific additive technology for optimal lubrication.
Extremely high aging resistance, durability and robustness.
Excellent cleaning properties
Fuel savings

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
ACEA		C3		C3
Manufacturer Approved		MB-Approval 226.52, Renault RN17		MB-Approval 226.52, Renault RN17
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64	DIN 51562-1	64 mm²/s DIN 51562-1
Viscosity Index VI		187	DIN ISO 2909	187 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5576	ASTM D5293	5576 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	22.370	ASTM D4684	22.370 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	% M/M	7.6	ASTM D5800	7.6 % M/M ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	8.7	ASTM D2896	8.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.76	DIN 51575	0.76 %wt. DIN 51575
Approvals		MB 226.52, Renault RN17		MB 226.52, Renault RN17

RUP Racing Ultra Performance 5W-40

RAVENOL RUP Racing Ultra Performance SAE 5W-40 is a modern PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with special USVO® Technology.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.51, Renault RN 0710

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502.00, VW 505.00, VW 505.01, VW 511.00

show details

SAE: 5W-40

API: SP

ACEA: C3

Equivalents OEM:
GM 17504564001, GM 17504564002, GM 17504564012, Nissan KLANN05402, Nissan KLANN05404, Toyota TA52000013, Toyota TA52000013, VAG G052167M4, VAG GA52579M2, VAG GA52579M4, Volvo 1161630, Volvo 1161631, Volvo 1161639, Volvo 1161649

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1141091-001

Code:
4014835853287

Volume:
4 L

vendor code:
1141091-004

Code:
4014835853317

Volume:
10 L

vendor code:
1141091-010

Code:
4014835853348

Volume:
20 L

vendor code:
1141091-020

Code:
4014835853386

Volume:
20 L, ecobox

vendor code:
1141091-B20

Volume:
60 L

vendor code:
1141091-060

Code:
4014835853423

Volume:
60 L, print

vendor code:
1141091-D60

Volume:
208 L

vendor code:
1141091-208

Code:
4014835853461

Volume:
208 L, print

vendor code:
1141091-D28

Volume:
1000 L

vendor code:
1141091-700

Volume:
5 L

vendor code:
1141091-005

RAVENOL RUP Racing Ultra Performance SAE 5W-40 is a modern PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with special USVO® Technology.

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Due to the special mixture of synthetic, highly polar Group V base oils with a high proportion of high and low viscosity PAO, it could be formulated without the use of viscosity index improvers. Due to its high viscosity index, its high HTHS value, extreme shear stability and a highly effective special novel additivation, RAVENOL RUP Racing Ultra Performance SAE 5W-40 is also suitable for an extremely sporty driving style.

RAVENOL RUP Racing Ultra Performance SAE 5W-40 achieves a secure lubrication layer thanks to its unique formulation even at very high operating temperatures, protection from corrosion (oxidation) and foaming.

Application Note

RAVENOL RUP Racing Ultra Performance SAE 5W-40 is ideally suited for car racing, even when subject to the highest levels of strain.

Characteristics

Ultra-modern full synthetic engine oil for car race with special additives
Safe lubricating layer at very high operating temperatures
High HTHS value, extreme shear stability
Very stable and excellent viscosity behaviour
Very low evaporation tendency
Very good cold start characteristics
Very good detergent and dispersant characteristics
Good protection against corrosion and foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		SP		SP
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.51, Renault RN 0710		BMW Longlife-04, GM dexos2®, MB-Approval 229.51, Renault RN 0710
Recomendations		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502.00, VW 505.00, VW 505.01, VW 511.00		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502.00, VW 505.00, VW 505.01, VW 511.00
Rennstrecken-Partnerschaft		Nürburgring		Nürburgring
Rennstrecken-Partner		Hockenheim Premium Partner, Ralf Schumacher		Hockenheim Premium Partner, Ralf Schumacher
Density at 20 °C	kg/m³	846	EN ISO 12185	846 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.2	DIN 51562-1	13.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	73.3	DIN 51562-1	73.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4510	ASTM D5293	4510 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.200	ASTM D4684	12.200 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	% M/M	6	DIN 51581	6 % M/M DIN 51581
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	9.5	ASTM D2896	9.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.73	DIN 51575	0.73 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.51, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, Renault RN0710, VW 502.00, VW 505.00, VW 505.01, VW 511.00		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.51, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, Renault RN0710, VW 502.00, VW 505.00, VW 505.01, VW 511.00

REP Racing Extra Performance 5W-30

RAVENOL REP Racing Extra Performance SAE 5W-30 is a modern, PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with USVO® Technology.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 226.5, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, Renault RN 0710

Compliance with the requirements:
Renault RN 0700

show details

SAE: 5W-30

API: SN

ACEA: C3

Equivalents OEM:
MB A0019893701BGA0, MB A0019893701BGA0, MB A0019893701BGA4, MB A0019893701BGA6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1141088-001

Code:
4014835852242

Volume:
4 L

vendor code:
1141088-004

Code:
4014835852273

Volume:
5 L

vendor code:
1141088-005

Volume:
10 L

vendor code:
1141088-010

Code:
4014835852303

Volume:
20 L

vendor code:
1141088-020

Code:
4014835852341

Volume:
20 L, ecobox

vendor code:
1141088-B20

Volume:
60 L

vendor code:
1141088-060

Volume:
60 L, print

vendor code:
1141088-D60

Volume:
208 L

vendor code:
1141088-208

Volume:
208 L, print

vendor code:
1141088-D28

Volume:
1000 L

vendor code:
1141088-700

RAVENOL REP Racing Extra Performance SAE 5W-30 is a modern, PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with USVO® Technology.

RAVENOL REP Racing Extra Performance SAE 5W-30 is ideally suited for gasoline engines for car racing, even when subject to the highest levels of strain.

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Due to its high viscosity index, extreme shear stability and a highly effective special novel additivation RAVENOL REP Racing Extra Performance SAE 5W-30 is also suitable for an extremely sporty driving style.

RAVENOL REP Racing Extra Performance SAE 5W-30 achieves a secure lubrication layer thanks to its unique formulation even at very high operating temperatures, protection from corrosion (oxidation) and foaming.

Application Note

RAVENOL REP Racing Extra Performance SAE 5W-30 can be used as special oil for car race even under most difficult conditions.

Characteristics

Ultra-modern full synthetic engine oil for car race
Safe lubricating layer at very high operating temperatures
Very stable and excellent viscosity behaviour
Very low evaporation tendency
Very good cold start characteristics
Very good detergent and dispersant characteristics
Good protection against corrosion and foam formation

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 226.5, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, Renault RN 0710		BMW Longlife-04, GM dexos2®, MB-Approval 226.5, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, Renault RN 0710
Recomendations		Renault RN 0700		Renault RN 0700
Rennstrecken-Partnerschaft		Nürburgring		Nürburgring
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	73.4	DIN 51562-1	73.4 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4301	ASTM D5293	4301 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.870	ASTM D4684	14.870 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	6.2	ASTM D5800	6.2 % M/M ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	8.1	ASTM D2896	8.1 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, GM dexos2®, MB 226.5, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Renault RN0700, Renault RN0710		BMW Longlife-04, GM dexos2®, MB 226.5, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Renault RN0700, Renault RN0710

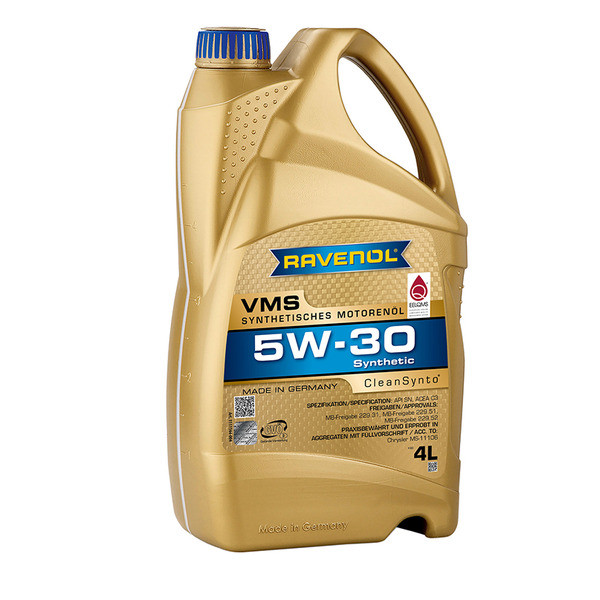

VMS 5W-30

RAVENOL VMS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52

Compliance with the requirements:
Chrysler MS-11106

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111144-001

Code:
4014835840416

Volume:
4 L

vendor code:
1111144-004

Code:
4014835840447

Volume:
5 L

vendor code:
1111144-005

Code:
4014835840805

Volume:
10 L

vendor code:
1111144-010

Volume:
20 L

vendor code:
1111144-020

Volume:
20 L, ecobox

vendor code:
1111144-B20

Volume:
60 L

vendor code:
1111144-060

Volume:
60 L, print

vendor code:
1111144-D60

Volume:
208 L

vendor code:
1111144-208

Volume:
208 L, print

vendor code:
1111144-D28

Volume:
1000 L

vendor code:
1111144-700

RAVENOL VMS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL VMS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL VMS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VMS SAE 5W-30 is Oil which prevents effectively the clogging of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMS SAE 5W-30 is suitable for demanding engines as high performance low friction engine oil. It is recommended for modern passenger car gasoline and diesel engines, including turbo versions and direct injection engines, for all operation conditions.

RAVENOL VMS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters. It is especially formulated according to the Daimler Low SPAsh multigrade service engine oil specification MB 229.52 and suitable for BlueTEC OM642.

Characteristics

Fuel savings in partial and full load
Excellent wear protection and high viscosity index secure evenunder high speed driving conditions engine longevity
Excellent cold starting properties even at low temperatures below -30°C
A safe lubrication film at high operating temperatures.
Low volatilization tendency, thereby lower oil consumption
No oil-related deposits in combustion chambers in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52		MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52
Recomendations		Chrysler MS-11106		Chrysler MS-11106
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.8	DIN 51562-1	72.8 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5258	ASTM D5293	5258 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	22500	ASTM D4684	22500 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	7	ASTM D5800	7 % M/M ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	8.6	ASTM D2896	8.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52		Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52

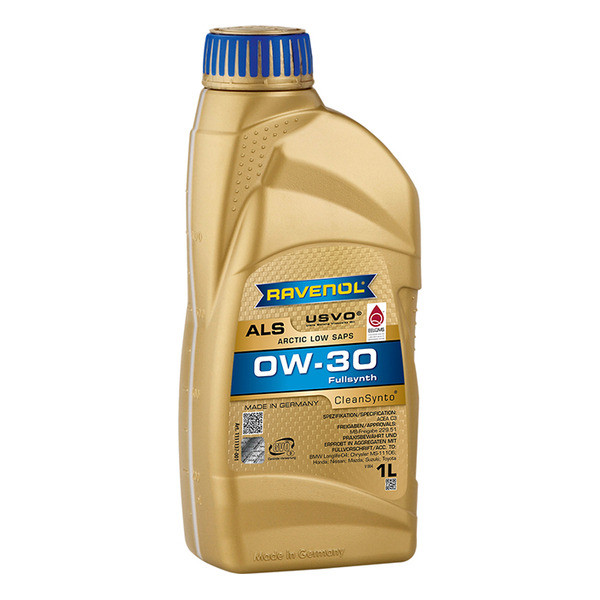

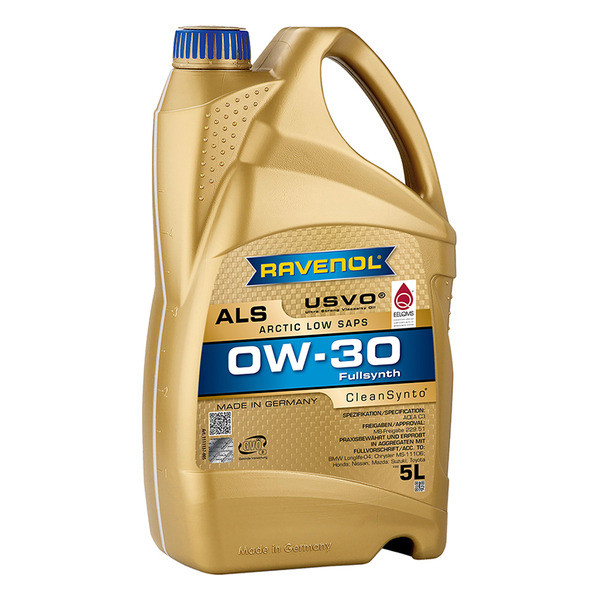

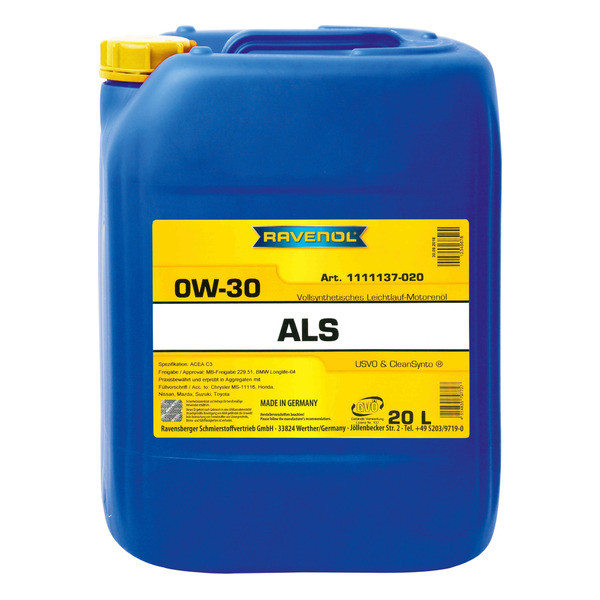

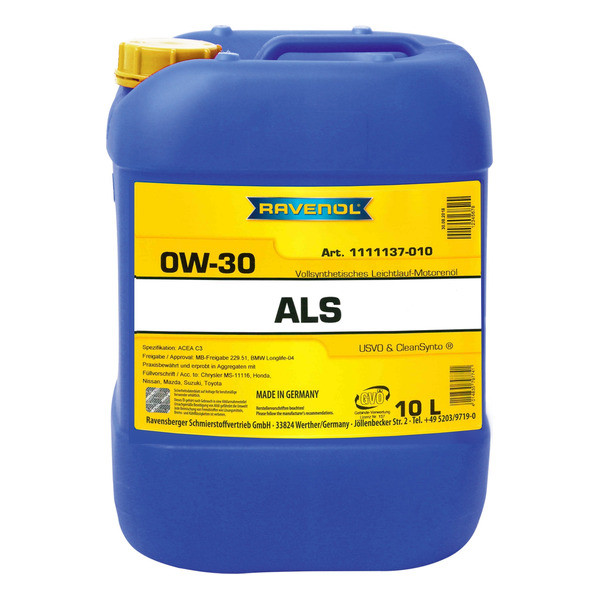

Arctic Low SAPS ALS 0W-30

RAVENOL Arctic Low SAPS ALS SAE 0W-30 is based on additives which prolong the lifetime of Diesel Particular Filter DPF and Three-Way Catalyst.

Compliance with the requirements:
BMW Longlife-04, Chrysler MS-11106, MB 229.51

show details

SAE: 0W-30

ACEA: C3

Equivalents OEM:
BMW 550042679, BMW 550042690, BMW 550050412, BMW 550050412, BMW 83212365929, BMW 83212405099, BMW 83212405950, BMW 83212465854, BMW 83212465856, GM 88863191, GM 88863192, GM 88863193, MB A001989160111

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111137-001

Code:
4014835797710

Volume:
4 L

vendor code:
1111137-004

Code:
4014835797796

Volume:
5 L

vendor code:
1111137-005

Code:
4014835797758

Volume:
10 L

vendor code:
1111137-010

Code:
4014835797741

Volume:
20 L

vendor code:
1111137-020

Code:
4014835797727

Volume:
20 L, ecobox

vendor code:
1111137-B20

Volume:
60 L, print

vendor code:
1111137-D60

Code:
4014835797734

Volume:
208 L

vendor code:
1111137-208

Code:
4014835797789

Volume:
208 L, print

vendor code:
1111137-D28

Code:
4014835797703

Volume:
1000 L

vendor code:
1111137-700

RAVENOL Arctic Low SAPS ALS SAE 0W-30 is based on additives which prolong the lifetime of Diesel Particular Filter DPF and Three-Way Catalyst.

With its new formulation, RAVENOL Arctic Low SAPS ALS SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL Arctic Low SAPS ALS SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL Arctic Low SAPS ALS SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Arctic Low SAPS ALS SAE 0W-30 is a universal fuel economy, especially formulated engine oil for modern gasoline and diesel engines in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL Arctic Low SAPS ALS SAE 0W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
ACEA		C3		C3
Recomendations		BMW Longlife-04, Chrysler MS-11106, MB 229.51		BMW Longlife-04, Chrysler MS-11106, MB 229.51
Suitable for		Honda, Mazda, Nissan, Suzuki, Toyota		Honda, Mazda, Nissan, Suzuki, Toyota
Density at 20 °C	kg/m³	841	EN ISO 12185	841 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	63.5	DIN 51562-1	63.5 mm²/s DIN 51562-1
Viscosity Index VI		192	DIN ISO 2909	192 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.65	ASTM D5481	3.65 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5472	ASTM D5293	5472 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	15.400	ASTM D4684	15.400 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	9	ASTM D5800	9 % M/M ASTM D5800
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	7.9	ASTM D2896	7.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.78	DIN 51575	0.78 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, MB 229.51		BMW Longlife-04, Chrysler MS-11106, MB 229.51

VSW 0W-30

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111106-001

Code:
4014835842786

Volume:
4 L

vendor code:
1111106-004

Code:
4014835842816

Volume:
5 L

vendor code:
1111106-005

Code:
4014835842847

Volume:
10 L

vendor code:
1111106-010

Code:
4014835845107

Volume:
20 L

vendor code:
1111106-020

Code:
4014835845121

Volume:
20 L, ecobox

vendor code:
1111106-B20

Code:
4014835850996

Volume:
60 L

vendor code:
1111106-060

Volume:
208 L

vendor code:
1111106-208

Code:
4014835845169

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its new formulation, RAVENOL VSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL VSW SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL VSW SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSW SAE 0W-30 can be used in all VW vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufcturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Guarantees the best possible protection against wear and tear and the highest level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106		Chrysler MS-11106
Density at 20 °C	kg/m³	846	EN ISO 12185	846 kg/m³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.8	DIN 51562-1	60.8 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.6	ASTM D5481	3.6 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5565	ASTM D5293	5565 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	14.800	ASTM D4684	14.800 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	% M/M	9	ASTM D5800	9 % M/M ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.6	ASTM D2896	7.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.63	DIN 51575	0.63 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

HLS 5W-30

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	kg/m³	847	EN ISO 12185	847 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	% M/M	6.9	ASTM D5800	6.9 % M/M ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

VMO 5W-40

RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche A40, VW 502.00

show details

SAE: 5W-40

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111133-001

Code:
4014835723818

Volume:
4 L

vendor code:
1111133-004

Code:
4014835723894

Volume:
5 L

vendor code:
1111133-005

Code:
4014835723856

Volume:
10 L

vendor code:
1111133-010

Code:
4014835723849

Volume:
20 L

vendor code:
1111133-020

Code:
4014835723825

Volume:
20 L, ecobox

vendor code:
1111133-B20

Volume:
60 L

vendor code:
1111133-060

Code:
2009380000332

Volume:
60 L, print

vendor code:
1111133-D60

Code:
4014835723832

Volume:
208 L

vendor code:
1111133-208

Code:
4014835723887

Volume:
208 L, print

vendor code:
1111133-D28

Code:
4014835723801

Volume:
1000 L

vendor code:
1111133-700

RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

RAVENOL VMO SAE 5W-40 extends long life of DPF and TWC. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMO SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Because of a considerable fuel saving RAVENOL VMO SAE 5W-40 contributes to protect the environment by reducing the emissions.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMO SAE 5W-40 is an universal, synthetic low friction motor oil especially developed for Pumpe-Düse-diesel engines. Moreover, this lubricant is excellent suitable for gasoline and diesel engines in passenger cars and vans with and without turbo charger. Due to the specific composition is RAVENOL VMO SAE 5W-40 excellent suitable for use for several OEM requirements.

Characteristics

Fuel economy in part and full power operation.
MID SAPS = reduced Sulphated Ash, Phosphorous and Sulphur.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
The function of the hydro tappet is ensure at all temperatures.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche A40, VW 502.00		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche A40, VW 502.00
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	80	DIN 51562-1	80 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6375	ASTM D5293	6375 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	27.000	ASTM D4684	27.000 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	% M/M	8.8	ASTM D5800	8.8 % M/M ASTM D5800
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	8.7	ASTM D2896	8.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.77	DIN 51575	0.77 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche A40, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche A40, VW 502.00, VW 505.00, VW 505.01

Multi ATF HVS Fluid

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

show details

Equivalents OEM:
BMW 83220403675, BMW 83222220442, BMW 83222220442, MB A001989220309, MB A990989070009, Nissan 999MPMTW00P

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211144-001

Code:
4014835866591

Volume:
4 L

vendor code:
1211144-004

Code:
4014835866621

Volume:
10 L

vendor code:
1211144-010

Code:
4014835866652

Volume:
20 L

vendor code:
1211144-020

Volume:
20 L, ecobox

vendor code:
1211144-B20

Code:
4014835866737

Volume:
60 L

vendor code:
1211144-060

Volume:
208 L

vendor code:
1211144-208

RAVENOL Multi ATF HVS Fluid is suitable for maximum change intervals in automatic transmissions, steering and clutch systems, hydraulics and power take-offs of cars and commercial vehicles when oil with high viscosity is required.

Application Note

RAVENOL Multi ATF HVS Fluid is a product with a very wide manufacturer coverage and can be used in almost all conventional automatic transmissions with shift groups.

Not suitable for CVT automatic transmissions.

RAVENOL Multi ATF HVS Fluid is an automatic transmission fluid for longest oil change intervals.

RAVENOL Multi ATF HVS Fluid can be used in a wide range of applications to meet the requirements of Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi and others. It will be used if no suitable original oil or RAVENOL Professional Line oil is available. Observe the manufacturer's instructions.

Characteristics

Very good lubricity even at low temperatures in winter
A high, stable viscosity index
Very low pour point
Very good oxidation stability
Protection against wear, corrosion and foaming
Well-coordinated friction properties
Neutral behavior towards sealing materials
Neutral behavior due to inhibition against non-ferrous metals

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
Suitable for		Mopar		Mopar
Compliant products		Motorcraft XT-1-QF, ZF S671 090 170		Motorcraft XT-1-QF, ZF S671 090 170
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7	DIN 51562-1	7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	37.1	DIN 51562-1	37.1 mm²/s DIN 51562-1
Viscosity Index VI		153	DIN ISO 2909	153 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	18.930	ASTM D2983	18.930 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	230	DIN 51757	230 °C DIN 51757
Copper Strip Test at 121 °C		1 b	ASTM D130	1 b ASTM D130
Approvals		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 924-A, Ford WSS-M2C922-A1, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

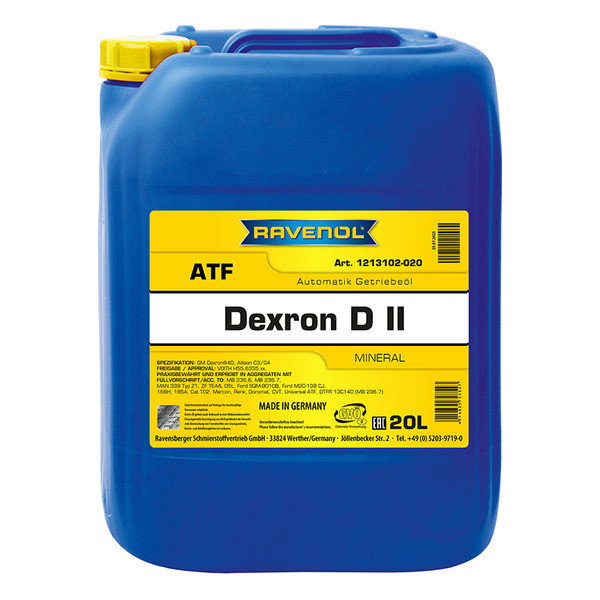

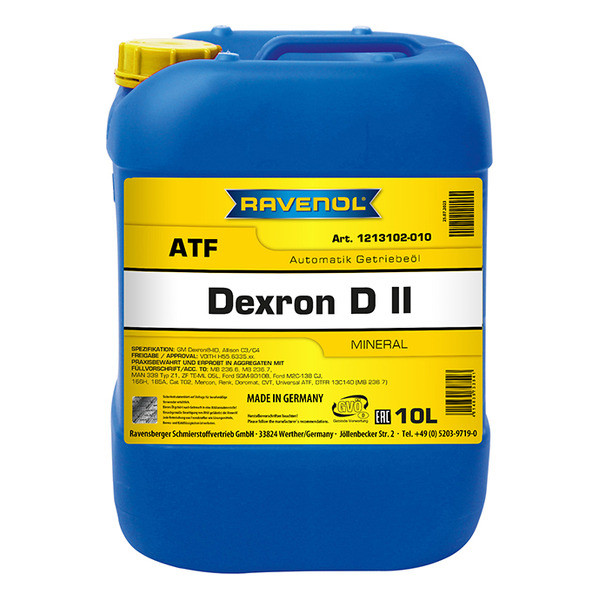

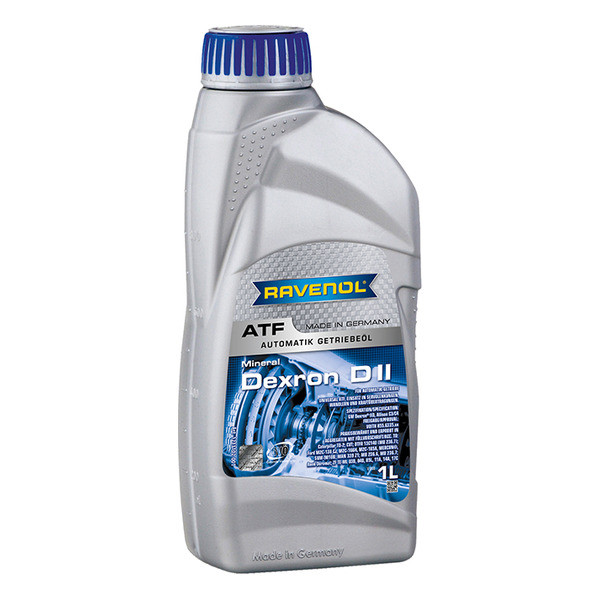

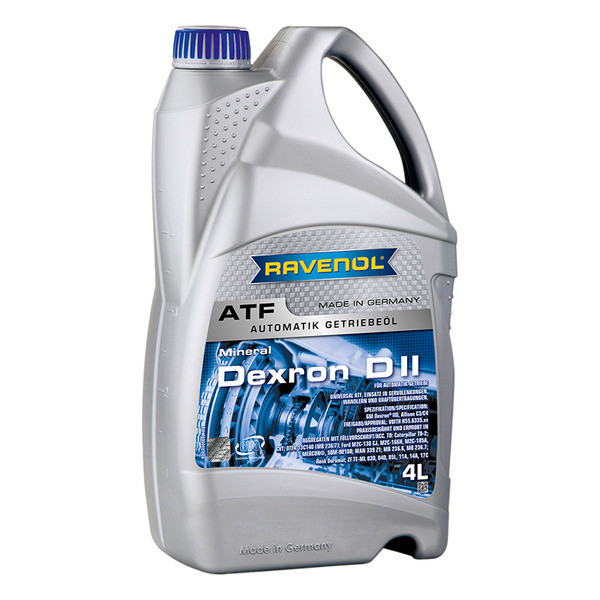

ATF Dexron D II

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Search results for query «C3»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

RAVENOL Racing Eco Track RET 5W-40

Application Note:

Characteristics:

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
