Search results for query «FZG 12»

Hydraulikol TSX 100

Hydraulikol TSX 100

Application NoteRAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136

show details hide details

SAE: 100

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1323207-020

Volume:
20 L, ecobox

vendor code:
1323207-B20

Volume:
60 L

vendor code:
1323207-060

Volume:
208 L

vendor code:
1323207-208

Code:
4014835760486

Application Note

RAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

  • A high and stable viscosity index
  • An excellent corrosion protection
  • An excellent protection against wear
  • A very good air and water separation behaviour to prevent foam formation
  • Neutral behaviour towards sealing of plastics
  • A very low pour point
Parameter Unit Value Audit
SAE 100
100
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
specification DIN 51524, DIN 51524-3, ISO 6743-4 HV
DIN 51524, DIN 51524-3, ISO 6743-4 HV
Density at 20 °C kg/m³ 871 EN ISO 12185
871 kg/m³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 14.4 DIN 51562-1
14.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 99.9 DIN 51562-1
99.9 mm²/s DIN 51562-1
Viscosity Index VI 148 DIN ISO 2909
148 DIN ISO 2909
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
Flashpoint °C 260 DIN EN ISO 2592
260 °C DIN EN ISO 2592
Approvals AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
Hydraulikoel TSX 22 (HVLP)

Hydraulikoel TSX 22 (HVLP)

Application NoteRAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details hide details

SAE: 22

Equivalents OEM:
GM 88865214, GM 88865214, Scania 2252146

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1323203-005

Volume:
20 L

vendor code:
1323203-020

Code:
4014835760028

Volume:
20 L, ecobox

vendor code:
1323203-B20

Volume:
60 L

vendor code:
1323203-060

Volume:
208 L

vendor code:
1323203-208

Code:
4014835760080

Volume:
1000 L

vendor code:
1323203-700

Application Note

RAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

  • A high and stable viscosity index
  • An excellent corrosion protection
  • An excellent protection against wear
  • A very good air and water separation behaviour to prevent foam formation
  • Neutral behaviour towards sealing of plastics
  • A very low pour point
Parameter Unit Value Audit
SAE 22
22
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification DIN 51524-3, ISO 6743-4 HV
DIN 51524-3, ISO 6743-4 HV
Density at 20 °C kg/m³ 840 EN ISO 12185
840 kg/m³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 5 DIN 51562-1
5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 22.5 DIN 51562-1
22.5 mm²/s DIN 51562-1
Viscosity Index VI 156 DIN ISO 2909
156 DIN ISO 2909
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 206 DIN EN ISO 2592
206 °C DIN EN ISO 2592
Approvals AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
Hydraulikol TSX 68

Hydraulikol TSX 68

Application NoteRAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Manufacturer Approved:
LOVAT LOV-204

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details hide details

SAE: 68

Equivalents OEM:
Volvo 11708322, Volvo 11708323, Volvo VOE11708322, Volvo VOE11708323, Volvo VOE11708323

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1323206-020

Code:
4014835760325

Volume:
20 L, ecobox

vendor code:
1323206-B20

Volume:
60 L

vendor code:
1323206-060

Volume:
208 L

vendor code:
1323206-208

Volume:
1000 L

vendor code:
1323206-700

Application Note

RAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

  • A high and stable viscosity index
  • An excellent corrosion protection
  • An excellent protection against wear
  • A very good air and water separation behaviour to prevent foam formation
  • Neutral behaviour towards sealing of plastics
  • A very low pour point
Parameter Unit Value Audit
SAE 68
68
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Manufacturer Approved LOVAT LOV-204
LOVAT LOV-204
Recomendations AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification DIN 51524, DIN 51524-3, ISO 6743-4 HV
DIN 51524, DIN 51524-3, ISO 6743-4 HV
Density at 20 °C kg/m³ 862 EN ISO 12185
862 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.4 DIN 51562-1
11.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 68.5 DIN 51562-1
68.5 mm²/s DIN 51562-1
Viscosity Index VI 161 DIN ISO 2909
161 DIN ISO 2909
Pourpoint °C -35 DIN ISO 3016
-35 °C DIN ISO 3016
Flashpoint °C 242 DIN EN ISO 2592
242 °C DIN EN ISO 2592
tbn mgKOH/g 0.4 ASTM D2896
0.4 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.06 DIN 51575
0.06 %wt. DIN 51575
Approvals AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
Hydraulikol TSX 46

Hydraulikol TSX 46

Application NoteRAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details hide details

SAE: 46

Equivalents OEM:
Alpine 0100831, Alpine 0100832, Alpine 0100832, Scania 2252141, Volvo 11706210, Volvo 11706211, Volvo 11713238, Volvo 15030482, Volvo 15030580, Volvo VOE11706210, Volvo VOE11706211, Volvo VOE11713238, Volvo VOE15030482, Volvo VOE15030580

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1323205-005

Volume:
20 L

vendor code:
1323205-020

Code:
4014835760226

Volume:
20 L, ecobox

vendor code:
1323205-B20

Volume:
60 L

vendor code:
1323205-060

Volume:
208 L

vendor code:
1323205-208

Code:
4014835760288

Volume:
208 L, print

vendor code:
1323205-D28

Volume:
1000 L

vendor code:
1323205-700

Volume:
10 L

vendor code:
1323205-010

Application Note

RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

  • A high and stable viscosity index
  • An excellent corrosion protection
  • An excellent protection against wear
  • A very good air and water separation behaviour to prevent foam formation
  • Neutral behaviour towards sealing of plastics
  • A very low pour point
Parameter Unit Value Audit
SAE 46
46
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification DIN 51524-3, ISO 6743-4 HV
DIN 51524-3, ISO 6743-4 HV
Density at 20 °C kg/m³ 855 EN ISO 12185
855 kg/m³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 7.9 DIN 51562-1
7.9 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 45 DIN 51562-1
45 mm²/s DIN 51562-1
Viscosity Index VI 148 DIN ISO 2909
148 DIN ISO 2909
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Flashpoint °C 232 DIN EN ISO 2592
232 °C DIN EN ISO 2592
Approvals AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

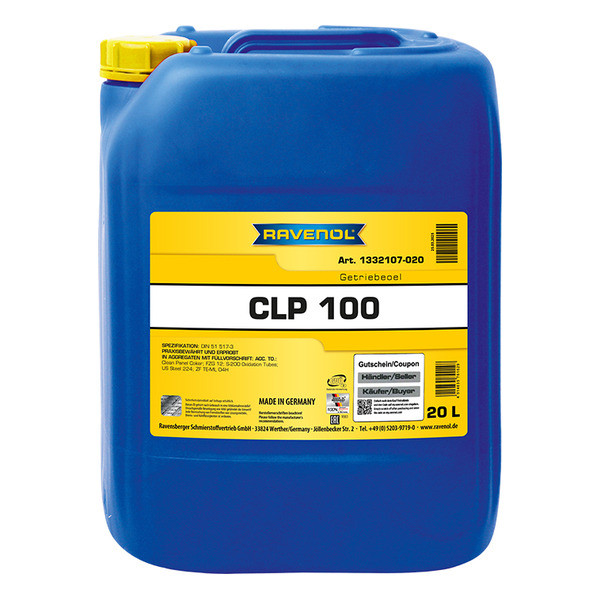

Getriebeoel CLP 100

Getriebeoel CLP 100

RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H

show details hide details

SAE: 100

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332107-020

Volume:
208 L

vendor code:
1332107-208

Code:
4014835761582

Volume:
1000 L

vendor code:
1332107-700

Volume:
20 L, ecobox

vendor code:
1332107-B20

RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 100 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour
Parameter Unit Value Audit
SAE 100
100
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 875 EN ISO 12185
875 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.4 DIN 51562-1
11.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 106.3 DIN 51562-1
106.3 mm²/s DIN 51562-1
Viscosity Index VI 106 DIN ISO 2909
106 DIN ISO 2909
Pourpoint °C -21 DIN ISO 3016
-21 °C DIN ISO 3016
Flashpoint °C 242 DIN EN ISO 2592
242 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H

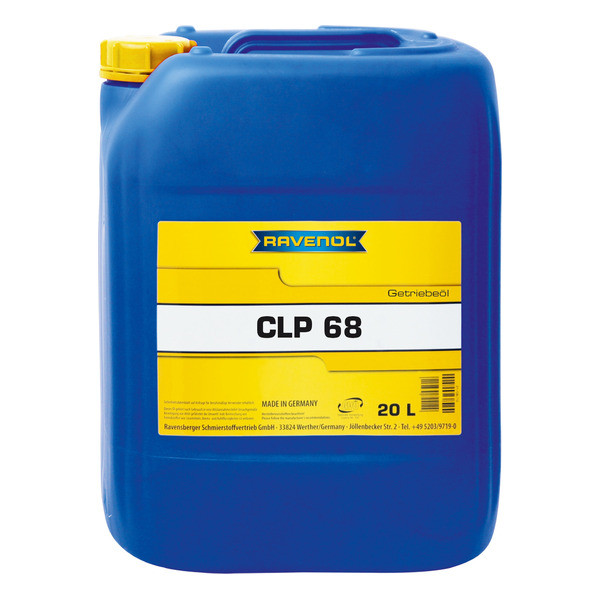

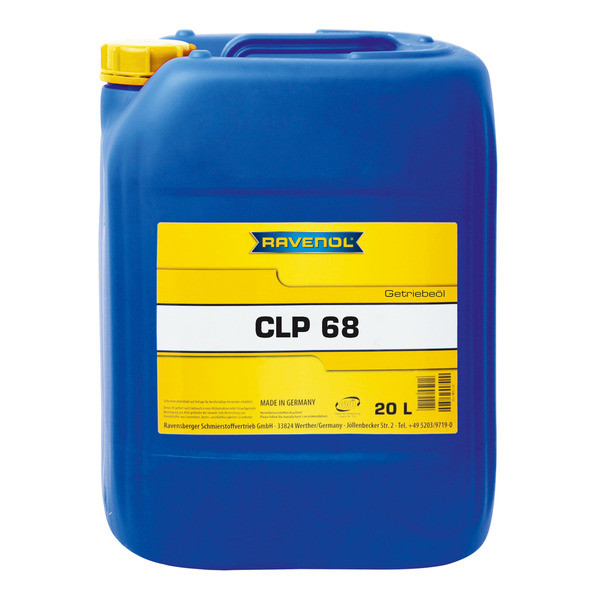

Getriebeoel CLP 68

Getriebeoel CLP 68

RAVENOL Getriebeoel CLP 68 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 68

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332106-020

Code:
4014835761421

Volume:
20 L, ecobox

vendor code:
1332106-B20

Volume:
208 L

vendor code:
1332106-208

Volume:
1000 L

vendor code:
1332106-700

RAVENOL Getriebeoel CLP 68 has a low pour point and therefore a very good cold behaviour.

Application Note:

RAVENOL Getriebeoel CLP 68 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impac t characteristics.

Characteristics:

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour

Parameter Unit Value Audit
SAE 68
68
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 879 EN ISO 12185
879 kg/m³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 8.6 DIN 51562-1
8.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 67 DIN 51562-1
67 mm²/s DIN 51562-1
Viscosity Index VI 100 DIN ISO 2909
100 DIN ISO 2909
Pourpoint °C -24 DIN ISO 3016
-24 °C DIN ISO 3016
Flashpoint °C 220 DIN EN ISO 2592
220 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

Good
