Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

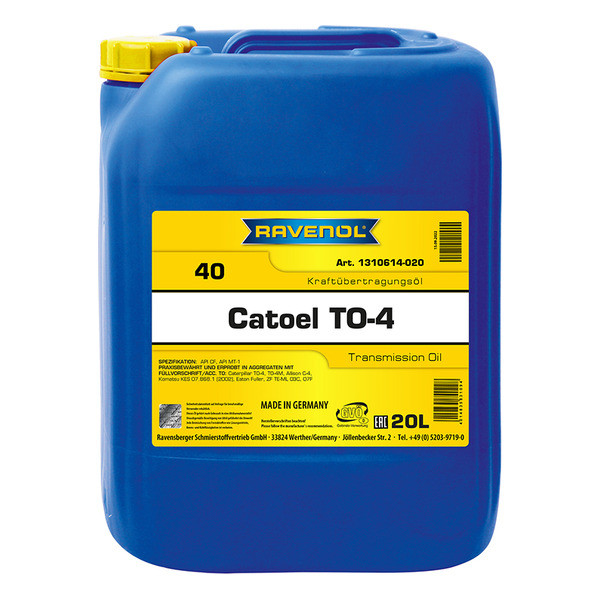

Application NoteRAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1310614-020
Volume:
20 L, ecobox
vendor code:
1310614-B20
Volume:
208 L
vendor code:
1310614-208
Volume:
1000 L
vendor code:
1310614-700
Application Note
RAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Characteristics
- Highest wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimization of friction coefficient behavior
- Guarantees maximum life of the units
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 40W |
40W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 889 | EN ISO 12185 |
889
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.6 | DIN 51562-1 |
13.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 134 | DIN 51562-1 |
134
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 270 | DIN EN ISO 2592 |
270
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
Application NoteRAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
208 L
vendor code:
1310616-208
Volume:
1000 L
vendor code:
1310616-700
Volume:
20 L
vendor code:
1310616-020
Application Note
RAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Characteristics
- Highest wear protection.
- High oxidation stability.
- Excellent viscosity-temperature behavior.
- Optimization of friction coefficient behavior.
- Guarantees maximum life of the units.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 60W |
60W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 903 | EN ISO 12185 |
903
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 23.5 | DIN 51562-1 |
23.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 312.6 | DIN 51562-1 |
312.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Pourpoint | °C | -12 | DIN ISO 3016 |
-12
°C
DIN ISO 3016
|
| Flashpoint | °C | 272 | DIN EN ISO 2592 |
272
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
Application NoteRAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
208 L
vendor code:
1310615-208
Volume:
1000 L
vendor code:
1310615-700
Volume:
20 L
vendor code:
1310615-020
Application Note
RAVENOL CATOEL TO-4 SAE 50 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Characteristics
- Highest wear protection.
- High oxidation stability.
- Excellent viscosity-temperature behavior.
- Optimization of friction coefficient behavior.
- Guarantees maximum life of the units.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 50W |
50W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 894 | EN ISO 12185 |
894
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.75 | DIN 51562-1 |
16.75
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 183.9 | DIN 51562-1 |
183.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 96 | DIN ISO 2909 |
96
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 265 | DIN EN ISO 2592 |
265
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Manufacturer Approved:
ZF TE-ML 03C
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1310610-B20
Volume:
60 L
vendor code:
1310610-060
Volume:
208 L, print
vendor code:
1310610-D28
Volume:
1000 L
vendor code:
1310610-700
RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Application Note
RAVENOL CATOEL TO-4 SAE 10W ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.
Characteristics
- Highest wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimization of friction coefficient behavior
- Guarantees maximum life of the units
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 10W |
10W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 03C |
ZF TE-ML 03C
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 860 | EN ISO 12185 |
860
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.4 | DIN 51562-1 |
6.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 37.2 | DIN 51562-1 |
37.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Manufacturer Approved:
ZF TE-ML 03C, ZF TE-ML 07F
Compliance with the requirements:
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
SAE: 30W
Equivalents OEM:
Caterpillar 7X7855, Caterpillar 143487, Volvo 1161943, Volvo 15002772, Volvo 15002772
- Available packaging
- Product parameters
RAVENOL CATOEL TO-4 SAE 30 fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.
Application Note
RAVENOL CATOEL TO-4 SAE 30 ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.
Characteristics
- Highest wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimization of friction coefficient behavior
- Guarantees maximum life of the units
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 30W |
30W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, MT-1 |
CF, MT-1
|
||
| Manufacturer Approved | ZF TE-ML 03C, ZF TE-ML 07F |
ZF TE-ML 03C, ZF TE-ML 07F
|
||
| Recomendations | Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002) |
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
|
||
| Suitable for | Eaton Fuller |
Eaton Fuller
|
||
| Density at 20 °C | kg/m³ | 880.1 | EN ISO 12185 |
880.1
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.5 | DIN 51562-1 |
11.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 95.7 | DIN 51562-1 |
95.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
|
RAVENOL Super Truck SAE 30 is a top-quality product with high safety reserves.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1123720-020
Volume:
20 L, ecobox
vendor code:
1123720-B20
Volume:
60 L
vendor code:
1123720-060
Volume:
208 L
vendor code:
1123720-208
Volume:
1000 L
vendor code:
1123720-700
RAVENOL Super Truck SAE 30 is a top-quality product with high safety reserves.
Application Note
RAVENOL Super Truck SAE 30 is mono grade motor oil for use in truck diesel engines with or without turbo charger.Please follow engine manufacturer’s recommendations.
Characteristics
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- Good cold start characteristics
- Best corrosion protection
- High safety reserves even with boundary lubrication conditions
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 30W |
30W
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4, SG |
CF-4, SG
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
||
| Density at 20 °C | kg/m³ | 882.9 | EN ISO 12185 |
882.9
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 112.8 | DIN 51562-1 |
112.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 99 | DIN ISO 2909 |
99
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 272 | DIN EN ISO 2592 |
272
°C
DIN EN ISO 2592
|
| Approvals | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
