Oil for Daihatsu - Taft, LA900 - 0.7 2WD (KF-VE) (LA900S)

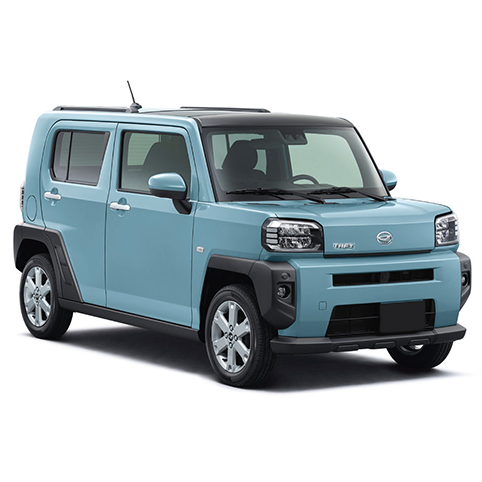

Daihatsu Taft, LA900 0.7 2WD (KF-VE) (LA900S), year of issue from 2020 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Nodes and assemblies
Engine KF-VE
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
- Available packaging
- Product parameters
Volume:
1000 L
vendor code:
1111110-700
Volume:
60 L
vendor code:
1111110-060
Volume:
208 L
vendor code:
1111110-208
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL Super Fuel Economy SFE SAE 5W-20 has a high viscosity index because of its formulation with special base oils. The formulation avoids premature fuel ignition LSPI (Low Speed Prevention), thereby avoiding engine damage. Recommended for turbo gasoline engines with direct injection (Turbo-GDI).
Because of a considerable fuel saving RAVENOL Super Fuel Economy SFE SAE 5W-20 contributes to protect the environment by reducing the emissions.
RAVENOL Super Fuel Economy SFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Super Fuel Economy SFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines of the latest generation.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good aging behavior, confirmed by the Hot Tube Test.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Protects turbocharger, EPS and engines running with ethanol-containing fuels up to E85.
- Compatibility with exhaust gas after treatment systems.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota |
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-20 |
5W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SN Plus, SP (RC) |
SN Plus, SP (RC)
|
||
| ACEA | A5, B5 |
A5, B5
|
||
| ILSAC | GF-6A |
GF-6A
|
||
| Manufacturer Approved | Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004 |
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
|
||
| Recomendations | Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06 |
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
|
||
| Suitable for | Mazda, Nissan, Suzuki, Toyota |
Mazda, Nissan, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.2 | DIN 51562-1 |
47.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 160 | DIN ISO 2909 |
160
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.9 | ASTM D5481 |
2.9
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3640 | ASTM D5293 |
3640
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 9.700 | ASTM D4684 |
9.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.3 | ASTM D5800 |
8.3
%
ASTM D5800
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8 | ASTM D2896 |
8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004 |
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004
|
For engine
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
- Available packaging
- Product parameters
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.
RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.
RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.
Characteristics
- New formula with dexos1™ Gen 3 approval
- Particularly suitable for GDI engines
- Avoids low speed pre-ignition (LSPI)
- No oil-related deposits in combustion chambers, in the piston ring zone and on valves
- Fuel savings potential under both part and full load operation
- Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
- A very stable viscosity behavior and an excellent shear stability
- Very good cold starting properties
- A safe lubricant film even at very high operating temperatures
- Exceptional wear and corrosion protection
- Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
- Long service life through high oxidation stability
- Suitable for catalyst-equipped vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Density at 20 °C | g/cm³ | 846 | EN ISO 12185 |
846
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.1 | DIN 51562-1 |
11.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 65.6 | DIN 51562-1 |
65.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.25 | ASTM D5481 |
3.25
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3990 | ASTM D5293 |
3990
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 11.800 | ASTM D4684 |
11.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Noack Volatility | % | 6 | ASTM D5800 |
6
%
ASTM D5800
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
- Available packaging
- Product parameters
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL Eco Synth ECS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL Eco Synth ECS SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL Eco Synth ECS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Eco Synth ECS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable
- operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good aging behavior, confirmed by the Hot Tube Test.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota |
Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SN (RC) |
SN (RC)
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| ILSAC | GF-5 |
GF-5
|
||
| Manufacturer Approved | Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20 |
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
|
||
| Recomendations | Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010 |
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
|
||
| Suitable for | Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 839 | EN ISO 12185 |
839
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 41.3 | DIN 51562-1 |
41.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 177 | DIN ISO 2909 |
177
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.64 | ASTM D5481 |
2.64
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4890 | ASTM D5293 |
4890
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 10.000 | ASTM D4684 |
10.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.4 | ASTM D5800 |
9.4
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.2 | ASTM D2896 |
9.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.79 | DIN 51575 |
0.79
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010 |
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010
|
For passenger cars
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
SAE: 0W-20
ILSAC: GF-7A
API: SQ (RC)
Equivalents OEM:
Alpine 0100191,
Alpine 0100192,
Alpine 0100193,
Alpine 0100194,
Alpine 0100195,
Alpine 0100199,
Alpine 100191,
Alpine 100192,
Alpine 100193,
Alpine 100194,
Alpine 100195,
Alpine 100199,
GM 109236,
GM 19259487,
GM 88865553,
Honda 00W20BASN0LDRM,
Honda 0821199904,
Honda 0821199906,
Honda 0821199907,
Honda 0821799974,
Honda 0821799976,
Honda 0821799977,
Honda 0822799974,
Honda 08232P99A1HMR,
Honda 08232P99A1LHE,
Honda 08232P99A6HMR,
Honda 08232P99A30HE,
Honda 08232P99C1HMR,
Honda 08232P99C3HMR,
Honda 08232P99D1LHE,
Honda 08232P99D4LHE
Alpine 0100191, Alpine 0100192, Alpine 0100193, Alpine 0100194, Alpine 0100195, Alpine 0100199, Alpine 100191, Alpine 100192, Alpine 100193, Alpine 100194, Alpine 100195, Alpine 100199, GM 109236, GM 19259487, GM 88865553, Honda 00W20BASN0LDRM, Honda 0821199904, Honda 0821199906, Honda 0821199907, Honda 0821799974, Honda 0821799976, Honda 0821799977, Honda 0822799974, Honda 08232P99A1HMR, Honda 08232P99A1LHE, Honda 08232P99A6HMR, Honda 08232P99A30HE, Honda 08232P99C1HMR, Honda 08232P99C3HMR, Honda 08232P99D1LHE, Honda 08232P99D4LHE, Honda 08232P99D6LHE, Honda 087989029, Honda 087989037, Honda 087989081, Honda 087989081, Honda 087989137, Honda 87989036, Hyundai Motor 0510000161, Hyundai Motor 0510000461, Mitsubishi 3013611, Motorcraft XO0W20DSP, Motorcraft XO0W20Q1SP, Motorcraft XO0W20QSP, Motorcraft XO0W205Q3SP, Toyota 0888009209, Toyota 0888009210, Toyota 0888082654
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111109-060
Volume:
208 L
vendor code:
1111109-208
Volume:
208 L, print
vendor code:
1111109-D28
Volume:
1000 L
vendor code:
1111109-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL DFE SAE 0W-20 ensures the prevention of premature fuel ignition LSPI (Low Speed Pre-ignition), thus avoiding engine damage. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DFE SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL DFE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer 's instructions.
Application Note
RAVENOL DFE SAE 0W-20 is suitable as a high-performance light-running engine oil for demanding engines. It is recommended for modern passenger car engines from OPEL, GENERAL MOTORS, Chevrolet, Daewoo and Holden according to Dexos1 specification under all operating conditions.
RAVENOL DFE SAE 0W-20 is also applicable to the specified specifications of Ford and Chrysler and suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Fuel savings in partial and full load operation.
- LowSAPS = Low sulfate ash, phosphorus and sulfur.
- Very stable and excellent viscosity behavior.
- Excellent shear stability.
- Very good cold start characteristics.
- A safe lubrication film at very high operating temperatures.
- Very good detergents and dispersing properties.
- Very good wear and corrosion protection.
- Protection from foam formation.
- Excellent detergent and dispersant properties.
- Long life due to high oxidation stability.
- Catalyst suitability.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.93 | DIN 51562-1 |
8.93
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 50.5 | DIN 51562-1 |
50.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.78 | ASTM D5481 |
2.78
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5400 | ASTM D5293 |
5400
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 14.600 | ASTM D4684 |
14.600
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 5.9 | ASTM D5800 |
5.9
%
ASTM D5800
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
For engine
With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1111125-D60
Volume:
208 L, print
vendor code:
1111125-D28
Volume:
1000 L
vendor code:
1111125-700
With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.
RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.
RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.
Characteristics
- Fuel savings in partial and full load operation
- Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
- Excellent cold-start properties even at low temperatures below -25°C
- A safe lubricating film at high operating temperatures
- Low evaporation tendency, thus low oil consumption
- No oil-based deposits in combustion chambers, in the piston ring zone and on valves
- Neutrality towards sealing materials
- Extended oil change intervals protect natural resources
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
||
| Density at 20 °C | g/cm³ | 844 | EN ISO 12185 |
844
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.8 | DIN 51562-1 |
10.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 59.8 | DIN 51562-1 |
59.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.4 | ASTM D5481 |
3.4
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3630 | ASTM D5293 |
3630
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 13.500 | ASTM D4684 |
13.500
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.1 | ASTM D5800 |
8.1
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.86 | DIN 51575 |
0.86
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
CVT gearbox in a unit with final drive
For transmission
RAVENOL CVT KFE Fluid is a synthetic CVT transmission fluid with low viscosity for Toyota CVT transmission.
- Available packaging
- Product parameters
RAVENOL CVT KFE Fluid is a synthetic CVT transmission fluid with low viscosity for Toyota CVT transmission.
RAVENOL CVT KFE Fluid guarantees an optimum of power transmission.
Application Note
RAVENOL CVT KFE Fluid was developed for use in CVT transmission (Steel Belt Continuously Variable Transmission), especially for Toyota transmissions.
RAVENOL CVT KFE Fluid ensures a stable viscosity under high mechanical stress in the transmission elements (push belt).
Characteristics
- Very good lubricating ability even at low temperatures in winter
- A high, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against corrosion and foam formation
- Good balanced coefficient of friction
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition to non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Toyota 08886-02503, Toyota 08886-02505 |
Toyota 08886-02503, Toyota 08886-02505
|
||
| Type | Synthetic |
Synthetic
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Compliant products | Toyota 08886-02503, Toyota 08886-02505 |
Toyota 08886-02503, Toyota 08886-02505
|
||
| Color | Red | visual |
Red
visual
|
|
| Density at 20 °C | g/cm³ | 829 | EN ISO 12185 |
829
g/cm³
EN ISO 12185
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
Hydraulic brake system
Brake fluid
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1350605-020
DOT 4
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.
RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.
Application Note
RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.
RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.
RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.
To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.
RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Fluidity even at very low temperatures
- Optimal ABS properties.
- Chemical stability.
- High lubricating power
- Neutral behavior towards brake parts.
- Can be mixed with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 LV |
DOT-4 LV
|
||
| Recommendations | Ford WSS-M6C65-A2, VW 501 14 |
Ford WSS-M6C65-A2, VW 501 14
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Ford WSS-M6C 65-A2, VW 501.14 |
Ford WSS-M6C 65-A2, VW 501.14
|
||
| specification | DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704 |
DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.1 | ASTM D445 |
2.1
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 675 | ASTM D445 |
675
cSt
ASTM D445
|
| Boiling point | °C | 267 | FMVSS 116 |
267
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 172 | FMVSS 116 |
172
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14 |
DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.
RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1070 | EN ISO 12185 |
1070
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| pH - value at 20 °C | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410110-010
Volume:
60 L, plastic
vendor code:
-
Code:
4014835755437
Volume:
60 L, print
vendor code:
1410110-D60
Volume:
1000 L
vendor code:
1410110-700
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).
MAN information for use:
Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
- systems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| Reserve alkalinity | mgKOH/g | 5.5 — | ASTM D1120 |
5.5 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 187 | ASTM D1121 |
187
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
