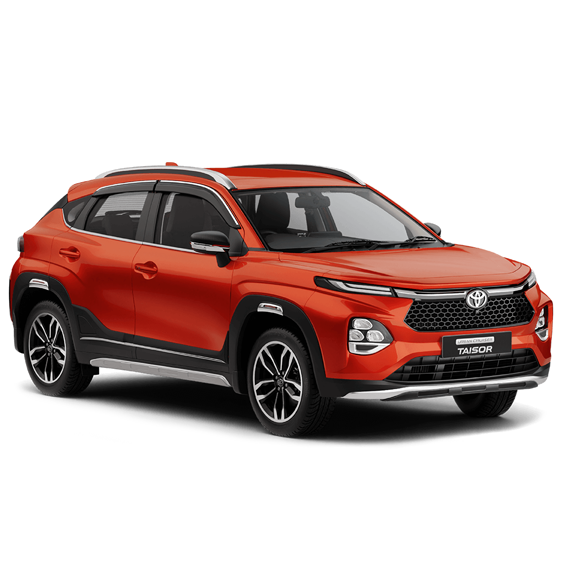

Oil for Toyota - Urban Cruiser Taisor / Starlet Cross - 1.0 2WD (K10T)
Toyota Urban Cruiser Taisor / Starlet Cross 1.0 2WD (K10T), year of issue from 2023 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Engine K10T
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Compliance with the requirements:
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022
SAE: 0W-16
ILSAC: GF-7B
API: SQ (RC)
Equivalents OEM:
Alpine 0121681,
Alpine 0121682,
Honda 0821699974,
Honda 0821699974RUS,
Honda 0821699977,
Honda 08232P99S1LHE,
Honda 08232P99S4LHE,
Honda 08232P99S6LHE,
Honda 087989062,
Hyundai Motor 0510000191,
Hyundai Motor 0510000491,
Mitsubishi MZ102661,
Mitsubishi MZ102662,
Nissan KLAN901602,
Nissan KLAN901604,
Nissan KLAN901620,
Nissan KLANM01A02,
Nissan KLANM01A04,
Nissan KLAP901602,
Nissan KLAP901604,
Nissan KLAP901620,
Subaru SOA427V3000,
Subaru SOA427V3000,
Suzuki 990F021D40B017,
Suzuki 990F021D40B047,
Suzuki 990F021D400D7,
Suzuki 990F021D400P7,
Suzuki 9900021D40026,
Suzuki 9900021D40036,
Suzuki 9900021D40206,
Toyota 0027916QTE
Alpine 0121681, Alpine 0121682, Honda 0821699974, Honda 0821699974RUS, Honda 0821699977, Honda 08232P99S1LHE, Honda 08232P99S4LHE, Honda 08232P99S6LHE, Honda 087989062, Hyundai Motor 0510000191, Hyundai Motor 0510000491, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLAN901602, Nissan KLAN901604, Nissan KLAN901620, Nissan KLANM01A02, Nissan KLANM01A04, Nissan KLAP901602, Nissan KLAP901604, Nissan KLAP901620, Subaru SOA427V3000, Subaru SOA427V3000, Suzuki 990F021D40B017, Suzuki 990F021D40B047, Suzuki 990F021D400D7, Suzuki 990F021D400P7, Suzuki 9900021D40026, Suzuki 9900021D40036, Suzuki 9900021D40206, Toyota 0027916QTE, Toyota 0888011005, Toyota 0888012100, Toyota 0888012103, Toyota 0888012105, Toyota 0888012803, Toyota 0888013100, Toyota 0888013103, Toyota 0888013105, Toyota 0888013303, Toyota 0888083889, Toyota 0888084081, Toyota 0888084082, Toyota 0888084105
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1111103-020
Volume:
60 L
vendor code:
1111103-060
Volume:
208 L
vendor code:
1111103-208
Volume:
1000 L
vendor code:
1111103-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL Extra Fuel Economy EFE SAE 0W-16 is recommended especially for hybrid vehicles.
RAVENOL Extra Fuel Economy EFE SAE 0W-16 was formulated with tri-nuclear molybdenum and OFM (Organic Friction Modifiers), in order to achieve minimal friction, wear and fuel consumption with excellent cold start characteristics.
With its new formulation, RAVENOL Extra Fuel Economy EFE SAE 0W-16 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL Extra Fuel Economy EFE SAE 0W-16 helps to protect the environment by reducing emissions.
RAVENOL Extra Fuel Economy EFE SAE 0W-16 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Extra Fuel Economy EFE SAE 0W-16 is suitable as a high performance, smooth-running engine oil for sophisticated engines. It is recommended for modern passenger car petrol engines, including the supercharge models and for direct injection engines and hybrid vehicles under all operating conditions, if the engine manufacturer recommends using a low viscosity oil with the viscosity category SAE 0W-16, SAE 0W-20 or SAE 5W-20. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Fuel saving in partial and full load operation.
- Excellent wear protection and a high viscosity index ensure the long service life of the engine even under high speed driving conditions.
- Excellent cold start properties even at low temperatures of below -35°C.
- A reliable lubrication film even at high operating temperatures.
- Low volatility, resulting in low oil consumption.
- No oil-related deposits in combustion chambers, in the piston ring zone and on valves.
- Compatible with sealing materials.
- Extended oil change intervals protect natural resources.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Renault AN2022, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Renault AN2022, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-16 |
0W-16
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7B |
GF-7B
|
||
| Recomendations | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022 |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022
|
||
| Compliant products | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005, Toyota 08880-13105, Toyota 08880-83889
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 38.4 | DIN 51562-1 |
38.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.4 | ASTM D5481 |
2.4
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4400 | ASTM D5293 |
4400
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 9.270 | ASTM D4684 |
9.270
mPa*s
ASTM D4684
|
| Pourpoint | °C | -60 | DIN ISO 3016 |
-60
°C
DIN ISO 3016
|
| Noack Volatility | % | 6.8 | ASTM D5800 |
6.8
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.4 | ASTM D2896 |
8.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022 |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine, Renault AN2022
|
For engine
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
- Available packaging
- Product parameters
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.
RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.
RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.
Characteristics
- New formula with dexos1™ Gen 3 approval
- Particularly suitable for GDI engines
- Avoids low speed pre-ignition (LSPI)
- No oil-related deposits in combustion chambers, in the piston ring zone and on valves
- Fuel savings potential under both part and full load operation
- Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
- A very stable viscosity behavior and an excellent shear stability
- Very good cold starting properties
- A safe lubricant film even at very high operating temperatures
- Exceptional wear and corrosion protection
- Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
- Long service life through high oxidation stability
- Suitable for catalyst-equipped vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Density at 20 °C | g/cm³ | 846 | EN ISO 12185 |
846
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.1 | DIN 51562-1 |
11.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 65.6 | DIN 51562-1 |
65.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.25 | ASTM D5481 |
3.25
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3990 | ASTM D5293 |
3990
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 11.800 | ASTM D4684 |
11.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Noack Volatility | % | 6 | ASTM D5800 |
6
%
ASTM D5800
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
- Available packaging
- Product parameters
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL Eco Synth ECS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL Eco Synth ECS SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL Eco Synth ECS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Eco Synth ECS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable
- operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good aging behavior, confirmed by the Hot Tube Test.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota |
Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SN (RC) |
SN (RC)
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| ILSAC | GF-5 |
GF-5
|
||
| Manufacturer Approved | Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20 |
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
|
||
| Recomendations | Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010 |
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
|
||
| Suitable for | Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 839 | EN ISO 12185 |
839
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 41.3 | DIN 51562-1 |
41.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 177 | DIN ISO 2909 |
177
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.64 | ASTM D5481 |
2.64
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4890 | ASTM D5293 |
4890
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 10.000 | ASTM D4684 |
10.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.4 | ASTM D5800 |
9.4
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.2 | ASTM D2896 |
9.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.79 | DIN 51575 |
0.79
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010 |
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010
|
For passenger cars
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
SAE: 0W-20
ILSAC: GF-7A
API: SQ (RC)
Equivalents OEM:
Alpine 0100191,
Alpine 0100192,
Alpine 0100193,
Alpine 0100194,
Alpine 0100195,
Alpine 0100199,
Alpine 100191,
Alpine 100192,
Alpine 100193,
Alpine 100194,
Alpine 100195,
Alpine 100199,
GM 109236,
GM 19259487,
GM 88865553,
Honda 00W20BASN0LDRM,
Honda 0821199904,
Honda 0821199906,
Honda 0821199907,
Honda 0821799974,
Honda 0821799976,
Honda 0821799977,
Honda 0822799974,
Honda 08232P99A1HMR,
Honda 08232P99A1LHE,
Honda 08232P99A6HMR,
Honda 08232P99A30HE,
Honda 08232P99C1HMR,
Honda 08232P99C3HMR,
Honda 08232P99D1LHE,
Honda 08232P99D4LHE
Alpine 0100191, Alpine 0100192, Alpine 0100193, Alpine 0100194, Alpine 0100195, Alpine 0100199, Alpine 100191, Alpine 100192, Alpine 100193, Alpine 100194, Alpine 100195, Alpine 100199, GM 109236, GM 19259487, GM 88865553, Honda 00W20BASN0LDRM, Honda 0821199904, Honda 0821199906, Honda 0821199907, Honda 0821799974, Honda 0821799976, Honda 0821799977, Honda 0822799974, Honda 08232P99A1HMR, Honda 08232P99A1LHE, Honda 08232P99A6HMR, Honda 08232P99A30HE, Honda 08232P99C1HMR, Honda 08232P99C3HMR, Honda 08232P99D1LHE, Honda 08232P99D4LHE, Honda 08232P99D6LHE, Honda 087989029, Honda 087989037, Honda 087989081, Honda 087989081, Honda 087989137, Honda 87989036, Hyundai Motor 0510000161, Hyundai Motor 0510000461, Mitsubishi 3013611, Motorcraft XO0W20DSP, Motorcraft XO0W20Q1SP, Motorcraft XO0W20QSP, Motorcraft XO0W205Q3SP, Toyota 0888009209, Toyota 0888009210, Toyota 0888082654
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111109-060
Volume:
208 L
vendor code:
1111109-208
Volume:
208 L, print
vendor code:
1111109-D28
Volume:
1000 L
vendor code:
1111109-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL DFE SAE 0W-20 ensures the prevention of premature fuel ignition LSPI (Low Speed Pre-ignition), thus avoiding engine damage. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DFE SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL DFE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer 's instructions.
Application Note
RAVENOL DFE SAE 0W-20 is suitable as a high-performance light-running engine oil for demanding engines. It is recommended for modern passenger car engines from OPEL, GENERAL MOTORS, Chevrolet, Daewoo and Holden according to Dexos1 specification under all operating conditions.
RAVENOL DFE SAE 0W-20 is also applicable to the specified specifications of Ford and Chrysler and suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Fuel savings in partial and full load operation.
- LowSAPS = Low sulfate ash, phosphorus and sulfur.
- Very stable and excellent viscosity behavior.
- Excellent shear stability.
- Very good cold start characteristics.
- A safe lubrication film at very high operating temperatures.
- Very good detergents and dispersing properties.
- Very good wear and corrosion protection.
- Protection from foam formation.
- Excellent detergent and dispersant properties.
- Long life due to high oxidation stability.
- Catalyst suitability.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.93 | DIN 51562-1 |
8.93
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 50.5 | DIN 51562-1 |
50.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.78 | ASTM D5481 |
2.78
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5400 | ASTM D5293 |
5400
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 14.600 | ASTM D4684 |
14.600
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 5.9 | ASTM D5800 |
5.9
%
ASTM D5800
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
For engine
With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1111125-D60
Volume:
208 L, print
vendor code:
1111125-D28
Volume:
1000 L
vendor code:
1111125-700
With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.
RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.
RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.
Characteristics
- Fuel savings in partial and full load operation
- Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
- Excellent cold-start properties even at low temperatures below -25°C
- A safe lubricating film at high operating temperatures
- Low evaporation tendency, thus low oil consumption
- No oil-based deposits in combustion chambers, in the piston ring zone and on valves
- Neutrality towards sealing materials
- Extended oil change intervals protect natural resources
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
||
| Density at 20 °C | g/cm³ | 844 | EN ISO 12185 |
844
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.8 | DIN 51562-1 |
10.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 59.8 | DIN 51562-1 |
59.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.4 | ASTM D5481 |
3.4
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3630 | ASTM D5293 |
3630
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 13.500 | ASTM D4684 |
13.500
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.1 | ASTM D5800 |
8.1
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.86 | DIN 51575 |
0.86
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
RAVENOL FEH SAE 0W-16 minimises friction, wear and fuel consumption with excellent cold start characteristics. Suitable for extended oil change intervals when recommended by manufacturer.
Compliance with the requirements:
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1112115-005
Volume:
20 L
vendor code:
1112115-020
Volume:
60 L
vendor code:
1112115-060
Volume:
208 L
vendor code:
1112115-208
RAVENOL FEH SAE 0W-16 minimises friction, wear and fuel consumption with excellent cold start characteristics. Suitable for extended oil change intervals when recommended by manufacturer.
Application Note
RAVENOL FEH SAE 0W-16 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines as well as for hybrid vehicles from various manufacturers. It reduces emissions and thus helps to protect the environment. The operating instructions of the vehicle and engine manufacturers must be observed.
Characteristics
- High protection against wear and corrosion
- Fuel savings due to smooth running properties
- Excellent detergent and dispersant characteristics
- Neutrality towards sealing materials
- Long endurance because of high oxidation stability
- An excellent cold start performance
- A very good viscosity temperature behaviour
- Low evaporation tendency
- Suitable for catalysts
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Toyota 08880-11005 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi Dia Queen ECO Plus, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04 Extra Save X Eco Hybrid Engine, Toyota 08880-11005
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-16 |
0W-16
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SN Plus, SP (RC) |
SN Plus, SP (RC)
|
||
| ILSAC | GF-6B |
GF-6B
|
||
| Recomendations | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine
|
||
| Compliant products | Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005 |
Honda 08215-99974, Honda 08216-99974, Honda 08232-P99S1LHE, Honda Ultra Green, Honda Ultra Next, Mitsubishi MZ102661, Mitsubishi MZ102662, Nissan KLANM-01A04, Toyota 08880-11005
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 37.2 | DIN 51562-1 |
37.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 162 | DIN ISO 2909 |
162
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.44 | ASTM D5481 |
2.44
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4600 | ASTM D5293 |
4600
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 13.000 | ASTM D4684 |
13.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.7 | ASTM D5800 |
10.7
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.8 | ASTM D2896 |
8.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine |
Mitsubishi Dia Queen ECO Plus, Nissan Extra Save X Eco Hybrid Engine
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Transmission, automatic in a unit with final drive 6/1
Hydraulic fluid
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
- Available packaging
- Product parameters
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Application Note
RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.
Characteristics
- phenomenal resistance of lubricant failure under hard operating conditions
- a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
- phenomenal resistance of oil sludge and deposit accumulation
- an excellent oxidation resistance and thermic stability
- a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
- as a lower corrosion of the bearings, sleeves and gear wheels
- an excellent flow behaviour at low temperatures
- a more constant switching operation performance, optimised friction characteristics
- prevention of coupling grinding regarding modulation rotary conversion
- a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
- an improved shear stability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28 |
Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
||
| Suitable for | Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-) |
Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
|
||
| Compliant products | BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28 |
BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
|
||
| Density at 20 °C | g/cm³ | 838 | EN ISO 12185 |
838
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Approvals | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
Mechanical gearbox in a unit with final drive 5/1
For gearbox
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1221104-020
Volume:
60 L, print
vendor code:
1221104-D60
Volume:
208 L
vendor code:
1221104-208
Volume:
208 L, print
vendor code:
1221104-D28
Volume:
1000 L
vendor code:
1221104-700
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
- A stable lubricating film even at high oil temperatures and under high stress.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2 |
AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
|
||
| SAE | 75W |
75W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
||
| Compliant products | AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726 |
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 35.1 | DIN 51562-1 |
35.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 184 | DIN ISO 2909 |
184
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 8.800 | ASTM D2983 |
8.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
Hydraulic brake system
Brake fluid
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1350605-020
DOT 4
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.
RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.
Application Note
RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.
RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.
RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.
To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.
RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Fluidity even at very low temperatures
- Optimal ABS properties.
- Chemical stability.
- High lubricating power
- Neutral behavior towards brake parts.
- Can be mixed with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 LV |
DOT-4 LV
|
||
| Recommendations | Ford WSS-M6C65-A2, VW 501 14 |
Ford WSS-M6C65-A2, VW 501 14
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Ford WSS-M6C 65-A2, VW 501.14 |
Ford WSS-M6C 65-A2, VW 501.14
|
||
| specification | DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704 |
DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.1 | ASTM D445 |
2.1
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 675 | ASTM D445 |
675
cSt
ASTM D445
|
| Boiling point | °C | 267 | FMVSS 116 |
267
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 172 | FMVSS 116 |
172
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14 |
DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
- Available packaging
- Product parameters

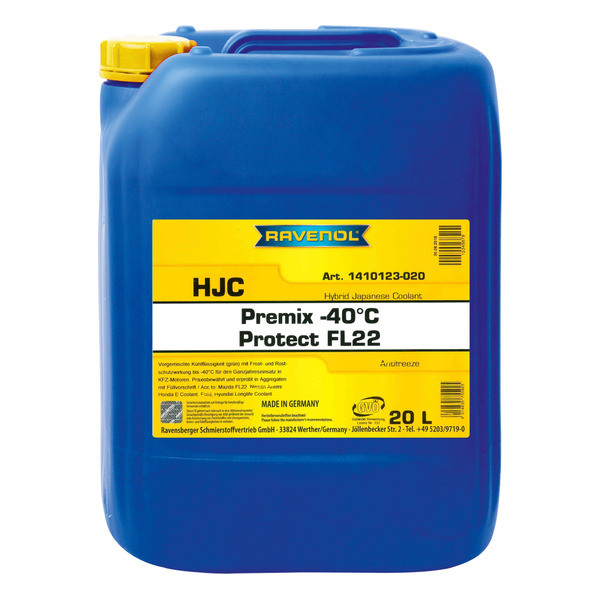

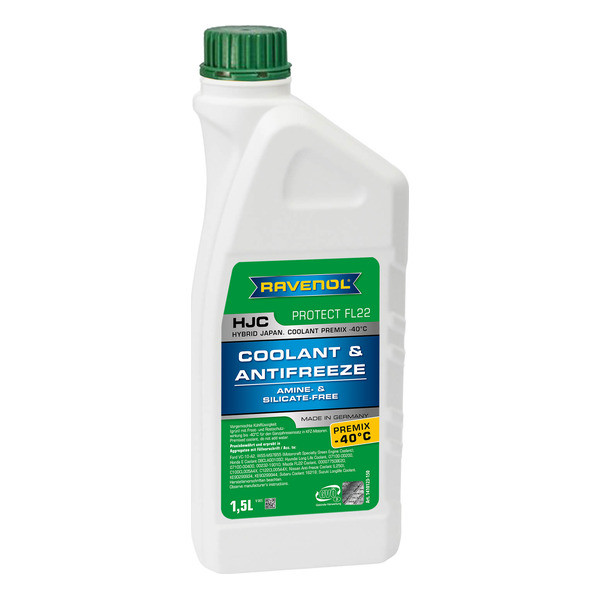

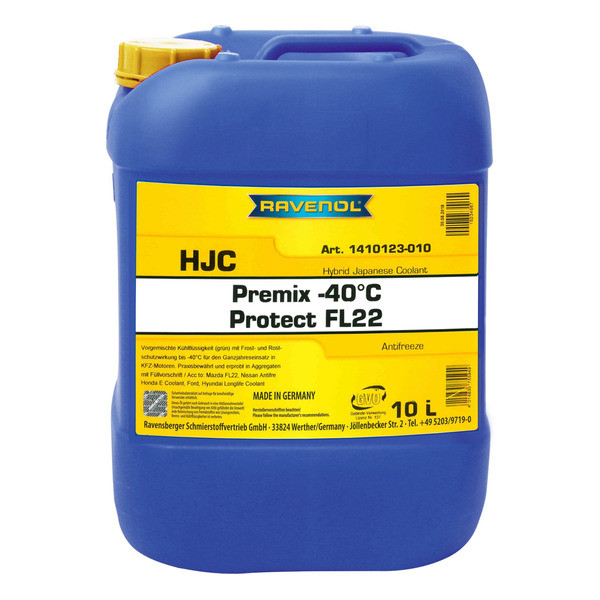

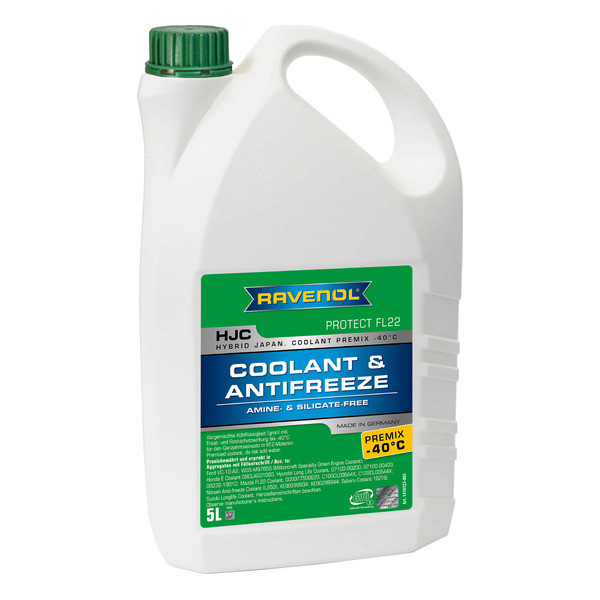

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL HJC Hybrid Japanese Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL HJC Hybrid Japanese Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL HJC Hybrid Japanese Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | 08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant |
08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
||
| Compliant products | Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944 |
Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
|
||
| Density at 20 °C | g/cm³ | 1082 | EN ISO 12185 |
1082
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| pH - value | 7 — 8.5 | ASTM D1287 |
7 — 8.5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.

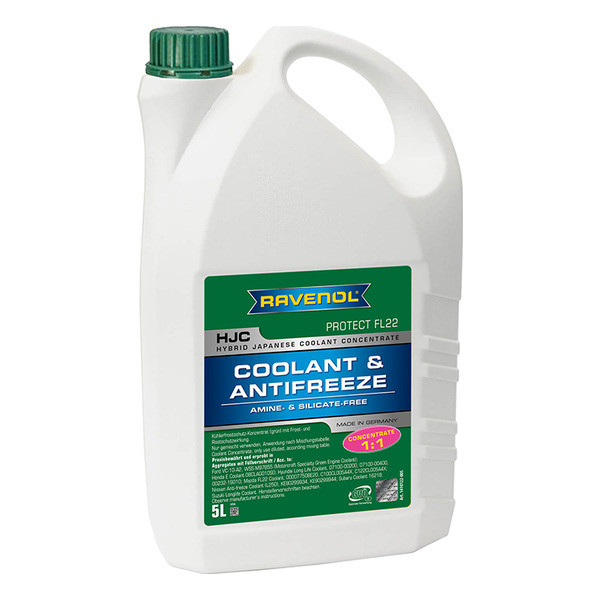

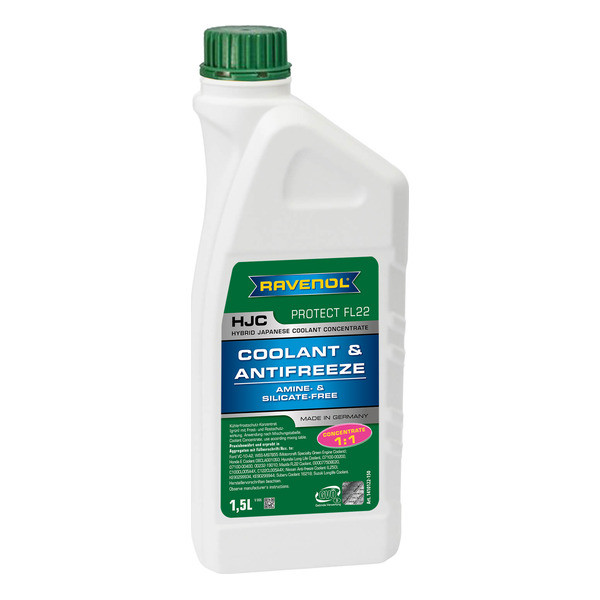

RAVENOL HJC Hybrid Japanese Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL HJC Hybrid Japanese Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL HJC Hybrid Japanese Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | 08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant |
08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
||
| Compliant products | Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944 |
Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
|
||
| Density at 20 °C | g/cm³ | 1132 | EN ISO 12185 |
1132
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Reserve alkalinity | mgKOH/g | 15 — | ASTM D1120 |
15 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 150 — | ASTM D1121 |
150 —
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,0 - 8,5 | ASTM D1287 |
7,0 - 8,5
ASTM D1287
|
|
| Approvals | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
