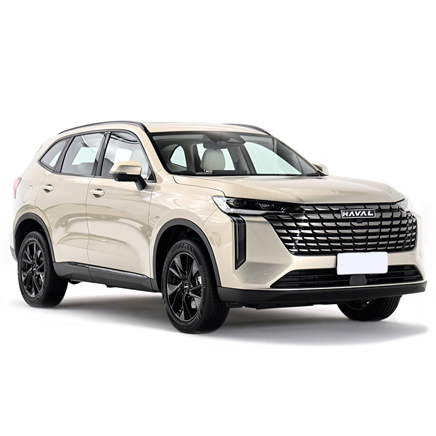

Oil for HAVAL - H6 IV - 1.5 T 2WD (GW4B15L)
HAVAL H6 IV 1.5 T 2WD (GW4B15L), year of issue from 2024 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Working volume: 1499 cc
Power: 184 hp / kW
Engine GW4B15L
Liquid volume (filter): 0.3 L
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
- Available packaging
- Product parameters
Volume:
1000 L
vendor code:
1111110-700
Volume:
60 L
vendor code:
1111110-060
Volume:
208 L
vendor code:
1111110-208
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL Super Fuel Economy SFE SAE 5W-20 has a high viscosity index because of its formulation with special base oils. The formulation avoids premature fuel ignition LSPI (Low Speed Prevention), thereby avoiding engine damage. Recommended for turbo gasoline engines with direct injection (Turbo-GDI).
Because of a considerable fuel saving RAVENOL Super Fuel Economy SFE SAE 5W-20 contributes to protect the environment by reducing the emissions.
RAVENOL Super Fuel Economy SFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Super Fuel Economy SFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines of the latest generation.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good aging behavior, confirmed by the Hot Tube Test.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Protects turbocharger, EPS and engines running with ethanol-containing fuels up to E85.
- Compatibility with exhaust gas after treatment systems.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota |
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-20 |
5W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SN Plus, SP (RC) |
SN Plus, SP (RC)
|
||
| ACEA | A5, B5 |
A5, B5
|
||
| ILSAC | GF-6A |
GF-6A
|
||
| Manufacturer Approved | Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004 |
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
|
||
| Recomendations | Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06 |
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
|
||
| Suitable for | Mazda, Nissan, Suzuki, Toyota |
Mazda, Nissan, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.2 | DIN 51562-1 |
47.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 160 | DIN ISO 2909 |
160
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.9 | ASTM D5481 |
2.9
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3640 | ASTM D5293 |
3640
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 9.700 | ASTM D4684 |
9.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.3 | ASTM D5800 |
8.3
%
ASTM D5800
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8 | ASTM D2896 |
8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004 |
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004
|
For passenger cars
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
SAE: 0W-20
ILSAC: GF-7A
API: SQ (RC)
Equivalents OEM:
Alpine 0100191,
Alpine 0100192,
Alpine 0100193,
Alpine 0100194,
Alpine 0100195,
Alpine 0100199,
Alpine 100191,
Alpine 100192,
Alpine 100193,
Alpine 100194,
Alpine 100195,
Alpine 100199,
GM 109236,
GM 19259487,
GM 88865553,
Honda 00W20BASN0LDRM,
Honda 0821199904,
Honda 0821199906,
Honda 0821199907,
Honda 0821799974,
Honda 0821799976,
Honda 0821799977,
Honda 0822799974,
Honda 08232P99A1HMR,
Honda 08232P99A1LHE,
Honda 08232P99A6HMR,
Honda 08232P99A30HE,
Honda 08232P99C1HMR,
Honda 08232P99C3HMR,
Honda 08232P99D1LHE,
Honda 08232P99D4LHE
Alpine 0100191, Alpine 0100192, Alpine 0100193, Alpine 0100194, Alpine 0100195, Alpine 0100199, Alpine 100191, Alpine 100192, Alpine 100193, Alpine 100194, Alpine 100195, Alpine 100199, GM 109236, GM 19259487, GM 88865553, Honda 00W20BASN0LDRM, Honda 0821199904, Honda 0821199906, Honda 0821199907, Honda 0821799974, Honda 0821799976, Honda 0821799977, Honda 0822799974, Honda 08232P99A1HMR, Honda 08232P99A1LHE, Honda 08232P99A6HMR, Honda 08232P99A30HE, Honda 08232P99C1HMR, Honda 08232P99C3HMR, Honda 08232P99D1LHE, Honda 08232P99D4LHE, Honda 08232P99D6LHE, Honda 087989029, Honda 087989037, Honda 087989081, Honda 087989081, Honda 087989137, Honda 87989036, Hyundai Motor 0510000161, Hyundai Motor 0510000461, Mitsubishi 3013611, Motorcraft XO0W20DSP, Motorcraft XO0W20Q1SP, Motorcraft XO0W20QSP, Motorcraft XO0W205Q3SP, Toyota 0888009209, Toyota 0888009210, Toyota 0888082654
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111109-060
Volume:
208 L
vendor code:
1111109-208
Volume:
208 L, print
vendor code:
1111109-D28
Volume:
1000 L
vendor code:
1111109-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL DFE SAE 0W-20 ensures the prevention of premature fuel ignition LSPI (Low Speed Pre-ignition), thus avoiding engine damage. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DFE SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL DFE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer 's instructions.
Application Note
RAVENOL DFE SAE 0W-20 is suitable as a high-performance light-running engine oil for demanding engines. It is recommended for modern passenger car engines from OPEL, GENERAL MOTORS, Chevrolet, Daewoo and Holden according to Dexos1 specification under all operating conditions.
RAVENOL DFE SAE 0W-20 is also applicable to the specified specifications of Ford and Chrysler and suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Fuel savings in partial and full load operation.
- LowSAPS = Low sulfate ash, phosphorus and sulfur.
- Very stable and excellent viscosity behavior.
- Excellent shear stability.
- Very good cold start characteristics.
- A safe lubrication film at very high operating temperatures.
- Very good detergents and dispersing properties.
- Very good wear and corrosion protection.
- Protection from foam formation.
- Excellent detergent and dispersant properties.
- Long life due to high oxidation stability.
- Catalyst suitability.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.93 | DIN 51562-1 |
8.93
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 50.5 | DIN 51562-1 |
50.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.78 | ASTM D5481 |
2.78
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5400 | ASTM D5293 |
5400
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 14.600 | ASTM D4684 |
14.600
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 5.9 | ASTM D5800 |
5.9
%
ASTM D5800
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Compliance with the requirements:
Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010
- Available packaging
- Product parameters
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
With its new formulation, RAVENOL Eco Synth EFS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
RAVENOL Eco Synth EFS SAE 0W-20 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
By significantly reducing fuel consumption, RAVENOL Eco Synth EFS SAE 0W-20 helps to protect the environment by reducing emissions.
RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Eco Synth EFS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo |
Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE |
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
|
||
| Recomendations | Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010 |
Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010
|
||
| Suitable for | Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo |
Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo
|
||
| Density at 20 °C | g/cm³ | 844 | EN ISO 12185 |
844
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 42.7 | DIN 51562-1 |
42.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.65 | ASTM D5481 |
2.65
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4700 | ASTM D5293 |
4700
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 10.240 | ASTM D4684 |
10.240
mPa*s
ASTM D4684
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.7 | ASTM D5800 |
9.7
%
ASTM D5800
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.5 | ASTM D2896 |
7.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.47 | DIN 51575 |
0.47
%wt.
DIN 51575
|
| Approvals | BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE |
BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE
|
For engine
RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Compliance with the requirements:
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1111113-D60
Volume:
208 L, print
vendor code:
1111113-D28
Volume:
1000 L
vendor code:
1111113-700
RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By a significant fuel economy RAVENOL EHS SAE 0W-20 contributes by reducing emissions to protect the environment. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL EHS SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL EHS SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used.
- Low volatilization tendency, thereby lower oil consumption.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Reduces CO2 emissions, protect the environment.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057 |
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ACEA | C5, C6 |
C5, C6
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE |
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
|
||
| Recomendations | BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057 |
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
|
||
| Suitable for | Geely, Lynk & Co, Polestar, Volvo |
Geely, Lynk & Co, Polestar, Volvo
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 43.8 | DIN 51562-1 |
43.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 174 | DIN ISO 2909 |
174
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.76 | ASTM D5481 |
2.76
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5490 | ASTM D5293 |
5490
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 12.700 | ASTM D4684 |
12.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.4 | ASTM D5800 |
10.4
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.8 | ASTM D2896 |
8.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.64 | DIN 51575 |
0.64
%wt.
DIN 51575
|
| Approvals | BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057 |
BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057
|
For engine
RAVENOL GFE SAE 5W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1111111-020
Volume:
60 L, print
vendor code:
1111111-D60
Volume:
208 L, print
vendor code:
1111111-D28
Volume:
1000 L
vendor code:
1111111-700
RAVENOL GFE SAE 5W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL GFE SAE 5W-20 contributes to protect the environment by reducing the emissions.
RAVENOL GFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL GFE SAE 5W-20 also meets the specification WSS-M2C945-B1 and API SN PLUS, therefore it can reduce the problem of oil derived low speed pre-ignition.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL GFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.
Characteristics
- Guaranteed fastest possible lubrication of the engine.
- High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency,
- thereby lower oil consumption.
- Can reduce oil derived low speed pre-ignition.
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves.
- Ensures the function of the hydraulic tappets at all temperatures.
- Stable engine oil, no NOx oxidation.
- Good soot absorption and dispersion.
- Neutral towards sealing materials.
- Ideal for hybrid vehicles.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C945-B1, Ford WSS-M2C960-A1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C945-B1, Ford WSS-M2C960-A1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-20 |
5W-20
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1
|
||
| Density at 20 °C | g/cm³ | 851 | EN ISO 12185 |
851
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.6 | DIN 51562-1 |
8.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.1 | DIN 51562-1 |
47.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.76 | ASTM D5481 |
2.76
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 5200 | ASTM D5293 |
5200
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 13.300 | ASTM D4684 |
13.300
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 11.6 | ASTM D5800 |
11.6
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.7 | ASTM D2896 |
7.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.78 | DIN 51575 |
0.78
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3 |
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
|
RAVENOL EHC SAE 0W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
Compliance with the requirements:
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111128-060
Volume:
208 L
vendor code:
1111128-208
Volume:
1000 L
vendor code:
1111128-700
RAVENOL EHC SAE 0W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By a significant fuel economy RAVENOL EHC SAE 0W-20 contributes by reducing emissions to protect the environment.
RAVENOL EHC SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL EHC SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL EHC SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol engines. It is also suitable for use in hybrid vehicles from various manufacturers. The operating instructions of the engine manufacturers must be observed.
Characteristics
- Guaranteed fastest possible lubrication of the engine
- High fuel economy (FE) effect due to the base oils and additives used
- Low volatilization tendency, thereby lower oil consumption
- Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
- No oil-related deposits in combustion chambers in the piston ring zone and on valves
- Ensures the function of the hydraulic tappets at all temperatures
- Stable engine oil, no NOx oxidation
- Good soot absorption and dispersion
- Neutral towards sealing materials
- Reduces CO2 emissions, protects the environment
- Ideal for hybrid vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Buick , Cadillac, Chevrolet, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, GM 6094M, GM dexos1™ Gen 3, Honda/Acura HTO-06, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick , Cadillac, Chevrolet, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, GM 6094M, GM dexos1™ Gen 3, Honda/Acura HTO-06, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-20 |
0W-20
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Recomendations | Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06 |
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06
|
||
| Suitable for | Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota |
Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 44.2 | DIN 51562-1 |
44.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 2.62 | ASTM D5481 |
2.62
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 5490 | ASTM D5293 |
5490
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 16.800 | ASTM D4684 |
16.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 10.4 | ASTM D5800 |
10.4
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.79 | DIN 51575 |
0.79
%wt.
DIN 51575
|
| Approvals | Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 3, Honda/Acura HTO-06 |
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 3, Honda/Acura HTO-06
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Robotic gearbox in a unit with final drive 7/1 GWM 7DCT450
Transmission oil
RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.
Compliance with the requirements:
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
Equivalents OEM:
BMW 83225B3AC81,
BMW 83222433157,
Chery 9009011085,
FEBI 171871,
FEBI 4054224718711,
Ford 2426698,
Ford KU7JM2C218AA,
Hyundai 0023219101,
Hyundai 043002N110,
Hyundai 043002N110EU,
Hyundai UM020CH266,
MB A0009892002,
MB A0009896104,
MB A000989610409,
MB A000989610410,
MB A000989610411,
MB A000989610412,
Renault 7711579594,
Renault 7711782057,
Renault 7711785242,
Renault 7711785243,
Renault 7711945804,
Renault 7711945805,
Renault 7711945827,
Renault 9141860904,
SWAG 33101041,
SWAG 4054228718717,
VAG G055529A2,
VAG G055529Z2,
Volvo 32240419,
Volvo 32240419
BMW 83225B3AC81, BMW 83222433157, Chery 9009011085, FEBI 171871, FEBI 4054224718711, Ford 2426698, Ford KU7JM2C218AA, Hyundai 0023219101, Hyundai 043002N110, Hyundai 043002N110EU, Hyundai UM020CH266, MB A0009892002, MB A0009896104, MB A000989610409, MB A000989610410, MB A000989610411, MB A000989610412, Renault 7711579594, Renault 7711782057, Renault 7711785242, Renault 7711785243, Renault 7711945804, Renault 7711945805, Renault 7711945827, Renault 9141860904, SWAG 33101041, SWAG 4054228718717, VAG G055529A2, VAG G055529Z2, Volvo 32240419, Volvo 32240419
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1212107-D60
Volume:
208 L, print
vendor code:
1212107-D28
Volume:
1000 L
vendor code:
1212107-700
RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.
RAVENOL DCT-LV Fluid guarantees an optimum of power transmission and excellent clutch performance under extreme loads in midsummer as well as at low temperatures in winter.
Application Note
RAVENOL DCT-LV Fluid was specially developed for dual-clutch transmissions from various car manufacturers such as BMW, Ford, Mercedes, VW/Audi.
RAVENOL DCT-LV Fluid is used to lubricate clutches in 7-speed Magna GETRAG dual-clutch transmissions (7DCT300/ 6DCT200/ 6DCT150). It can be used in direct shift transmissions with wet or dry clutches.
Characteristics
- Very good lubricating ability even at low temperatures
- A high, stable viscosity index
- Protection against wear, corrosion and foam formation
- Excellent viscosity-temperature behavior
- High thermal and oxidative stability
- Neutral behavior towards sealing materials
- Stable lubricating film under extreme loads in summer
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Viscosity at 100 °C | mm²/s | 5.55 | DIN 51562-1 |
5.55
mm²/s
DIN 51562-1
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Viscosity at 40 °C | mm²/s | 23.77 | DIN 51562-1 |
23.77
mm²/s
DIN 51562-1
|
| Brookfield Viscosity at -40 °C | mPa*s | 3100 | ASTM D2983 |
3100
mPa*s
ASTM D2983
|
| Viscosity Index VI | 187 | DIN ISO 2909 |
187
DIN ISO 2909
|
|
| Recommendations | BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C |
BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C
|
||
| Brookfield Viscosity at -55 °C | mPa*s | 17200 | ASTM D2983 |
17200
mPa*s
ASTM D2983
|
| Type | Full synthetic |
Full synthetic
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C |
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
|
||
| Compliant products | BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529 |
BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529
|
||
| Density at 20 °C | g/cm³ | 832 | EN ISO 12185 |
832
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Pourpoint | °C | -75 | DIN ISO 3016 |
-75
°C
DIN ISO 3016
|
| Approvals | BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C |
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
|
Hydraulic brake system
Brake fluid
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1350605-020
DOT 4
The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).
With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.
RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.
Application Note
RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.
RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.
RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.
RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.
To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.
RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Fluidity even at very low temperatures
- Optimal ABS properties.
- Chemical stability.
- High lubricating power
- Neutral behavior towards brake parts.
- Can be mixed with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 LV |
DOT-4 LV
|
||
| Recommendations | Ford WSS-M6C65-A2, VW 501 14 |
Ford WSS-M6C65-A2, VW 501 14
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Ford WSS-M6C 65-A2, VW 501.14 |
Ford WSS-M6C 65-A2, VW 501.14
|
||
| specification | DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704 |
DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.1 | ASTM D445 |
2.1
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 675 | ASTM D445 |
675
cSt
ASTM D445
|
| Boiling point | °C | 267 | FMVSS 116 |
267
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 172 | FMVSS 116 |
172
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14 |
DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14
|
Cooling system
Antifreeze
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, VOLVO TR-31854114-002, VOLVO TR 1286083, VOLVO VCS-2, VW L 774-L (entspricht G12evo)
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL ETC Premix -40°C Protect C12evo protects the cooling system from corrosion and frost as well as from overheating in summer.
Application Note
RAVENOL ETC Premix -40°C Protect C12evo is a premixed coolant with frost and corrosion protection for year-round use in automotive engines. Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions:
Clean cooling system, check for leaks, flush. Add RAVENOL ETC Premix -40°C Protect C12evo to fill level.
Characteristics
- Modern additive inhibitors based on Si-OAT technology
- Premium anticorrosion additives for optimal protection for all metals and metal alloys used in coolingsystems, including aluminium
- Long-term corrosion protection up to 5 years
- Compatible with elastomers used in automotive radiators
- Prevention of deposits and foam formation in the cooling system
- Miscibility with all other types of radiator antifreeze
- Free from nitrites, amines, phosphates, borates and 2-ethylhexanoic acid (2-EHA)
- Outstanding protection against thermal stress
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 326.0 (Premix), MB 326.6 (Premix), MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo) |
ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 326.0 (Premix), MB 326.6 (Premix), MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D3306, D4985, D6210 |
D3306, D4985, D6210
|
||
| Recomendations | BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo) |
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
|
||
| Density at 20 °C | g/cm³ | 1078 | EN ISO 12185 |
1078
g/cm³
EN ISO 12185
|
| Color | pink | visual |
pink
visual
|
|
| Reserve alkalinity | mgKOH/g | 4 — | ASTM D1121 |
4 —
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 111.1 | ASTM D1120 |
111.1
°C
ASTM D1120
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| pH - value at 20 °C (50 Vol %) | >8 | ASTM D1287 |
>8
ASTM D1287
|
|
| pH - value at 20 °C | >8 | ASTM D1287 |
>8
ASTM D1287
|
|
| Approvals | BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo) |
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29D100 (MB 326.0), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 326.0, MB 326.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
|
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, VOLVO TR-31854114-002, VOLVO TR 1286083, VOLVO VCS-2, VW L 774-L (entspricht G12evo)
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL ETC Concentrate Protect C12evo protects the cooling system from corrosion, frost and from overheating in summer.
Application Note
RAVENOL ETC Concentrate Protect C12evo with highly effective frost and corrosion protection. Application according to the mixture table. Follow manufacturer's recommendations.
Instructions for use: Clean the cooling system, check for leaks, flush. Mix RAVENOL ETC Concentrate Protect C12evo with demineralized or distilled water (according to the mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
ATTENTION: Never use undiluted! We recommend a mixing ratio of 50:50 (vol %). The minimum proportion of antifreeze concentrate should be between 35% - 60%, otherwise the product will not have a sufficient effect.
Mixture table:
| Frost protection up to approx. | proportion of concentrate | proportion of water |
|---|---|---|
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Modern additive inhibitors based on Si-OAT technology
- Premium anticorrosion additives for optimal protection for all metals and metal alloys used in coolingsystems, including aluminium
- Long-term corrosion protection up to 5 years
- Compatible with elastomers used in automotive radiators
- Prevention of deposits and foam formation in the cooling system
- Miscibility with all other types of radiator antifreeze
- Free from nitrites, amines, phosphates, borates and 2-ethylhexanoic acid (2-EHA)
- Outstanding protection against thermal stress
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 325.0 (Konzentrat), MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo) |
ASTM D3306, ASTM D4985, ASTM D6210, BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 NF, MAN 324 Si-OAT, MB 325.0 (Konzentrat), MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123 (Österreich), SAE J1034, Scania TB 1451, VOLVO TR 1286083, VOLVO TR-31854114-002, VOLVO VCS-2, VW TL 774-L (entspricht G12evo)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D3306, D4985, D6210 |
D3306, D4985, D6210
|
||
| Recomendations | BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo) |
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
|
||
| Density at 20 °C | g/cm³ | 1125 | EN ISO 12185 |
1125
g/cm³
EN ISO 12185
|
| Color | pink | visual |
pink
visual
|
|
| Reserve alkalinity | mgKOH/g | 10 — | ASTM D1121 |
10 —
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 178.9 | ASTM D1120 |
178.9
°C
ASTM D1120
|
| Water content | % | — 4 | ASTM D1123 |
— 4
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -38 | ASTM D1177 |
-38
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,5-8,5 | ASTM D1287 |
7,5-8,5
ASTM D1287
|
|
| Approvals | BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo) |
BMW LC-87, BS 6580:2010 (GB), Cummins CES 14603, CUNA NC 956-16 (Italien), Deutz DQC CC-14, DTFR 29C100 (MB 325.0), DTFR 29C120 (MB 325.5), Fiat 9.55523, Ford ESD-M97B49-A, IVECO 18-1830, JIS K 2234 (Japan), Liebherr LH-01-COL3A, MAN 324 Type NF, MAN 324 Type Si-OAT, MB 325.0, MB 325.5, MB 325.6, MTU MTL 5048, O Norm V 5123, SAE J 1034, Scania TB 1451, Volvo TR 1286083, Volvo TR-31854114-002, Volvo VCS-2, VW L 774-L (entspricht G12evo)
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
