With RAVENOL Motobike 4-T Standard SAE 20W-50 a solid and high loadable engine oil was developed for superior engines of motorbikes with wet couplings and oil lubricated couplings.
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1173133-001
Volume:
4 L
vendor code:
1173133-004
With RAVENOL Motobike 4-T Standard SAE 20W-50 a solid and high loadable engine oil was developed for superior engines of motorbikes with wet couplings and oil lubricated couplings.
RAVENOL Motobike 4-T Standard SAE 20W-50 has an excellent lubricating film adhesive capacity and a very good shear stability as well as an excellent cleaning power and a high aging resistance.
Application Note
RAVENOL Motobike 4-T Standard SAE 20W-50 is suitable as an engine oil for all motorbikes from year 2001 in case the specification SAE 20W-50 JASO MA/MA2 is requested.
Characteristics
- Good shear stability
- Good cold start characteristics
- High oxidation stability
- Stable lubricating film even under heavy load
- Prevention of black sludge formation
- Very good viscosity-temperature behavior
- Convincing detergent and dispersant properties
- High safety reserves, even with boundary lubrication conditions
- Very low evaporation tendency
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | SL |
SL
|
||
| JASO | MA, MA2 |
MA, MA2
|
||
| Density at 20 °C | kg/m³ | 879 | EN ISO 12185 |
879
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.8 | DIN 51562-1 |
18.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 174.6 | DIN 51562-1 |
174.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 121 | DIN ISO 2909 |
121
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 3.4 | ASTM D5800 |
3.4
% M/M
ASTM D5800
|
| Flashpoint | °C | 258 | DIN EN ISO 2592 |
258
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 6.7 | ASTM D2896 |
6.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.82 | DIN 51575 |
0.82
%wt.
DIN 51575
|
The high additive content of RAVENOL SUPER TURBO SAE 20W-50 guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.
Compliance with the requirements:
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1113126-001
Volume:
4 L
vendor code:
1113126-004
Volume:
5 L
vendor code:
1113126-005
Volume:
10 L
vendor code:
1113126-010
Volume:
20 L
vendor code:
1113126-020
Volume:
20 L, ecobox
vendor code:
1113126-B20
Volume:
60 L
vendor code:
1113126-060
Volume:
208 L
vendor code:
1113126-208
Volume:
1000 L
vendor code:
1113126-700
The high additive content of RAVENOL SUPER TURBO SAE 20W-50 guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.
RAVENOL SUPER TURBO SAE 20W-50 is a top product with high safety reserves.
Application Note
RAVENOL SUPER TURBO SAE 20W-50 is used in passenger car gasoline and diesel engines with and without turbocharging, if the SAE 20W-50 is required.
RAVENOL SUPER TURBO SAE 20W-50 is miscible with all HD motor oils based on mineral oil.
Characteristics
- Excellent detergent and dispersant
- A good cold start performance
- High oxidation stability
- An excellent viscosity-temperature behaviour
- Best wear protection
- High safety reserves
- Reduction of emissioins
- Catalyst suitability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, CH-4, SL |
CF, CH-4, SL
|
||
| ACEA | A3, B4, E2 |
A3, B4, E2
|
||
| Recomendations | Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00 |
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
|
||
| Density at 20 °C | 876,0 | EN ISO 12185 |
876,0
EN ISO 12185
|
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.9 | DIN 51562-1 |
18.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 161.2 | DIN 51562-1 |
161.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 133 | DIN ISO 2909 |
133
DIN ISO 2909
|
|
| CCS Viscosity at -15 °C | mPa*s | 6500 | ASTM D5293 |
6500
mPa*s
ASTM D5293
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 241 | DIN EN ISO 2592 |
241
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.3 | ASTM D2896 |
11.3
mgKOH/g
ASTM D2896
|
| Approvals | Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00 |
Cummins CES 20071, Deutz DQC II-10, Mack EO-M, MAN 271, MB 228.1, MB 229.1, MTU Type 1, Volvo VDS, VW 501.01, VW 505.00
|
RAVENOL MARINEOIL DIESEL SHPD 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1163110-001
Volume:
4 L
vendor code:
1163110-004
Volume:
10 L
vendor code:
1163110-010
Volume:
20 L
vendor code:
1163110-020
Volume:
20 L, ecobox
vendor code:
1163110-B20
Volume:
60 L
vendor code:
1163110-060
Volume:
208 L
vendor code:
1163110-208
Volume:
1000 L
vendor code:
1163110-700
RAVENOL MARINEOIL DIESEL SHPD 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.
Characteristics
- an extreme high pressure absorption capacity
- a very high oxidation stability
- an excellent aging resistance
- an excellent viscosity temperature behaviour
- high safety reserves also under boundary lubrication conditions
- suitability for extended oil change intervals
- suitability for complicate operating conditions
- a good water separation behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| SAE | 20W-50 |
20W-50
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CI-4 |
CI-4
|
||
| ACEA | B4, E7 |
B4, E7
|
||
| Suitable for | Mercruiser, STEYR, Yanmar |
Mercruiser, STEYR, Yanmar
|
||
| Density at 20 °C | kg/m³ | 878 | EN ISO 12185 |
878
kg/m³
EN ISO 12185
|
| Color | Blue | visual |
Blue
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 161.3 | DIN 51562-1 |
161.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 128 | DIN ISO 2909 |
128
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 250 | DIN EN ISO 2592 |
250
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.2 | ASTM D2896 |
11.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.2 | DIN 51575 |
1.2
%wt.
DIN 51575
|

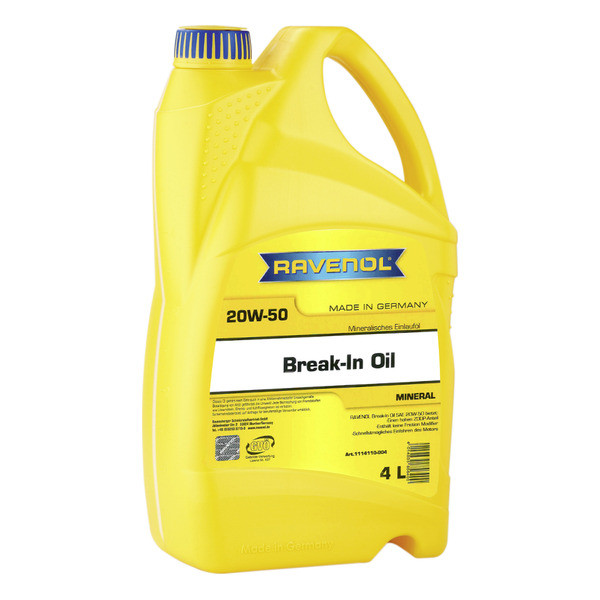

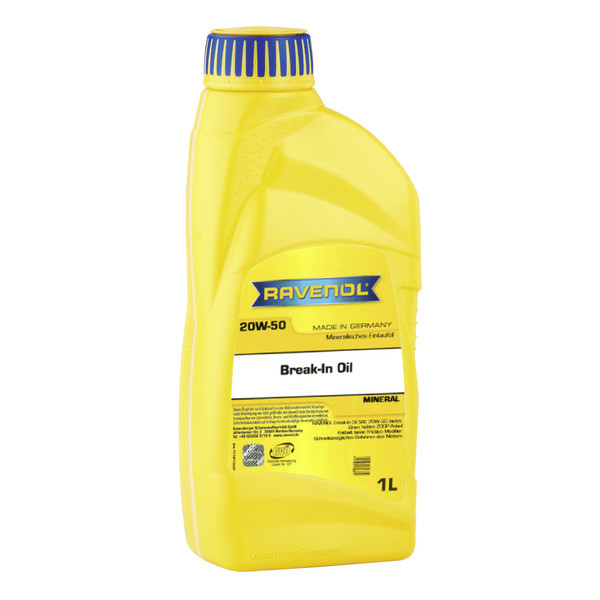

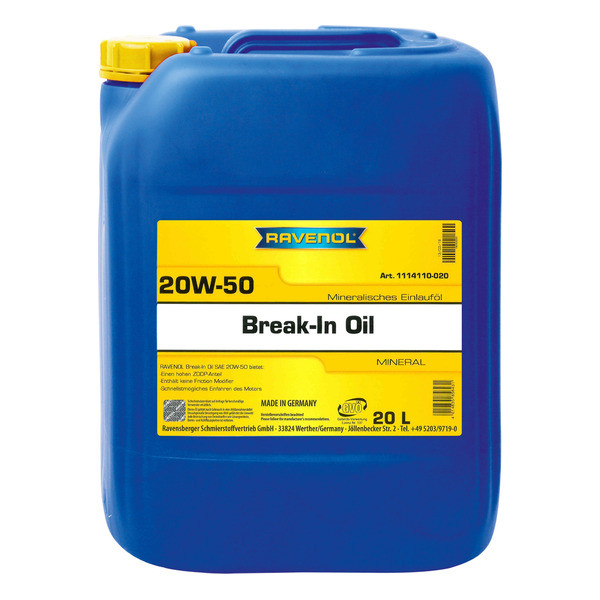

RAVENOL Break-In Oil SAE 20W-50 dispenses with the use of friction coefficient improving additives (friction modifier) to considerably shorten the break-in phase for rebuilt and modified engines. The piston rings are rapidly seated. .Due to its high content of 2.5% ZDDP (zinc dithiophosphate) (equivalent to approx. 2,500 ppm zinc), RAVENOL Break-In Oil SAE 20W-50 is especially recommended for driving classic V8 engines with flat tappets.
SAE: 20W-50
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1114110-004
Volume:
20 L
vendor code:
1114110-020
Volume:
20 L, ecobox
vendor code:
1114110-B20
Volume:
60 L
vendor code:
1114110-060
Volume:
208 L
vendor code:
1114110-208
RAVENOL Break-In Oil SAE 20W-50 dispenses with the use of friction coefficient improving additives (friction modifier) to considerably shorten the break-in phase for rebuilt and modified engines. The piston rings are rapidly seated. .Due to its high content of 2.5% ZDDP (zinc dithiophosphate) (equivalent to approx. 2,500 ppm zinc), RAVENOL Break-In Oil SAE 20W-50 is especially recommended for driving classic V8 engines with flat tappets.
RAVENOL Break-In Oil SAE 20W-50 protects the camshaft, lifter and valve train in the running-in phase of the engine.
RAVENOL Break-In Oil SAE 20W-50 is very well suited for all high-lift and high-speed camshafts and regulates the first run-in clearance of engine mounts.
RAVENOL Break-In Oil SAE 20W-50 is well suited for racing engines, which have hardly a warm-up phase.
Application Note
RAVENOL Break-In Oil SAE 20W-50 serves as a classic break-in oil and therefore can only remain in the engine for a short time (max. 1000km). The particularly high levels of anti-wear additives offer extra protection during the critical break-in phase of rebuilt engines. Please pay attention to the specifications of your engine reconditioners during the break-in phase. High engine loads and speeds are to be avoided.
Characteristics
- Very high levels of ZDDP
- No friction modifier
- Breaks the engine in as quickly as possible
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| Density at 20 °C | kg/m³ | 876 | EN ISO 12185 |
876
kg/m³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.7 | DIN 51562-1 |
17.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 152 | DIN 51562-1 |
152
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 128 | DIN ISO 2909 |
128
DIN ISO 2909
|
|
| CCS Viscosity at -15 °C | mPa*s | 5960 | ASTM D5293 |
5960
mPa*s
ASTM D5293
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 258 | DIN EN ISO 2592 |
258
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 5 | ASTM D2896 |
5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
RAVENOL Motobike V-Twin SAE 20W-50 Fullsynth. reduces the friction and reliably protects the valves and the crankshaft against metal-to-metal contact. The consistent viscosity reduces load peaks at high temperatures.
SAE: 20W-50
Equivalents OEM:
BRP 779462, Honda 08C35A251L01, Honda 08C35A251M01, Honda 08C35A251M02, Yamaha LUB20W50SS12, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12, Yamalube YMD650220101, Yamalube YMD650220102, Yamalube YMD650220103, Yamalube YMD650220104, Yamalube YMD650220105, Yamalube YMD650220402, Yamalube YMD650220403, Yamalube YMD650222080, Yamalube YMD650226001, Yamalube YMD650226002, Yamalube YMD650226003, Yamalube YMD650420100, Yamalube YMD650420102, Yamalube YMD650420103, Yamalube YMD650420104, Yamalube YMD650422081, Yamalube YMD650422082, Yamalube YMD650422082, Yamalube YMD650426001, Yamalube YMD650426002
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1171105-020
Volume:
20 L, ecobox
vendor code:
1171105-B20
Volume:
60 L
vendor code:
1171105-060
Volume:
208 L
vendor code:
1171105-208
Volume:
208 L, print
vendor code:
1171105-D28
RAVENOL Motobike V-Twin SAE 20W-50 Fullsynth. reduces the friction and reliably protects the valves and the crankshaft against metal-to-metal contact. The consistent viscosity reduces load peaks at high temperatures.
RAVENOL Motobike V-Twin SAE 20W-50 Fullsynth. demonstrates excellent stability and durability against thermal loads under extremely high temperatures that can occur in air-cooled V-twin engines.
Application Note
RAVENOL Motobike V-Twin SAE 20W-50 Fullsynth. is suitable as an engine oil for all V-twin chopper and cruiser motorcycles if the specification SAE 20W-50 is required.
Characteristics
- a very stable and outstanding viscosity behaviour
- reduced friction
- outstanding viscosity temperature characteristics
- a reliable lubrication film at extremely high operating temperatures
- very good protection against wear and corrosion
- protection against foaming
- excellent deterging and dispersing properties
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Full synthetic |
Full synthetic
|
||
| JASO | MA2 |
MA2
|
||
| Recomendations | Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory |
Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
|
||
| Suitable for | BMW Cruiser Motorcycles |
BMW Cruiser Motorcycles
|
||
| Compliant products | Harley Davidson 62600005, Harley Davidson 62600031, Honda 08C35-A251L01, Honda 08C35-A251M01, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12 |
Harley Davidson 62600005, Harley Davidson 62600031, Honda 08C35-A251L01, Honda 08C35-A251M01, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12
|
||
| Density at 20 °C | kg/m³ | 858 | EN ISO 12185 |
858
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 19.8 | DIN 51562-1 |
19.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 139.67 | DIN 51562-1 |
139.67
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| CCS Viscosity at -15 °C | mPa*s | 4473 | ASTM D5293 |
4473
mPa*s
ASTM D5293
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.4 | ASTM D2896 |
7.4
mgKOH/g
ASTM D2896
|
| Approvals | Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory |
Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
|
RAVENOL Motobike 4-T Mineral 20W-50 has an excellent lubricating film adhesive capacity and a very good shear stability as well as an excellent cleaning power and a high aging resistance.
SAE: 20W-50
API: SN
Equivalents OEM:
Alpine 0121481, Alpine 0121483, Alpine 121481, Alpine 121481, BMW 81229407685, BMW 83219407770, GM 19375074, GM 19375075, Honda 08C35A25W0M, Yamaha 90793AR40300, Yamaha ACCY4M204012, Yamaha ACCY40204012
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1173122-020
Volume:
20 L, ecobox
vendor code:
1173122-B20
Volume:
60 L
vendor code:
1173122-060
Volume:
208 L
vendor code:
1173122-208
Volume:
1000 L
vendor code:
1173122-700
Volume:
10 L
vendor code:
1173122-010
RAVENOL Motobike 4-T Mineral 20W-50 has an excellent lubricating film adhesive capacity and a very good shear stability as well as an excellent cleaning power and a high aging resistance.
Application Note
RAVENOL Motobike 4-T Mineral 20W-50 is suitable as an engine oil for all motorbikes in case the specification SAE 20W-50 JASO MA/MA2 is requested.
Characteristics
- a very good shear stability
- very good cold start characteristics
- a high oxidation stability
- prevention of black sludge accumulation
- an excellent viscosity temperature behaviour
- suitable for catalysts
- convincing detergent and dispersant characteristics
- high safety reserves even under boundary lubrication conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | SN |
SN
|
||
| JASO | MA2 |
MA2
|
||
| JASO T904 DFI | 1.89 | JASO T904 |
1.89
JASO T904
|
|
| JASO T904 SFI | 1.65 | JASO T904 |
1.65
JASO T904
|
|
| JASO T904 STI | 1.86 | JASO T904 |
1.86
JASO T904
|
|
| Suitable for | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Density at 20 °C | kg/m³ | 873.2 | EN ISO 12185 |
873.2
kg/m³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 18 | DIN 51562-1 |
18
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 161.8 | DIN 51562-1 |
161.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 123 | DIN ISO 2909 |
123
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 5.15 | ASTM D5481 |
5.15
mPa*s
ASTM D5481
|
| CCS Viscosity at -15 °C | mPa*s | 8300 | ASTM D5293 |
8300
mPa*s
ASTM D5293
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % M/M | 2.8 | ASTM D5800 |
2.8
% M/M
ASTM D5800
|
| Flashpoint | °C | 266 | DIN EN ISO 2592 |
266
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.6 | ASTM D2896 |
7.6
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.85 | DIN 51575 |
0.85
%wt.
DIN 51575
|
RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
Compliance with the requirements:
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
SAE: 20W-50
Equivalents OEM:
FEBI 32921, FEBI 32922, FEBI 32923, FEBI 32924, FEBI 38408, GM 109206, GM 88865546, GM 88900131, GM 88900133, VAG G052167A9, VAG G052167A9
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123120-001
Volume:
5 L
vendor code:
1123120-005
Volume:
10 L
vendor code:
1123120-010
Volume:
20 L, ecobox
vendor code:
1123120-B20
Volume:
208 L
vendor code:
1123120-208
Volume:
208 L, print
vendor code:
1123120-D28
Volume:
1000 L
vendor code:
1123120-700
RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
RAVENOL Turbo Plus SHPD 20W-50 is particularly suitable for engines with already high performance.
Application Note
RAVENOL Turbo Plus SHPD 20W-50 is tried and tested for aggregates specifying:
Specifications: API CI-4, API SL/CF, ACEA E7, A3/B4
Recommendations: Allison C4; Caterpillar ECF-1a, ECF-2; Cummins CES 20071, -72, -76, -77, -78; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-M Plus; MAN M 3275-1; MB 228.3, MB 229.1; MTU Type 2, MTU Type 3; Renault VI RLD, RLD-2; Volvo VDS-3
Characteristics
- Well shear stability
- Very high oxidation stability
- Excellent viscosity-temperature behaviour
- Conclusive detergent- and dispersant properties
- High security reserves also under limited lubrication circumstances
- Excellent cold start properties
- Prevents black sludge formation
- Suitable for catalyst
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, CI-4, SL |
CF, CI-4, SL
|
||
| ACEA | A3, B4, E7 |
A3, B4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Recomendations | Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
||
| Density at 20 °C | kg/m³ | 878 | EN ISO 12185 |
878
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.4 | DIN 51562-1 |
18.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 162.1 | DIN 51562-1 |
162.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 127 | DIN ISO 2909 |
127
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.3 | ASTM D2896 |
11.3
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.2 | DIN 51575 |
1.2
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
RAVENOL Formel Diesel Super SAE 20W-50 is a high-quality product with high safety reserves.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123220-001
Volume:
20 L, ecobox
vendor code:
1123220-B20
Volume:
60 L, print
vendor code:
1123220-D60
Volume:
208 L, print
vendor code:
1123220-D28
Volume:
1000 L
vendor code:
1123220-700
RAVENOL Formel Diesel Super SAE 20W-50 is a high-quality product with high safety reserves.
RAVENOL Formel Diesel Super SAE 20W-50 is particularly suitable for high mileage engines.
Application Note
RAVENOL Formel Diesel Super SAE 20W-50 is used for truck diesel engines with and without turbocharge. Also suitable for stationary units.
Characteristics
- Good shearing stability
- High oxidation stability
- Excellent viscosity-temperature attribute
- Compelling detergent- and dispersant properties
- High safety reserves even in boundary lubrication
- Excellent cold starting properties
- Prevents black sludge from forming
- Catalytic converter safe
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4, CH-4 |
CF-4, CH-4
|
||
| ACEA | A3, B4, E2 |
A3, B4, E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00 |
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00
|
||
| Density at 20 °C | kg/m³ | 876 | EN ISO 12185 |
876
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 19 | DIN 51562-1 |
19
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 161.4 | DIN 51562-1 |
161.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 133 | DIN ISO 2909 |
133
DIN ISO 2909
|
|
| CCS Viscosity at -15 °C | mPa*s | 6200 | ASTM D5293 |
6200
mPa*s
ASTM D5293
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.1 | ASTM D2896 |
11.1
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00 |
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00
|
Application NoteRAVENOL Formel Extra SAE 20W-50 is suitable for both gasoline and diesel engines which require this grade of engine oil.
Compliance with the requirements:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1113120-004
Volume:
20 L, ecobox
vendor code:
1113120-B20
Volume:
208 L, print
vendor code:
1113120-D28
Volume:
1000 L
vendor code:
1113120-700
Application Note
RAVENOL Formel Extra SAE 20W-50 is suitable for both gasoline and diesel engines which require this grade of engine oil.
Characteristics
- Excellent protection against corrosion
- A very good shear stability
- A high oxidation stability
- An excellent viscosity-temperature behavior
- Optimum operation of hydraulic tappets (hydraulic valve adjustment)
- High levels of detergent and dispersant additives for cleaner engines
- Compatible with all types of sealing materials
- Very good cold starting properties
- Prevents the formation of adhesions, varnish, carbon deposits and sludge accumulation
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| ACEA | A2, B2 |
A2, B2
|
||
| Recomendations | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Density at 20 °C | kg/m³ | 871 | EN ISO 12185 |
871
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.1 | DIN 51562-1 |
18.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 151.5 | DIN 51562-1 |
151.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 133 | DIN ISO 2909 |
133
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.3 | ASTM D2896 |
7.3
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Approvals | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
RAVENOL Motobike V-Twin SAE 20W-50 Mineral reduces the friction and reliably protects the valves and the crankshaft against metal-to-metal contact. The consistent viscosity reduces load peaks at high temperatures.
Compliance with the requirements:
Victory
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1173105-020
Volume:
20 L, ecobox
vendor code:
1173105-B20
Volume:
60 L
vendor code:
1173105-060
Volume:
208 L
vendor code:
1173105-208
RAVENOL Motobike V-Twin SAE 20W-50 Mineral reduces the friction and reliably protects the valves and the crankshaft against metal-to-metal contact. The consistent viscosity reduces load peaks at high temperatures.
RAVENOL Motobike V-Twin SAE 20W-50 Mineral demonstrates excellent stability and durability against thermal loads under extremely high temperatures that can occur in air-cooled V-twin engines.
Application Note
RAVENOL Motobike V-Twin SAE 20W-50 Mineral is suitable as an engine oil for all V-twin chopper and cruiser motorcycles if the specification SAE 20W-50 is required.
Characteristics
- a very stable and outstanding viscosity behaviour
- reduced friction
- outstanding viscosity temperature characteristics
- a reliable lubrication film at extremely high operating temperatures
- very good protection against wear and corrosion
- protection against foaming
- excellent deterging and dispersing properties
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | SL |
SL
|
||
| JASO | MA2 |
MA2
|
||
| Recomendations | Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory |
Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
|
||
| Suitable for | BMW Cruiser Motorcycles |
BMW Cruiser Motorcycles
|
||
| Compliant products | Harley Davidson 62600005, Harley Davidson 62600031, Honda 08C35-A251L01, Honda 08C35-A251M01, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12 |
Harley Davidson 62600005, Harley Davidson 62600031, Honda 08C35-A251L01, Honda 08C35-A251M01, Yamalube LUB20W50AP04, Yamalube LUB20W50AP12
|
||
| Density at 20 °C | kg/m³ | 878 | EN ISO 12185 |
878
kg/m³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 20.4 | DIN 51562-1 |
20.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 173.4 | DIN 51562-1 |
173.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| CCS Viscosity at -15 °C | mPa*s | 6459 | ASTM D5293 |
6459
mPa*s
ASTM D5293
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 236 | DIN EN ISO 2592 |
236
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.7 | ASTM D2896 |
8.7
mgKOH/g
ASTM D2896
|
| Approvals | Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory |
Indian, Moto, Suzuki V-Twin Motor Oil, Triumph, Victory
|
RAVENOL MARINEOIL PETROL 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.
Compliance with the requirements:
Volvo Penta AB
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1163210-001
Volume:
10 L
vendor code:
1163210-010
Volume:
20 L
vendor code:
1163210-020
Volume:
20 L, ecobox
vendor code:
1163210-B20
Volume:
60 L
vendor code:
1163210-060
Volume:
208 L
vendor code:
1163210-208
Volume:
1000 L
vendor code:
1163210-700
RAVENOL MARINEOIL PETROL 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.
Characteristics
- an extreme high pressure absorption capacity
- a very high oxidation stability
- an excellent aging resistance
- an excellent viscosity temperature behaviour
- high safety reserves also under boundary lubrication conditions
- suitability for extended oil change intervals
- suitability for complicate operating conditions
- a good water separation behaviour
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| SAE | 20W-50 |
20W-50
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | SL |
SL
|
||
| Recomendations | Volvo Penta AB |
Volvo Penta AB
|
||
| Suitable for | Kohler, Mercruiser, Yanmar |
Kohler, Mercruiser, Yanmar
|
||
| Density at 20 °C | kg/m³ | 878.2 | EN ISO 12185 |
878.2
kg/m³
EN ISO 12185
|
| Color | Blue | visual |
Blue
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.5 | DIN 51562-1 |
18.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 161 | DIN 51562-1 |
161
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 129 | DIN ISO 2909 |
129
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 247 | DIN EN ISO 2592 |
247
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.7 | ASTM D2896 |
10.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.42 | DIN 51575 |
1.42
%wt.
DIN 51575
|
| Approvals | Volvo Penta AB |
Volvo Penta AB
|

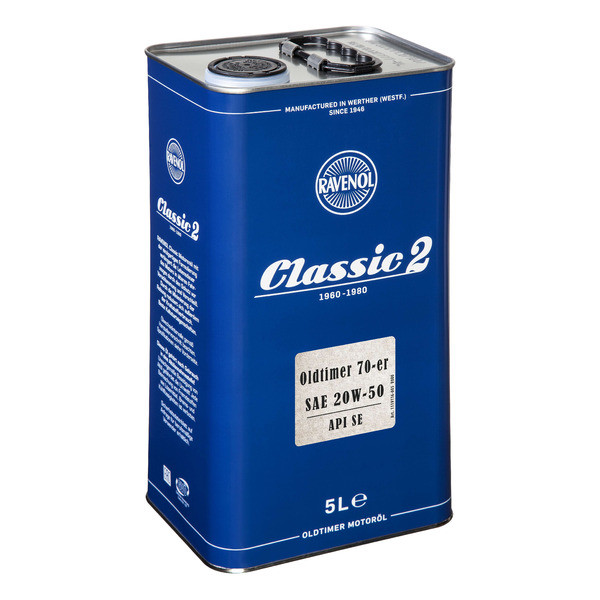

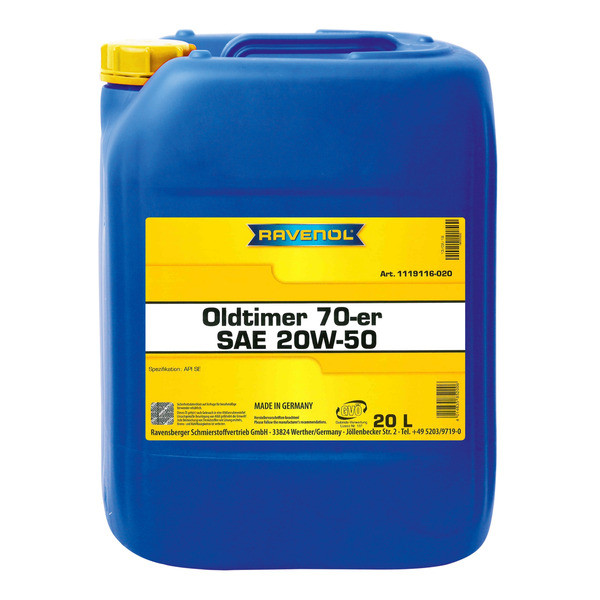

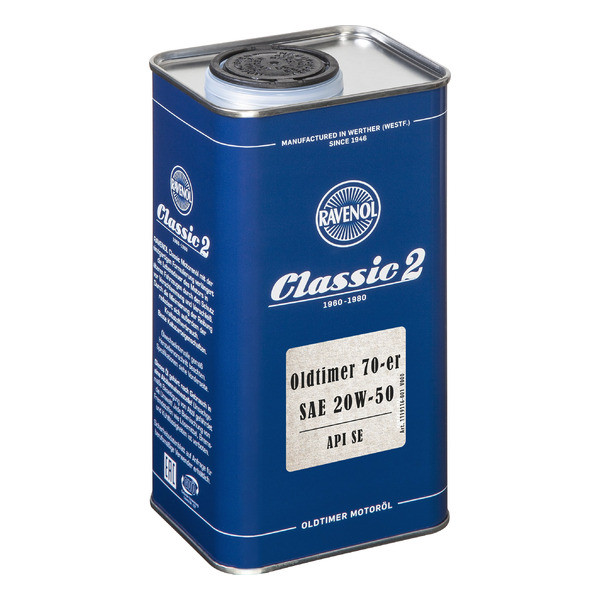

RAVENOL Oldtimer 70-er SAE 20W-50 API SE is an alloyed multi-grade engine oil designed for use in classic vehicles built prior to 1979. It is manufactured using carefully selected pure mineral raffinates and additives. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol and diesel engines / classic vehicles built before 1979. Using this oil in modern engines can lead to defective performance or cause damage.
SAE: 20W-50
API: SE
Equivalents OEM:
BMW 83210398771, MB A00198909010014, Porsche 00004320928, Porsche 00004320929, Porsche 00004320980, Porsche PCG04321090, Porsche PCG04321090
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1119116-020
Volume:
20 L, ecobox
vendor code:
1119116-B20
Volume:
60 L
vendor code:
1119116-060
Volume:
60 L, print
vendor code:
1119116-D60
RAVENOL Oldtimer 70-er SAE 20W-50 API SE is an alloyed multi-grade engine oil designed for use in classic vehicles built prior to 1979. It is manufactured using carefully selected pure mineral raffinates and additives. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol and diesel engines / classic vehicles built before 1979. Using this oil in modern engines can lead to defective performance or cause damage.
Application Note
RAVENOL Oldtimer 70-er SAE 20W-50 API SE is designed for use in the engines of vehicles which were built prior to 1979, where the API specification SE is required.
Observe the oil change intervals specified in the manufacturer's instructions.
Characteristics
- Corrosion protection
- Good shear stability
- Good oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- High safety also at boundary lubrication conditions
- Neutrality towards sealing materials
- Very good cold start characteristics
- Prevents the formation of adhesions, varnish, carbon deposits and sludging (black sludge) on cylinders, pistons, valves, spark plugs and in turbochargers
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | SE |
SE
|
||
| Density at 20 °C | kg/m³ | 879 | EN ISO 12185 |
879
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.6 | DIN 51562-1 |
18.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 171.6 | DIN 51562-1 |
171.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|

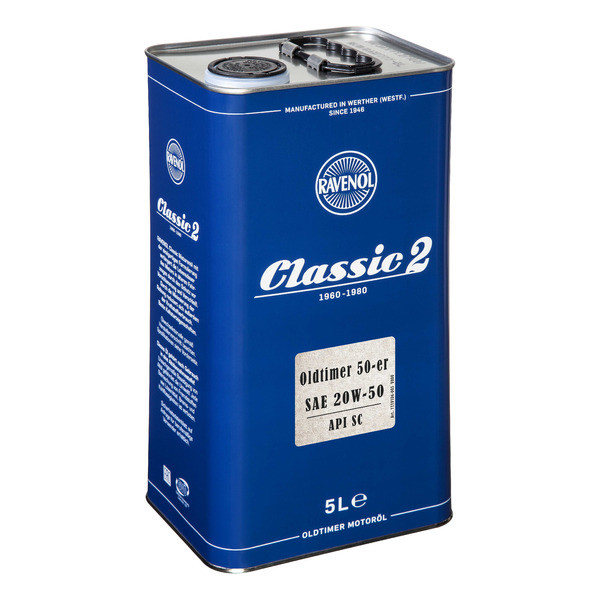

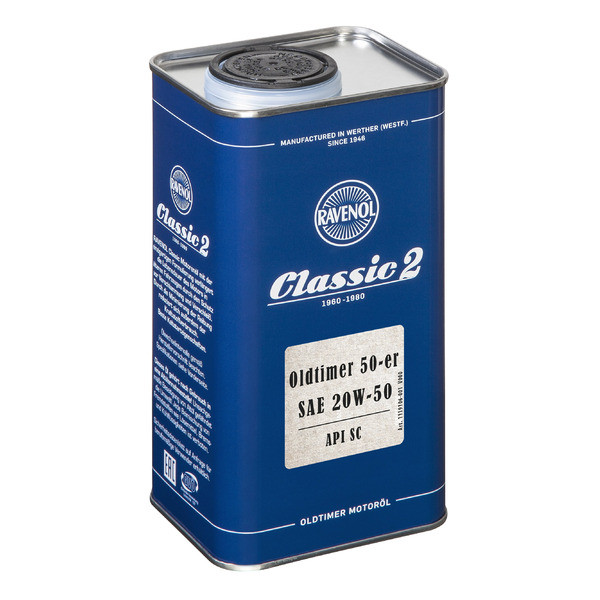

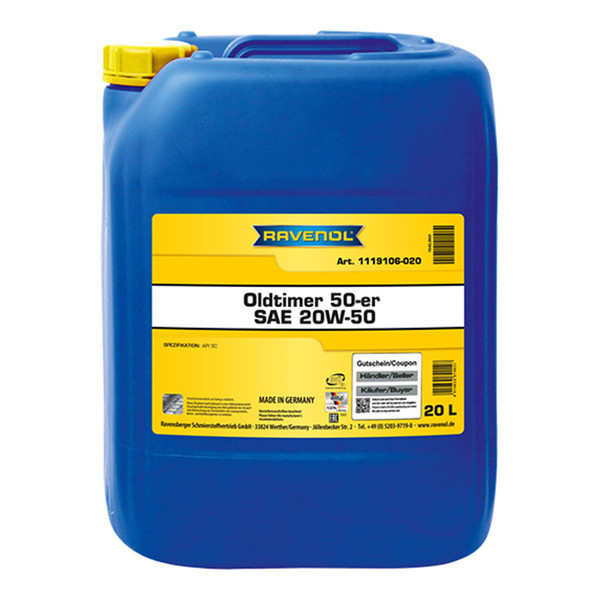

RAVENOL Oldtimer 50-er SAE 20W-50 API SC is an alloyed multi-grade engine oil designed for use in classic vehicles built prior to 1967. It is manufactured using carefully selected pure mineral raffinates and additives. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol and diesel engines / classic vehicles built before 1967. Using this oil in modern engines can lead to defective performance or cause damage.
- Available packaging
- Product parameters
RAVENOL Oldtimer 50-er SAE 20W-50 API SC is an alloyed multi-grade engine oil designed for use in classic vehicles built prior to 1967. It is manufactured using carefully selected pure mineral raffinates and additives. It provides oxidation stability, it is non-foaming and also has excellent viscosity-temperature characteristics. Thanks to its low setting point, this oil can be used in both low and high temperatures and guarantees perfect lubrication. It is suitable for use in most petrol and diesel engines / classic vehicles built before 1967. Using this oil in modern engines can lead to defective performance or cause damage.
Application Note
RAVENOL Oldtimer 50-er SAE 20W-50 API SC is designed for use in the engines of vehicles which were built prior to 1967, where the API specification SC is required. Adhere to oil change intervals specified in the manufacturer's instructions.
Characteristics
- Corrosion protection
- Good oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- High safety also at boundary lubrication conditions
- Neutrality towards sealing materials
- Very good cold start characteristics
- Prevents the formation of adhesions, varnish, carbon deposits and sludging (black sludge) on cylinders, pistons, valves, spark plugs and in turbochargers
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 20W-50 |
20W-50
|
||
| Type | Mineral |
Mineral
|
||
| API | SC |
SC
|
||
| Density at 20 °C | kg/m³ | 880 | EN ISO 12185 |
880
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.8 | DIN 51562-1 |
18.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 174.5 | DIN 51562-1 |
174.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 252 | DIN EN ISO 2592 |
252
°C
DIN EN ISO 2592
|
